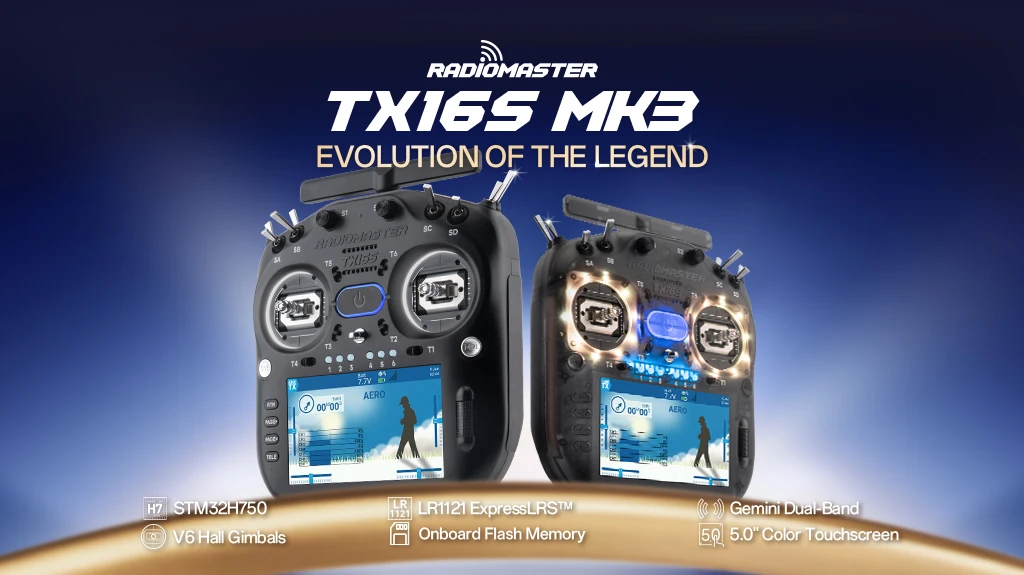

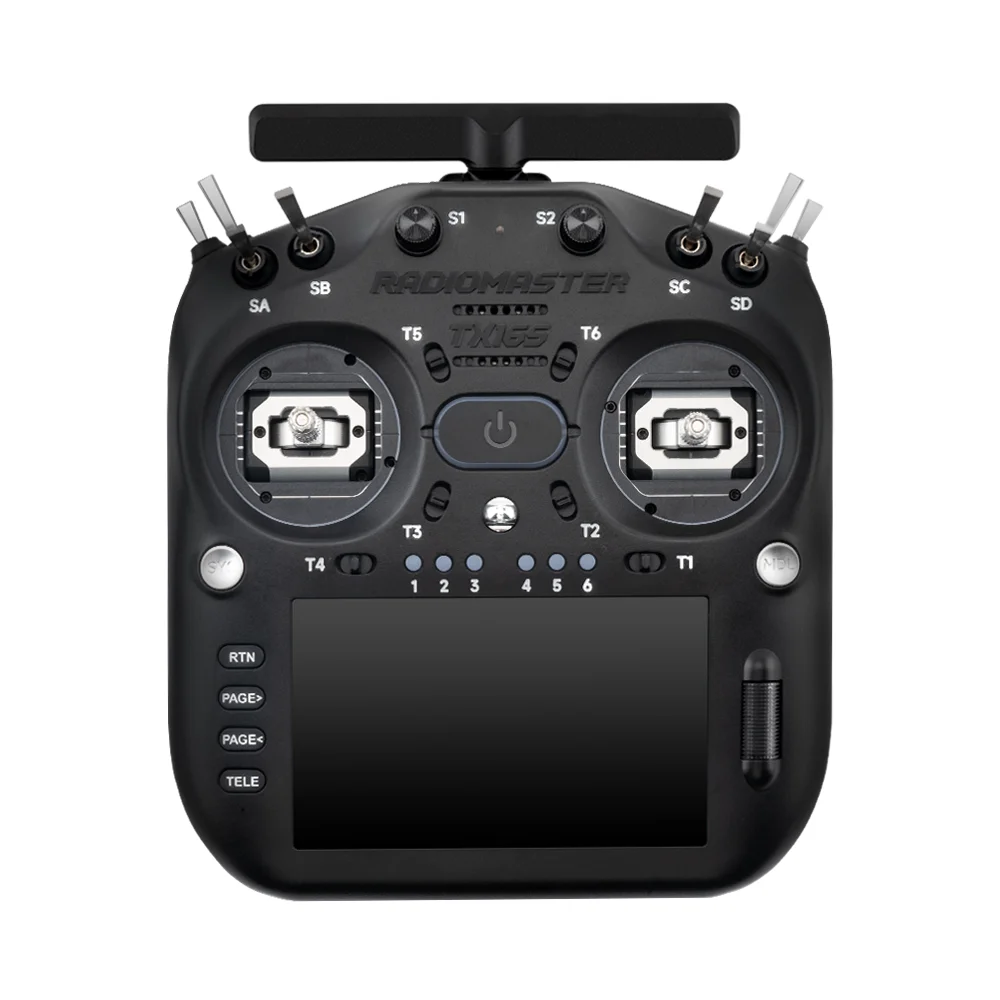

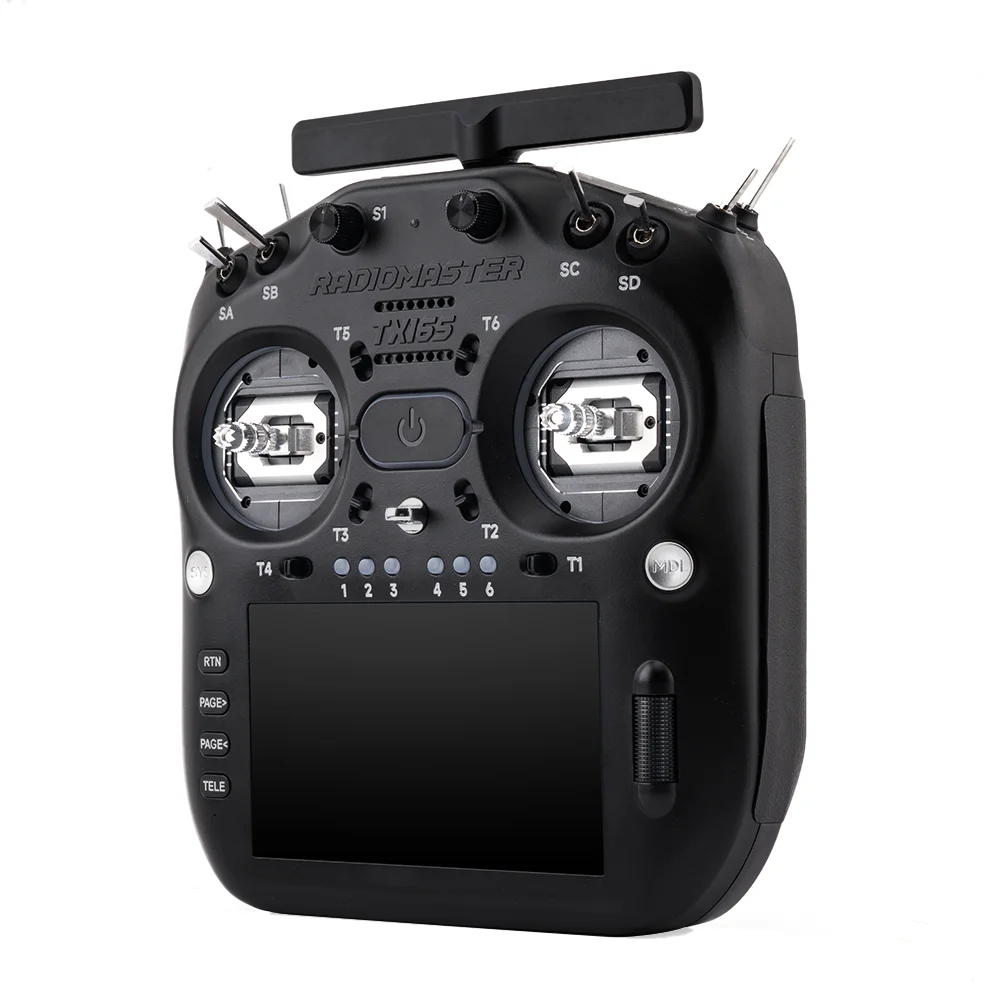

Radiomaster TX16S MK3 2.4GHz 900MHz V6 Hall Gimbal 5 inch IPS Touchscreen Gemini Dual Band ExpressLRS Radio Controller

Features

High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.

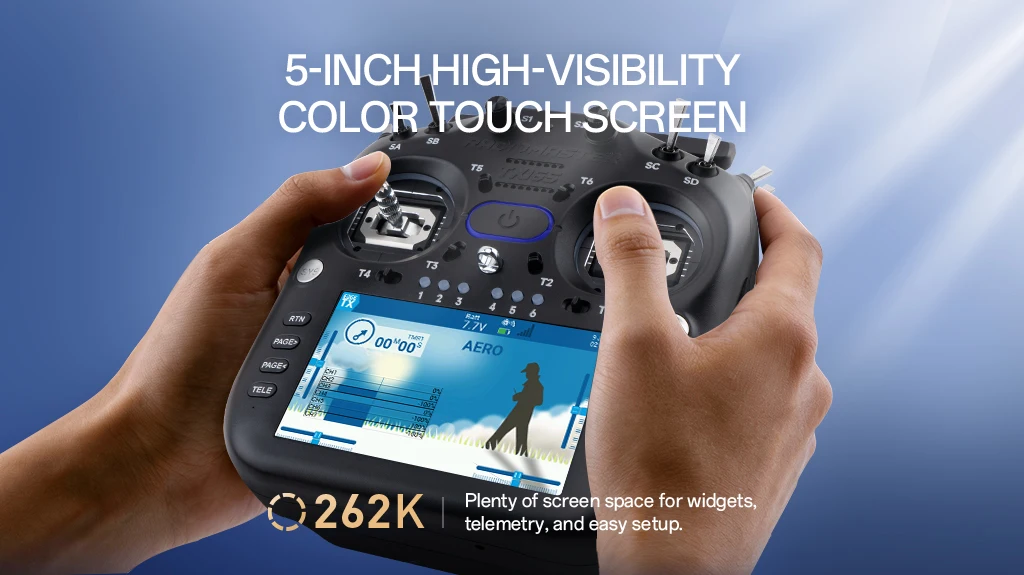

Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

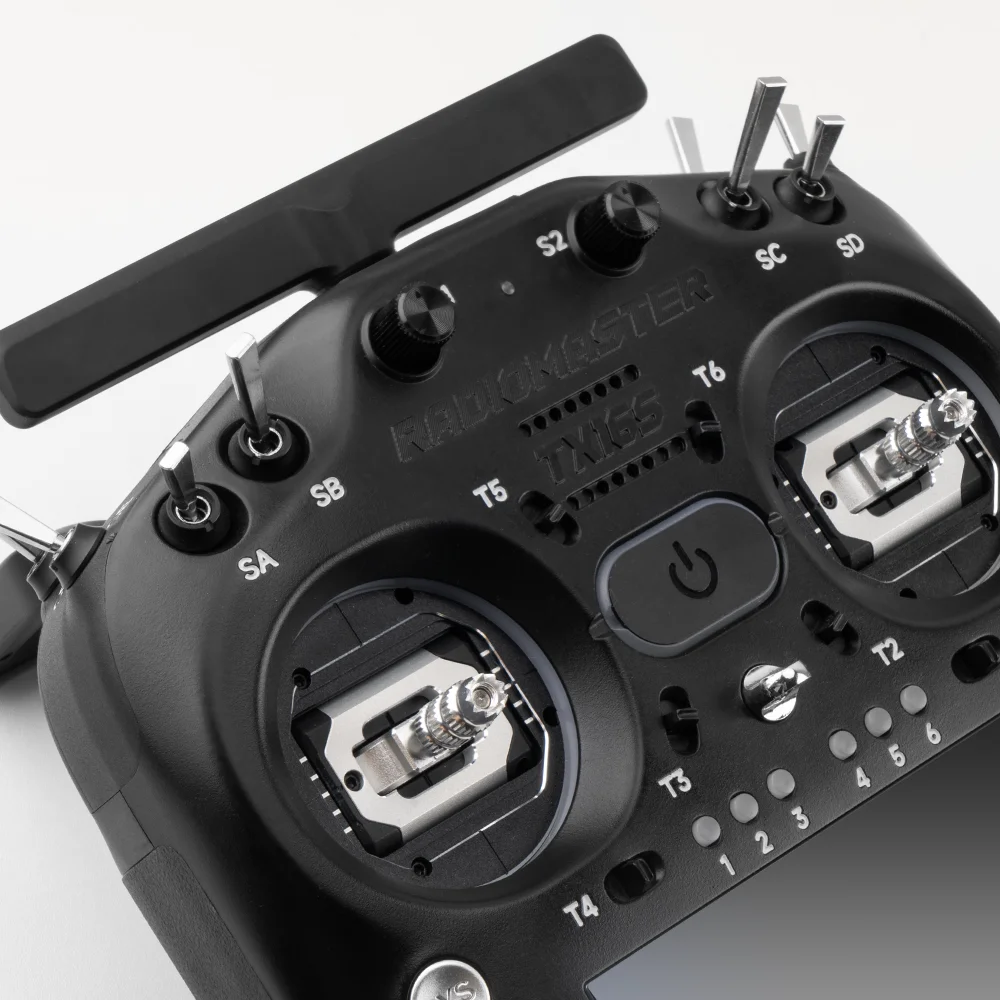

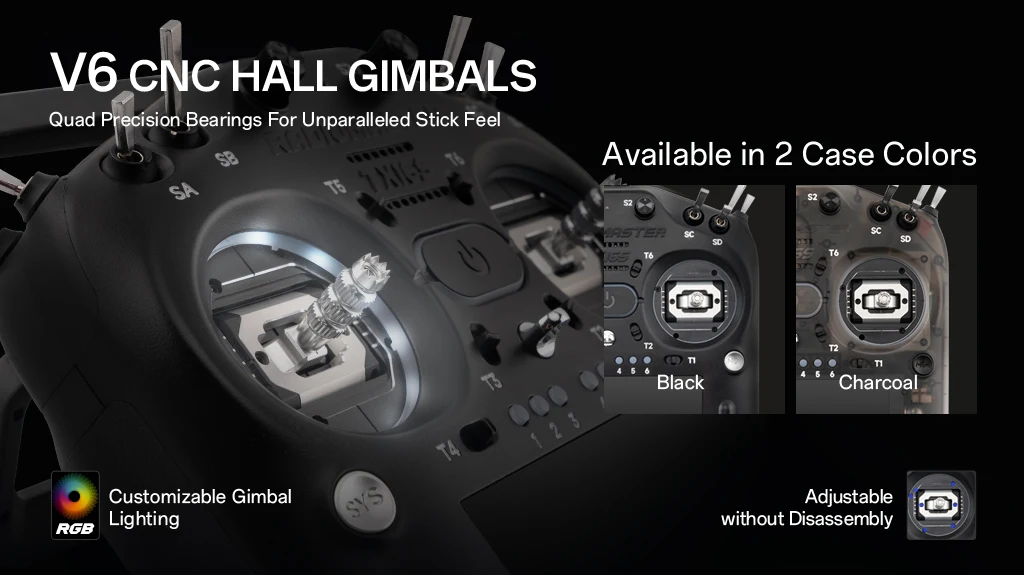

Precision Gimbals: V6 quad-bearing Hall sensor gimbals (AG02 compatible)

RGB Programmable Gimbal Light Rings: LUA-controlled, customizable LED gimbal lighting.

Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz

Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.

Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.

Digital audio: Greater sound quality and reduced interference.

Dual Foldable Antennas: Compact and easy to store without compromising signal strength.

Built-in Microphone: For future feature expansion.

Automatic back light adjustment: Makes the screen easier to read indoors and out.

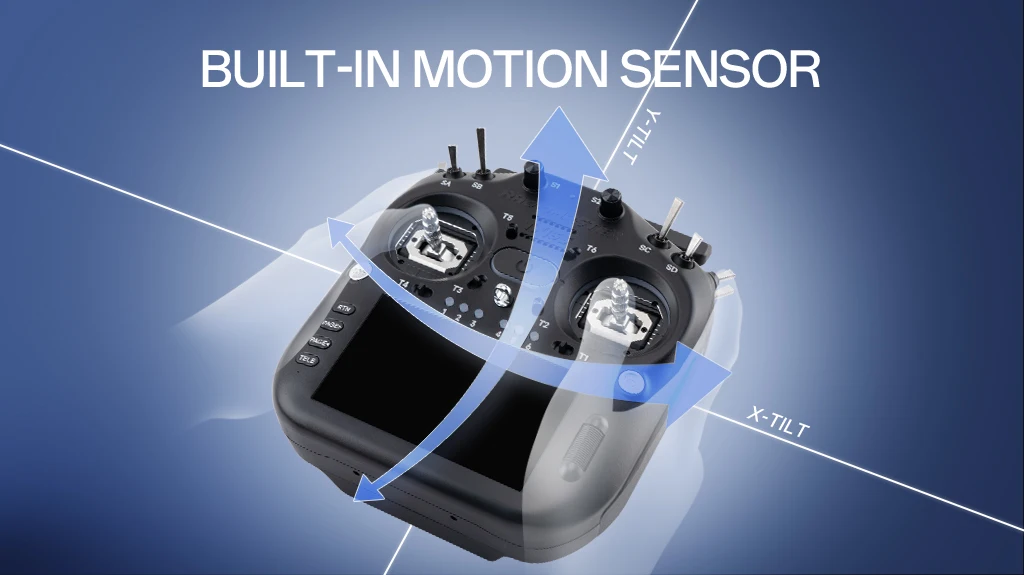

Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

Memory: Integrated 512MB of onboard flash memory and external MicroSD card support.

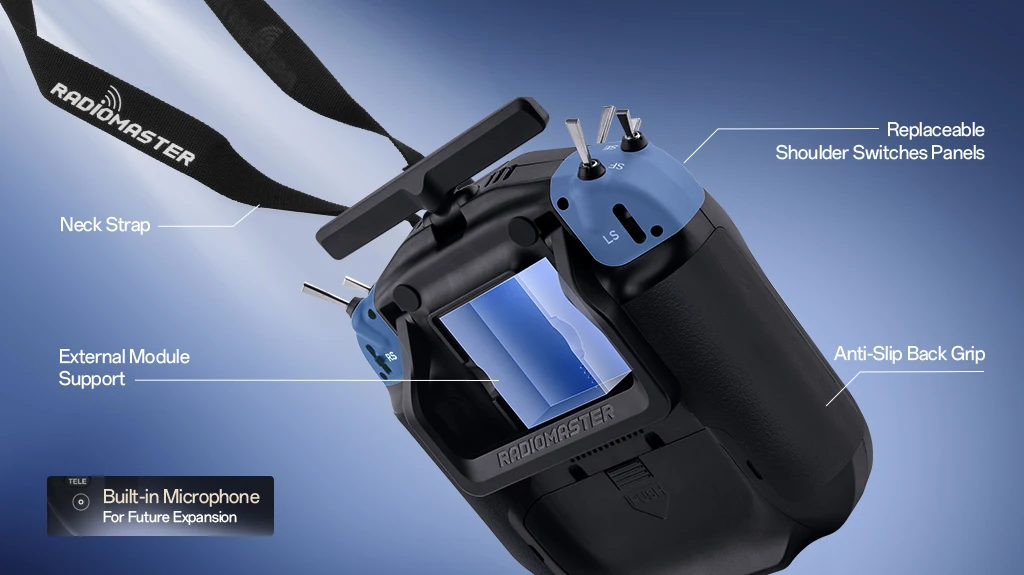

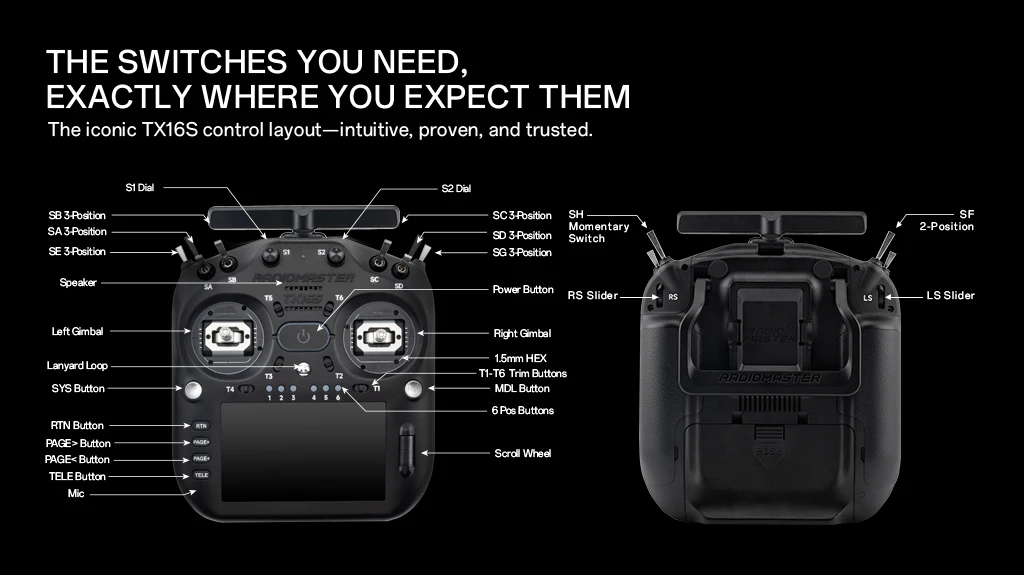

Removable shoulder switch panels: Customize your setup with modular switch panels.

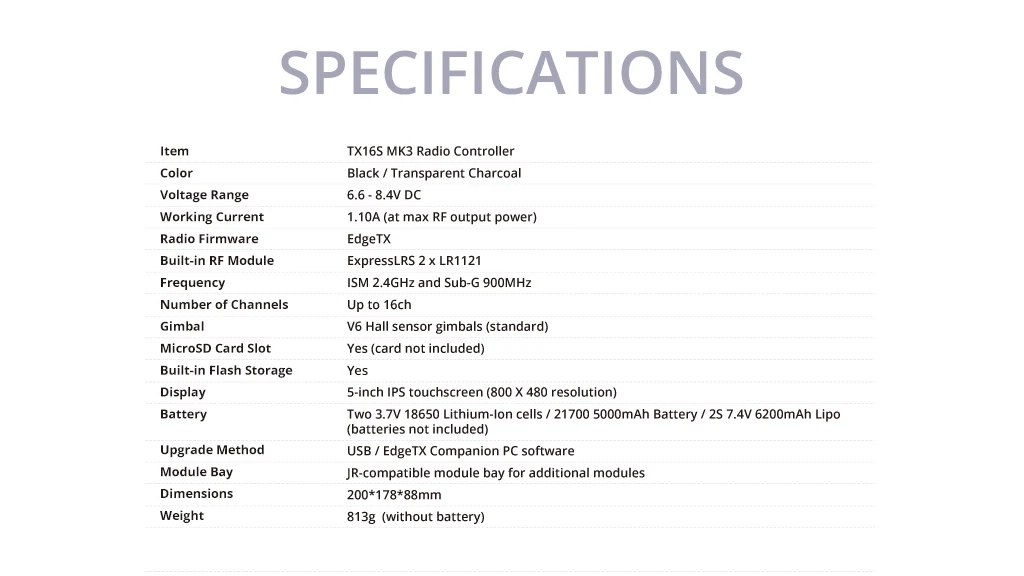

Specification

Item: TX16S MK3 Radio Controller

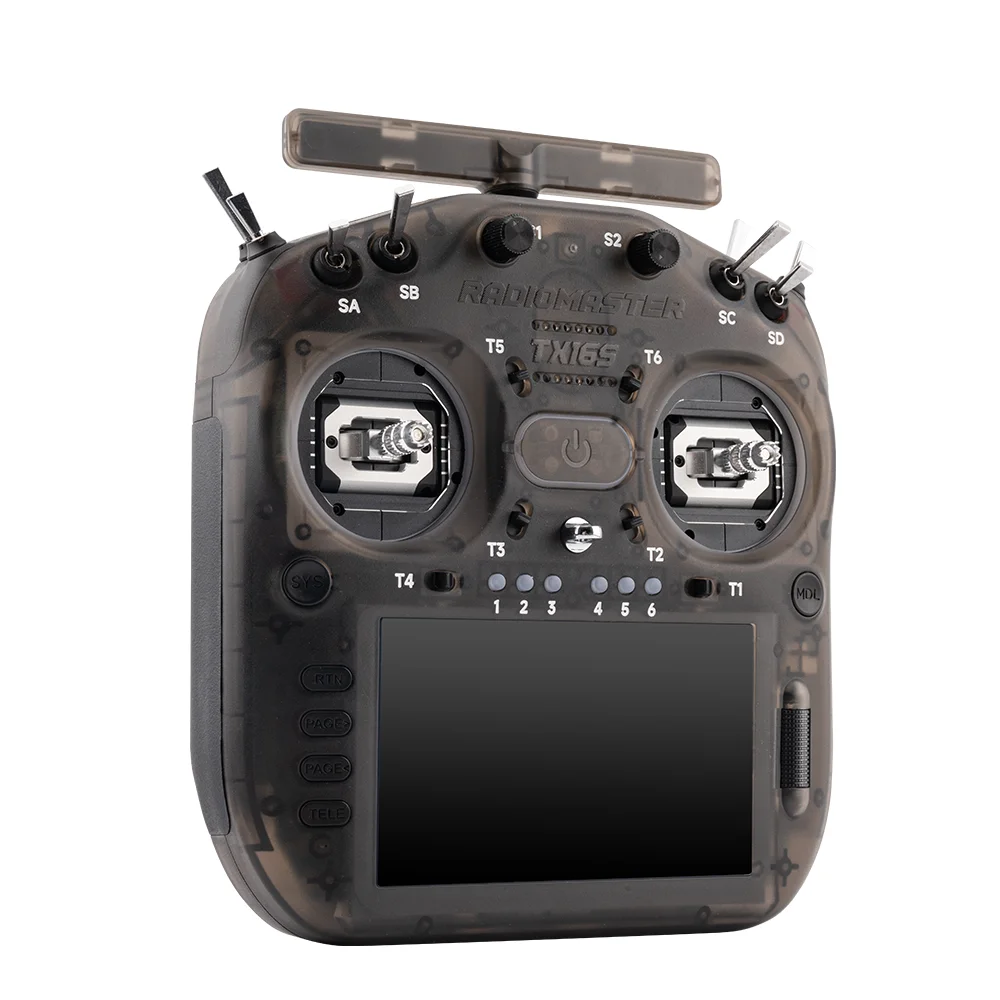

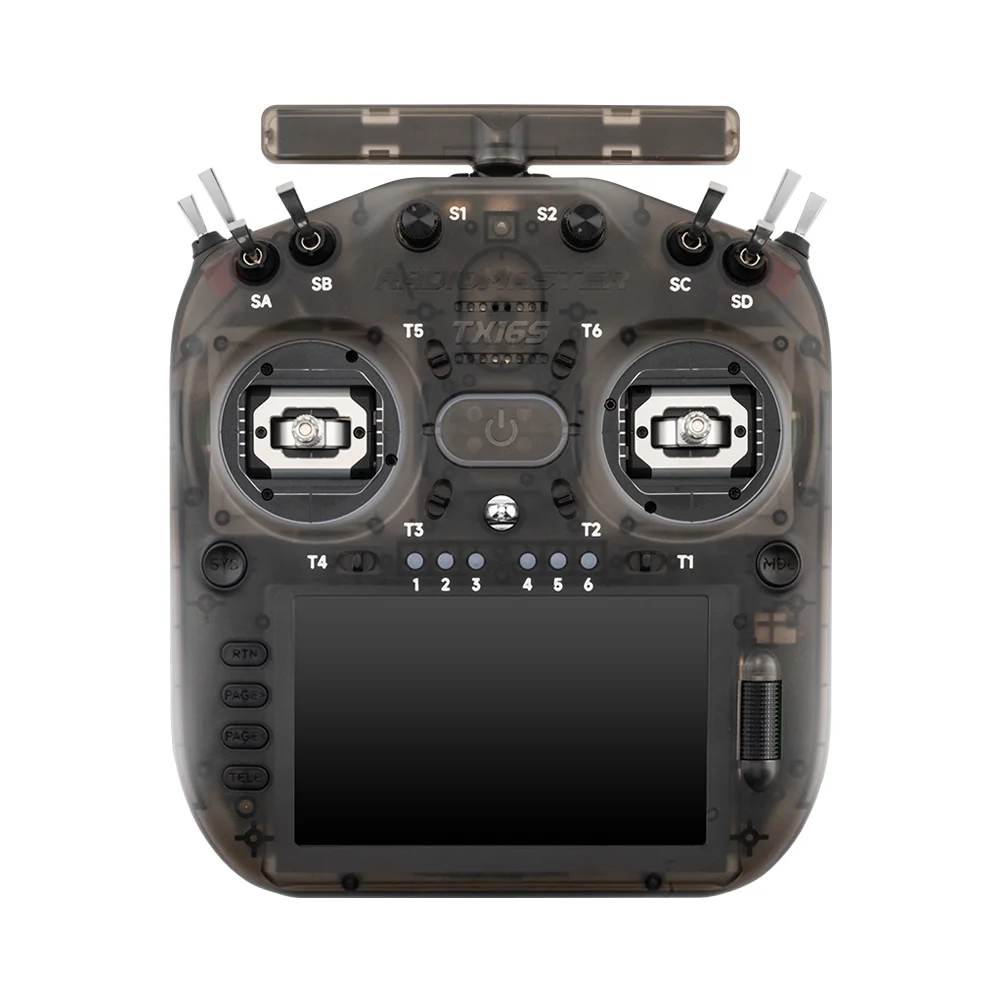

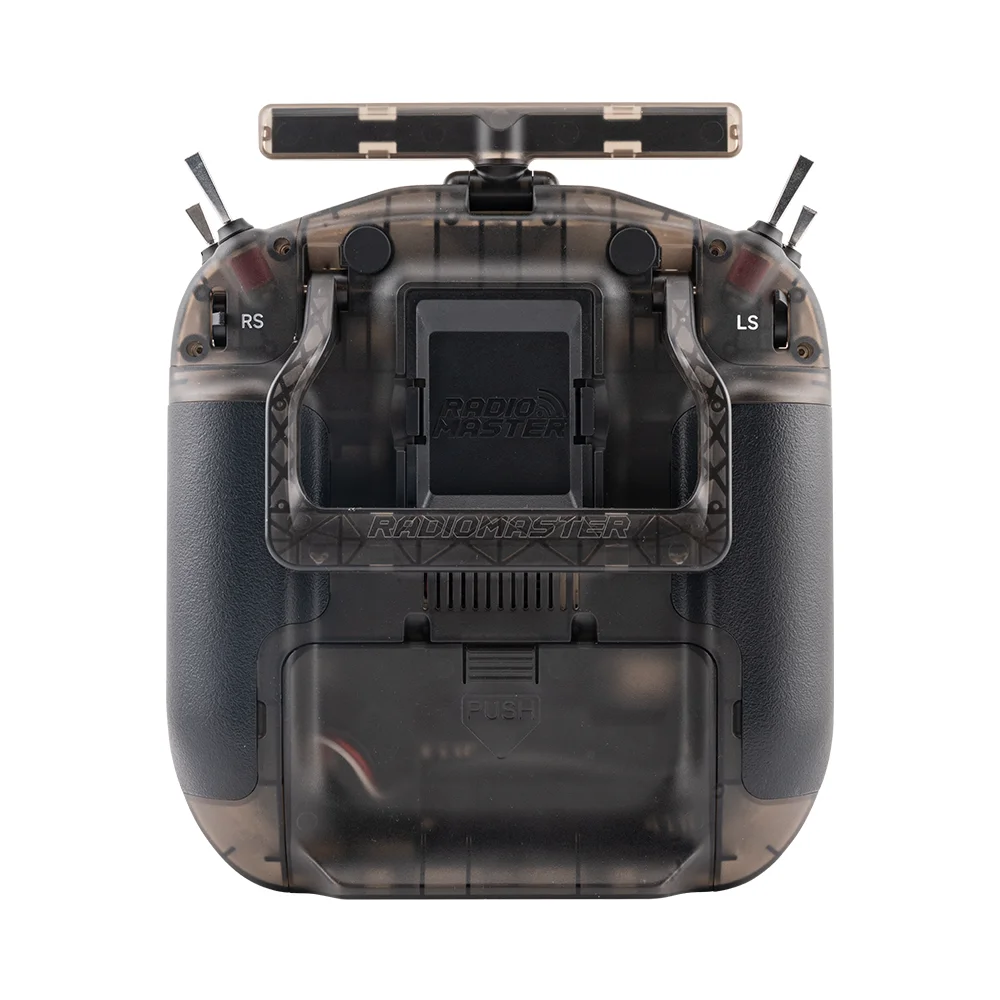

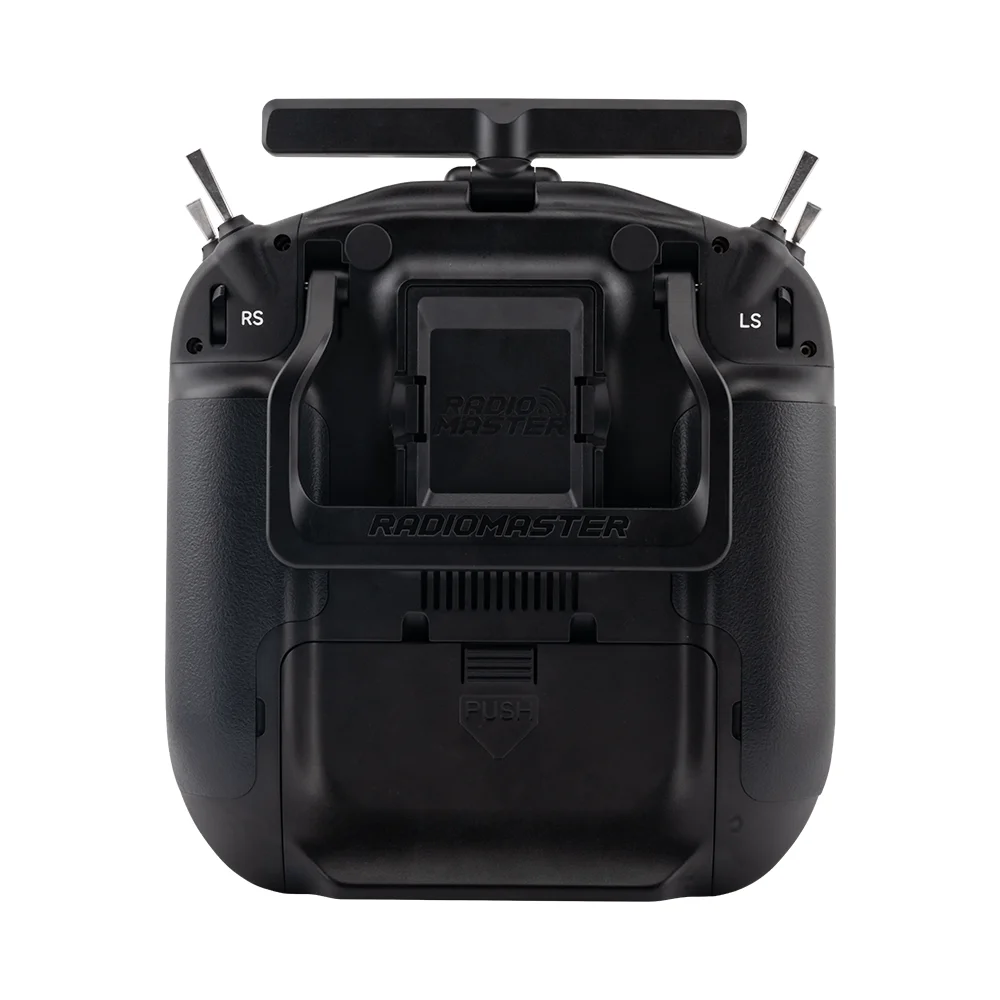

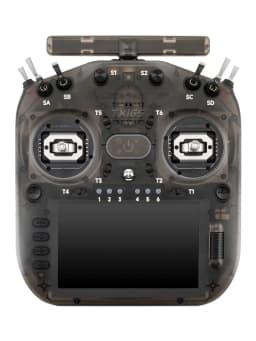

Color: Black / Transparent Charcoal

Voltage Range: 6.6 - 8.4V DC

Working Current: 1.10A (at max RF output power)

Radio Firmware: EdgeTX (require 3.0.0 or higher)

Built-in RF Module: ExpressLRS 2 x LR1121

Frequency: ISM 2.4GHz and Sub-G 900MHz

Number of Channels: Up to 16ch

Gimbal: V6 Hall sensor gimbals (standard)

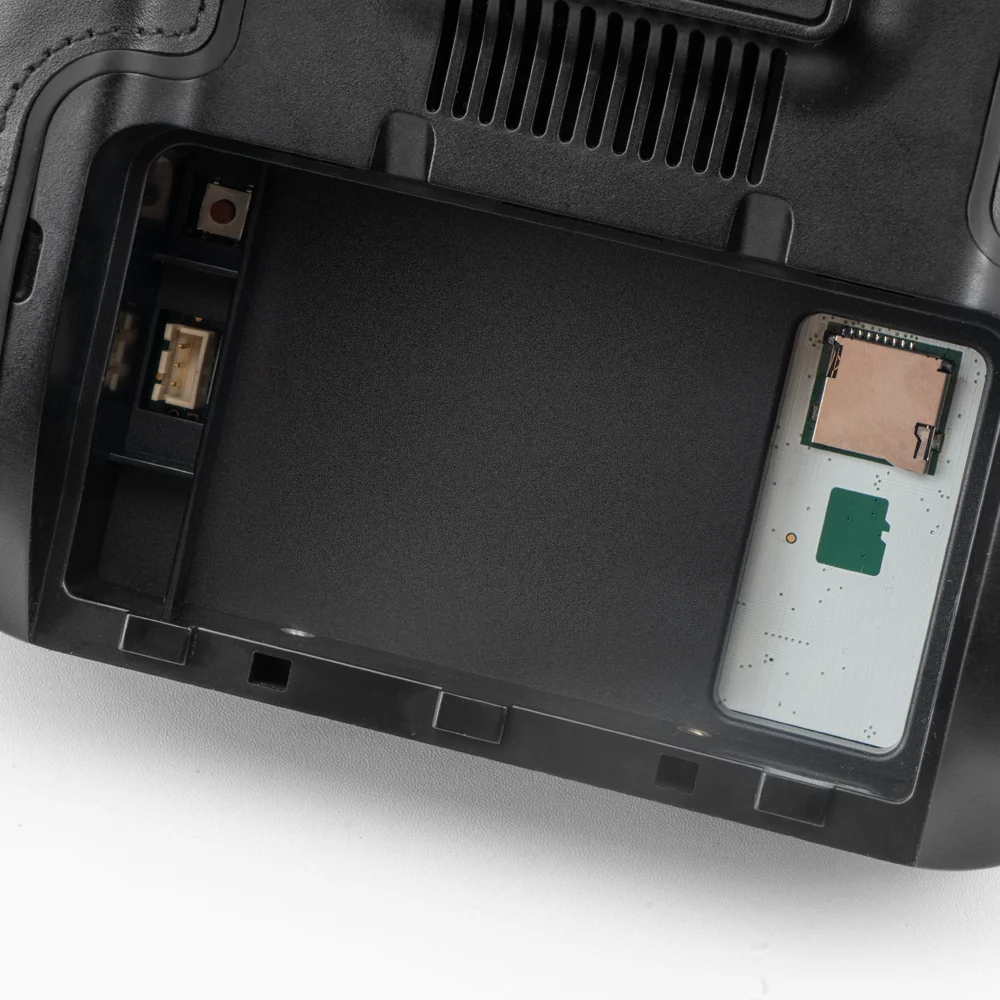

MicroSD Card Slot: Yes (card not included)

Internal Storage: Integrated 512MB of onboard flash memory

Display: 5-inch IPS touchscreen (800 X 480 resolution)

Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)

Upgrade Method: USB / EdgeTX Companion PC software

Module Bay: JR-compatible module bay for additional modules

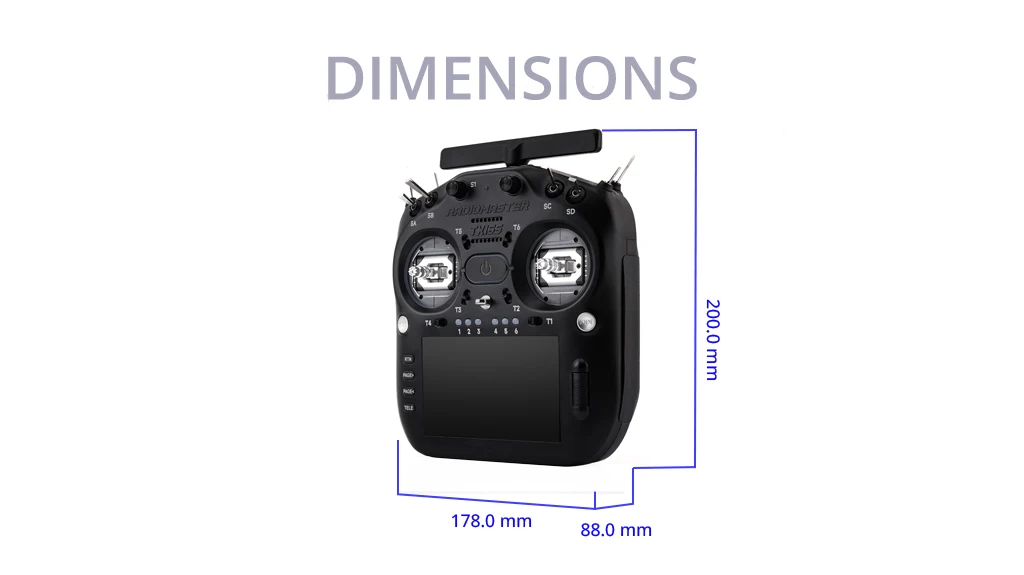

Dimensions: 200*178*88mm

Weight: 813g (without battery)

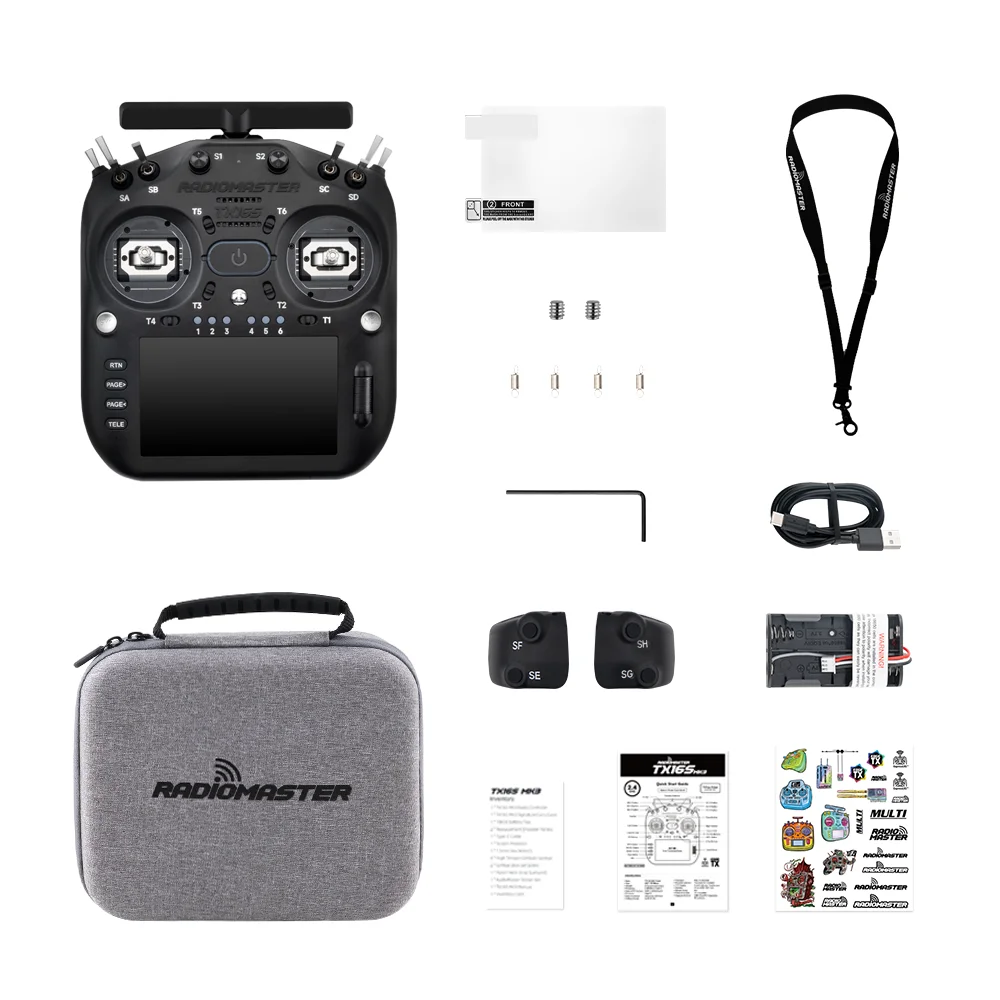

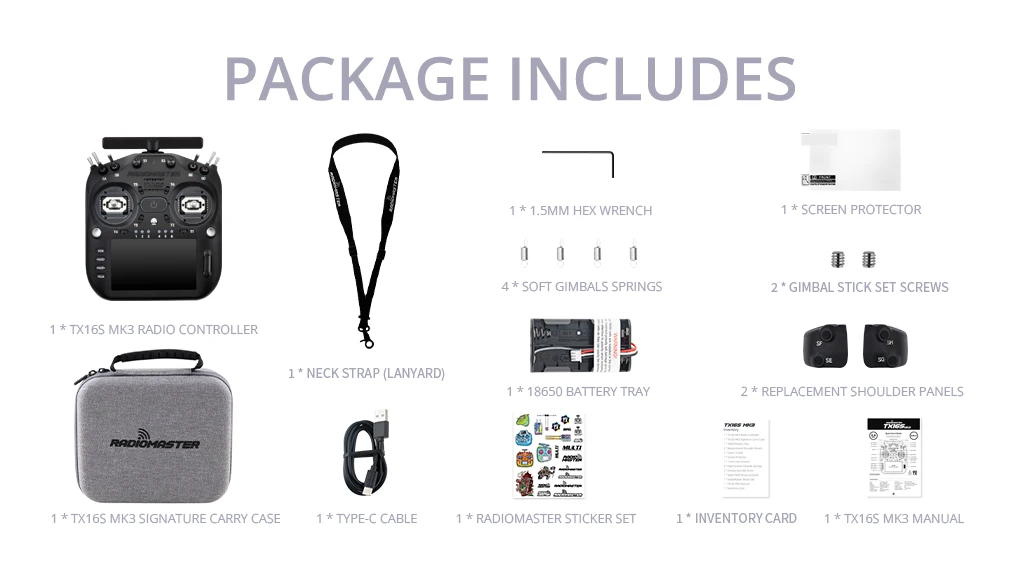

Package Includes

1 * TX16S MK3 Radio Controller

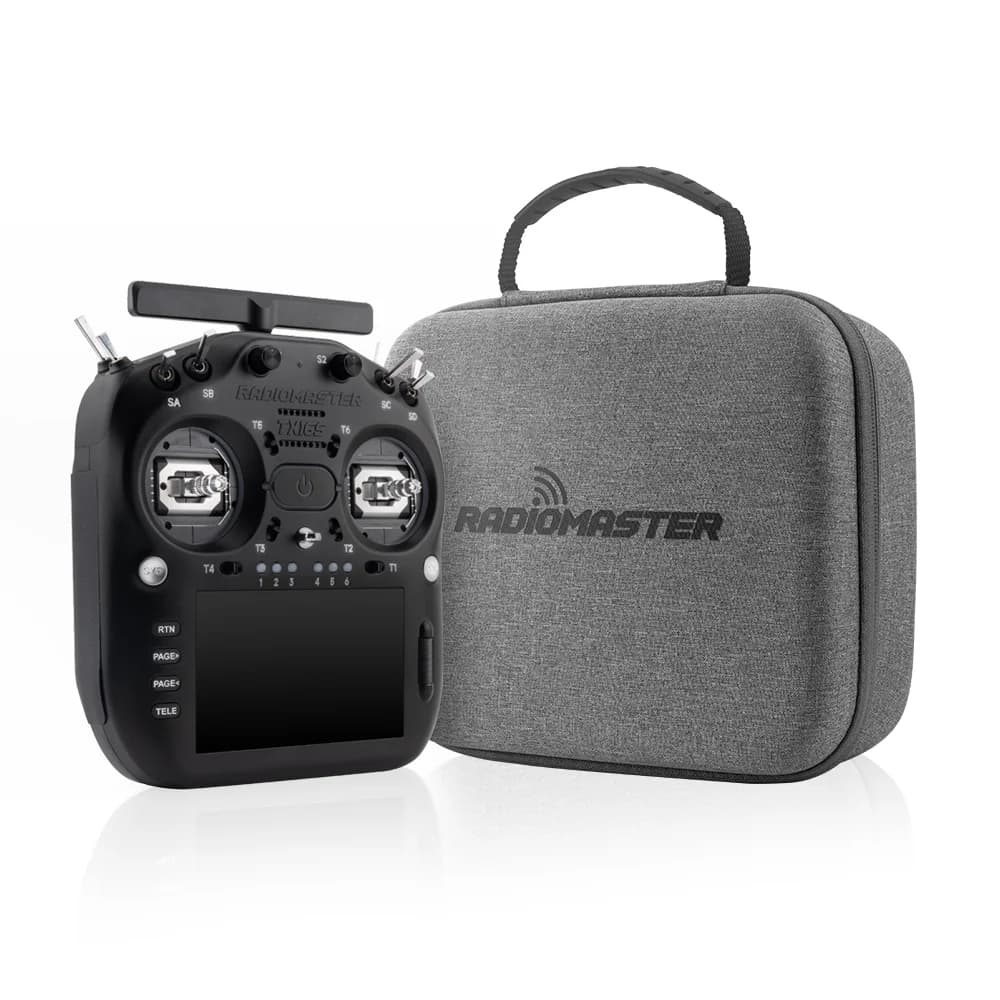

1 * TX16S MK3 Signature Carry Case

1 * 18650 Battery Tray

2 * Replacement Shoulder Panels

1 * Type-C Cable

1 * Screen Protector

1 * 1.5mm Hex Wrench

4 * Low Tension Gimbals Springs

2 * Gimbal Stick Set Screws

1 * Nylon Neck Strap (Lanyard)

1 * RadioMaster Sticker Set

1 * TX16S MK3 Manual

1 * Inventory Card
