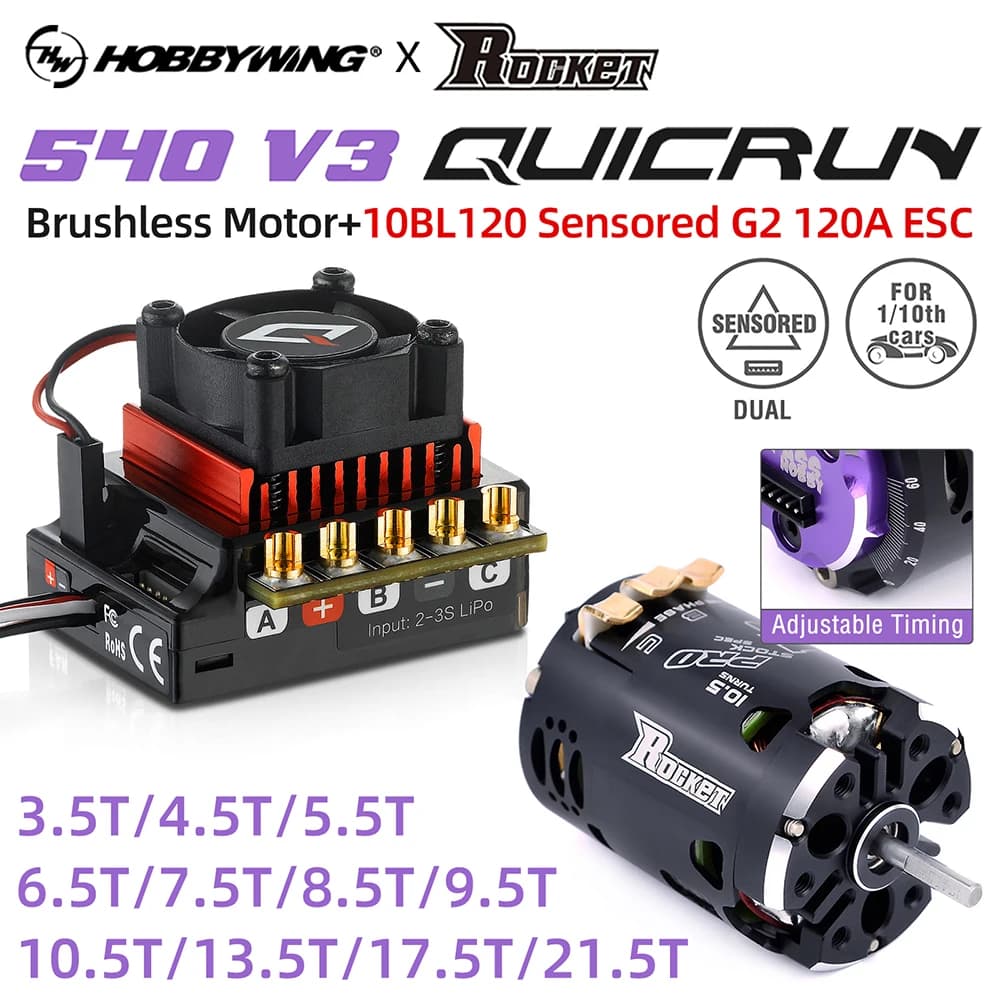

Hobbywing QUICRUN 10BL120 120A ESC W/Rocket 540 V3 4.5T Motor Sensored Brushless Combo for Competition 1/10 1/12 F1 RC Car

Hobbywing QUICRUN 10BL120 120A ESC w/Rocket 540 V3 4.5T 10.5T 13.5T Motor Sensored Brushless Combo for Competition 1/10 1/12 F1 RC Car

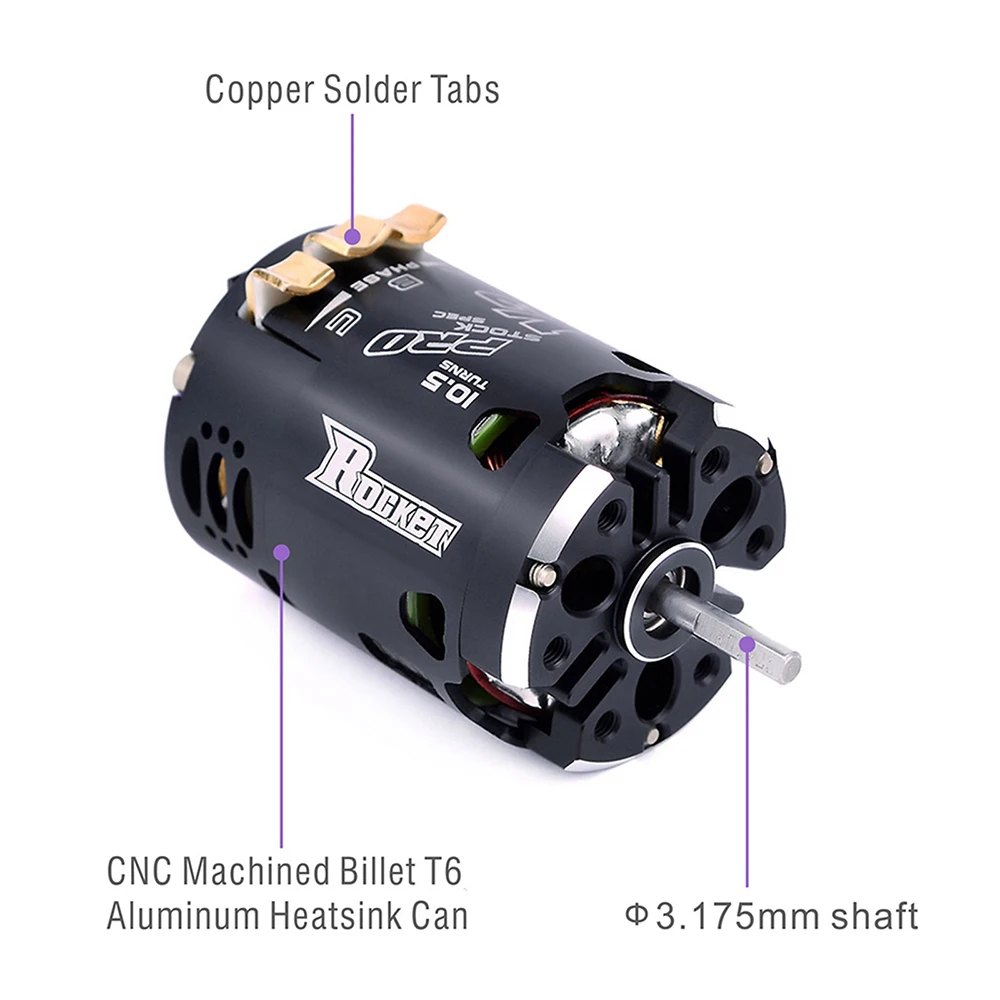

Rocket 540 V3 Motor Features:

-CNC Machined Billet T6 Aluminum Heatsink Can.

-High Purity Copper Windings Maximizes Conductivity.

-High Power Solder Tabs.

-Removable/Replaceable Rotor.

-Powerful Sintered Neodymium Magnet.

-Precision Engineered for Maximum Energy Conversion.

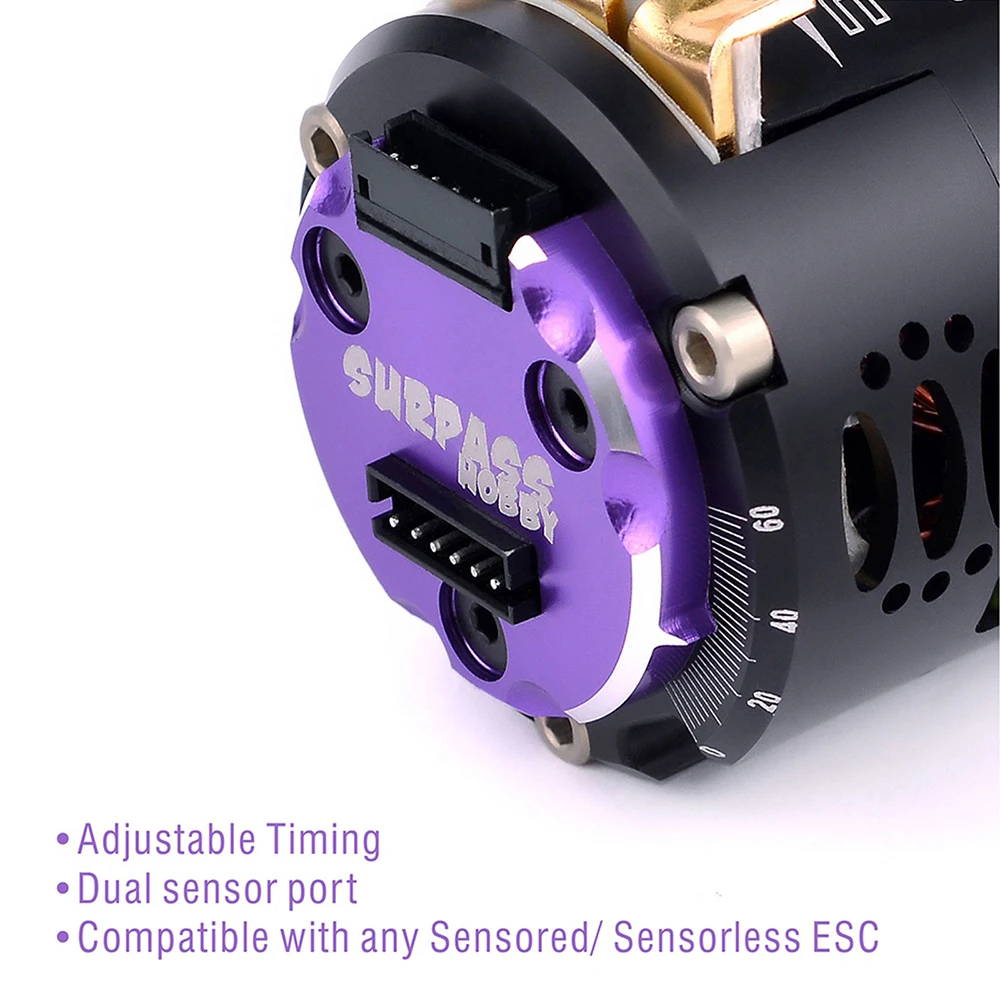

-Adjustable Timing.

-Compatible with any Sensored/ Sensorless ESC.

-Dual sensor port .

-IFMAR, ROAR Compliance.

Hobbywing QincRun 10120BL Sensored ESC Features:

High performance, reliable,race-ready ESC.The compact size is suitable forvarious car chassis'.

The built-in auto identification system recognizes sensored or sensorless brushless motors.

Core competition program forexcellent control feel & multiple programmable items.

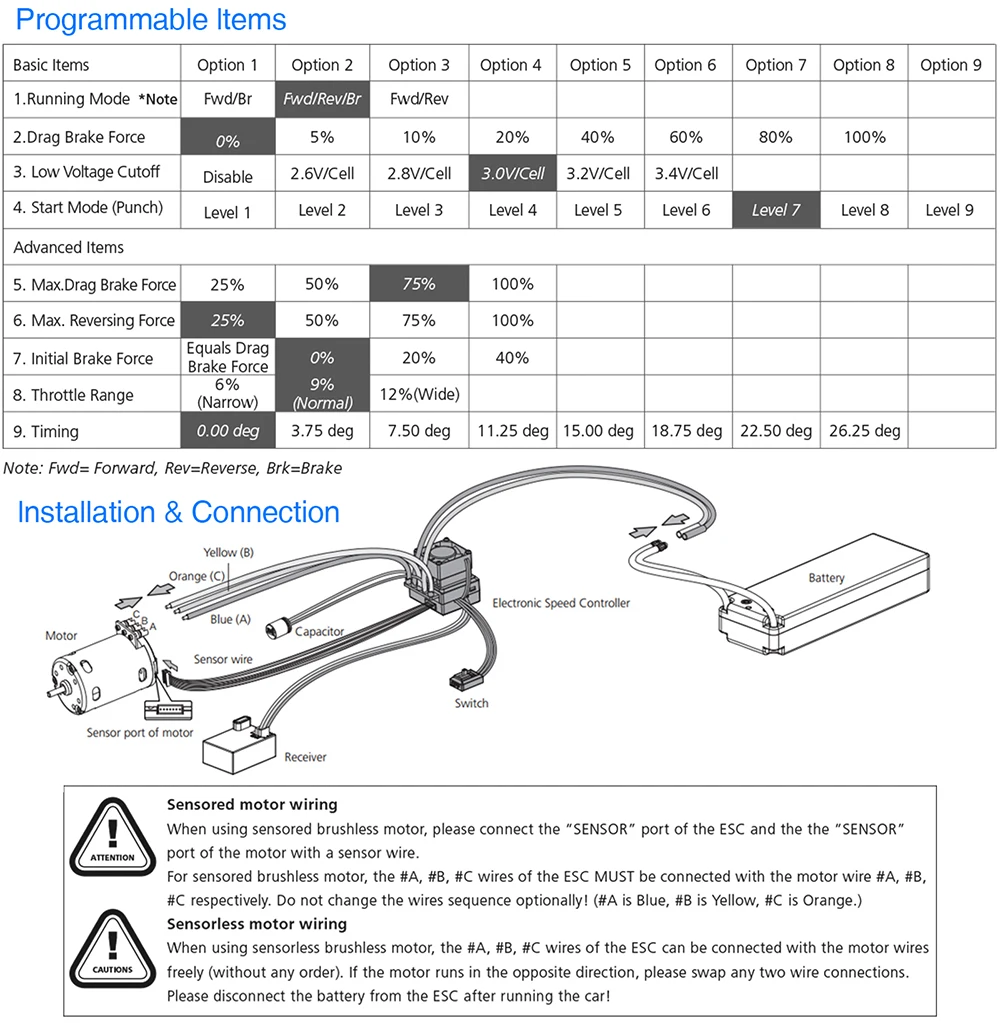

8 steps of timingadjustments 4 steps of maximum brake force adjustments 8 steps of dragbrake force adjustments 4 steps of initial brake force adjustments 9 steps ofacceleration (punch) adjustment, from "soft" to "very aggressive" to fit fordifferent kinds of cars, tires and tracks.

Multiple protections include: Lowvoltage cut-off protection for Lipo or NiMH battery Over-heat protection Throttlesignal loss protection Motor Lock-up protection. Throttle out of control protection, overload protection for escort escort, reliability and durability have been greatly improved.

One-button to set the ESC,and easy to reset all parameters to the factory default settings.

Compatiblewith optional device - the portable Digital LED Program Card which is especially convenient for outdoor use.

Motor Limits: 4-6 cells NiMH / 2S LiPo:3.5T(1/10 On-road),4.5T (1/10 Off-road) 8-9 cells NiMH / 3S LiPo:8.5T (1/10On-road),10.5T (1/10 Off-road)

Descriptions:

Designed for entry-level and intermediate players to create, inherited the hobbywing products outstandin quality,

And simplify the operation of the difficulty, without any complicated debugging to get started.

Products for 1/10 & 1/12 car, SUV, F1, drift car for running and daily practice.

Motor Specifications:

Brand:Rocket

Item no.:540 V3 Pro

Turns nunmber:3.5T 4.5T 5.5T 6.5T 7.5T 8.5T 9.5T 10.5T 13.5T 17.5T 21.5T optional

Please read the parameter chart and instruction carefully

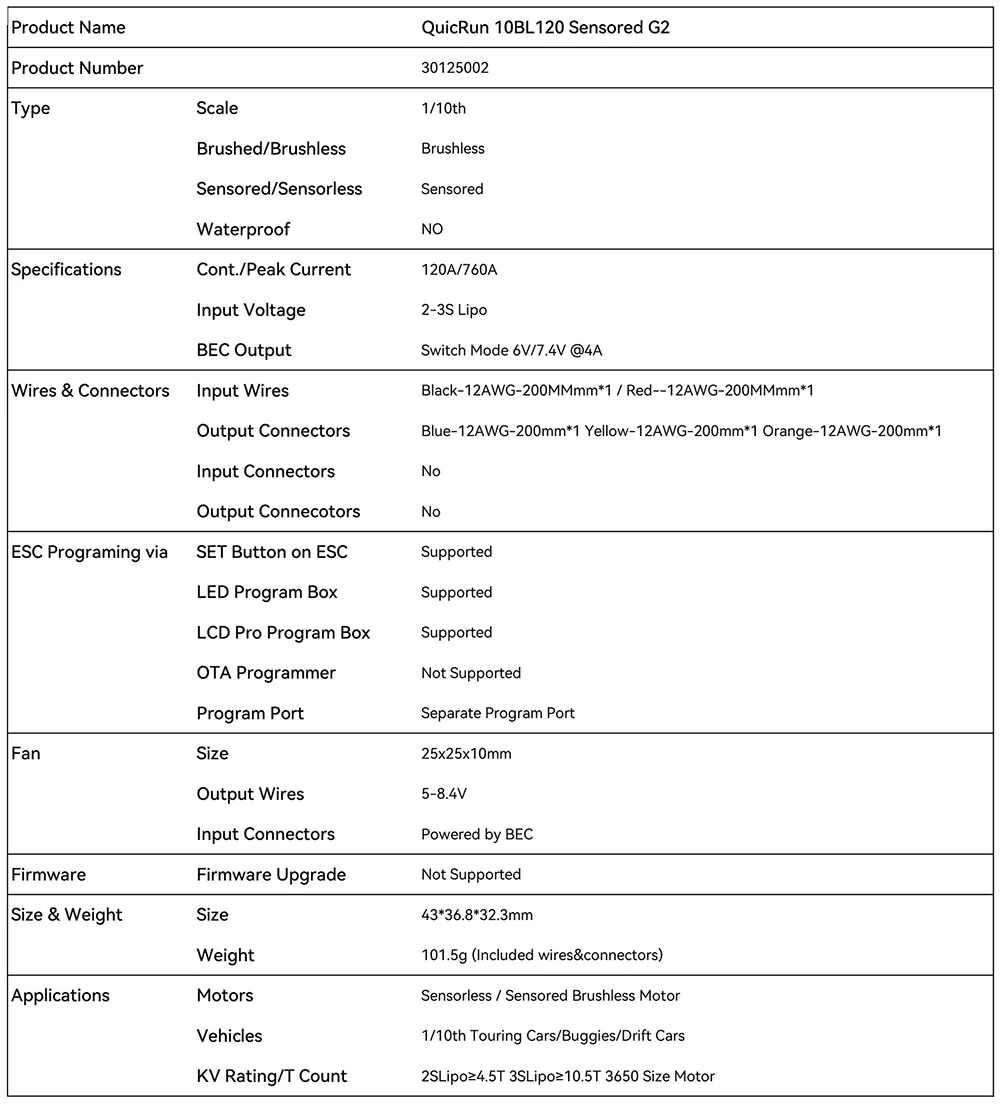

ESC Specifications:

Brand:Hobbywing

Product name:QincRun 10120BL Sensored optional

Model:30125002

Battery: 2-3s lipo battery

Fan size:25*25*10mm

Fan Voltage range:5-8.4V

Specifications: 43x36.8x32.3mm

Weight: 102g (including line weight)

Package included:

1 x Rocket 540 Sensored Brushless Motor

1 x Sensored line

1 x Hobbywing Sensored Brushless ESC

1 x Instruction

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
