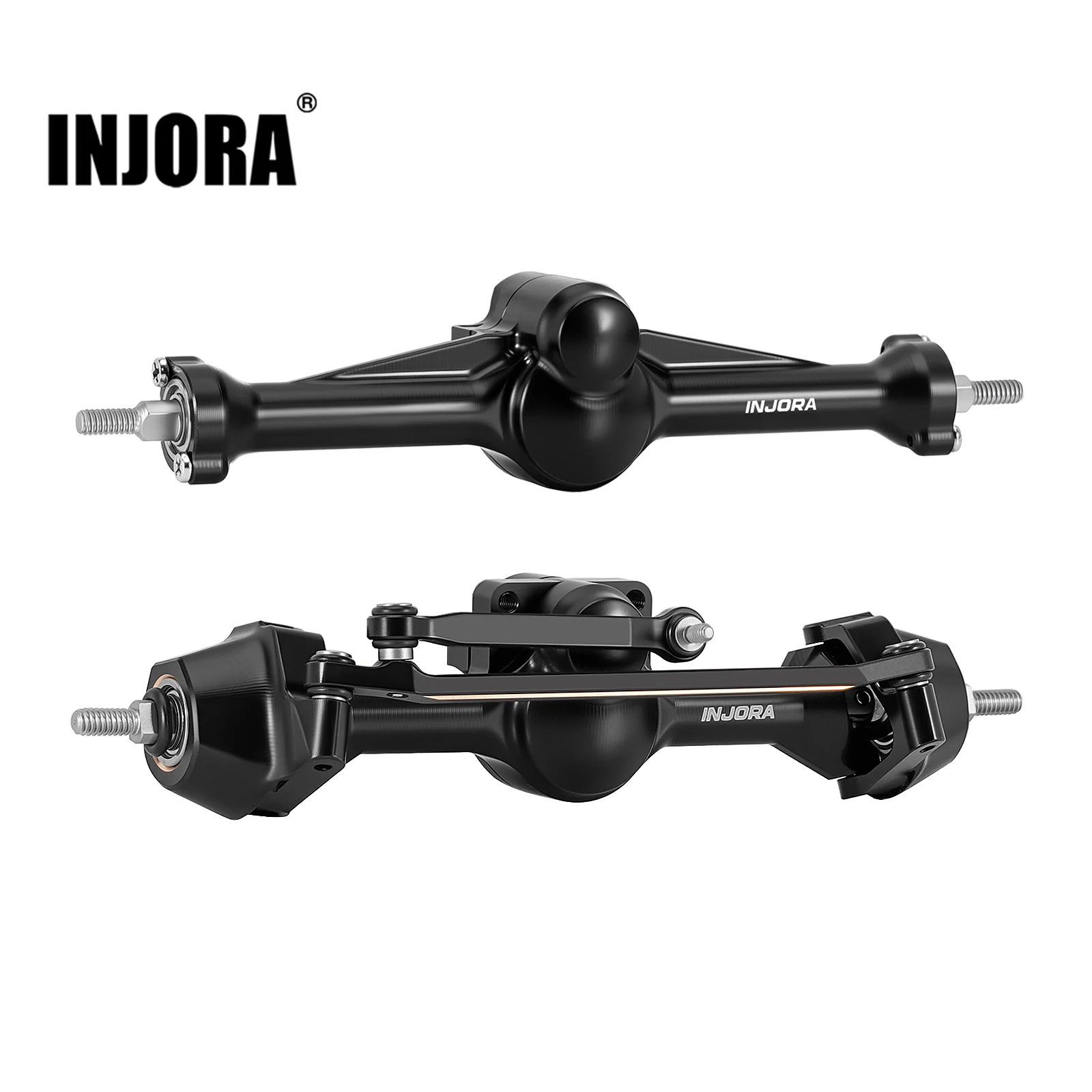

INJORA +3mm Planet Axles with Brass Steering Knuckles for 1/30 Axial SCX30

Note:

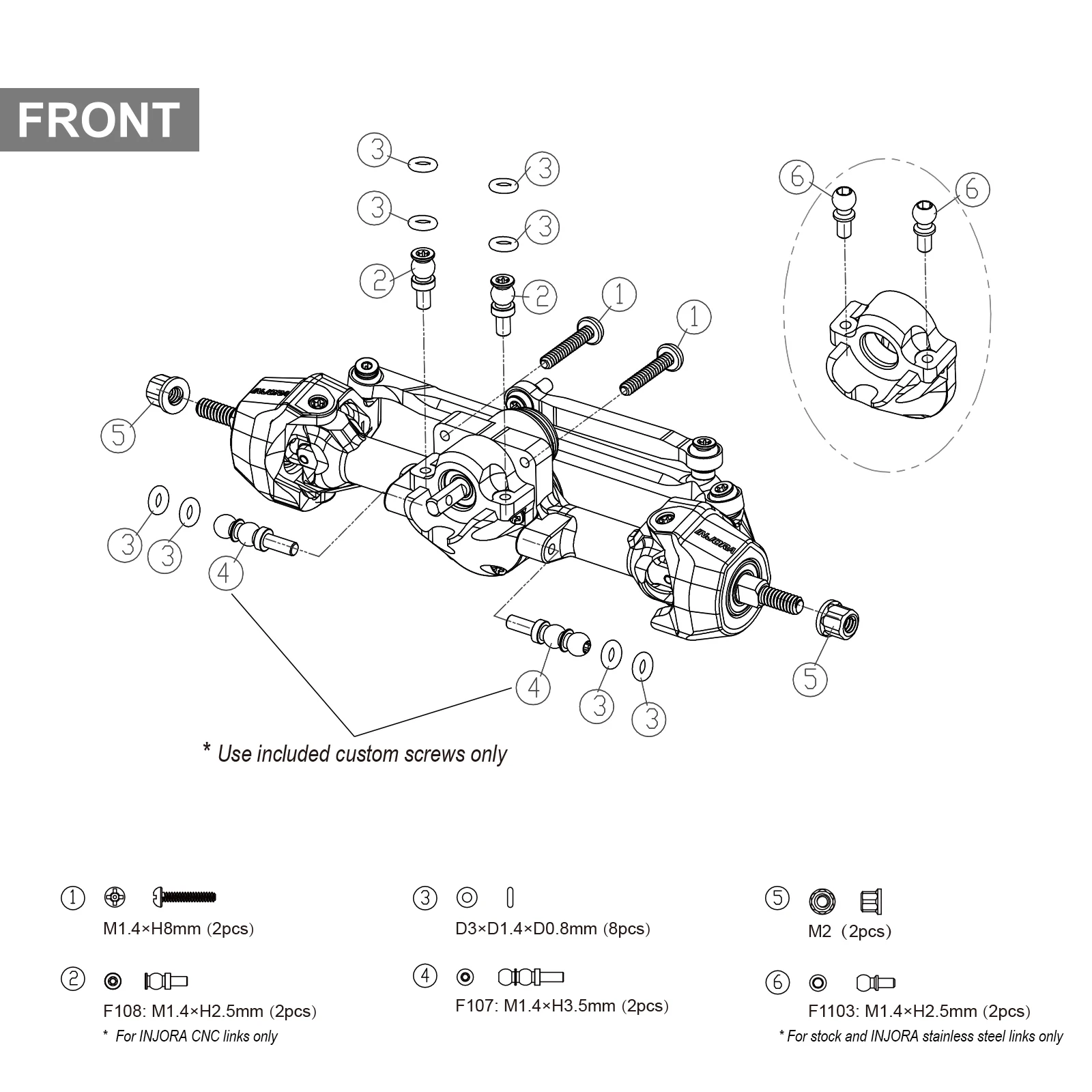

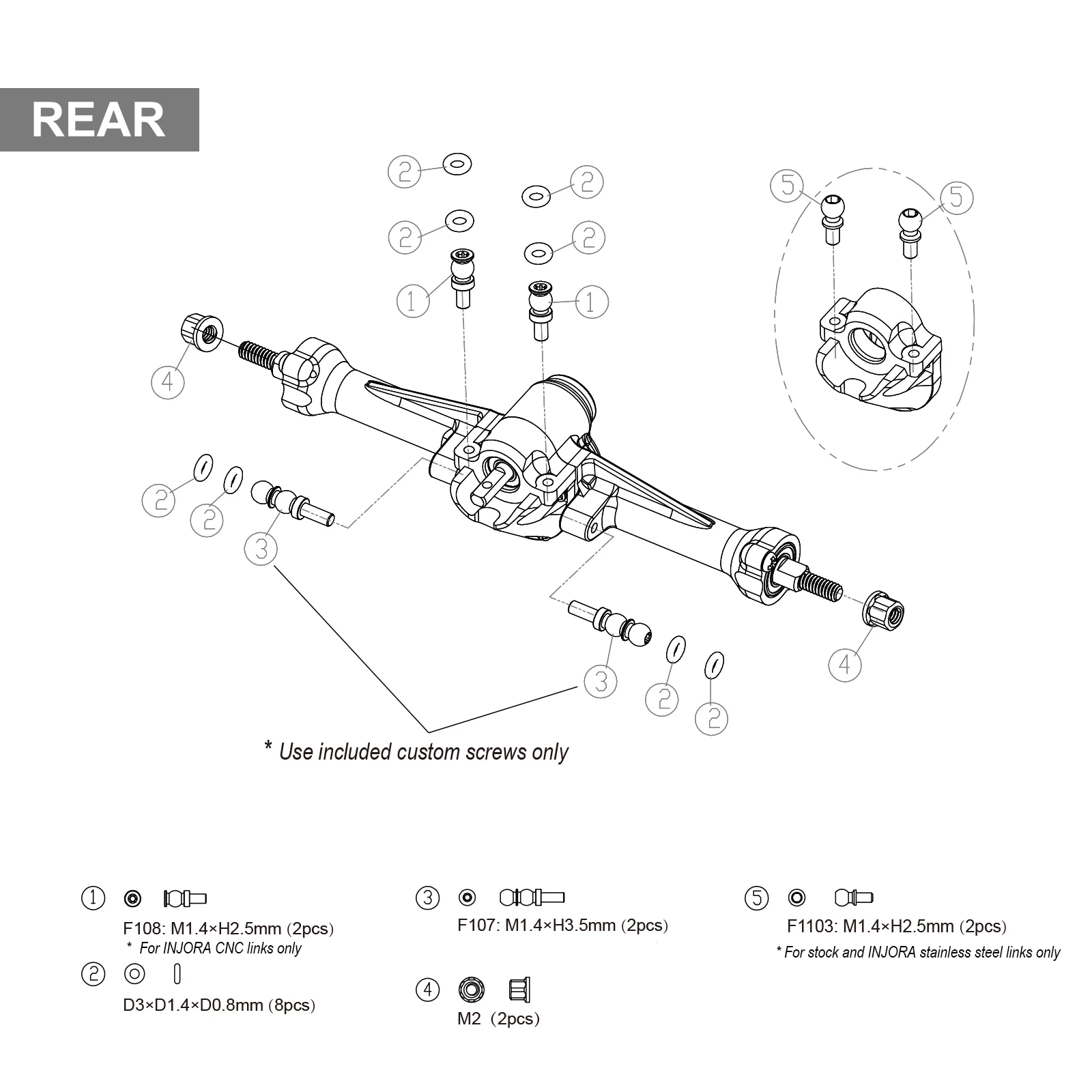

If using stock SCX30 chassis links with INJORA planet axles, replace the original ball studs with those included in the axle kit, as the screw length differs.
Use a small amount of blue threadlocker, such as 222/242/243, on metal-to-metal screws, and make sure the steering knuckles move smoothly.

Features:

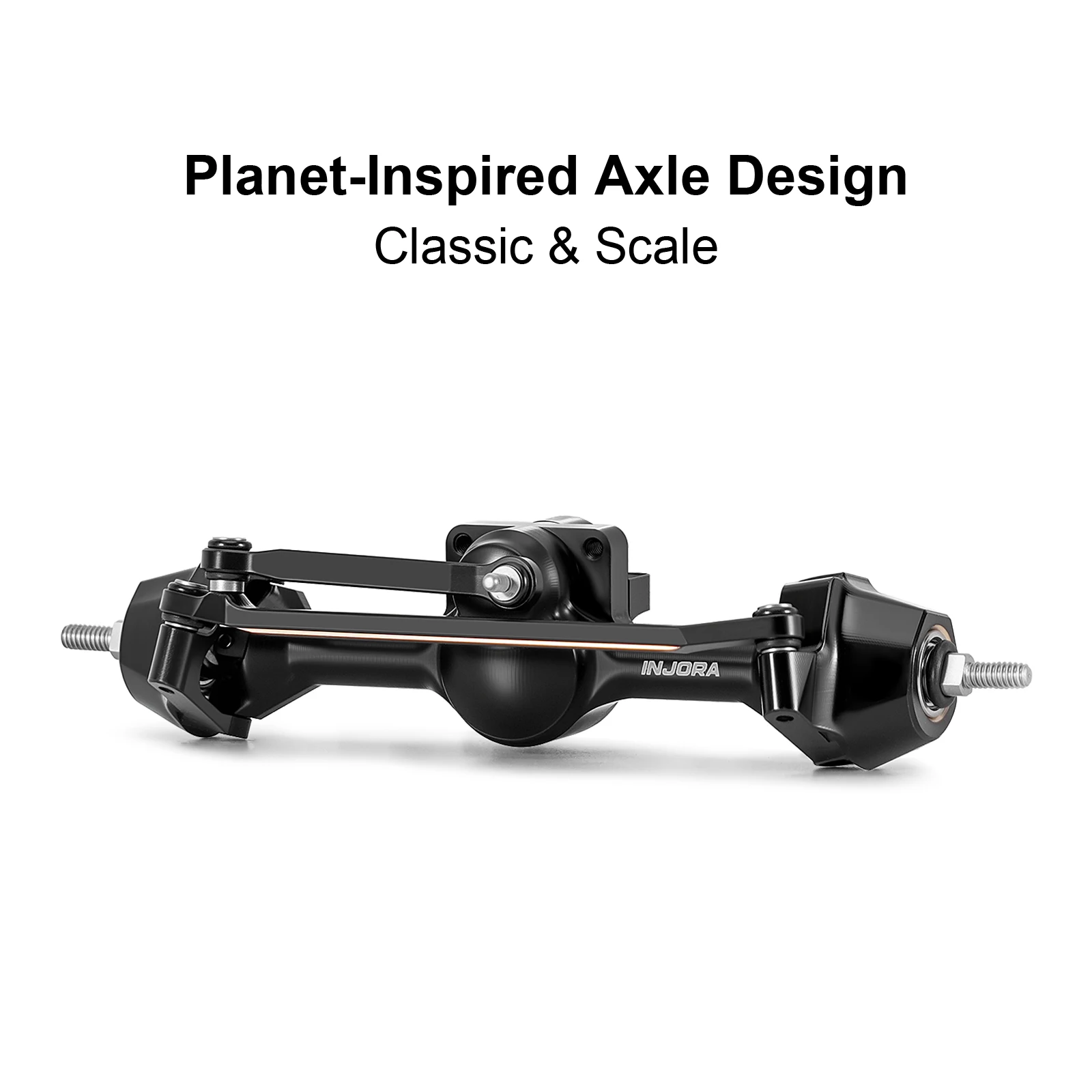

Planet-shaped differential housing, precision CNC-machined for a realistic scale appearance
Integrated axle housing with scale-proportioned axle tubes for a more realistic, balanced look

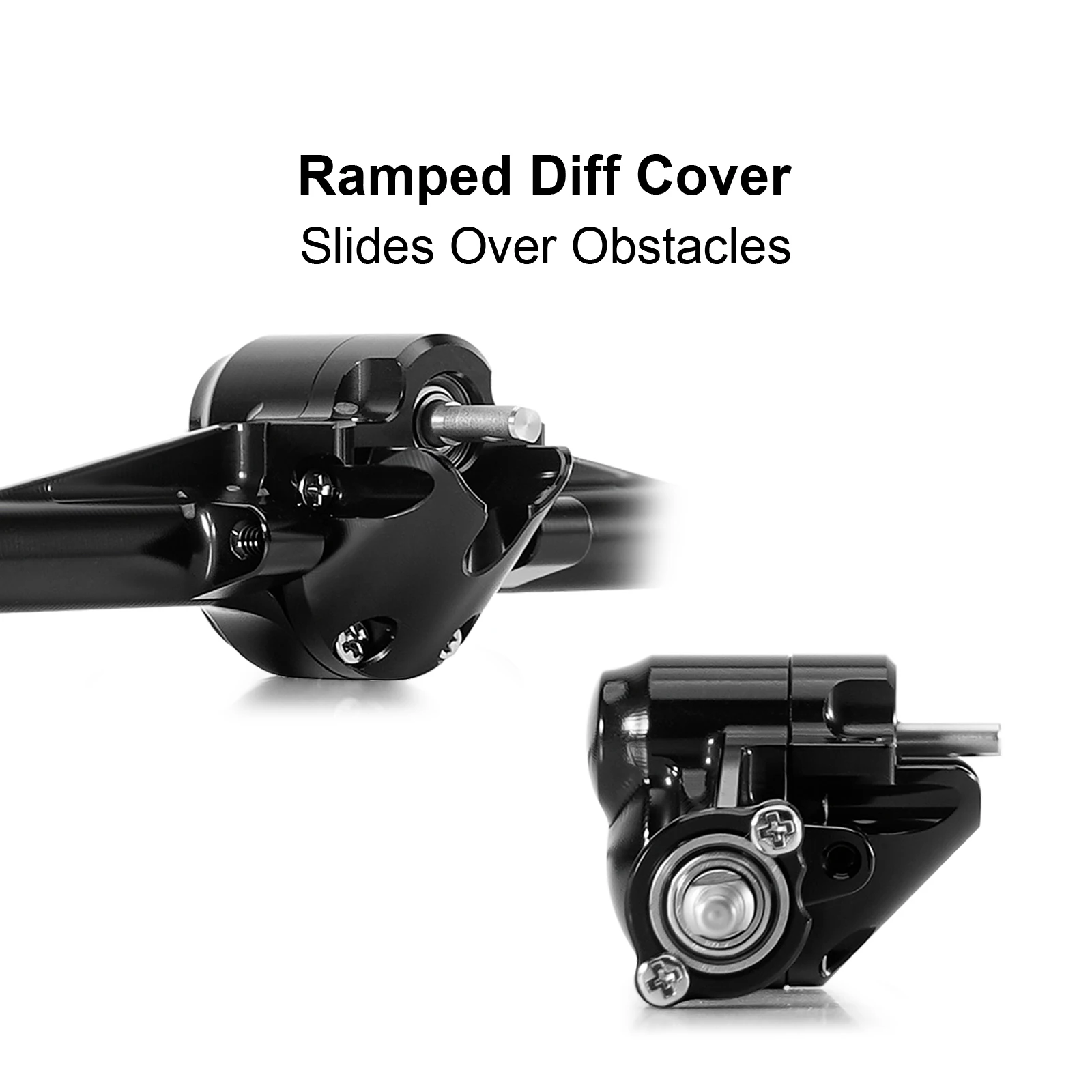

Ramped diff cover design helps the axle slide over obstacles more easily
+3mm per side track width improves stability while maintaining scale proportions

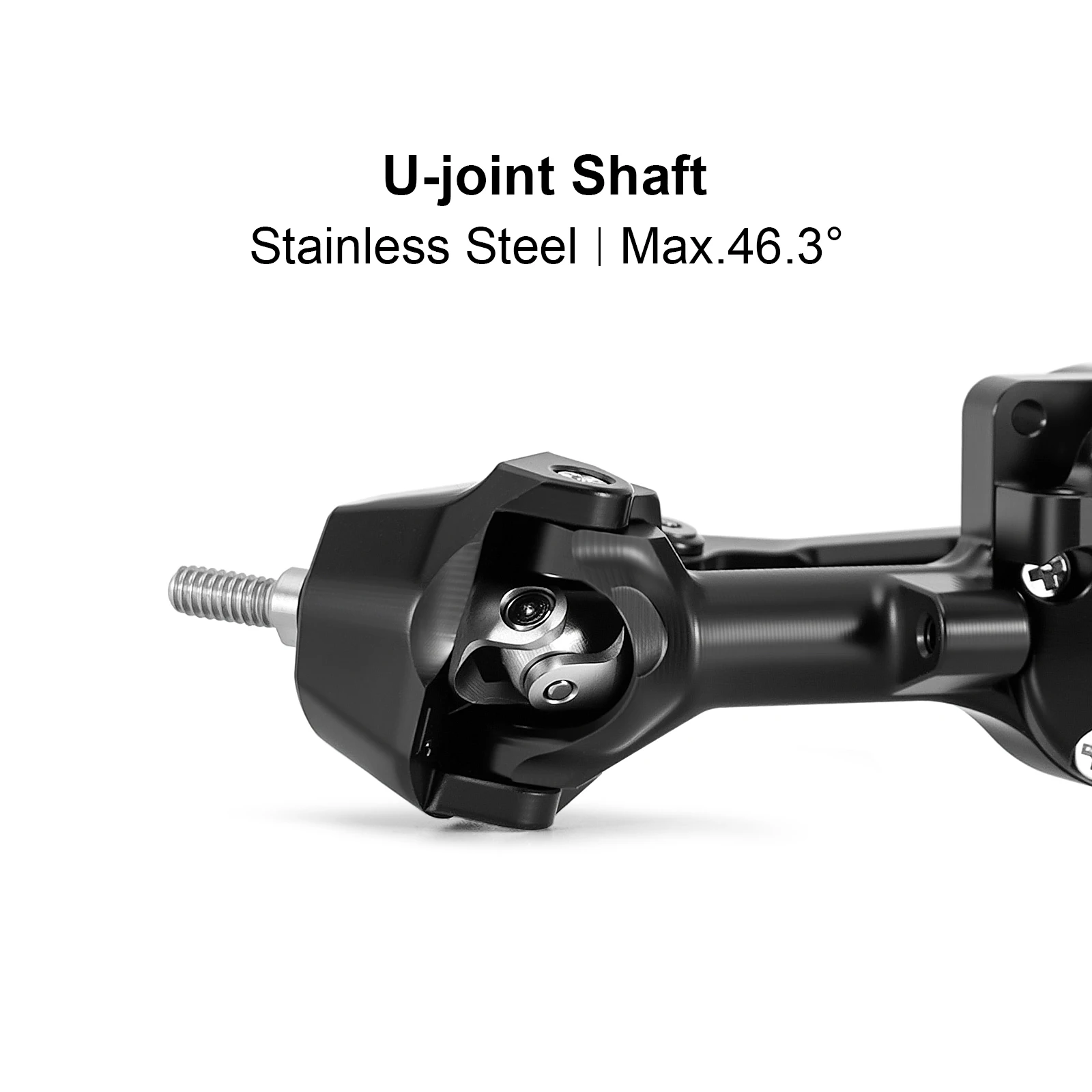

Upgraded stainless steel U-joint front axle shafts allow up to 46.3° steering angle

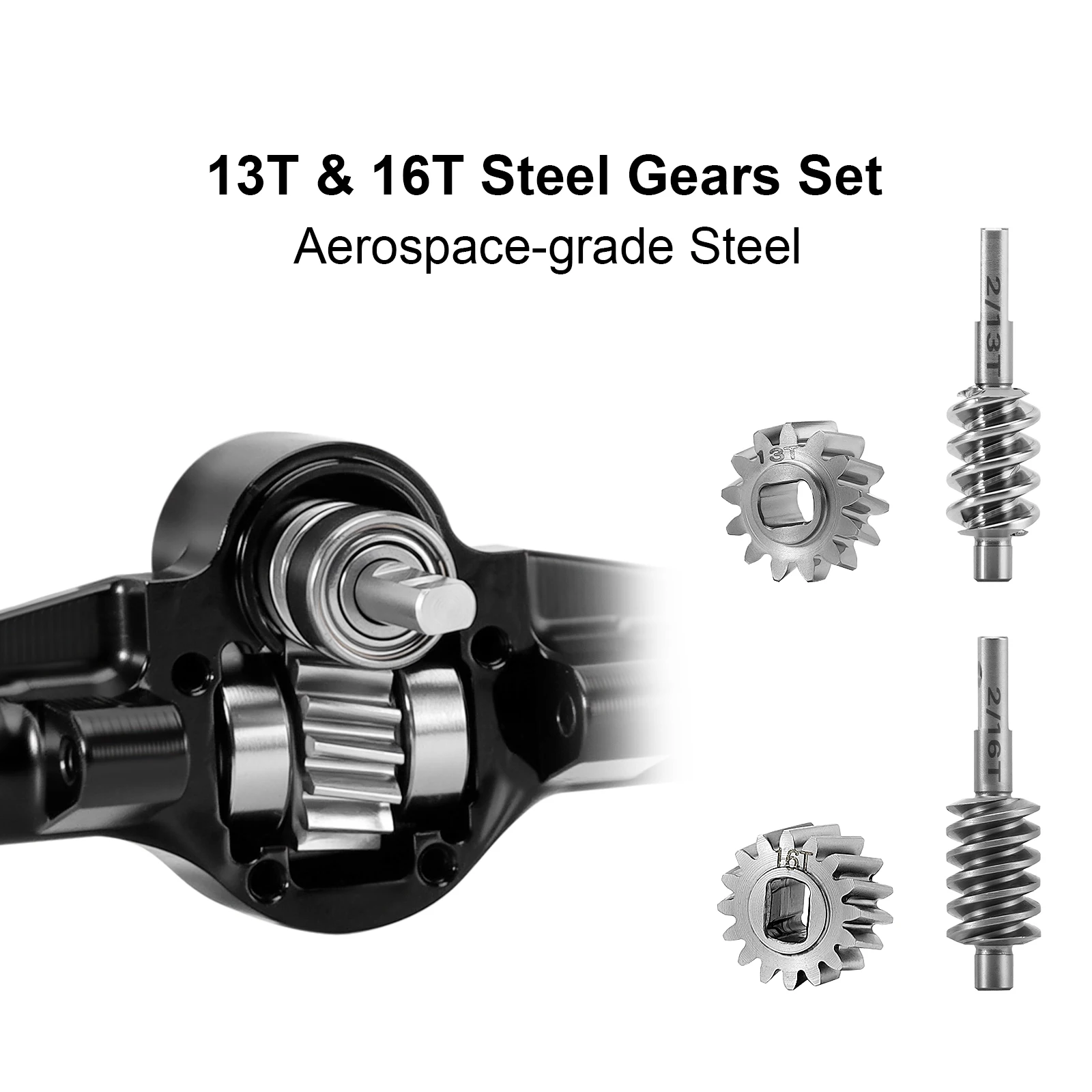

2/13T front and 2/16T rear gears create front overdrive for improved climbing traction and steering control
Brass steering knuckles and steering links add front-end weight for improved climbing performance

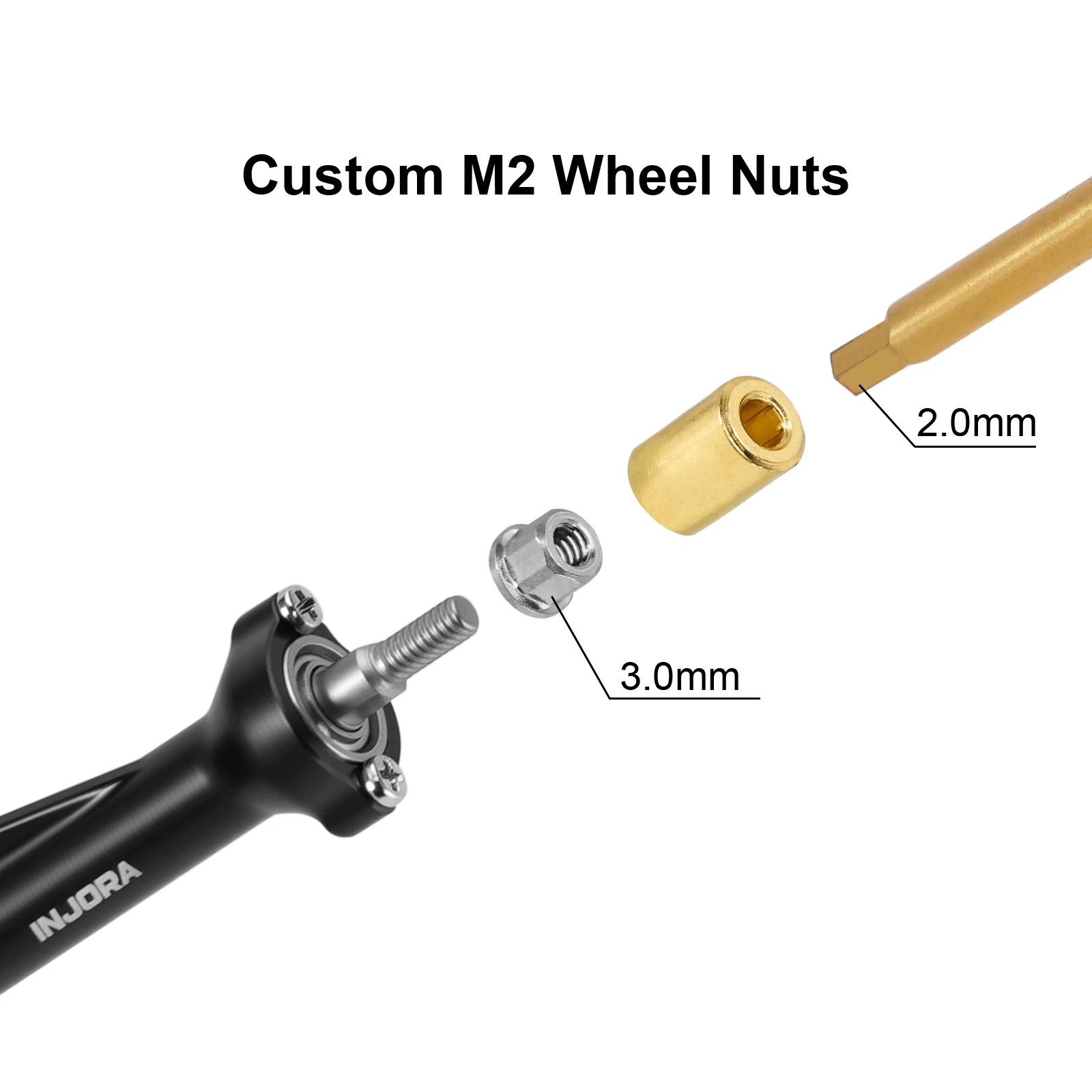

Custom-designed compact M2 wheel nuts specifically for SCX30 ensure secure wheel mounting

Specifications:
Part Number: SCX30-25BKFR
Housing Material: Aluminum
Ramped Diff Cover Material: Aluminum
Steering Links Material: Brass
Steering Knuckles Material: Brass
Gears & Shafts Material: Stainless Steel
Shaft Type: U-joint
Gear Ratio: 2/13T (Front), 2/16T (Rear)
Maximum Steering Angle: Approx. 46.3°

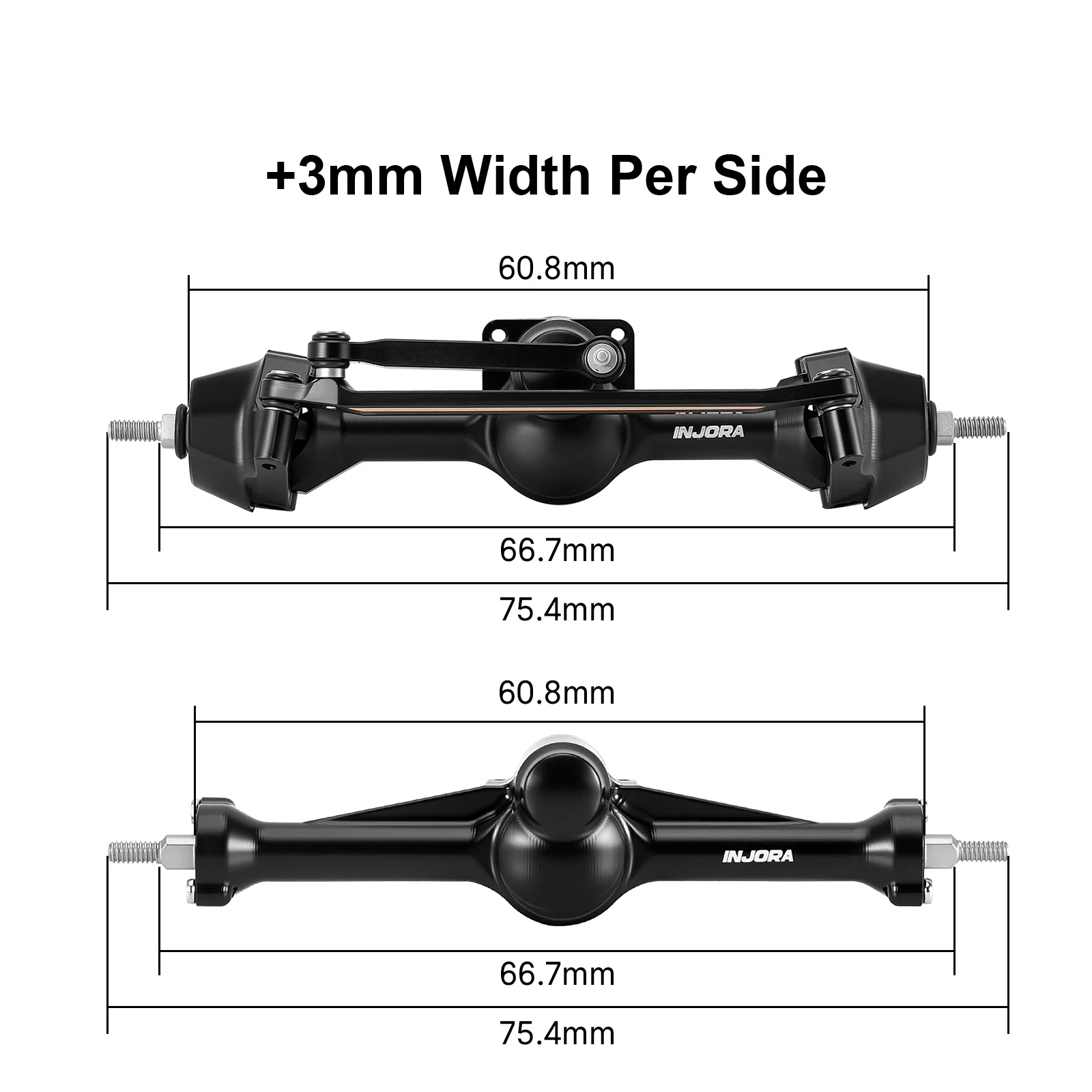

Overall Length: 75.4mm
Front Axle Weight: 25.5g
Rear Axle Weight: 11.2g

Installation Tip: SCX30 uses very small hardware. Use the correct-size driver and light pressure. Tighten only until the screw is seated and snug, then stop. If you feel resistance before it is seated, or if the screw does not thread smoothly, stop and check the alignment before continuing.

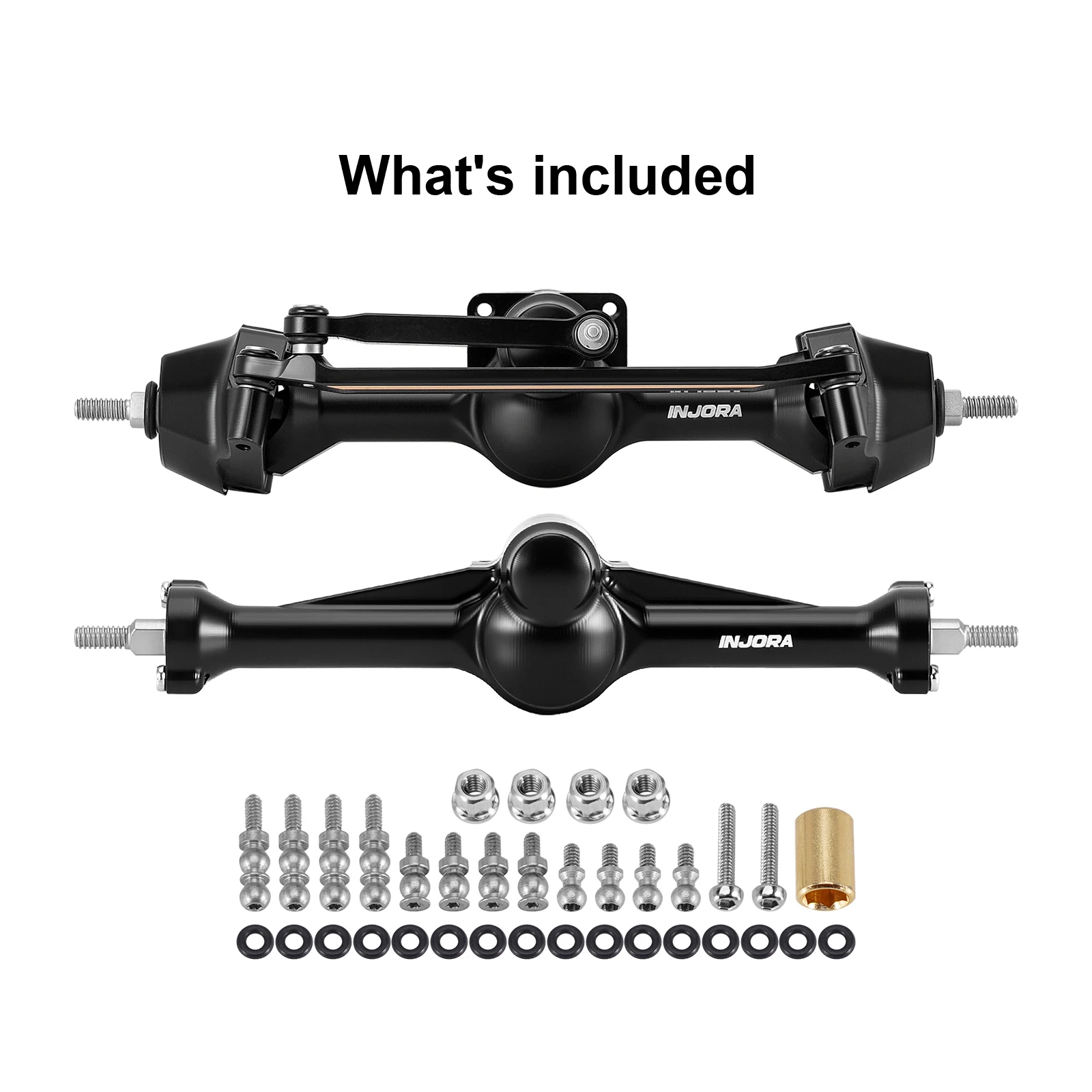

Package List:
1 × Front Axle
1 × Rear Axle
1 × Torx Screwdriver
1 × Nut Tool (Brass)
1 × Assembly Manual
4 × Custom M2 Nuts
