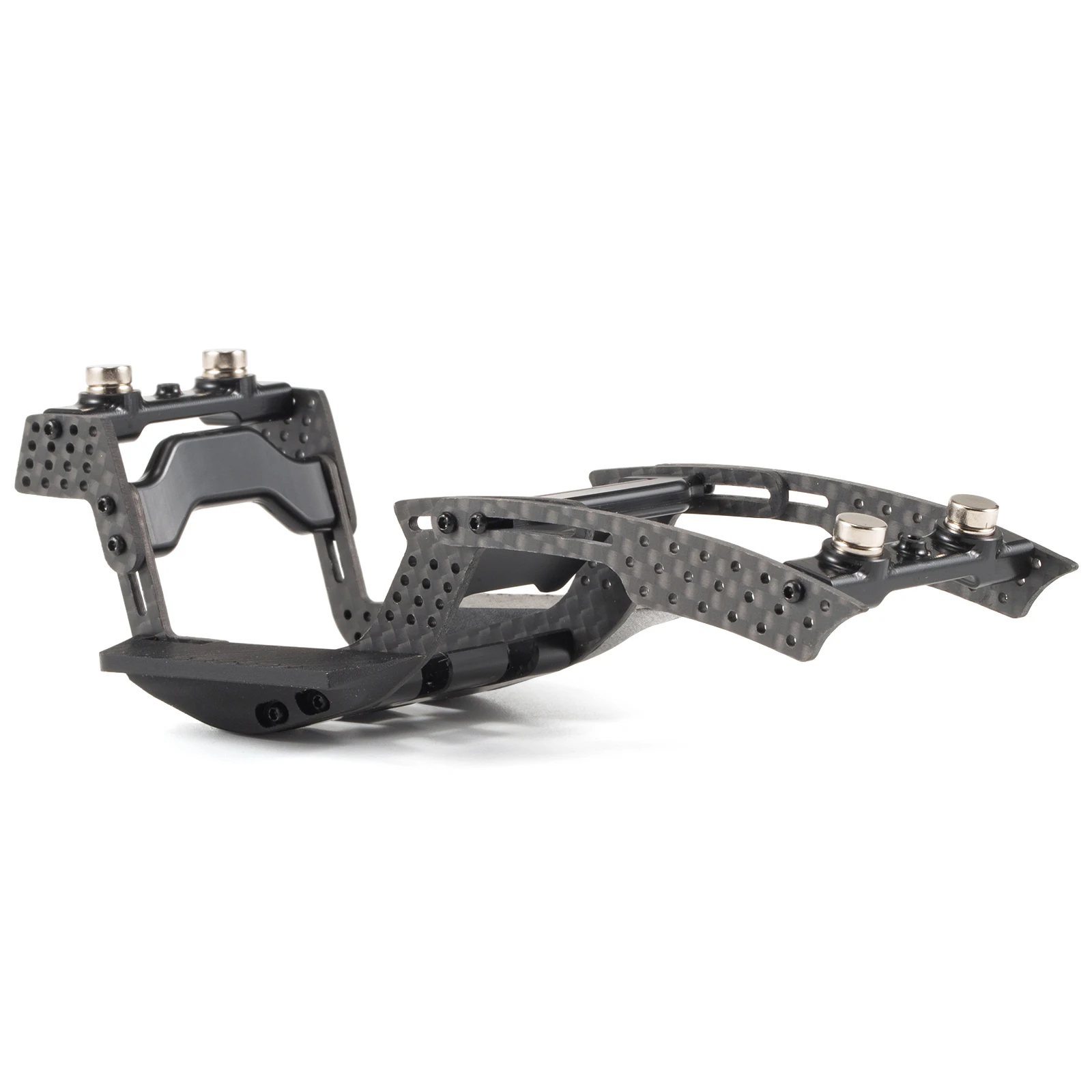

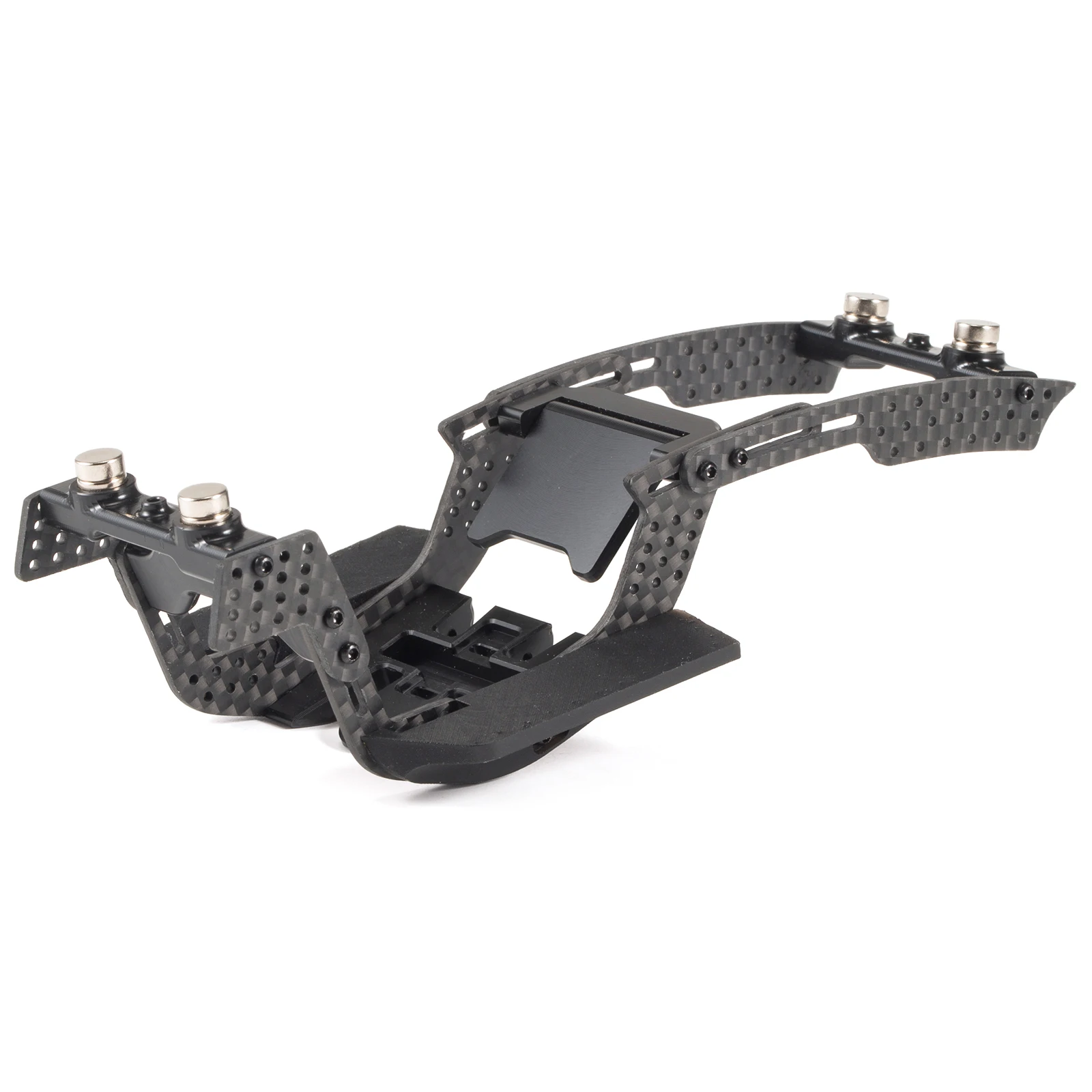

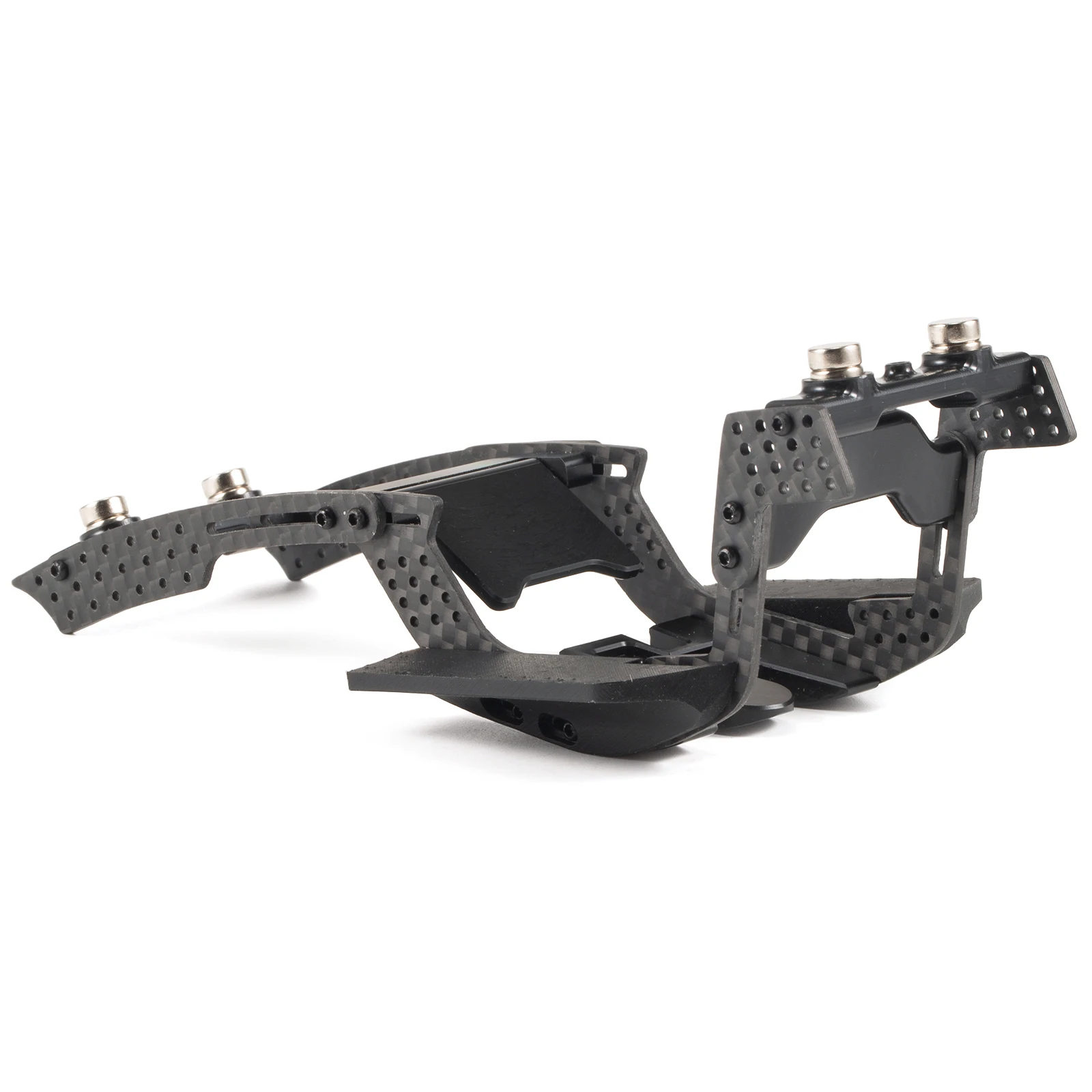

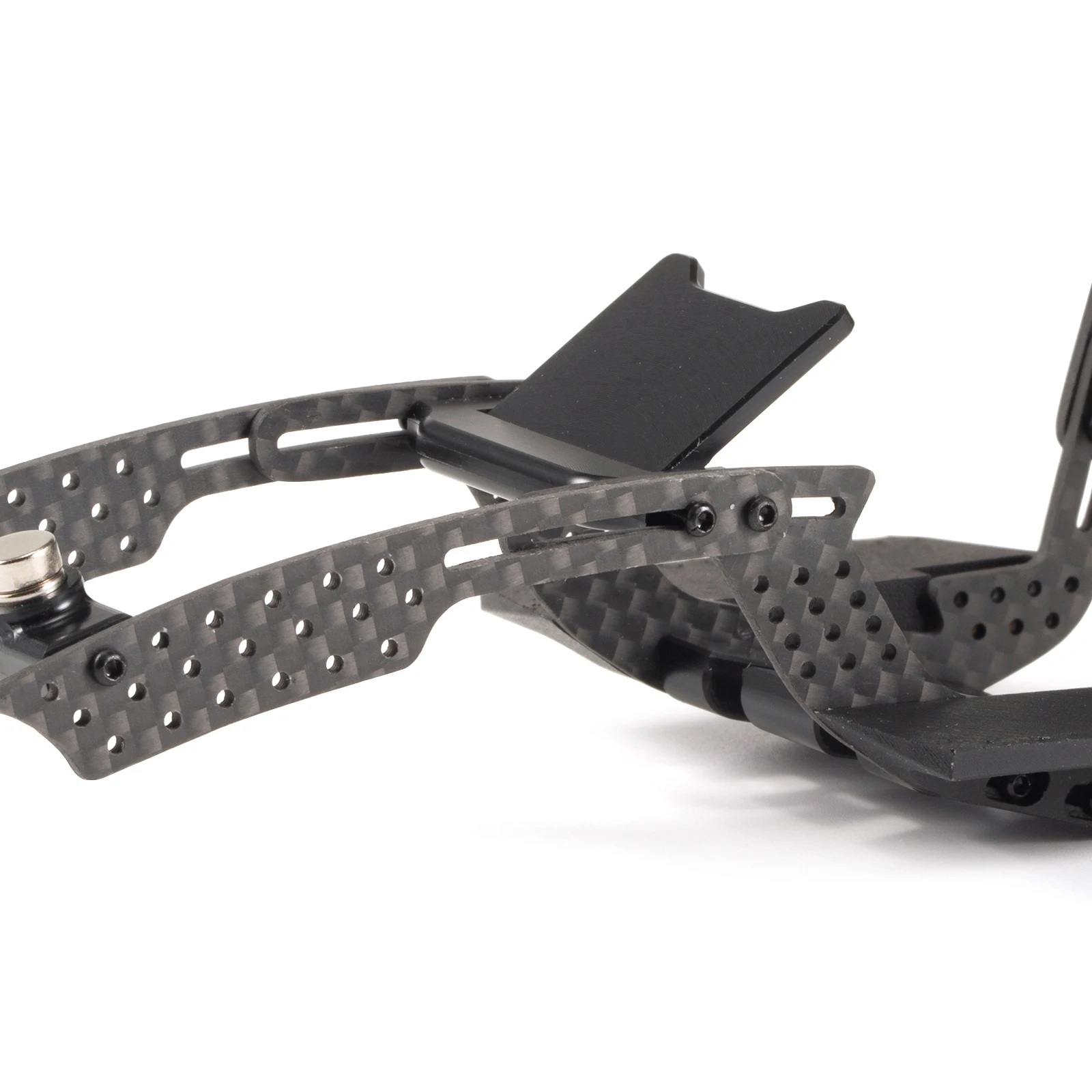

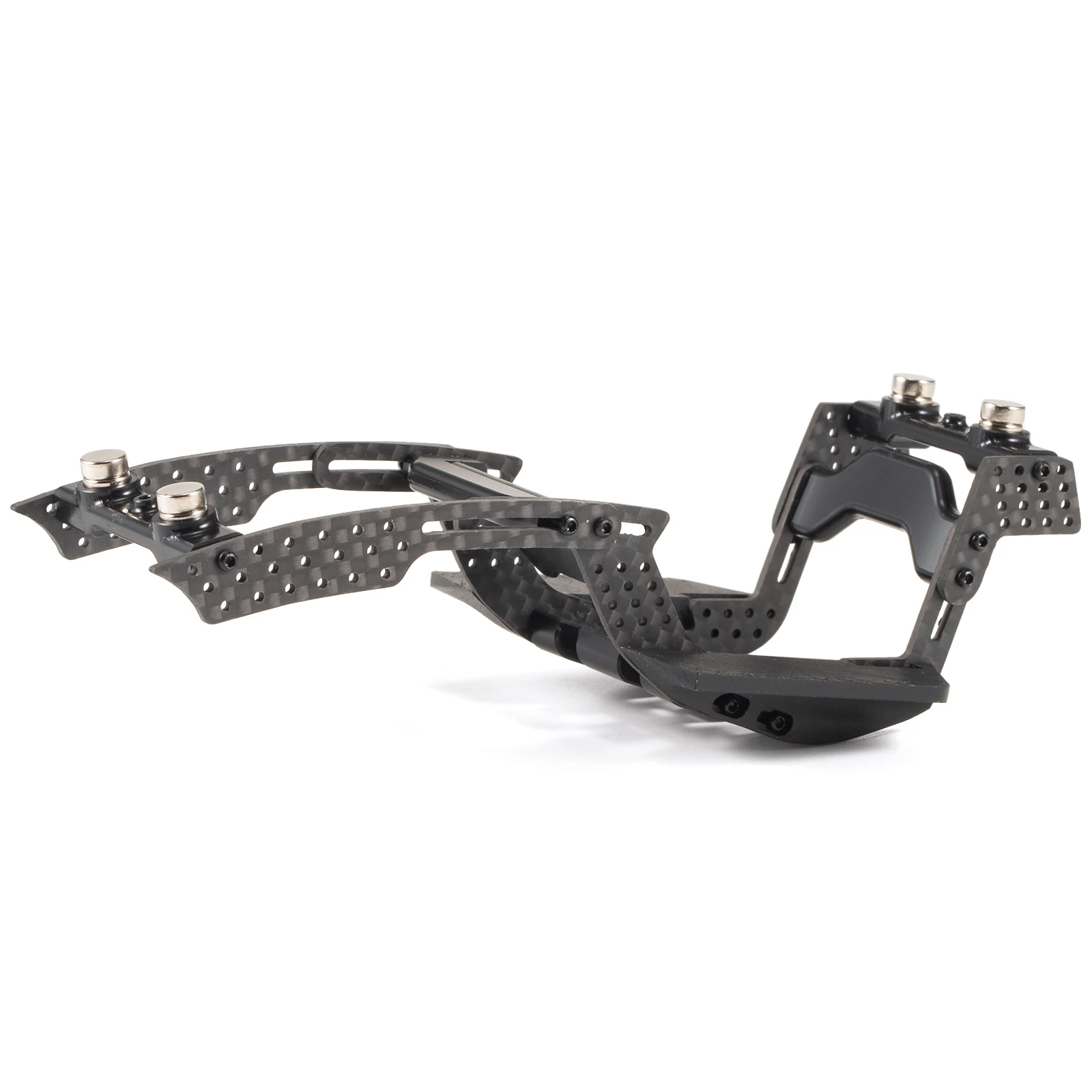

Carbon Fiber Modular 1/24 LCG Chassis Kit for SCX24 Custom Builds Performance Comp Rigs with High Clearance Adjustable Wheelbase

Features:

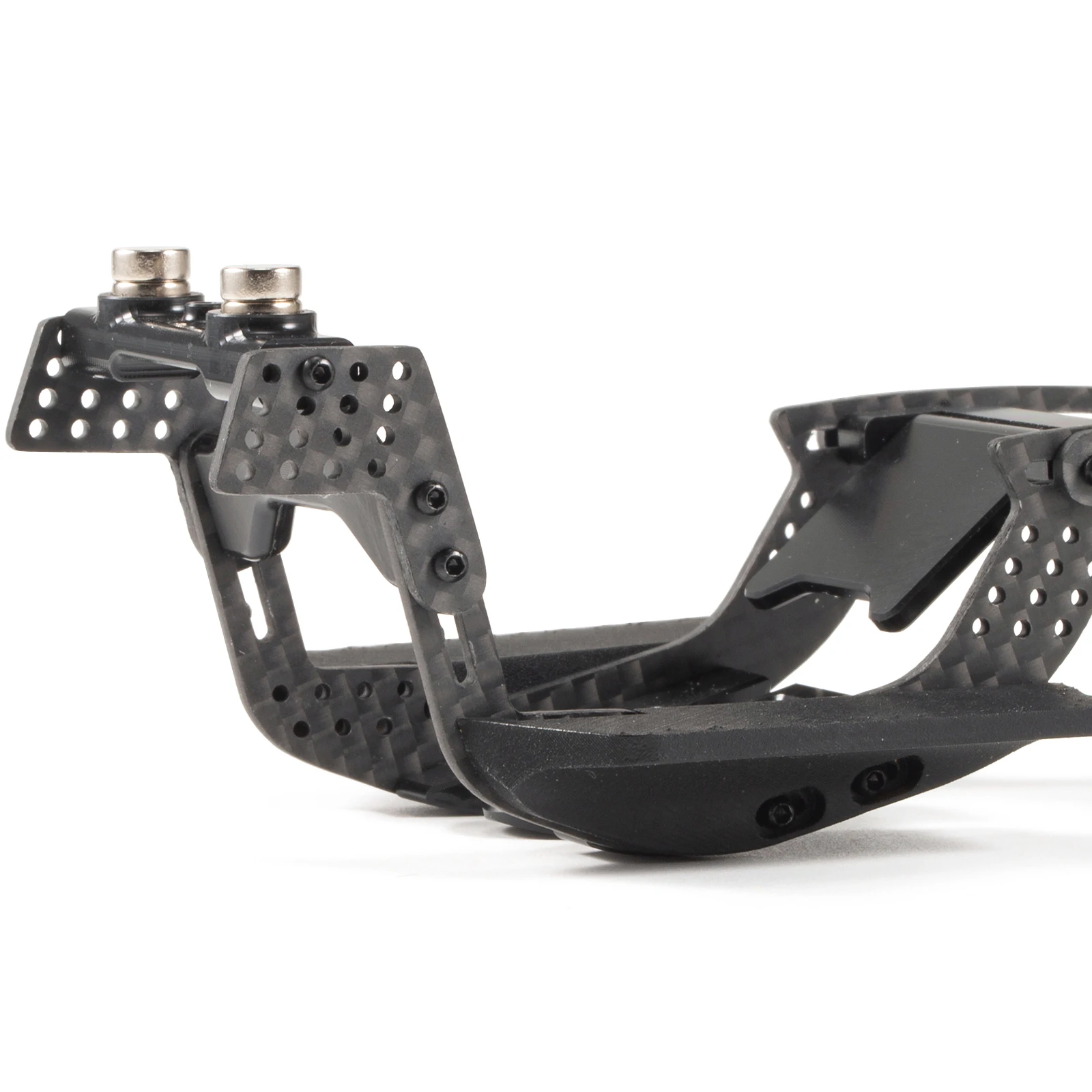

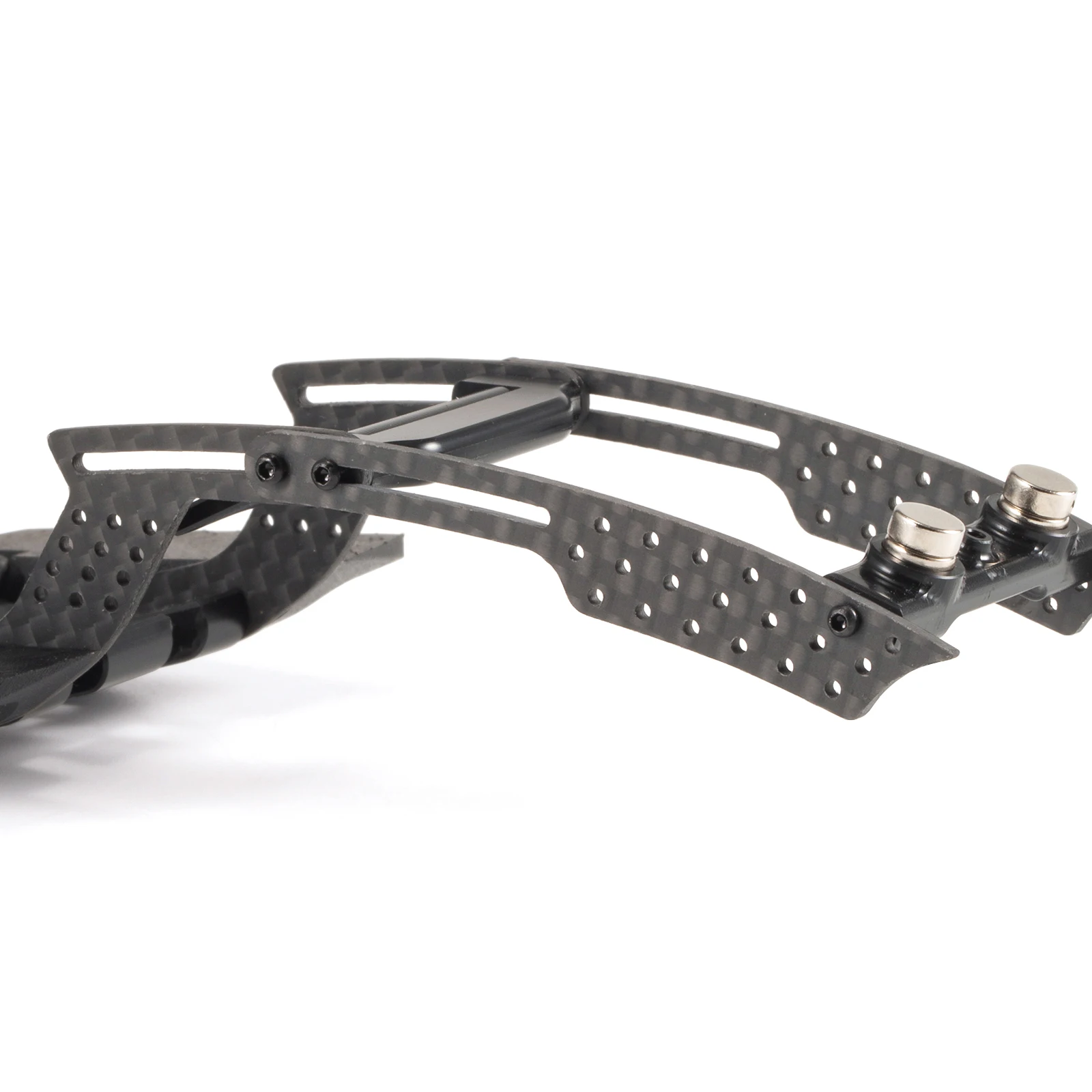

• Modular front and rear shock towers (FRONT: 8mm of upward/downward adjustability, REAR: can accommodate links ranging from 69-105mm+)
• Dynamic skid angle (17-20 degrees. As the rear tower extends, it also steepens the skid angle. This means that increasing rear link length proportionally increases your skid angle as well)
• Flexible wheelbase, easily switch between short and stretched wheelbase configurations
• Adjustable delrin rear electronics tray
• Magnicorn mounts
• Updated delrin skid to reduce hang-up
• Redesigned delrin front brace/battery tray
• Closer hole spacing on front shock tower for more fine-tuning

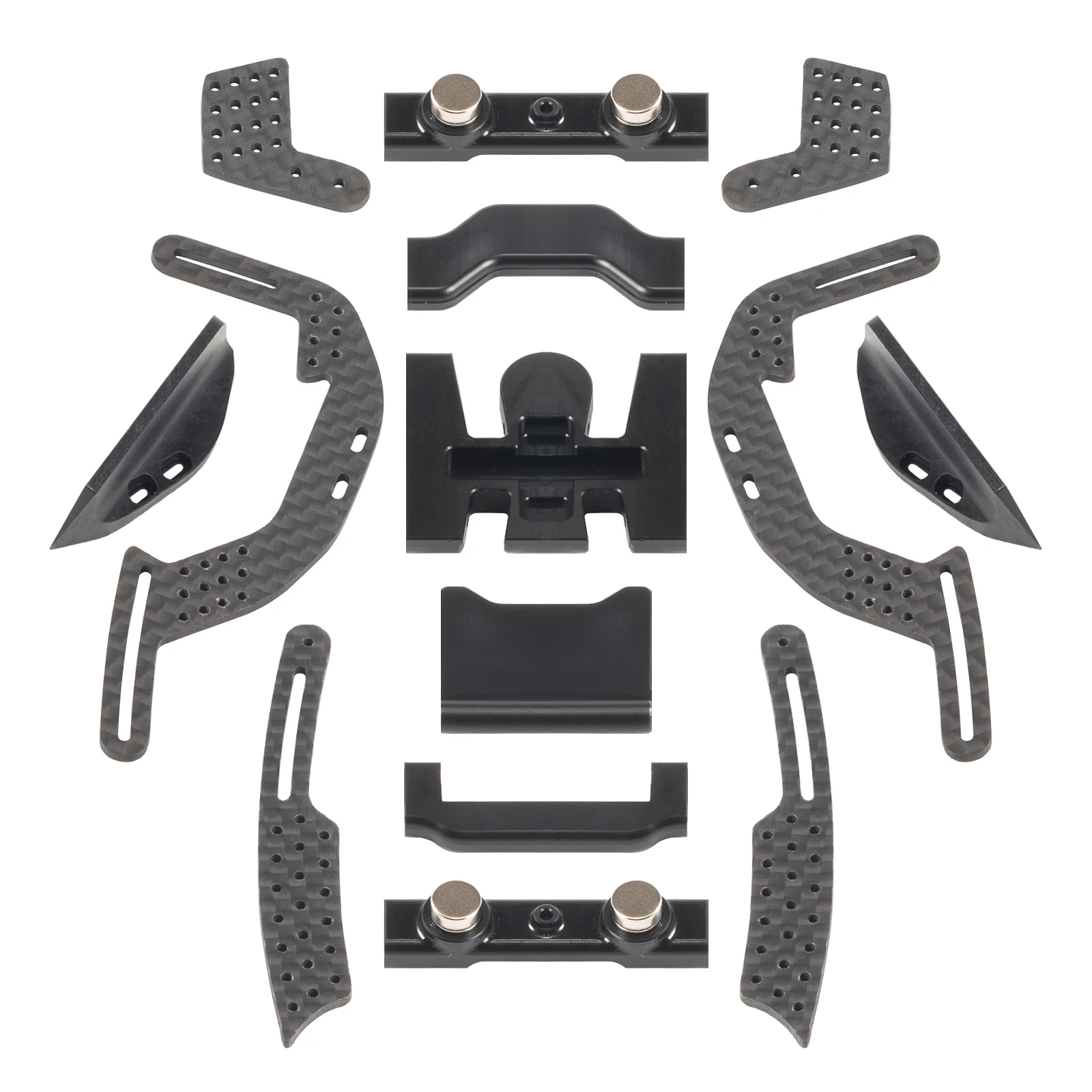

Chassis Kit Includes:

• 2x Carbon fiber chassis rail sets (top, base and rear pieces)
• 2x Delrin sliders
• 1x Delrin skid
• 1x Delrin front chassis brace
• 1x Delrin rear adjustable tray
• 2x Mangnicorn mounts
• 8x 6mm magnets
• 20x M1.4*6 screws

NOTES:

This chassis is best suited for experienced builders- not recommended for first timers (although you can try!) There are a multitude of ways to set this chassis up. I recommend 45mm-50mm front links (45s if you run a smaller tire, 50s if you run 62mm+). Recommended carrier bearing use with links 85mm+ in the rear.
