9IMOD Brushless ESC Motor Combo 30A ESC 1224/1621/2204 Motor For RC 1/18 1/24 SCX24 TRX4M

9IMOD Brushless ESC Motor Combo AM32 30A Mini ESC 1224/1621/2204 Motor Outrunner Motor For RC 1/18 1/24 Crawler Car Axial SCX24 TRX4M

Features:

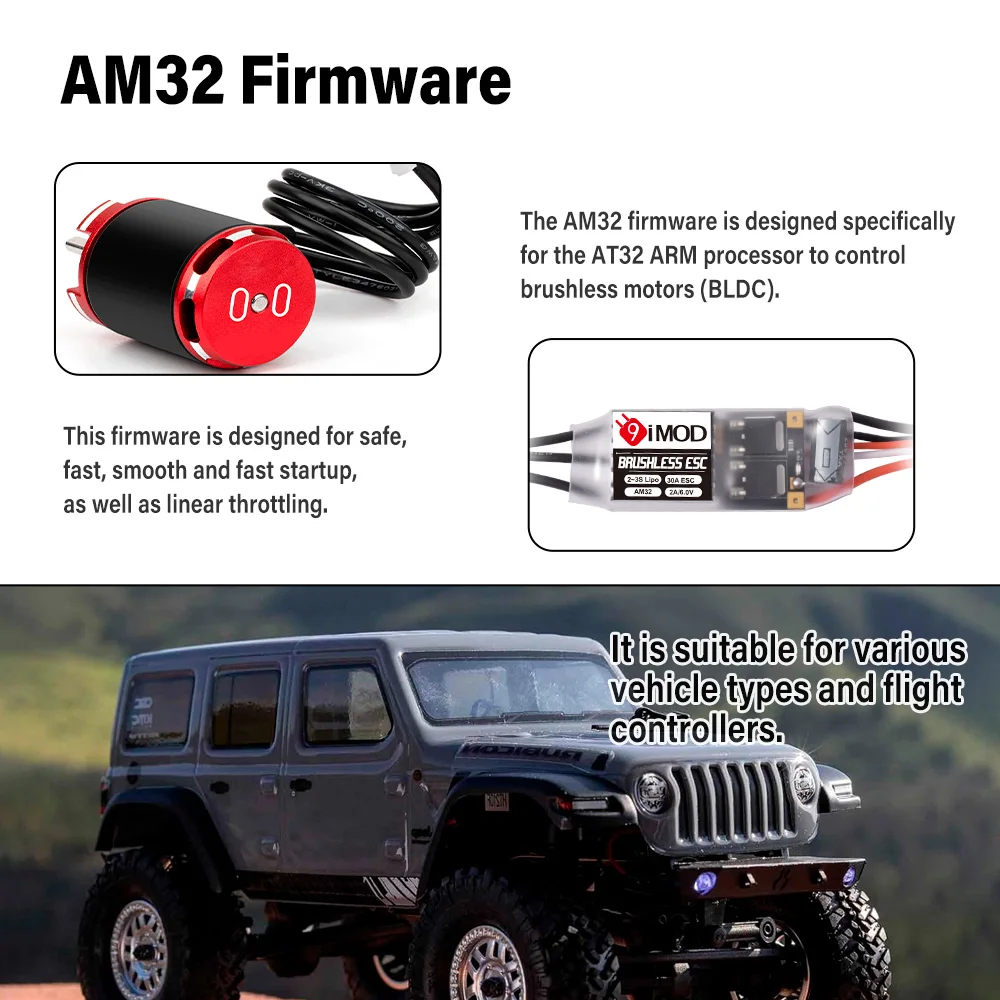

1. AM32 custom firmware.

2. All wires of have been pre soldere.

3. Detachable design, convenient for cleaning and maintaining.

4. Aluminum Cooling System: The ESC possesses an aluminum cooling system offering excellent heat dissipation a strong.

5. Small and light Brushless ESC Motor Combo, for your vehicle.

6. AM32 30A ESC and 1224 Brushless Motor Combo Suitable for 1/24 Crawler Car Axial SCX24 Original Gearbox.

7. AM32 30A ESC and 1621 Brushless Motor Combo Suitable for 1/18 Crawler Car TRX4M Original Gearbox.

8. AM32 30A ESC and 2204 Brushless Motor Combo Suitable for 1/18 1/24 Crawler Car Axial SCX24 TRX4M Modified Gearbox.

(Note:The remote must be adjusted to the neutral position for the ESC to connect)

Description:

9IMOD 1224/1621/2204 Brushless Motor with 30A Brushless ESC,suitable for 1/18 1/24 Crawler Car Axial SCX24 TRX4M.Small and light for your vehicle.(Note: The 2204 motor needs to be with a 1/18 1/24 Axial SCX24 TRX4M modified gearbox before it can be used)

Specifications:

AM32 30A ESC

Brand: 9IMOD

Battery: 2~4S Lipo (Recommend 3S)

BEC: 6V@2A

Continuous Current: 30A

Motor:1224/1621/2204 Brushless Motor

Support electronic switches

Suitable for: 1/18 1/24 SCX24 TRX4M

Weight: 15g

1621-3200KV Motor Specifications:

Stator Diameter: 12 mm(in)

Stator Thickness: 12 mm(in)

Number of Stator Slots: 9

Magnet Grade: 12

Motor winding: 1+2 Delta

Motor Wire Diameter: 0.29 mm

Motor KV Value: 3200KV RPM/Volt

No-Load Current (10V/11.1V): 0.4Amps

Maximum Current: 30 Amps

Maximum Power: 333 Watts

Motor internal Resistance (rm): 0.002 0hms

Motor Weight: 17Grams Amps

Motor Outer Diameter: 15.7mm(in)

Motor Shaft Diameter: 1.7 mm(in)

Motor Length: 20.9 mm

Overall Length (including shaft): 30 mm

Number of Cells (Battery Cells): 3S

Motor Timing: 1-4deg

Drive Frequency: 2kHz

1621-3600KV Motor Specifications:

Stator Diameter: 12 mm(in)

Stator Thickness: 12 mm(in)

Number of Stator Slots: 9

Magnet Grade: 12

Motor winding: 1+2 Delta

Motor Wire Diameter: 0.29 mm

Motor KV Value: 3600KV RPM/Volt

No-Load Current (10V/11.1V): 0.9Amps

Maximum Current: 30 Amps

Maximum Power: 350 Watts

Motor internal Resistance (rm): 0.002 0hms

Motor Weight: 17Grams Amps

Motor Outer Diameter: 15.7mm(in)

Motor Shaft Diameter: 1.7 mm(in)

Motor Length: 20.9 mm

Overall Length (including shaft): 30 mm

Number of Cells (Battery Cells): 3S

Motor Timing: 1-4deg

Drive Frequency: 2kHz

1224-4000kv Motor Specifications:

No load current (1o/7.4V):0.2Amps

Motor speed:29600

Madame resistance (rm):0.001 Ohms

Motor wire diameter:0.18mm

Suit for: 1/24 RC Crawler Car Axial SCX24 WPL FMS FCX24M

1224-5000kv Motor Specifications:

No load current (1o/7.4V):0.3Amps

Motor speed:37000

Madame resistance (rm):0.002 Ohms

Motor wire diameter:0.29mm

2204-2100KV Motor Specifications:

Stator Diameter: 22 mm(in)

Stator Thickness: 4.6mm(in)

Number of Stator slots: 12

Magnet Grade: 14

Motor wire Diameter: 0.25 mm

No-Load current: 0.5Amps

Maximum Power: 700Watts

Motor Outer Diameter: 28mm(in)

Motor Shaft Diameter: 2.0mm(in)

Motor Length: 19.2 mm

Overall Length (including shaft): 30.5mm

Number of Cells (Battery Cells): 3S11.1V

2204-2500KV Motor Specifications:

Stator Diameter: 22 mm(in)

Stator Thickness: 4.6mm(in)

Number of Stator slots: 12

Magnet Grade: 14

Motor wire Diameter: 0.25 mm

No-Load current: 0.7Amps

Maximum Power: 900Watts

Motor Outer Diameter: 28mm(in)

Motor Shaft Diameter: 2.0mm(in)

Motor Length: 19.2 mm

Overall Length (including shaft): 30.5mm

Number of Cells (Battery Cells): 3S11.1V

Package contents:

As you choose.

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
