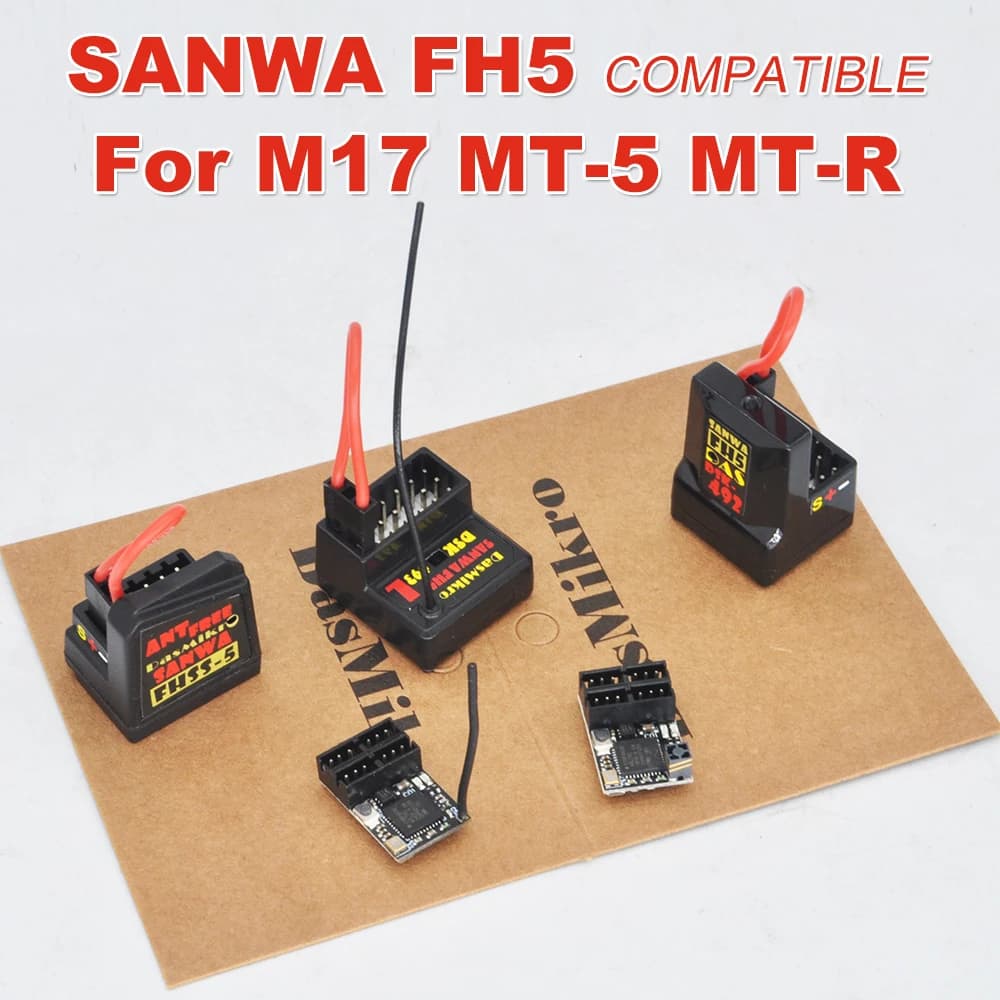

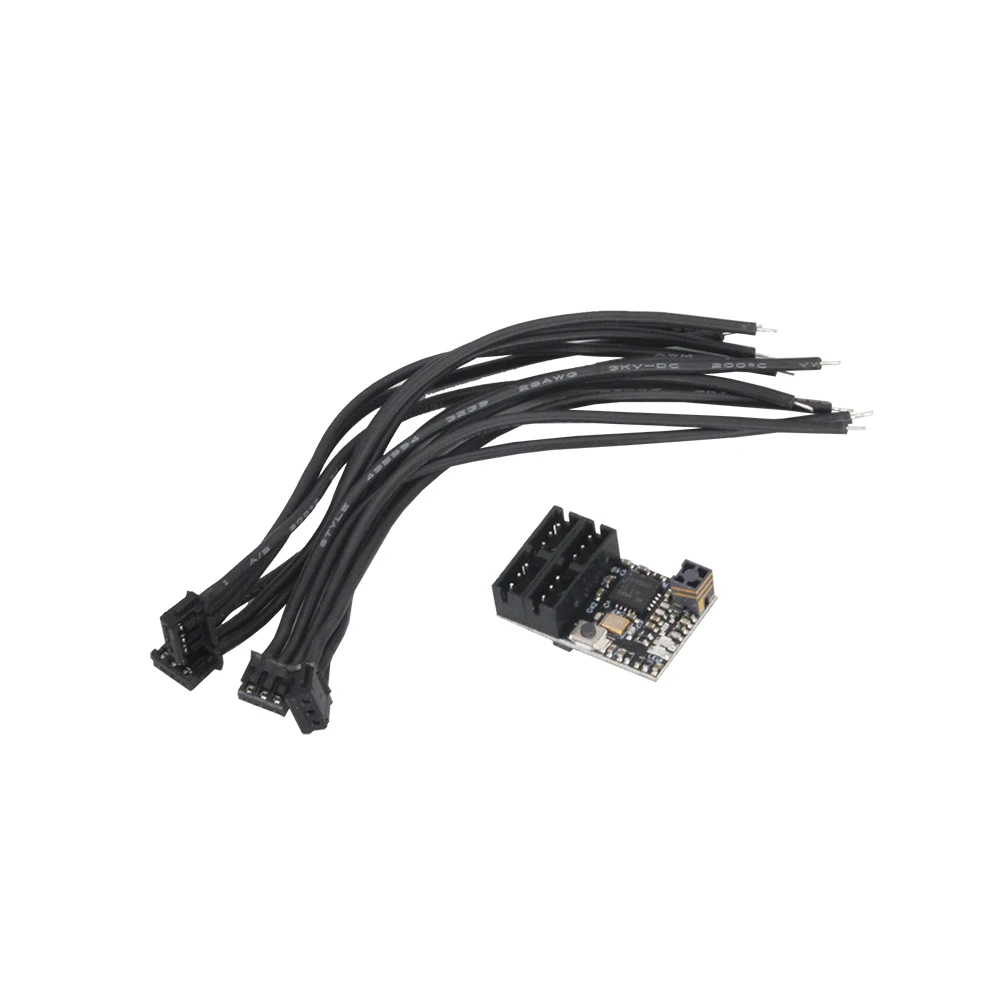

Sanwa FH5 4 Channels Compatible Higt Speed Standard Mini FHSS-5 Receiver For RC Car Racing Drift Car Sanwa M17 MT-5 MT-R Radio

Sanwa 2.4G FH5 4 Channel Compatible Surface Standard and Mini FHSS-5 Receiver For RC Car Racing Drift Car Sanwa M17 MT-5 MT-R

This receiver unit is Sanwa high speed FHSS-5 compatible, the standard receiver is recommended for 1/10 and 1/12 RC electric cars, while the mini receiver is suitable for smaller scale drift and Mini-Z car models.

Features:

1. Sanwa 2.4GHz FHSS5U/FHSS5 Spread Spectrum System compatible

2. Compatible with SSL (SUPER VORTEX Series, etc...)

3. Ultra Response Mode (SUR)

4. Extreme Response Mode (SXR)

5. Dual ID system (able to bind with 2 transmitters)

6. Micro size

7. Operating Voltage 3.5V - 8.4V

Indicator Function compatible:

Indicator function can be checked signal strength connected transmitter. The indicator function can be used for finding problems as incorrect receiver placing and finding the best receiver position for transmitter. Indicator function can be checked signal strength without any effect with response.

NOTE:

RPM sensor (SNW107A41061A) and temperature sensor are not compatible

RPM and temperature telemetry are only capable with the Sanwa Super Vortex series

FH5U RF mode is not capable to use telemetry

SXR response mode is only compatible with transmitter M17.

Compatible Transmitters:

Sanwa M17

Sanwa MT-5

Sanwa MT-R

How To Bind:

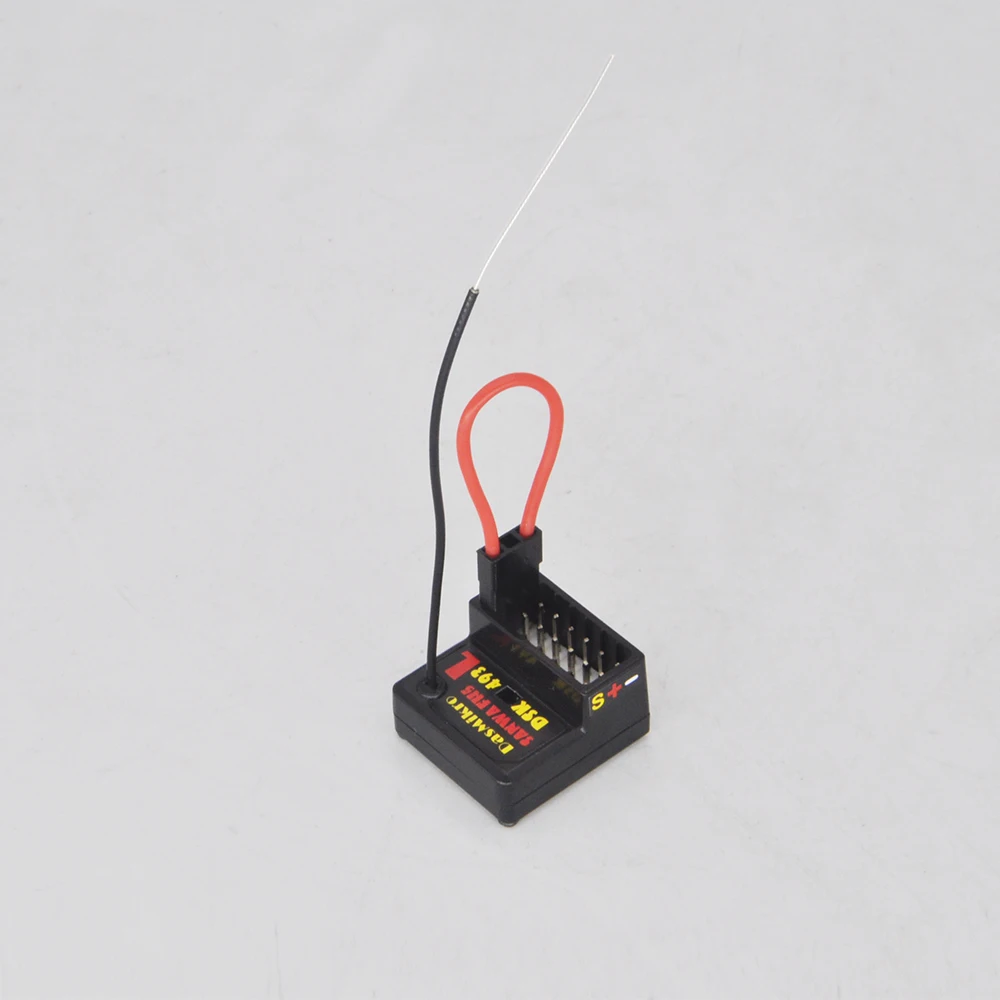

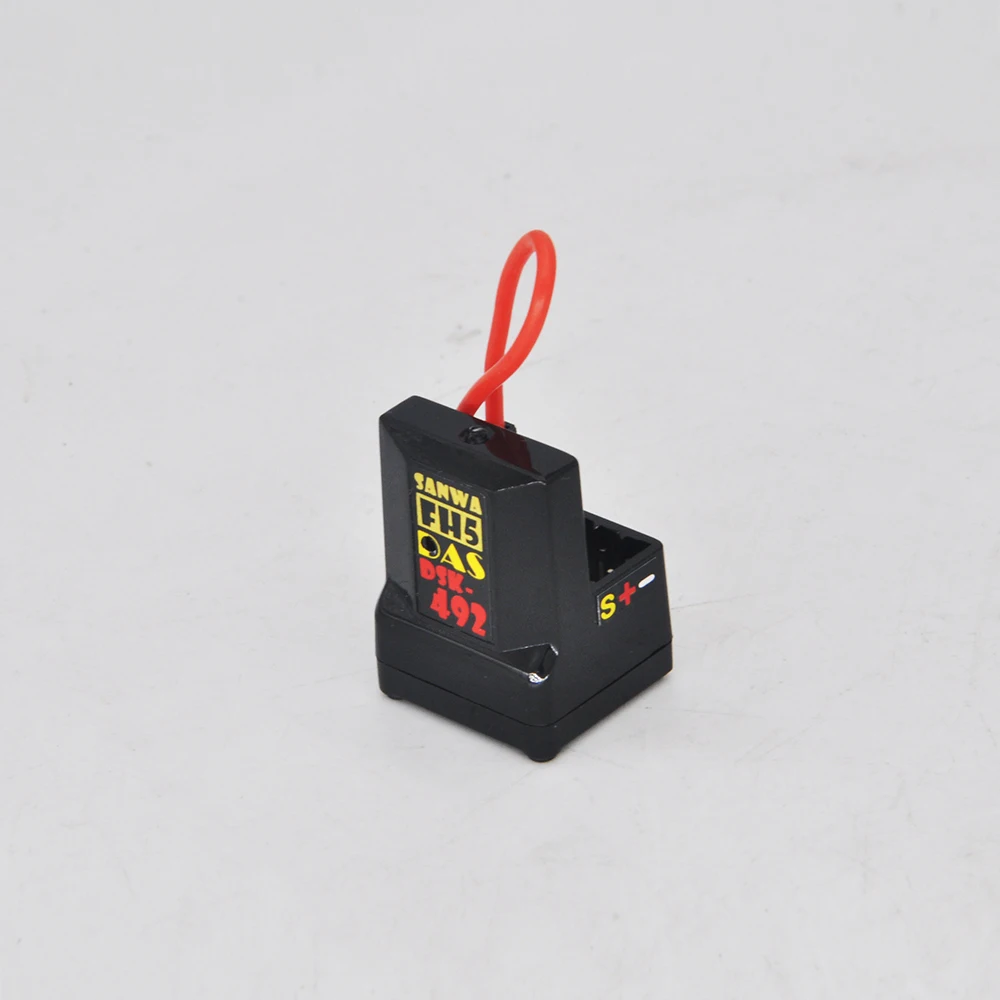

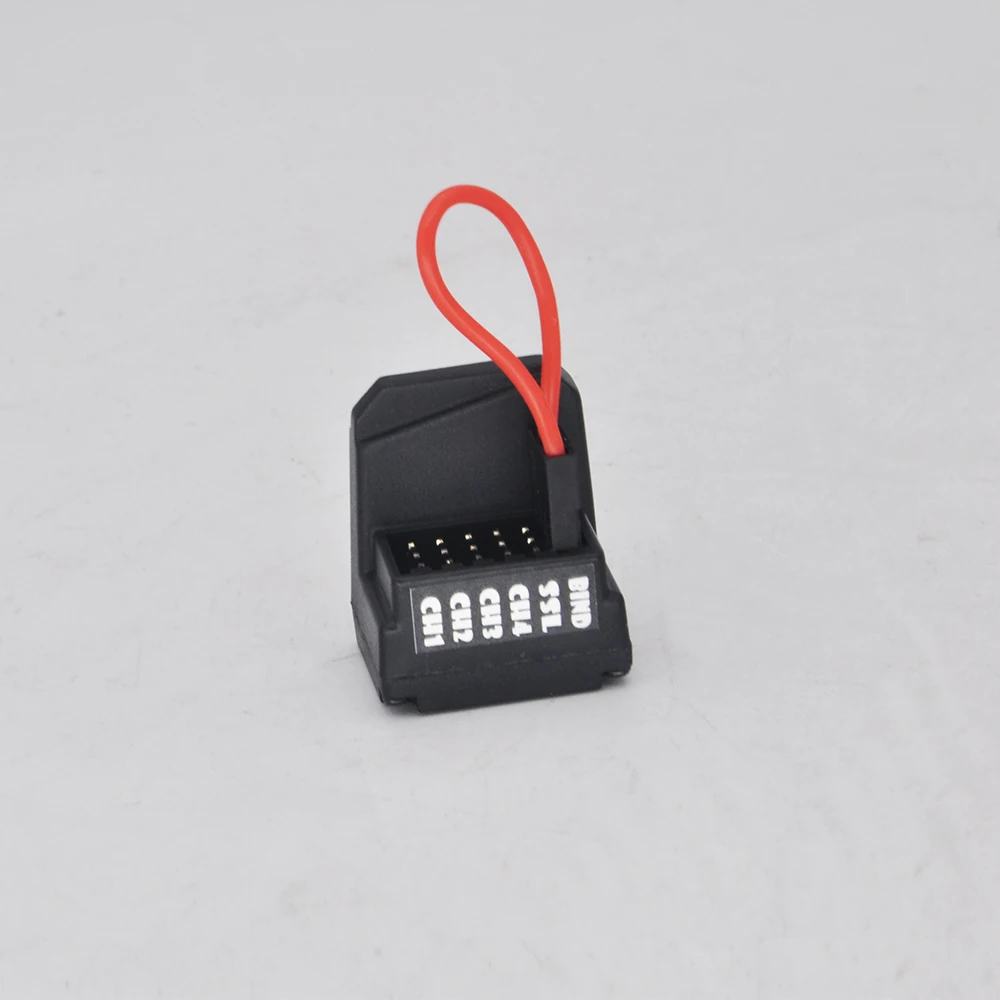

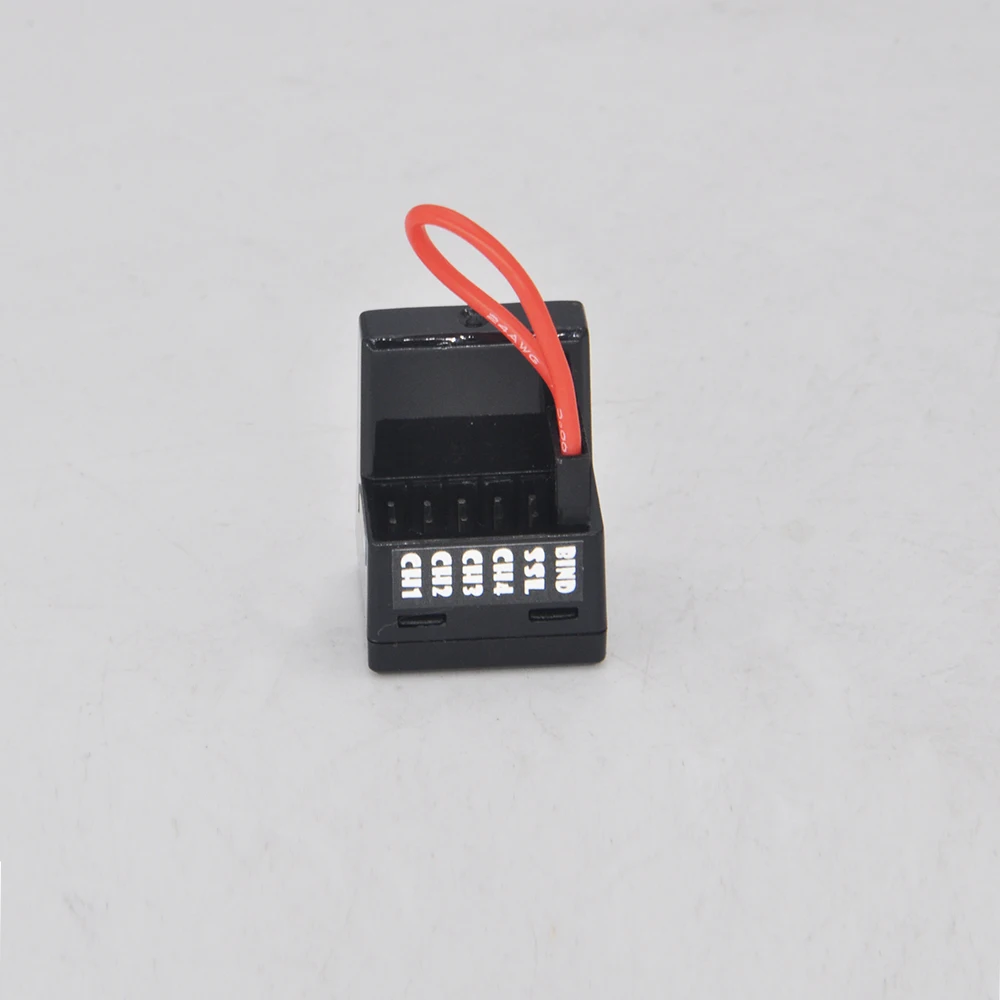

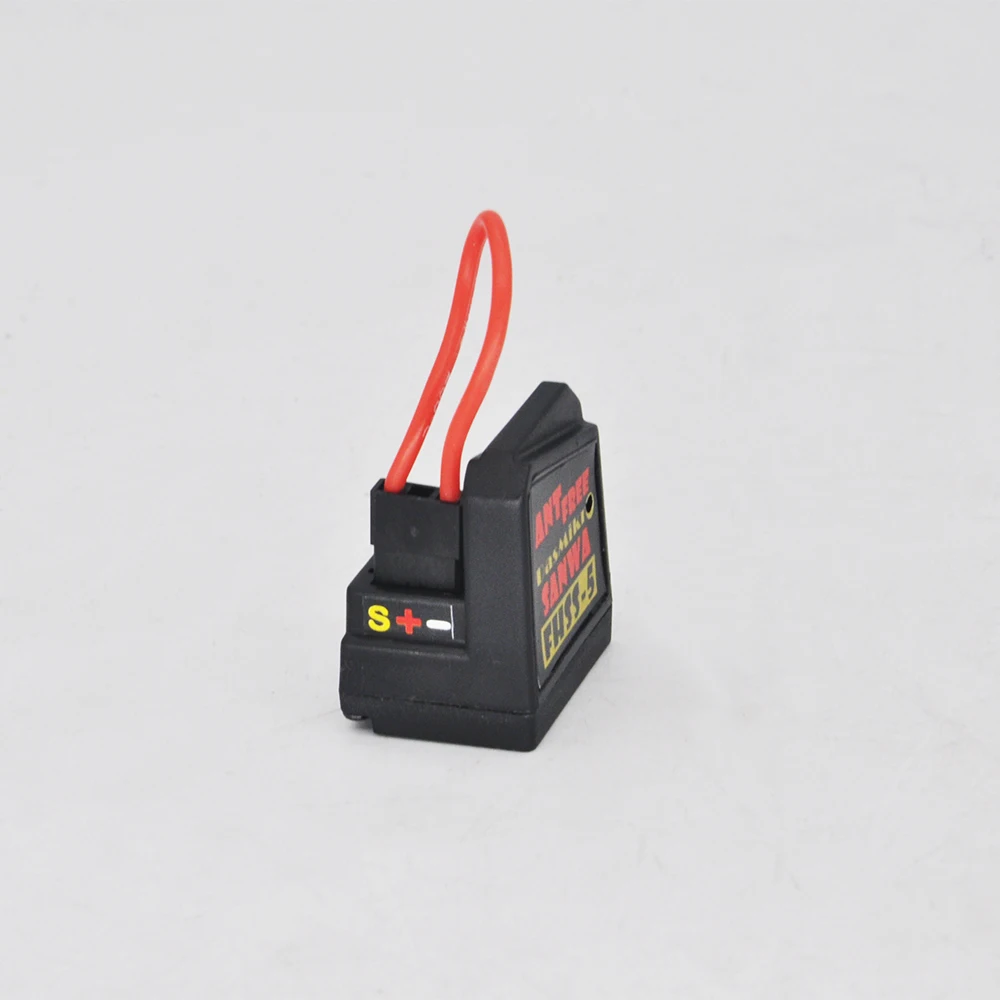

For Standard Receiver:

1.Turn on transmitter, enter [BIND] to be bind mode.

2.Connect BIND plug in BIND port then turn on receiver.

3.LED will change from slow flashing blue to fast flashing blue.

4.Turn off receiver, remove BIND plug, then turn on.

5.Finish BIND mode on transmitter.

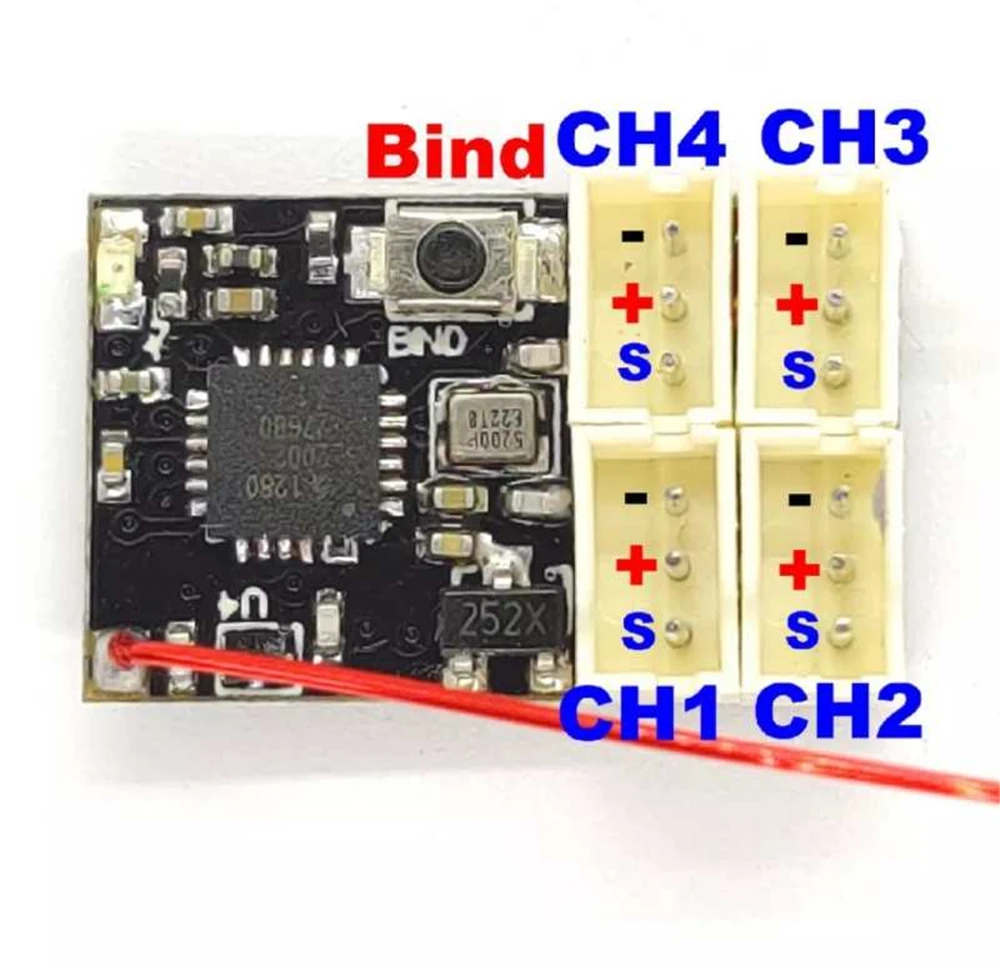

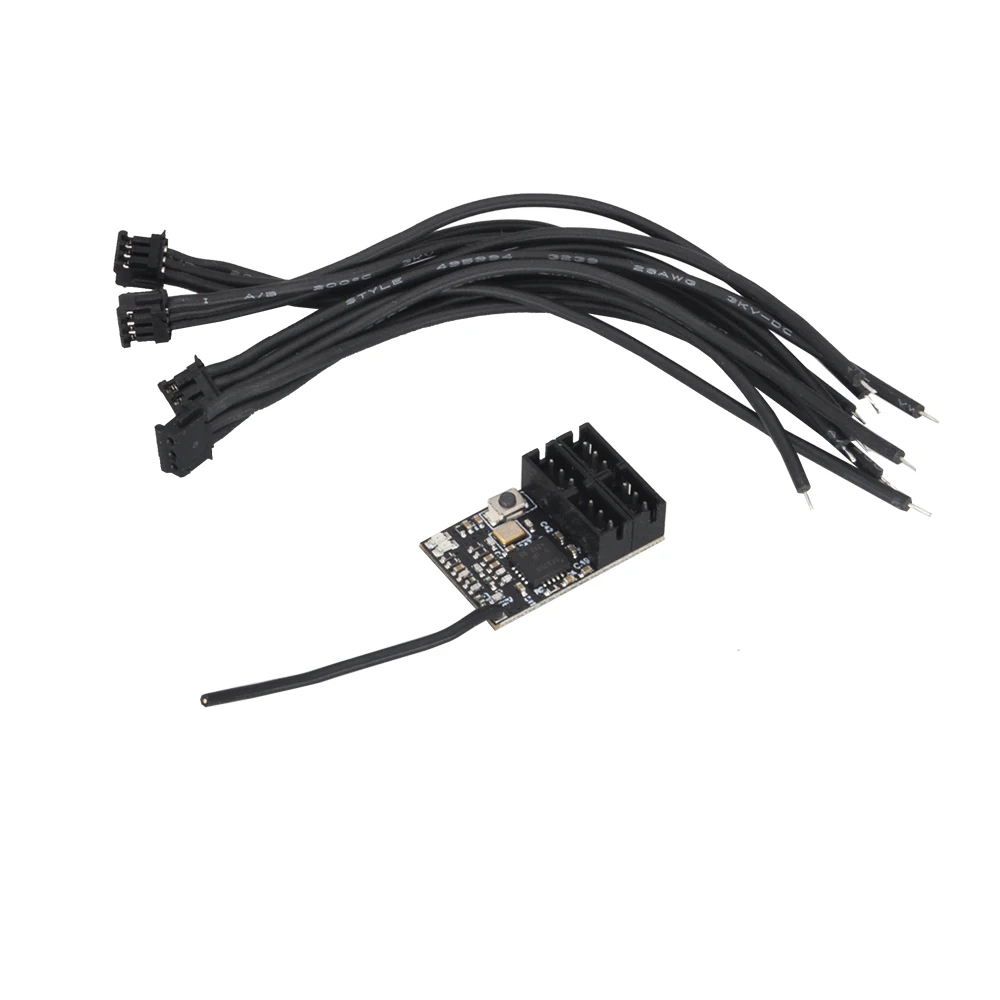

For Mini Receiver:

1.Turn on transmitter, enter [BIND] to be bind mode.

2.Press the BIND button then turn on receiver.

3.LED will change from slow flashing blue to fast flashing blue.

4.Turn off receiver, then turn on.

5.Finish BIND mode on transmitter.
