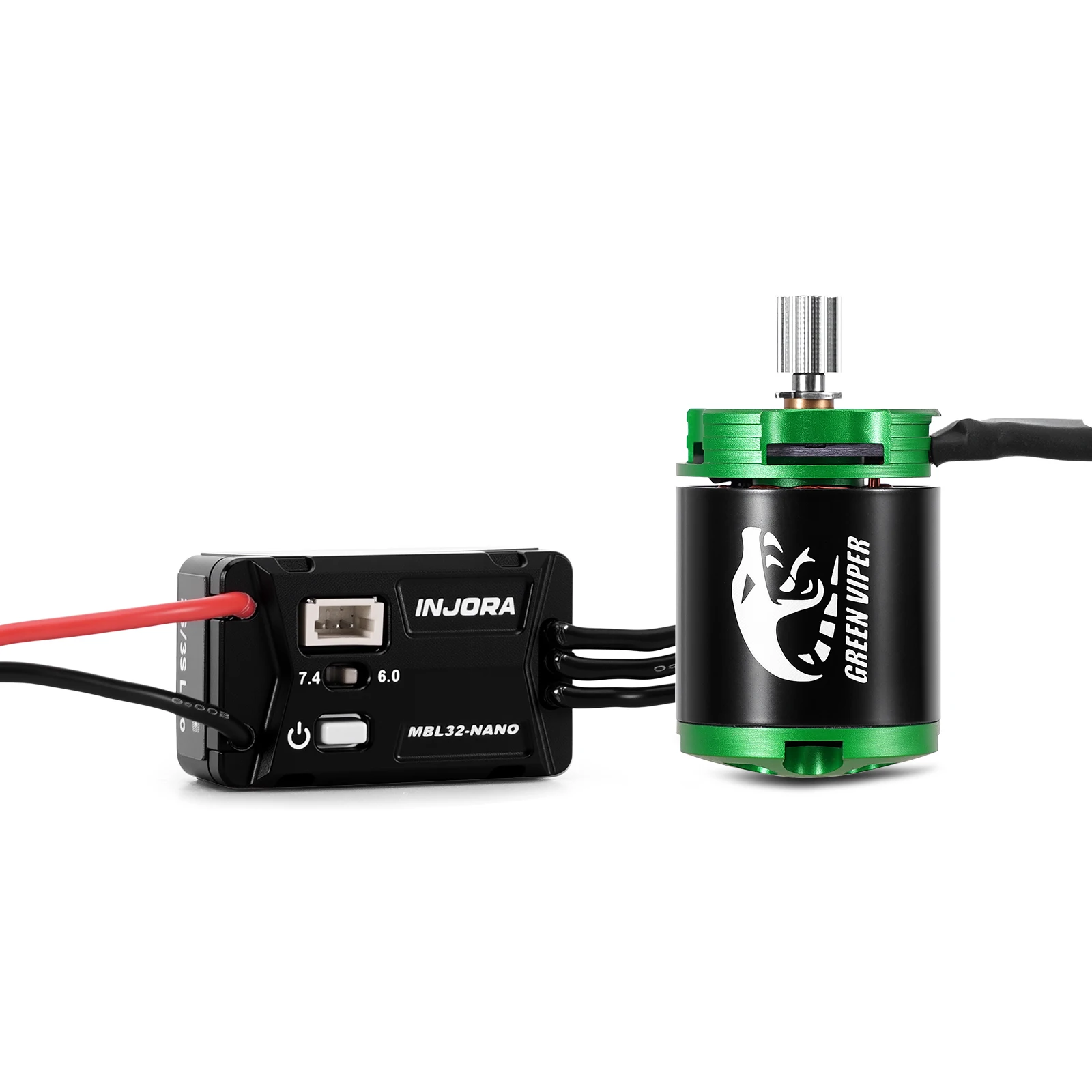

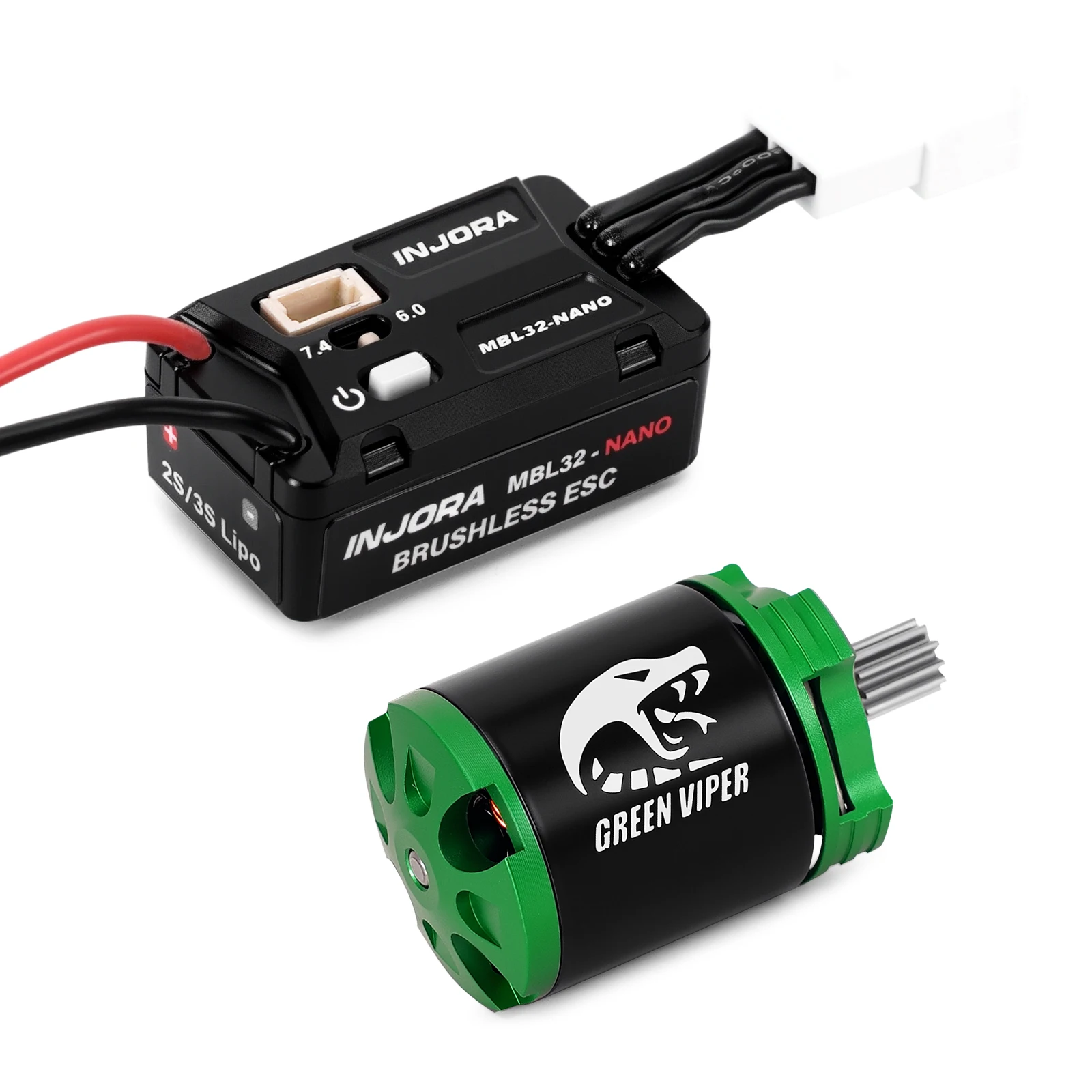

INJORA MBL32-NANO Brushless ESC & 1621 Green Viper Motor 4300KV for 1/30 Axial SCX30

Note:
Not compatible with the stock SCX30 Radio. A transmitter and receiver with a CH2 port are required
Pre-configured and ready to run. No programming required.
USB programmer card is not included.
Please use 2S LiPo!
Please do not flash or modify the firmware by yourself. Any damage caused by unauthorized firmware flashing or modification is not covered under INJORA warranty.


Features:
The INJORA MBL32-NANO, based on the AM32 firmware, is meticulously tailored for RC crawlers and is programmable.
Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise.
MBL32-NANO features a built-in BEC with adjustable output: 6V / 7.4V.
Waterproof Design for all-weather performance.
Supports PC Programming via USB programmer card.
Multiple Protections: Low-voltage, fail-safe, and rotor lock protection.
Runs quieter than brushed systems, with reduced motor noise
Includes a protective sleeve at the wire outlet for enhanced durability
Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds

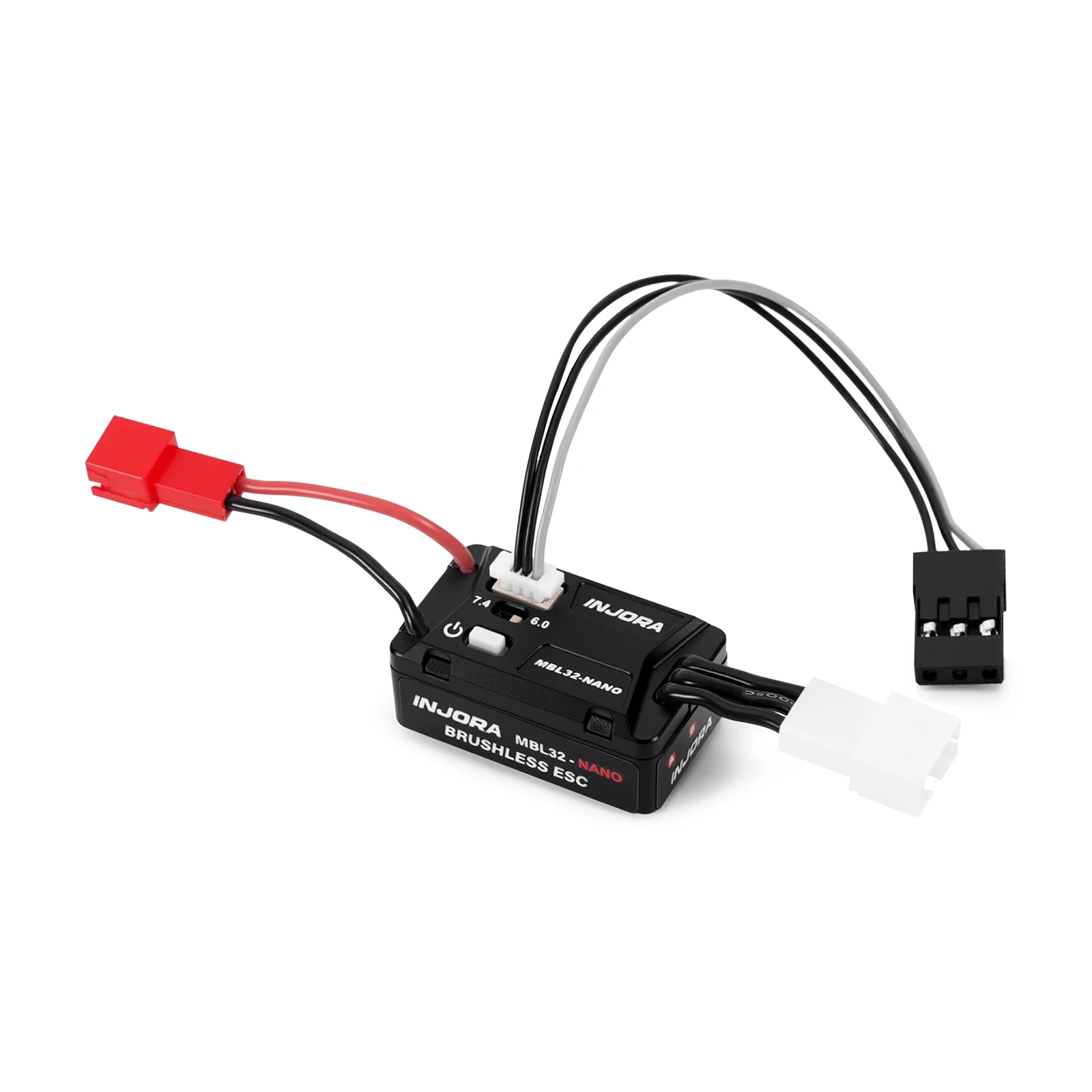

ESC Specifications:
Part Number: MBL32-NANO
Continuous Current: 25A
Peak Current: 45A
LiPo Cells: 2S LiPo
BEC Current: 3A
Output: 6.0V/7.4V adjustable
Dimensions (L×W×H): 25.5×15×12mm
Weight: 0.34oz (9.5g)
Compatible Motors: INJORA 1621/1721
Waterproof: Yes

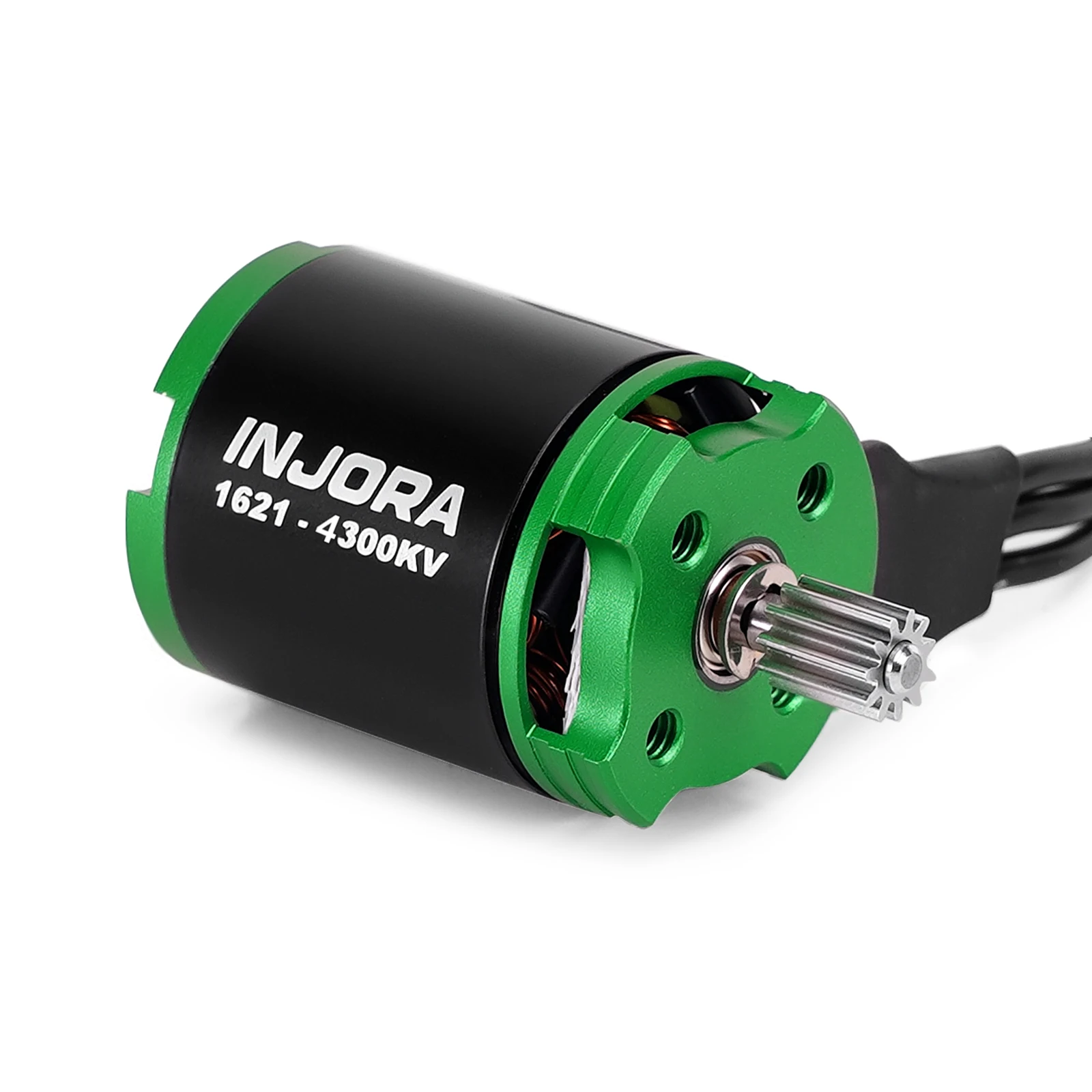

Motor Specifications
Model Number: 1621
Motor Type: Sensorless Brushless Outrunner
Waterproof: Yes
Operating Voltage: 7.4V (2S LiPo)
RPM/Volt: 4300KV
Motor Slots: 9
Motor Poles: 12
No-Load Current (7.4V): 0.8A
Max Current: 12A
Motor Connectors: PH2.0 3-pin
Dimensions: Φ15.5×21.5mm
Motor Output Shaft: Φ1.7mm
Motor Pinion: 0.3mod 11T
Lead Length: 65mm
Weight: 15g

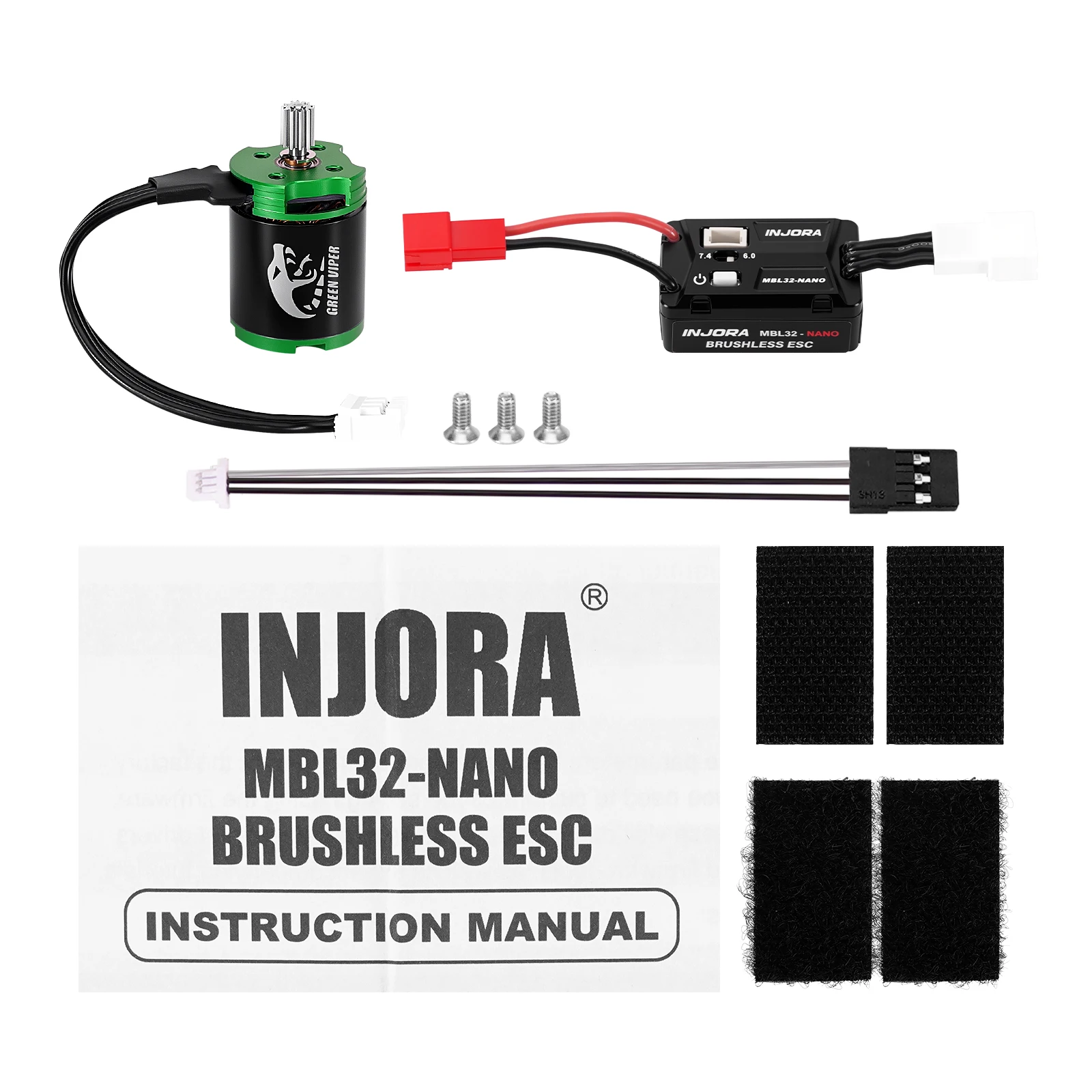

Package List:
1 * MBL32-NANO Brushless ESC
1 * 1621 Brushless Motor
1 * Instruction Manual
