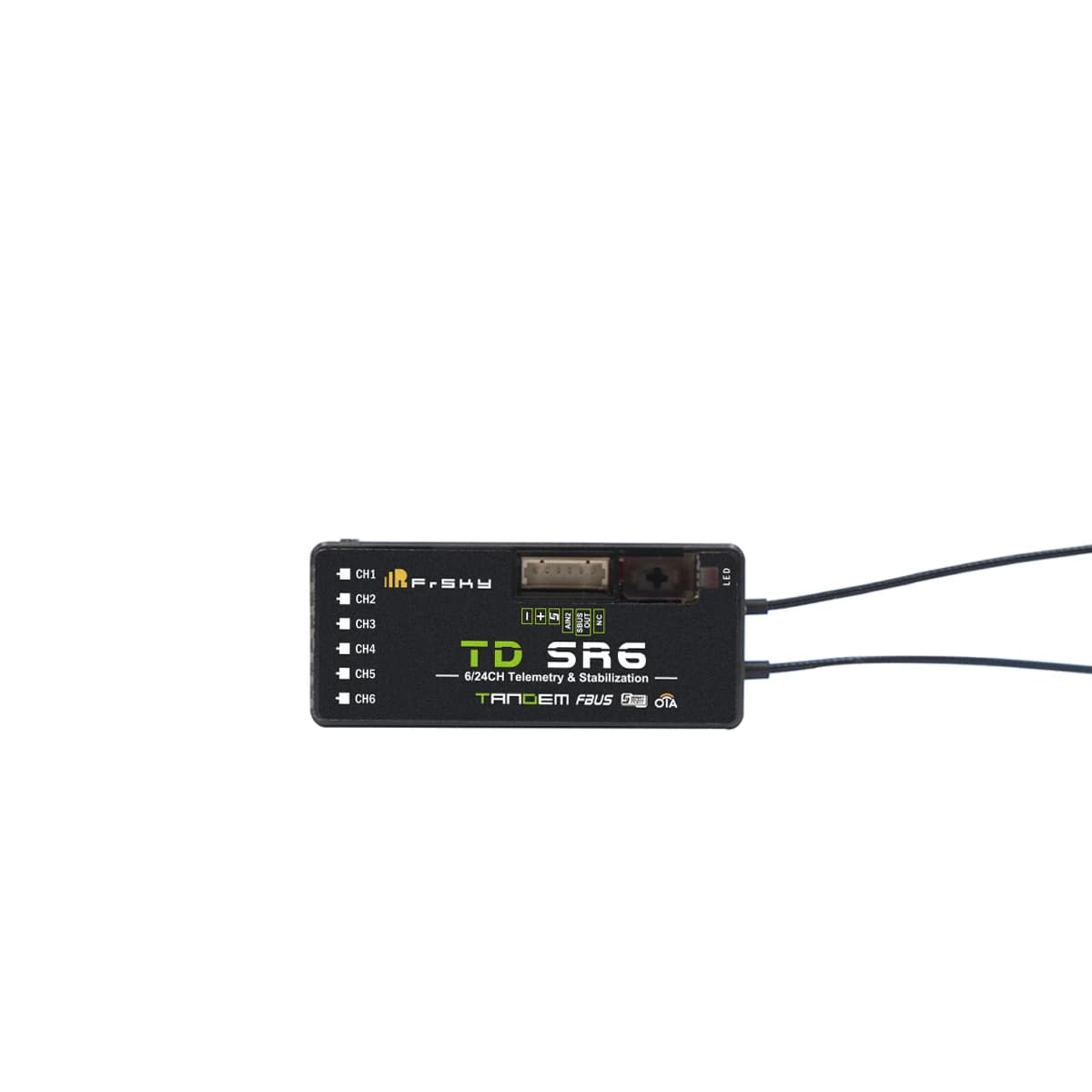

FrSky TD SR6 2.4G/900M Dual-Band Receiver with 6 PWM Channels, Built-in Stabilization & Black Box Function for Telemetry Devices

FrSky TD SR6 Receiver

The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 2.4Ghz and 900Mhz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference performance.

The Tandem series receivers adopt a dual-band antenna design (2.4GHz & 900MHz) that provides multi-directional wide coverage for the remote signal. The telemetry data (Power & Signal related) can be recorded using the built-in black box module within the Tandem receiver, useful for capturing data from any unusual status during the flight.

TD SR6 receiver offers 6 PWM channel outputs and is bundled in a compact lightweight design, the receiver also provides output pins accordingly for SBUS Out and FBUS/S.Port. By setting the S.Port to the FBUS protocol, the TD receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the build setup.

Stabilization Function

The TD SR6 offers an enhanced Stabilization function which is an upgrade over the original classical gyroscope stabilization modes. The TD SR6 offers an advanced mode that provides more programmable stabilized channels and flexibility.

The classical stabilization mode has been enhanced with 5 additional stabilization channels, providing pin mapping to each channel in the multiple flight modes like Stabilization, Auto-Level, Hover, and Knife-Edge with an airplane model.

In the advanced stabilization mode, all the output pins are configurable for stabilization and additional advanced features such as Stab file sharing, programmable parameters, developer access, etc.

Features

Simultaneous working 2.4G&900M dual-band TD mode

Dual-band antenna design for multi-directional coverage

Compact lightweight design

Built-in Stabilization Function

Black Box function

4ms race mode with telemetry

Long control range (Range varies based on the RF Power settings.)

Over-The-Air (OTA) FW update

6 PWM channel ports

FBUS / S.Port

SBUS Out (Supports 16CH / 24CH mode)

Specifications

Frequency: 2.4GHz & 900MHz

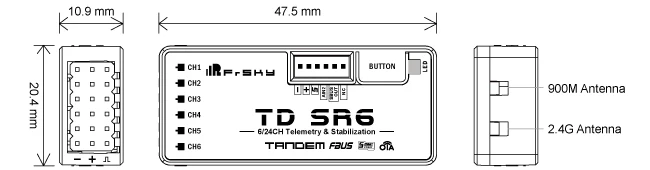

Dimension: 47.5×20.4×10.9mm (L*W*H)

Weight: 11.5g

Operating Voltage: 3.5-10V (recommend 3.7-8.4V)

Operating Current: ≤110mA@5V

Compatibility: TANDEM series radio & RF module in TD mode.

2.4G/900M antenna connector: IPEX1

Voltage Measurement Range via AIN2 (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)

Package Include

FrSky TD SR6*1
