DUMBORC X6PM-350 RC Transmitter Receiver Kit BL3F/X6FG/X6FP/X4FMG 2.4GHZ RC Controller 6CH Gyro Universal RC Car Remote Control

Features：

> 2.4G spread spectrum technology, FHSS 67-channel pseudo-random frequency hopping,

super anti-interference,full digital system ensures without loss of control and anti-jamming;

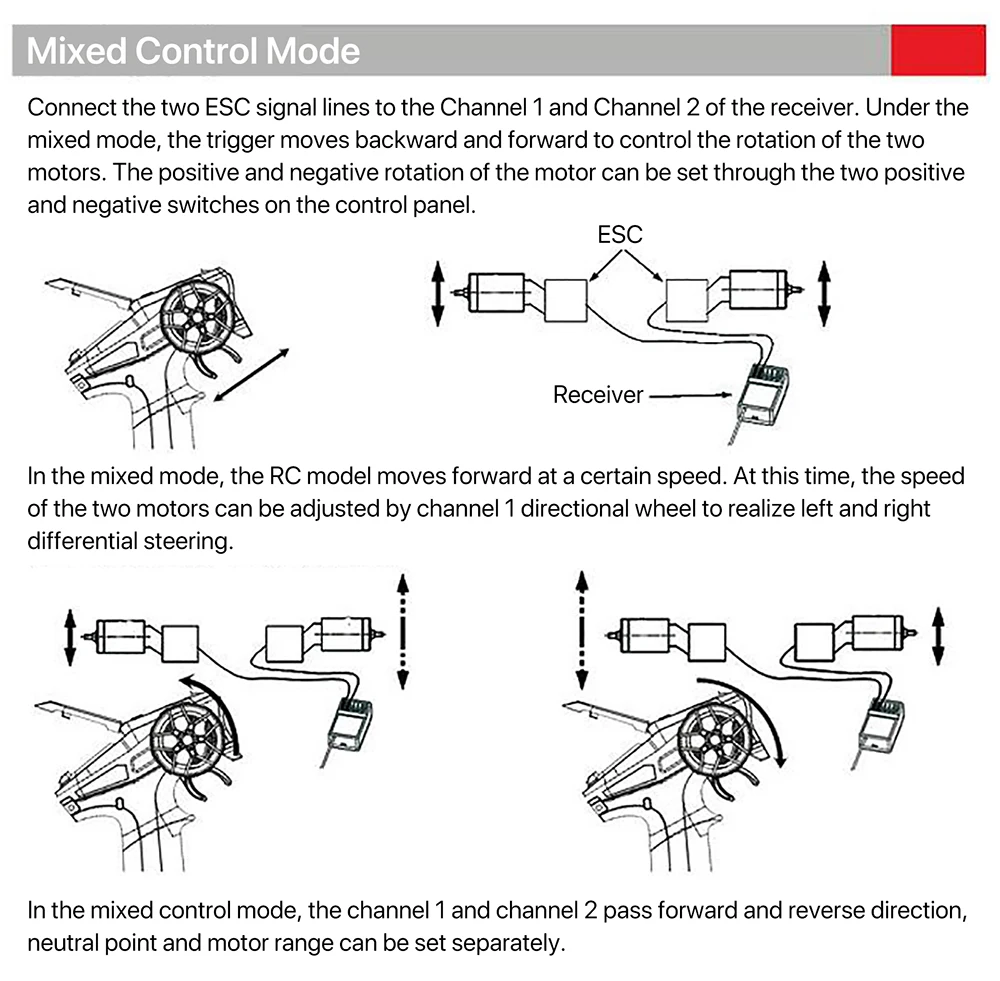

> support mixed control of channels 1 and 2, channels 3 and 4, with easier mixed control

settings, less prone to accidental touch;

> Independent setting of servo direction and travel for channels 1 to 4 and CH6;

> Receiver integrated gyroscope (optional), ensure that the model goes straight, prevents drifting, and overturning. Sense adjustment is available;

> The unique throttle speed limit adjustment function allows beginners to practice quickly and at a safe speed;

> Debugging channels 3 and 4 can observe the servo changes, and you can set the channel you need when entering the setting mode, and the others remain unchanged;

> After accidentally entering the settings mode, it will automatically exit in 5 seconds, and the memory will not lost, and the subsequent control can still be normal;

> Transmitter voltage range: 4.8-12V, with automatic voltage identification alarm in 3 segments

 4.4V|7.4V|10.8V

> Receiver voltage range: 4.8-12V, operating current 30mA ,support work with high voltage servo;

> Equipped with a voltage return receiver(optional) ,it supports return the vehicle’s battery voltage;

> Cost-effective, with brakes and fail-safe protection function, suitable for cars, boats, and tanks

> There will be flashing music when switching on and off, automatic power off and alarm after 12 minutes, switching off after 15 minutes and there will be no current;

> Receiver with Head tracking and coach interface (Purchase wireless trainer module separately).If necessary, you can consult our customer service to recommend to you

Note:

Receivers are functionally identical,

but colors are randomized.

Tips:

 Voltage Return

1. On the new DUMBORC X5P, X6PM, XI 10P series remote control with red and green indicator light on the top，which remote control can be used

2.The voltage is displayed as a percentage, and 25% of the power will alarm and remind

3.The return effective distance is 190 meters.

PPM output:

1. The receiver has two output modes of VPM and PPM, which can be connected to the student control with PPM input to realize the coach function

2. This function needs to be used with our new product (wireless trainer module).Not included in the package. You need to purchase it separately.Later will be on sale!

Description:

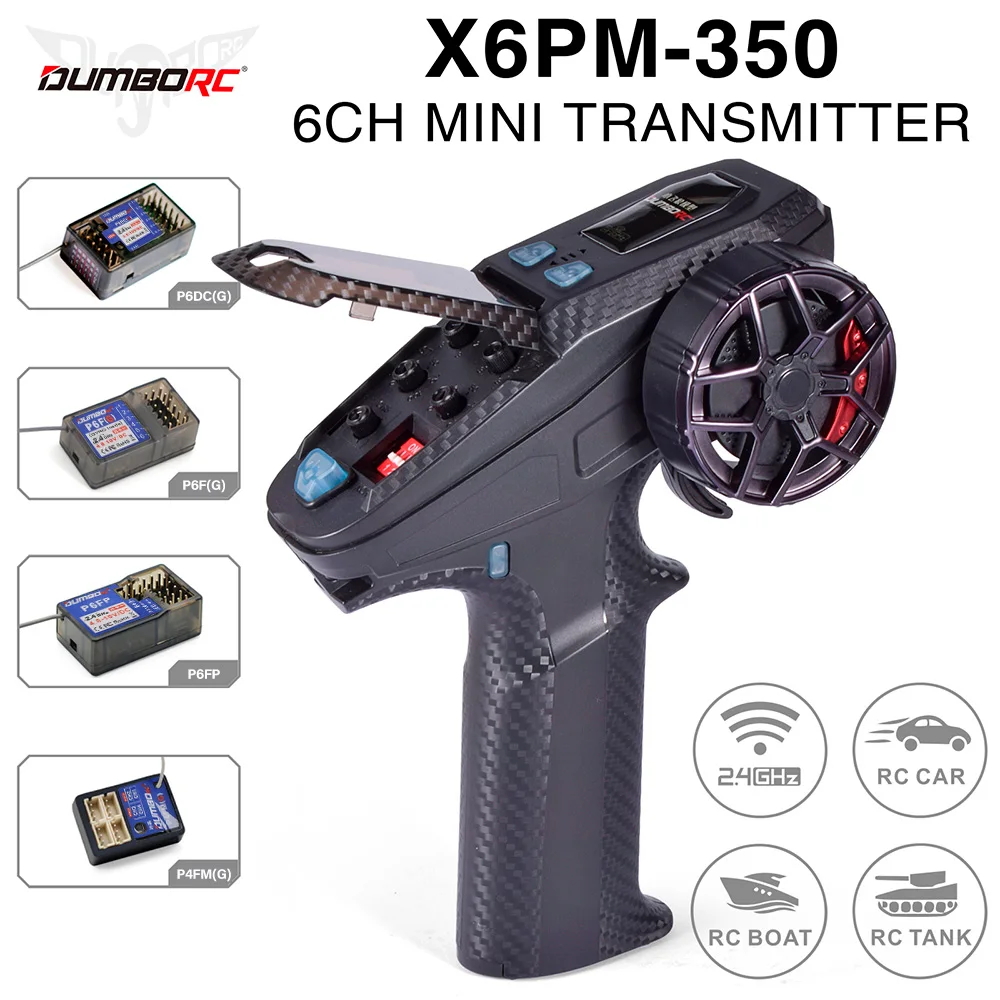

DUMBORC X6PM-350 Transmitter with BL3F/X6F/X6FP/X4FM/X6DC Receiver(Gyro or without Gyro), perfect used for RC Car Boat Tank model,2.4GHz Frequency. RC radio transmitter and receiver can stable control your model 400-500M, make good works and protect when it out of control.Low power alarm of remote controller: When the remote controller is predicted to be disconnected from the cars/boats/tanks, the remote controller can be driven back safely in advance, thus effectively avoiding the trouble of product loss or salvage.

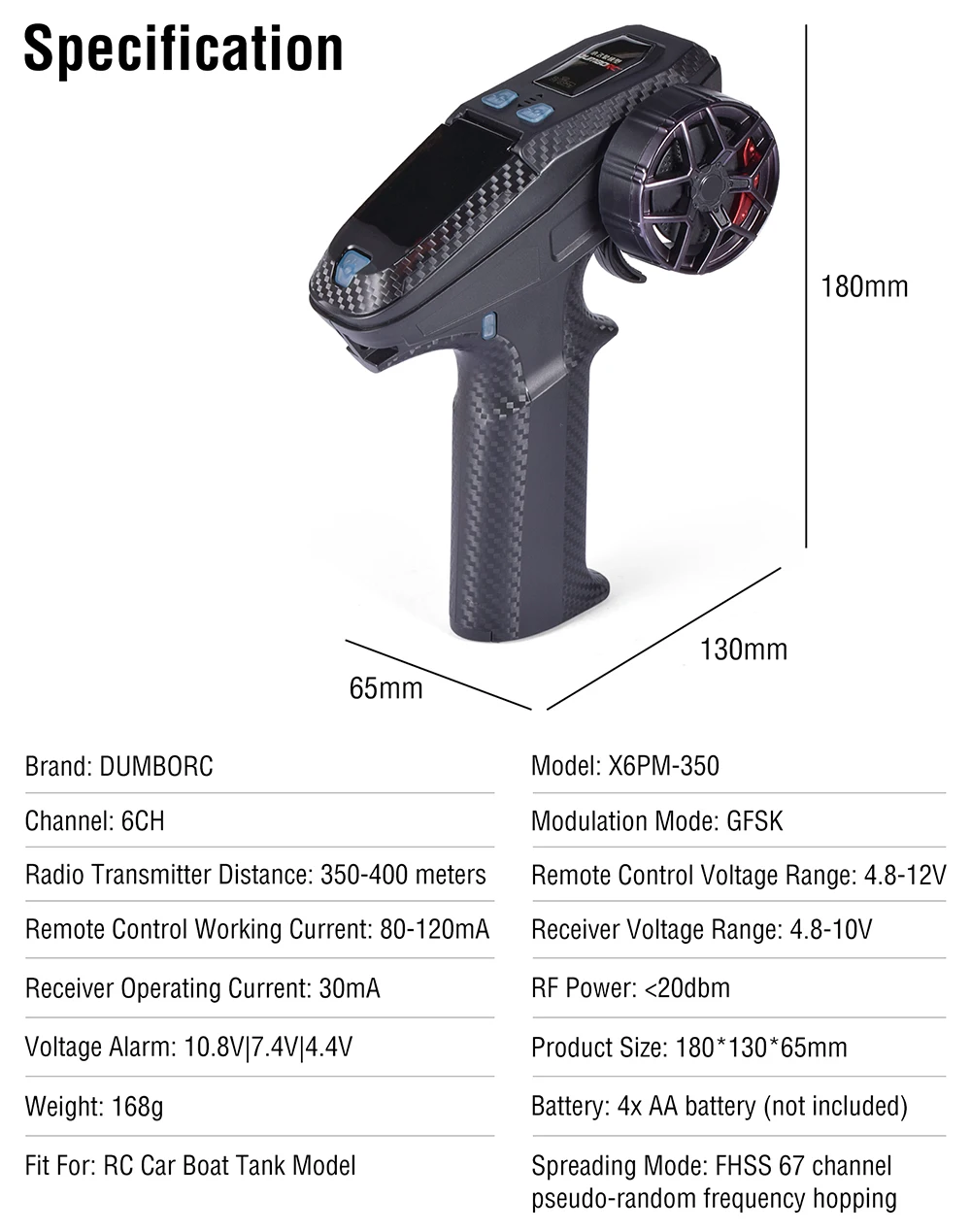

Specifications :

Brand: DUMBORC

Model: X6PM-350

Material: Plastic and metal

Color: Black

Battery: 4x AA battery (not included)

Channel: 6CH

Fit For: RC Car Boat Tank Model

Modulation Mode: GFSK

Spreading Mode: FHSS 67 channel pseudo-random frequency hopping

Radio Transmitter Distance: 350-400 meters

Remote Control Voltage Range: 4.8-12V

Remote Control Working Current: 80-120mA

Receiver Voltage Range: 4.8-12V

Receiver Operating Current: 30mA

RF Power: <20dbm

Voltage Alarm: 10.8V|7.4V|4.4V

Product Size: 180*130*65mm

Weight: 168g

X6FG Receiver

Voltage range: 3.3V-10V

Working current 30mA, support high-voltage steering gear.

Integrated gyroscope ensures that the model is in line to prevent tail flick and rollover.

Support gyroscope sensitivity adjustment.

Receiver Size: 35*20*13mm

Receiver weight: 9g

X4FMG PWM Mini Receiver

Signal: PWM

Voltage range: 3V-10V DC

Model application: Car/boat

Number of channels: 4CH

Operating current: 30 mA@5V

Spreading mode: FHSS (67 channel pseudo-random frequency hopping)

Compatible remote control: X4 X6 series/X5P series/X6PM series remote control

Size: 25*13*8 mm

Weight: 2.3g

X6FP PPM Receiver

Lamp control module

1. It does not occupy the existing channel and can switch on and off the lights in any channel.

2. It is suitable for occasions where model cars and ships need to switch on and off lights, saving the cost of purchasing additional light control switches, and also optimizing the wiring.

3.The voltage between LED lamp pins is equal to the voltage connected to the receiver.

Voltage range: 4.8V-10V DC support high-voltage steering gear.

Operating current: 30 mA@5V

Model application: car/boat

Number of channels: 6CH

Spreading mode: FHSS (67 channel pseudo-random frequency hopping)

Size: 35*19*13 mm

Weight: 7g

 BL3F 3in1 Receiver

Item: Receiver Light Controller 10A ESC 3 in 1

Material: Plastic and electronic components

Color: Black

Channel: 6CH

BEC: 6V 1.5A

Model: Car/boat/tank

Modulation Mode: GFSK

Spread Spectrum: FHSS

Control Distance: More than 400 meters

Receiver Voltage Range: 4.8-10V

ESC Voltage Range: 2-3S

Compatible with: X4 X5 X6 X6A X6P Transmitter for 1/12 1/14 1/16 RC Car

Support: 130-180-270 series brush motor

Product Size: 40*28*19mm

Antenna length: 160 mm

Weight: 11.5g

Product name:X6DC receiver

Material: Componant Material

Color:Black

Channel:6CH

Voltage Range:4.8-10V

Compatible with:X4 X5 X6 Transmitter

Product size:35*21*14mm

Product weight:9g

Package included：

1 x DUMBORC X6PM-350 Transmitter

1 x DUMBORC Receiver

1 x Manual
