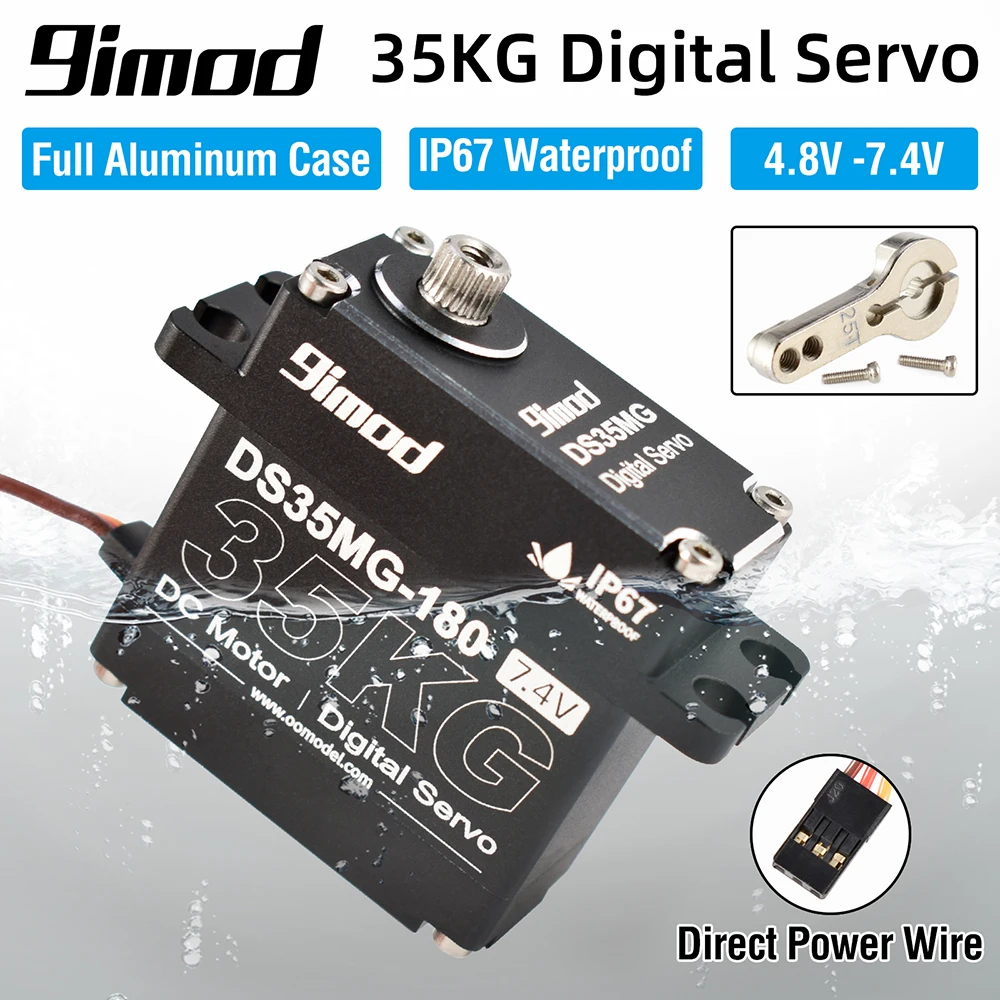

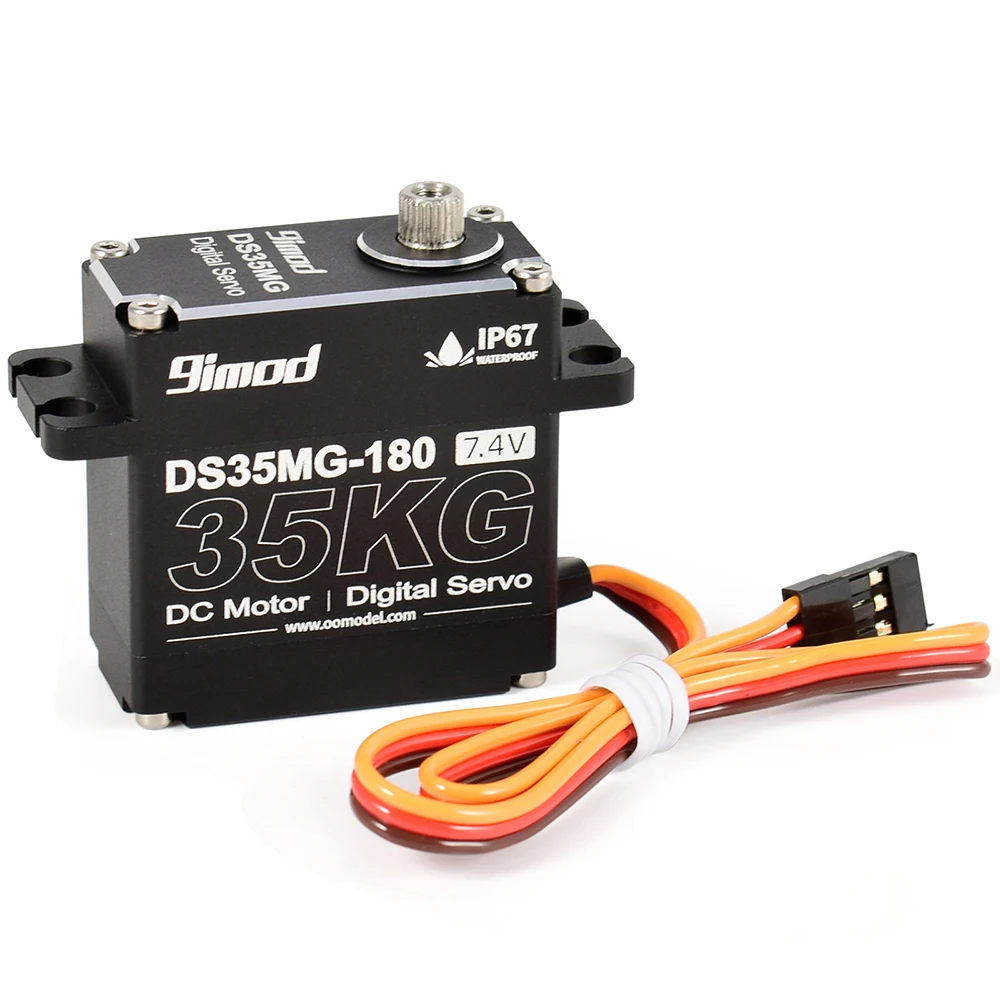

9imod DS35MG 35kg Waterproof Servo 180°/270° Full Aluminum Case Stainless Steel Gear High Torque for 1/8 1/10 RC Car

Features:

1.4.8V -7.4V High voltage,High performance digital High Voltage .

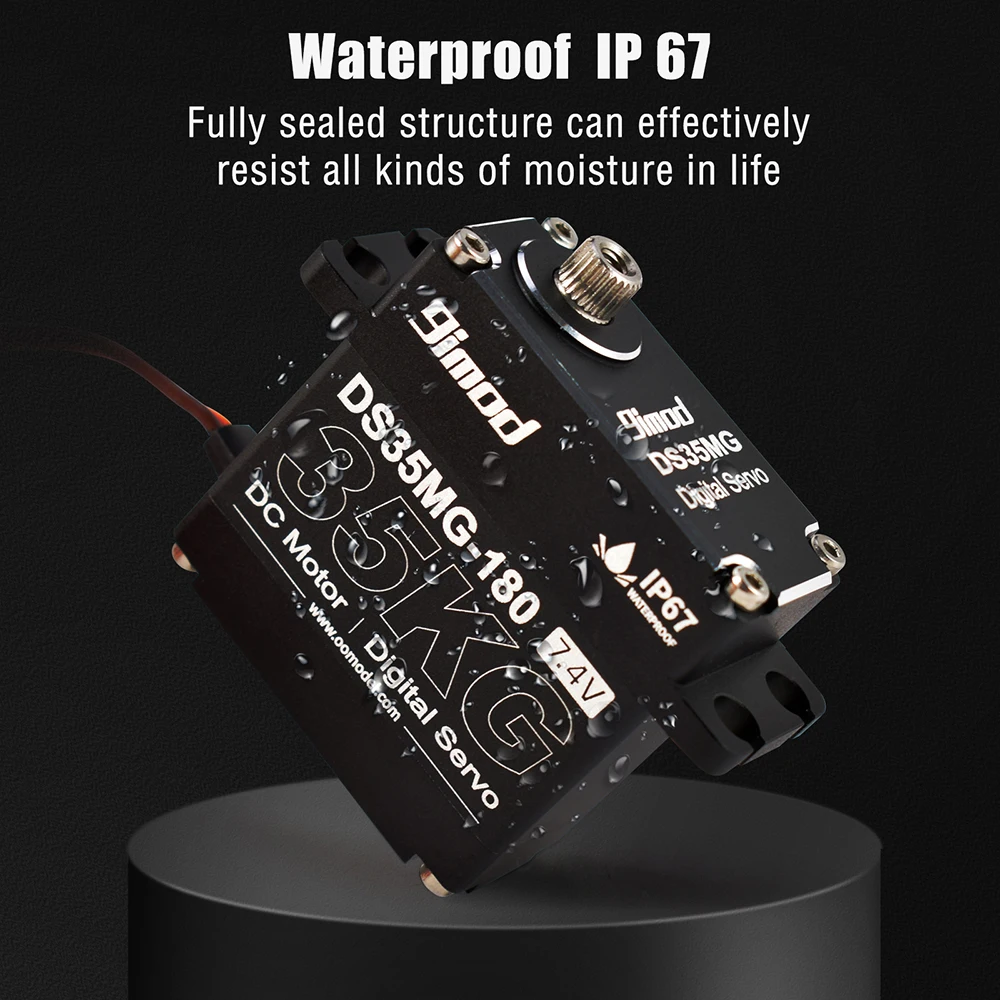

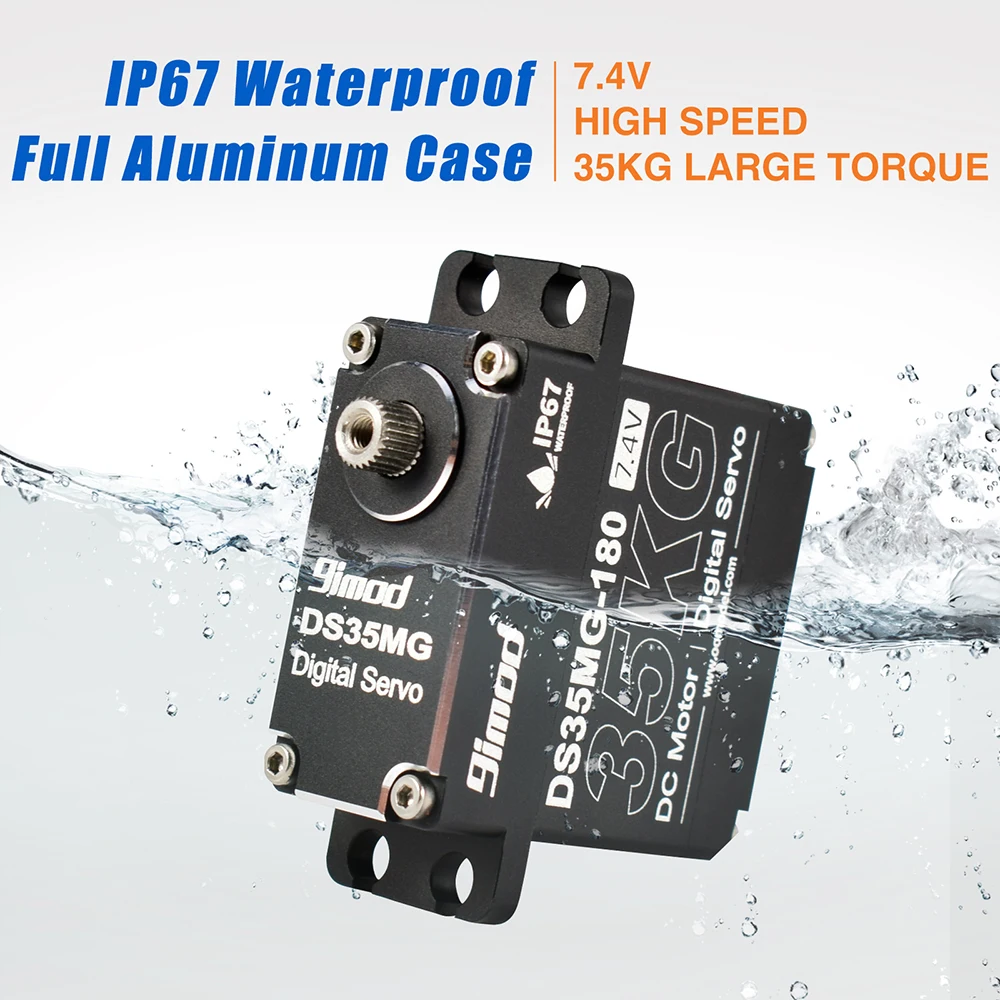

2.Waterproof performance:

1.4.8V -7.4V High voltage,High performance digital High Voltage .

2.Waterproof performance:

IP67

(Please watch the waterproof test video). Controllable angle range from 0 to 180 /270 degrees, Excellent linearity, precision control.

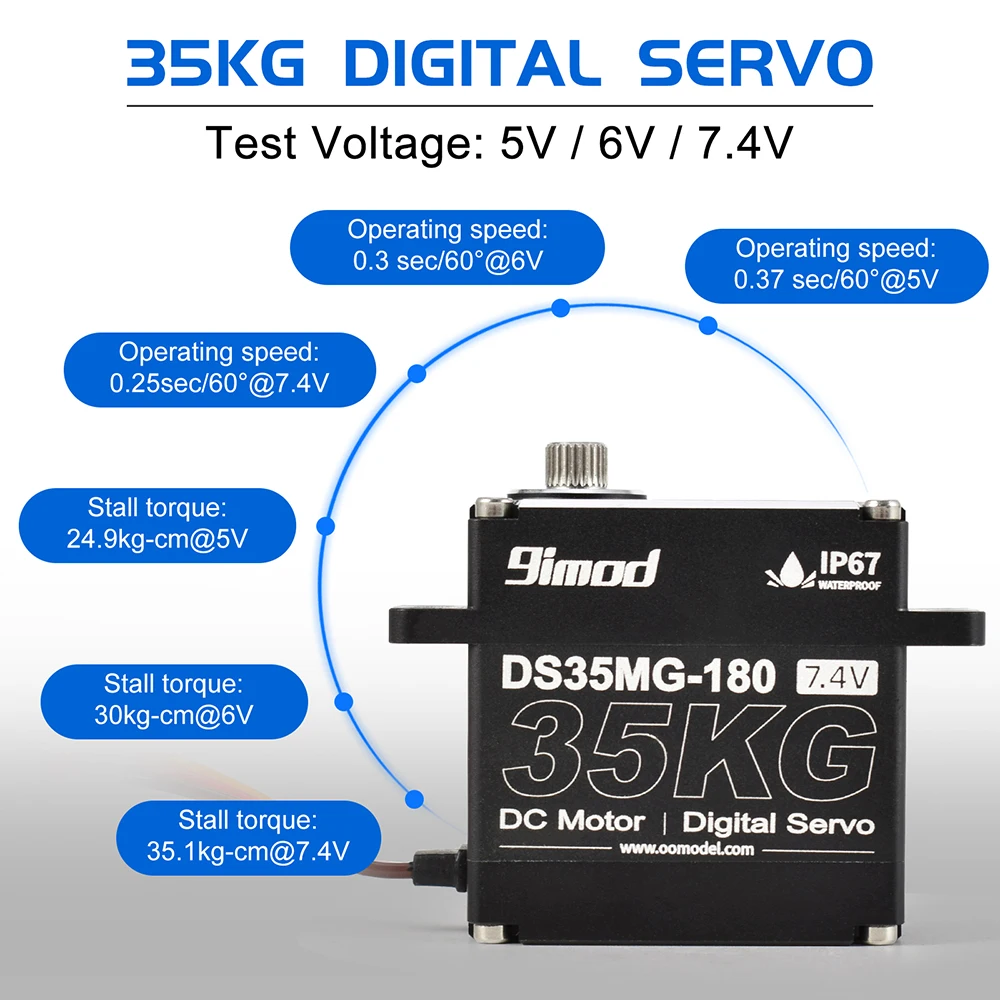

3.Widely Use Digital High Torque Servo：This 35kg Waterproof Servo's maximum torque is up to

35 kg/[email protected]

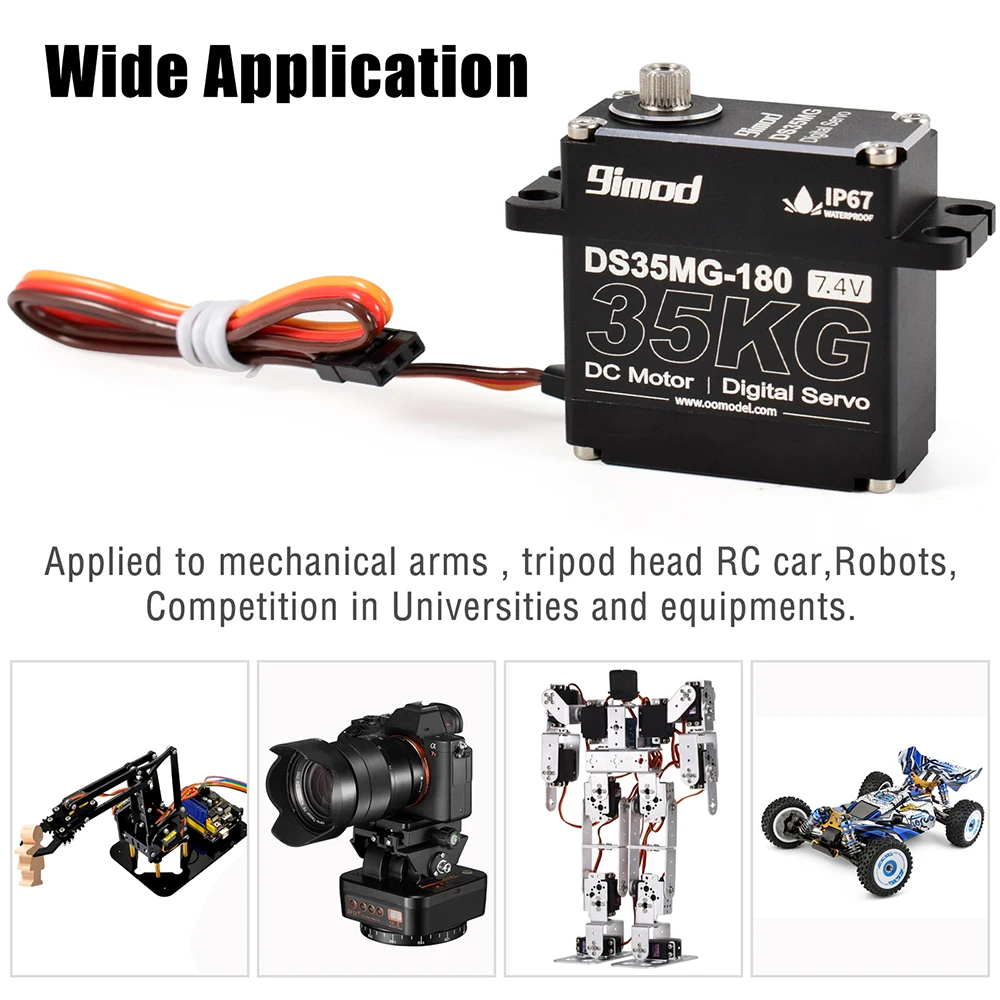

,Compatible with 1/8, 1/10, Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.

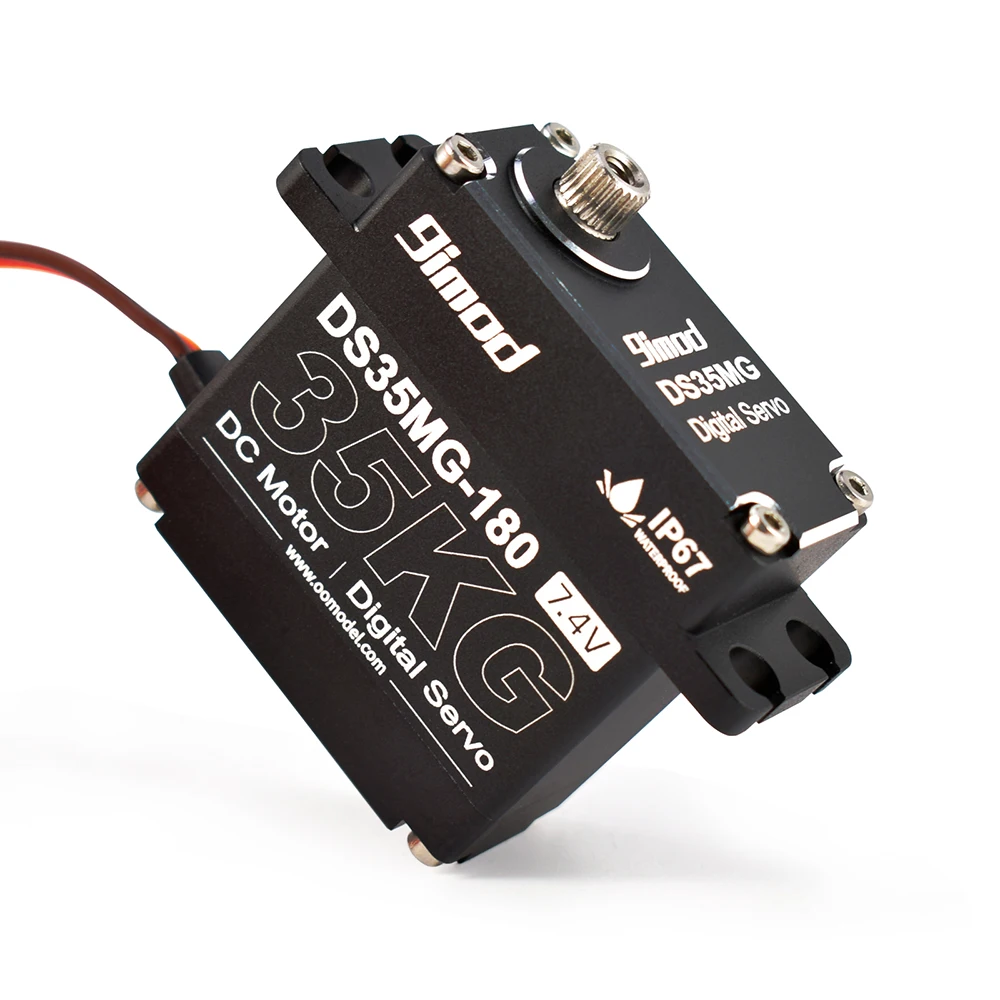

4.Metal Gear Servo:Equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight.Dual ball bearings.

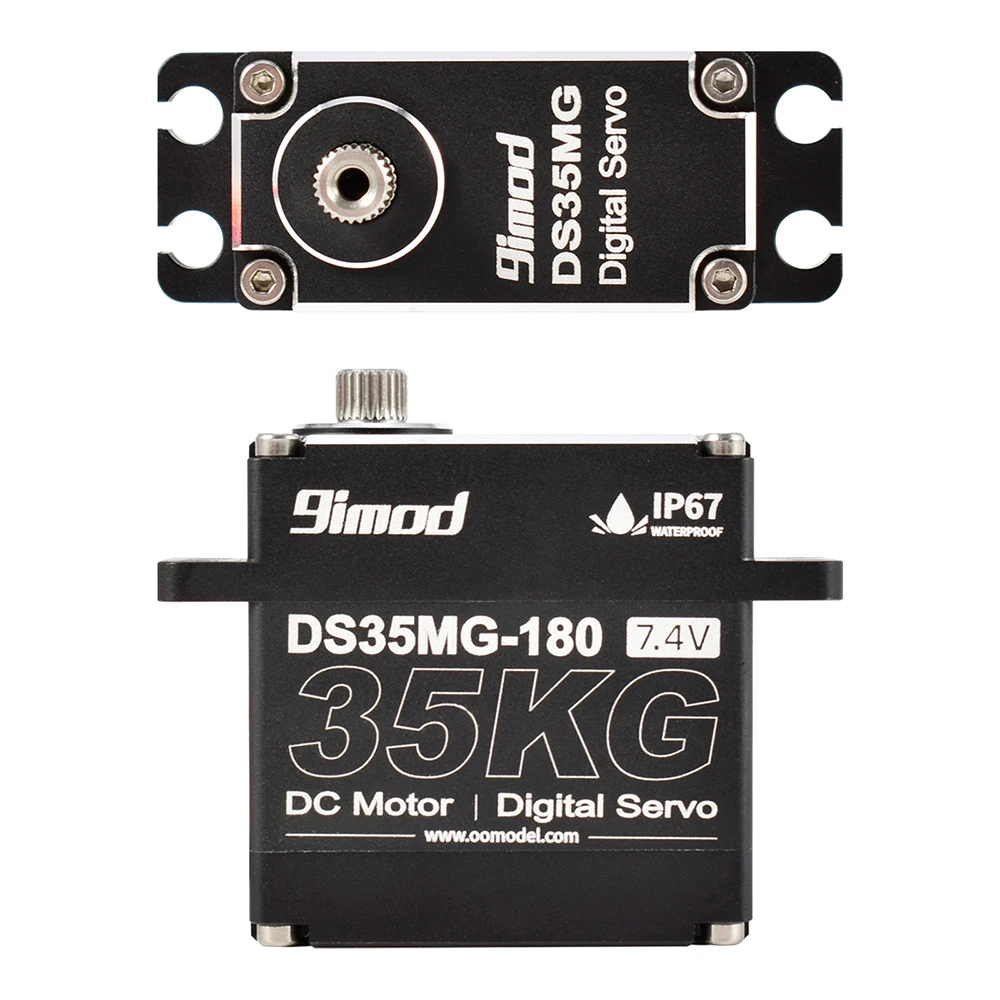

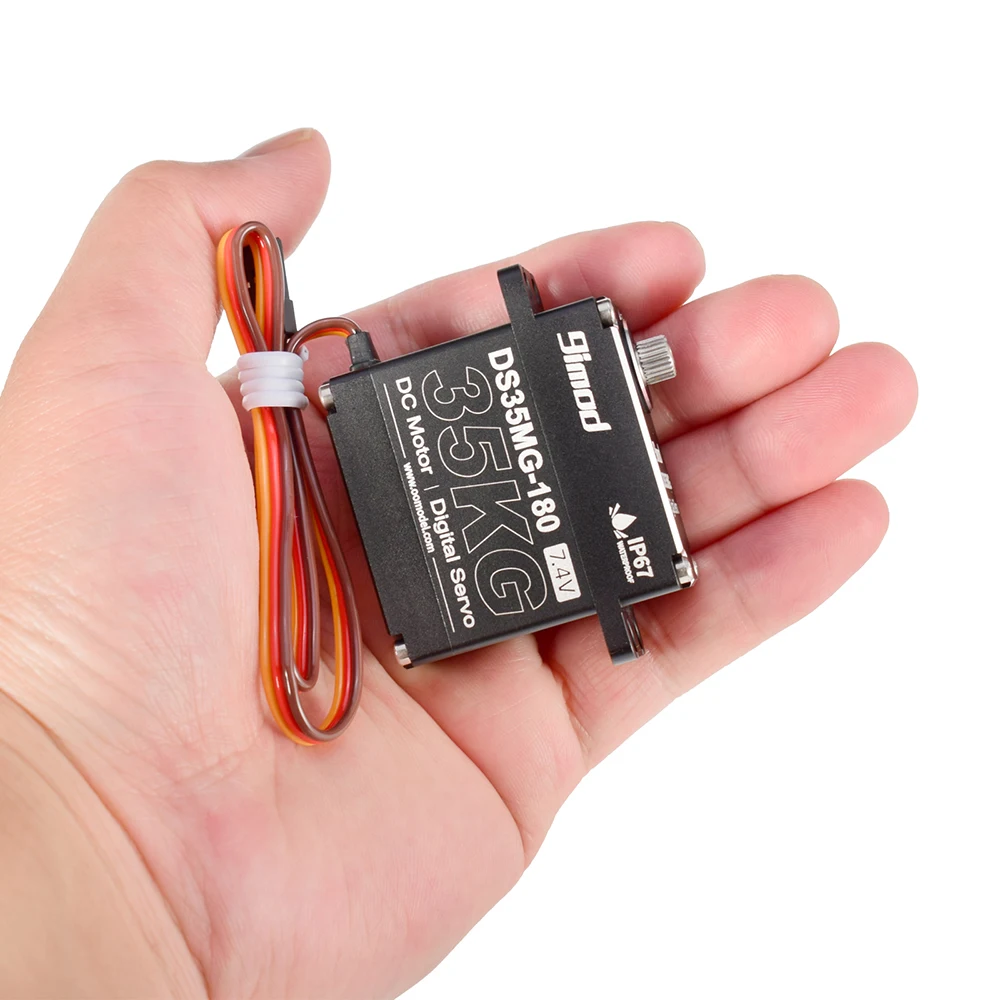

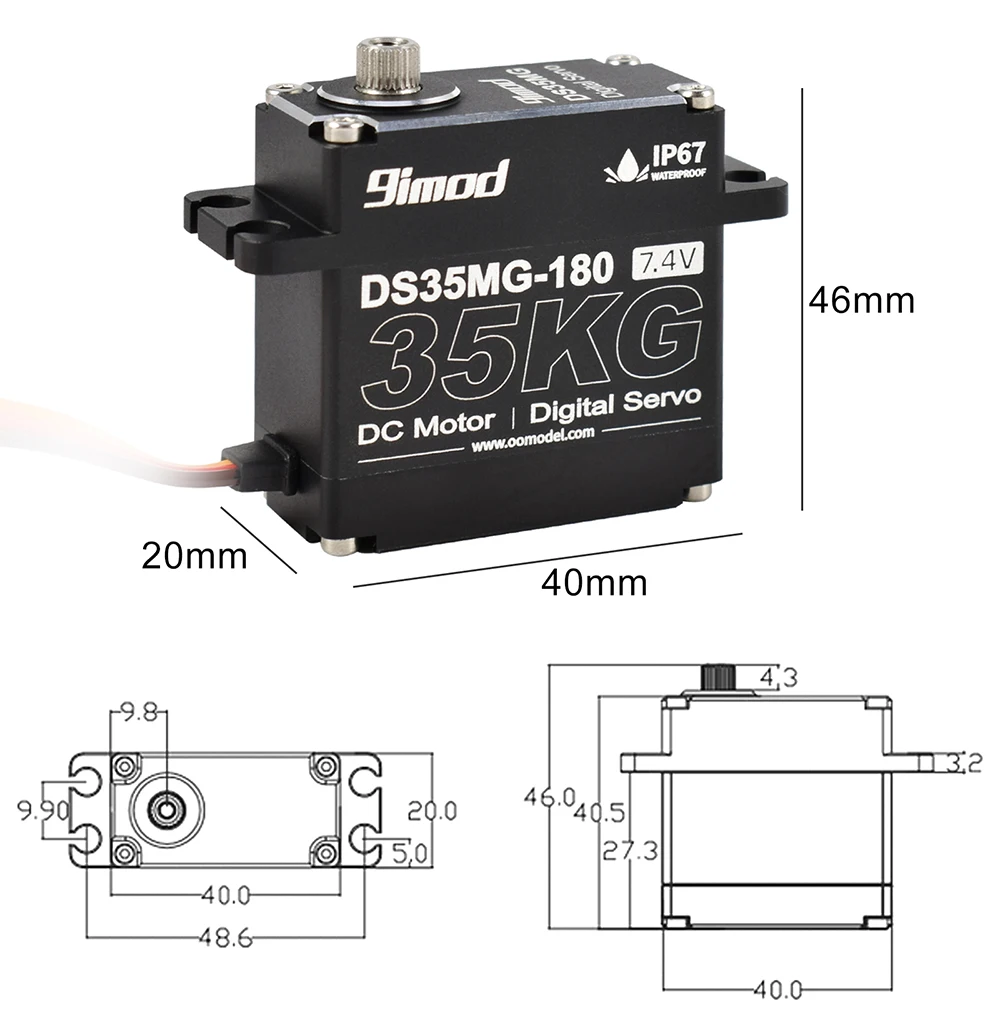

5.High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (80g)

Description:

The 9imod DS35MG 35KG Large torque Digital Waterproof servo,adopt DC motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,4.8V -7.4V High Operation Voltage Range,

It's a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!

Specifications:

Brand:9imod

Model:DS35MG

Color:Black

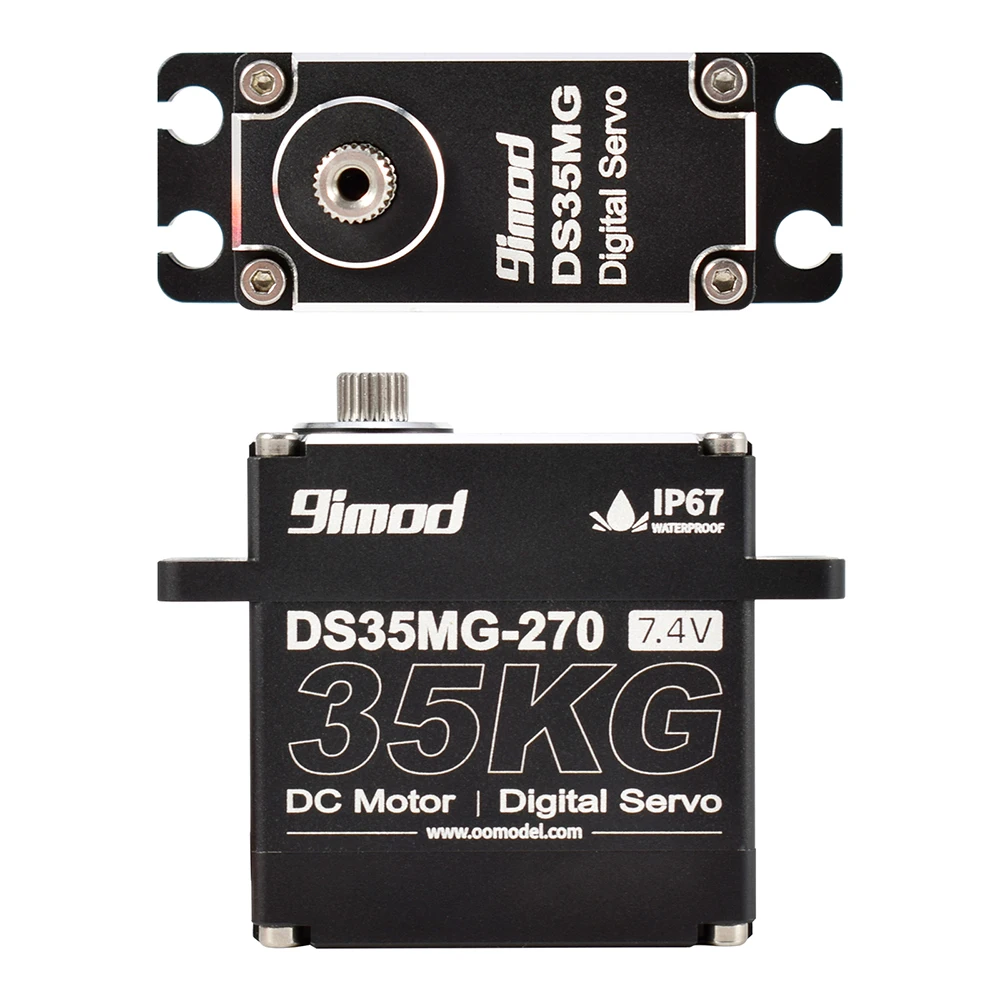

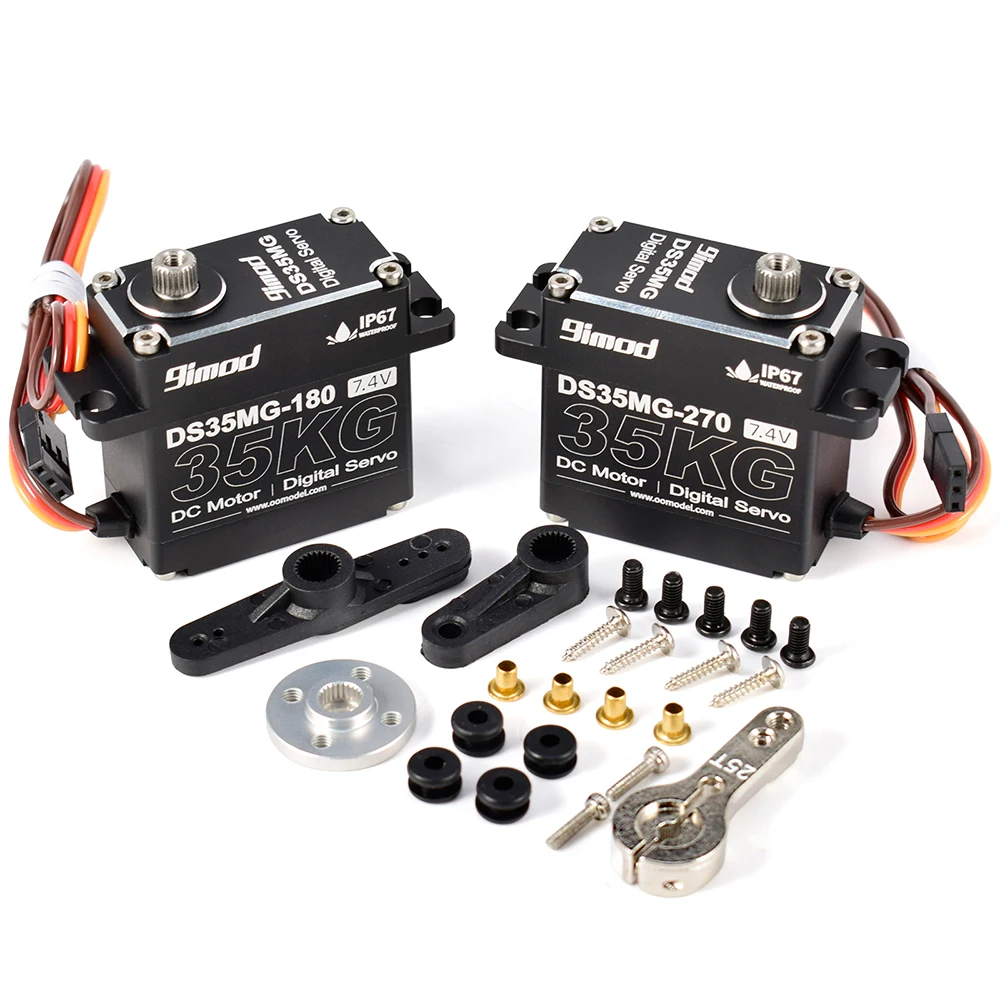

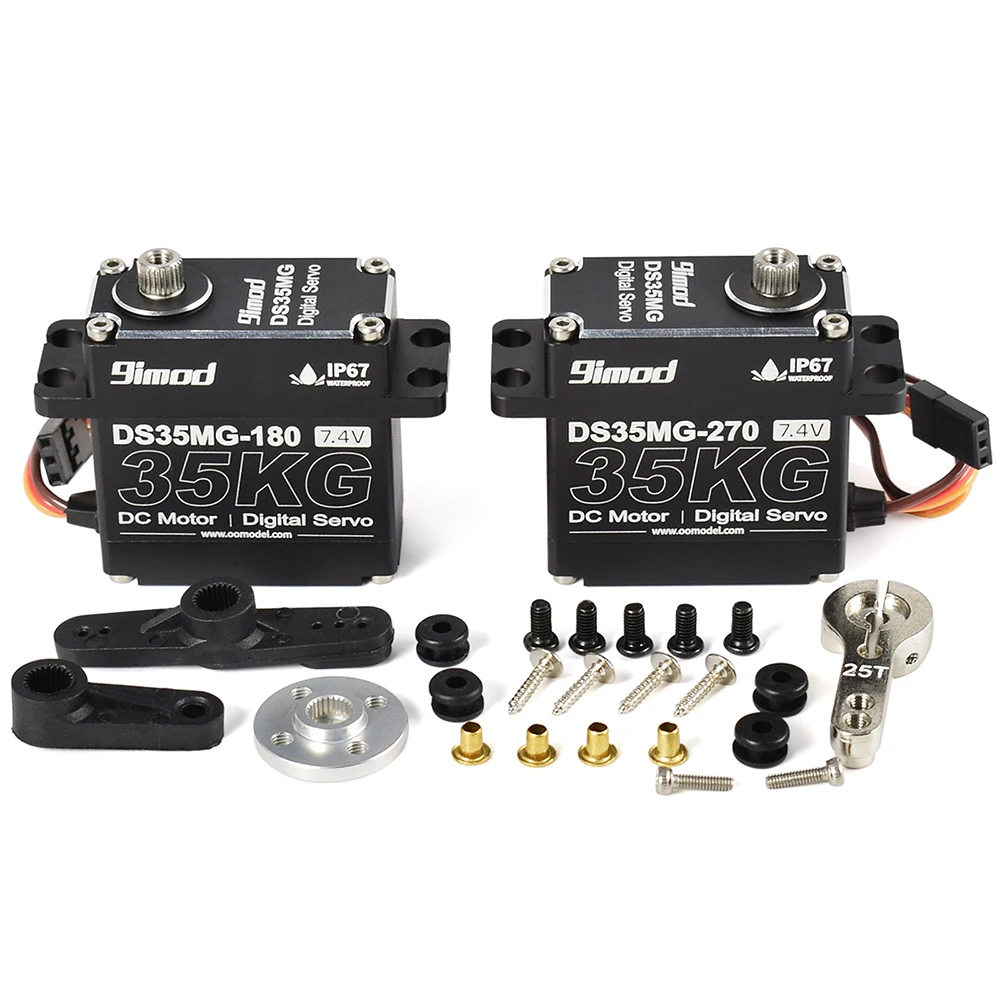

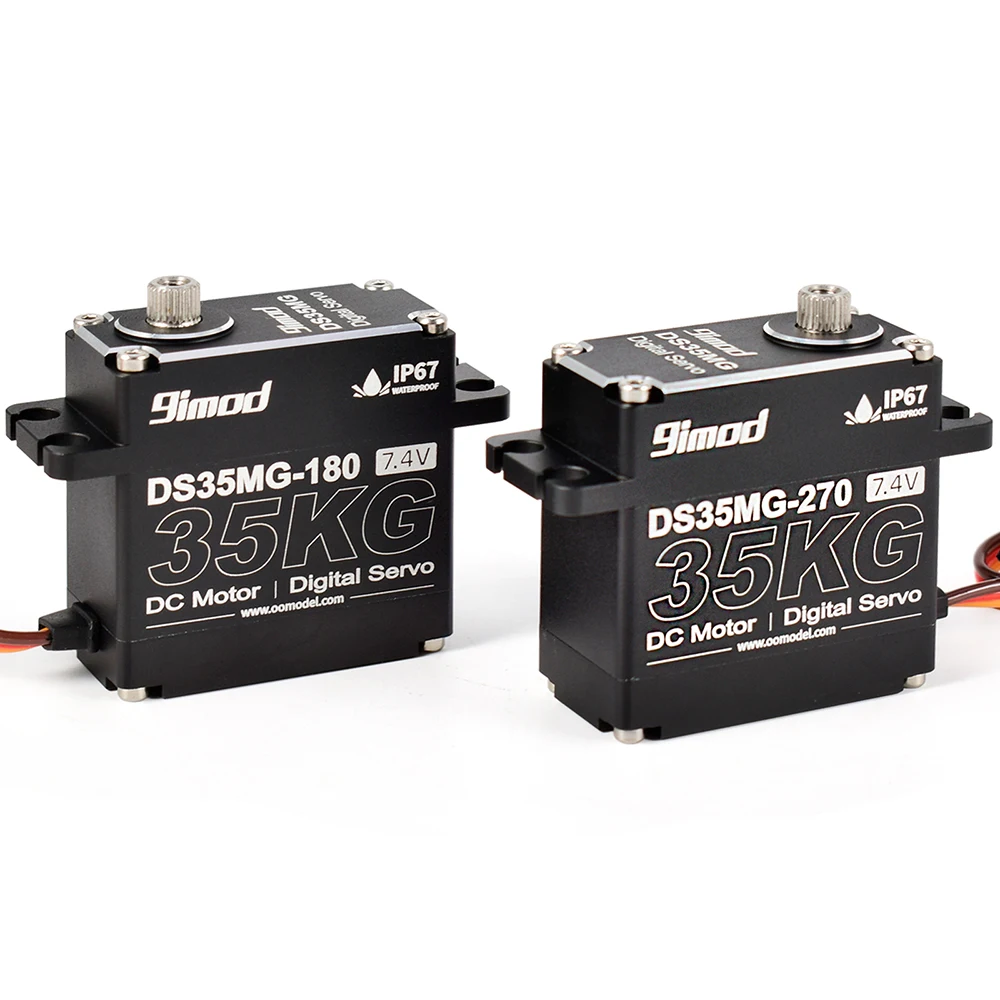

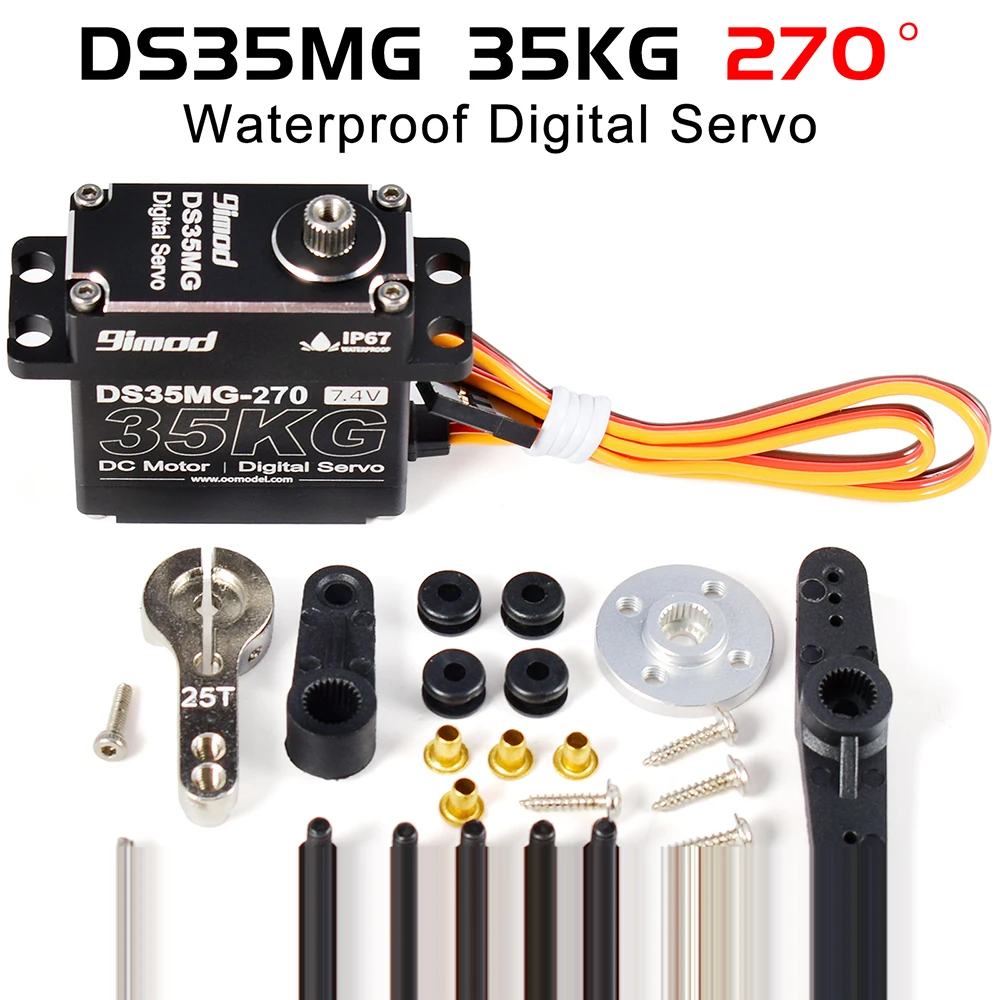

Control Angle:180°/ 270°optional

Gear Material:Metal Gear

Case Material:Full Aluminum Case

Control System:PWM Control (1500usec in the central point)

Operation Voltage Range:4.8V -7.4V

Storage Temperature Range: -30℃～80℃

Operation Temperature Range:-20C°~ +60C°

Circle:＞80000 times without load

Operation Travel:60°±1

Limit angle :180°± 1/270°± 1 optional

Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
