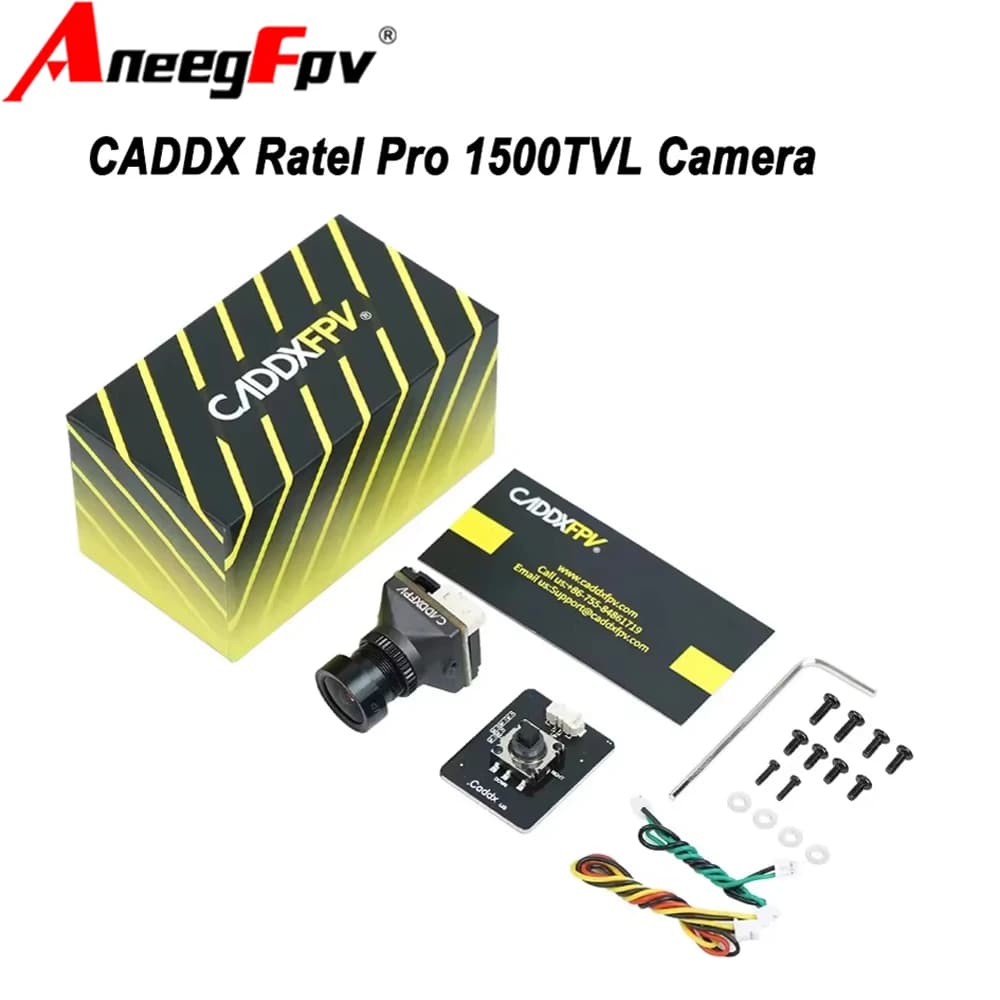

CADDXFPV Ratel Pro Analog Camera 1500TVL 9.5g Super WDR 4.5V-27V NTSC/PAL CMOS FPV Starlight Night Vision Blacklight Camera

CADDXFPV Ratel Pro Analog Camera 1500TVL 9.5g Super WDR 4.5V-27V NTSC/PAL CMOS FPV Starlight Night Vision Blacklight Camera

ModelRatel PRO

Image Sensor 1/1.8" Inch sensor

Horizontal Resolution1500TVL

TV System NTSC & PAL  (changeable)

IMAGE 16:9 & 4:3   (changeable)

WDR Super WDR HDR)

Min. Illumination0.00001 lux

Lens5Mega

Color Black

Synchronization Internal

Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio >60dB (AGC OFF)

Video Output CVBS

OSD manual: Support

DNR: 3-DNR

FOV: 125°

Language: ENGLISH///Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/

Day/Night: Auto/Color/B&W/EXT

Dimensions:19mm*19mm

Wide Power Input: DC 4.5-27V

Work Temperature: -20℃~+60℃

Work Humidity 20%~80%

Weight9.5g

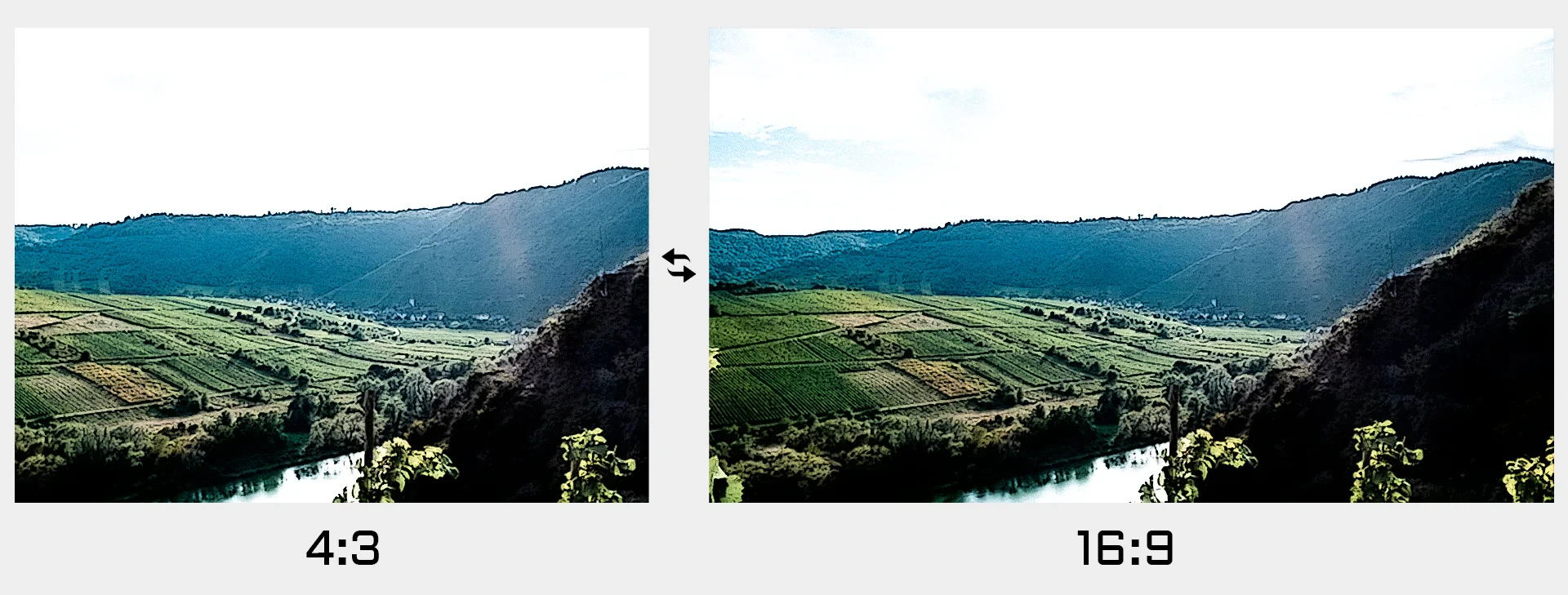

Switch effortlessly between 16:9 and 4:3 screen ratios with Ratel Pro, providing flexibility to adapt to different preferences and scenarios.

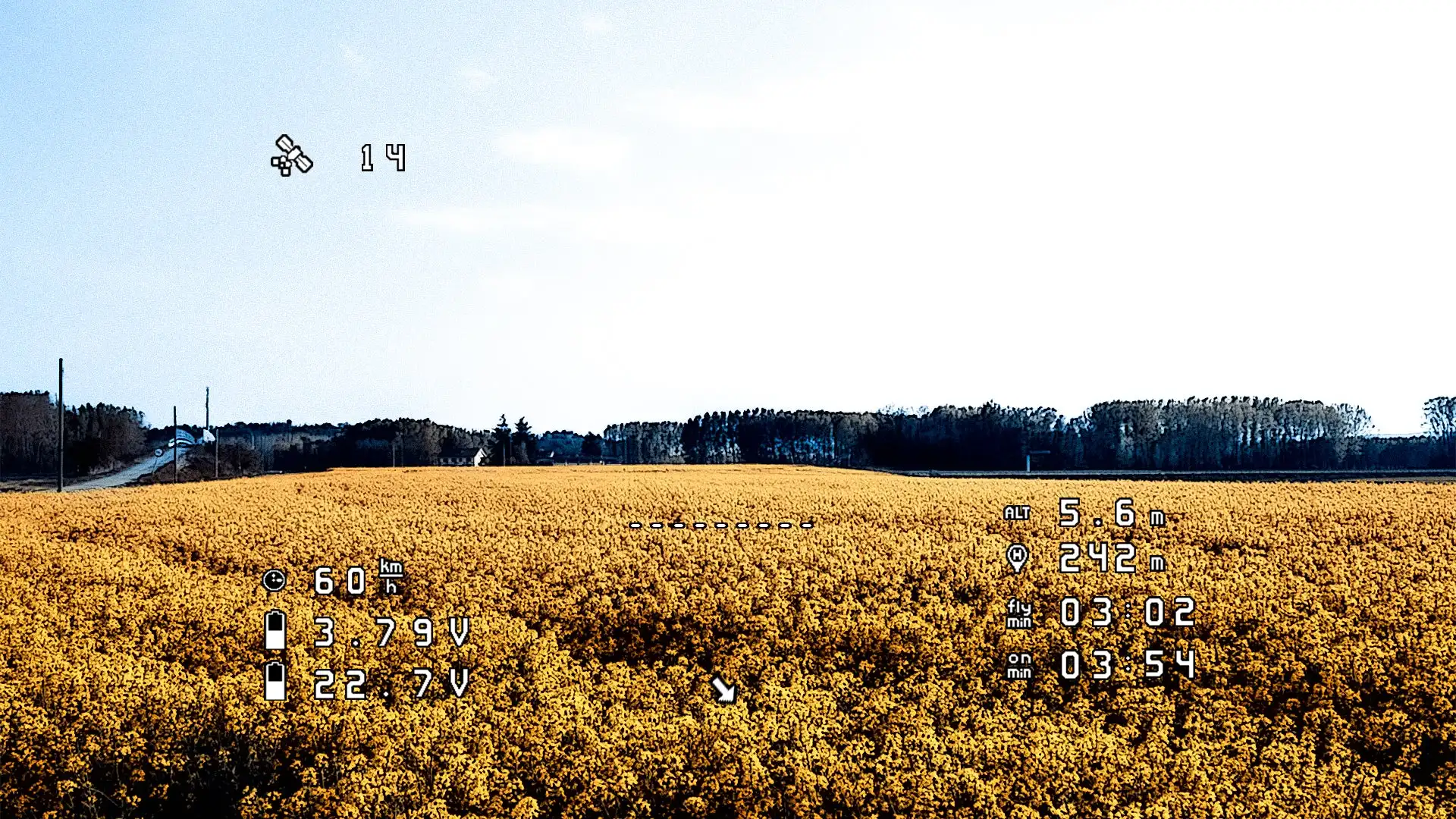

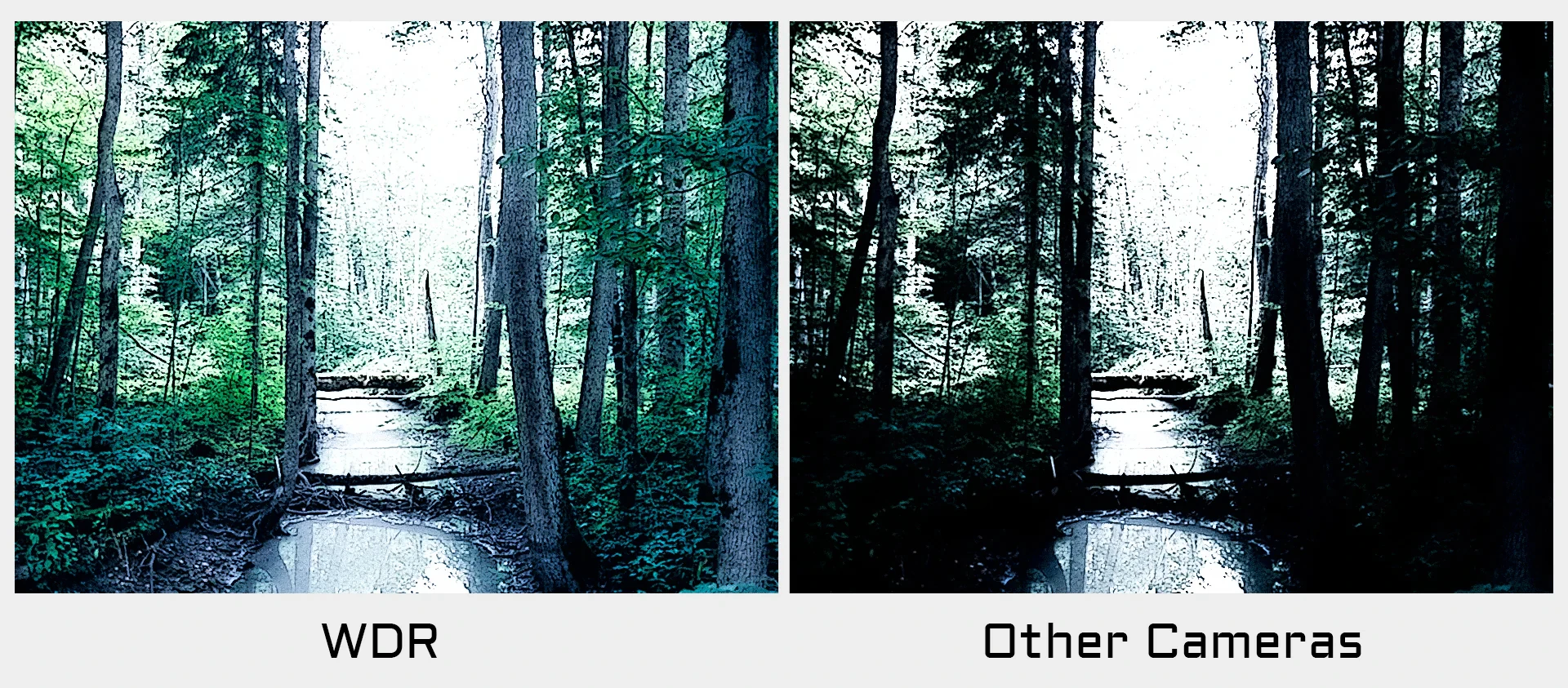

Supports WDR, bounteously satisfying the pursuit of detailed shooting whether in bright or dark environments.

Ratel Pro delivers excellent daytime clarity,setting new standards in visual excellence within the analog camera domain.

Designed with 125° FOV, Ratel Pro offers pilots a natural visual experience during flight, restoring the authenticity of the scenes.

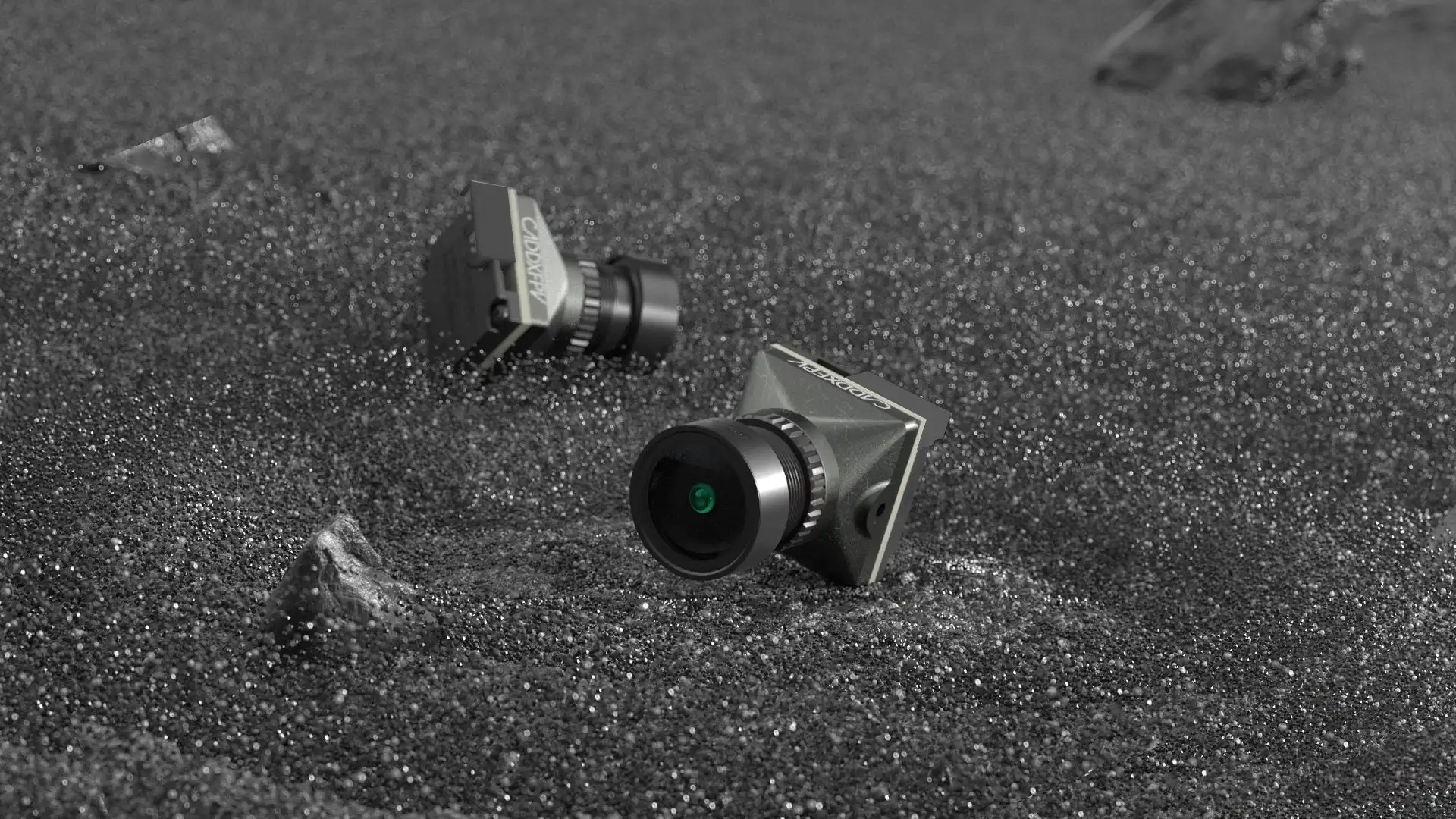

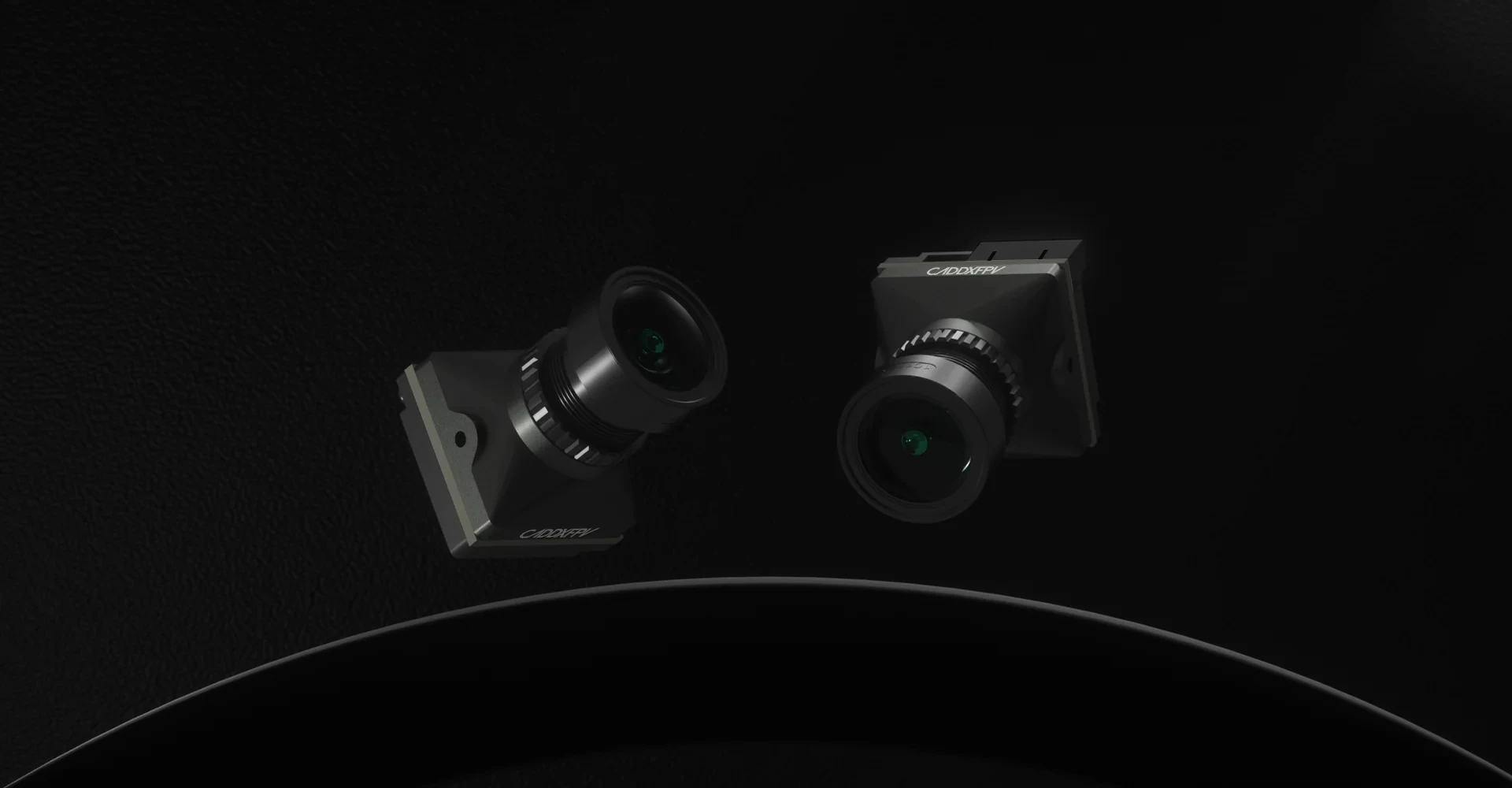

Featuring a metal case, the lightweight design improves durability and heat dissipation.

Bullet Points:

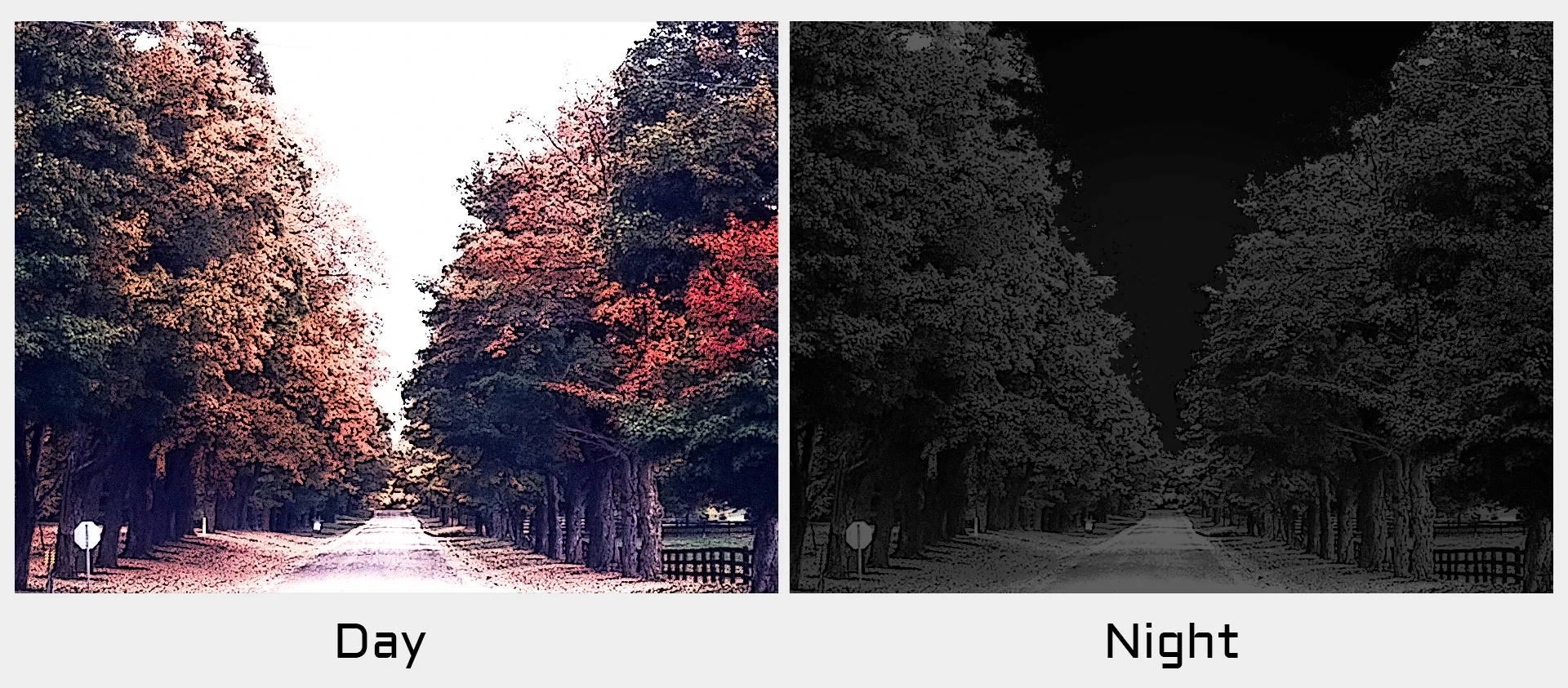

Featuring a blacklight technology, Ratel Pro displays real color images during the day and displays to black-and-white visuals at night, ensuring optimal visual performance in diverse lighting conditions.

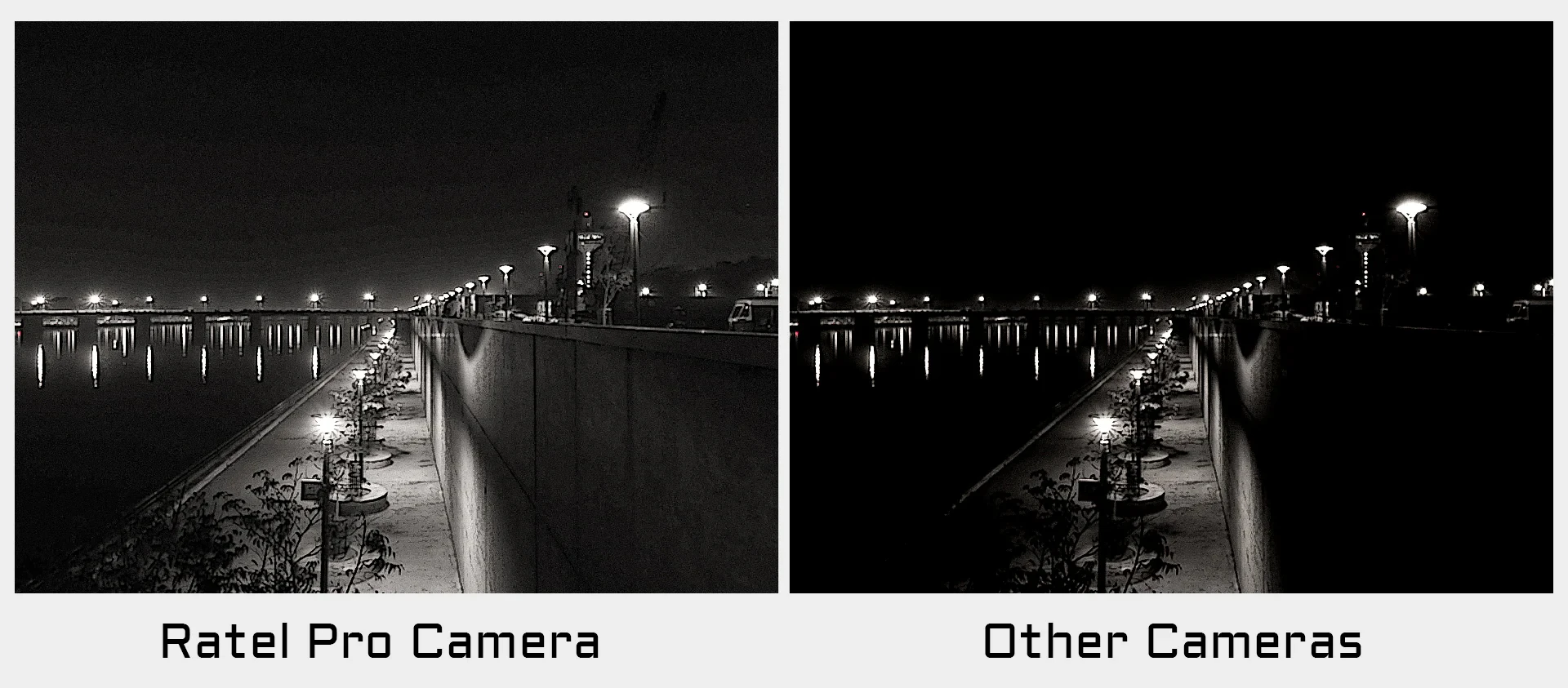

Using BSI 1/1.8INCH large sensor and enhanced algorithm, the illumination is doubled compared to ordinary night vision cameras. Even in low-light conditions, Ratel Pro achieves outstanding night vision, providing clear and reliable imagery for uncompromised visibility
