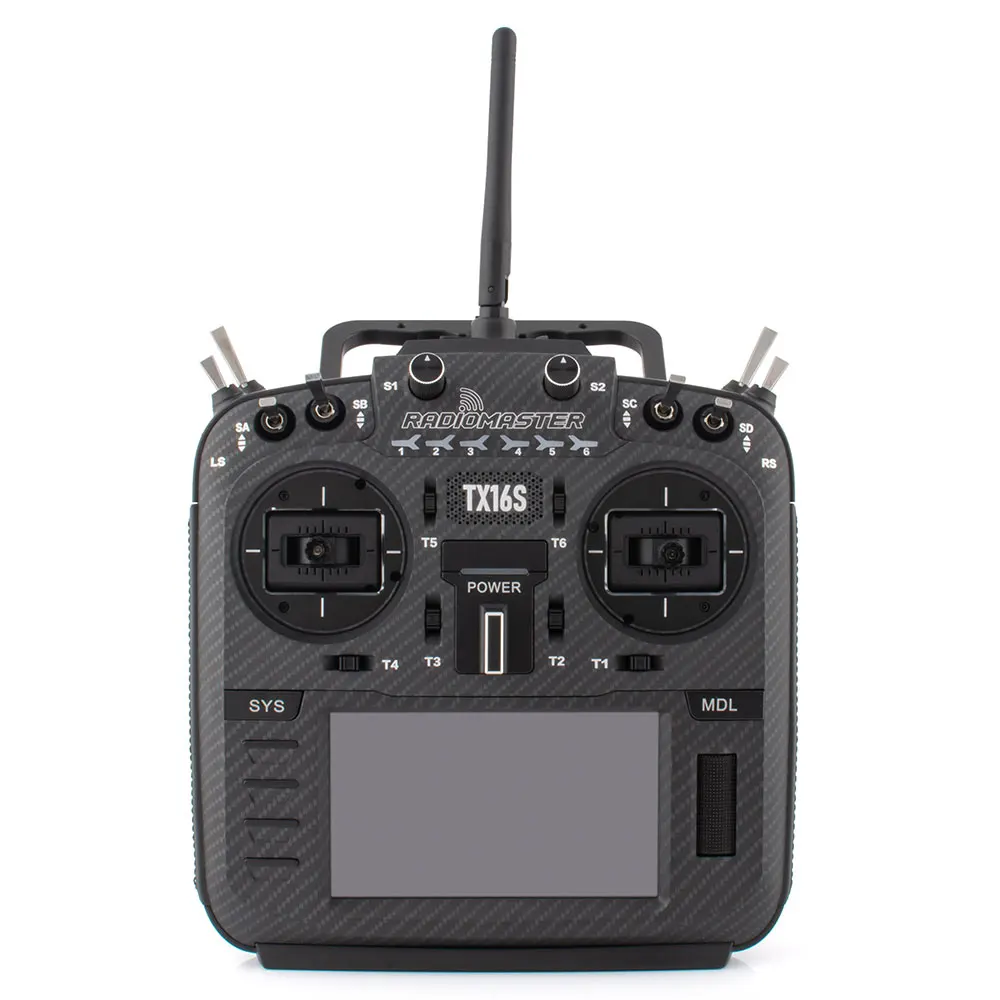

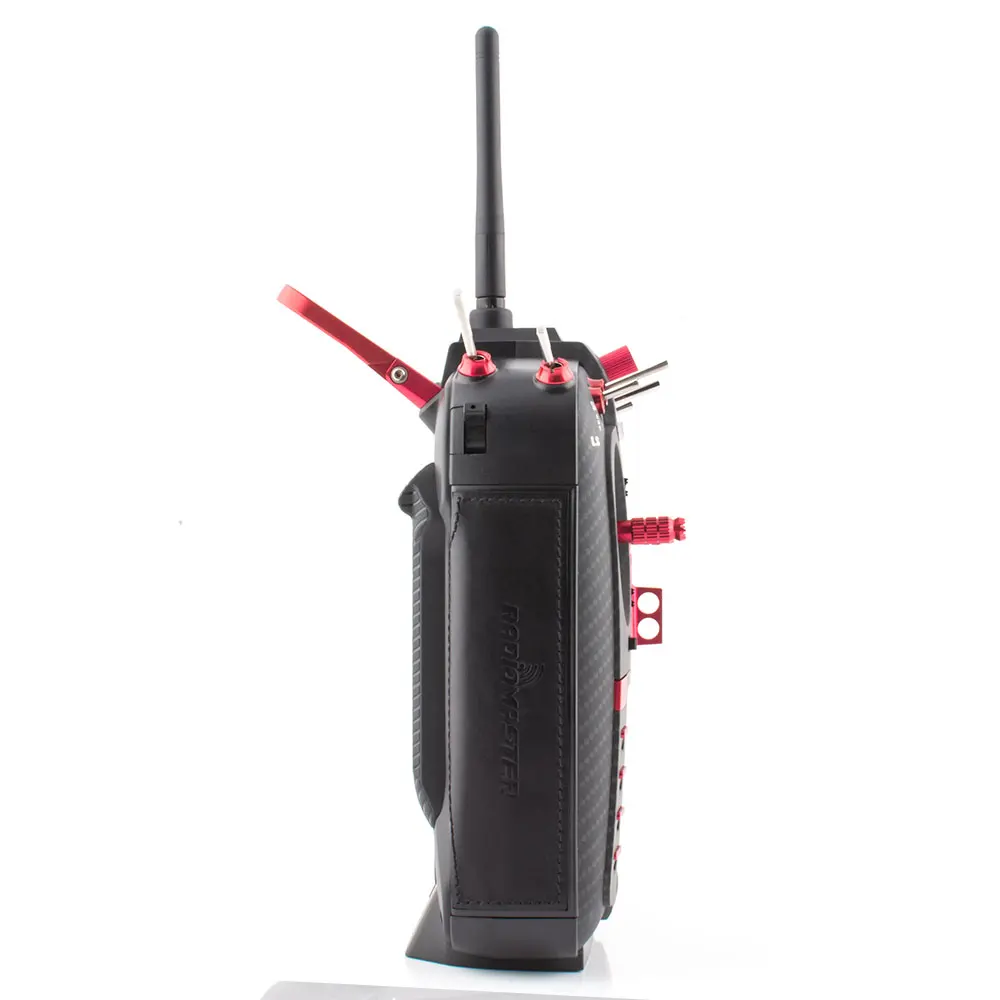

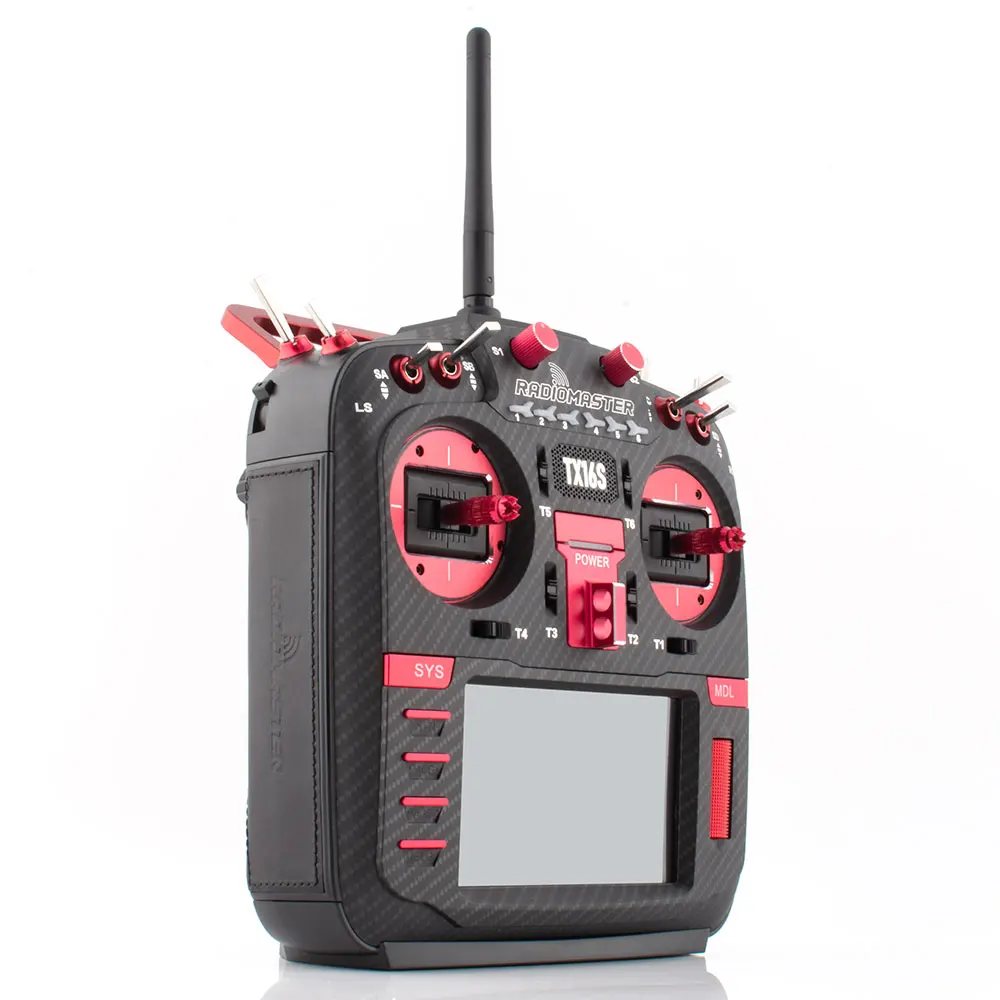

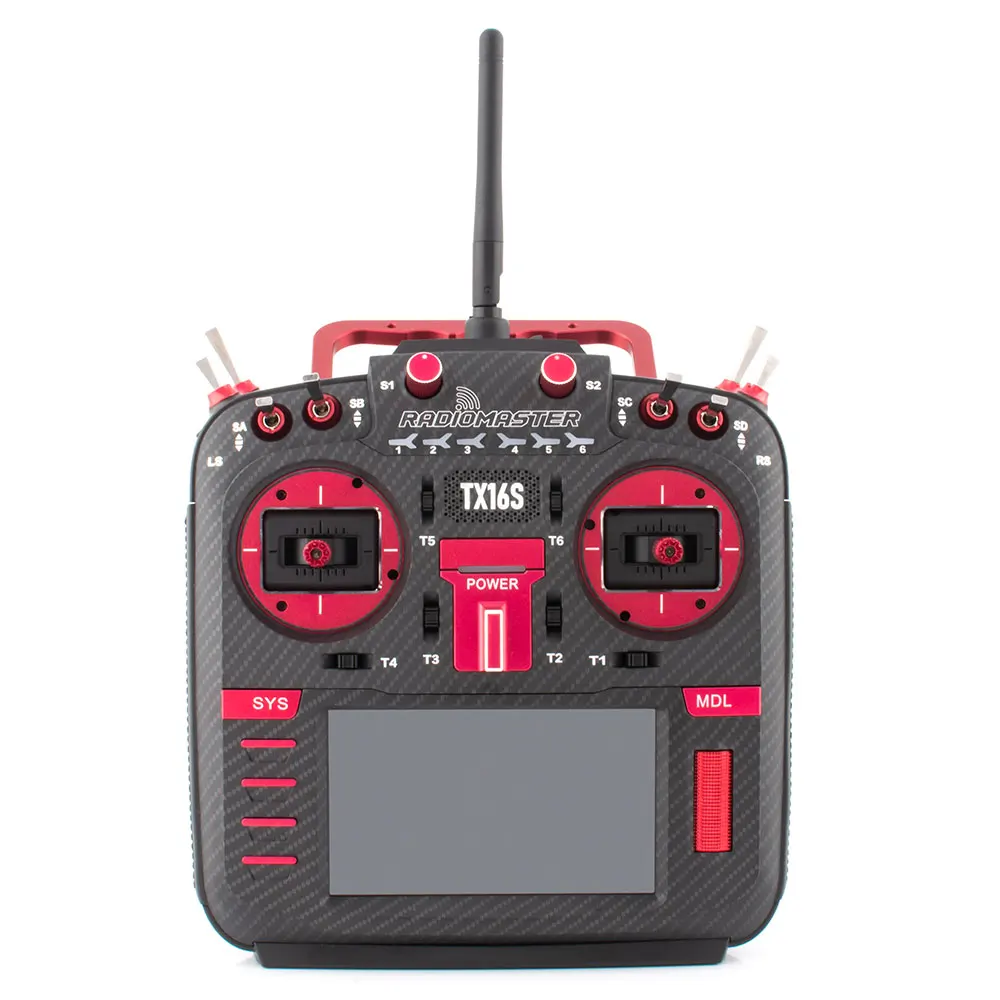

RadioMaster TX16S MKII MAX Radio Control System ExpressLRS Multi-protocol 4in1

Notes:

★ 4in1 (standard) Version supports all MPM protocols

★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW

(Max power is hardware dependnant)

★ 4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX

★ ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Size:287x129x184mm

Weight:750g(without battery)

Transmission frequency: 2.400GHz-2.480GHzTransmitter

Module:

Option 1: Internal

4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)

Option 2: lnternal ELRS(SX1280)

Transmitting power:

Antenna gain: 2db (transmit power adjustable)working current: 400mA

Working voltage:6.6-8.4v

firmware:EdgeTX

Module Firmware:Multiprotocol- Module(4IN1) OR-ExpressLRS(ELRS)

Channels:Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour

touch display with a resolutionof 480* 272

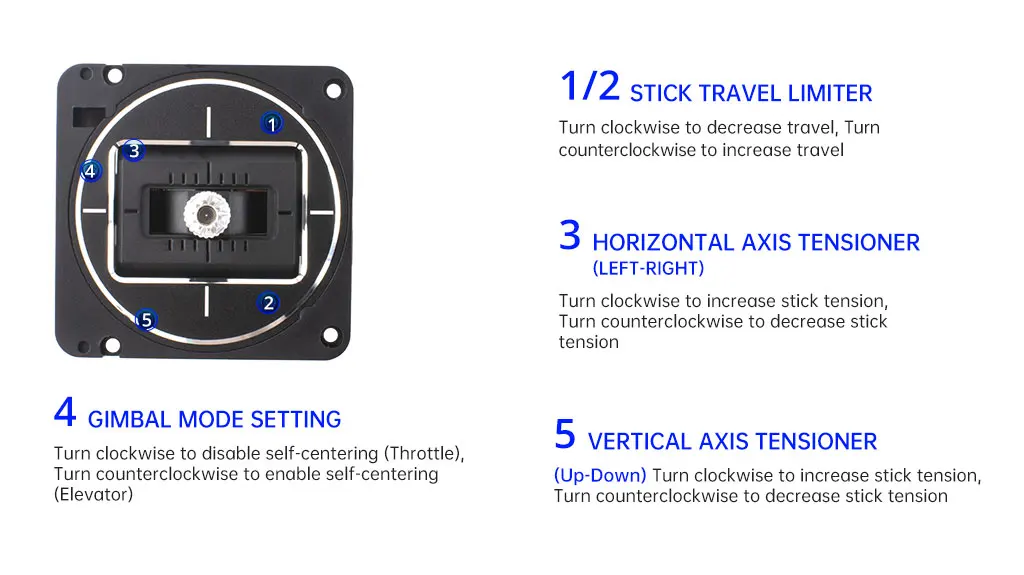

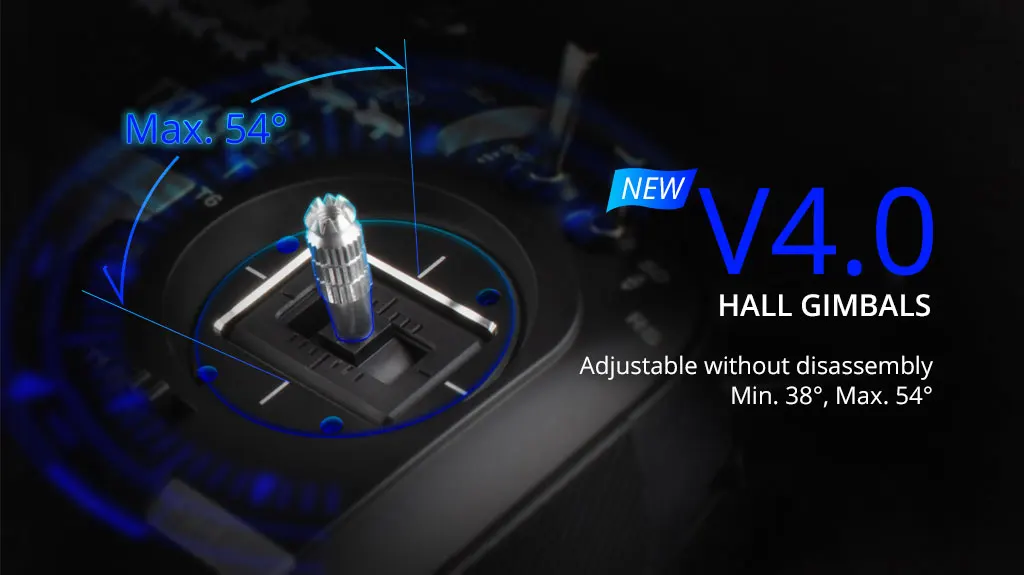

Gimbal:Option 1: V4.0 Hall sensor with Aluminium fascia

Option2:AG01 CNC Hall sensor

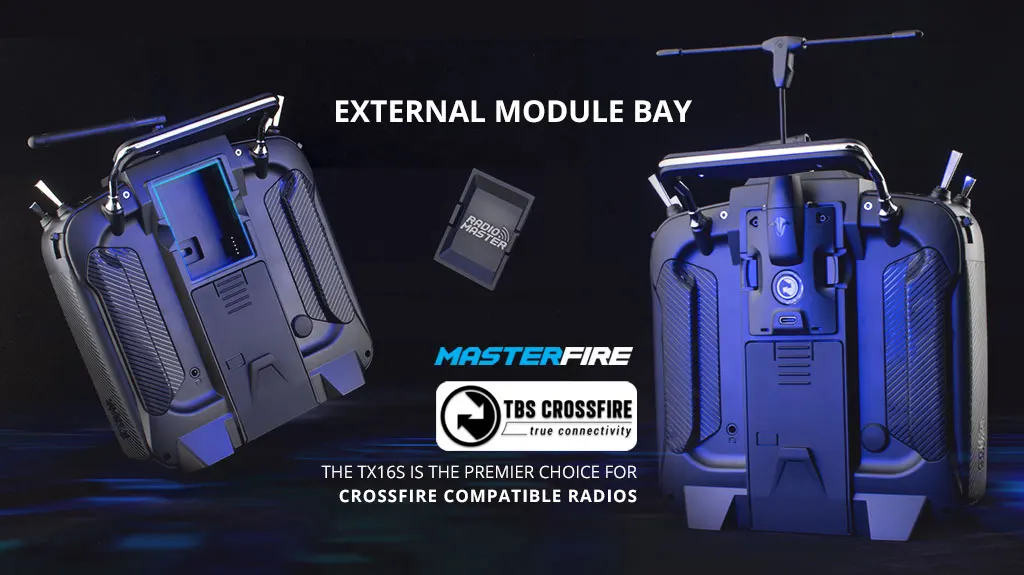

Module Bay: JR compatible module bay

Upgrade method: Supports USB-C online / SD card offline upgrade

IMPROVEMENTS

-lmproved internal circuity and optimized power supply.

-New charge circuitry with integrated reverse-polarity protection.

-Optimized Charge IC, better balancing and uSB-C charge urrent,management.

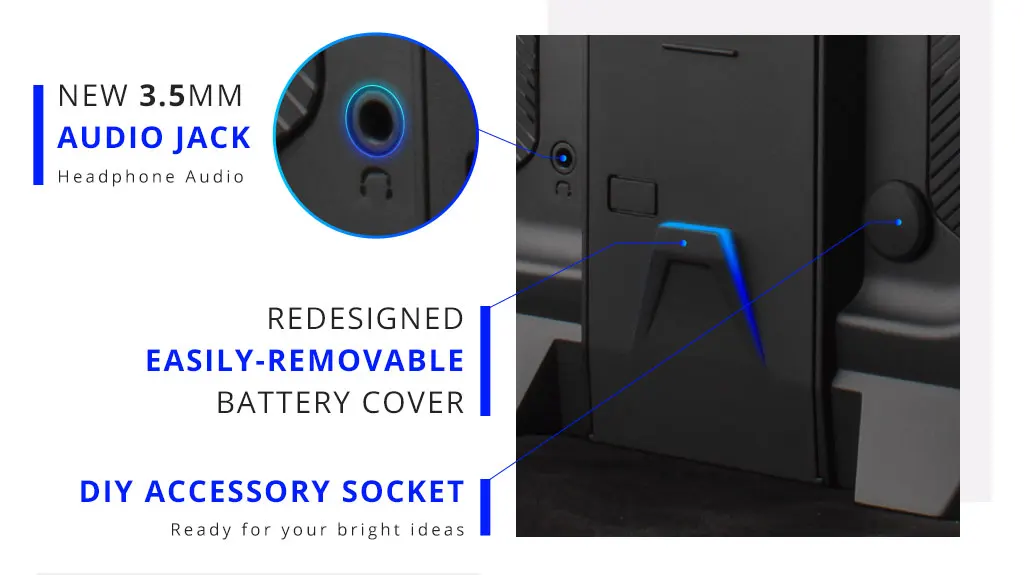

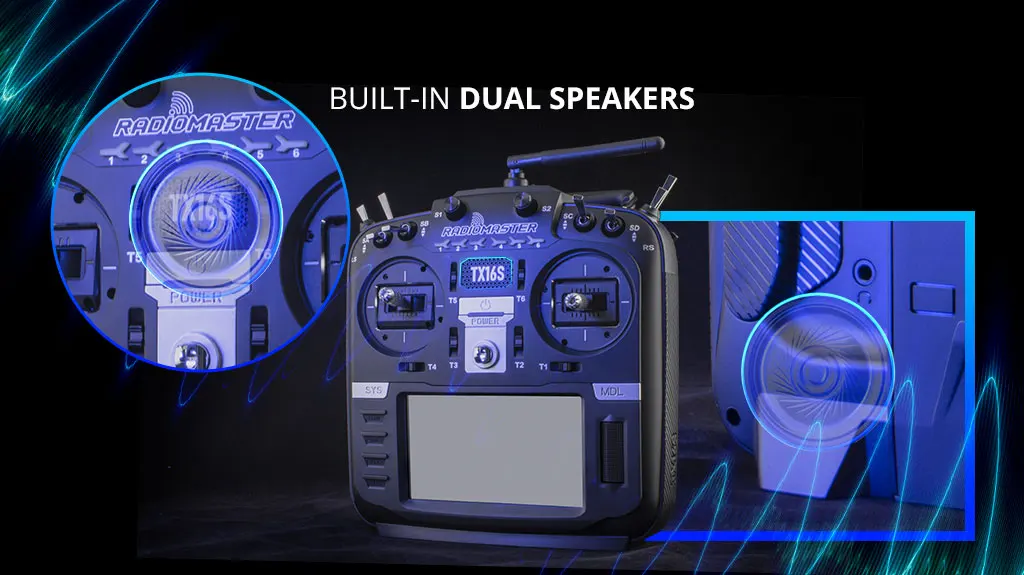

-Rear mounted audio jack provides headphone output

-V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01)

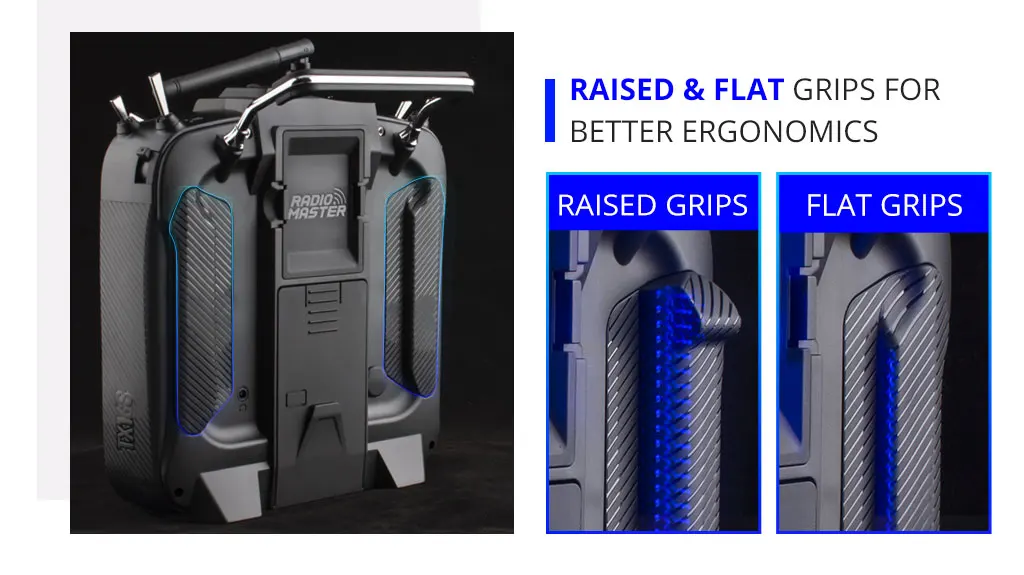

-Optional high/low rear grips included for improved ergonomics.

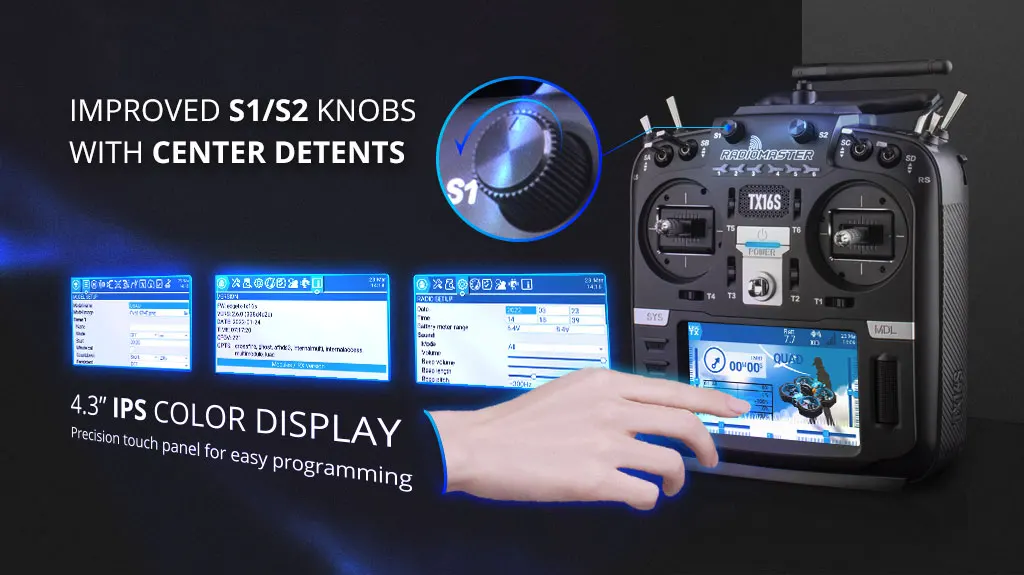

--lmproved S1/S2 knobs with clear centre-detents.

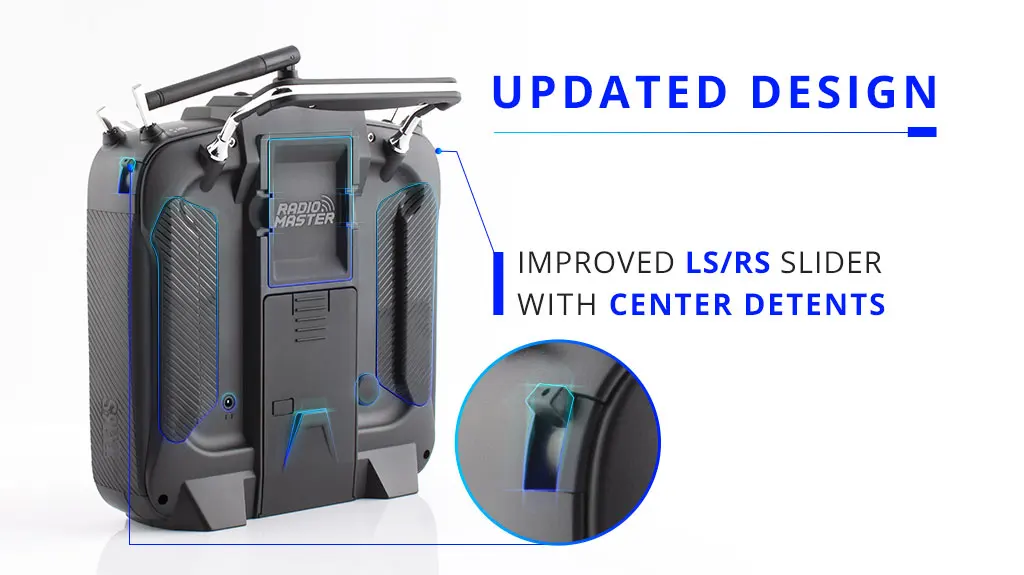

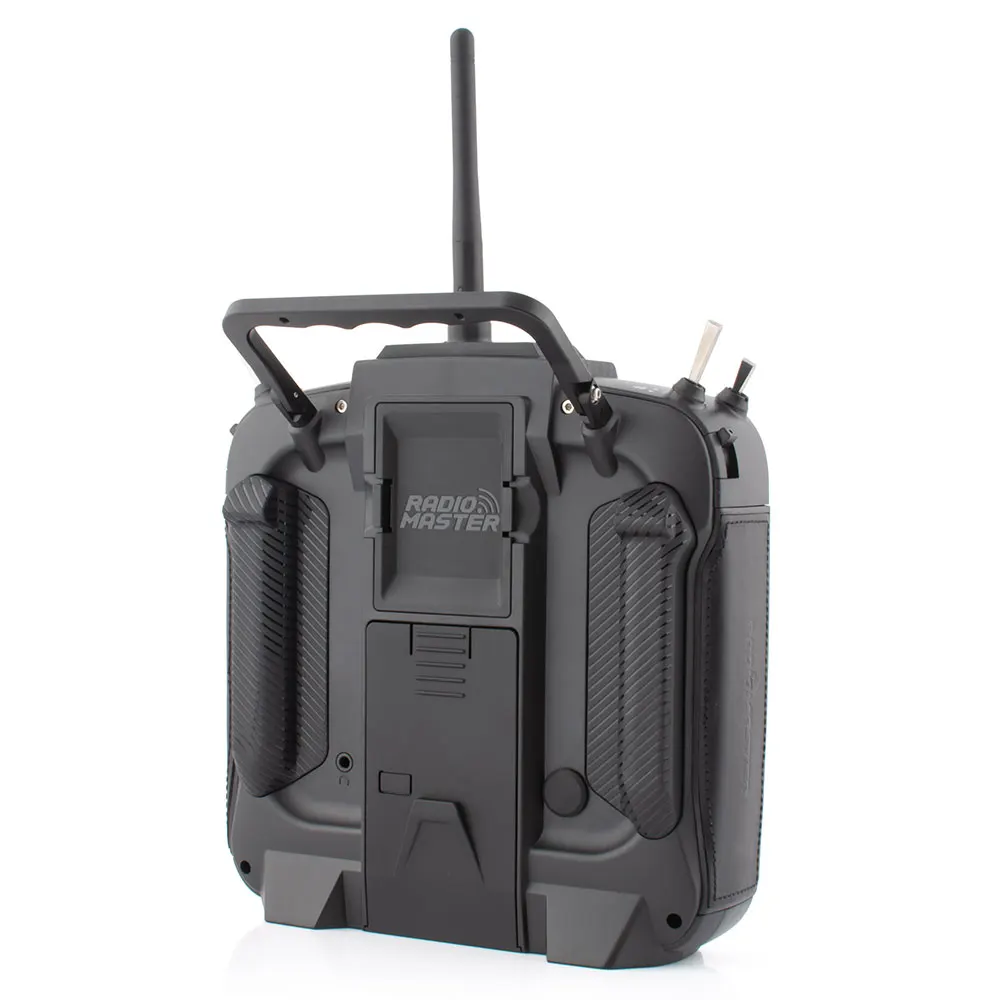

-lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery

cover for improved battery access.

-Retooled body shell with improved fit and finish.

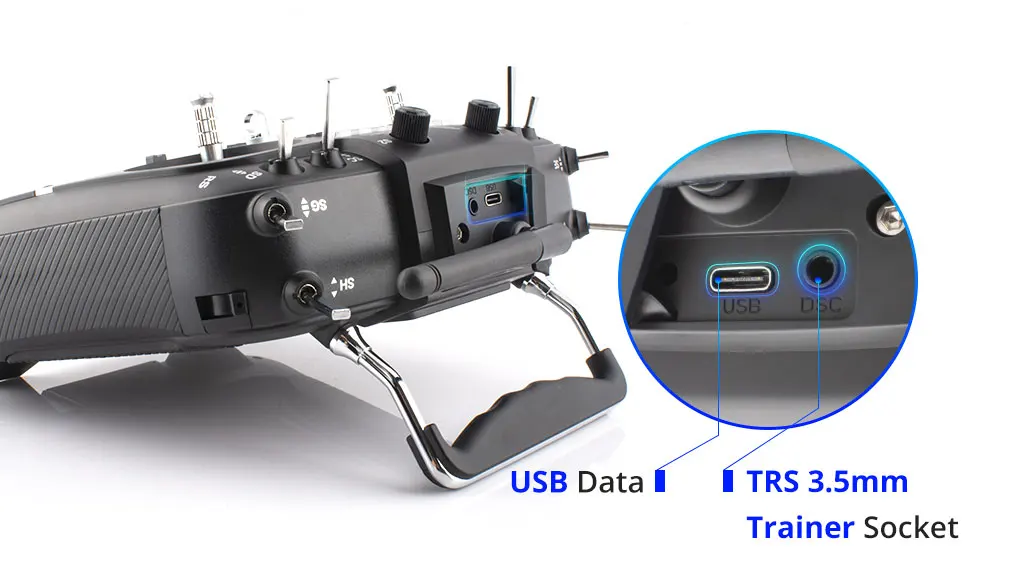

-Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods

-lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions.

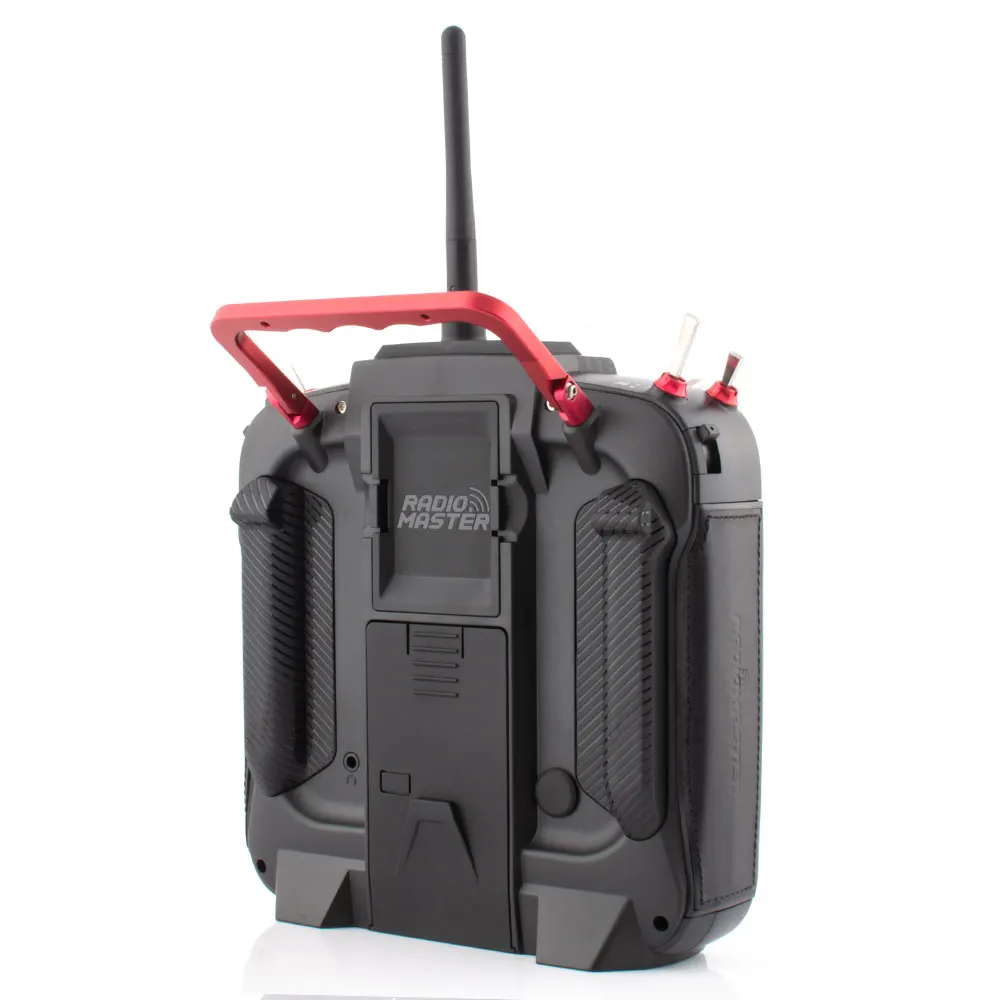

MAX units feature carbon look face plates and CNC finishing components and buttons.
