2322 RC Outrunner Crawler Brushless Motor 45A ESC 7CH Transmitter Receiver 21g Servo Upgrade Kit for MN82 MN99S MN168 MN78 Car

Please note: The casing of the ESC is made of plastic, not metal.
Features:
Perfectly fit metal and original gearbox, 14x14mm aperture, no need to expand the gearbox
Smaller size, stronger power
No need to polish the bottom shell or car shell during installation
Applicable to Mangniu series models: MN82 MN99S MN168 MN78
After modification, low-speed torque compensation, better linearity, easy to climb
Motor Specification:
Product: 2322 2600KV external climbing motor
Using voltage range: 5.5-9V
Rated voltage: 7.2[VDC]
No-load current: 1200 [mA] max
No-load speed: 19000±10%[rpm]
Load torque: 100 [gf.cm]
Load speed: 17000+10% [rpm]
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Axial play: 0.3 [mm] max
Number of teeth: 10T
ESC Specification:
Product: AM32-45A brushless ESC
Using voltage range: 7.4-11.1V
Power supply : 2-3S
Current: Continuous current 45A Peak 280A
BEC output : 6V/2A
Battery connector: SM3.0
Size: 38.5*28*18.5mm
Applicable models:MN82 MN99S MN168 MN78
Servo Specifications:
Item name: NEEBRC NB-S007M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 9kgf·cm
No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
Stall Current:4.8V≦1500mA;6.0V≦1800mA
Consumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mA
Max. Operating Travel Angle:180°±10°(1000~2000μs)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Metal gear
Weight: 20.7 g
Size: 29.6 × 13.2 × 40mm
Length of Connector cable: JR 250±5mm (exposed without plug)
Transmitter Specification:
Product Model:NB-7D
Channel: 7
Model Type:RC Car/Boat
RF:2.4GHz
RF Power: <20dBm
Code Type: GFSK
Sensitivity:1024GB
Distance: >150m(ground)
Battery:6V DC 1.5AA*4
Working voltage:4.2-6V
Antenna Type: Built-in single antenna
Low Voltage Warning:<4.4V
Color:Red,Blue,Gold
Size: 143*90*192mm
Weight: 228g
Certification:CE FCC
Data Interface: NO
Online Update: NO
Receiver Specification:
Product Model:RX-G7X
Channel: 7
Model Type:RC Car/Boat
RF:2.4GHz
Code Type: GFSK
Sensitivity:1024GB
Distance: >150m(ground)
Working voltage :4.2V-10V
Antenna Type:Outlay single antenna
Size: 36.6*23.8*13.4mm
Weight:10g
Certification:CE FCC

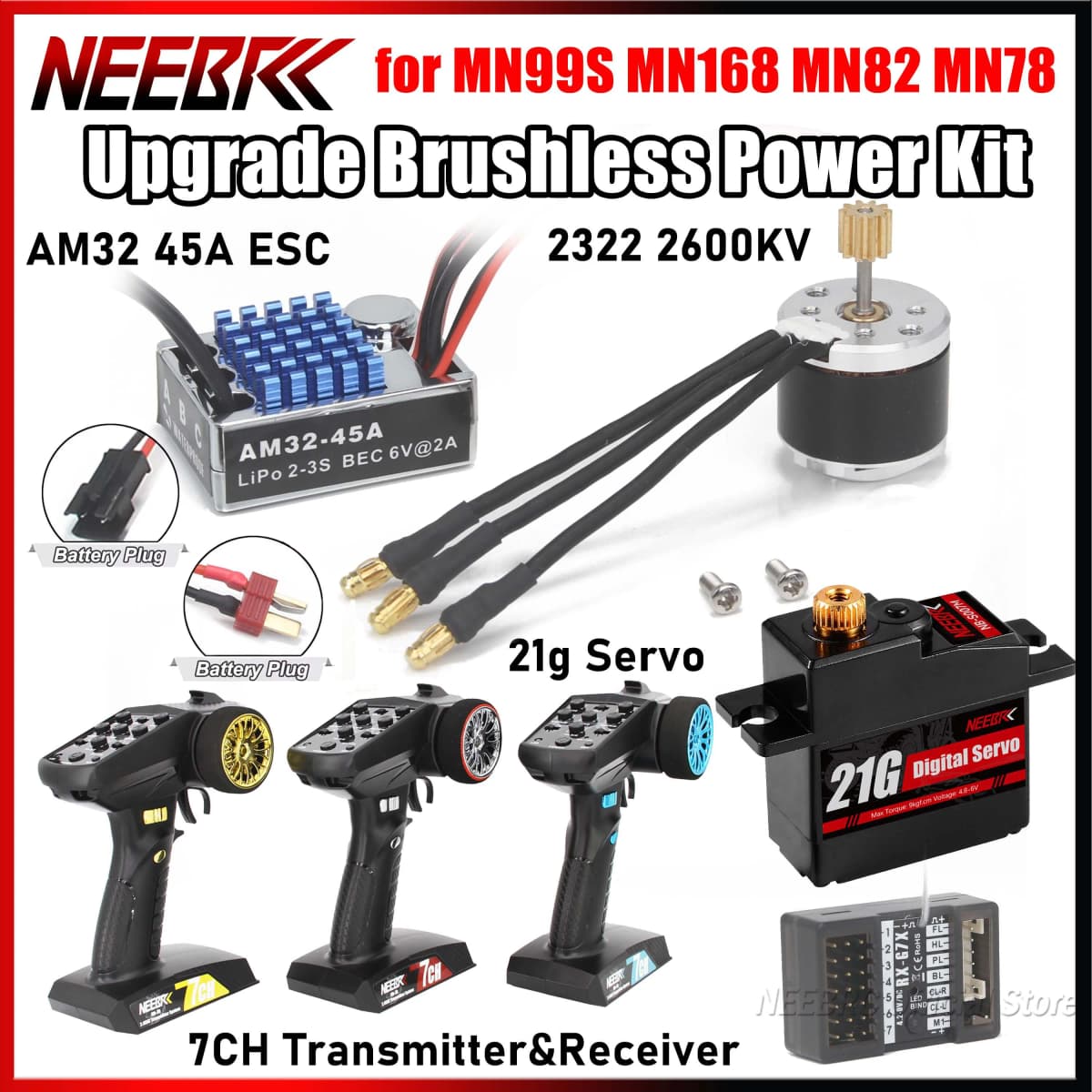

Package included:
1 * 2322 2600KV external climbing motor
1 * AM32-45A brushless ESC
1 * 21G Digital Servo
1 * Servo Arm Accessories
1 * 7CH Transmitter&Receiver
