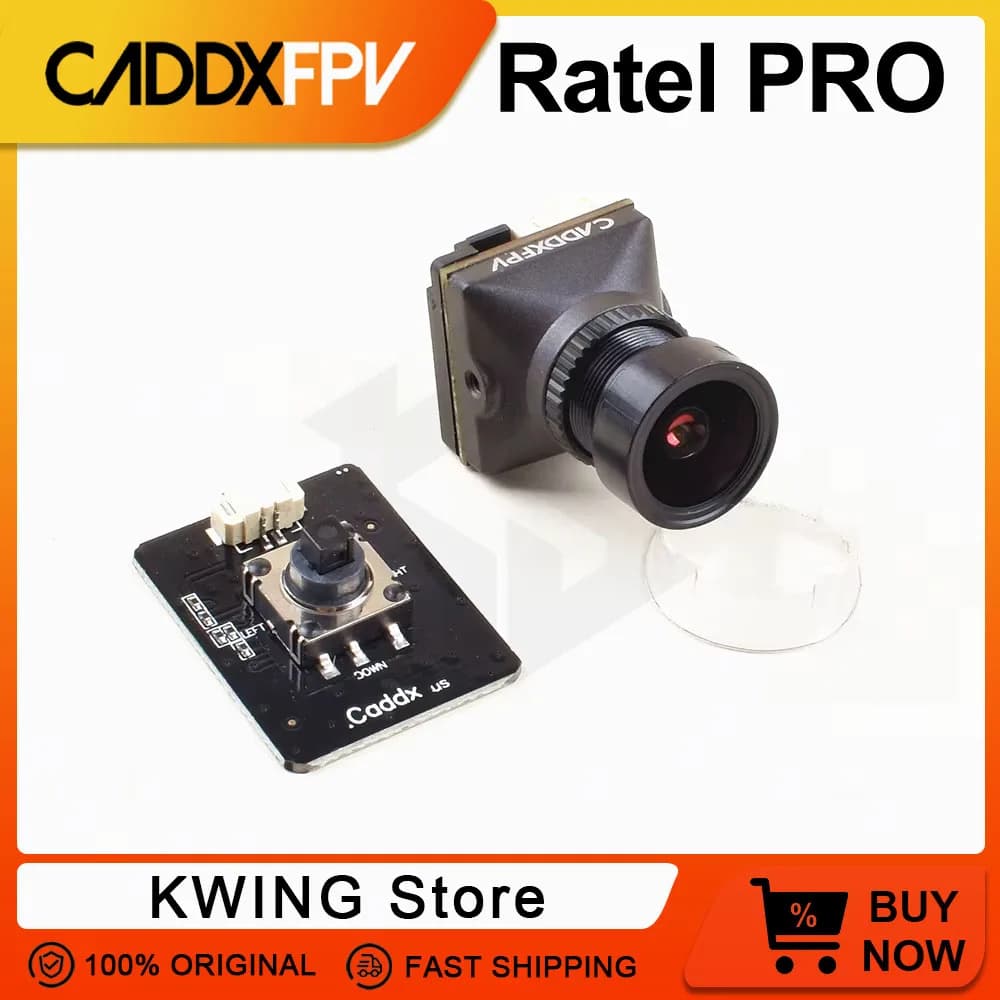

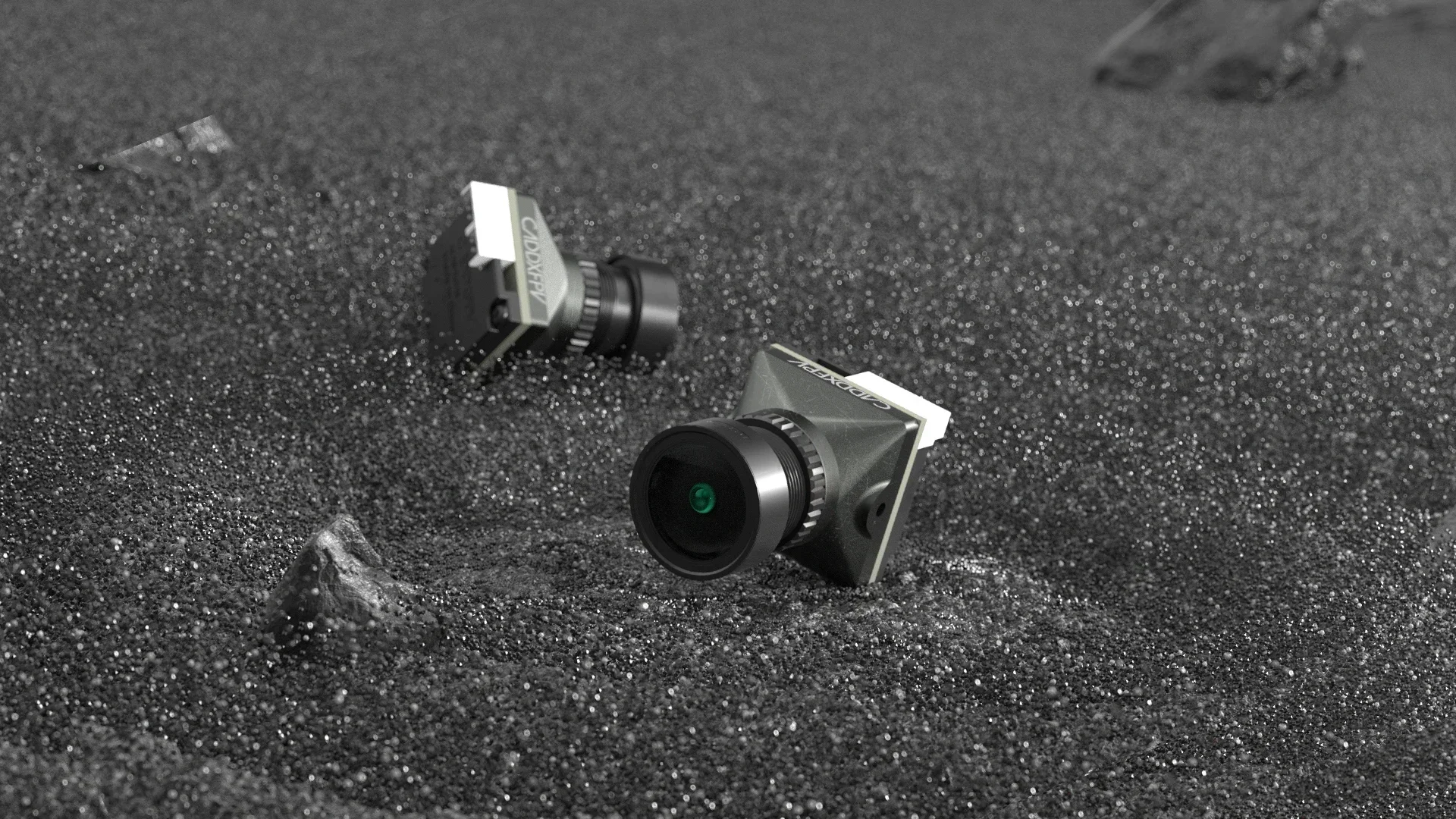

CADDX Ratel Pro Analog Camera Super WDR 1500TVL FOV125°FPV Camera For RC FPV Racing Drone Quadcopter

Model: Ratel PRO
Image Sensor: 1/1.8" Inch sensor
Horizontal Resolution: 1500TVL
TV System: NTSC & PAL  (changeable)
IMAGE: 16:9 & 4:3   (changeable)
WDR: Super WDR （HDR)
Min. Illumination:0.00001lux
Lens： 5Mega
Color： Black
Synchronization： Internal
Electronic ShutterPAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio： >60dB (AGC OFF)
Video Output: CVBS
OSD manual: Support
DNR: 3-DNR
FOV: 125°
Language: （ENGLISH/CHINESE/Русский/ESPANOL/ITALIANO/FRANCAIS/POLSKIM/ PORTUGUES/Japanese）
Day/Night: Auto/Color/B&W/EXT
Dimensions: 19mm*19mm
Wide Power Input: DC 4.5-27V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 9.5g

Features：

●Day and night ●Blacklight

●1500TVL ●Super WDR

●4.5V-27V ●FOV125°

Bullet Points:

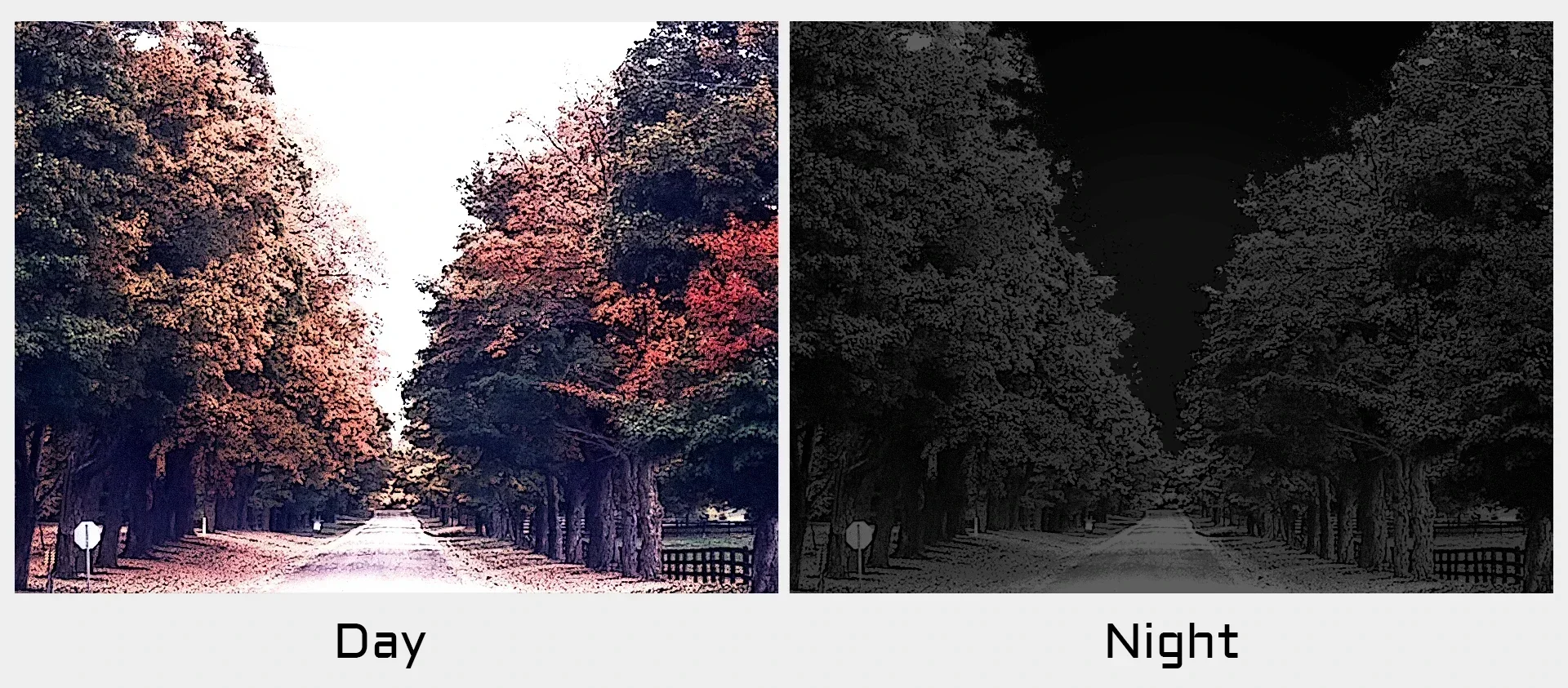

Featuring a blacklight technology, Ratel Pro displays real color images during the day and displays to black-and-white visuals at night, ensuring optimal visual performance in diverse lighting conditions.

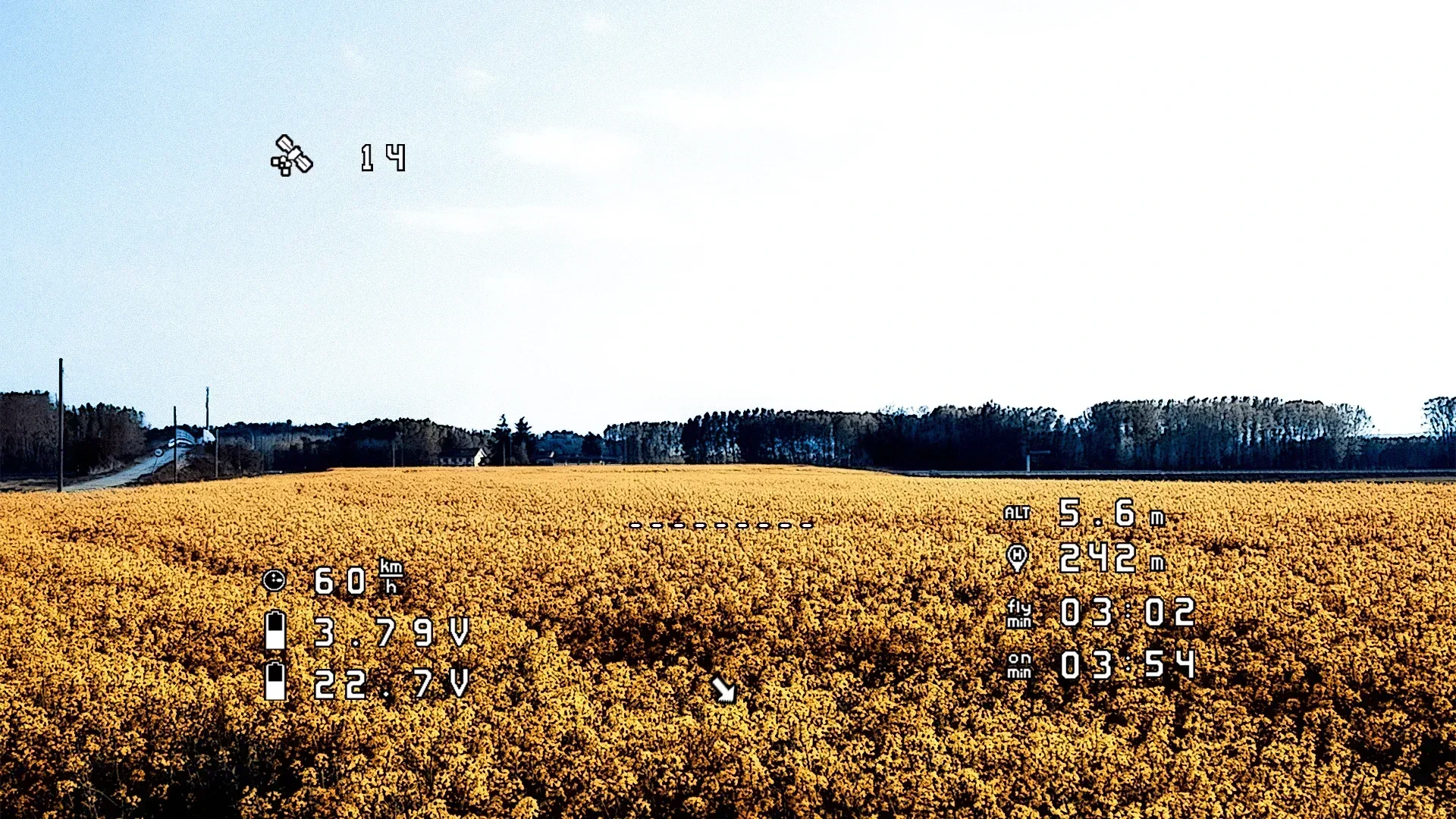

Ratel Pro delivers excellent daytime clarity, setting new standards in visual excellence within the analog camera domain.

Using BSI 1/1.8INCH large sensor and enhanced algorithm, the illumination is doubled compared to ordinary night vision cameras. Even in low-light conditions, Ratel Pro achieves outstanding night vision, providing clear and reliable imagery for uncompromised visibility.

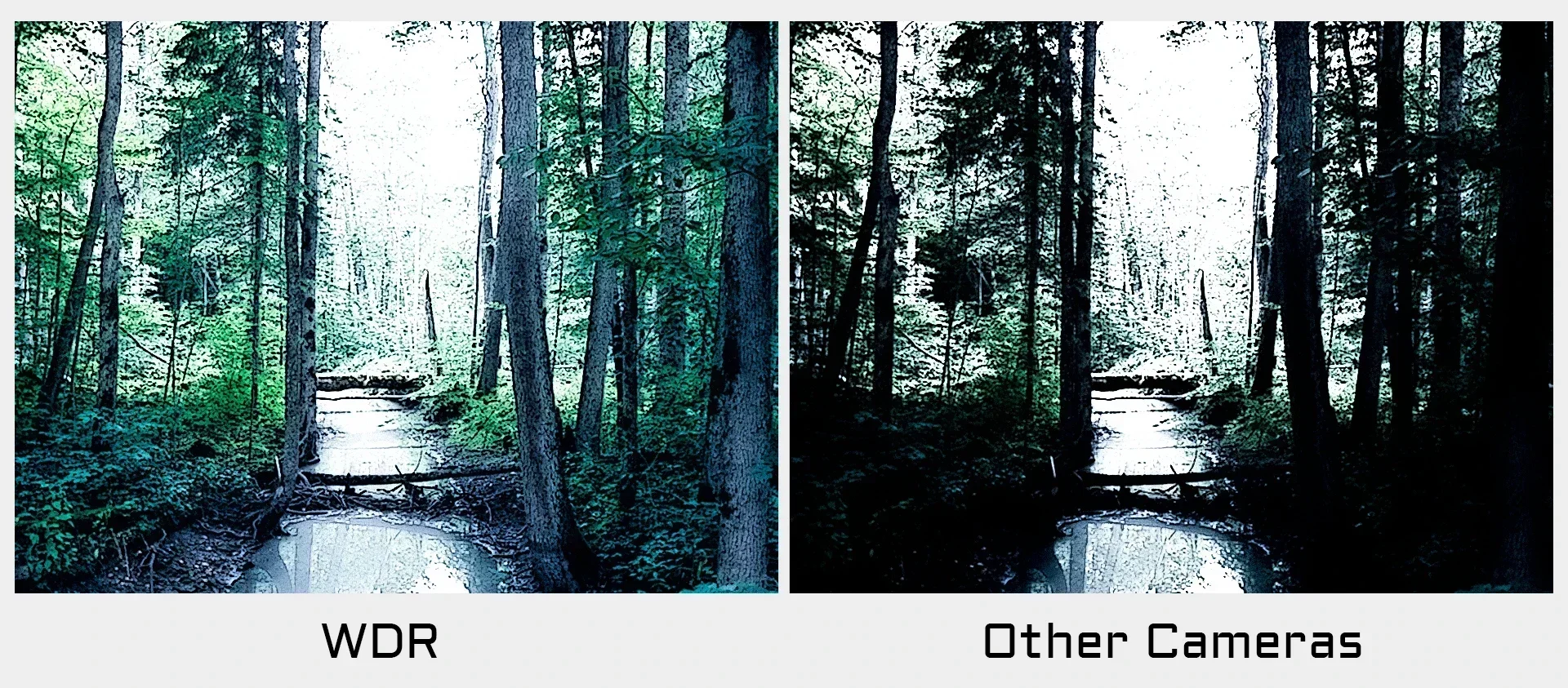

Supports WDR, bounteously satisfying the pursuit of detailed shooting whether in bright or dark environments.

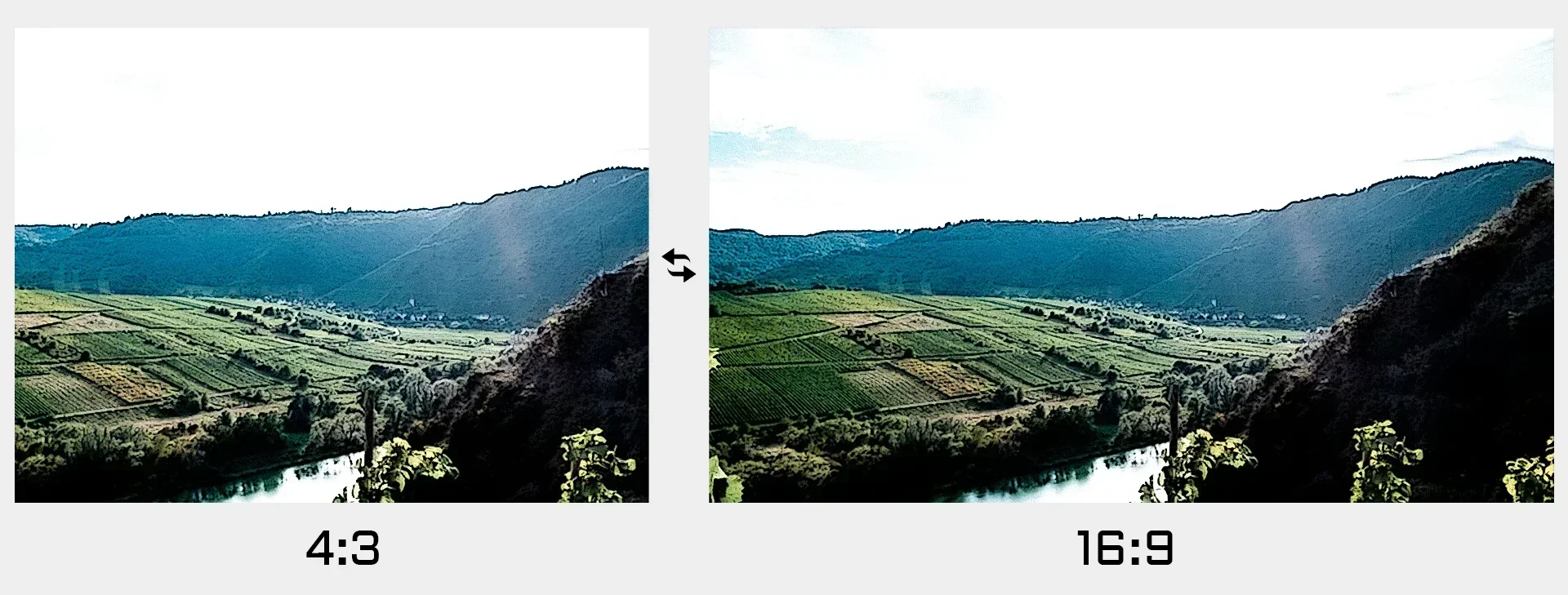

Switch effortlessly between 16:9 and 4:3 screen ratios with Ratel Pro, providing flexibility to adapt to different preferences and scenarios.

Designed with 125° FOV, Ratel Pro offers pilots a natural visual experience during flight, restoring the authenticity of the scenes.

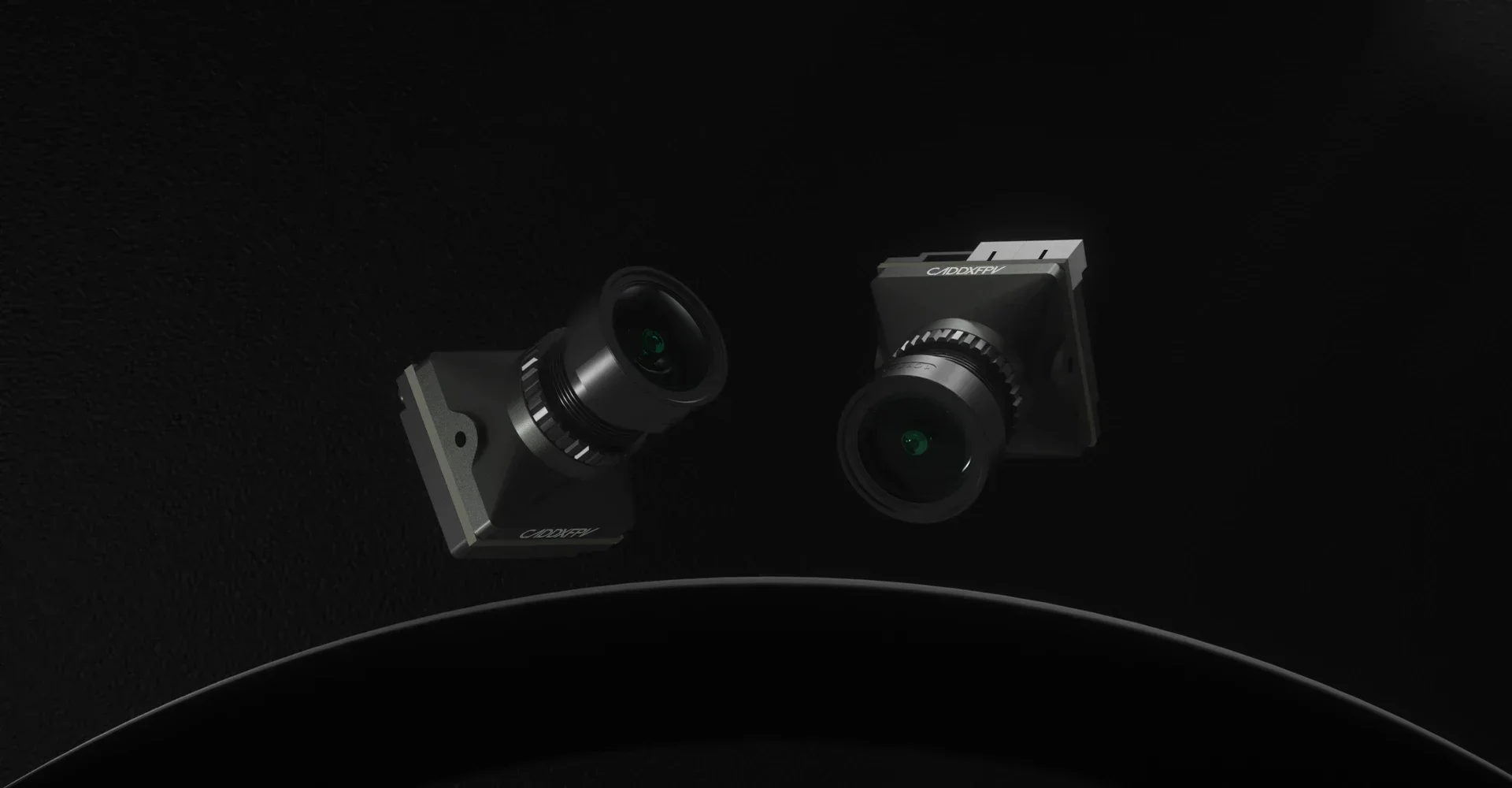

Featuring a metal case, the lightweight design improves durability and heat dissipation.
