Surpass Hobby Rocket-RC Supersonic 380 8.5T 10.5T 13.5T 17.5T 2-3S Brushless Sensored Motor 80A 6-11V ESC For 1/12 1/14 RC Car

Surpass Hobby Rocket-RC Supersonic 380 8.5T 10.5T 13.5T 17.5T 2-3S Brushless Sensored Motor 80A 6-11V ESC

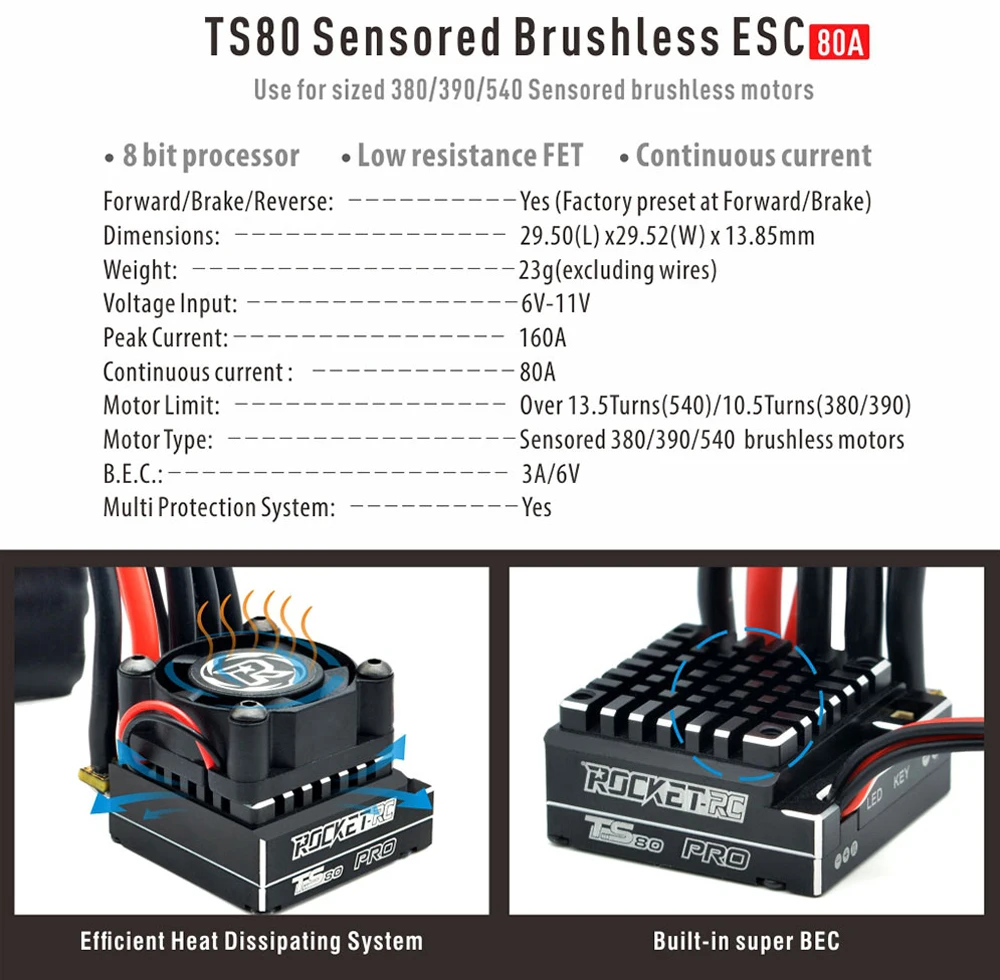

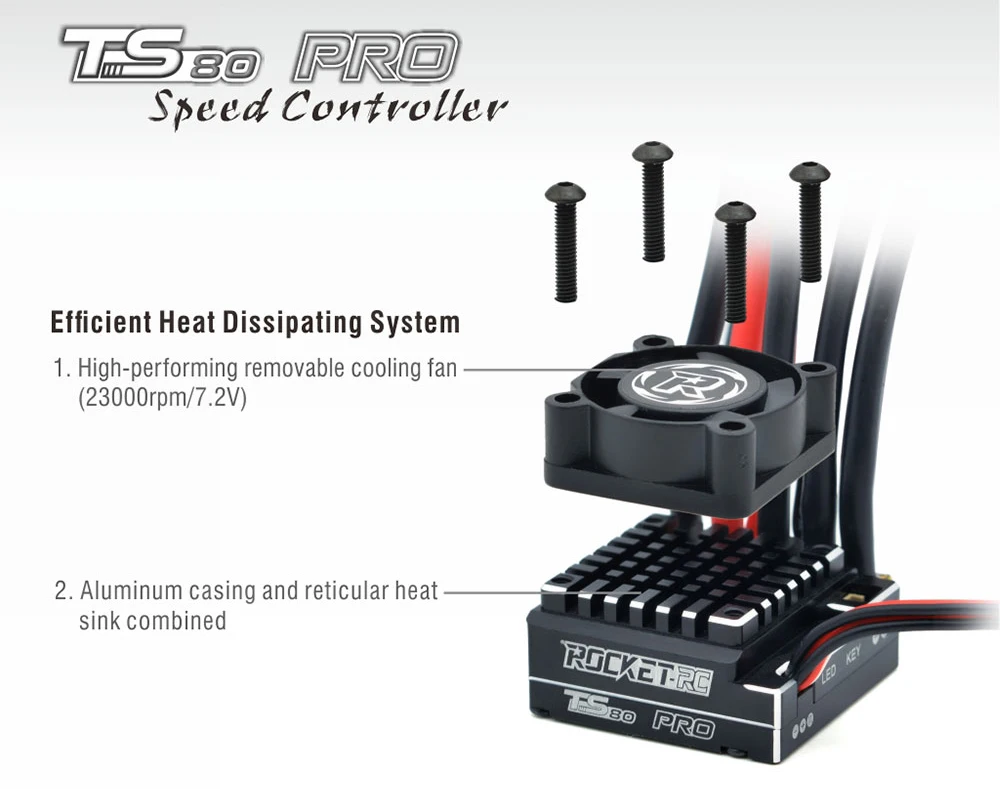

TS80 Sensored Brushless ESC:
SPECIFICATION:
● 8bit processor
● Lowresistance FET
● Continuous current
Forward/Brake/Reverse: ----- Yes (Factory preset at Forward/Brake)
Dimensions: -----29.50(L)x29.52(W)x24(H)mmincduding fan)
Weight:----61.4g(induding wires)
Voltage input----6-11V;
Peak current:----160A;
Continuous current:----80A;
Motor limited:----Over 13.5Turns(540)/ 10.5Turns(380/390);
Motor type:----Sensored 380/390/540 brushless motors;
BEC:----3A/6V;
Multi protection system:----Yes;

RADIO& ESC SETUP:
Transmitter Settings:
◆Throttle Travel Maximum/ 100%
◆Brake Travel Maximum/ 100%
◆Throttle Exponential Start with/ 0%
◆Throttle Neutral Trim Center/ 0
◆Throttle Servo Reverse (Futaba, KO, Sanwa);

The initial set-up of the throttle end-points of the ESC:
1. Connect the power wires ofthe ESC to a flly charged;
2. Bind your receiver and tansmitter frst if your radio requires you to do so.
3. Use a 1.5mm screw press and hold the ESC set button and then switch on the ESC, release the button unit the led change to blue and fash from red, you can listen to two beeps sound from motor at the same time.
4. Keep the throttle in the neutral position and then press the set button, the neutral position already memory on ESC when listen to a beep sound.
5. Full throttle and then press once the set button, the maximum throttle position already memory on ESC when listen for two beeps sounds.
6. Full brake and then press once the set button, the maximum brake position already memory on ESC when listen for three beeps sounds.
7. A beep will then sound, Signifying that the ESC endpoints have been sucessful.

INSTALLATION & CONNECTORS:
1. Connect build in BEC wire(100mm) between the receiver connector and ESC.
2. Directly to the motor or use your favorite connectors. Match the label of the ESC Output (A, B, C) to the Tablabels on the motor when soldering. Avoid soldering each joint for longer than 5 seconds. Prior to operation make sure you have not created a short by either eating a wire bridge or solder bridge on the solder tabs on the motor. (WARNING! Improper wiring may damage the ESC and void the warranty.)

CUSTOMIZINGTHE ESC:
-To begin, connect the bttry wires to a charged bttery, then connect the BEC wire 3pin wire to the program card“S+-" port (3pin port). Turn on the ESC and the Program Card wllread the esc setup once time, activate automatically. You can now begin programmingyour ESC.
-TIPS! Program card is done using the 4 buttons below on the led, The function of each button start from right hand side are ITEM, VALUE, 0K and RESET.
''ITEM'' button------go to next item to select.
''VALUE'' button-----go to next value select.
''0K'' button------go to confrm your select.
''RESET'' button------go back to factory setup.

Surpass Hobby ROCKET-RC Supersonic 380 KV2500/KV3300/KV4000/KV5000 2-3S Sensored Brushless Motor

Features:
*IFMAR , ROAR BRCA EFRA Compliance.
*Standard 380 size , M3-16 / 19mm mounting hole distance, φ3.175mm shaft, suitable for 1/12 &1/14th scale RC car.
*Provide 8.5t / 10.5t / 13.5t / 17.5t , 4 Turns,compatible with more brands of ESC.
*High strength 7075 imported aluminum alloy cans with unique smooth edge hollow out design , surper light weight and efficient heat dissipation.
*American original 1EI/AIW(H) copper wire winding has extremely low resistance,super magnetic high temperature resistance , and eh grade rotor has more efficient kinetic energy output.
*Japan NSK high precision bearing makes the motor run more smoothly.
*The unique gold-plated thickened ABC copper SolderTabs operate freely at a high temperature of 150°C .
*Removable / Replaceable design which is convenient for cleaning and maintenance and effectively prolongs theservice life of the motor.

Turns:8.5T
KV(RPM/Volt):5000KV
Watts:320
Lipo(S):2S
Max Amps:75
Rotor Poles:2
IO(7.4V):3.5A
Rsistance(mΩ):15.1

Turns:10.5T
KV(RPM/Volt):4000KV
Watts:250
Lipo(S):2S
Max Amps:60
Rotor Poles:2
IO(7.4V):3.0A
Rsistance(mΩ):23.0

Turns:13.5T
KV(RPM/Volt):3300KV
Watts:190
Lipo(S):2-3S
Max Amps:45
Rotor Poles:2
IO(7.4V):2.0A
Rsistance(mΩ):39.1

Turns:17.5T
KV(RPM/Volt):2500KV
Watts:130
Lipo(S):2-3S
Max Amps:32
Rotor Poles:2
IO(7.4V):1.5A
Rsistance(mΩ):57.5

Shaft(mm):3.175
Rotor(mm):φ10.5xφ5x24.1
Motor Size:φ27.8x47.5mm
Weight(g):96
