BCUBE MARK4 V2 8/9/10inch F722 Flight Control 45/60A 4INI ESC Rack Drone FPV Carbon Fiber PV Racing Drone Quadcopter Freestyle

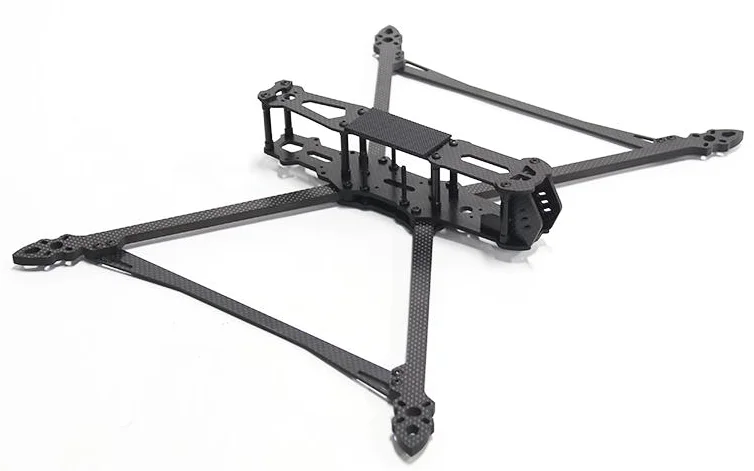

3K Carbon Fiber Frame MARK4 V2 8inch 367mm 9inch 387mm 10inch 427mm WheelBase RC FPV Freestyle Racing Drone Frame Kit

Description: ​

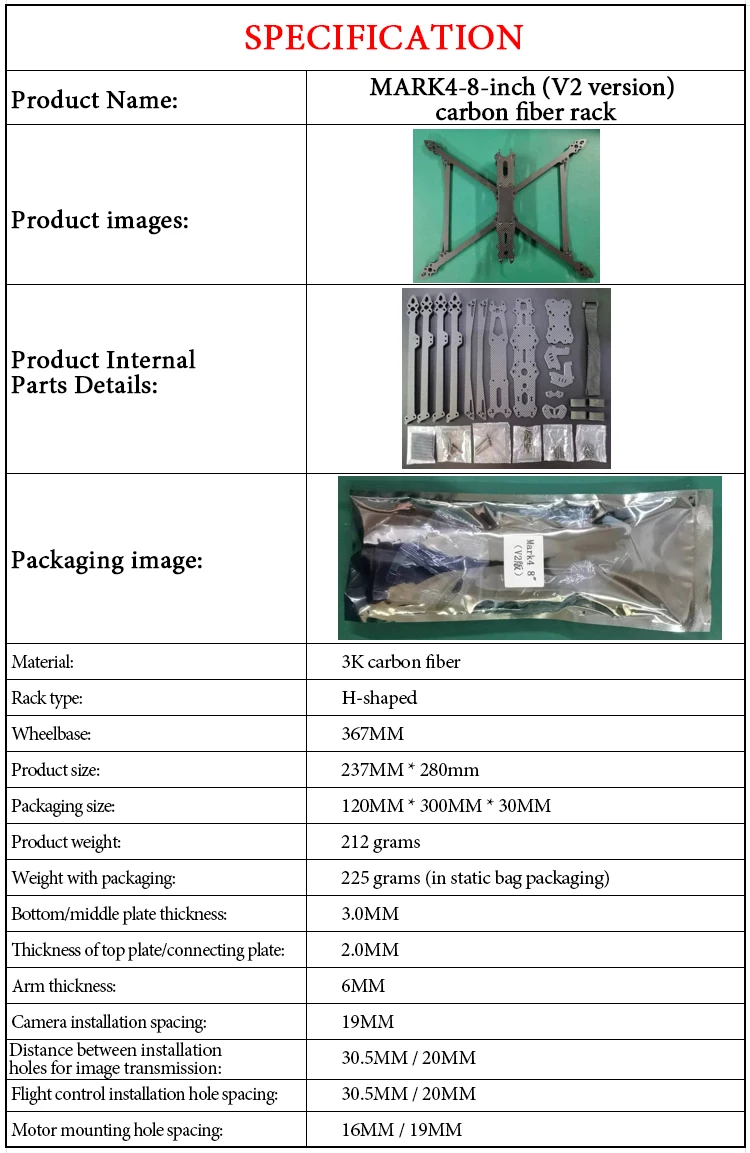

Model: MAK4 V2 8inch
​Wheelbase: 367mm
​Weight: about 214g
​Thickness of bottom plate: 3mm
​Thickness of top plate: 2mm
​Thickness of camera arm: 6mm
​Camera side panel thickness: 2.5mm
​Camera mounting hole spacing: 19 mm
​Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
​Flight Control Mounting Pitch: 30.5*30.5mm
​Inner space height: 35mm
​Motor mounting hole pitch: 16*16mm & 19*19mm

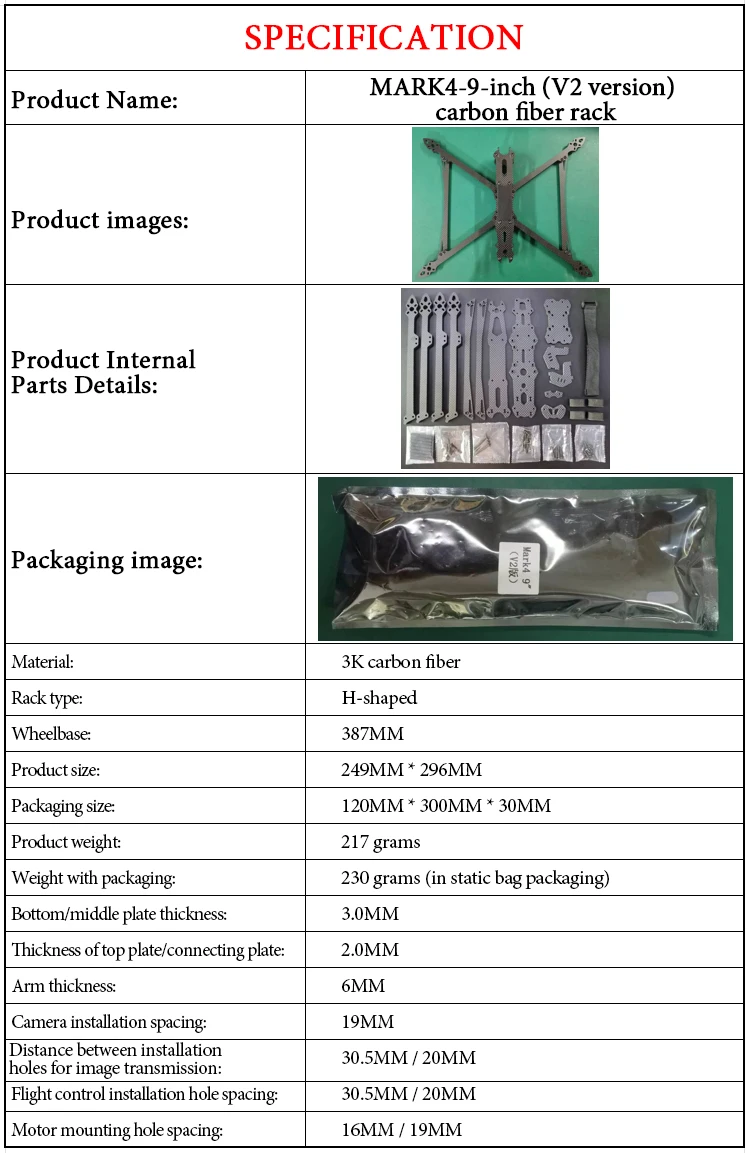

Model: MAK4 V2 9inch
​Wheelbase: 387mm
​Weight: about 220g
​Thickness of bottom plate: 3mm
​Thickness of top plate: 2mm
​Thickness of camera arm: 6mm
​Camera side panel thickness: 2.5mm
​Camera mounting hole spacing: 19 mm
​Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
​Flight Control Mounting Pitch: 30.5*30.5mm
​Inner space height: 35mm
​Motor mounting hole pitch: 16*16mm & 19*19mm ​

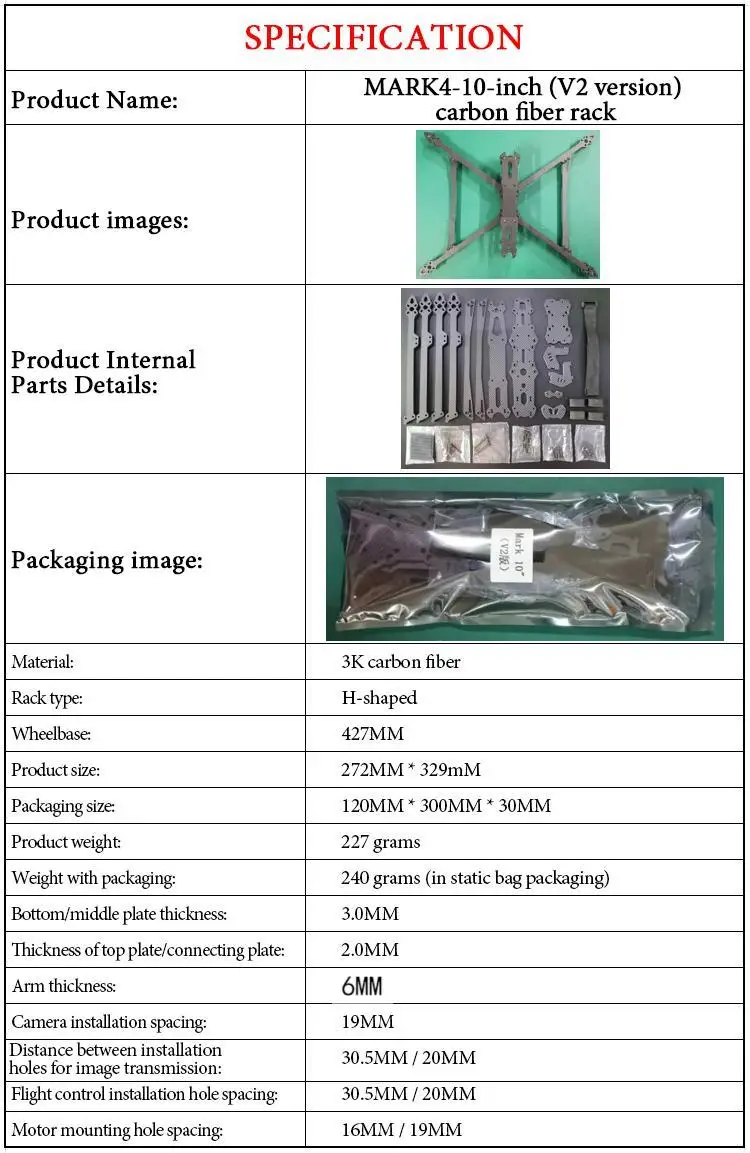

Model: MAK4 V2 10inch
​Wheelbase: 427mm
​Weight: about 227g
​Thickness of bottom plate: 3mm
​Thickness of top plate: 2mm
​Thickness of camera arm: 6mm
​Camera side panel thickness: 2.5mm
​Camera mounting hole spacing: 19 mm
​Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
​Flight Control Mounting Pitch: 30.5*30.5mm
​Inner space height: 35mm
​Motor mounting hole pitch: 16*16mm & 19*19mm

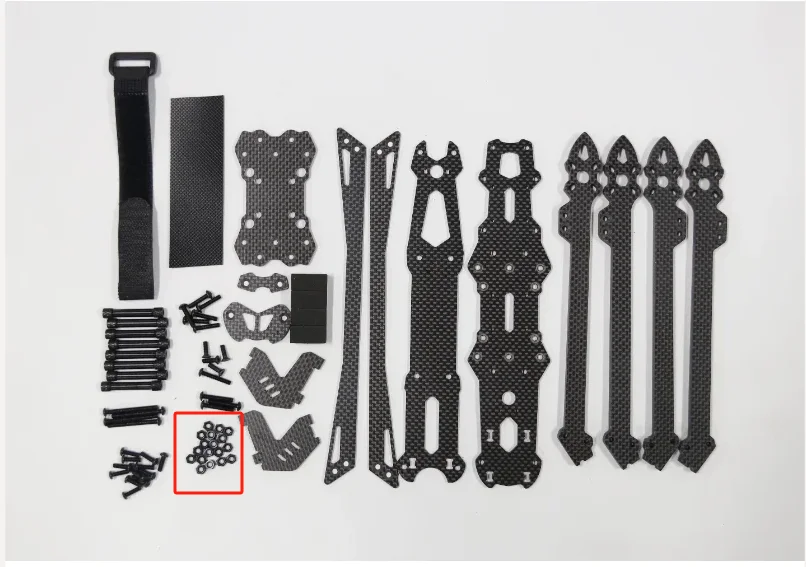

The rack uses external nuts, not nuts built into the carbon fiber board. Nuts built into the carbon fiber board are prone to loosening during flying , so using external nuts is more secure and safe.When fixing, please use external nuts to secure.

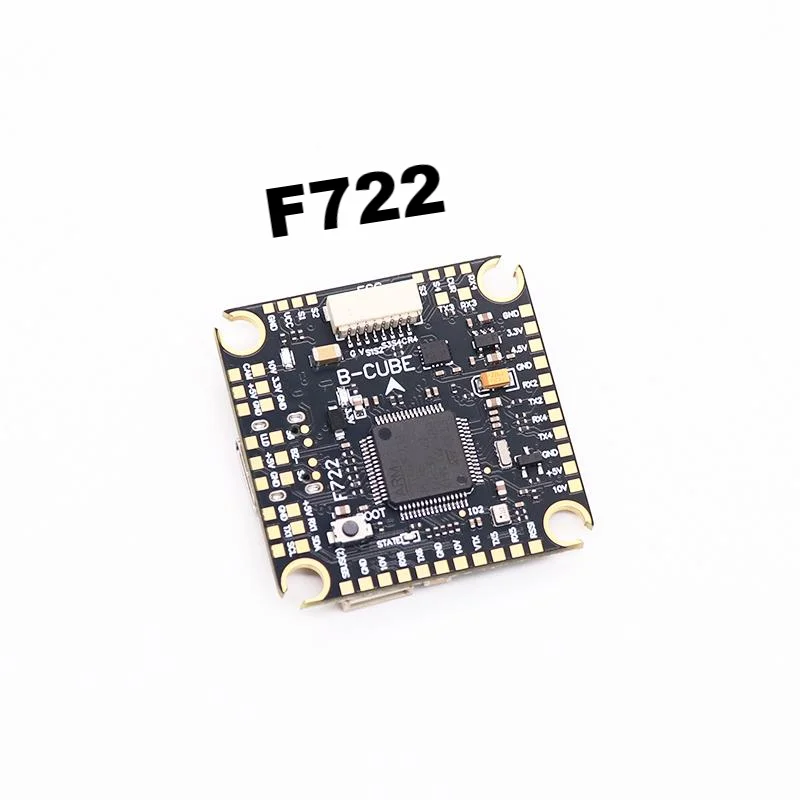

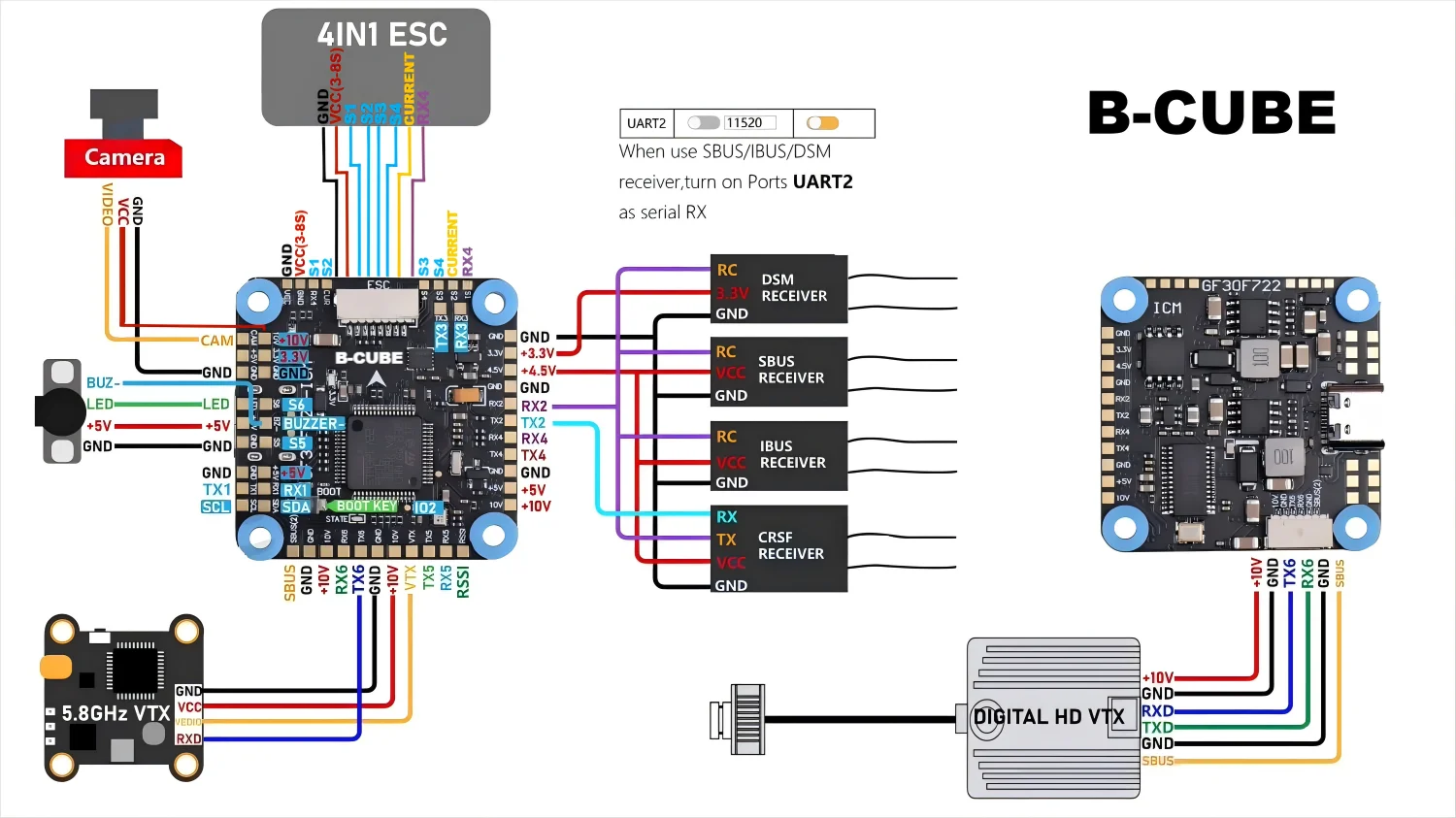

B-CUBE F722 Flight Controller

Features:
​1. The F722is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
​2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity. ​
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance. ​
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button. ​
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight. ​ ​

Descriptions: ​F722 Flight controllerbaro: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller. ​

Specifications:

(Model): F722 Flight Controller

(MCU) STM32F722RET6

(IMU) ICM-42688-P/Gyro/Accel

(OSD): AT7456E

(Baro) SPL06-001

(Blackbox): 16MB

(Input voltage): 3-8S Lipo(11.4-36V)

5V-BEC: 5V/2.5A ±0.1V

10V-BEC: 10V/2A(USER1)

IO2: USER2

(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX

UART: UART1/2/3/4/5/6

IIC: 12C1

Led Strip:YES

(Buzzer): 5V

(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600

USB: TYPE-C

(Current port): YES

(Voltage sensor) YES

DFU (DFU button): YES

(Firmware): Betaflight 4.3.1 JHEF7DUAL.HEX, inav_7.1.0_JHEMCUF722.hex

(Size): 36*36MM

(Mounting Hole) 30.5*30.5*4MM

(Weight) 8.8g

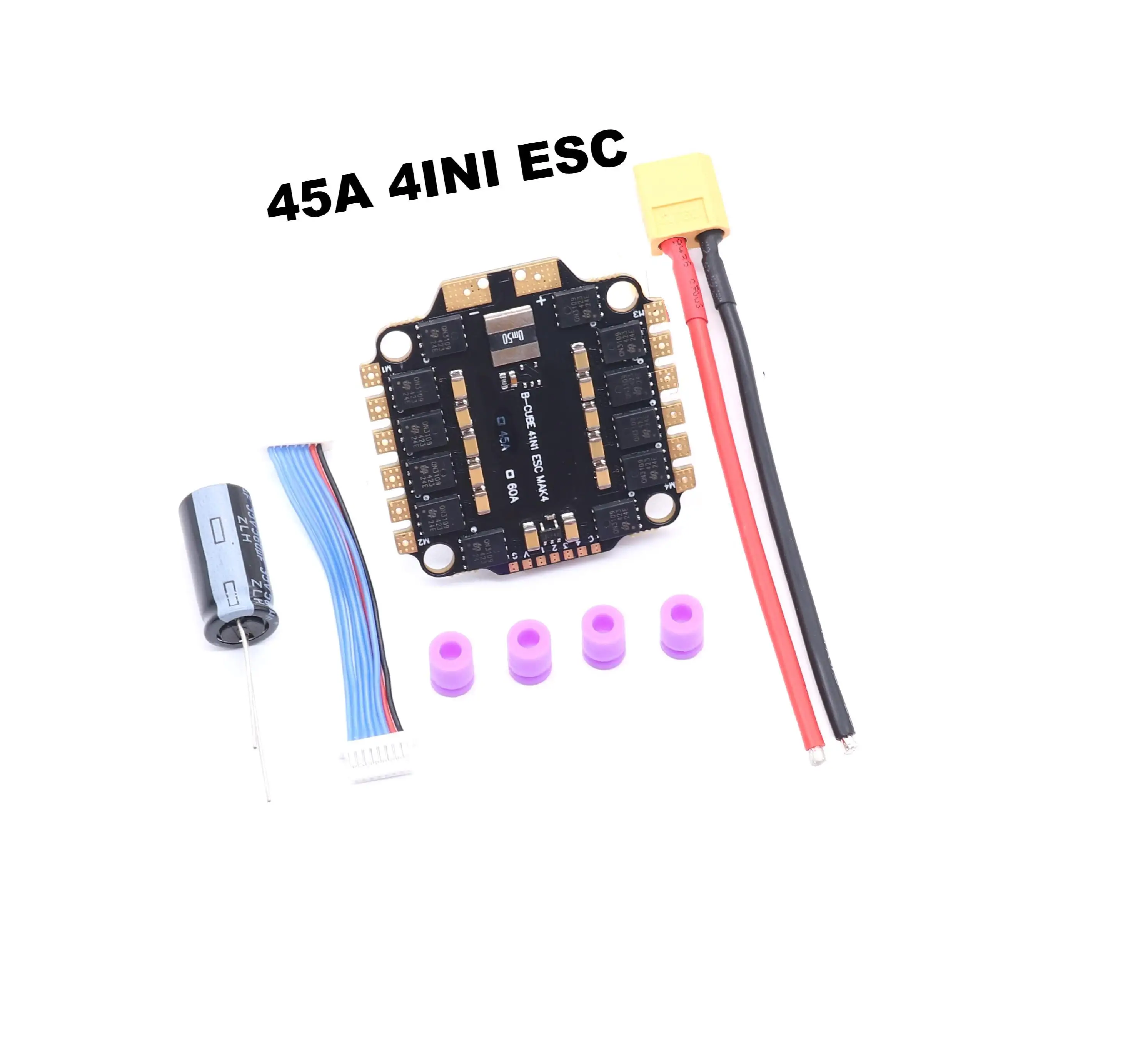

BLHELI_S 45A 4IN1 3-6S Brushless ESC

Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

BLHELI_S 60A 4IN1 3-6S Brushless ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 60A
Maximum current: 70A (5 seconds)
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PWM
Current sensor: Support
The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision

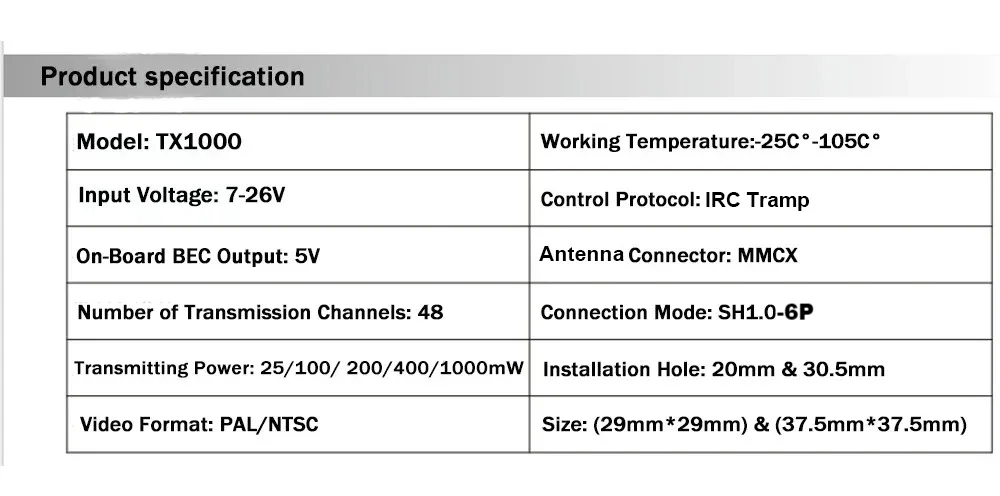

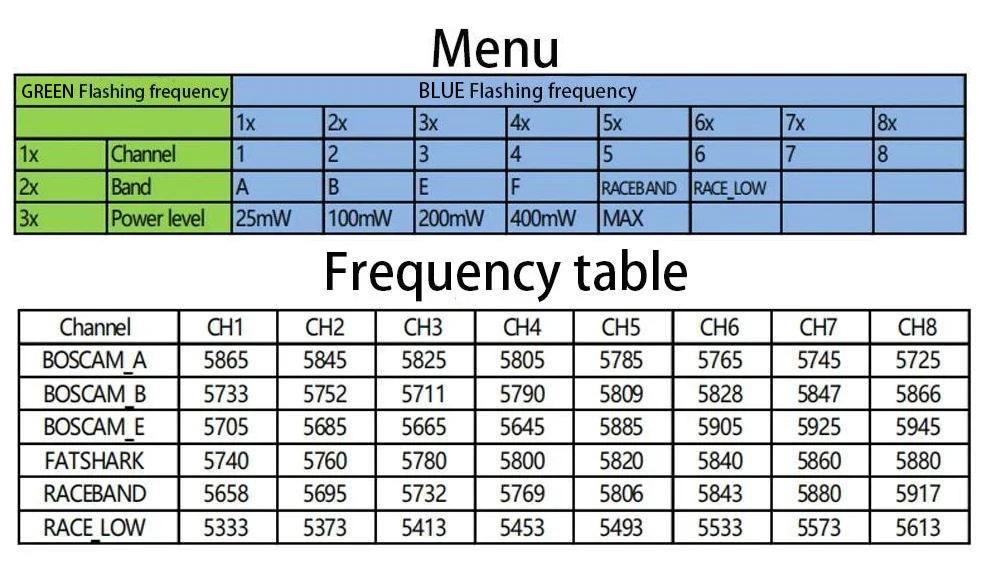

VTX1000 1W Video Transmitter

Description:

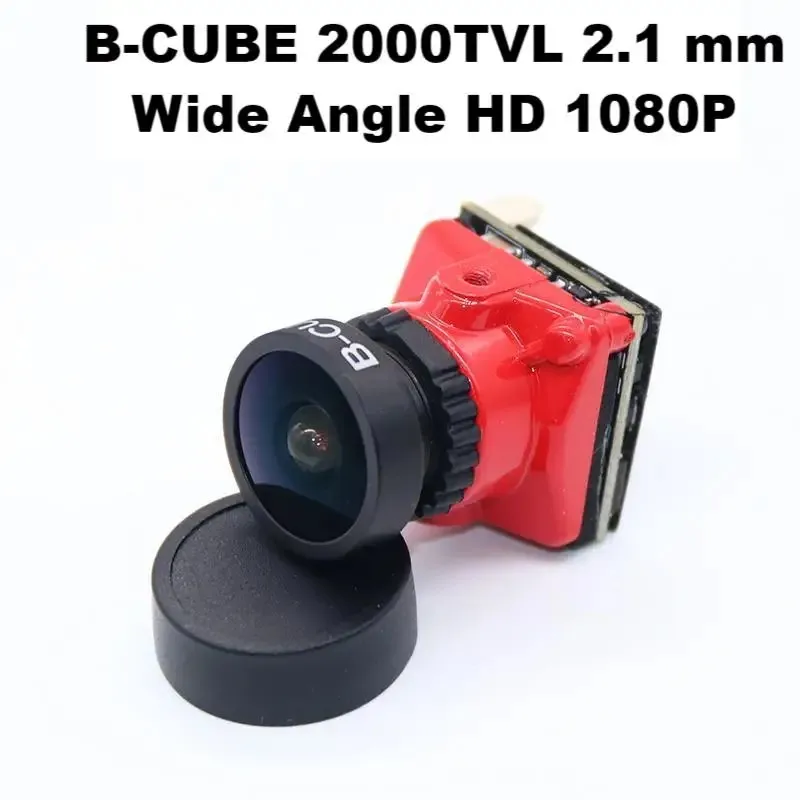

Model: MINI MS-1672 FPV cameras
​Sensor: 1/1/8 "CMOS D1080H
​Horizontal resolution: 2000TVL
​Horizontal field of view: 165
​Lens: 2.1mm lens
​Video format: NTC&PAL (adjustable)
​Image scale: 4:3&16:9 (automatic recognition)
​Wide Dynamic Range: Super WDR
​Noise reduction: 3DNR
​Low illumination: 0.001LUX
​Video output: CVBS
​Day and night: external/internal/black and white/color
​Language: (English/Chinese/Traditional Chinese/pyccnna)
​ESOABIK/TTASSNO/FRABCAUS/
​POSDIM/PORTUGUES/Japanese
​Electronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000
​Wide voltage input: 5-36V
​Working temperature: -20-60
​Weight: 110g
​Dimensions: 19 * 19 * 19mm
​Resolution: 960 * 1080
​
​Feature:
​Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.
​
​Package included:
​1 x Upgraded Mista FPV Camera

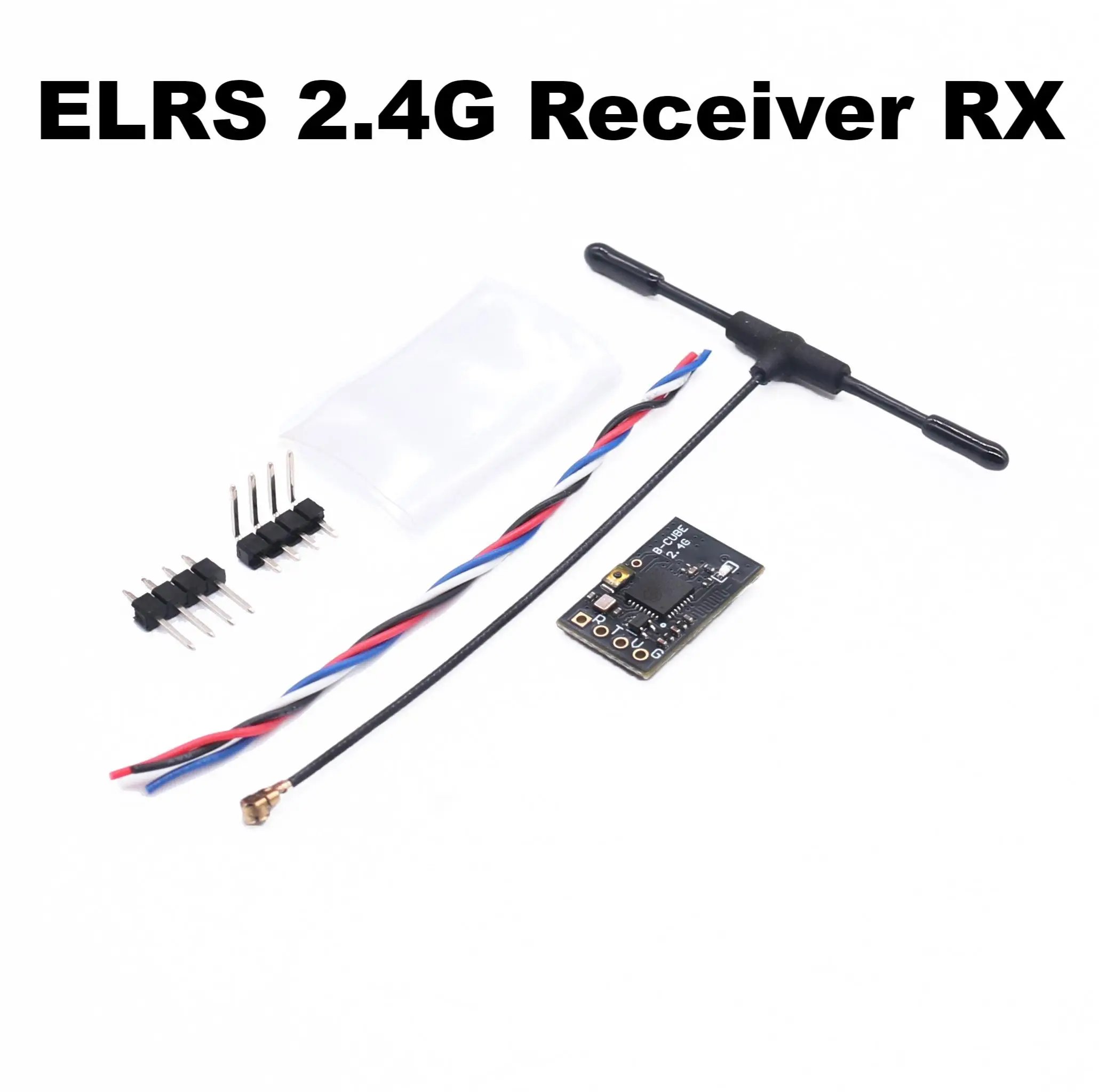

ELRS 2.4G Receiver RX

Product Description:
ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.

SPECIFICATIONS 1
●Brand:B-CUBE
●Model:ELRS 2.4G NANO
●RF Freq:2.4Ghz
●IC:SX1281+ESP8285
●TX Power:100mW
●Color:Black
●Connector:IPEX 1
●Input Power:3.6-5.5V
●Weight:0.4g(receiver only)
●Size:11mm*18mm
●Firmware: BETAFPV Nano 2400 RX 3.3.0

Package Included:
Nano Receiver x 1
T type receiver antenna x 1
Heat shrink tube x 1
30AWG Silicone Wire x 4

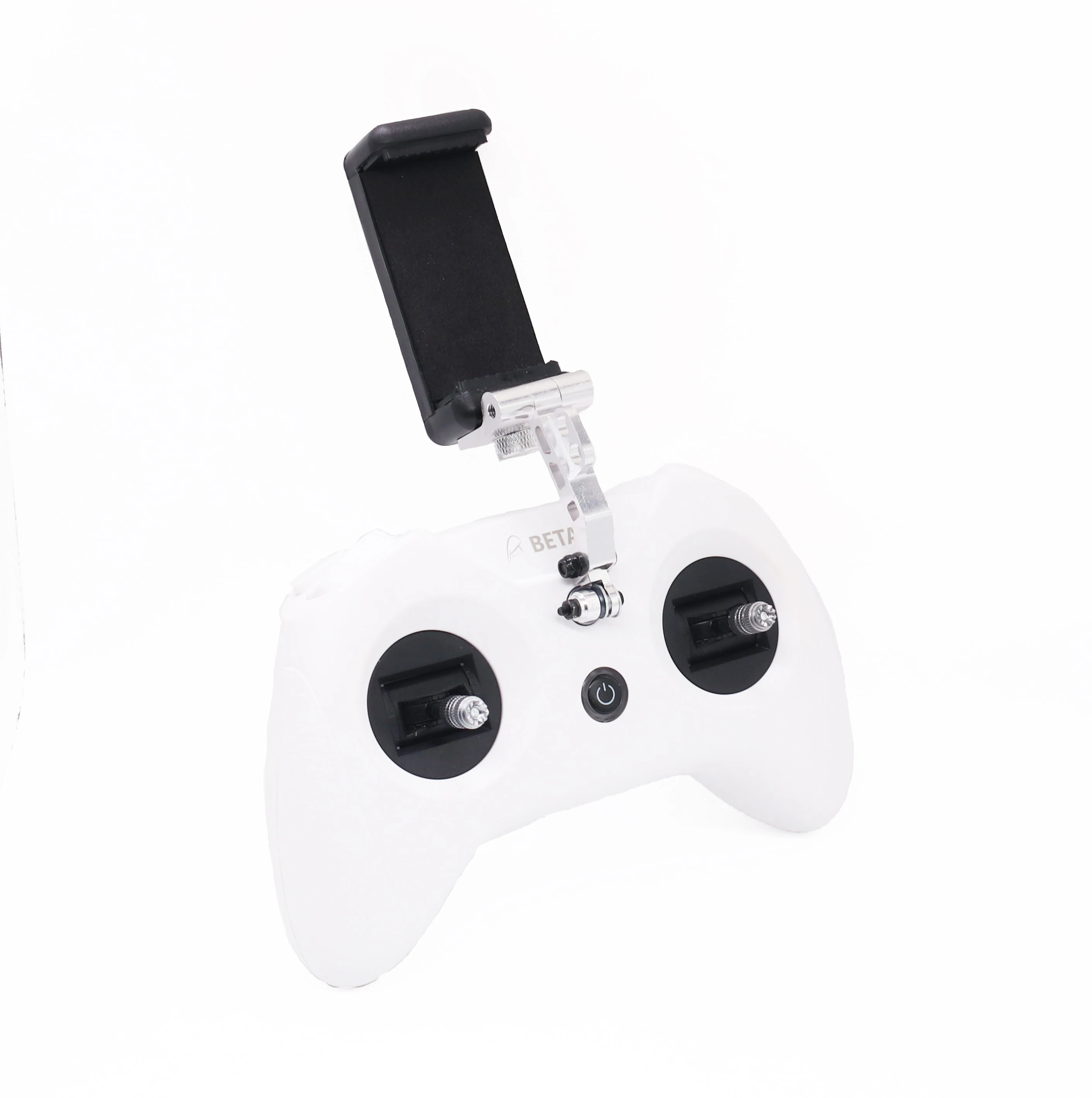

LiteRadio 3 Radio Transmitter

LiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.
8 channels in total.
USB Joystick support for most practice simulators.
Nano module bay for external TX module.
Newly designed joystick gimbal for longer usage life.
Support BETAFPV Configurator for updating, configuring, and tuning.
Provide ExpressLRS 2.4G protocol version .
Built-in 2000mAh battery and USB charge supported.

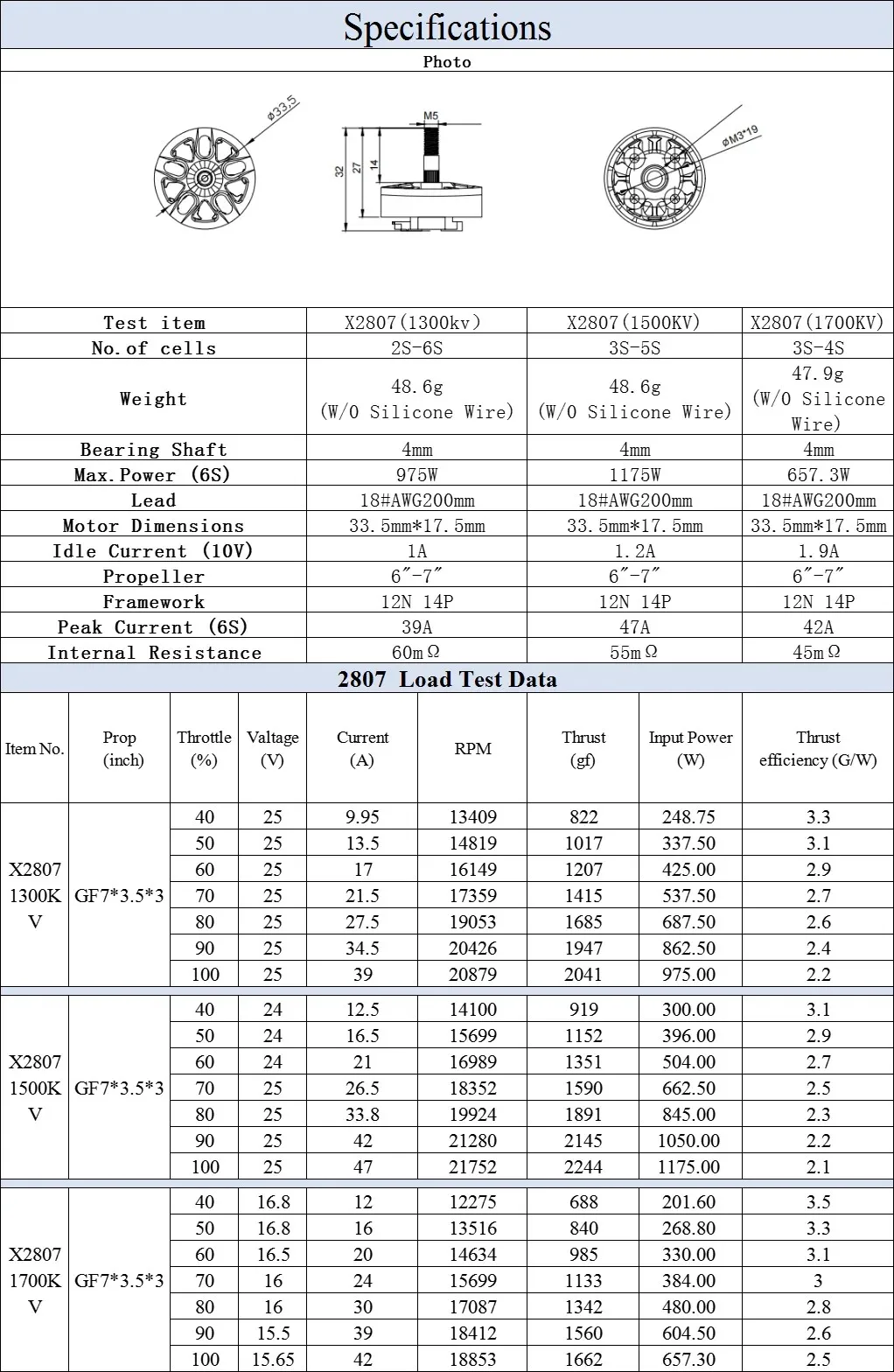

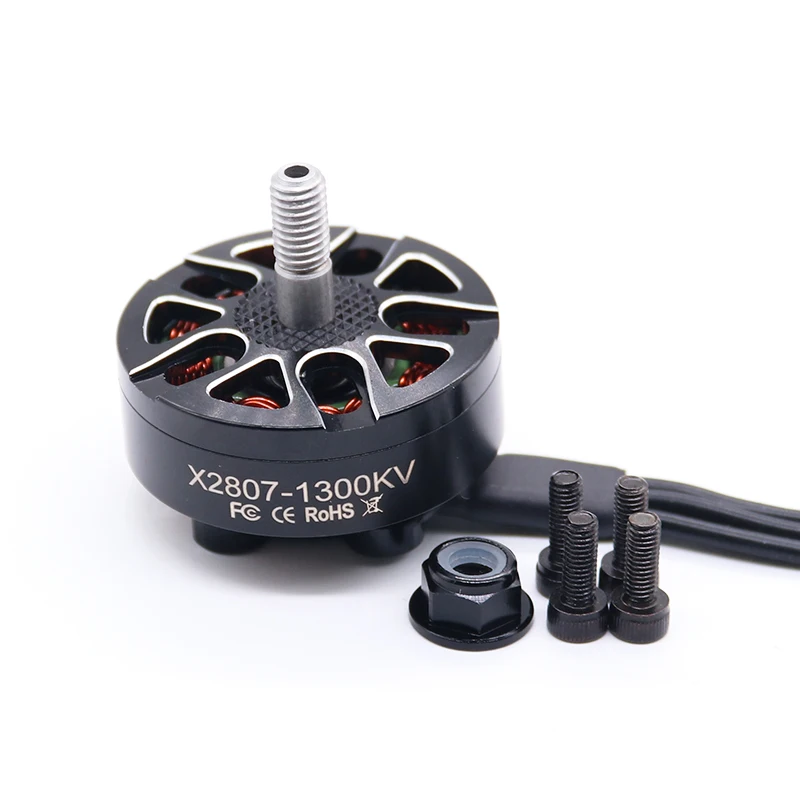

2807 1300 Motor:

Shaft Diameter:4.Omm
Motor Mount:19*19mm（M2*4）
Configuration:12N14P
Motor Cable:18#AWG 220mm
KV Value:1300KV,1500KV and 1800KV or customed KV
Recommend:7"inch prop application

A2807KV 1300KV Motor Specification
Max pull:1996g
Volts:24V(6S)
Suggested ESC:40A~60A
Maximum Power:895.7W
Suggested Prop:GF7043 inch prop

A2807KV 1500KV Motor Specification
Max pull:2199g
Volts:24V（6S)
Suggested ESC:60A~70A
Maximum Power:1098.8W
Suggested Prop:GF7043 inch prop

A2807KV 1800KV Motor Specification
Max pull:1614g
Volts:16V（4S）
Suggested ESC:50A~70A
Maximum Power:636.1W
Suggested Prop:GF7043 inch prop

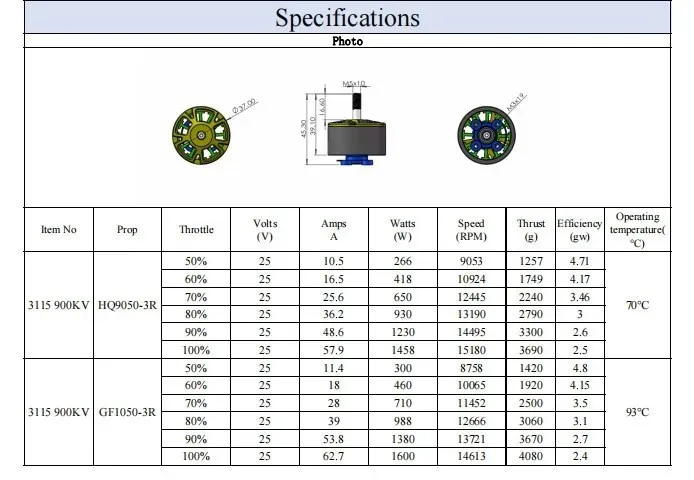

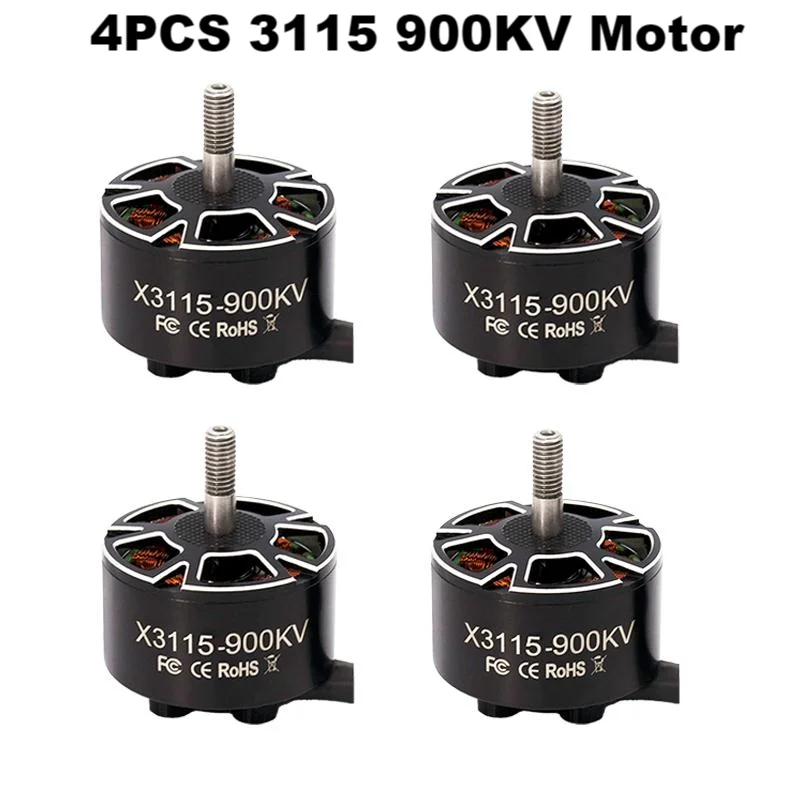

3115 900KV Motor:
