Flycolor 50A 70A 90A 120A 150A 2-6S Waterproof Brushless ESC Speed Controller 5.5V/5A BEC

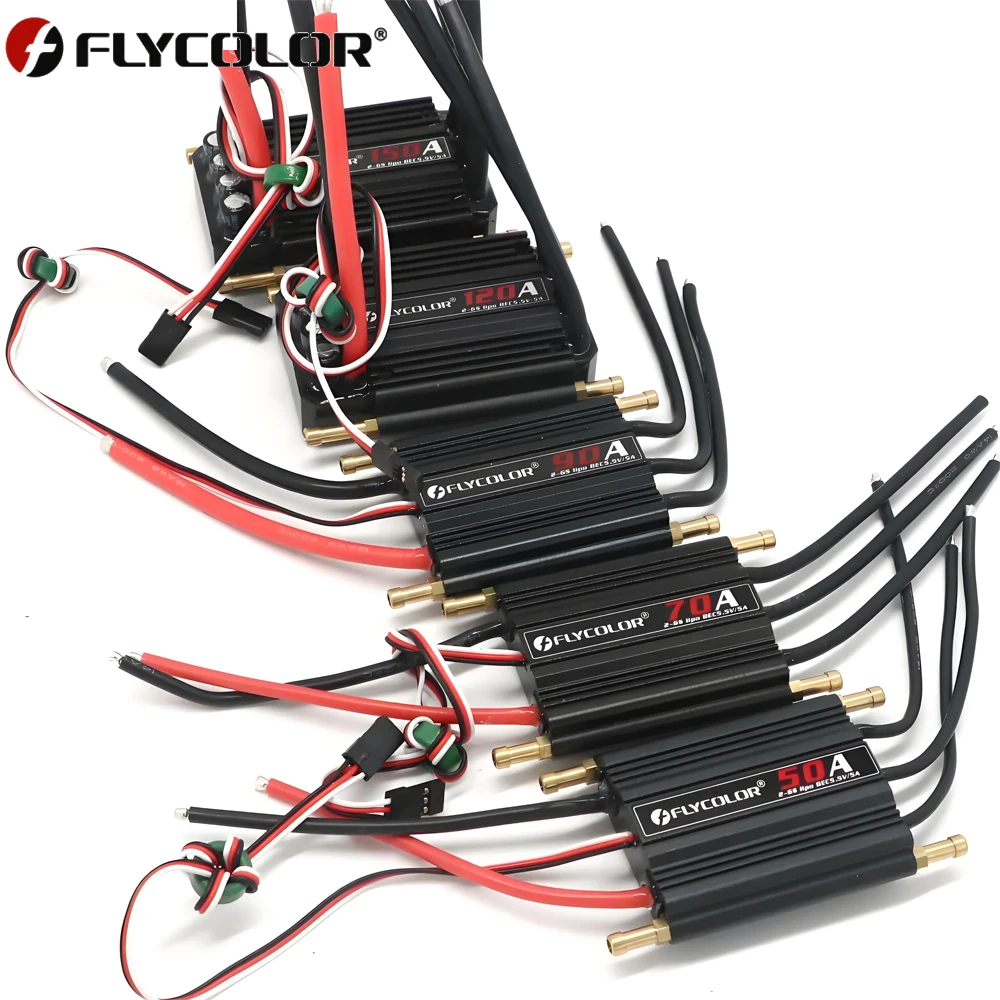

Flycolor 50A 70A 90A 120A 150A 2-6S Waterproof Brushless ESC Speed Controller

Features:
-Quick & smooth:
-Water proof design
-Built-in SBEC, multiple protections
-Easy operation, parameters can be setup by transmitter or program card
-Use powerful & high performance MCU. Users can set functions as their demand, fully embody Intelligent characteristics. Unique circuit design, strong anti-interference.
-Waterproof design (Note: if there is water in the ESC, Please dry the water at the connectors).
-Start mode can be set. throttle response fast, and it has a very smooth speed control linearity. Compatible with scale boat & racing boat .
-Low-voltage protection threshold value can be set.
-Built-in switch BEC, large power load with servo, lower power consumption.
-Multiple protection functions: input voltage abnormal protection/ low-voltage cutoff protection, over-heat protection and throttle signal loss protection, make the ESC more reliable.
-High power safety performance: wherever the throttle lever is, the motor will not start immediately.
-Over thermal protection: when ESC temperature is over 100 deg, output power will automatically reduce. When it's lower than 80 deg output power will return to normal.
-Cycle menu setting, simple operation. Support setting with program box and transmitter.

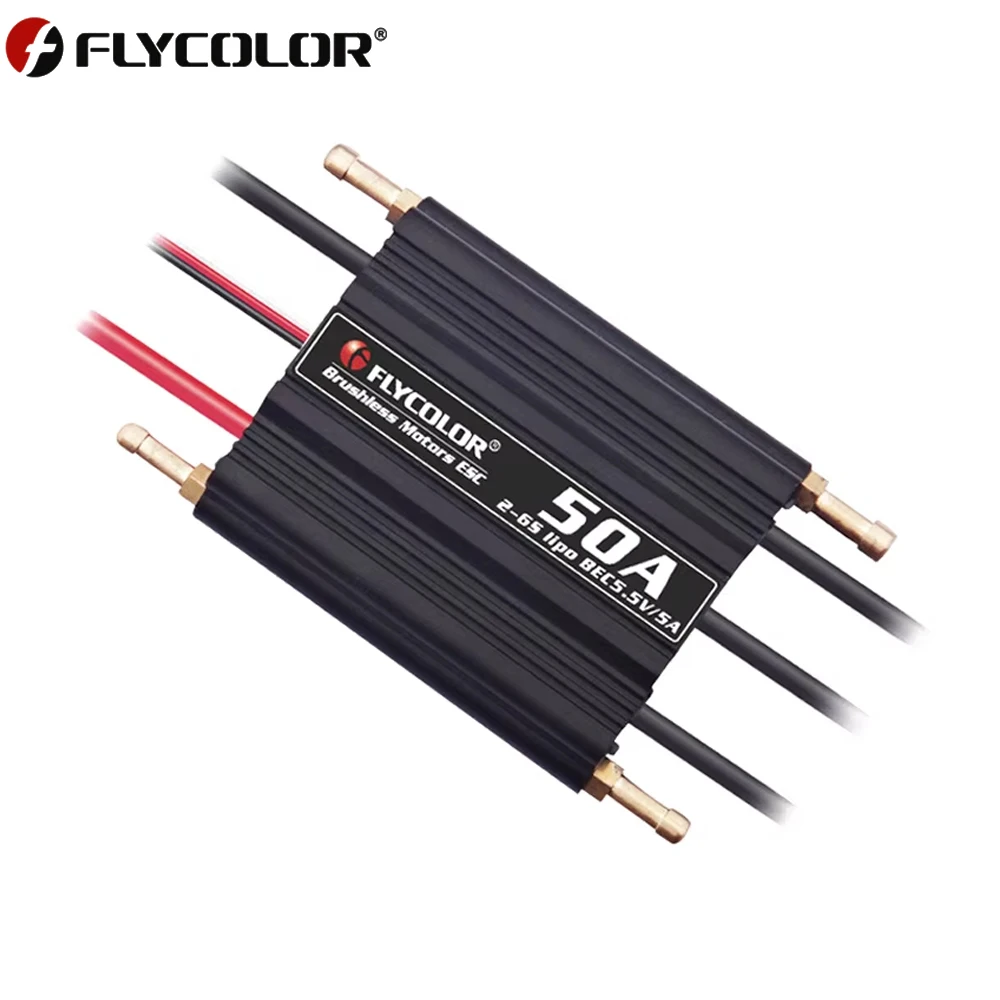

Flycolor 50A Waterproof Brushless ESC:
Output: Continuous 50A, Burst 300A up to 10 seconds.
Input Voltage: 2-6S
BEC: 5.5V/5A
Size: 57*49*18 mm.
Weight: 90g.
Application: max 55cm boats

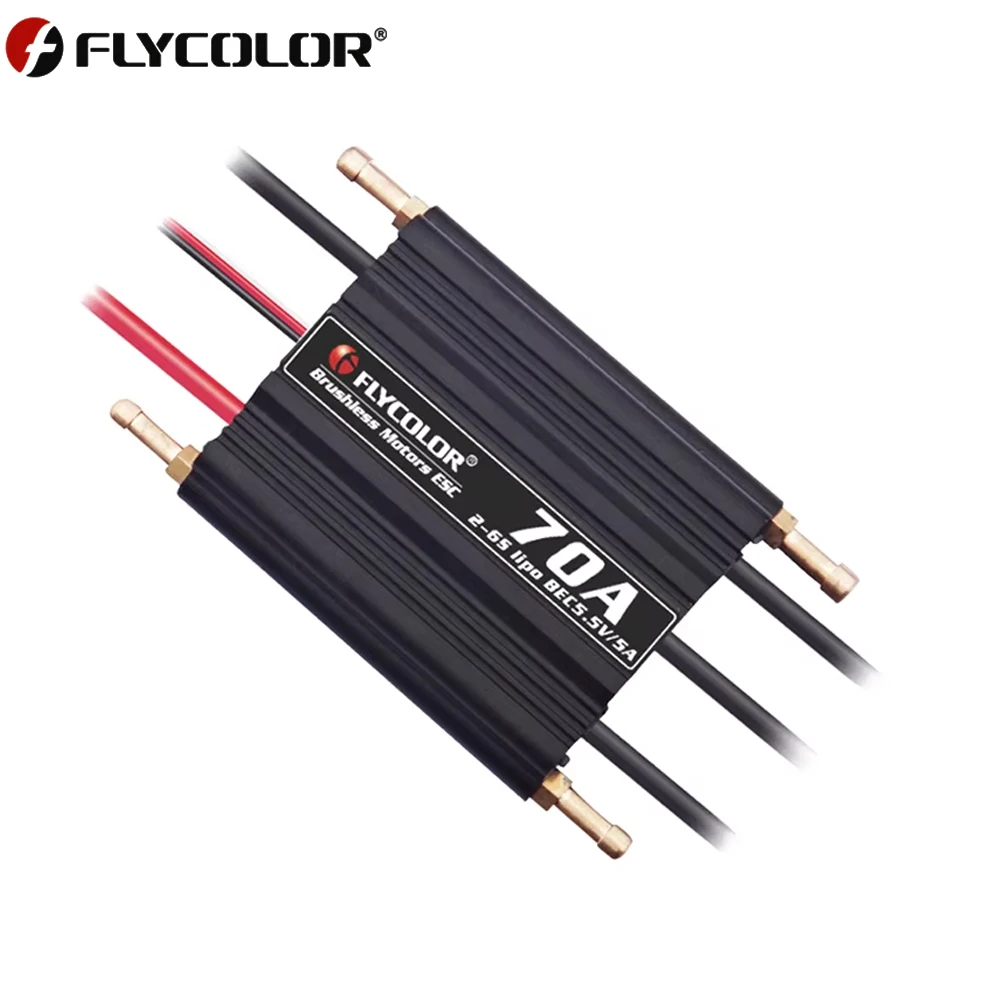

Flycolor 70A Waterproof Brushless ESC:
Output: Continuous 70A, Burst 420A up to 10 seconds.
Input Voltage: 2-6S
BEC: 5.5V/5A
Size: 57*49*18 mm.
Weight: 101g.
Application: max 70cm boats

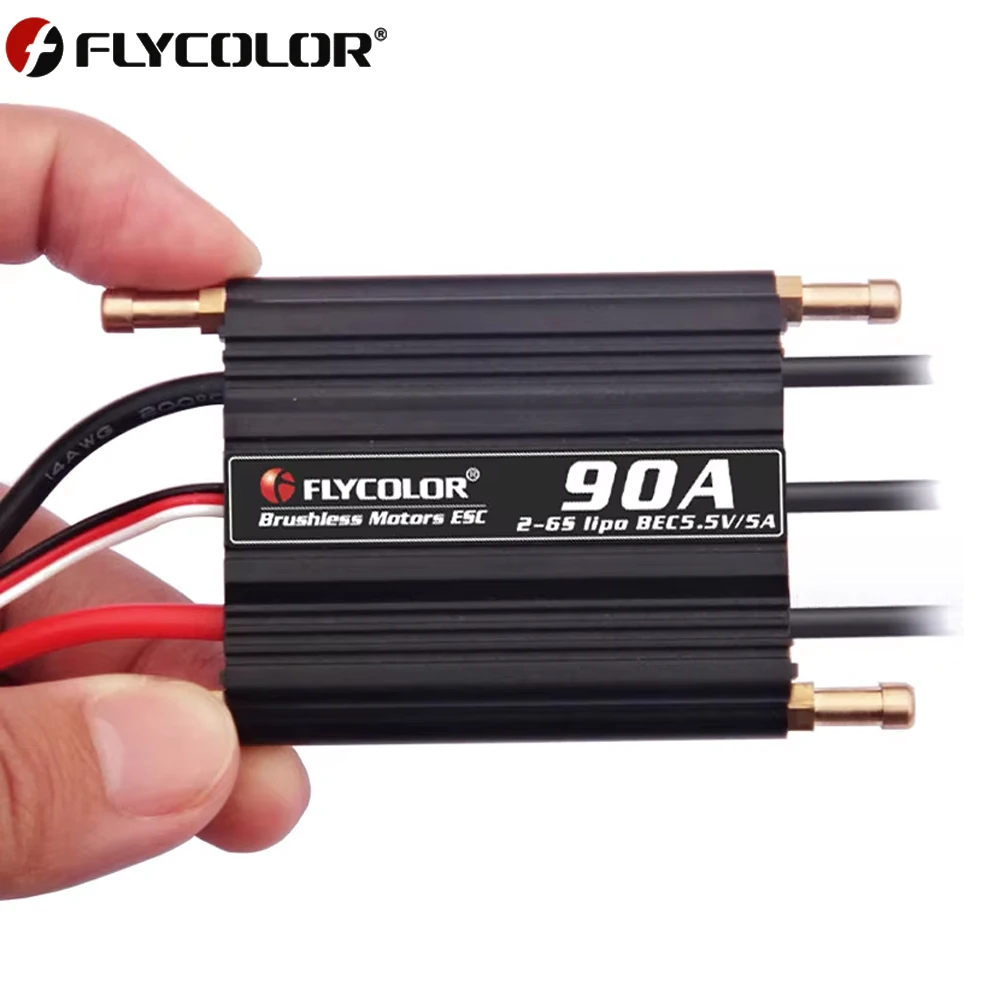

Flycolor 90A Waterproof Brushless ESC:
Output: Continuous 90A, Burst 540A up to 10 seconds.
Input Voltage: 2-6S
BEC: 5.5V/5A
Size: 57*49*18 mm.
Weight: 102g.
Application: max 100cm boats

Flycolor 120A Waterproof Brushless ESC:
Output: Continuous 120A, Burst 720A up to 10 seconds.
Input Voltage: 2-6S
BEC: 5.5V/5A
Size: 76*56*25 mm.
Weight: 155g.
Application: max 120cm boats

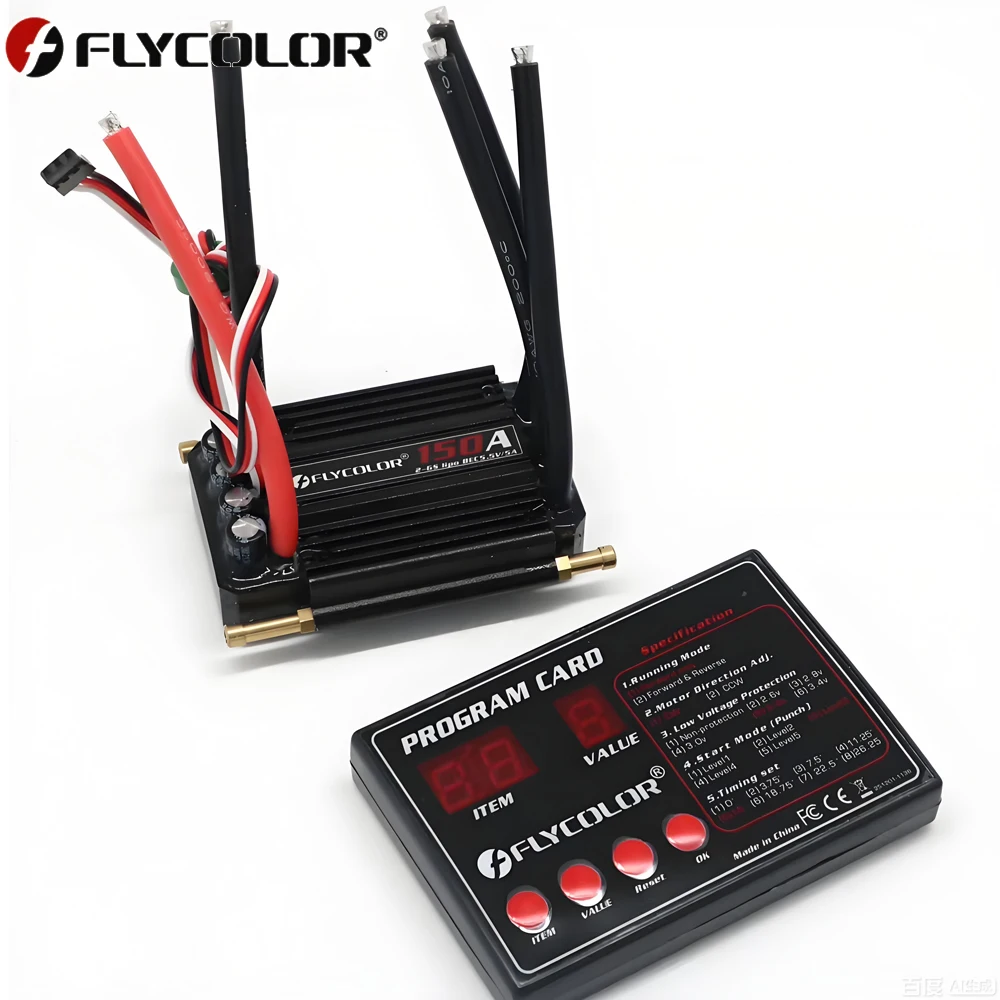

Flycolor 150A Waterproof Brushless ESC:
Output: Continuous 150A, Burst 900A up to 10 seconds.
Input Voltage: 2-6S
BEC: 5.5V/5A
Size: 76*56*25 mm.
Weight: 165g.
Application: max 135cm boats

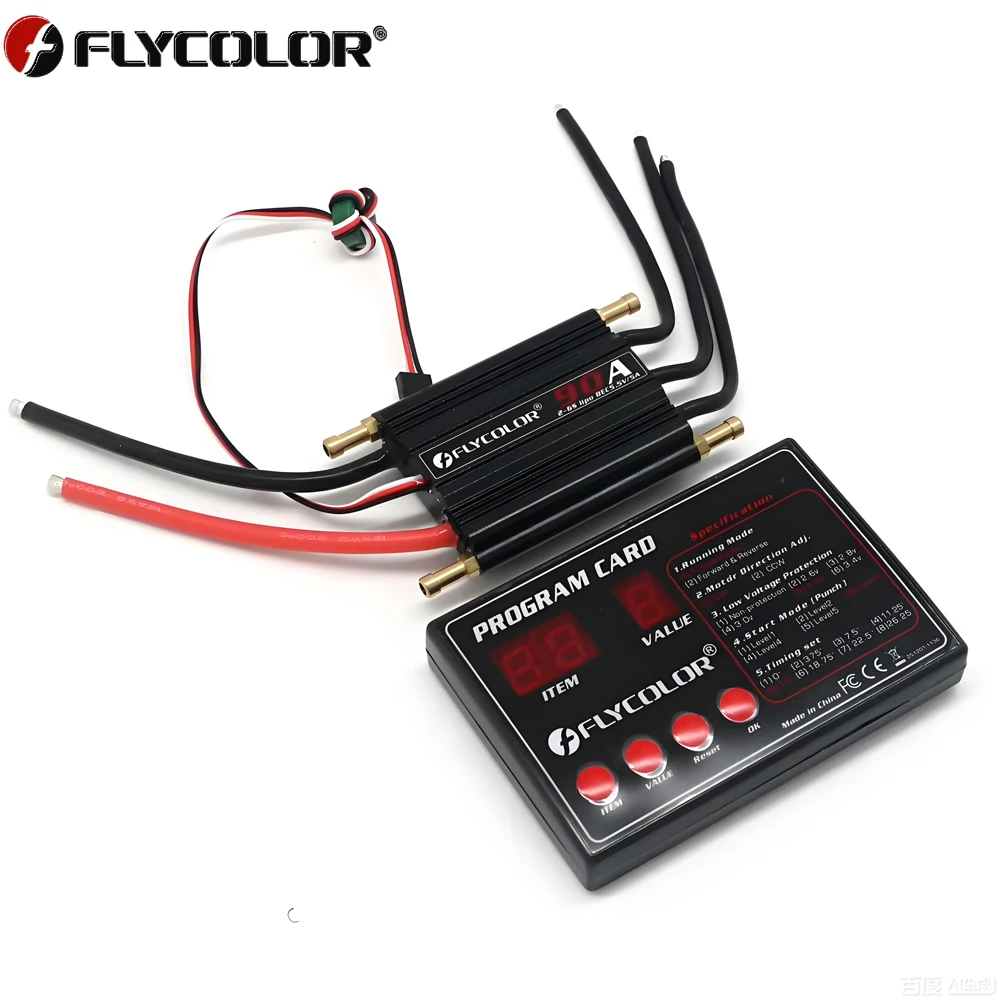

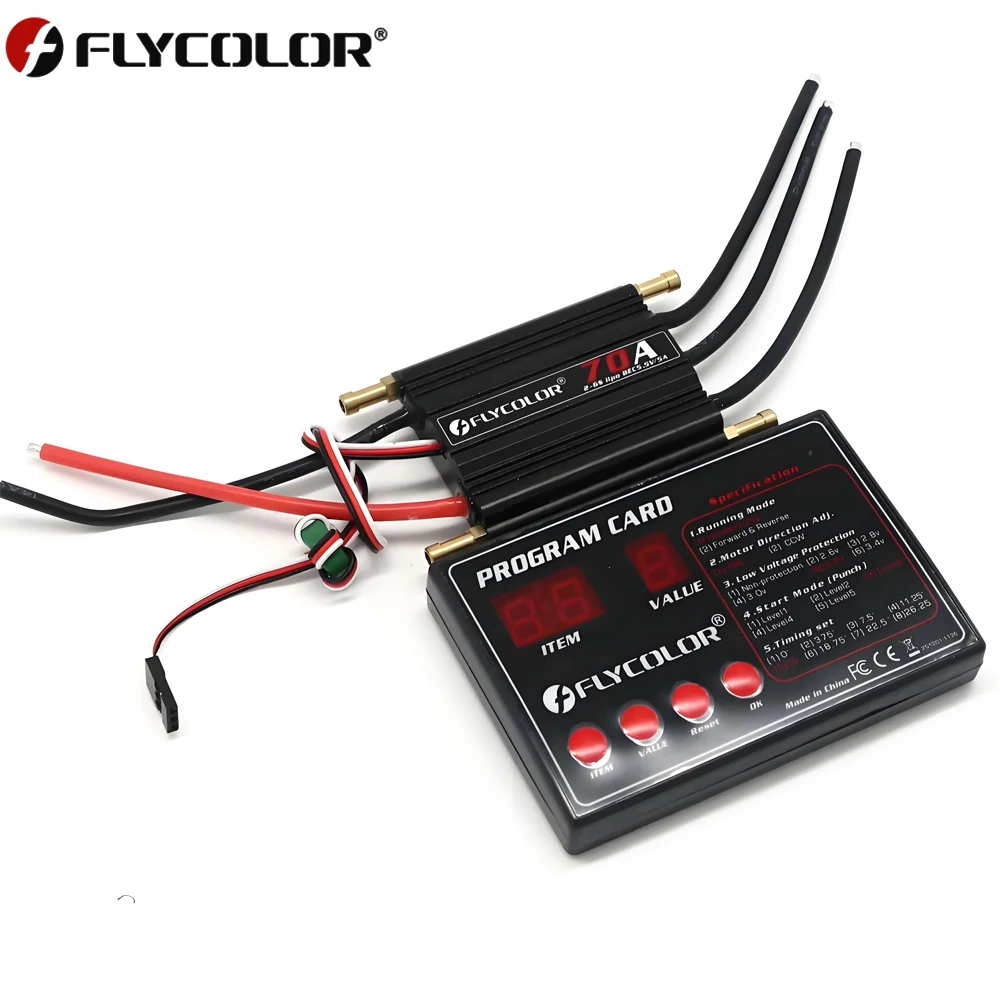

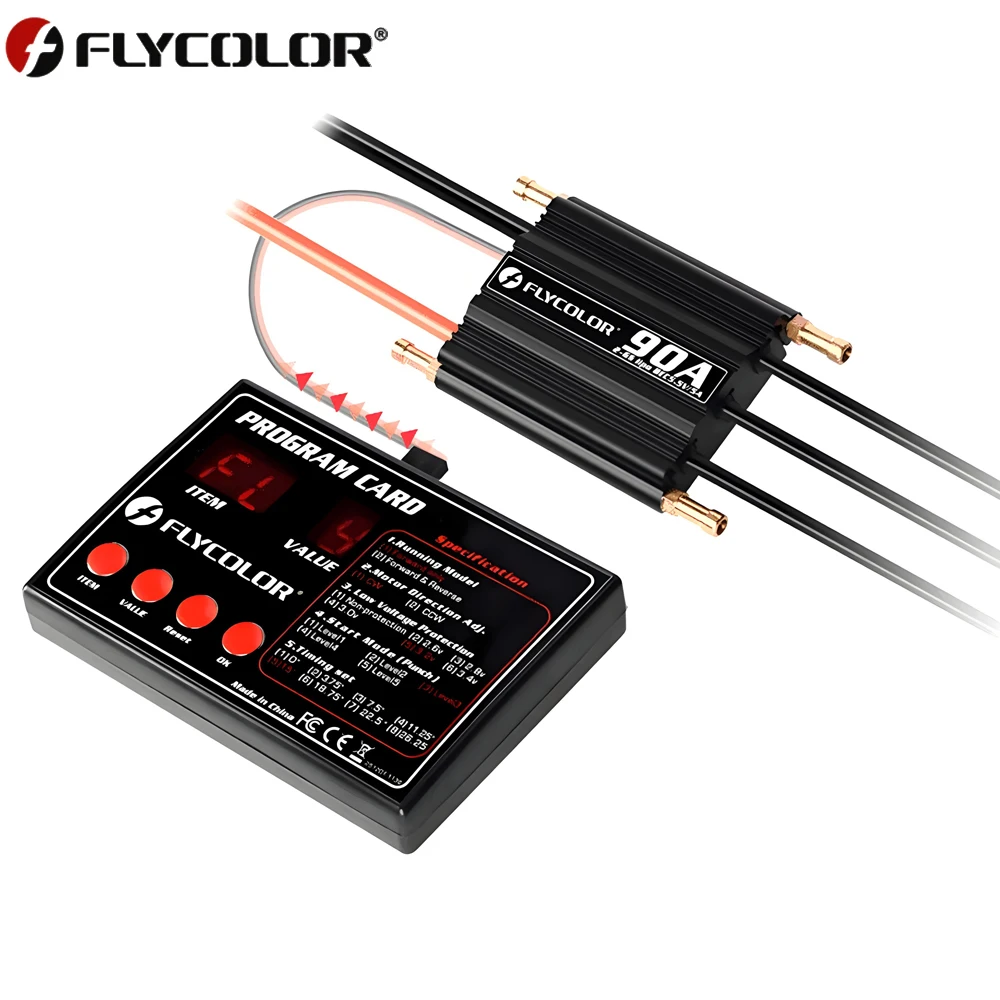

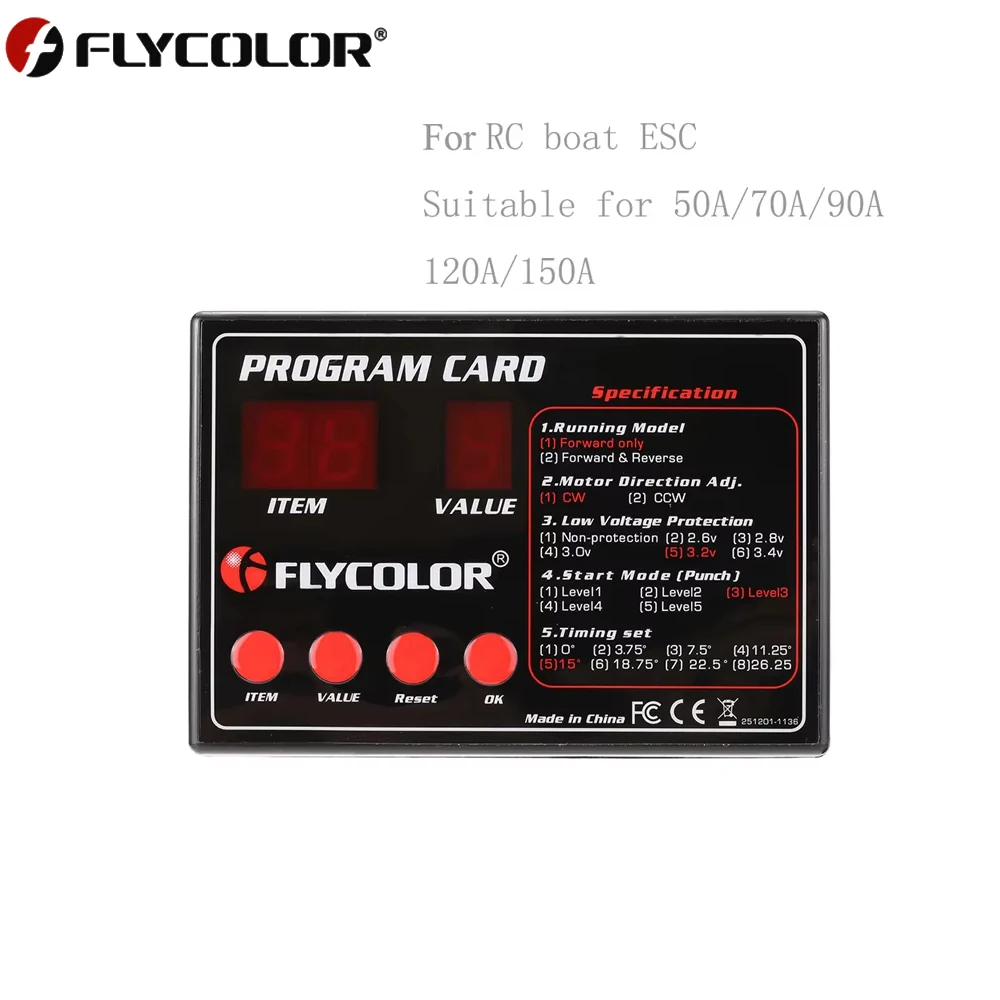

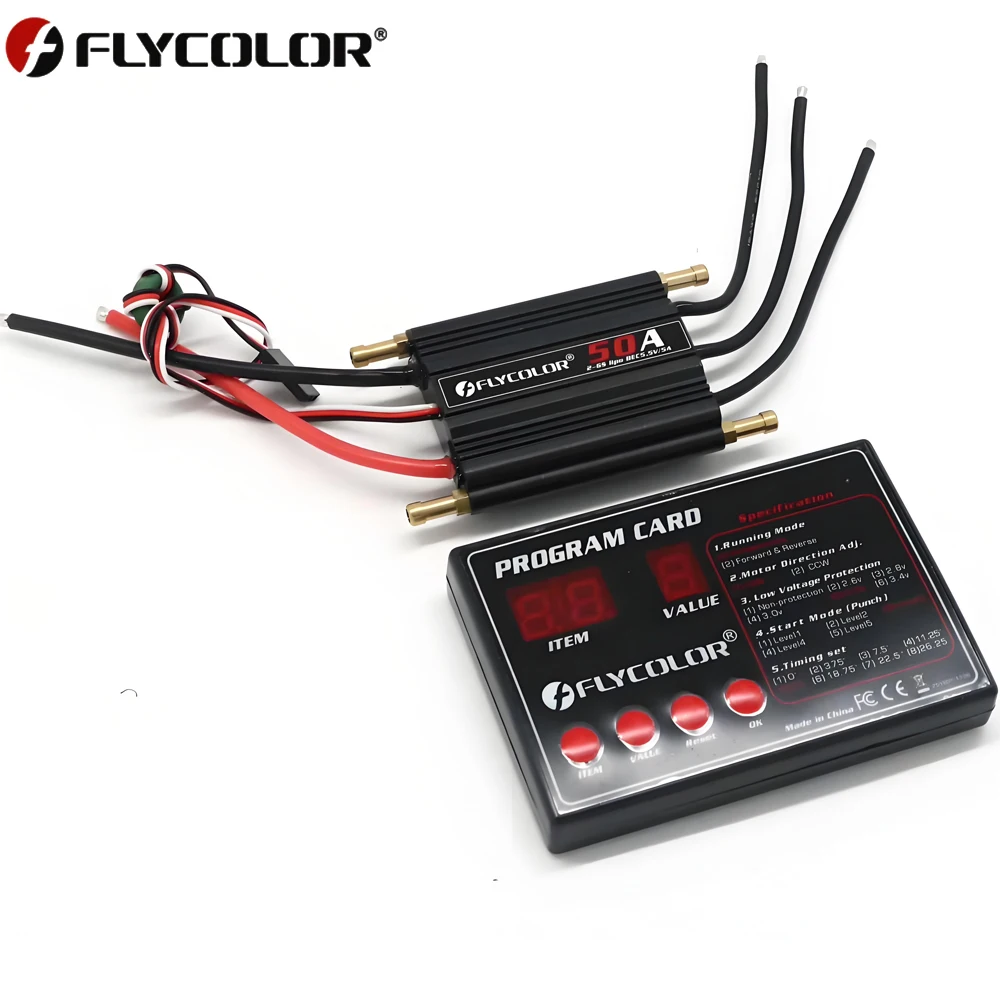

Program Card:
100% brand new
Easy and convenient to use
Made of good material
High quality and durable in performance
Suit for RC boats ESC programing

Brand: Flycolor
Item name: Programing Card
Running mode: forward / forward & reverse
Motor direction adj.: CW CCW
Low voltage protection: non-protection / 2.6V / 2.8V / 3.0V / 3.2V / 3.4V
Start mode (punch): Level 1 / Level 2 / Level 3 / Level 4 / Level 5
Timing: 0° / 3.75° / 7.5° / 11.25° / 15° / 18.75° / 22.5° / 26.25°
Item dimensions: 95 * 650 * 150mm (deviation due to manual measurement)
Item weight: 44.5g
