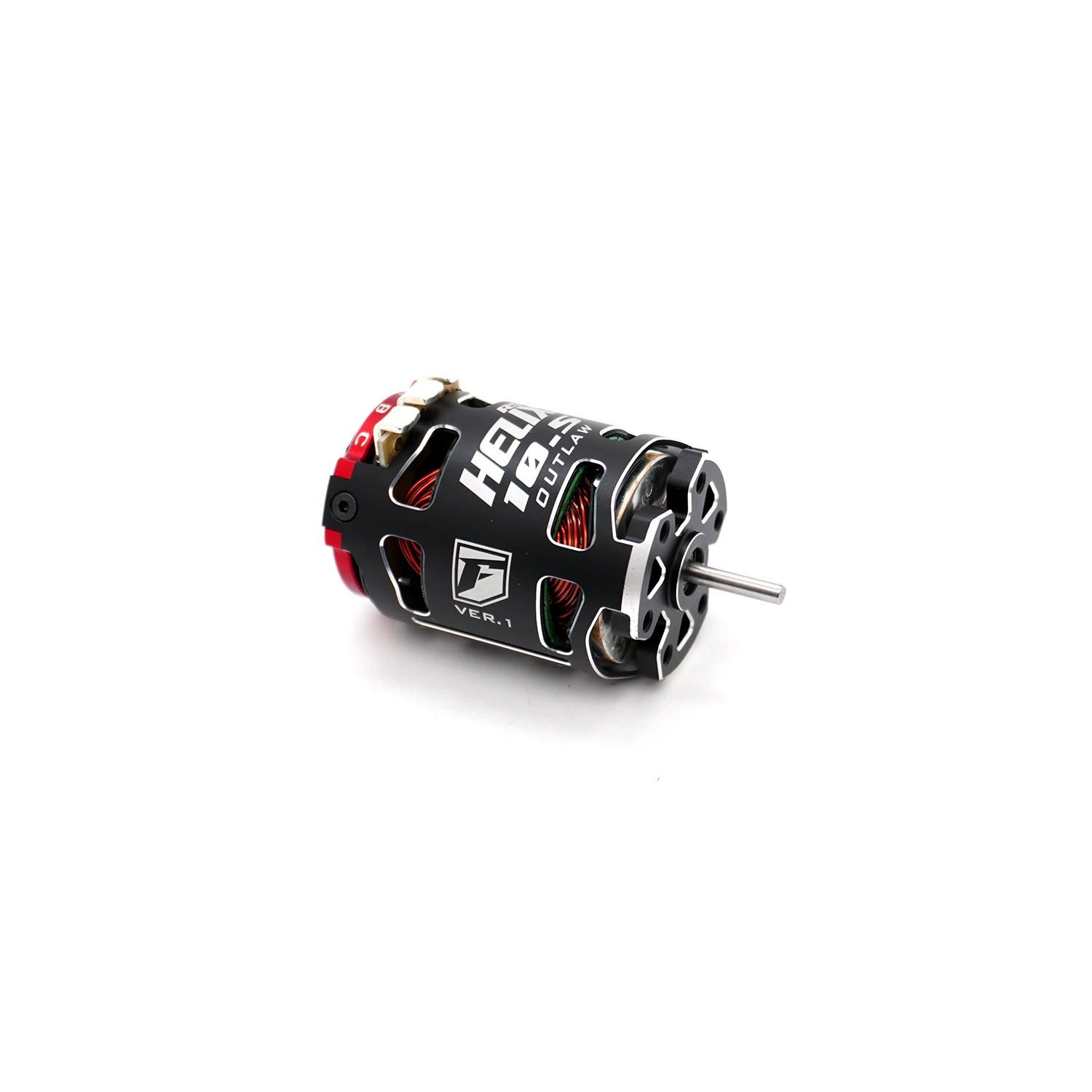

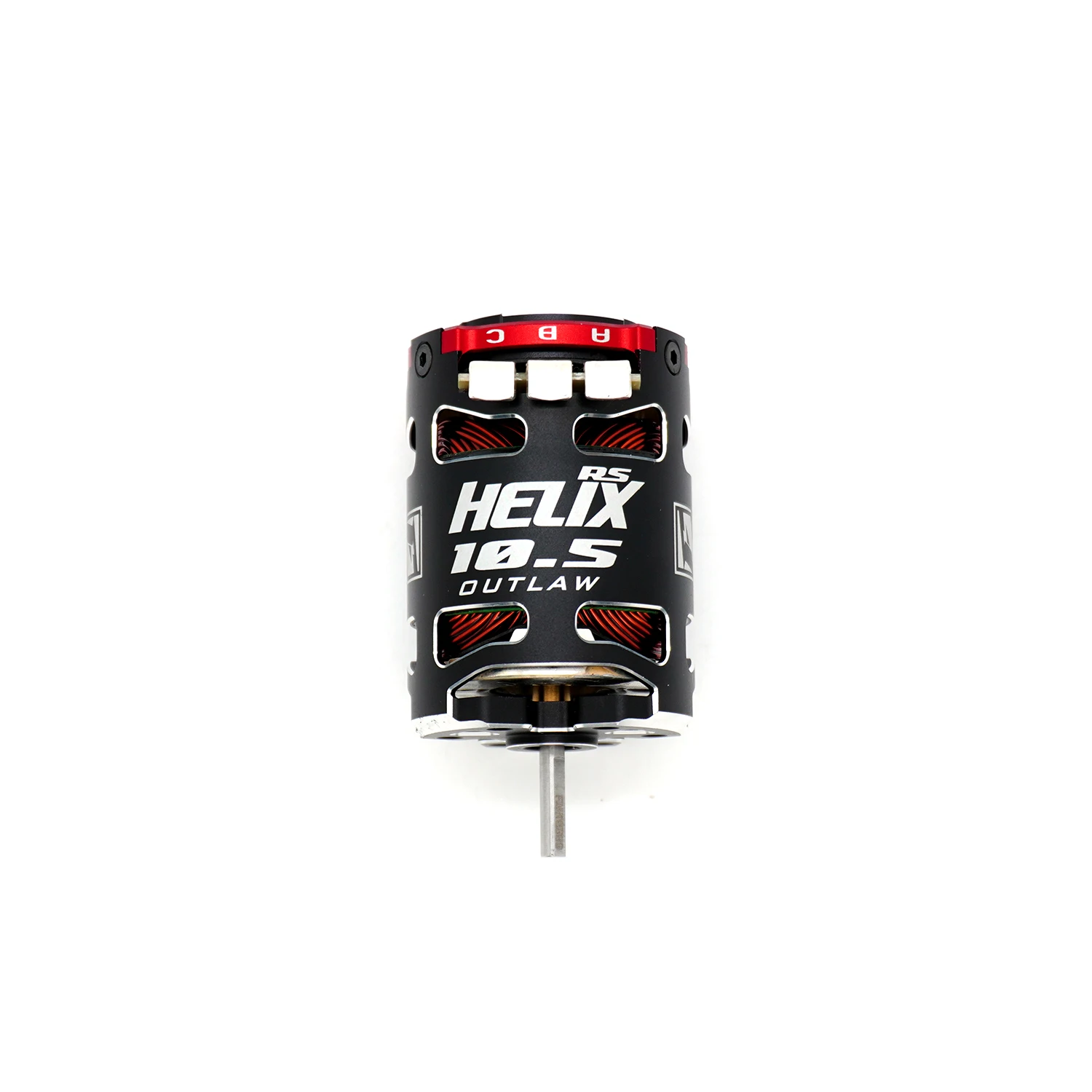

FANTOM RACING 540 HELIX RS 10.5T 13.5T 17.5T Brushless Motor for 1/10 RC Model Off-road Drift Racing Car Axial TRX4 SCX10 Redcat

FANTOM RACING 540 HELIX RS 10.5T 13.5T 17.5T Brushless Motor for 1/10 RC Model Off-road Drift Racing Car Axial TRX4 SCX10 Redcat

Description:

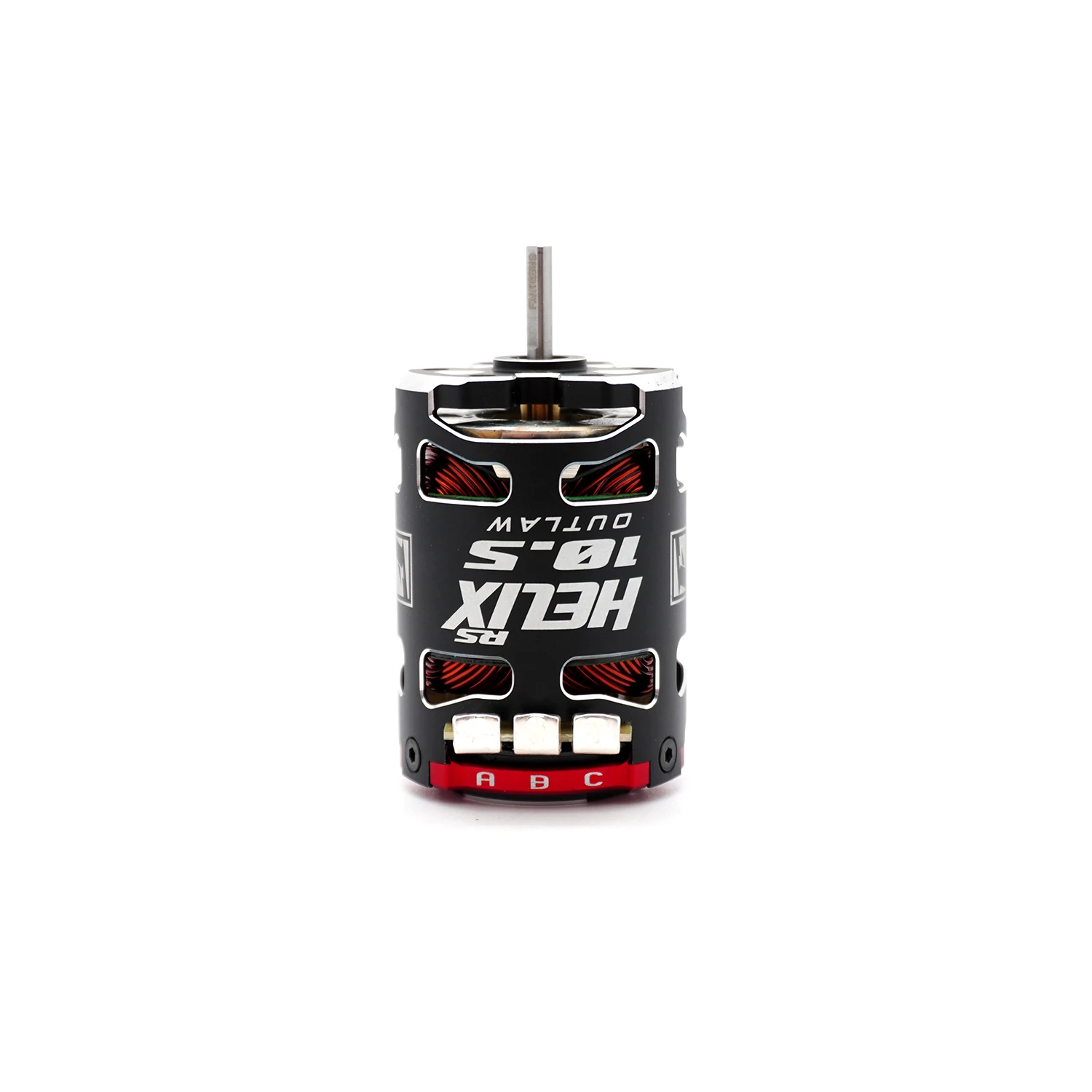

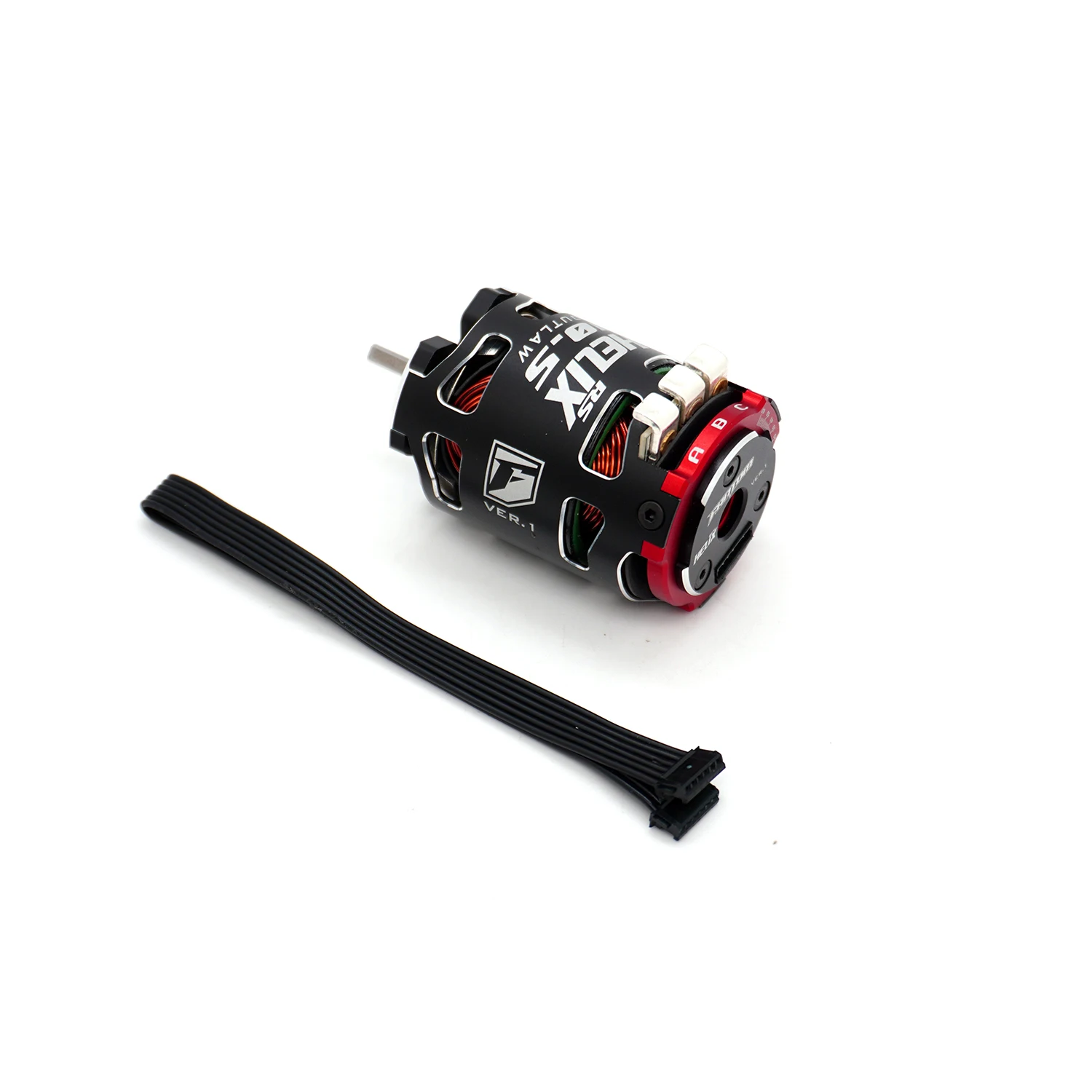

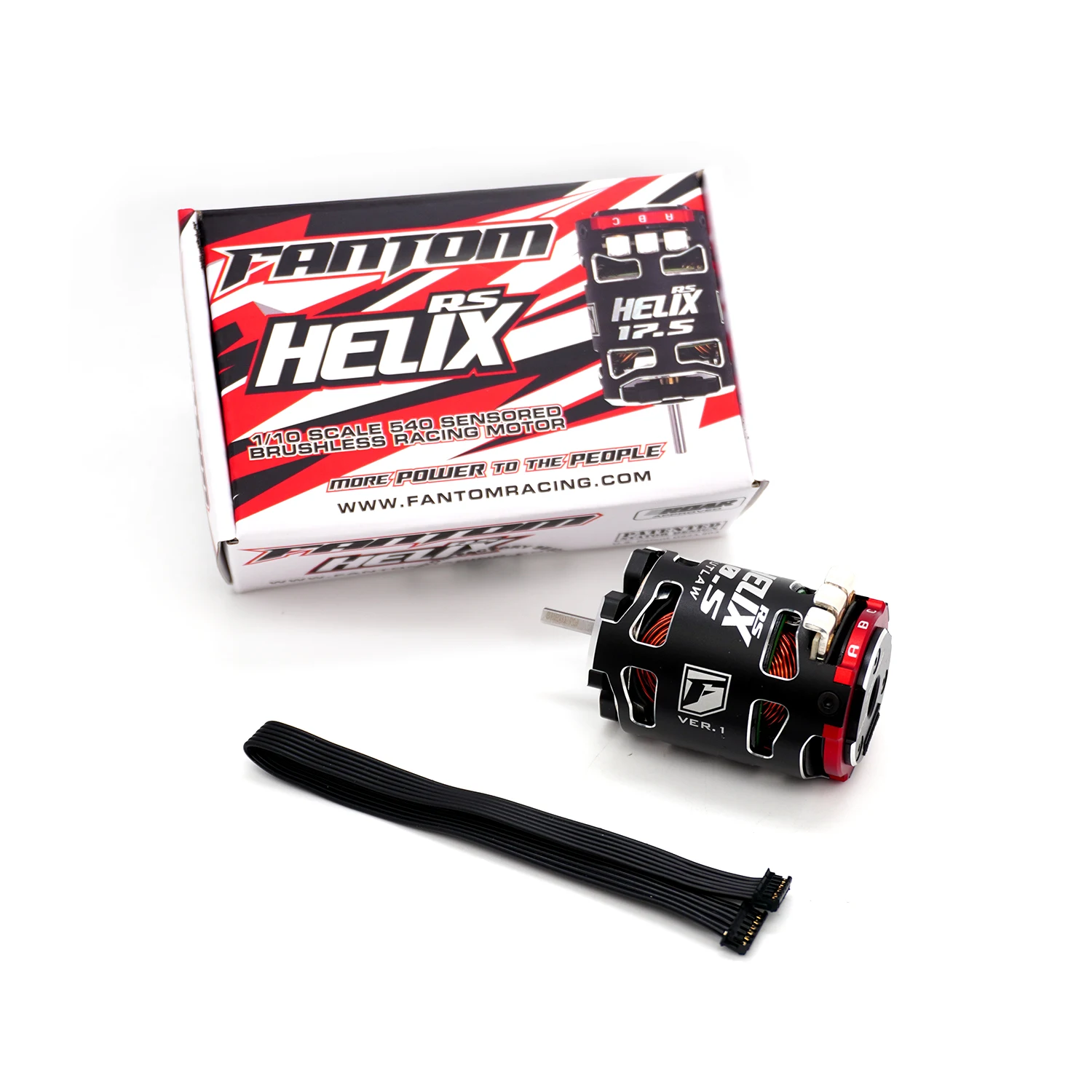

GREATNESS IS A TOUGH ACT TO FOLLOW, but we did it with our ALL NEW HELIX RSOUTLAW series racing motors!  The ICON v2 motors are still great motors, but as a racing company, we never rest trying to perfect the performance of our products.  Today is a great day for us as we introduce the best motor we have ever designed in our 40+ year history!

The new HELIX RSOUTLAW is an even more refined version of our 5-Time ROAR National Championship winning, patented stator design (U.S. Patent D823,803), producing incredible torque, RPM, and efficiency!

WHAT’S NEW WITH THE HELIX RS…

NEW – Refined Stator Design produces incredible RAW POWER, TORQUE, RPM & EFFICIENCY!

NEW – Stator Plate Metallurgy

NEW – Collector Ring Design and Improved Silver Plating

NEW – Solder Tabs with Silver Plating

NEW – Improved Stator Position in Can – Improves sensor board gap and shimming

NEW – Improved Side Retaining Screw Location and End-Plate Design

NEW – Can Design for Maximized Wire Cooling and Heat Dissipation

WHAT’S DIFFERENT ABOUT THE HELIX OUTLAW MOTOR:

Maximum Size We Can Fit (not ROAR legal), Pure Copper Wire for the Lowest Resistance Possible

12.5mm Modified Rotor

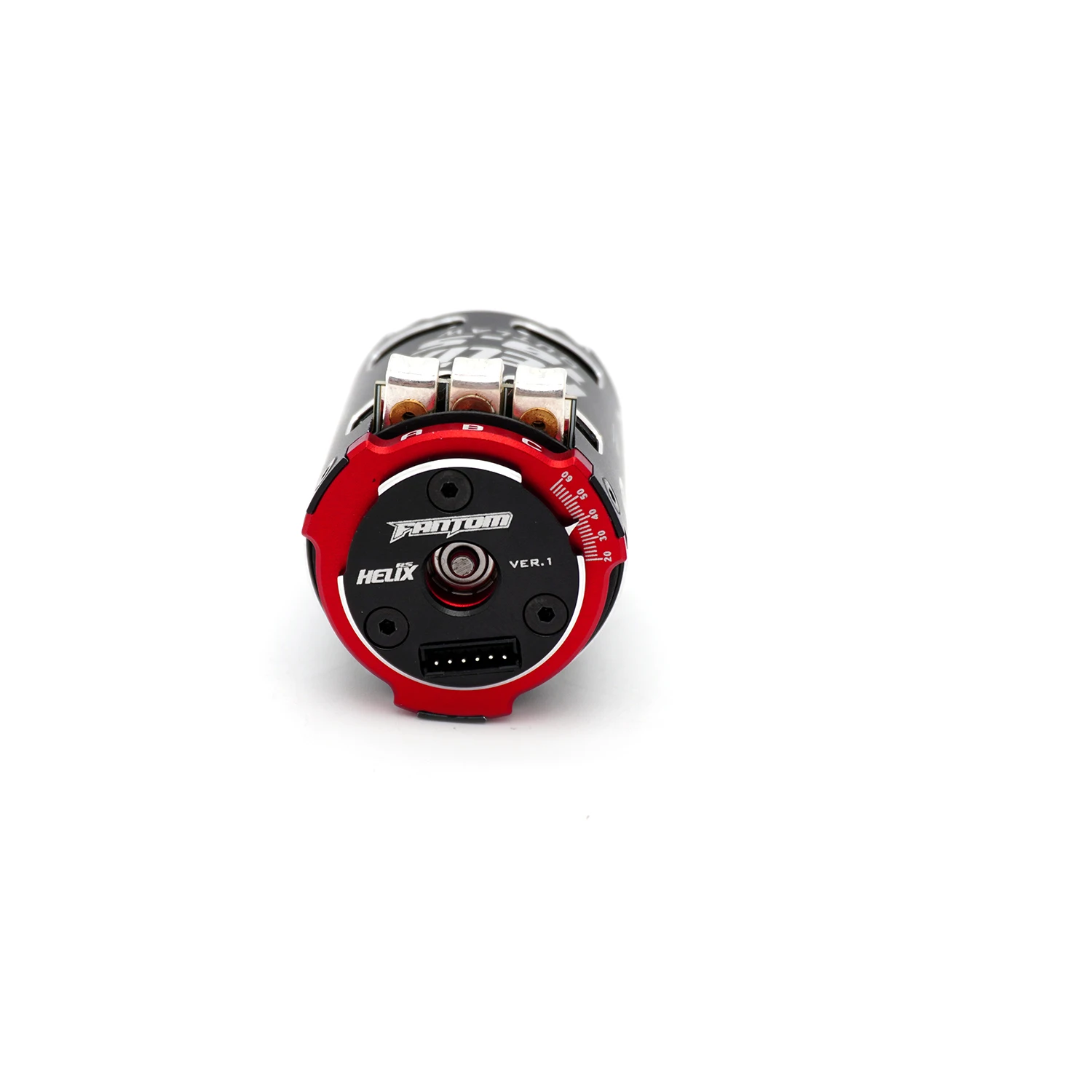

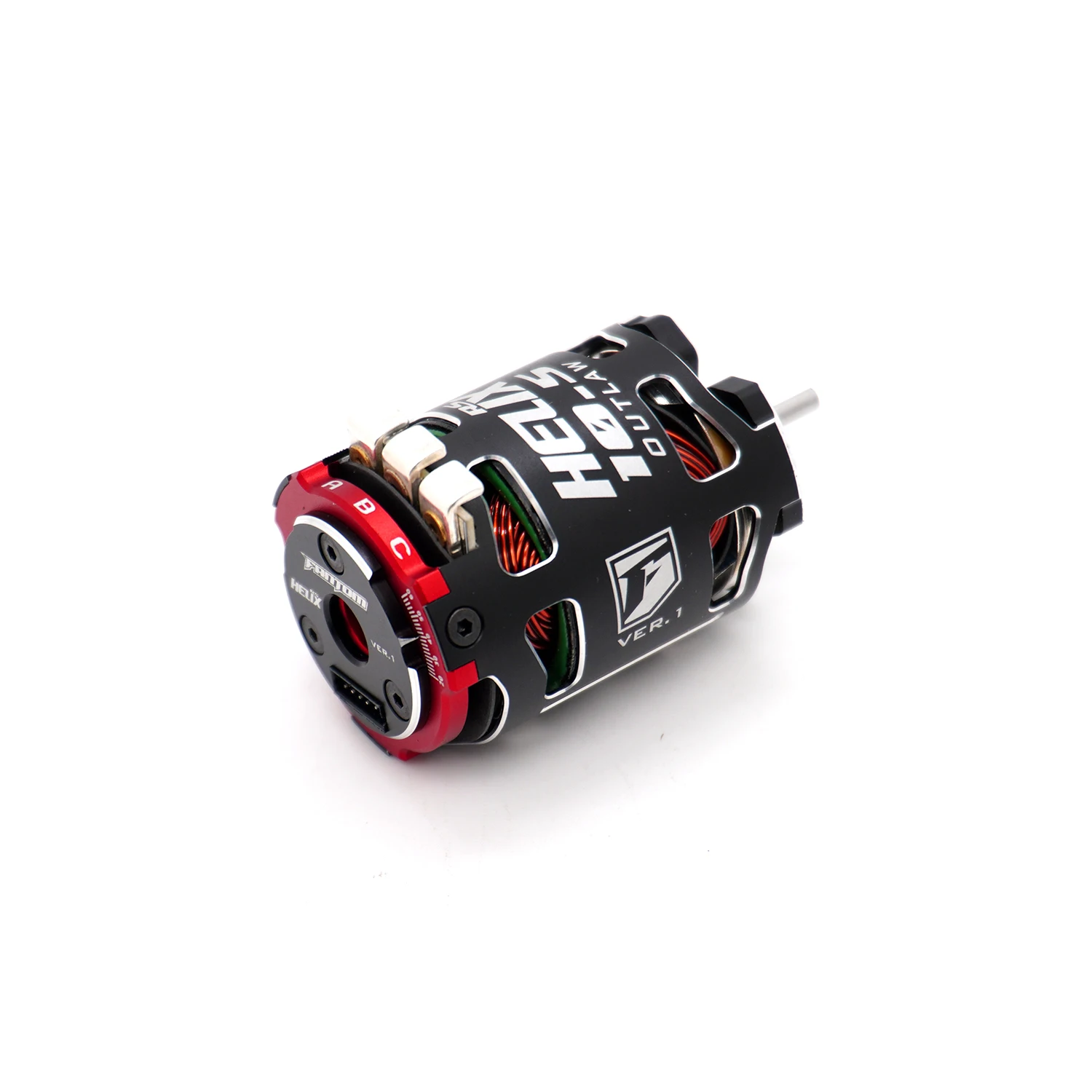

SPECS AND FEATURES:

Specifically developed for any 10.5T classes that allow outlaw motors.  THESE MOTORS ARE NOT ROAR APPROVED AND ARE NOT LEGAL TO USE AT TRACKS THAT REQUIRE ROAR APPROVED MOTORS.

All R&D Done In The USA

Patented Stator Design (U.S. Patent D823,803)

Low Resistance Stator

High Strength and Heat Resistant Magnet Formula

Sensor Board Designed to Maximize Deviation Accuracy & Reliability

Precision Machined 1-Piece Can Design

Chamfered Stator Webs

Thermal Epoxy

High-Inductance / Low Resistance, Silver Plated Collector Ring & Solder Tabs

Venting & Can Designed to Maximize Heat Dissipation

Premium Grade Kawasaki® Steel Stator Plates

CNC Machined Billet T6 6061 Aluminum End Plate for Precision Bearing Alignment

Infinite Adjustable Timing (within design range)

High RPM Precision Bearings

12.5mm Modified Rotor

NOT ROAR Approved.  Does not meet ROAR Spec Class Specifications.  DO NOT Use in ROAR 10.5 classes.

PATENTED STATOR DESIGN (U.S. PATENT D823,803)

Spec – This is our standard motor with no available options or testing done.

TEAM – Professionally built to our strict standards, which includes the rotor properly shimmed, complete evaluation of the coils, rotor strength, rotor asymmetry, and sensor board deviation. All test results printed and included.

WORKS – This is our premium motor, built with all available options.  Works motors include all of the Team motor options above, plus we add re-shimming the rotor with Teflon shims & spacer, the highest grade AXON X10 SUJ2 hybrid bearings, pro titanium timing adjustment screws. All test results printed and included.  This is as good as it gets!!

IMPORTANT: We use our Fantom Facts Machine v3 to test our rotors and the Instek GOM-804 to test our stators.  The Instek GOM-804 is the same equipment that ROAR uses to evaluate motors.  It is important to know that there is no standard in the RC industry for testing brushless rotors and stators.  There are numerous testers on the market, including the Trinity, MMS, and others, that all provide different information.  The information can vary greatly.  For example, one company’s meter may read 1550 for a rotor, where our meter may read it as 1500.  The same goes for stator readings.  For example, a 19.5ohm reading on another brand meter may be the same as a 20.2ohm reading on our tester.  The Fantom Facts Machine v3 rotor tester is the most accurate rotor tester in RC and is calibrated to the highest standards, so you can feel confident that we are providing you with the most accurate testing in RC.

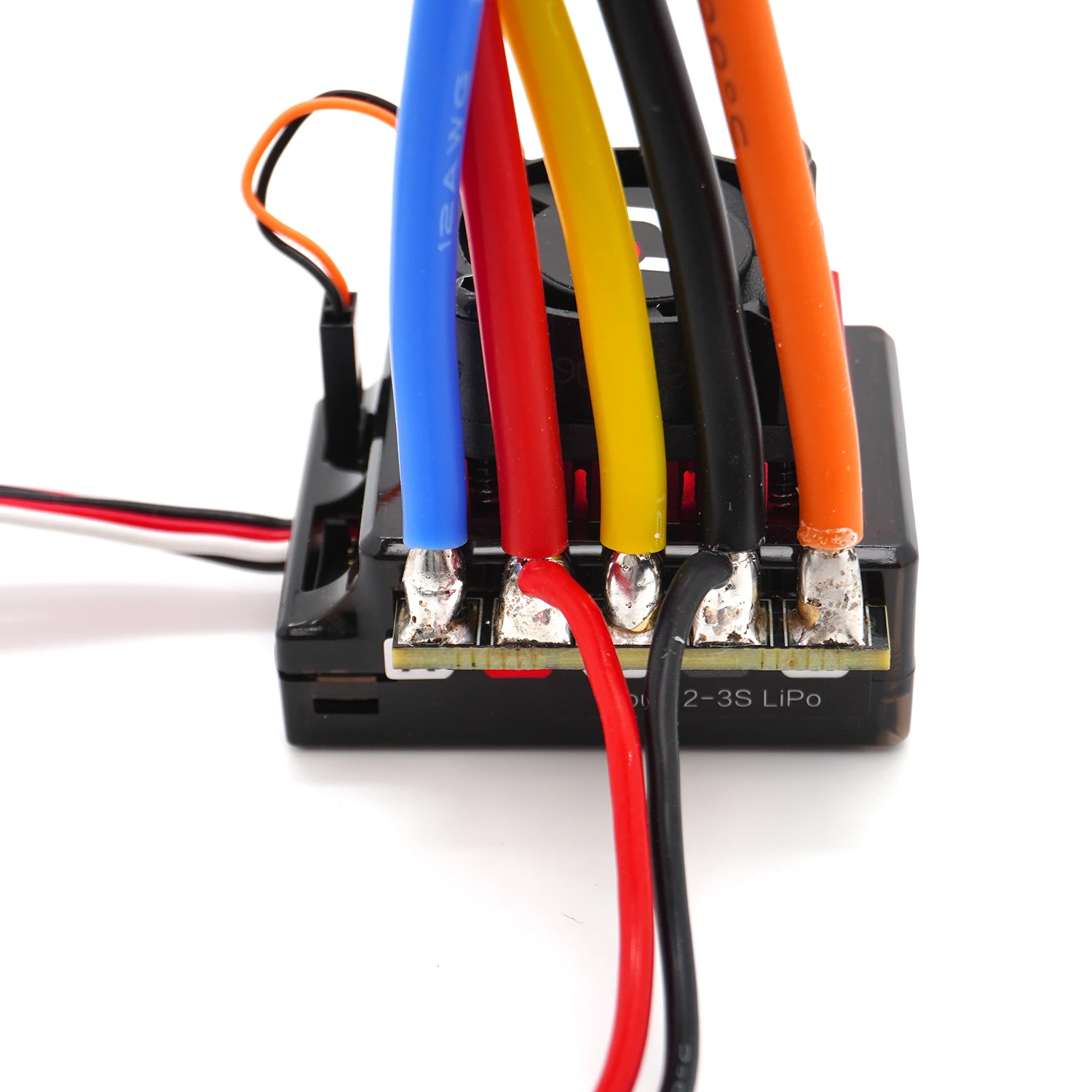

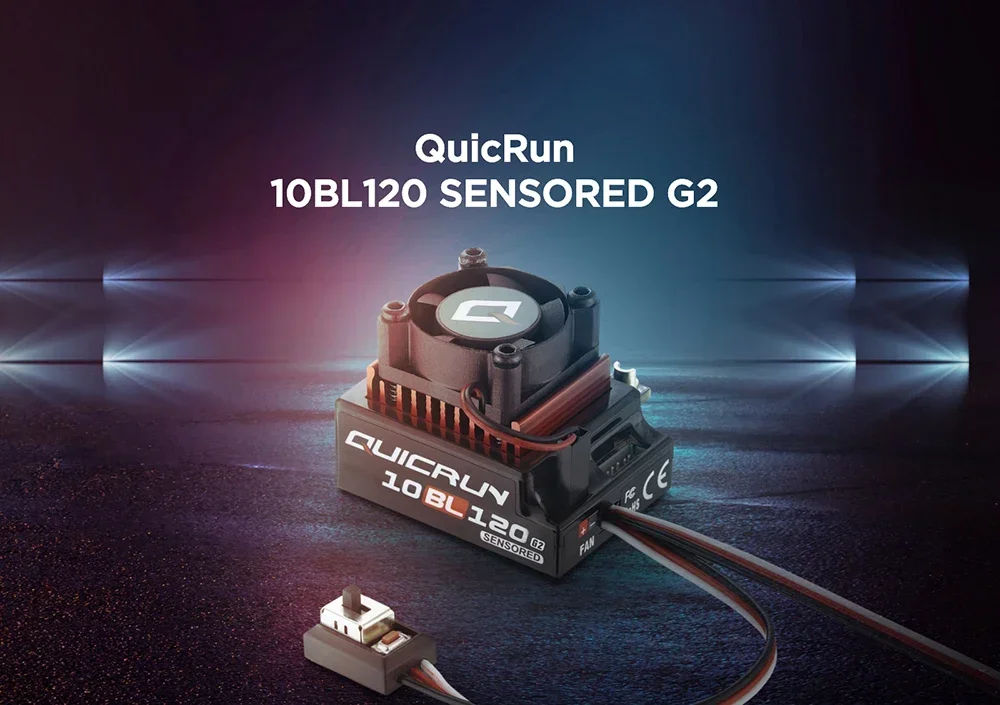

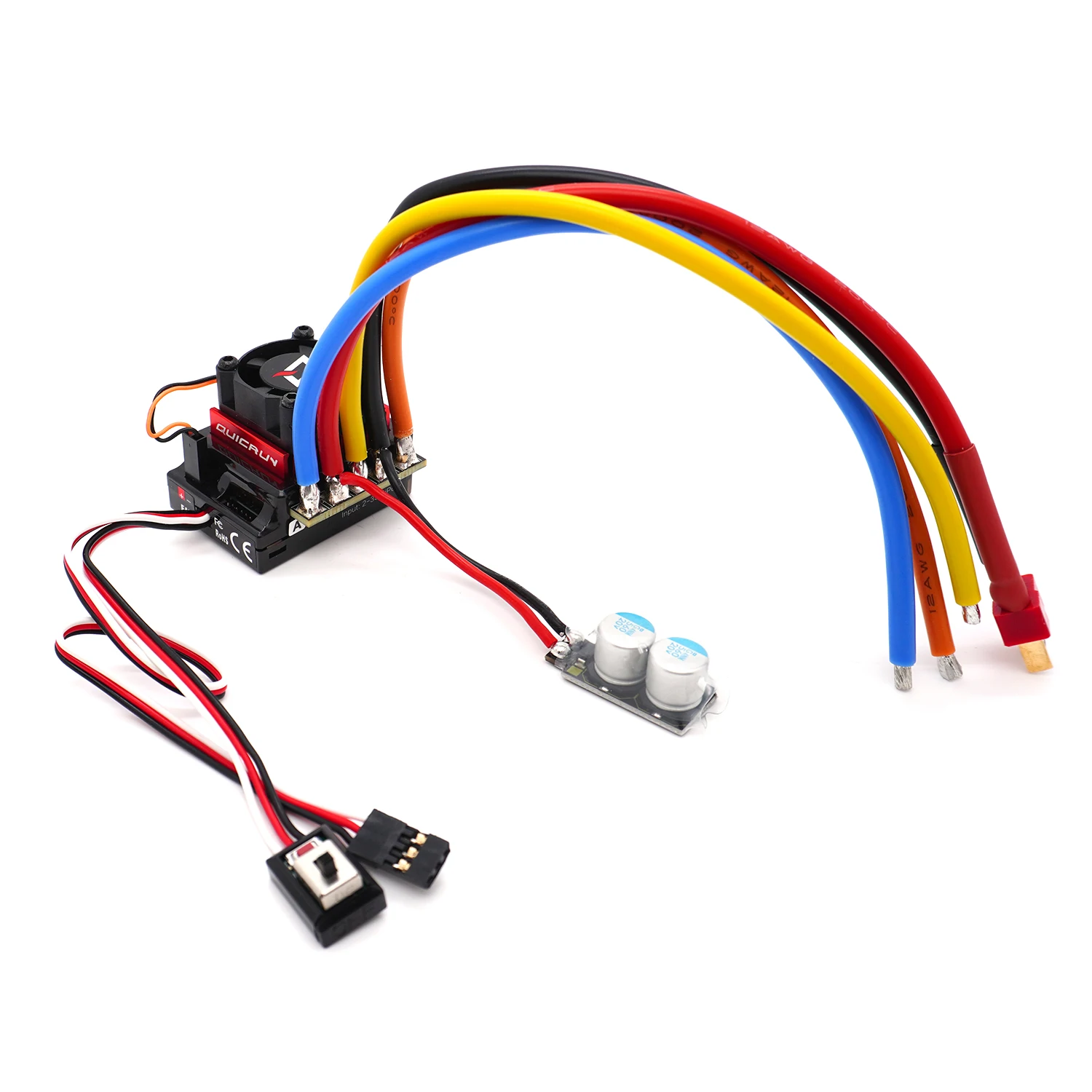

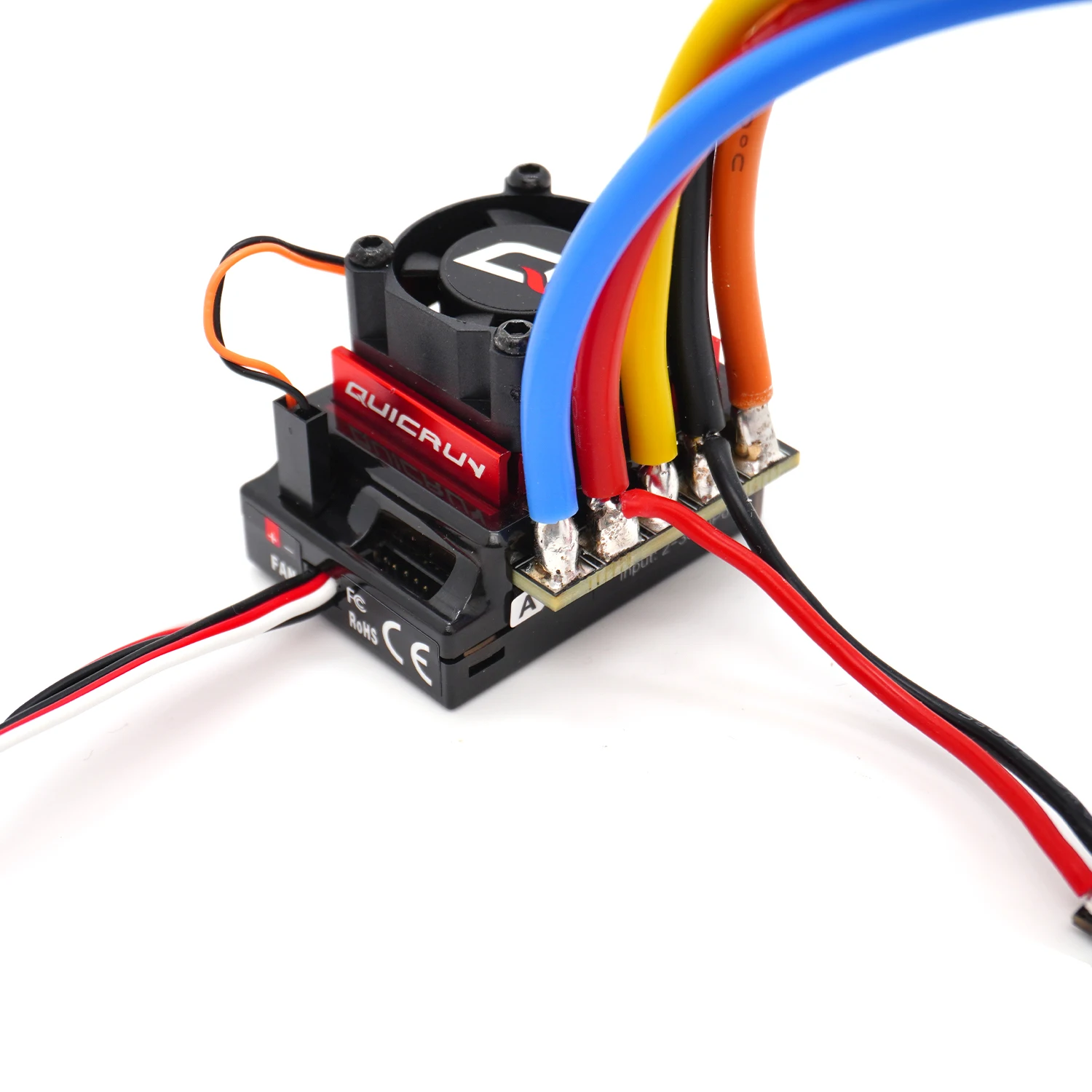

Hobbywing QincRun 10120BL Sensored ESC Features:

High performance, reliable,race-ready ESC.The compact size is suitable forvarious car chassis'.

The built-in auto identification system recognizes sensored or sensorless brushless motors.

Core competition program forexcellent control feel & multiple programmable items.

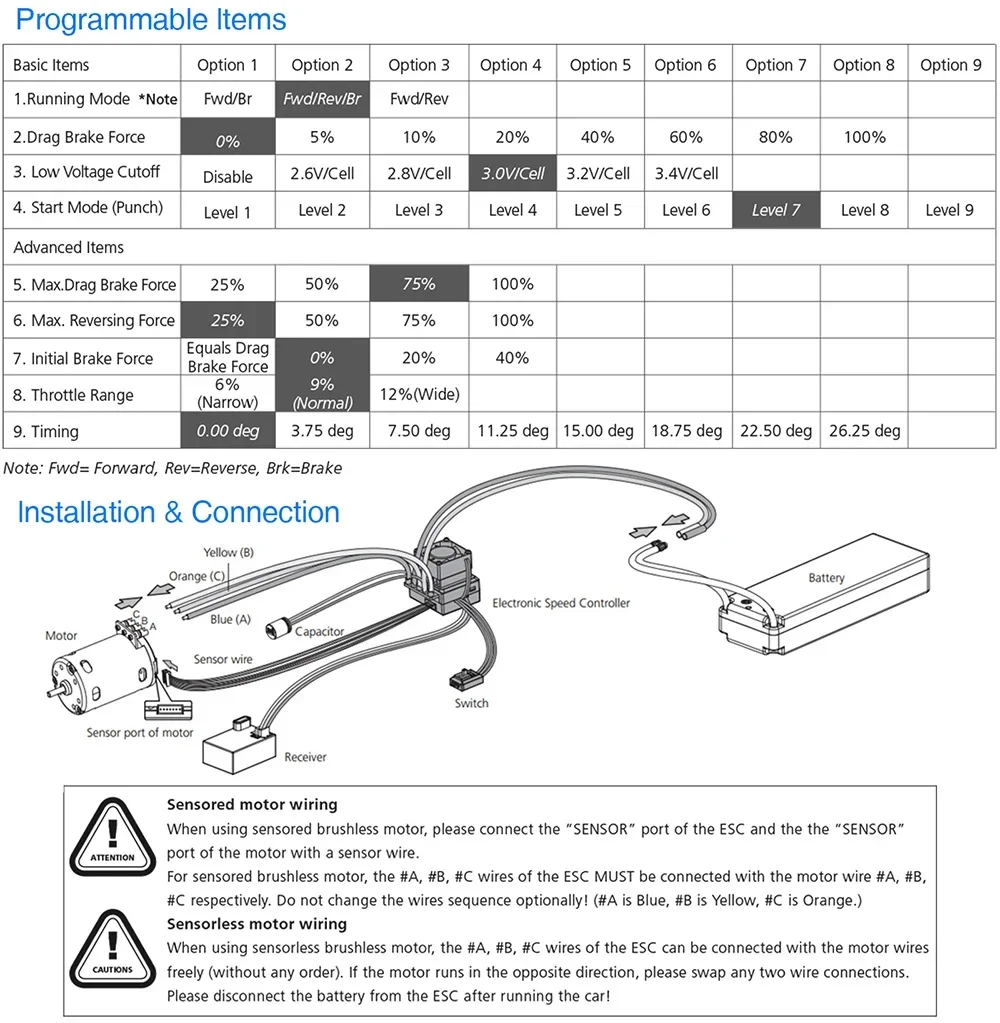

8 steps of timingadjustments 4 steps of maximum brake force adjustments 8 steps of dragbrake force adjustments 4 steps of initial brake force adjustments 9 steps ofacceleration (punch) adjustment, from "soft" to "very aggressive" to fit fordifferent kinds of cars, tires and tracks.

Multiple protections include: Lowvoltage cut-off protection for Lipo or NiMH battery Over-heat protection Throttlesignal loss protection Motor Lock-up protection. Throttle out of control protection, overload protection for escort escort, reliability and durability have been greatly improved.

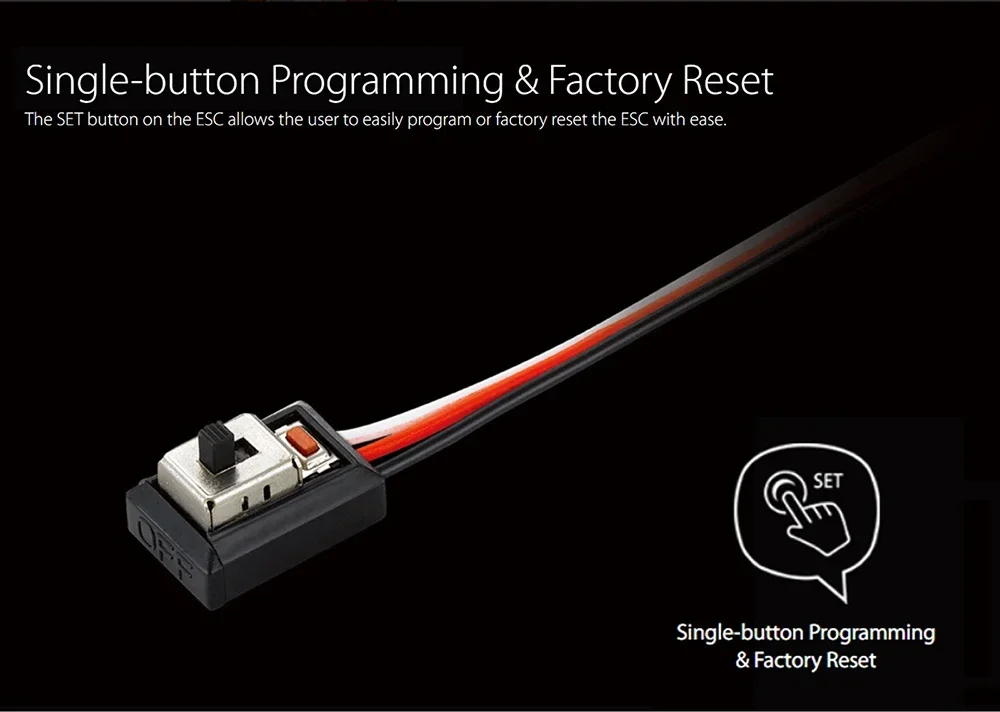

One-button to set the ESC,and easy to reset all parameters to the factory default settings.

Compatiblewith optional device - the portable Digital LED Program Card which is especially convenient for outdoor use.

Motor Limits: 4-6 cells NiMH / 2S LiPo:3.5T(1/10 On-road),4.5T (1/10 Off-road) 8-9 cells NiMH / 3S LiPo:8.5T (1/10On-road),10.5T (1/10 Off-road)

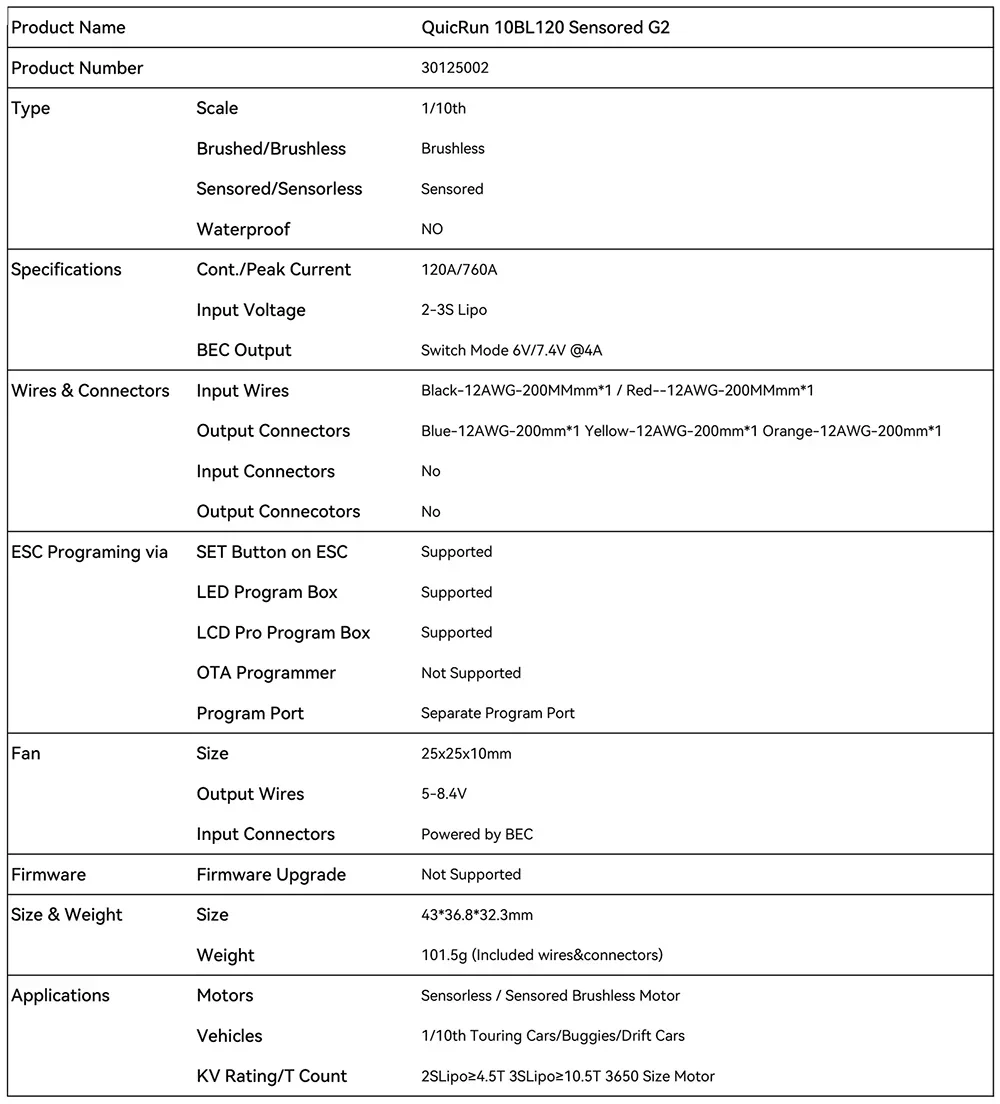

ESC Specifications:

Brand:Hobbywing

Product name:QincRun 10120BL

Model:30125000

Battery: 2-3s lipo battery

Fan size:25*25*10mm

Fan Voltage range:5-8.4V

Specifications: 33x28x33mm (with fan height)

Weight: 105g (including line weight)
