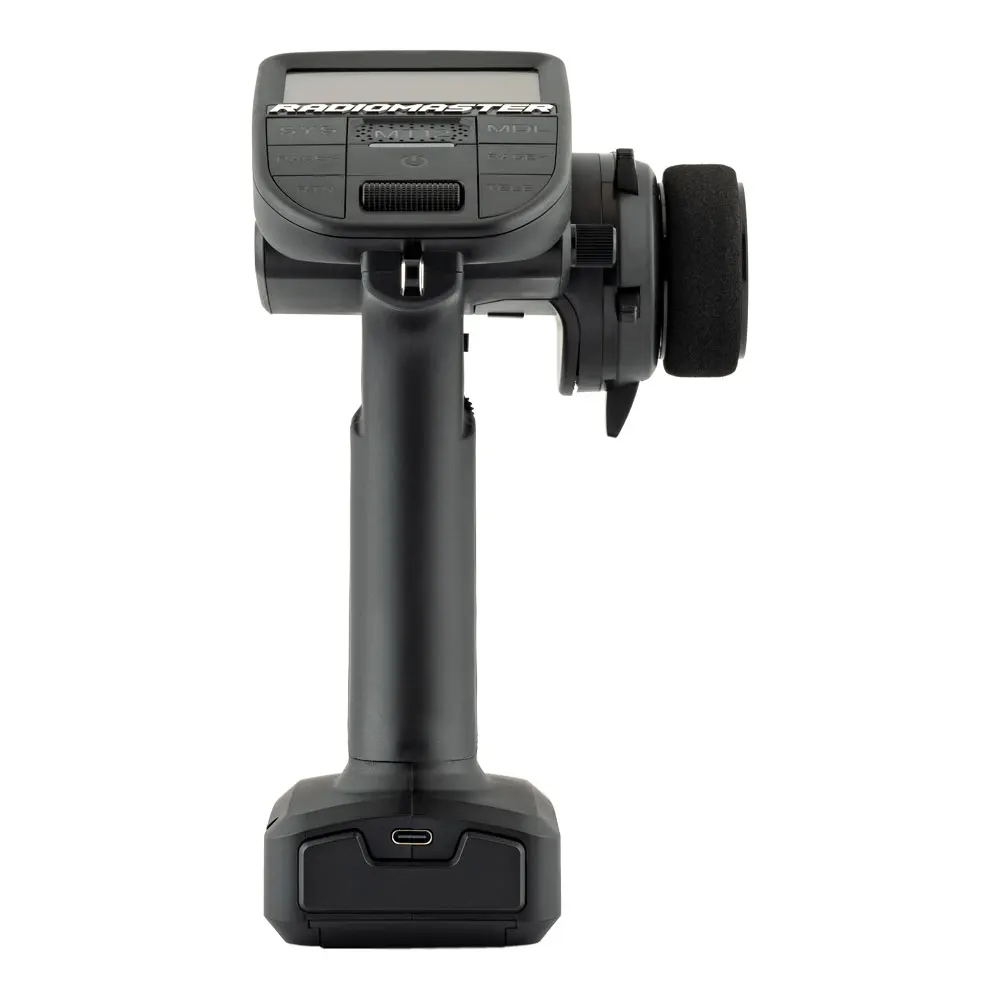

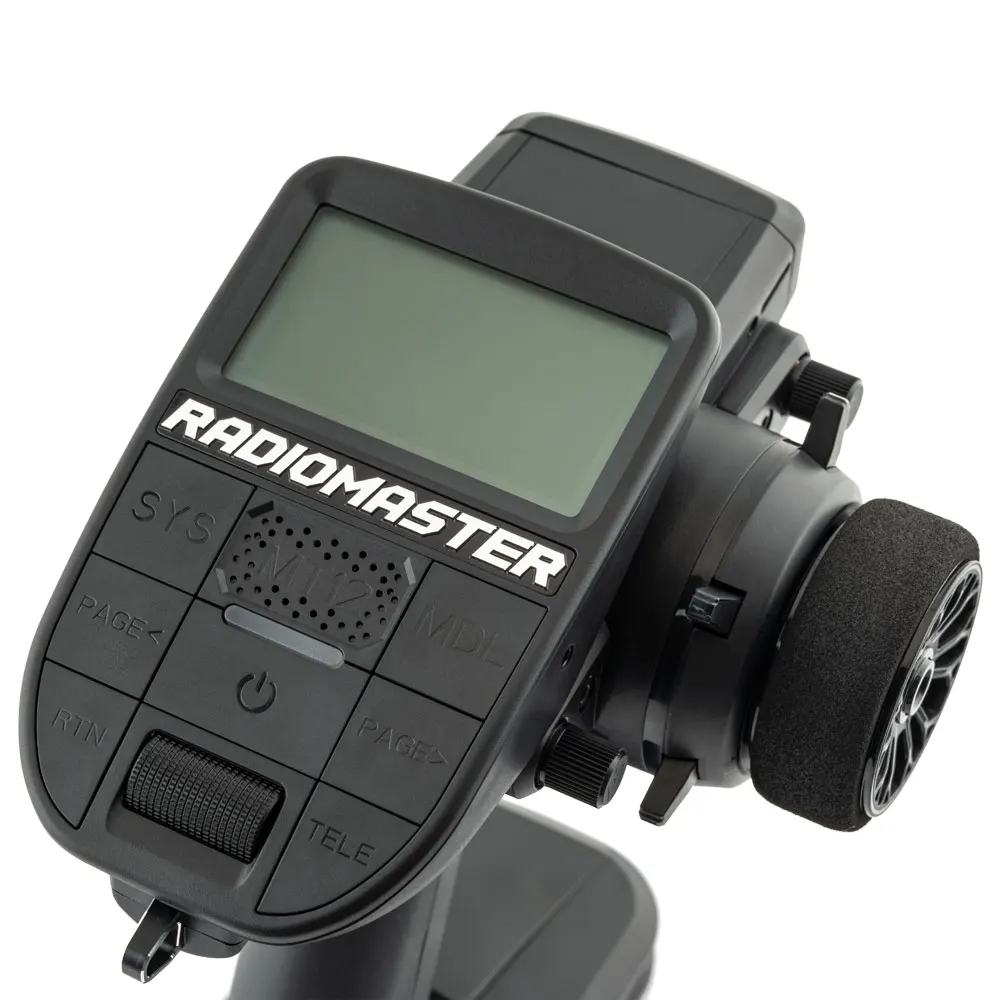

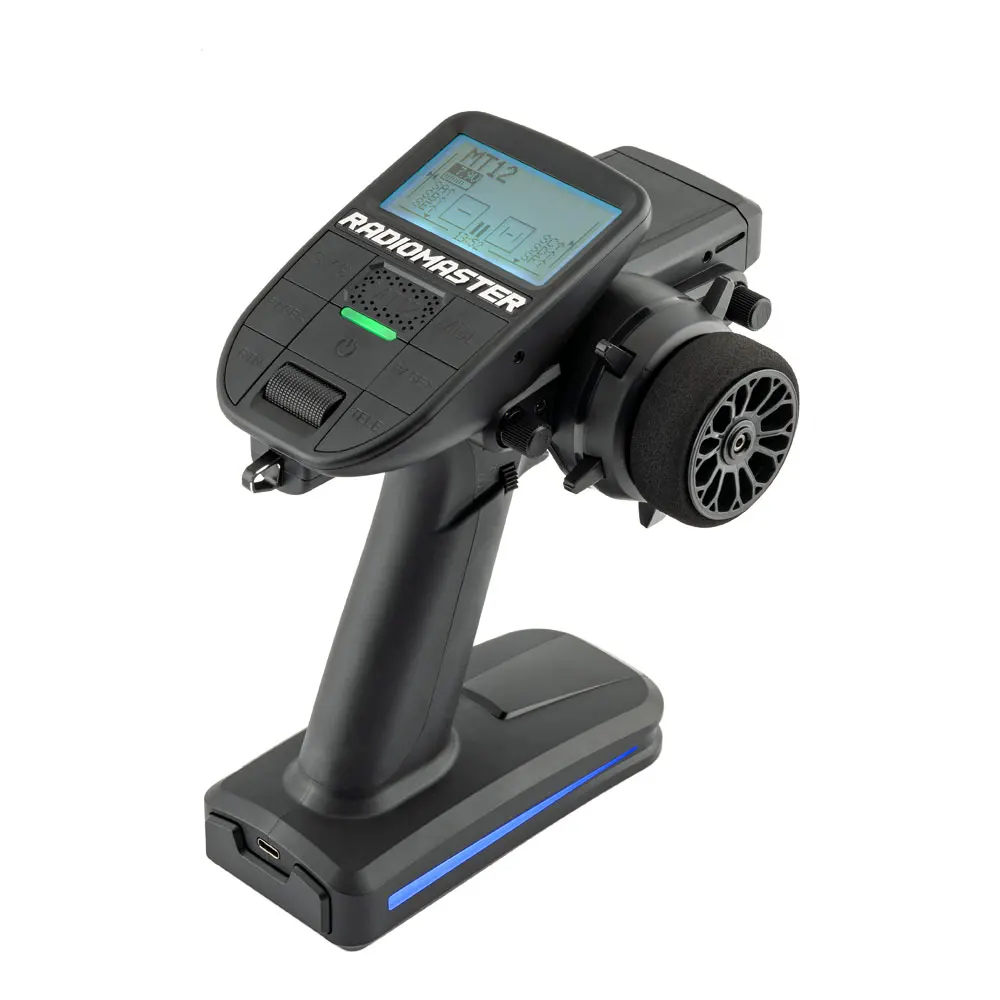

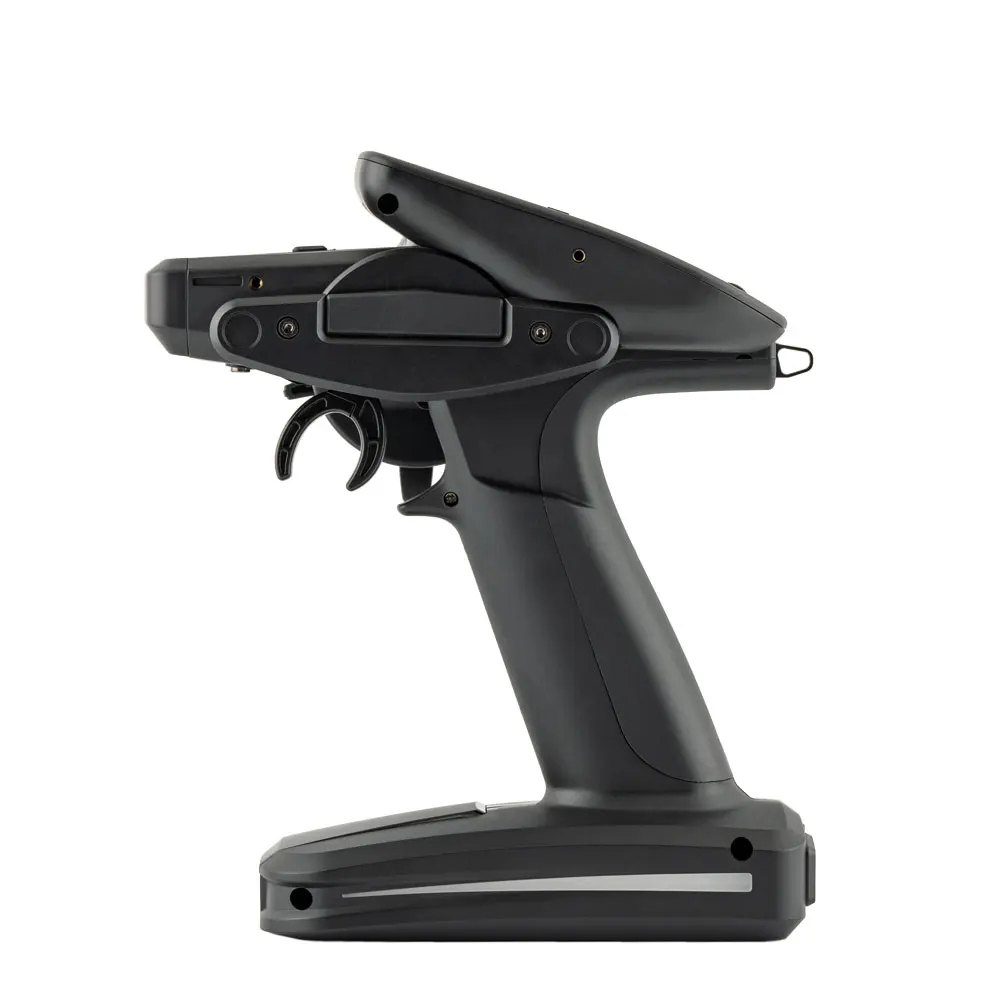

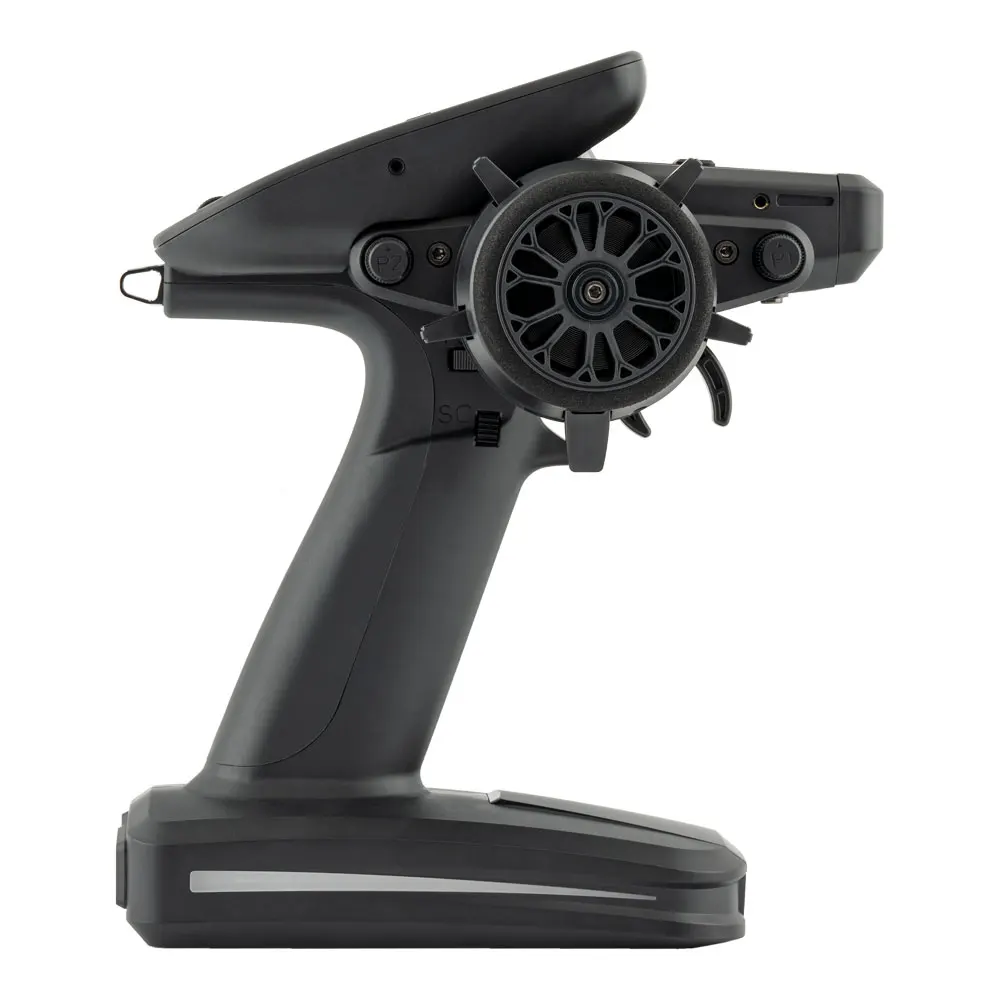

Radiomaster MT12 ExpressLRS 4in1 Multi-protocol Surface Radio Controller For RC Car Boat

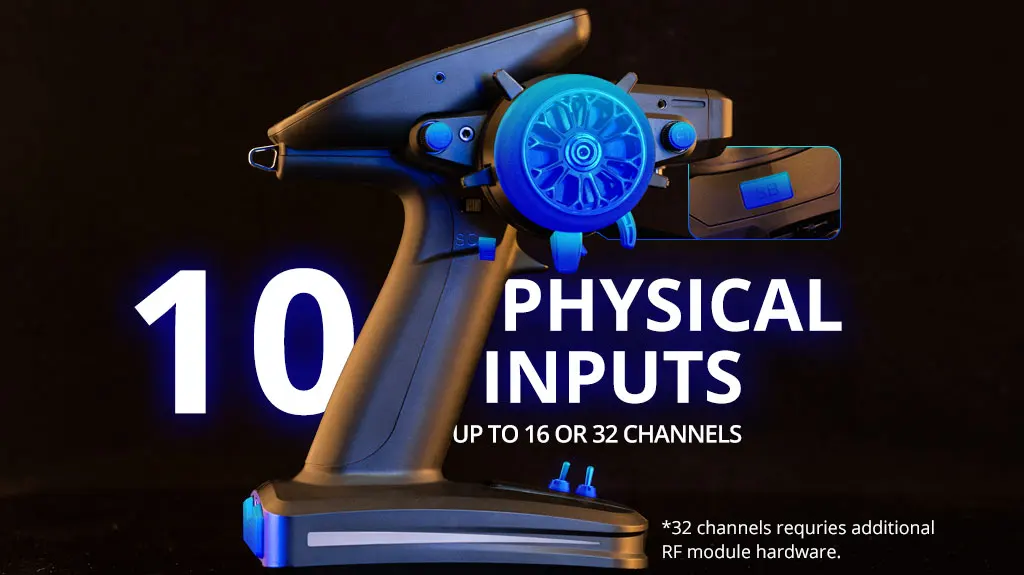

The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.

Features

Available with built-in ExpressLRS or 4in1 MPM RF modules

Featuring a powerful STM32F407VGT6 with 1MB Flash

Preinstalled EdgeTX firmware

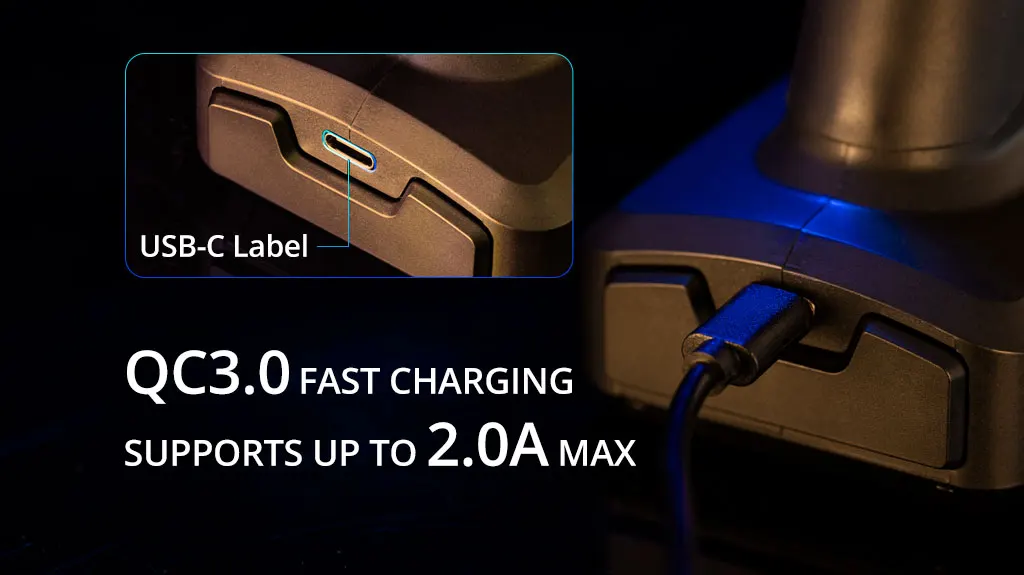

QC3.0 fast charging supporting 2.0A MAX

Compact design with excellent ergonomics

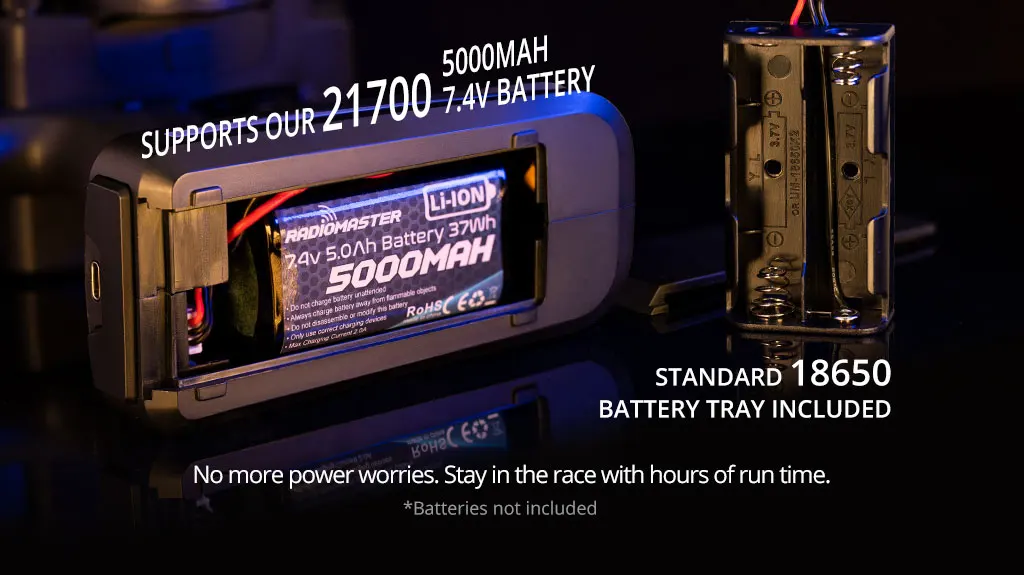

Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)

Standard Nano module compartment

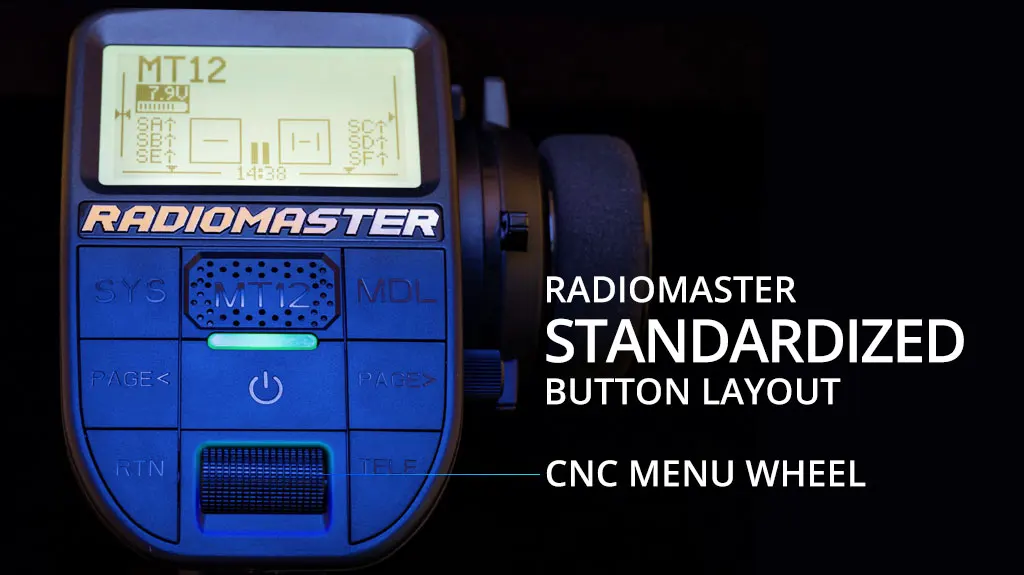

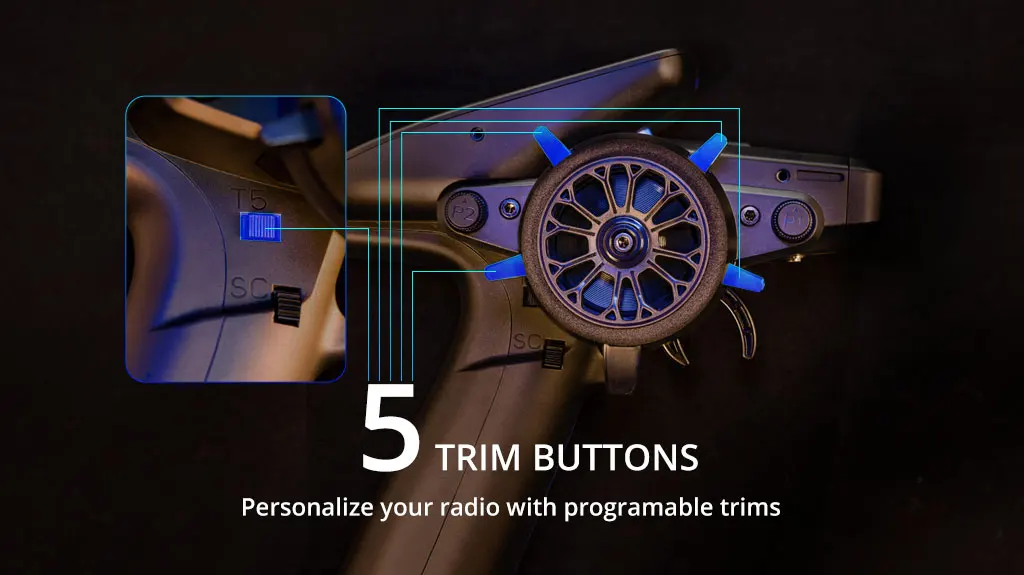

RadioMaster standardized button layout

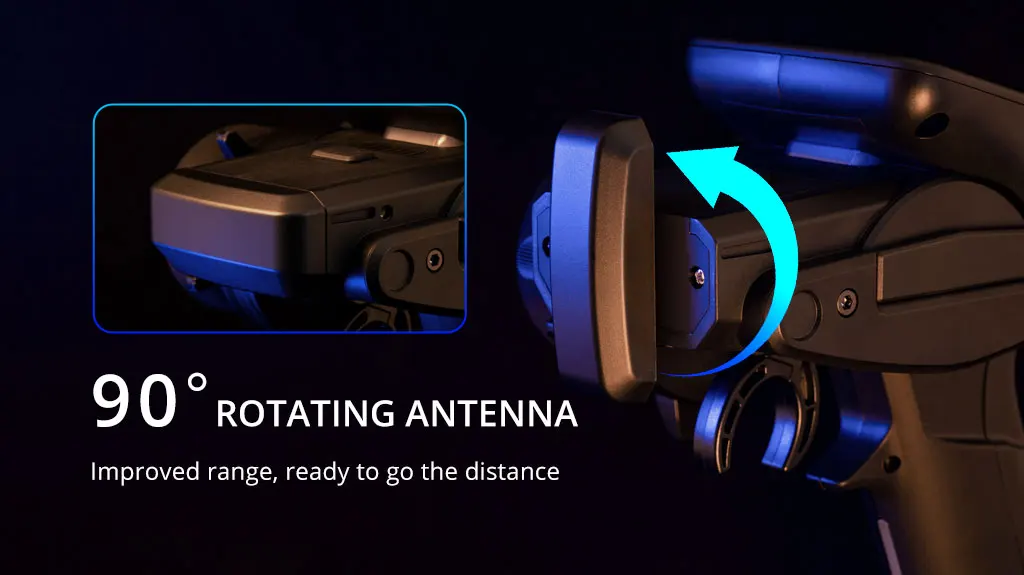

Rotatable antenna

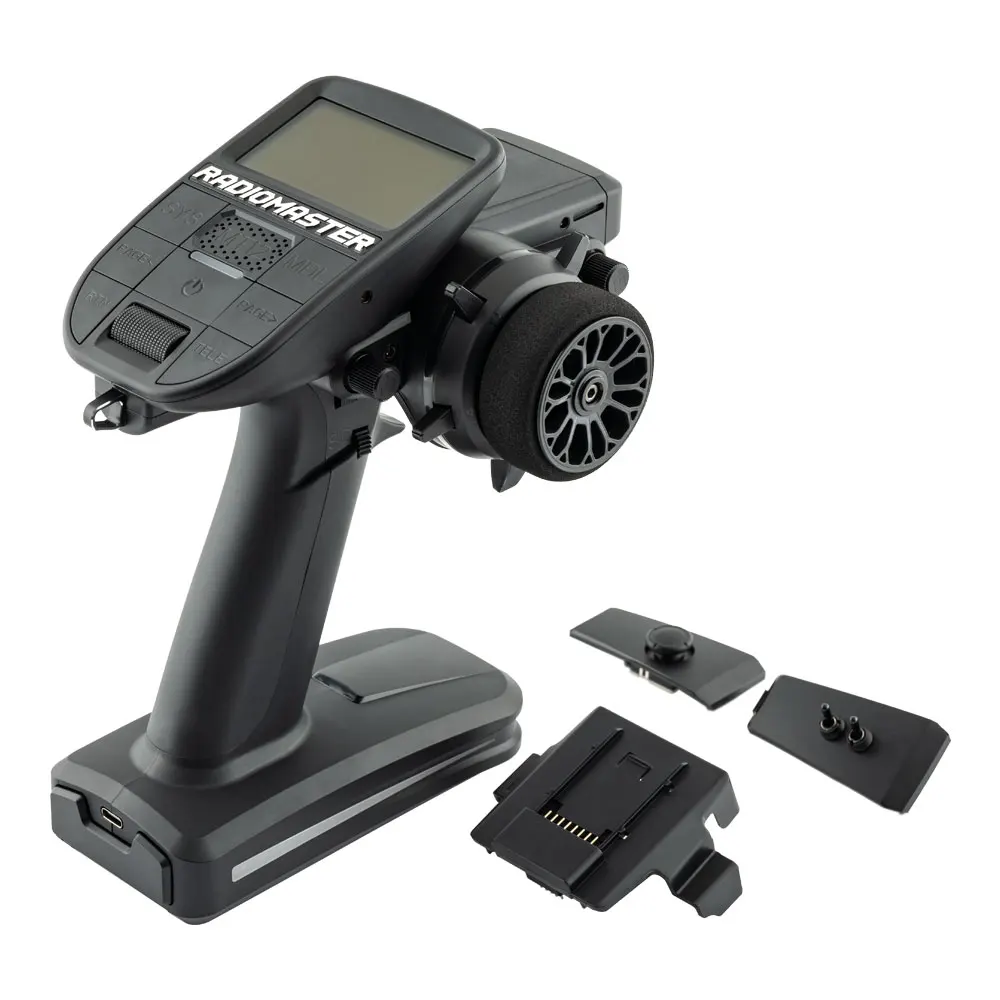

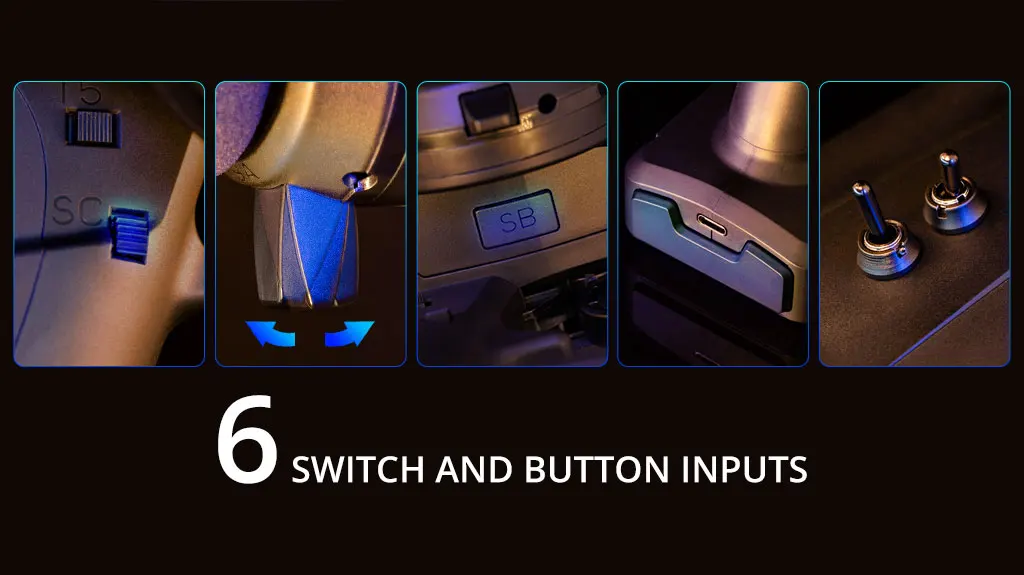

Customizable base switches or 4 way joystick included

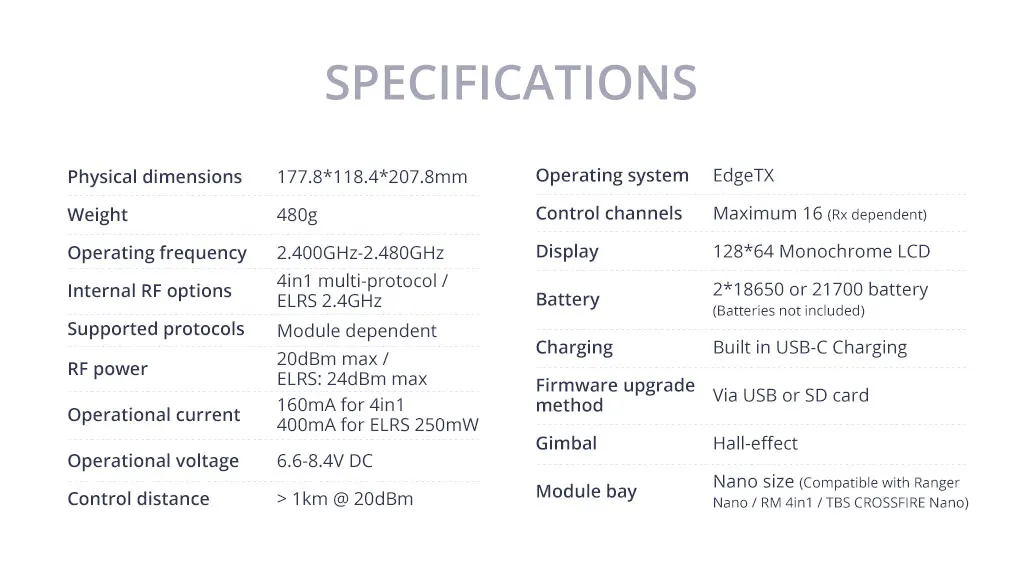

Specification MT12

Item: MT12 Surface Radio

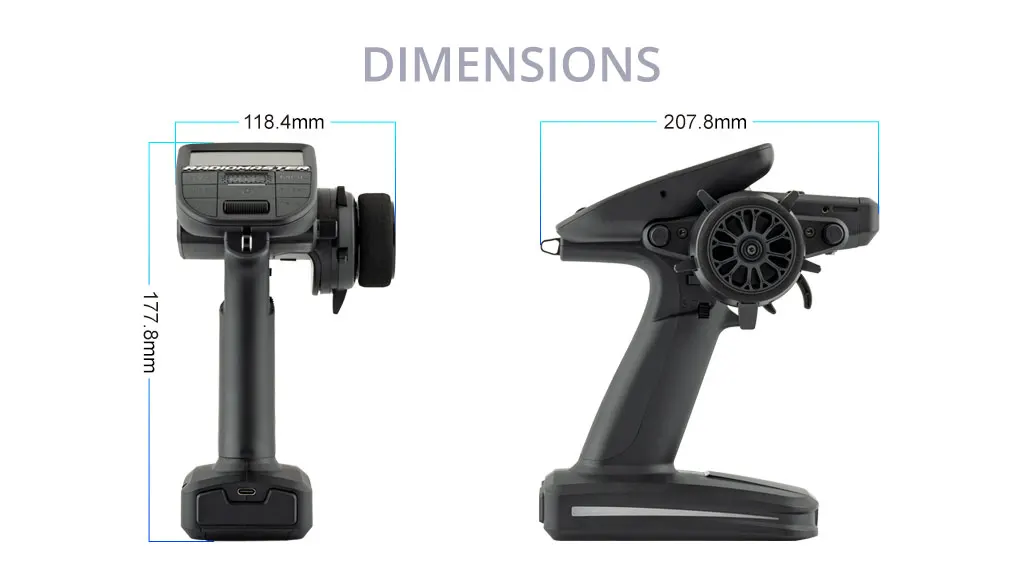

Physical dimensions: 177.8*118.4*207.8mm

Weight: 480 grams

Operating frequency: 2.400GHz-2.480GHz

Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz

Supported protocols: Module dependent

Operational current: 160mA for 4in1 / 320mA for ELRS

Operational voltage: DC 6.6-8.4V

Operating system: EdgeTX

Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)

Display: 128*64 Monochrome LCD

Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)

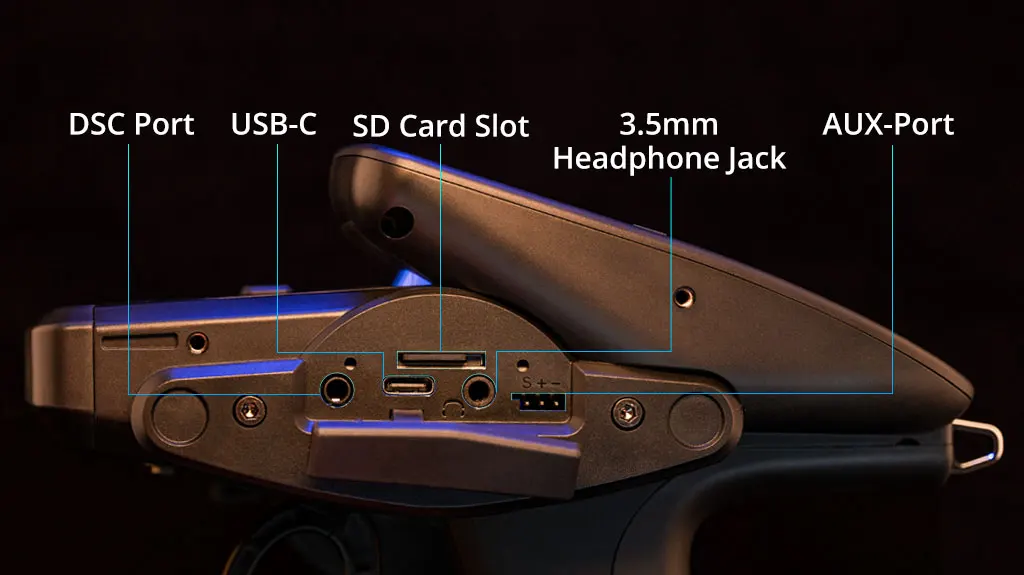

Charging: Built in USB-C Charging

Firmware Upgrade method: Via USB or SD card

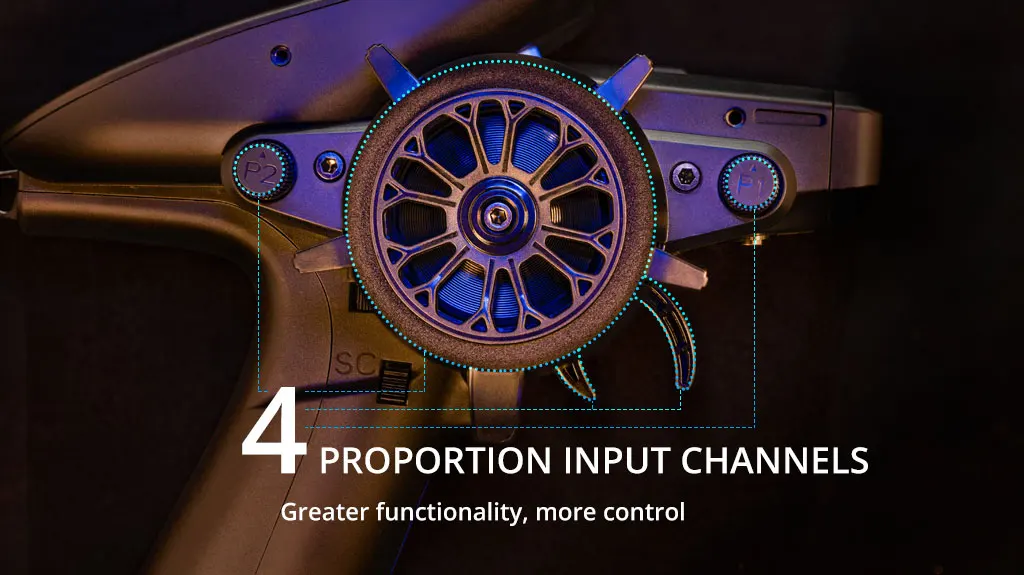

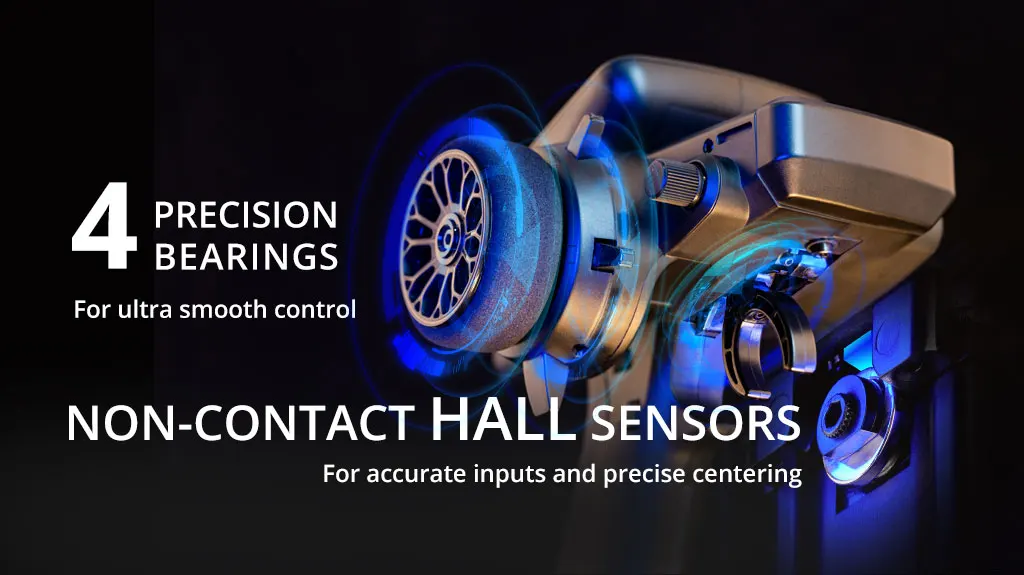

Wheel and Trigger sensor: Hall-effect

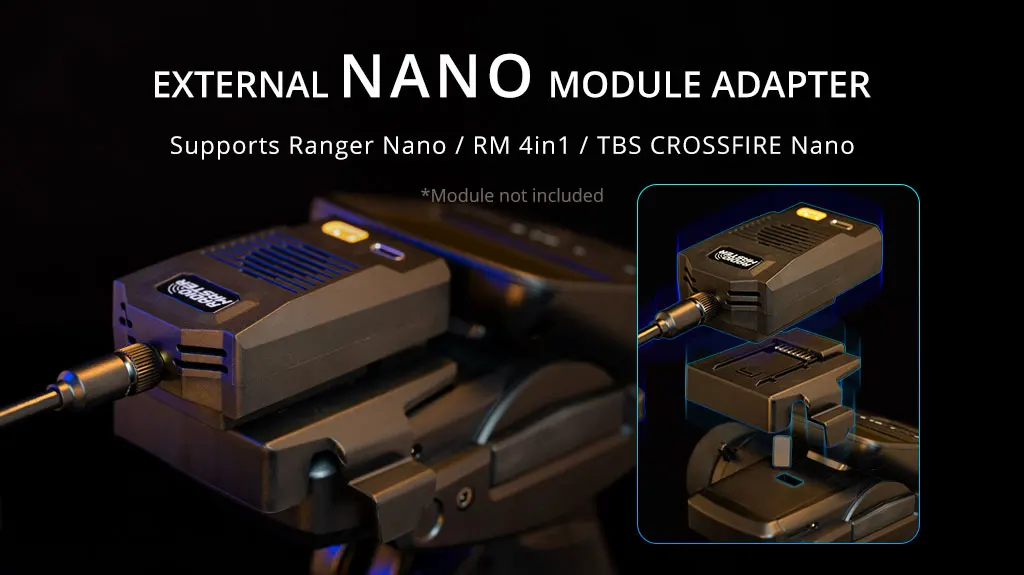

Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

*32 channels requires a 4in1 radio and additional 4in1 RF module along with compatible receivers

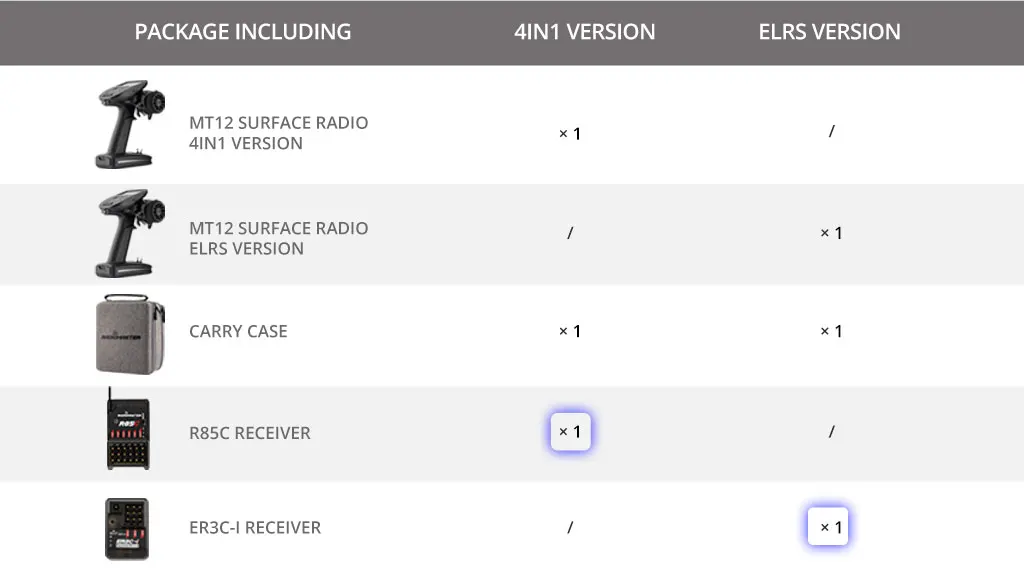

Specification ER3C-i (Included with ExpressLRS version)

Item: ER3C-i 2.4GHz ELRS PWM Receiver

Power supply: DC 4.5 - 8.4V

Antenna type: Built-in high-sensitivity ceramic antenna

Wireless protocol: ExpressLRS 3.3.0 pre-installed

Output channel: 3CH PWM

Telemetry power: 10mW

Battery voltage detection range: DC 4.0 - 35V

Weight: 4.2 grams

Dimensions: 26.1*18.5*13.0 mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i

Specification R85C (Included with 4in1 version)

Item: R85C Receiver

Power supply: DC 4.5 - 8.4V

Frequency range: 2400-2483.5Mhz

Support protocol: D8/D16/SFHSS

Output channel: 5CH PWM

Antenna type: high-sensitivity 2.4G antenna

Telemetry power: 100mw / 20dbm

Weight: 5.7 grams

Dimensions: 31.0*18.5*13.0 mm
