MG995 MG996R JR Steering Rotation Servo Motor 180 360 MG 996 High Speed Torque Metal Gear for RC Car Helicopter Arduino Robot

MG996R JR Steering Rotation Servo Motor 180 360 MG 996 High Speed Torque Metal Gear for RC Car Helicopter Arduino Robot

Features:

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...

Great for truck, Boat, Racing Car, Helicopter and Airplane.

Power Supply: Through External Adapter.

Connector Wire Length 300mm

Specification:

Product Model: MG996R

Color: Black

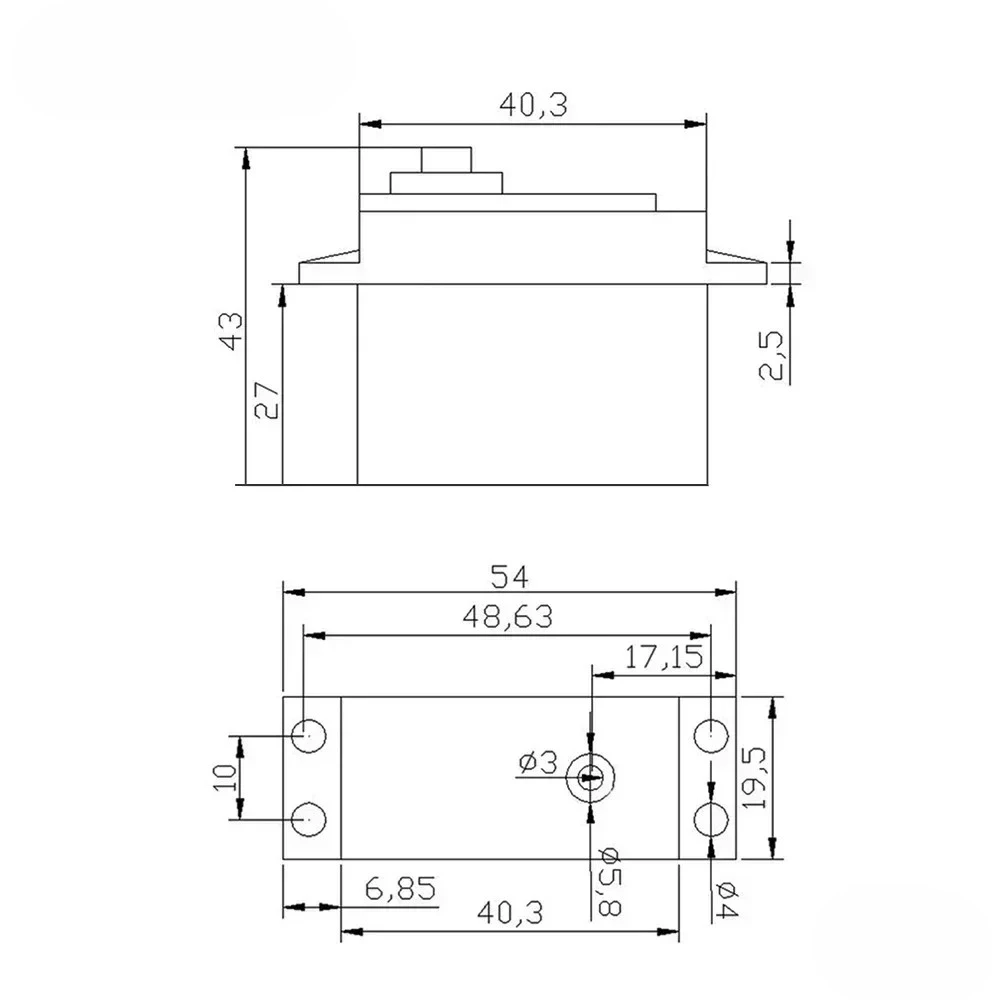

Dimension: 40mm x 19mm x 43mm

Rotation Angle:0-180°/360°(Continuous Rotation)

Operating Speed: 0.17sec/60 degrees (4.8V no load)

Operating Speed: 0.14sec/60 degrees (6.0V no load)

Stall Torque: 9.4kg/cm (4.8V)

Stall Torque: 11kg/cm (6V)

Operation Voltage: 4.8 - 7.2Volts

Operating Temperature: 0 ℃- 55 ℃

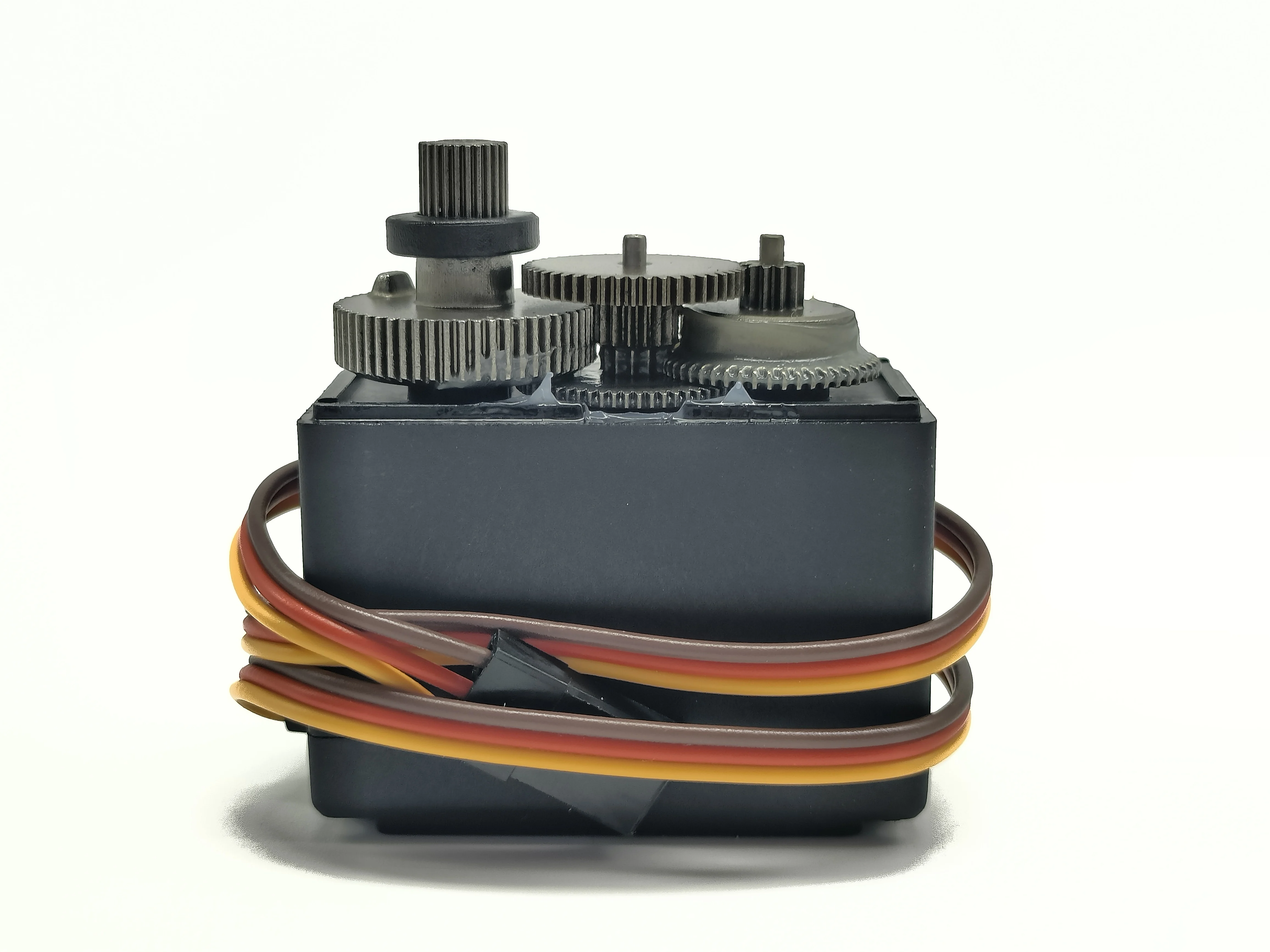

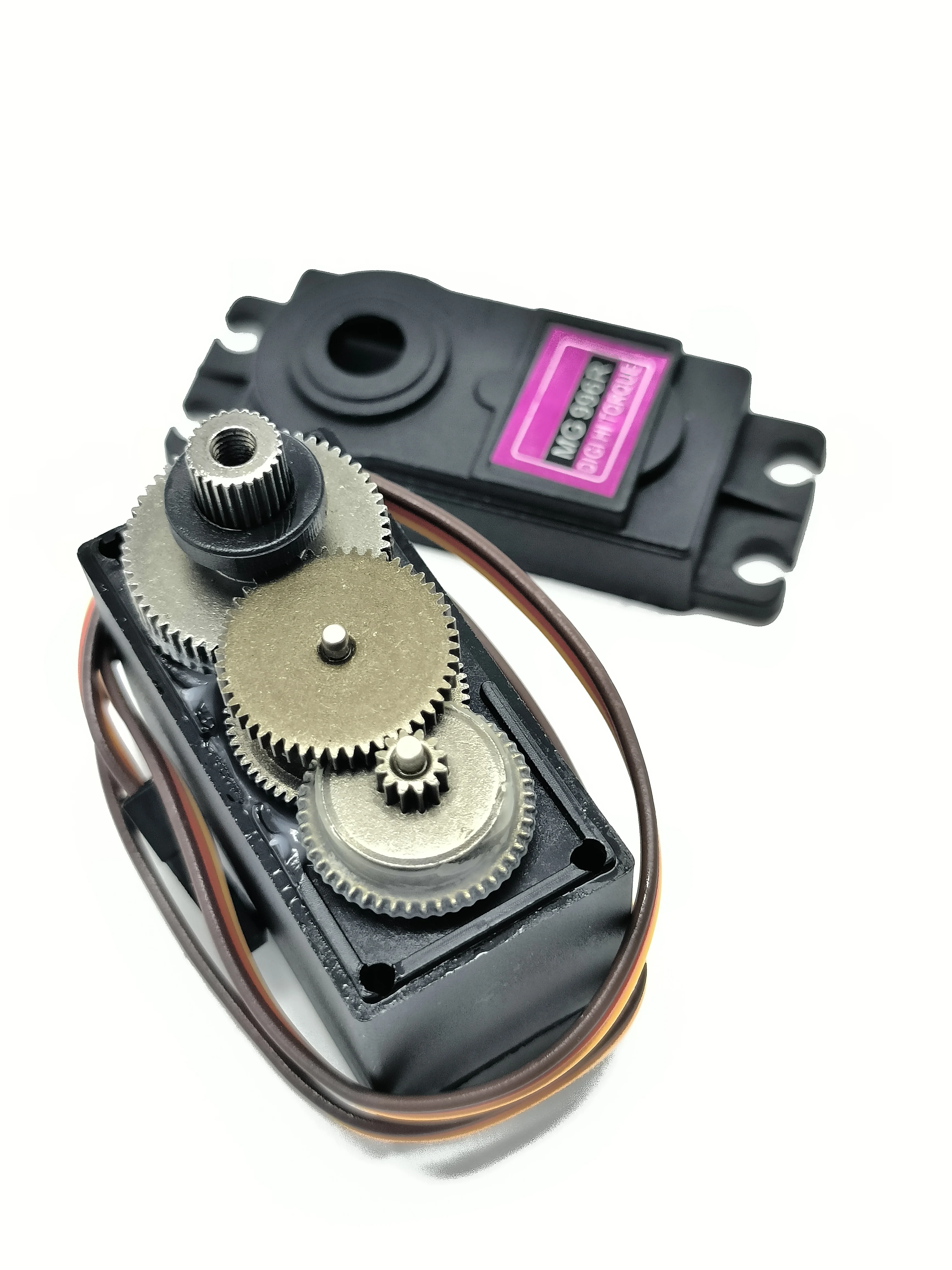

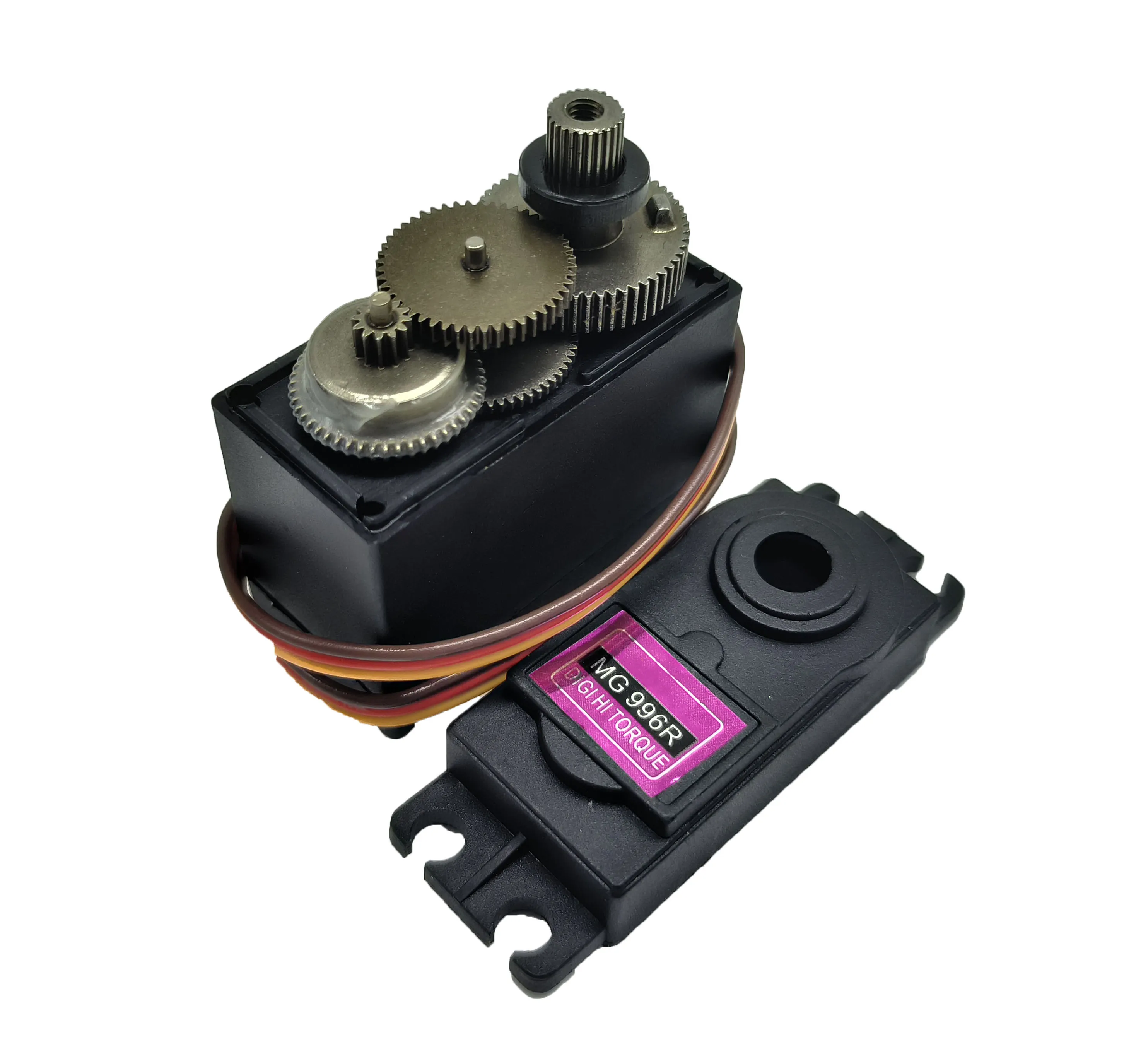

Gear Material: Half Metal/All Metal

Dead Band Width: 5msec

Operating Mode: Analog

Plug Type: JR, FUTABA General

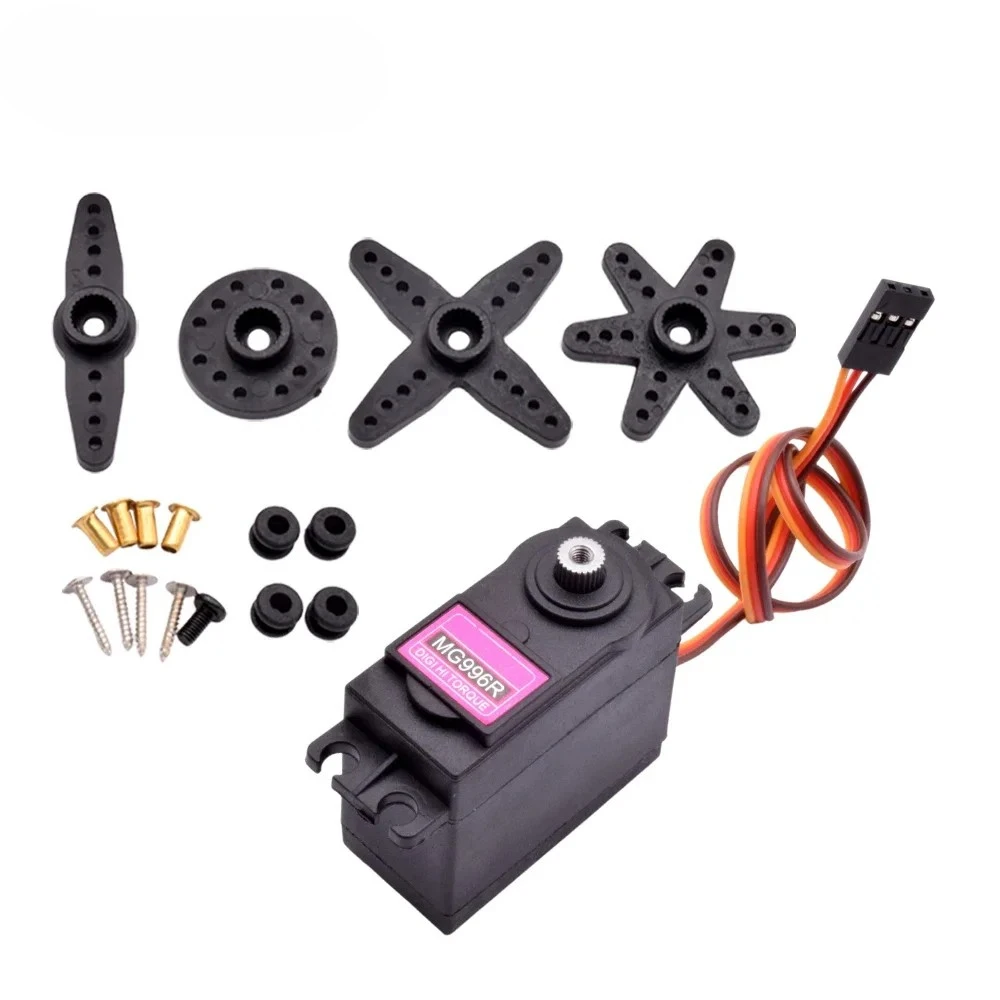

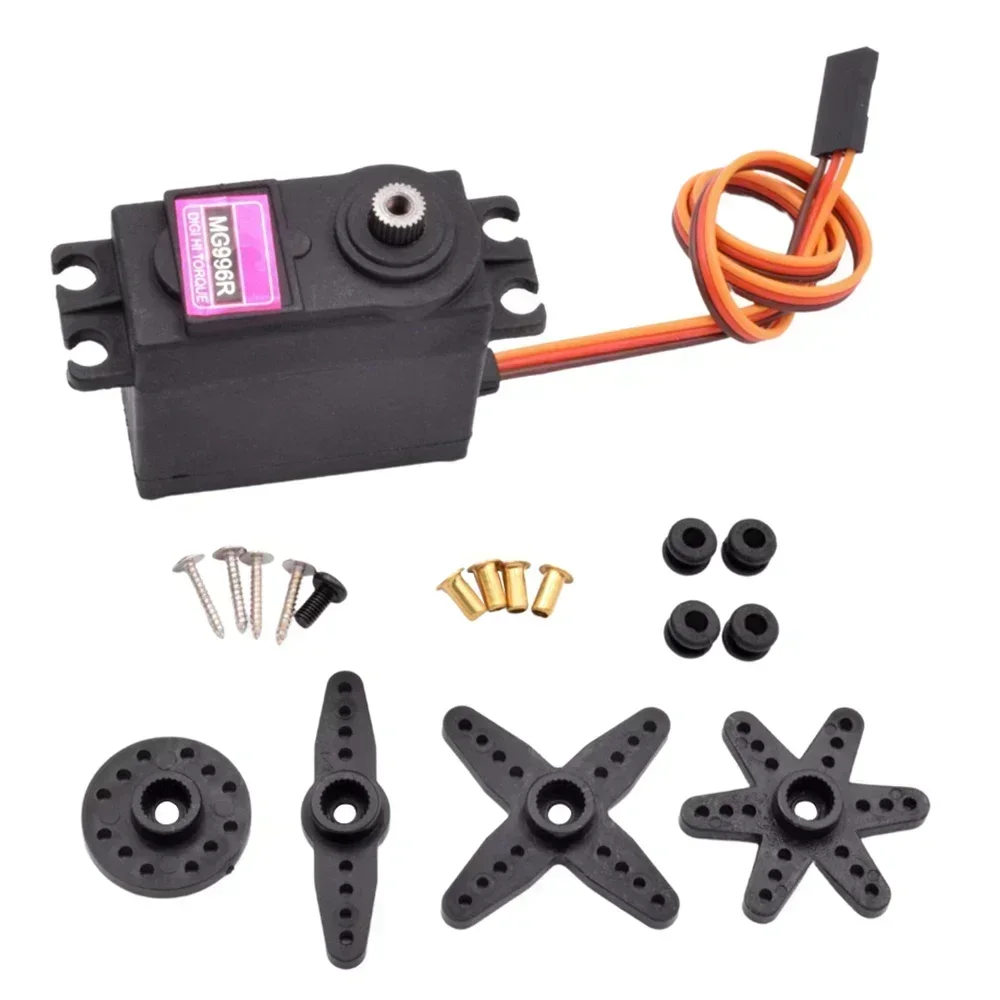

Accessories: Multi-arm, Fixing screws(AS the picture shows)

Connector Wire: 300mm(Brown: Negative; Red: Positive; Orange: Pulse Input)

Steering Gear Control:

The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.

1. Servo 0-180 Degree
The corresponding control relationship is as follows:
​0.5ms---------------0 degrees;
​1.0ms--------------45 degrees;
​1.5ms--------------90 degrees;
​2.0ms--------------135 degrees;
​2.5ms--------------180 degrees
​
​For 180 degree servo, please use a professional PWM Servo Controller to control the angle
​
2. Servo 360 Degree
The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction of the rotation . There is no 0-360 degree angle control function.

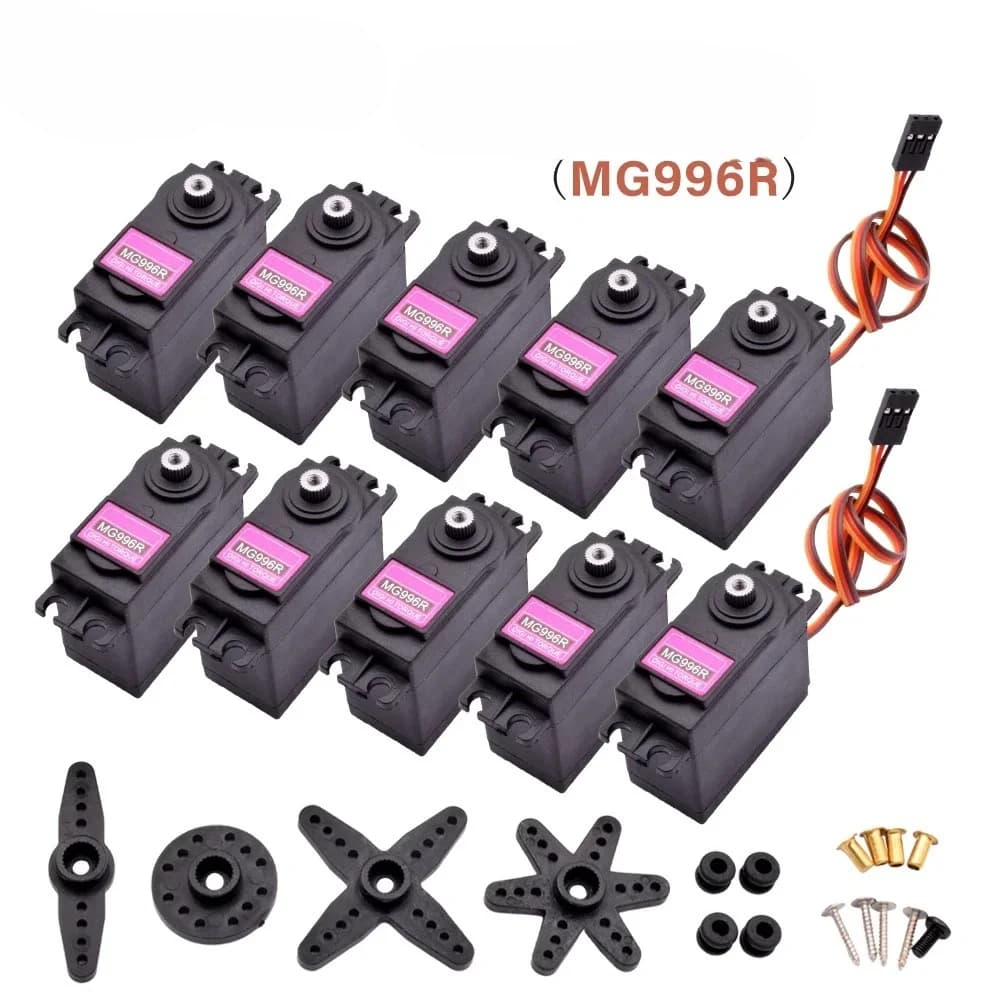

Packing: 5 x MG996R Servo or 10 x MG996R Servo fpr option(Including Accessories)
