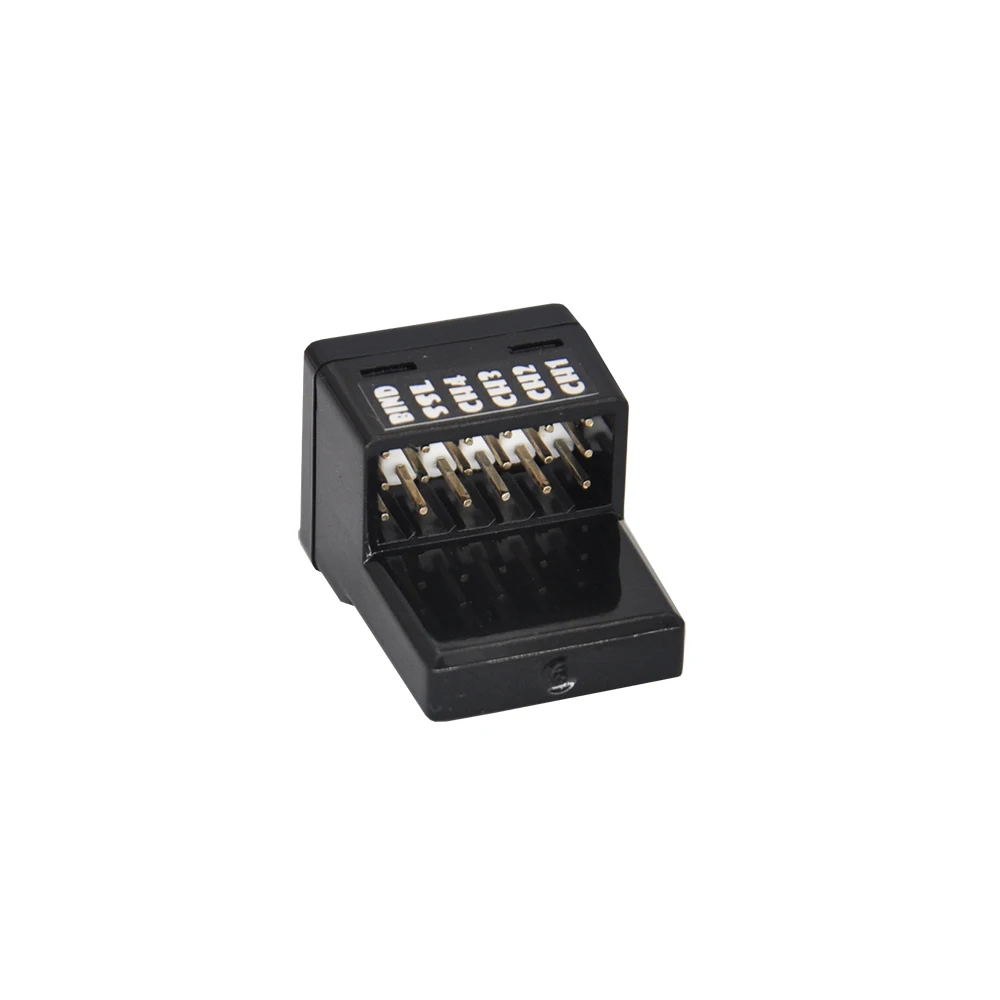

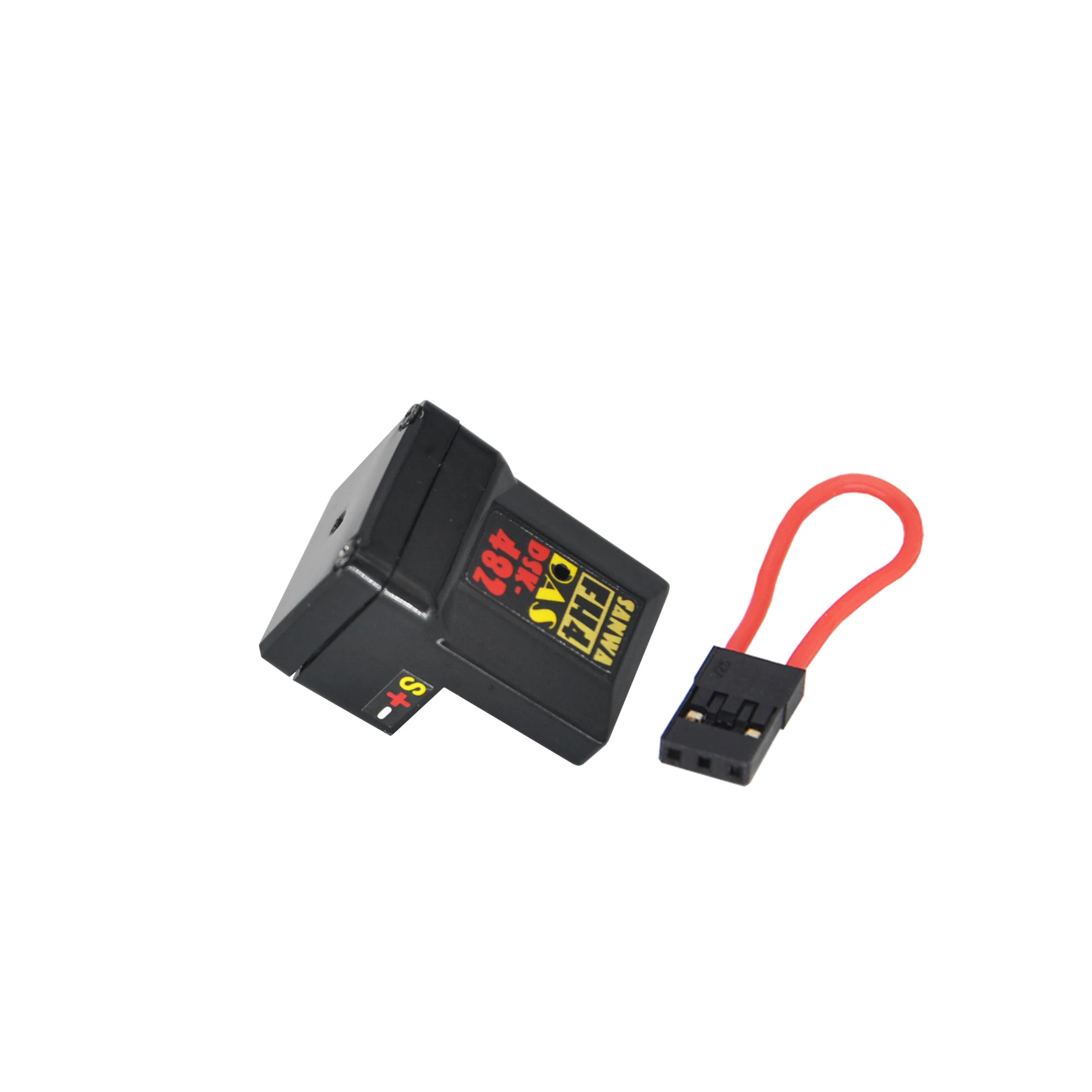

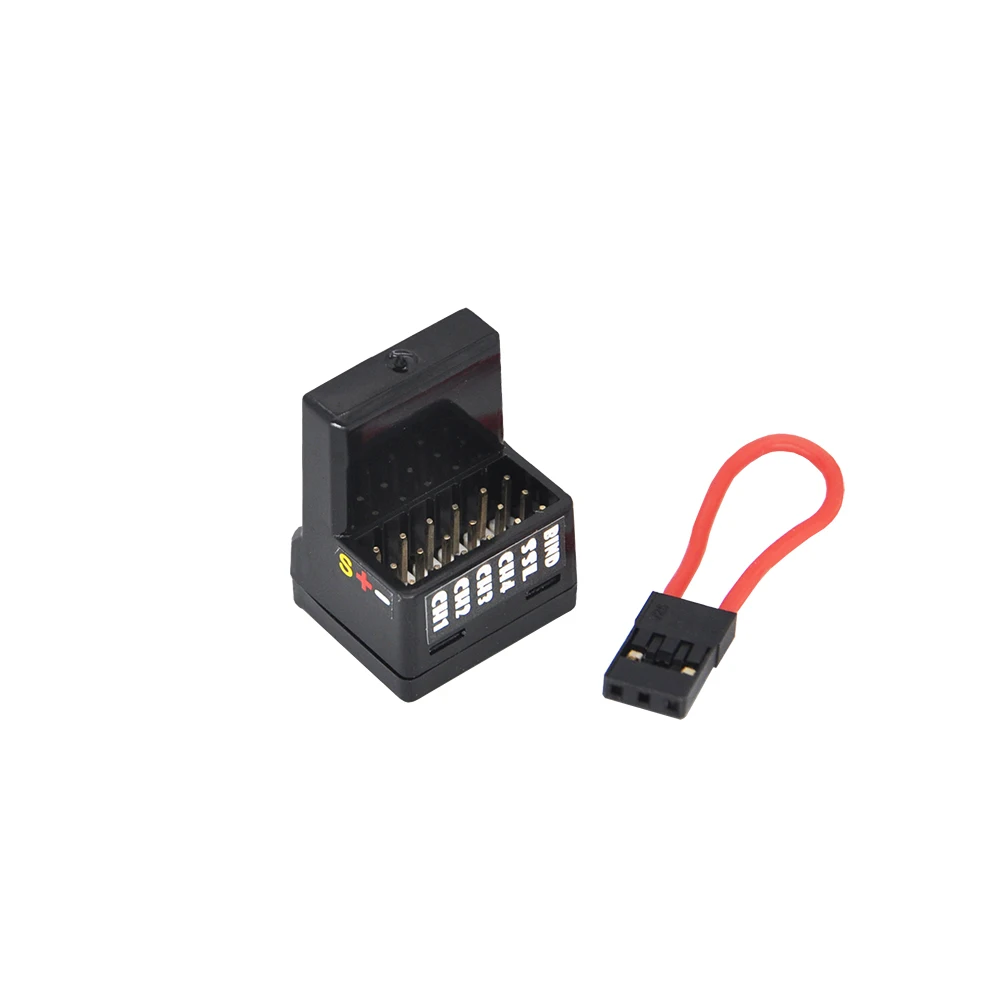

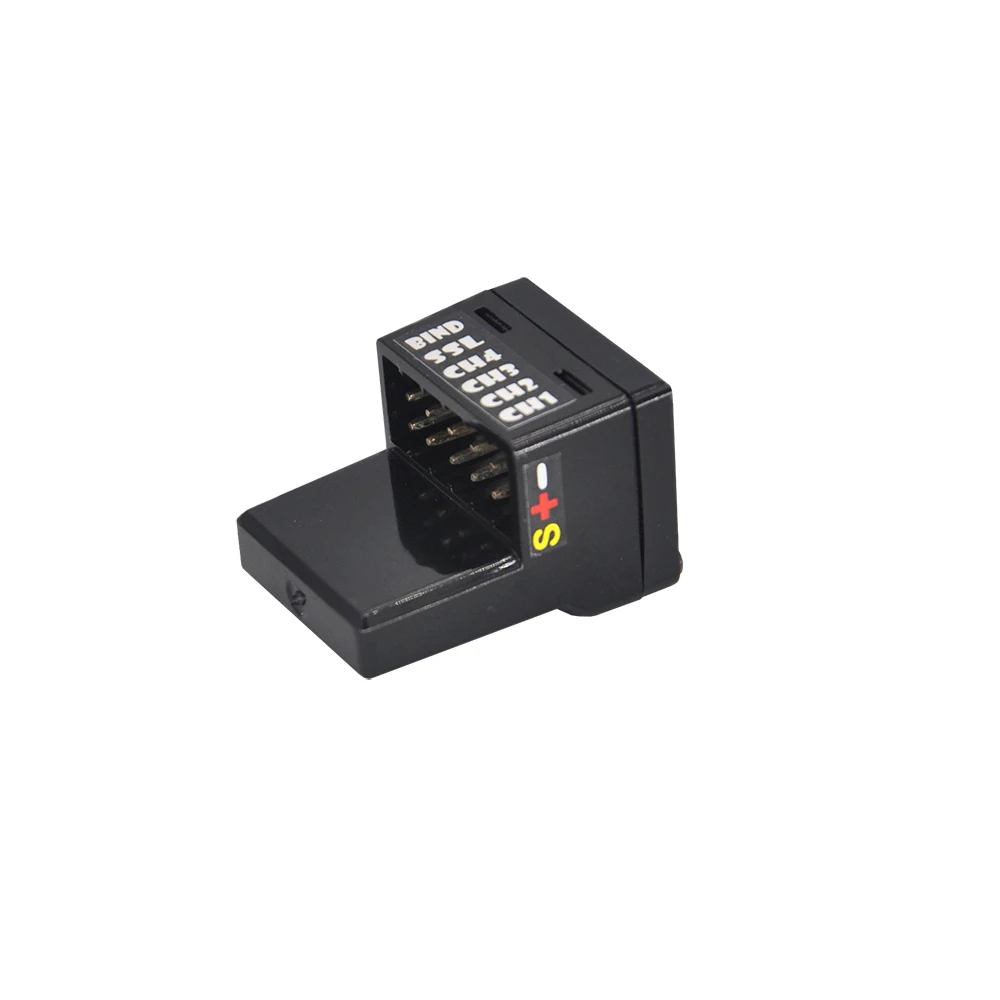

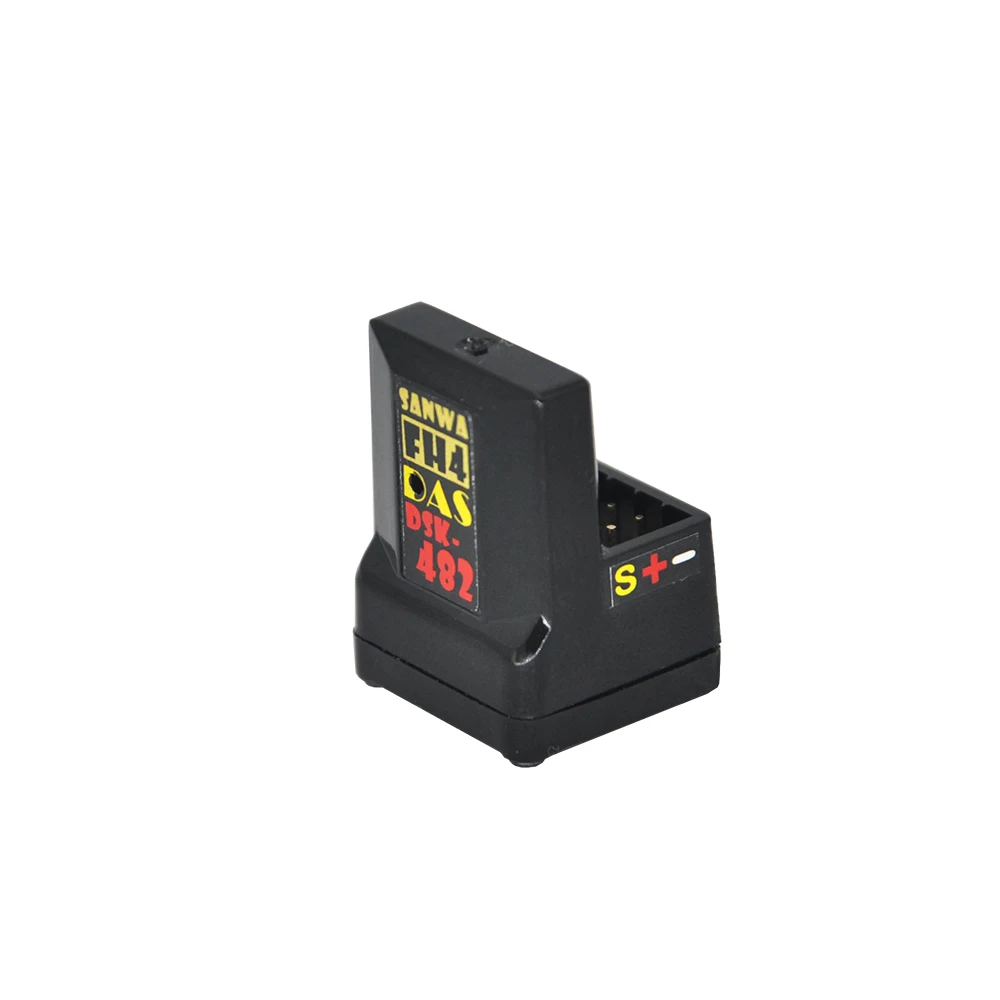

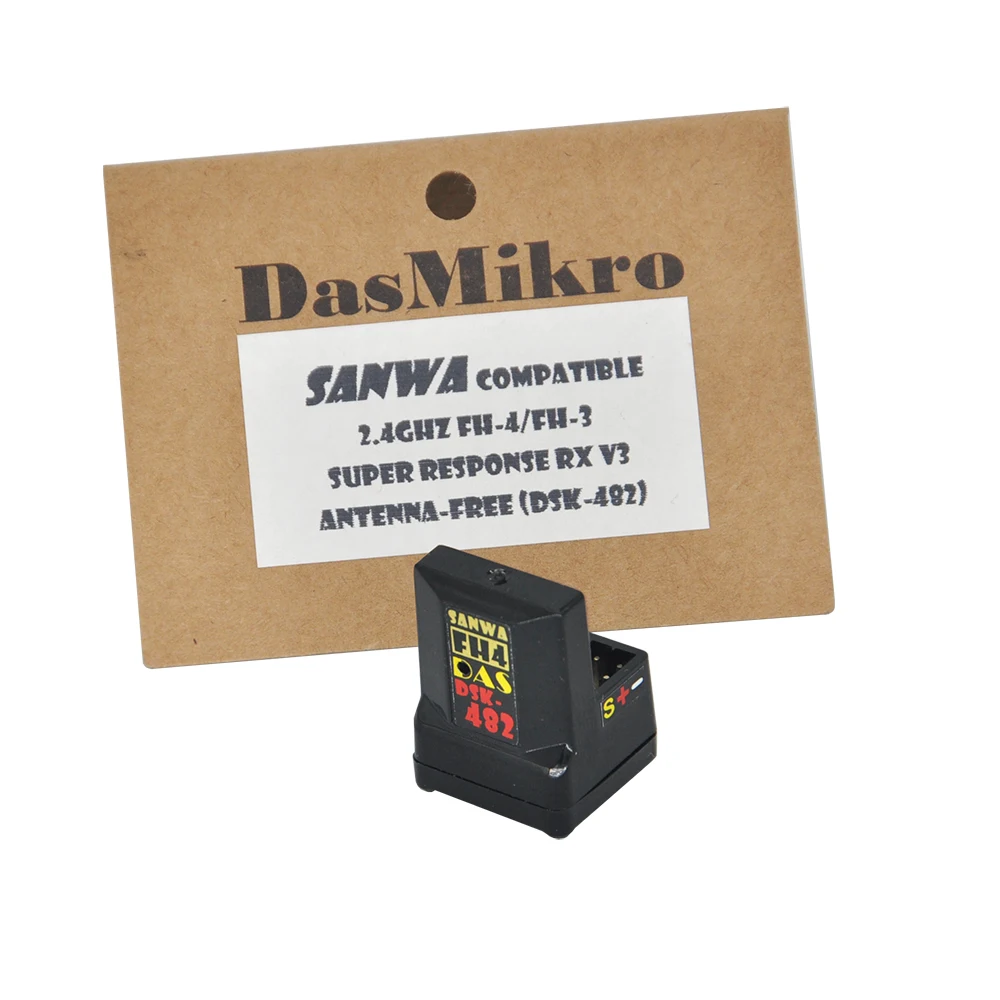

DSK-482 V3 Sanwa FH3 FH4 Compatible Receiver 2.4G FHSS-3 FHSS-4 4 Channel Surface Receiver For RC Racing

DSK-482 V3 Sanwa FH3 FH4 Compatible Receiver DasMikro 2.4G FHSS-3 FHSS-4 4 Channel Surface Receiver For RC Racing

THIS IS DASMIKRO SANWA ANTENNA-FREE RECEIVER VERSION 3

COMPARED TO VERSION 2, VERSION 3 HAS BELOW CHANGES:

1. CHANGED TO ULTRA SMALL AND SAMRT LOOK RX-492 STYLE HIGH QULITY RECEIVER BOX

2. IMPROVED GOLD-PLATED TERMINALS

3. IMPROVED PCB ATNENNA DESIGN

Description:

This receiver unit is Sanwa high speed FHSS-4 and FHSS-3 compatible

Compatible Transmitters:

Sanwa M17

Sanwa M12S

Sanwa M12

Sanwa MT44

Sanwa MT4S

Sanwa MT4

Sanwa M11X

Features:

1. Sanwa 2.4GHz FH3/FH4 Selectable Via Transmitter

2. High performance CPU enhance precision control feeling

3. 4 channel support

4. Micro size (Antenna-Free: 18.2x20.2x27.4mm)

5. Added failsafe function

6. Operating Voltage 3.5V - 8.4V

7. Weight: 5g

8. Battery Voltage Fail-Safe Limit: 3.5-5.0V (FH3) / 3.5-7.4V (FH4)

Binding procedure：

Step1. Select FH-4 or FH-3 protocol on transmitter and swith to bind page.

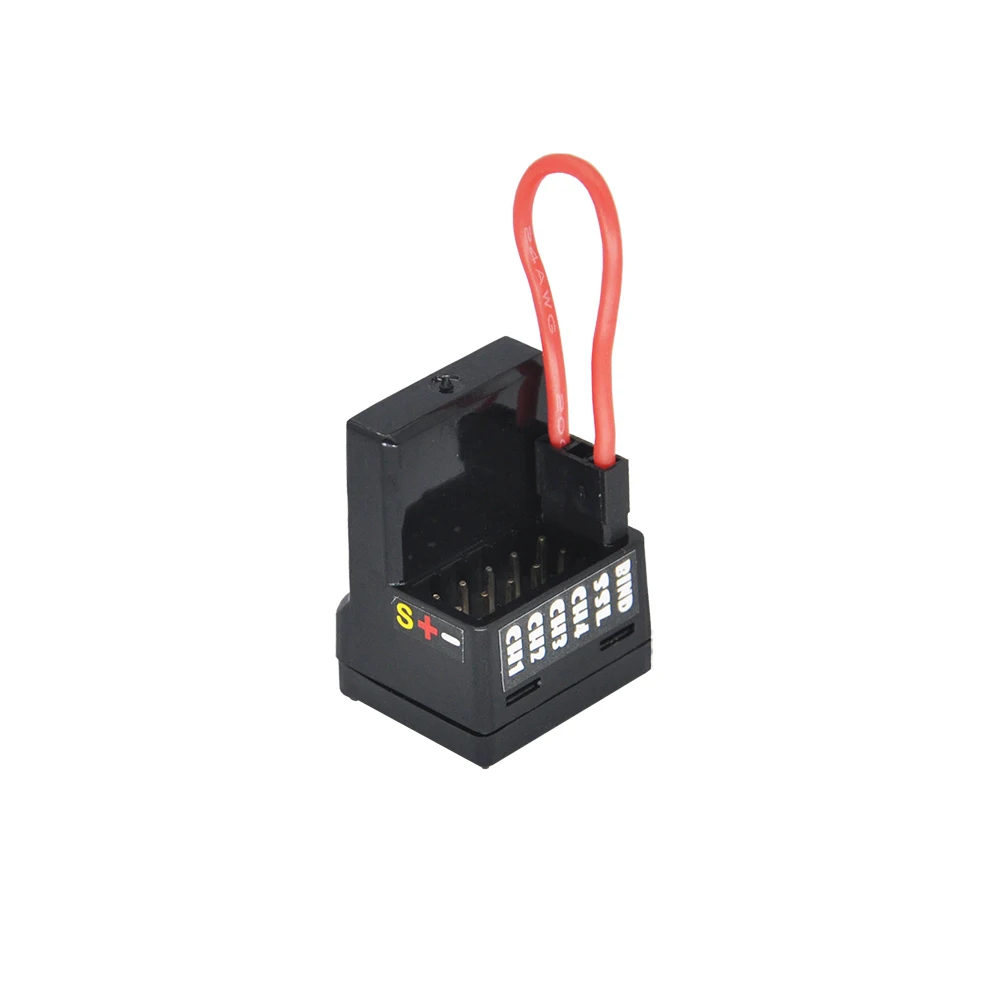

Step2. Plug the 'bind cable' onto the receiver then power on. The receiver should enter the binding mode for 10 seconds(the led will slowly flash for 10 seconds).

Step3. Operate 'bind' operation on transmitter while the receiver led is slowly flashing.

Step4. If you did not make the 'bind' operation on transmitter in 10 seconds(receiver led slowly flashing), go back to Setp2 and do it again.
