SURPASS HOBBY Combo 540 Brushed Motor 13T 17T 21T 23T 27T 35T 45T 55T 80T with 60A ESC for 1/10 RC Off-road Racing Car Truck

Combo 540 Brushed Motor 13T 17T 21T 23T 27T 35T 45T 55T 80T with 60A ESC for 1/10 RC Off-road Racing Car Truck

Features:

Brushed motor: compatible with 60A brushed ESC.

540: powerful and high RPM, suitable for most 1/10 RC off-road car.

CNC machhined billet T6 aluminum heatsink can;

Supports 7.4V input voltage.

Heat-resistance running motors: allow faster speeds, longer runtime, and extended motor life.

Motor Specifications:

Brand: SURPASS HOBBY

Model: 540

Outside diameter: 36MM

Total length: 57MM (without motor shaft)

Motor shaft length: 12MM Diameter: 3.175MM

No load current: 1.4A

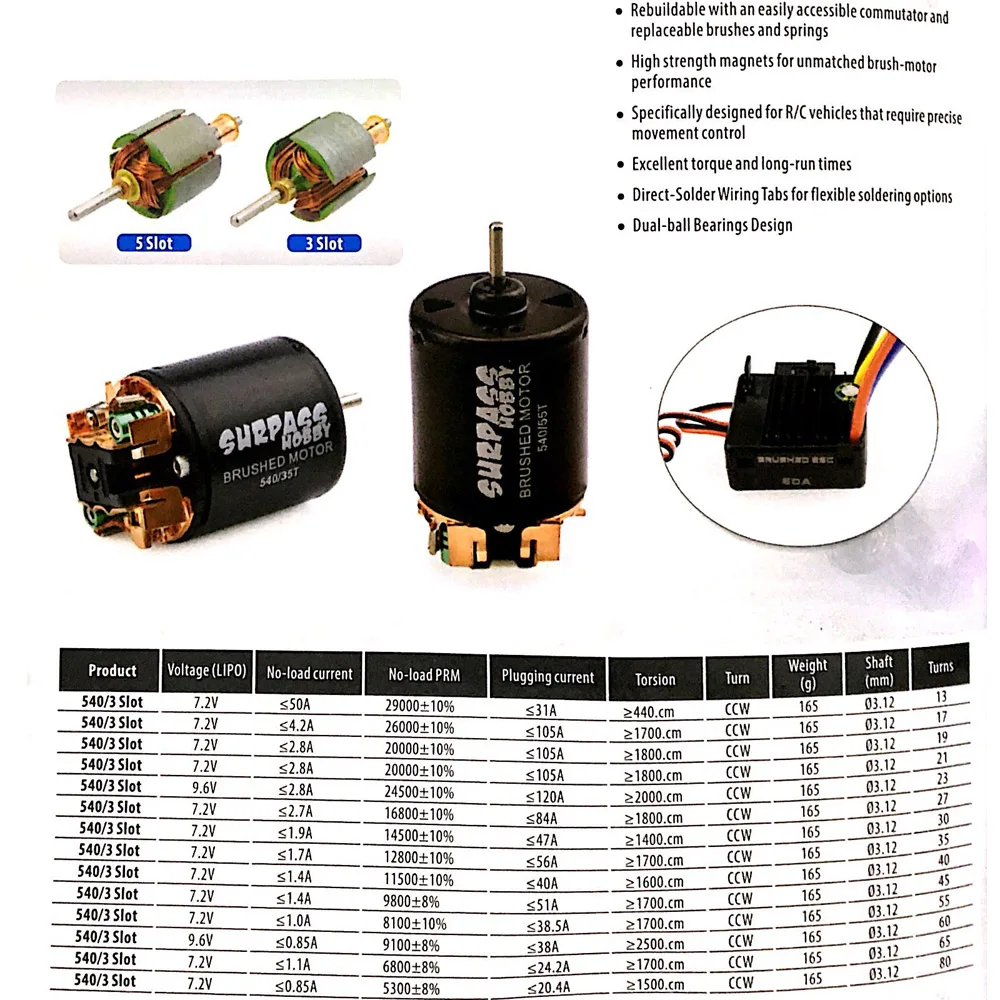

7.2V voltage no-load speed: 21T 20000rpm 27T 16800rpm 35T 12000rpm 45T 10000rpm 55T 8000rpm, 80T 5400 speed ± 10% rpm (run after 1 minute test)

The motor supports up to 12V. Suggested use 7.2-7.4V battery

Motor shaft diameter: 3.17MM

Type: 540 80T

Max voltage: 7.2V

Max current: 0.85A

RPM: 5400

Torsion :1800g.cm

No-load current : 0.85A

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 36mm

Motor length: 53mm

Type: 540 55T

Max voltage: 7.2V

Max current: 0.85A

RPM: 8000

Torsion :1700g.cm

No-load current : 1.0A

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 36mm

Motor length: 53mm

Type: 540 45T

Max voltage: 7.2V

Max current: 0.85A

RPM: 10000

Torsion :1700g.cm

No-load current : 1.4A

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 36mm

Motor length: 53mm

Type: 540 35T

Max voltage: 7.2V

Max current: 0.85A

RPM: 12000

Torsion :1900g.cm

No-load current : 1.7A

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 36mm

Motor length: 53mm

Type: 540 27T

Max voltage: 7.2V

Max current: 0.85A

RPM: 16800

Torsion :2000g.cm

No-load current : 2.7A

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 36mm

Motor length: 53mm

Type: 540 21T

Max voltage: 7.2V

Max current: 0.85A

RPM: 120000

Torsion :2100g.cm

No-load current : 2.8A

Screw hole: 4 * M3

Shaft dia: 3.175mm

Shaft length: 12mm

Motor dia: 36mm

Motor length: 53mm

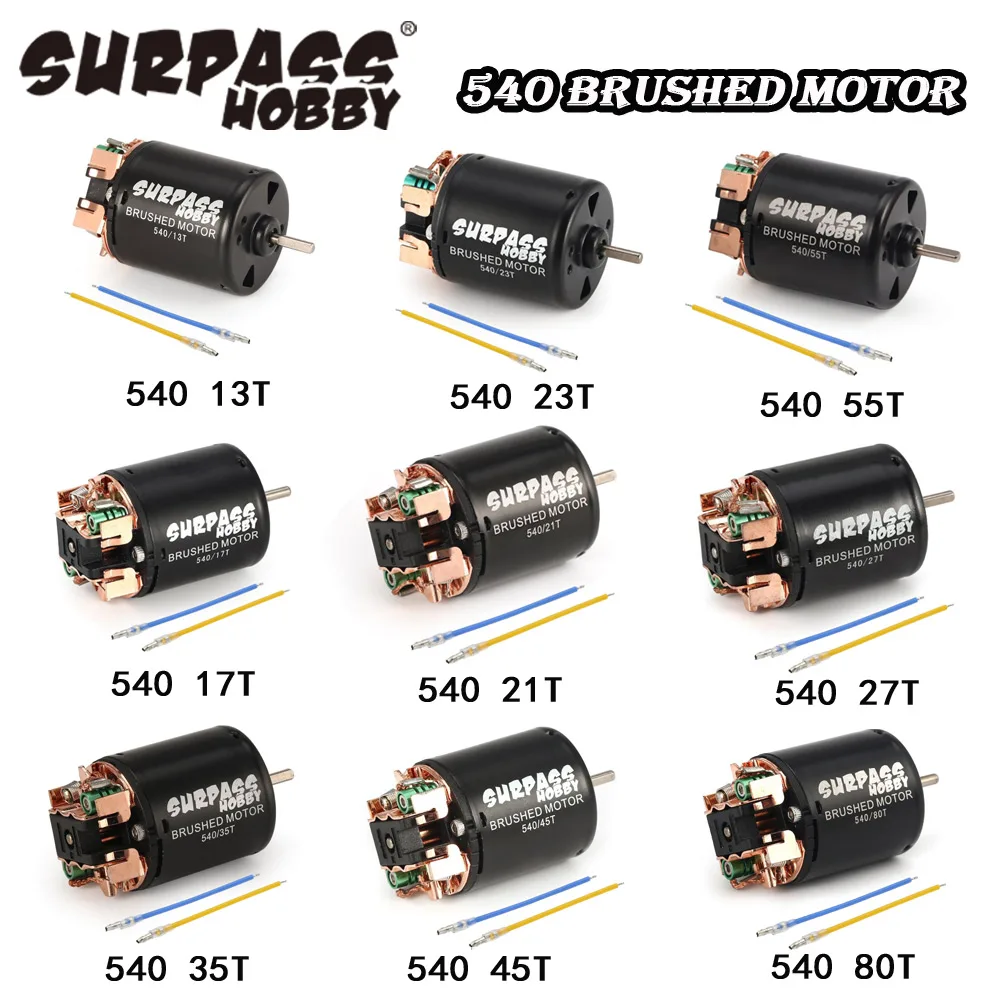

Recommended:

13T Brushed Motor for 1/10 Traxxas Ford F-150 RC Car

17T Brushed Motor for 1/10 On-road Drift Touring Racing Car Vehicle

21T Brushed Motor for 1/10 1/12 4WD RC Car

23T Brushed Motor for 1/10 On-road Drift Touring RC Car

27T Brushed Motor for 1/10 RC Car

35T Brushed Motor for 1/10 94123 On-road Driting Car

45T Brushed Motor for 1/10 Big foot Car

55T Brushed Motor for 1/10 Climbing Car

80T Brushed Motor for 1/10 Off-Road Rock Crawler Climbing Car

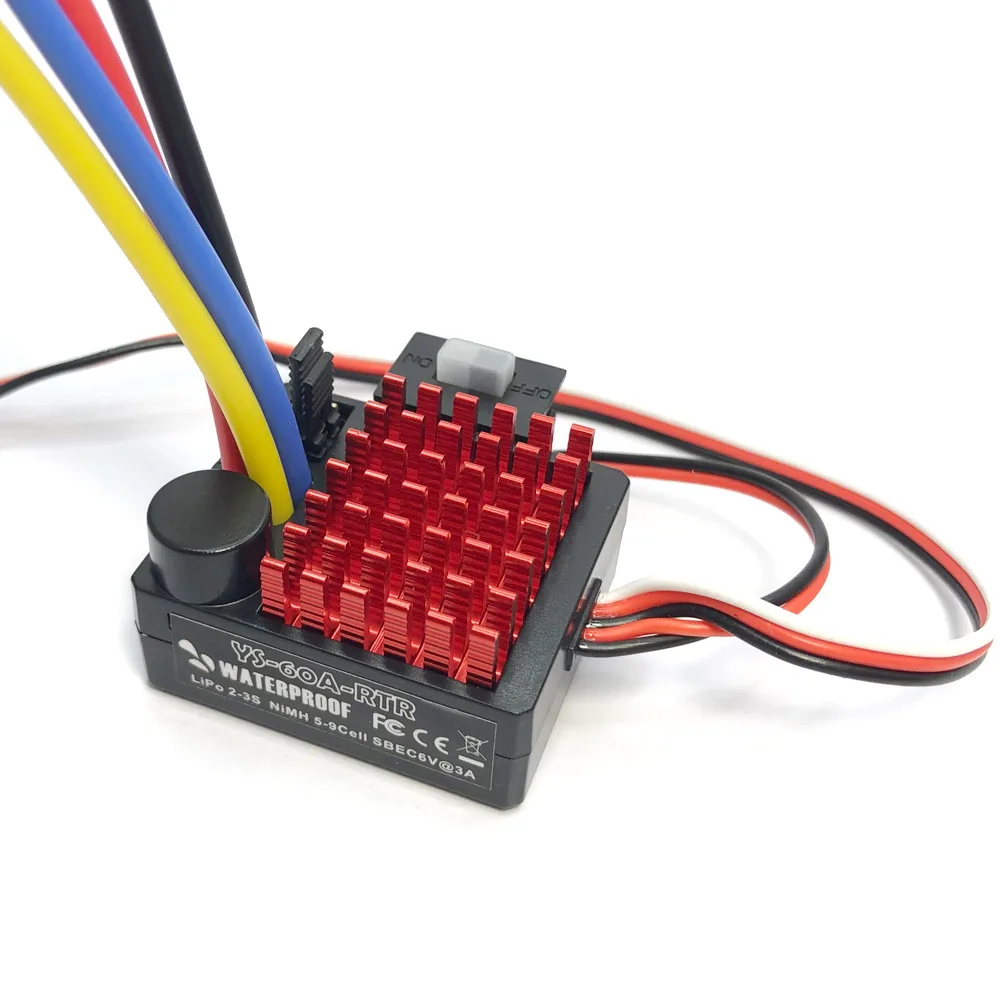

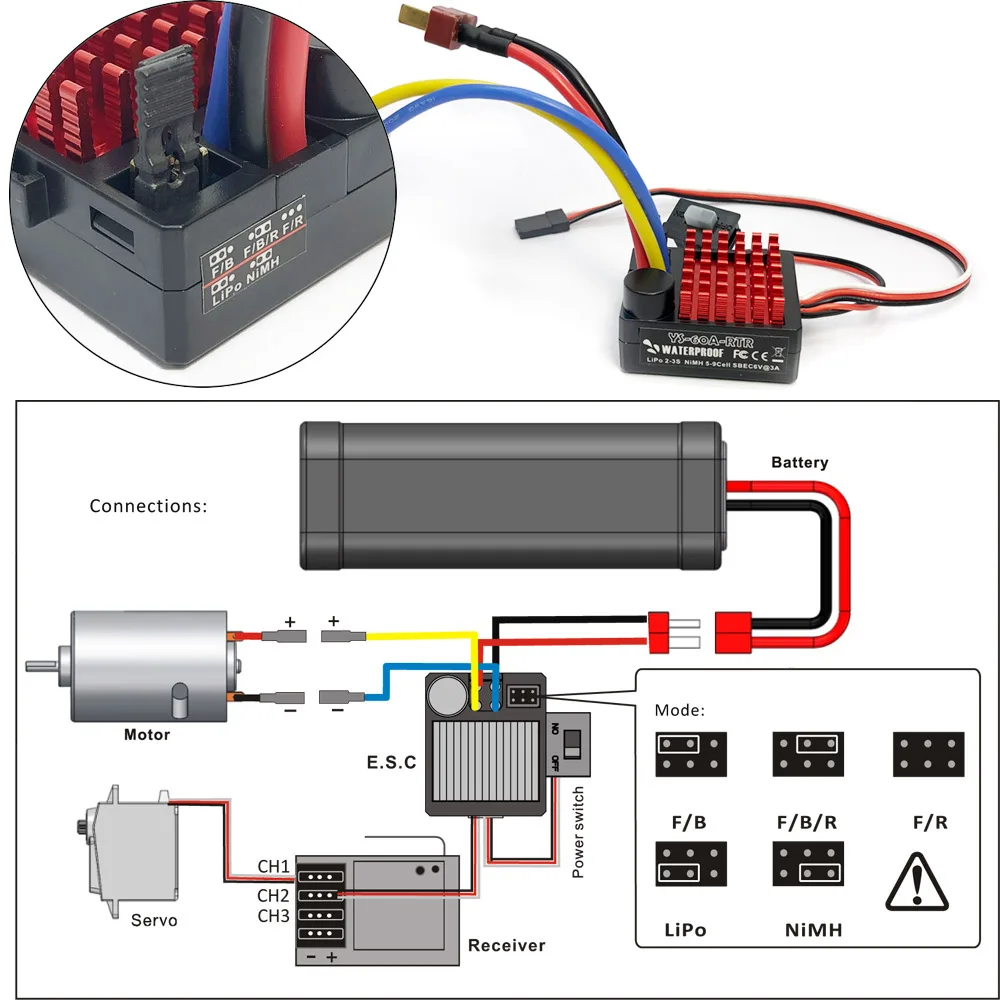

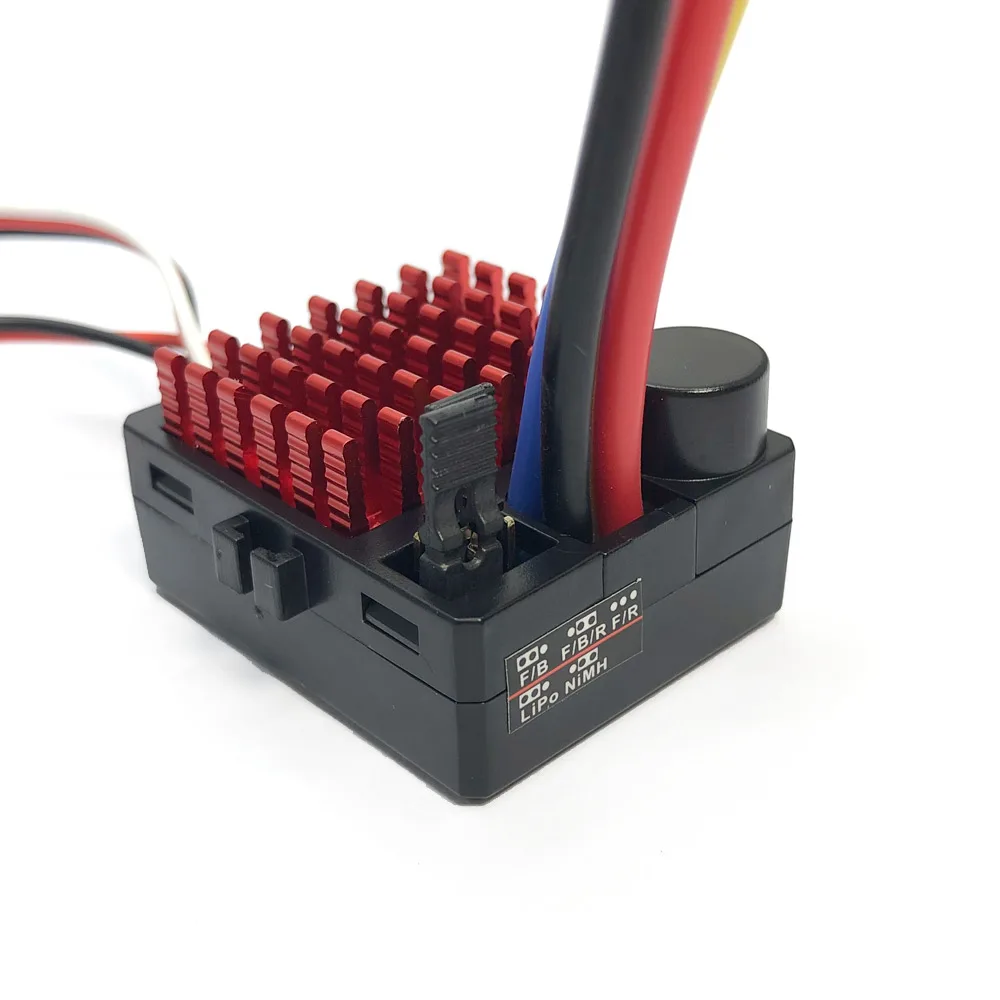

ESC Specifications:

Brand：YSIDO

Continous current: 60A

Burst current: 320A

Power Plug Type: T Plug/XT60 Plug/ Tamiya Plug

Power supply: 2~3S LiPo, 5~9S NiMh battery

BEC: 5V/2A

Item size: 37 * 32 * 20mm (without cable)

Iten weight: 38g

Note: please make sure the size of the motor is suitable for your car before purchase.

Suitable for:

1/10 RC Buggy,Truck, Monster and Crawler,such as Axial SCX10 RC4WD D90

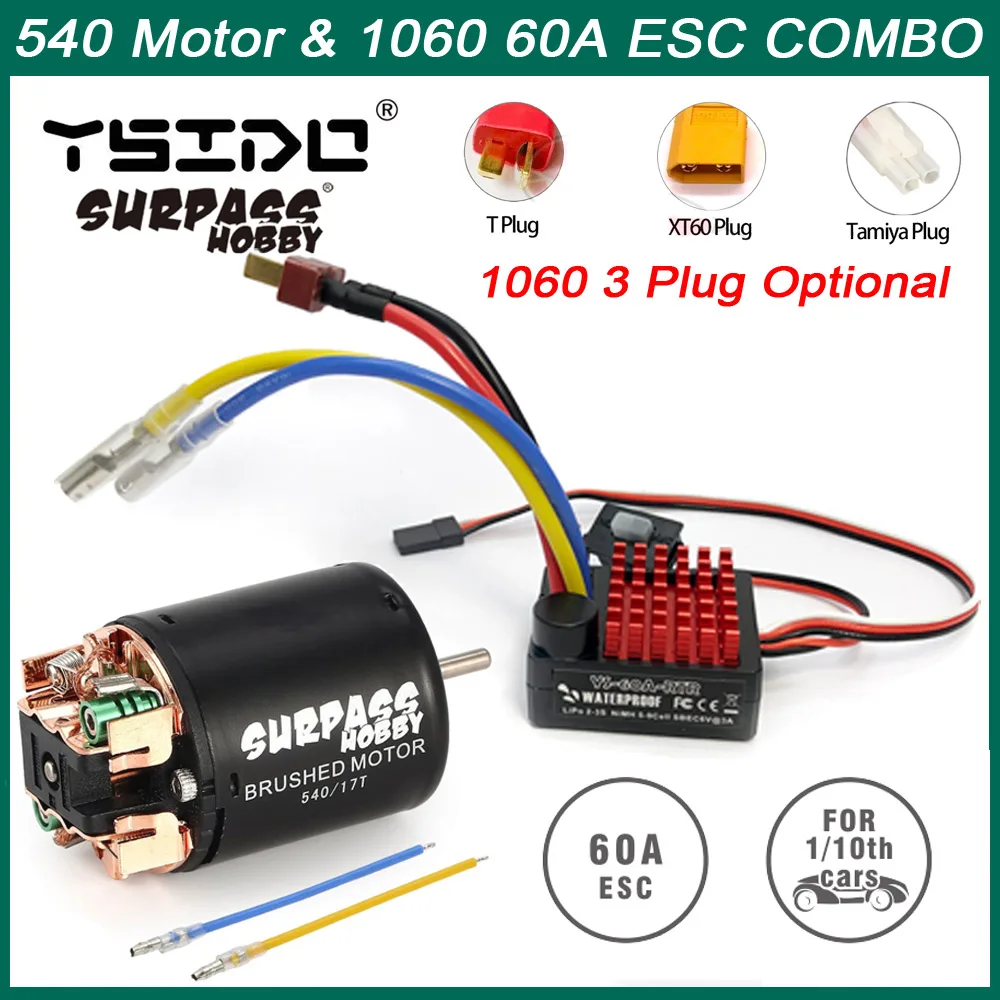

Package information:

Package size: 8.2 * 6.5 * 5cm / 3.2 * 2.6 * 1.9in

Package weight: 194g / 6.84oz

Package list:

1 * 540 Brushed Motor

1 * 60A Brushed ESC(T/XT60/Tamiya Plug Opional)

2 * Connecting Line
