IMAX B6 V3 80W 6A Battery Charger LiHv Lipo NiMh Li-ion Ni-Cd Digital RC Charger Lipro Balance Charger Discharger 15V 6A Adapter

Imax B6 V3 :

Input voltage DC:11-18V

Charge current 0.1-6.0A

Discharge current 0.1-2.0A

Charge power Max.80W

Discharge power Max.5W

Balance current 200mA

Charging Capability Li.Po,LiHv,Li.lon,Li.Fe:1-6cells

NiCd,NiMH:1-15cells

Pb battery voltage 2-20V

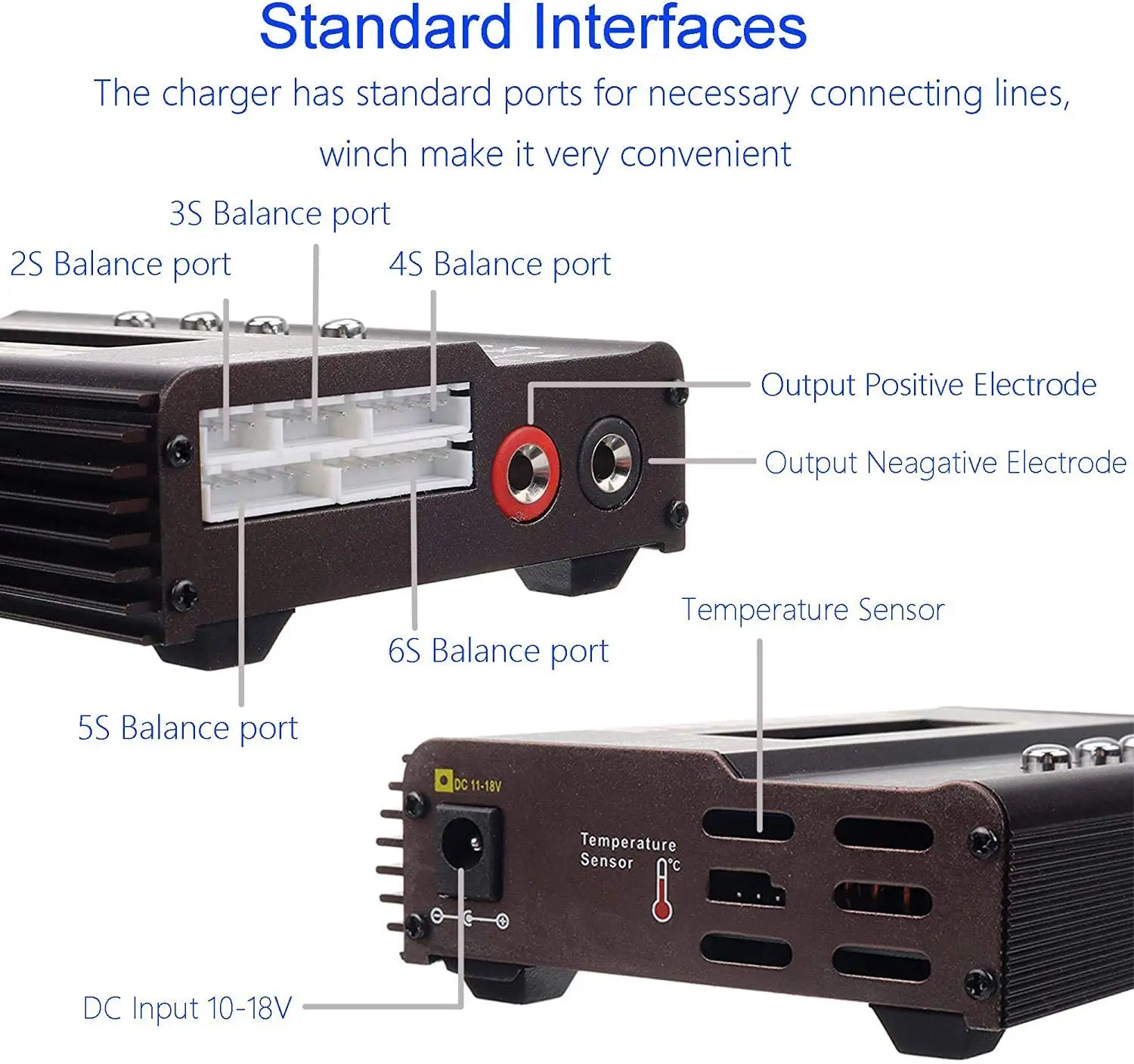

Temperature sensor port :Yes

Built-in balance :Yes

Dimensions 135*86*32mm (L*W*H)

B6 V3 is an upgrade version of imax B6.It is a digital intelligent multi-functional charger which support LiPo/LiIon/LiFe/NiCd/NiMH PB batteries,high power battery LiHV and smart battery I,II,III. Max charger power 80W,discharger power 5W, max charge current 6A discharger current 2A with high charging efficiency.

Functions:

-Microprocessor controlled

-High-Power and high-performance circuit.

-Automatically identify the cells counts of lithium battery section.

-Check lithium battery internal resistance.Let you know when a cell is going bad.

-Support LiHV battery

-Support smart battery I,II,III.(need optional smart battery charging cable)

-Maximum Safety: Low Input Voltage setting. Capacity limit, processing time limit, Temperature Threshold.

-Terminal Voltage Control.（The charge termination voltage can be set according to the actual situation to protect the battery.）

-Individual cell balancing, cell voltage Monitoring

-Data storage and loading (Store up to 20 packs in memory)

-Battery break in and cycling

-Digital Power

- Always Balance-Charging For LiPo Battery Packs: when charging any of these LiPo packs, Always use the balance charge mode & use the balance connector/board.

- NOTE: Only supports Li-Ion & LiPo RC battery packs that has a balance connector. DO NOT charge any battery packs without a balance plug!

** Ignoring these WARNINGS could result in fire or personal/property damages **

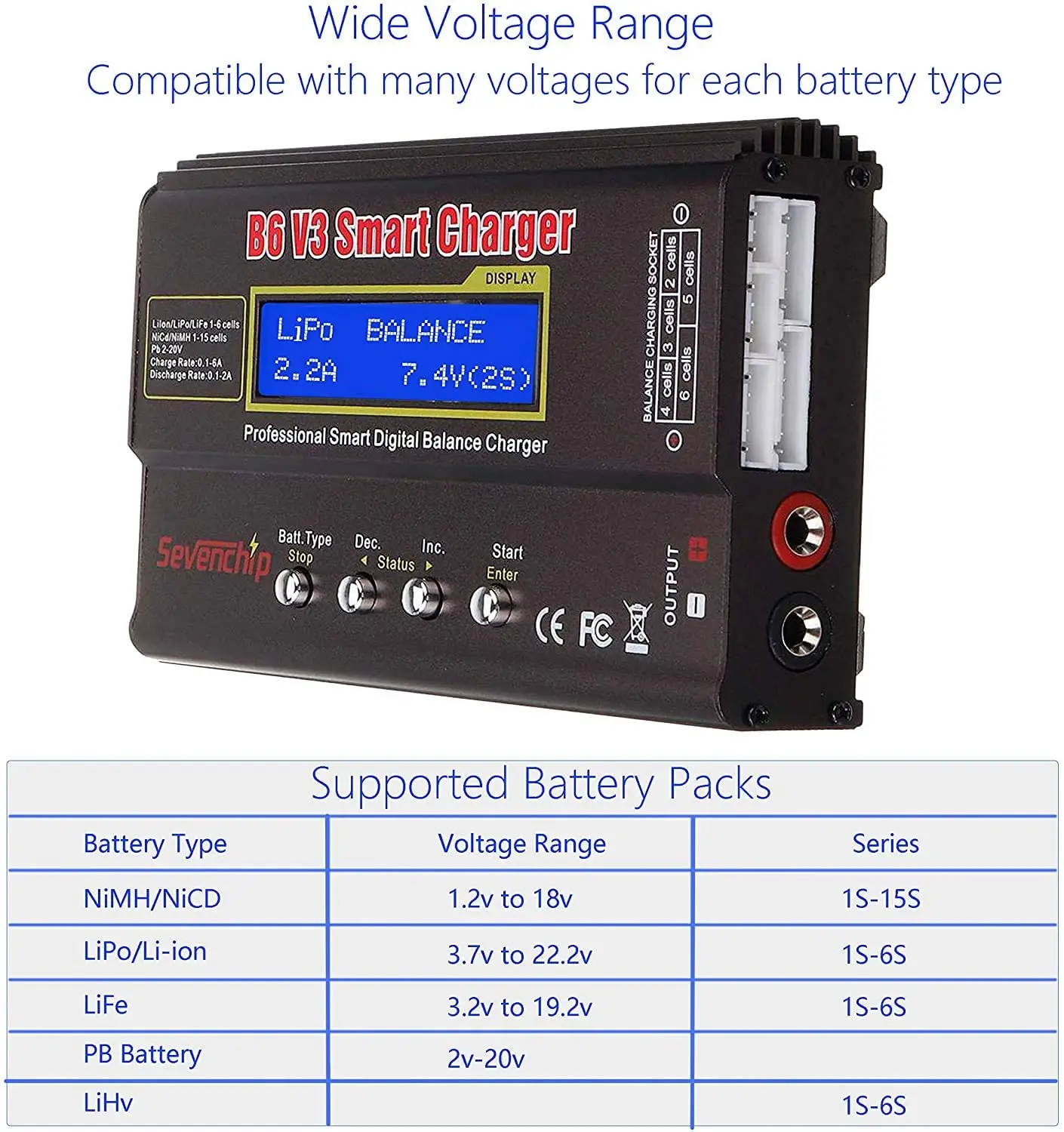

Universal Voltage Compatibility Compatible with

1.2V-18V NiMH/NiCD batteries (1-15 Cells)

3.7V-22.2V LiPo/Li-ion batteries (1-6 Cells)

3.2V-19.2V LiFePO4 batteries (1-6 Cells),

4.35V -26.1V LiHV batteries (1-6 Cells)

2V-20V PB batteries.

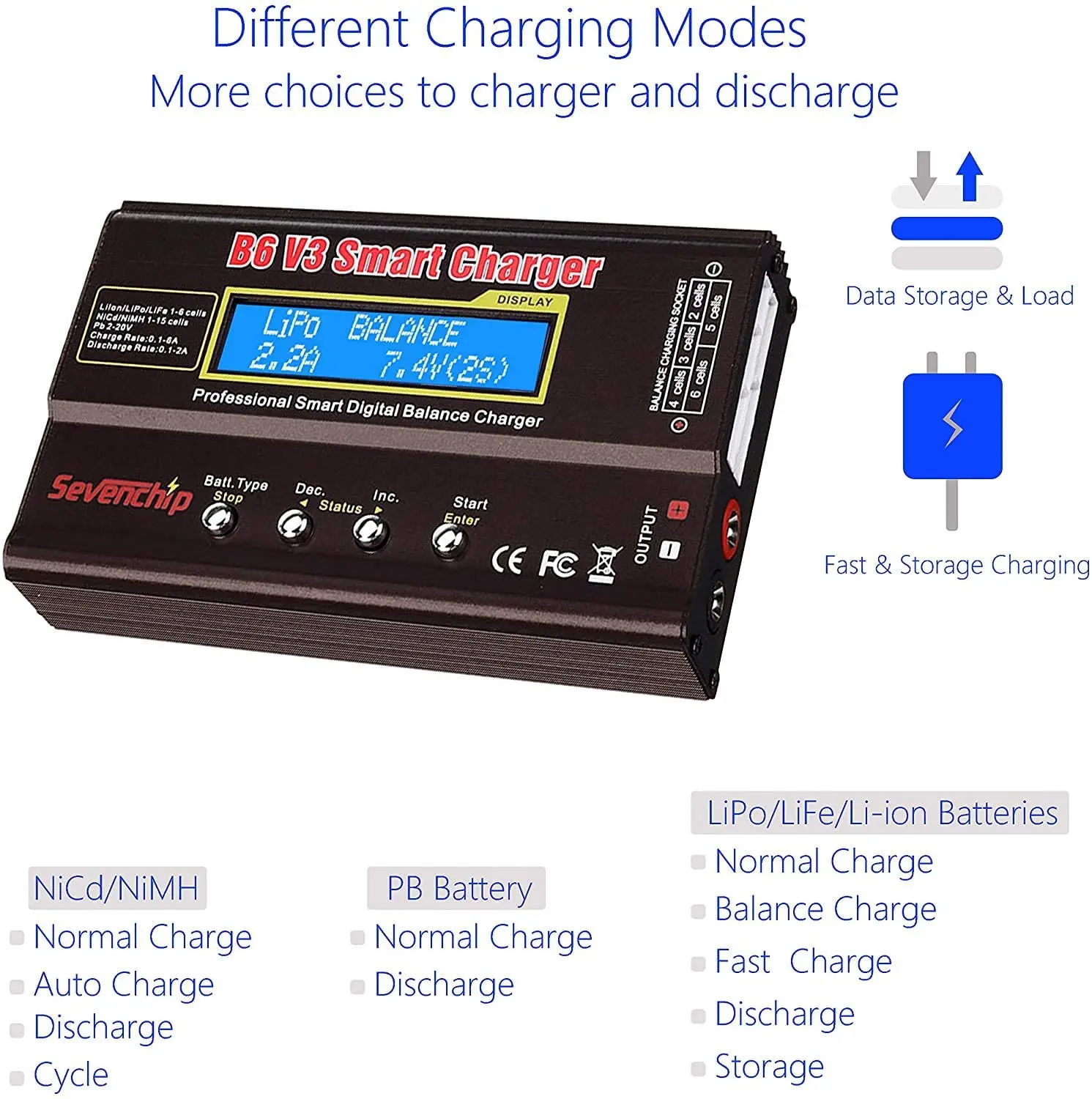

Multiple Functions

the battery charger is built in an independent Lithium Battery Balance to monitor and balance each battery cell, and it has Fast & Storage Charging function, Data Storage & Load function, Cyclic Charging & Discharging function.
