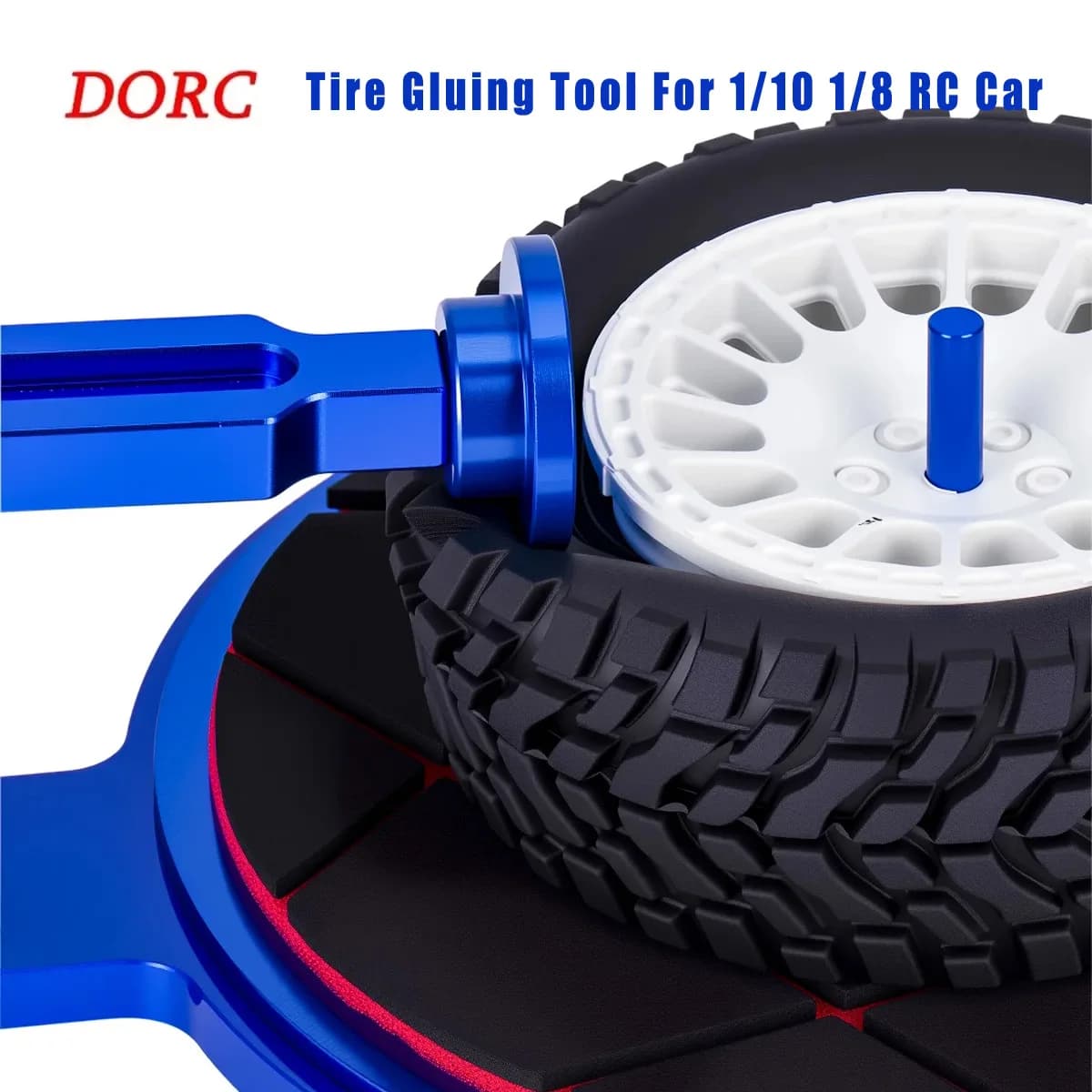

Wheel Tire Glue Helper Tool for 1/10 1/8 RC – Cementing Station for On-Road Off-Road Drift Upgrade Parts

Wheel Tire Glue Helper Tool for 1/10 1/8 RC – Cementing Station for On-Road Off-Road Drift Upgrade Parts

Features:
① 100% High Quality – Premium-grade materials for reliable performance and durability.
② Versatile Tire Compatibility – Perfectly adapts to on-road, off-road, and drift tires in 1/8 and 1/10 scale.
③ Fitment – Compatible with all tires with a diameter of less than 40mm.

Specifications:
Material：Aluminum Alloy
Center Column:4/5/12mm OD
Weight:277g/Set

Package List:
1Set Tire Gluing Tool

Instructions for Use:
Slide the top wheel press unit to the right.
Align the center hole of the tire with the central column of the adhesive applicator.
Lower the tire into place.
Slide the wheel press unit back to the left and apply pressure to the tire surface.

Adjustment Guide:
This product offers three types of adjustments:
Fore/Aft Adjustment of Wheel Press: Use a 2mm hex key to loosen the top screw on the wheel press, allowing you to adjust its position forward or backward.
Height Adjustment of Pressure Wheel:
To lower the pressure wheel: Loosen the locking nut and turn the screw clockwise.
To raise the pressure wheel: Turn the screw counter-clockwise.
To secure the height: Tighten the locking nut by turning it clockwise.   Loosen it counter-clockwise to readjust.
Tire Center Column: Three different central column specifications are available to accommodate connector apertures of 4mm, 5mm, and 12mm."
