Presale Super High Speed CNC Steel Cut 40Cr Series Tactical Gear Set 12:1/13:1/16:1/18:1 for Version 2/3 Gearbox

PRODUCT DISPLAY

18:1 ▶ 16:1 ▶ 13:1 ▶ 12:1 ▶ SR25 ▶ DSG (9:1)

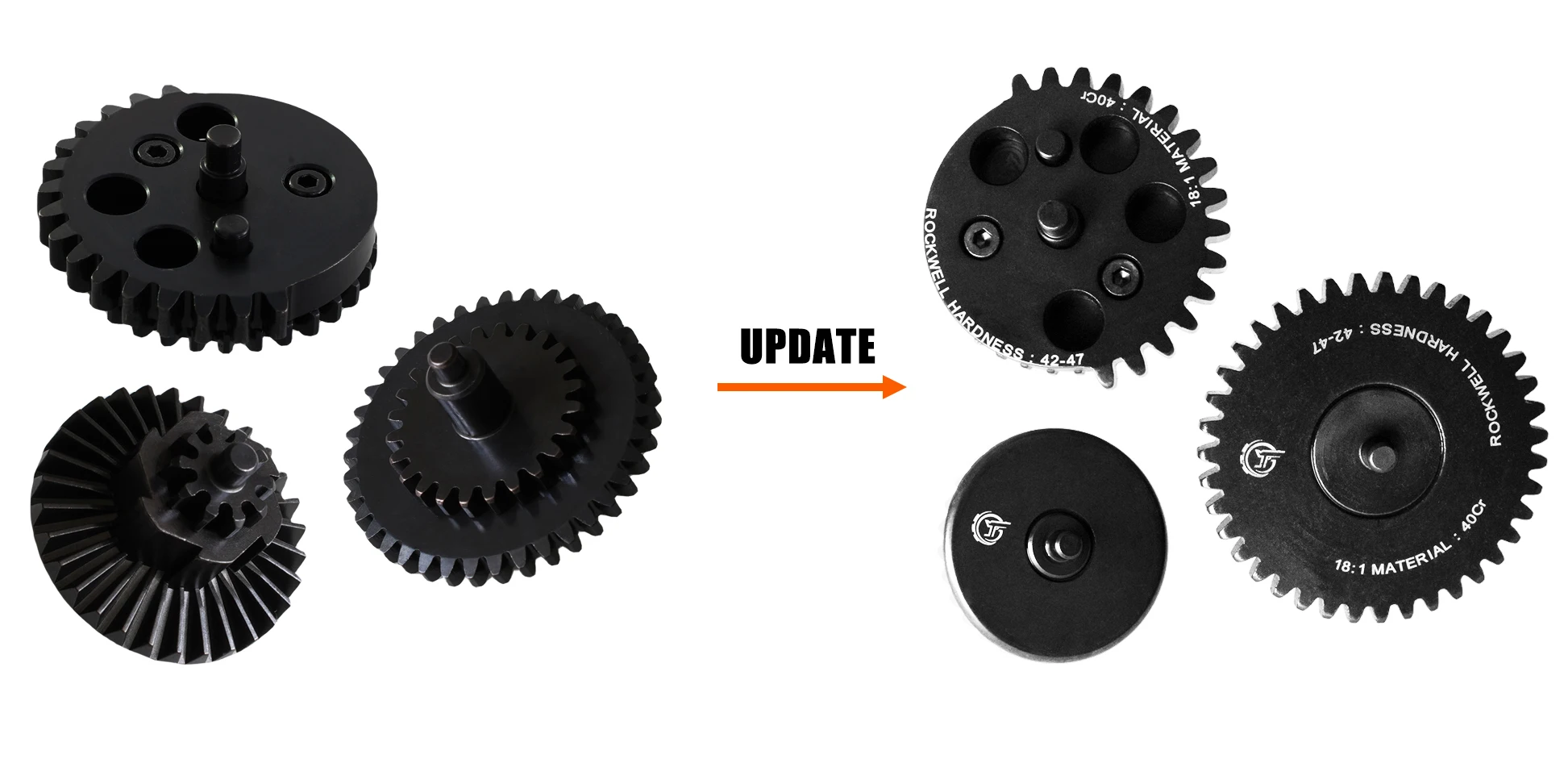

GEAR SET UPDATE

UPDATE

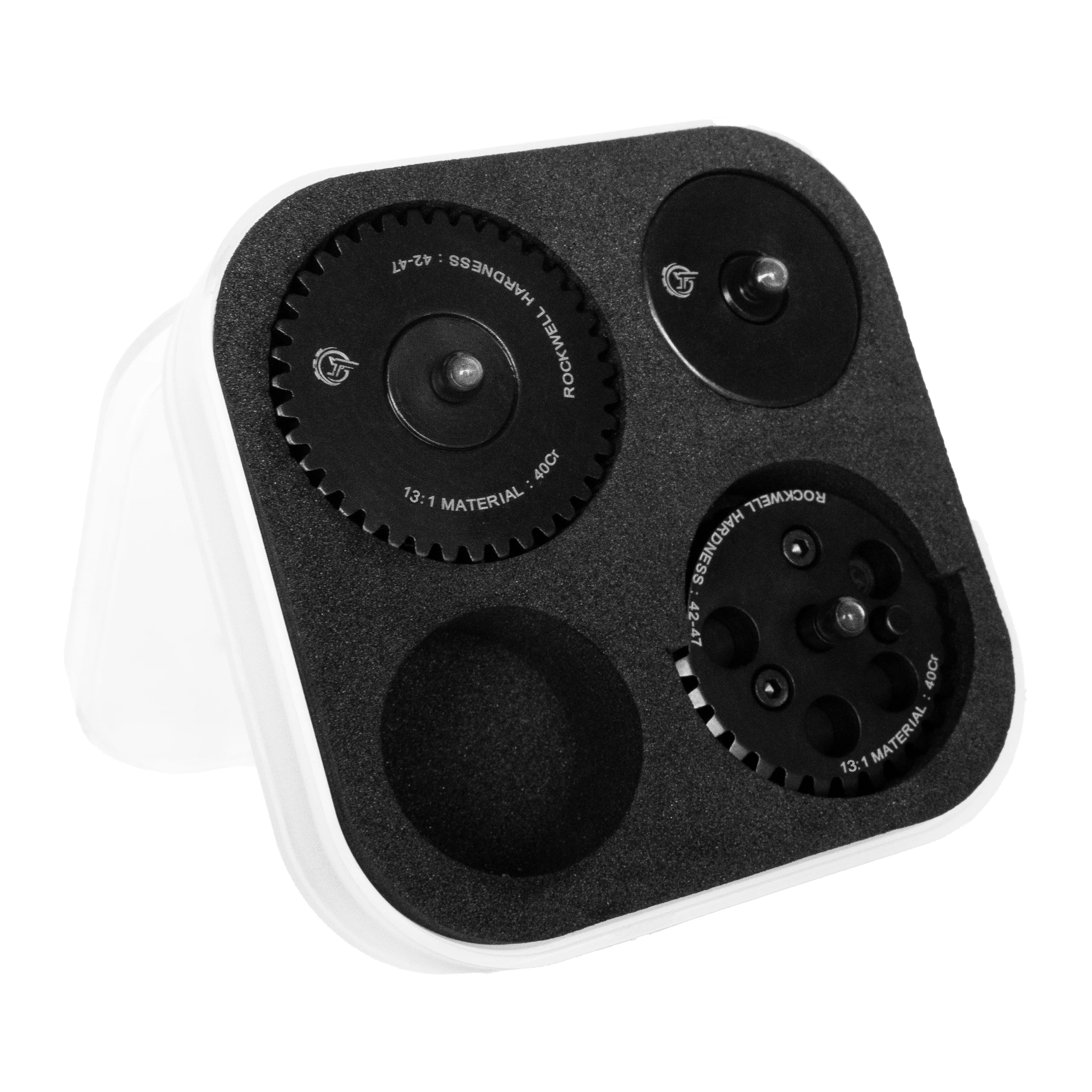

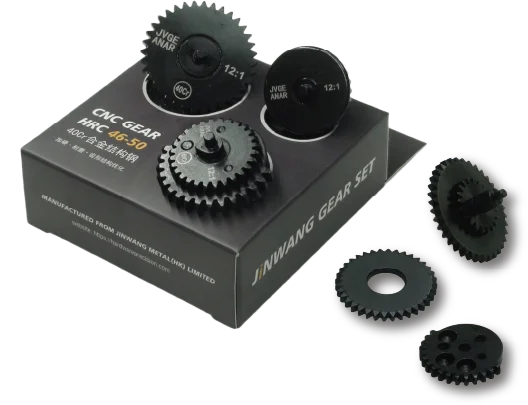

1. The logo and packaging box have been changed

2. The number of holes in the sector gear with a diameter of 5mm has been updated from 3 to 4

3. The Bevel Gear shaft has been changed to a new customized tooth shape, with a thicker tooth width and greater torque resistance
-------------------
4. The material has been upgraded from 40Cr to 42CrMo, making the gear stronger

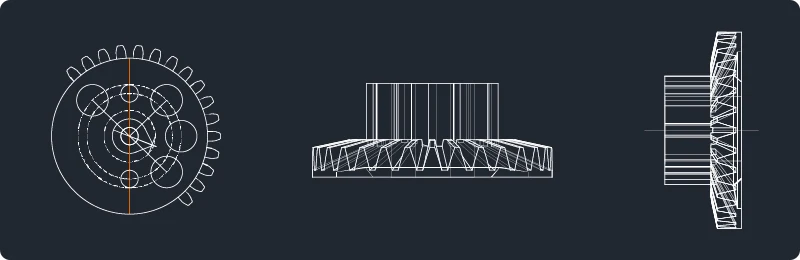

CNC GEAR

PRECISION GEAR

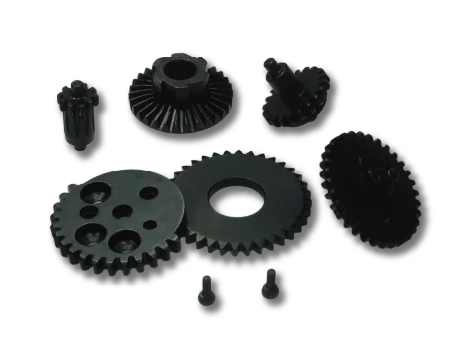

Our gears are made of high-quality 40Cr steel raw materials (except for the bevel gear part), which are formed by precise CNC machining. Equipped with professional equipment such as high-precision gear hobbing machine and gear profiler to ensure high-precision manufacturing of gears. The bevel gear part is injection gear, and the center shaft gear is 40Cr steel cutting gear, which is hardened to HRC42-47 through heat treatment process to ensure the durability and hardness of the gear in high-speed operation. Currently, CNC bevel gears and motor gears are being produced to further improve the quality and performance of the products.

GEAR SET DIFFERENCES

▼ Original

▼ The New

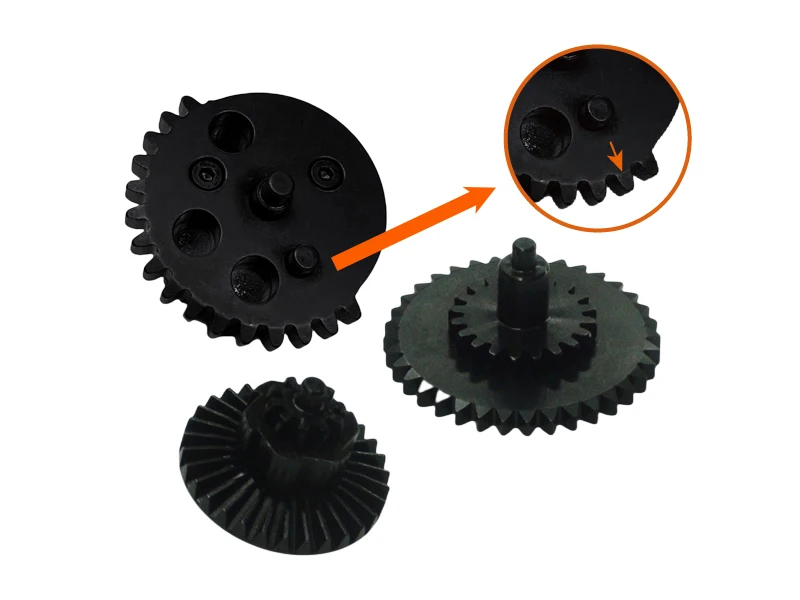

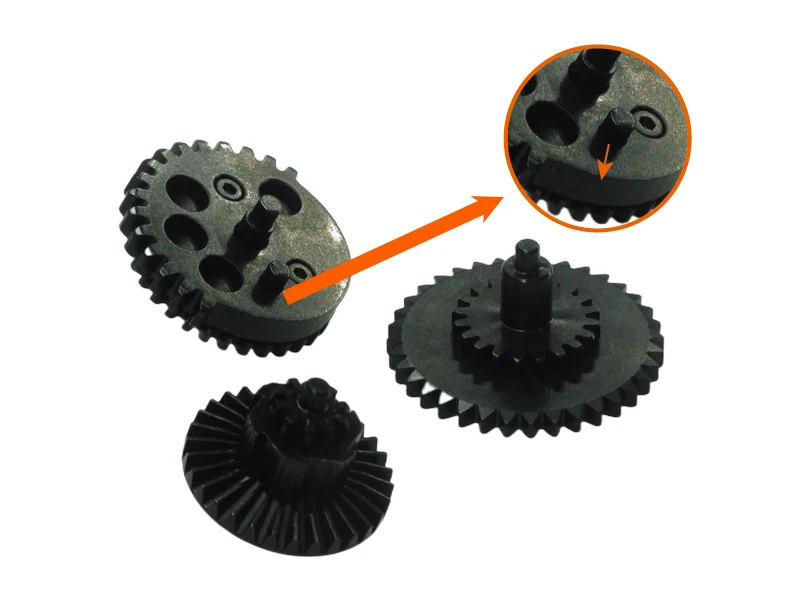

The newly modified gear moves the position of the column to achieve the effect of not reducing the initial speed

GEAR RATIO

PRECISION

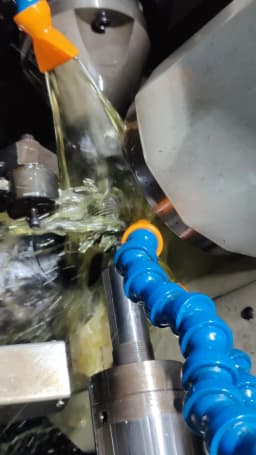

High-precision CNC turning, milling and corresponding modulus hobbing cutter processing tooth profile

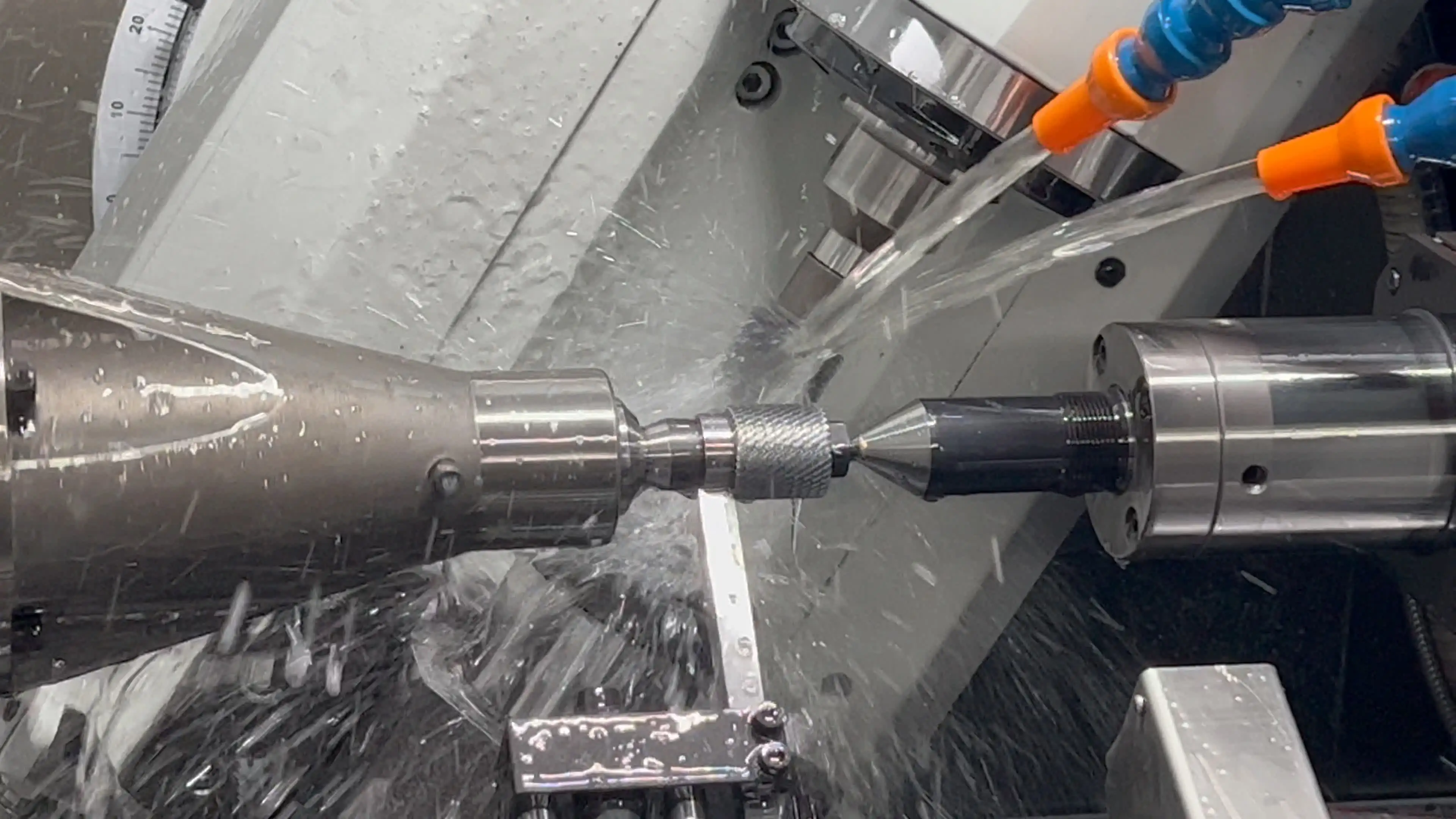

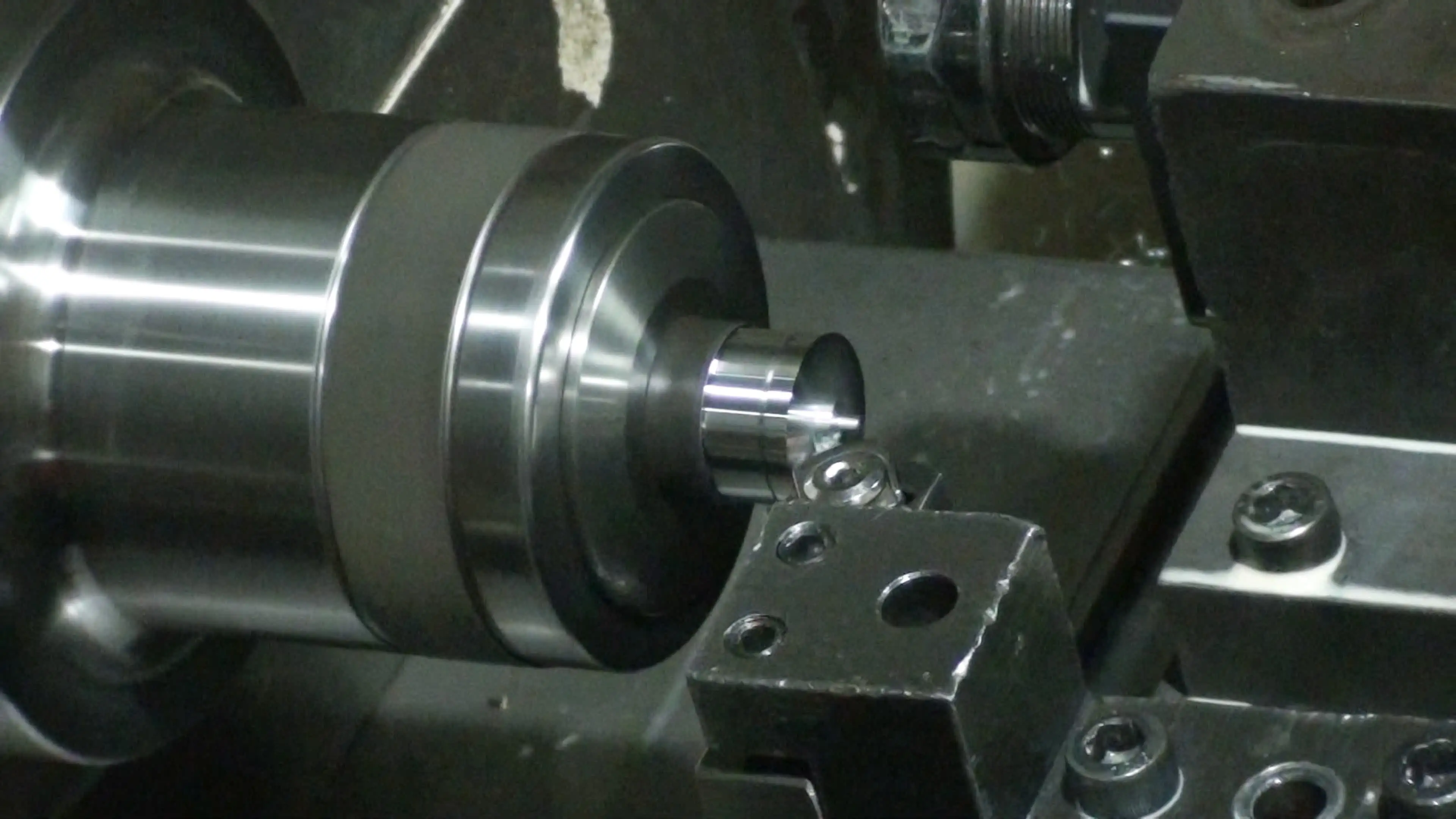

▶ CNC TURNING

▶ GEAR HOBBING

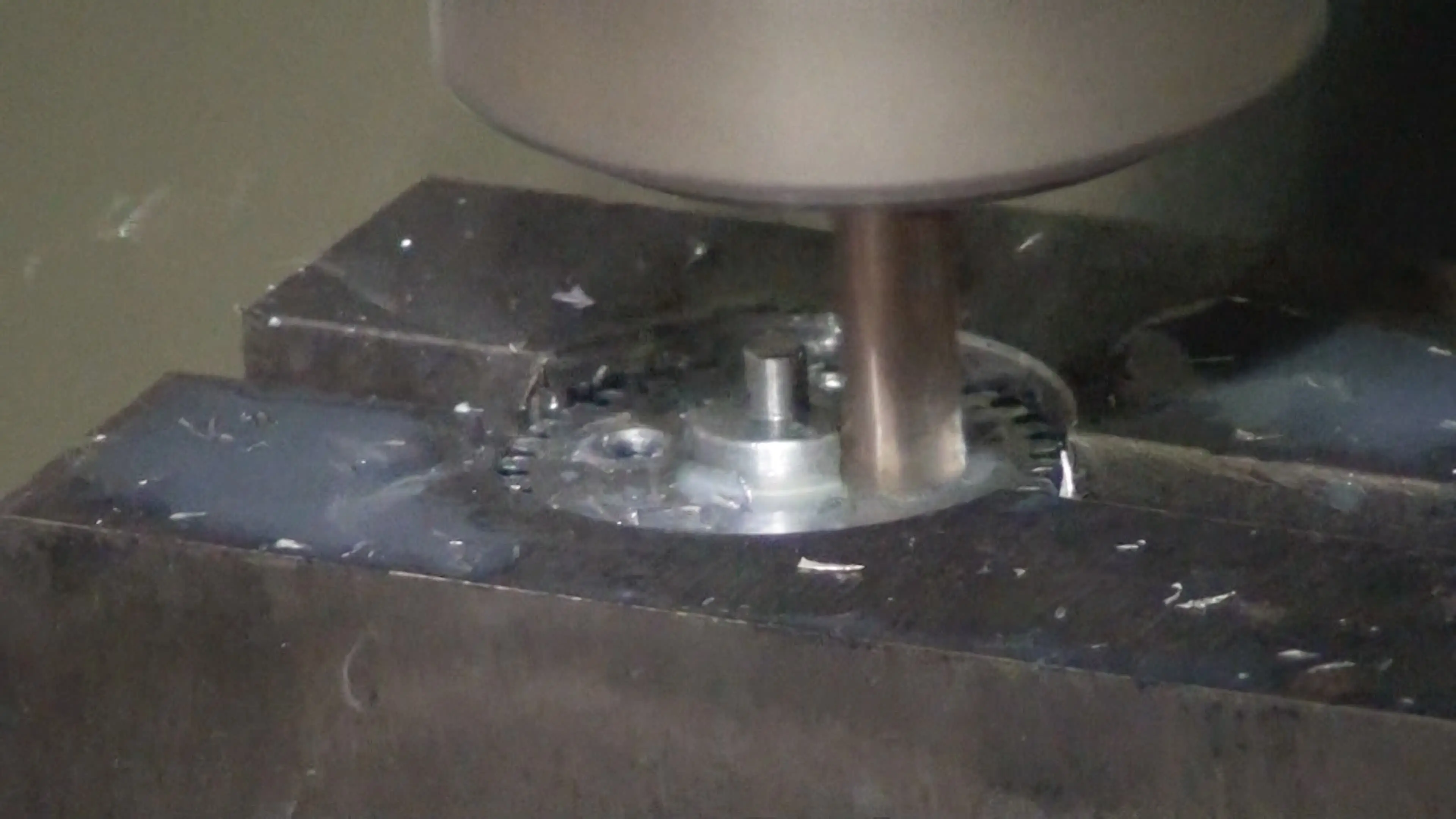

▶ CNC MILLING

STABILITY & RELIABILITY

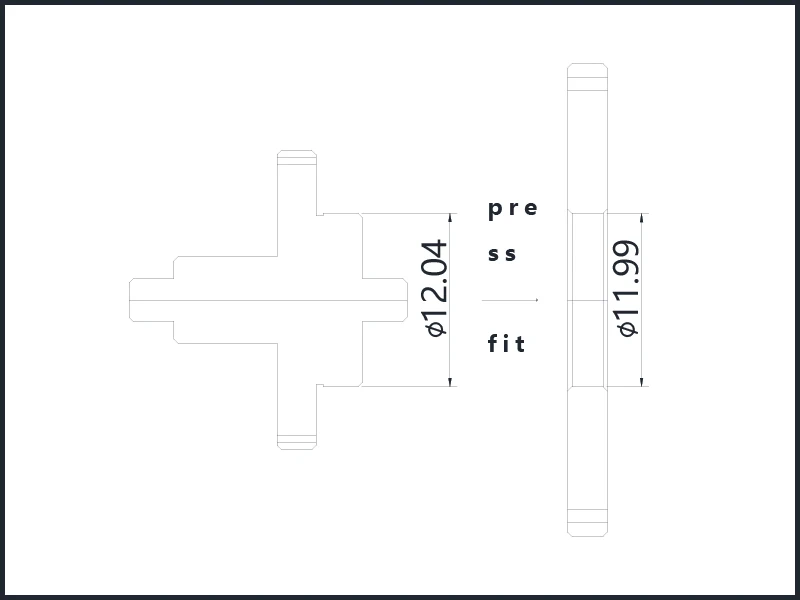

The gear shaft and the gear piece adopt an interference fit of 0.05mm, and the purpose of tight connection is achieved through the press-fitting method. In actual production, only by strictly controlling the tolerance can the quality, stability and reliability of the gear connection be guaranteed. Too large or too small will affect the service life of the gear in high-speed operation, and seriously cause the gear shaft and the gear to separate.

FOR EXAMPLE:

NEED MORE DISCOUNT ?

Are you an Workshop, Wholesaler, Retailer?

Do you want to make yourown brand of gear accessories?

If you have a large demand, please contact us immediately.

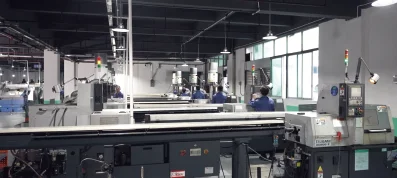

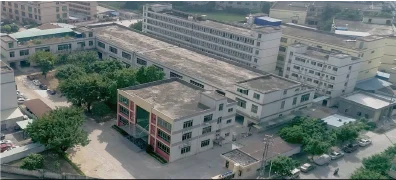

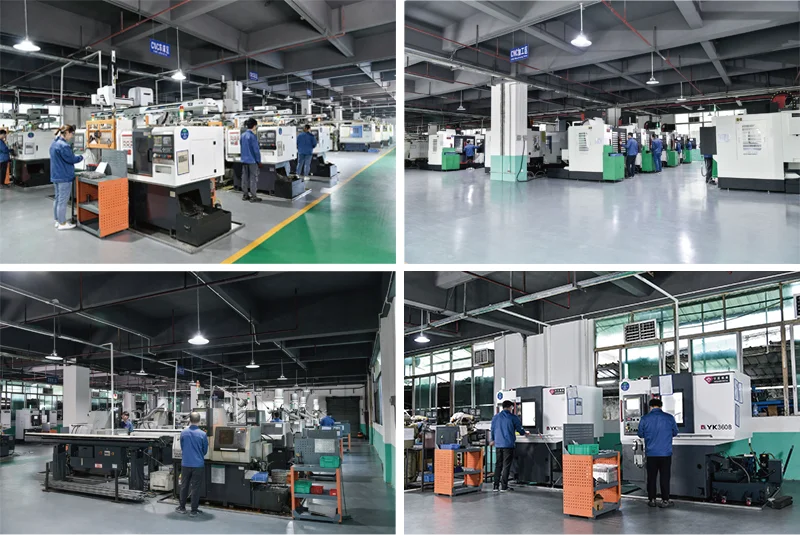

We are a professional CNC precision manufacturing factory with precision gear processing equipment, and packaging customization for gear sets, cylinder heads, bushings, etc..

Don't worry about the price and quality, we produce more than 5000-10000 sets of gears per month and provide them to assembly factories.

We are your reliable partner, and we also provide more discounts and services.

Believe that we can bring you cost-effective products, please contact me immediately! !

HARDNESS & DEMAGNETIZING

Made of 40Cr material
Hardness: HRC42-47

Made of 40Cr material
Hardness: HRC42-47

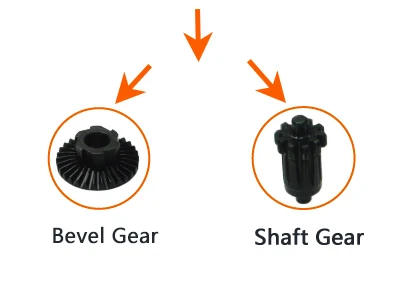

The bevel tooth part: injection tooth

Hardness: HRC42-47

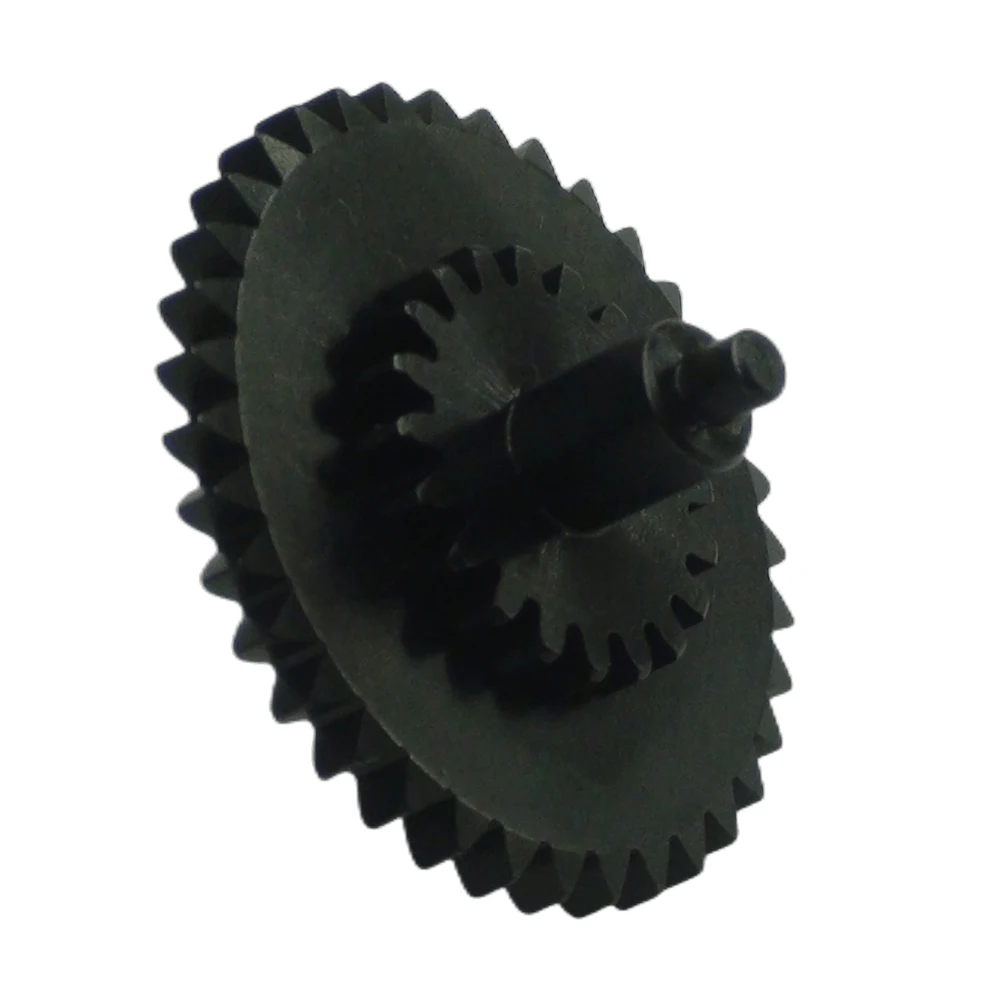

Central shaft gear: CNC 45# Steel

Hardness: HRC40-42

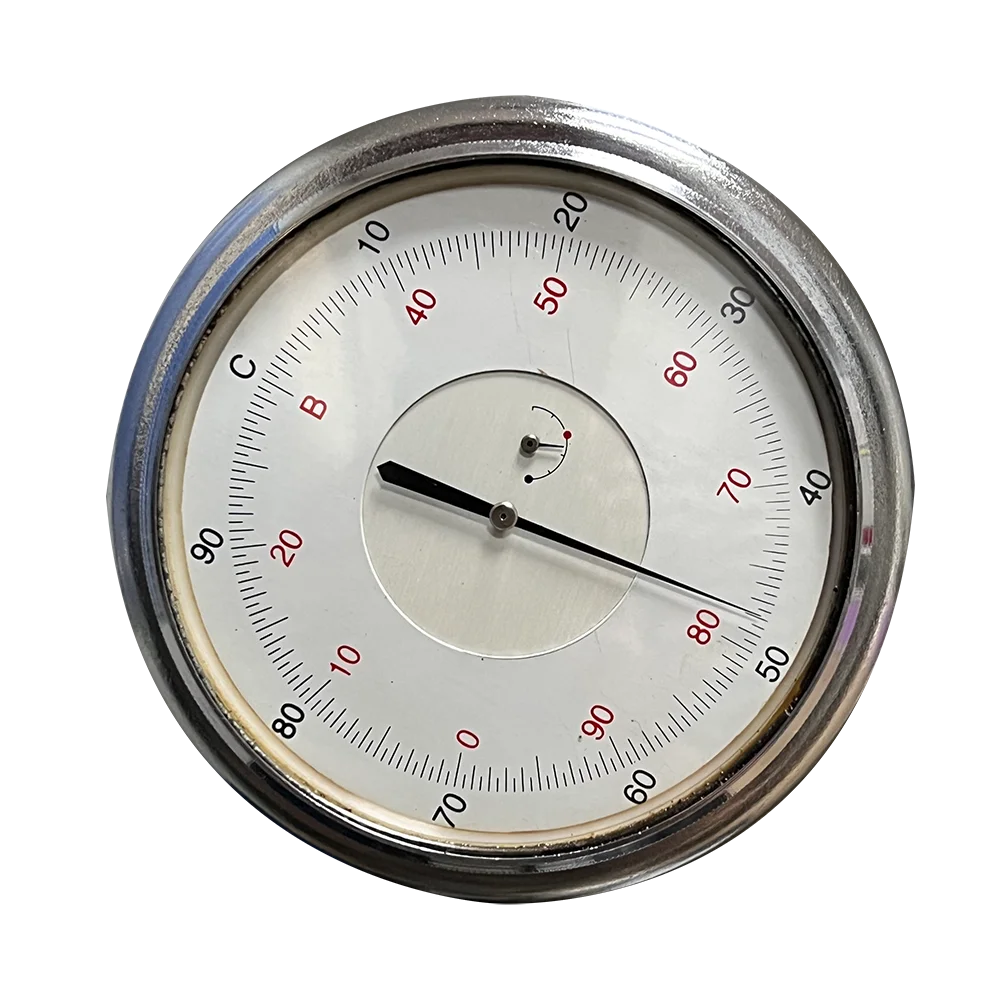

Rockwell hardness tester
actual measurement value

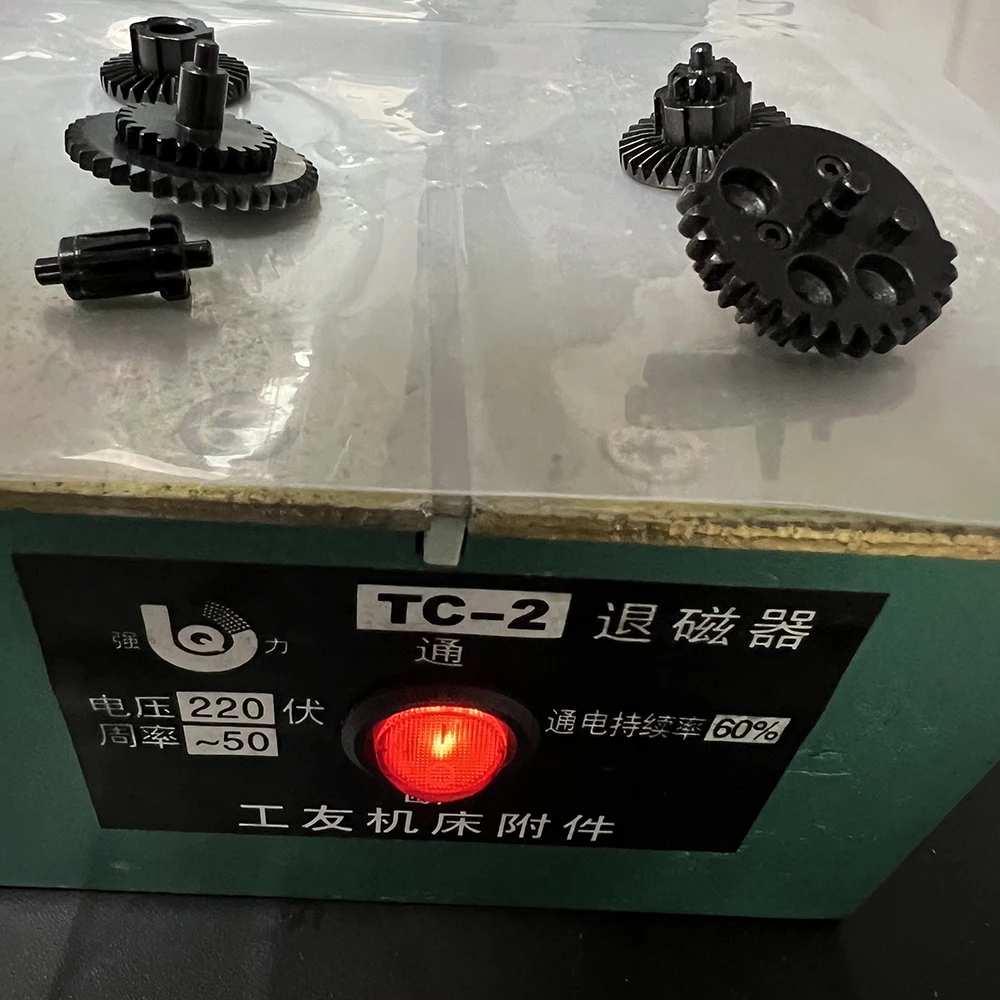

Demagnetization Treatment
