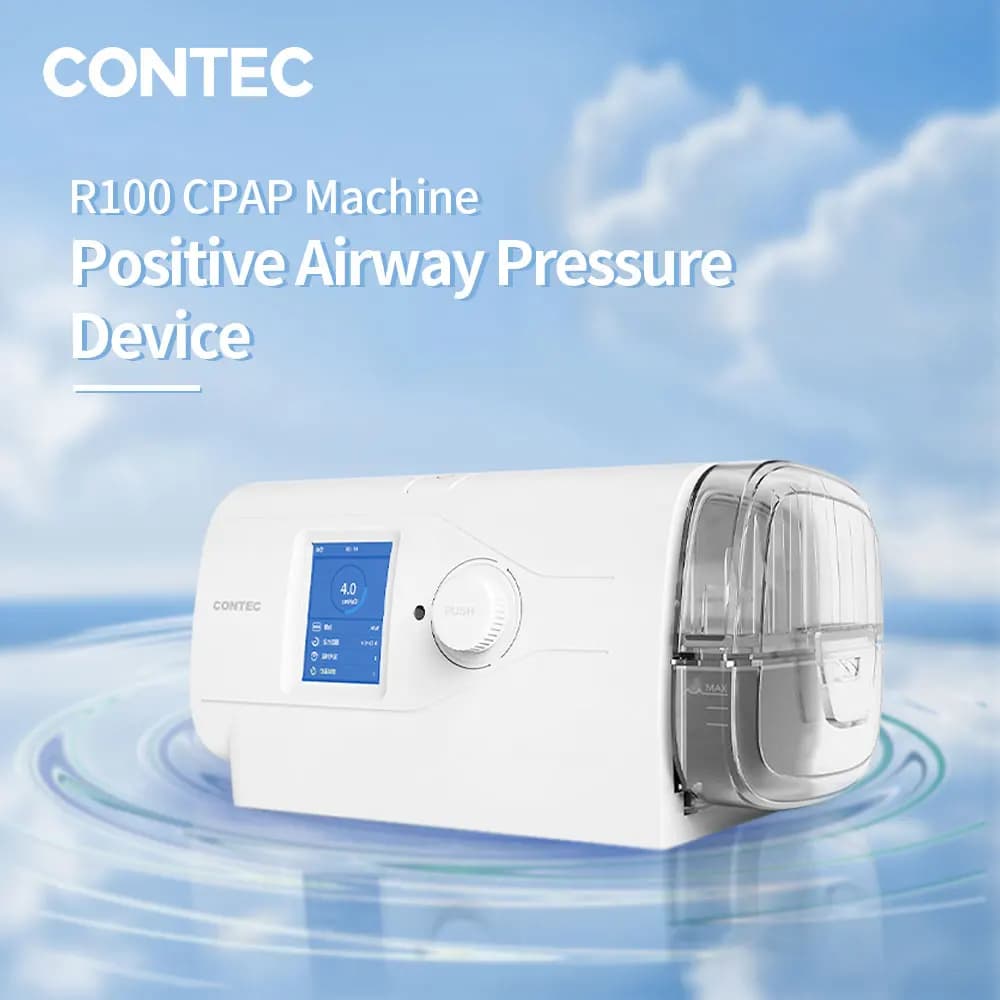

CONTEC R100 Positive Airway Pressure Devices CPAP Machine with Humidity Regulation

CONTEC R100 Positive Airway Pressure Devices CPAP Machine with

                Humidity Regulation

Introduction

Positive airway pressure device is a portable respiratory therapy device, treating obstructive sleep

apnea (OSA). It can be applied on patients weighing above 30 kg. It is suitable for family use, clinic

use and hospital use.

Product Functions

1)CPAP/Auto CPAP treatment mode can adjust operating pressure;

2)Provide mask leakage detection,leakage prompt and error status prompt;

3)Automatically compensate air leakage within a certain range;

4)Saving and checking patients information;

5)Capable of recognizing whether the mask is on or off and starting and stopping treatment intelligently;

6)Setting Ramp time, Humidity level between 1 and 6;

7)Auto pressure release;

8)Multiple remind functions.

Performance

Operating Pressure:

1）Operating pressure range：4 cmH2O～20 cmH2O(4～ 20 hPa)

2）Resolution ratio ：0.1cmH2O(0.1 hPa)

3）Dynamic variation range：0.2 cmH2O(0.2 hPa)

Ramp Time:

1）Operating range：0～45 min

2）Resolution ratio ：1min

3）Dynamic variation range：5 min

Power:

1）Input：100-240 V～，50-60 Hz；1.5 A MAX

2）Output：DC 24 V 3.75 A

Humidifier:

1）Volume：200ml～360ml

2）Consumption：≤48W

3）Materials： PC, Stainless steel chassis

4） Maximum temperature of hating plate：63℃ (±3℃)

5）The air outlet temperature of Breathing tube：≤41℃

6）Thermal circuit breaker: disconnection＞85±5℃, recovery＜55±15℃, delay＜ 10s, DC24V-3A,

7）Protective disconnection temperature: 76℃

Safety Classification :

1）(Anti-electric shock level ) : Class II and Type BF applied part

2）SpO2 Device：Class I laser product

3）Ingress protection：IP22

SpO2 Measurement:

1）Measurement range：0%～100%

2）Resolution ratio：1%

3）Accuracy：±2%

PR Measurement:

1）Measurement range：30 bpm～250 bpm

2）Resolution ratio：1bpm

3）Accuracy：±2 bpm or ±2% of the maximum

Noise :

1）Pressure is 10 cmH2O, distance is 1m, normal operation (including humidifier) noise ≤35dB

Operating Measurement:

1）Flow Sensor ±500Pa

2）Pressure Sensor 0～45 cmH2O（0～45 hPa）

Accessories

Breathing tube (Breathing circuit)

Breathing tube (Breathing circuit) Specification

Micro SD Card

SpO2 Device (Optional)

Mask

Mask Specification

Power Supply Unit

Power adapter cord

Air Inlet Filter Cotton

Portable bag

The User Manual

Reminder: Breathing tube (Breathing circuit) refer to the physical products.

Physical Specification

Dimensions： 275*170*145 mm

Breathing tube：Soft plastic, length is 1.8m, outlet complies with ISO5356.1 22mm conical joint

Weight（device and cleanable humidifier）：1600g

Work Environment：

a）Operating Temperature：+5 ℃～+40 ℃

b）Relative Humidity：10%～95%, non-condensing

c）Atmospheric Range (non-condensing)：700 hPa～1060 hPa
