Microscope Calibration Stage Micrometer Glass Slide Reticle Measuring Ruler for Stereo Biological Microscope Cross Dot Scale

Microscope Calibration Stage Micrometer Glass slide Reticle Measuring Ruler for Stereo Biological Microscope Cross Dot Scale Ruler

Feature:

This set of micrometer will help you make a quantitative analysis on the micro world, the features of your microscopic greatly expanded. Physical, visual with the appropriate micro scale, can measure the dust, fiber and other fine material in diameter, length and their dispersion. In addition, also can be used to check whether the magnification, field line and other technical parameters of your microscope are accurate. So, it is a simple and practical detection tool on epidemic prevention, environmental protection, health education, textile fiber inspection and all Departments which are working with microscopes.

Specifications:

Size: 25 mm x 75 mm
Material: Optical Glass
Suit Microscope: stereo microscope or biological microscope

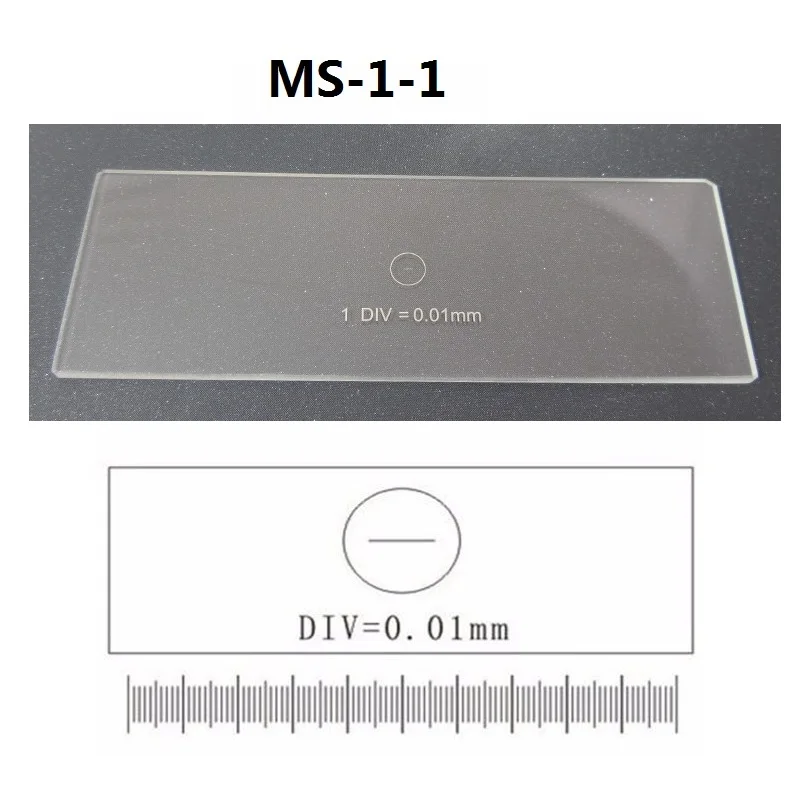

Model MS-1-1:

1 DIV. = 0.01 mm
100 Scales
Total Length: X = 1 mm

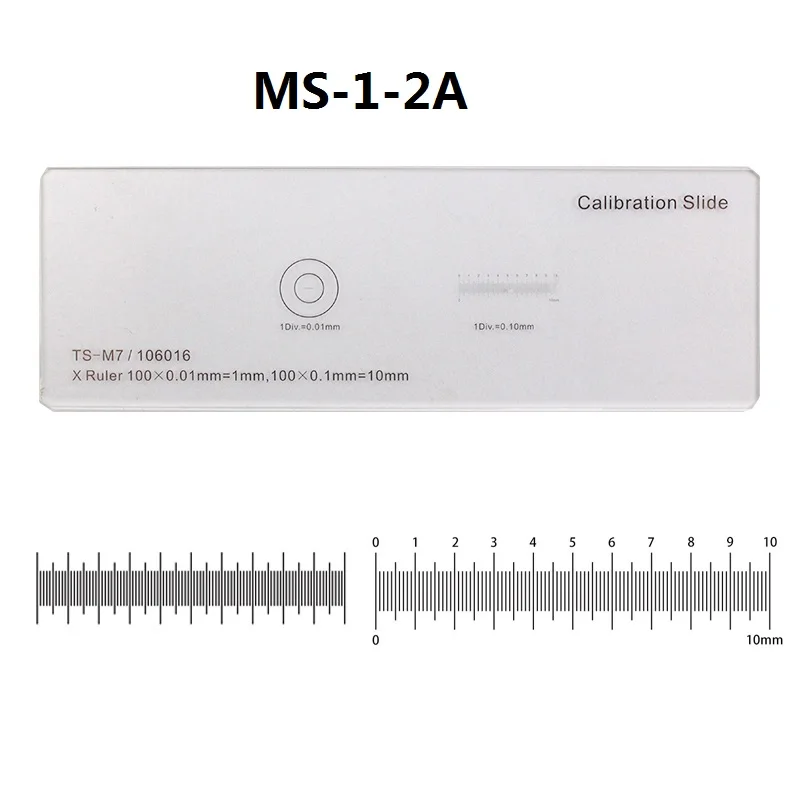

Model MS-1-2A:

1 DIV. = 0.1 mm
1 DIV. = 0.01 mm
X Ruler 1 = 100 x 0.01 mm = 1 mm
X Ruler 2 = 100 x 0.1 mm = 10 mm

Model MS-1-3:

1 DIV.=0.1 mm
1 DIV.=0.01 mm
1 DIV.=0.05 mm

Model MS-1-3A:

1 DIV. = 0.1 mm
1 DIV. = 0.01 mm
X Ruler 1 = 100 x 0.01 mm = 1 mm
X Ruler 2 = 100 x 0.1 mm = 10 mm

Model MS-1-4:

1 DIV = 0. 1 mm, 1DIV = 0.01 mm
Measuring Range: 0.1 mm x 100 = 10 mm, 0.01 mm x 100 = 1 mm
0.15 mm diameter dot
0.07 mm diameter dot

Model MS-1-4B:

Diameter of the Round Dot: 0.01 mm, 0.05 mm, 0.1 mm, 1 mm

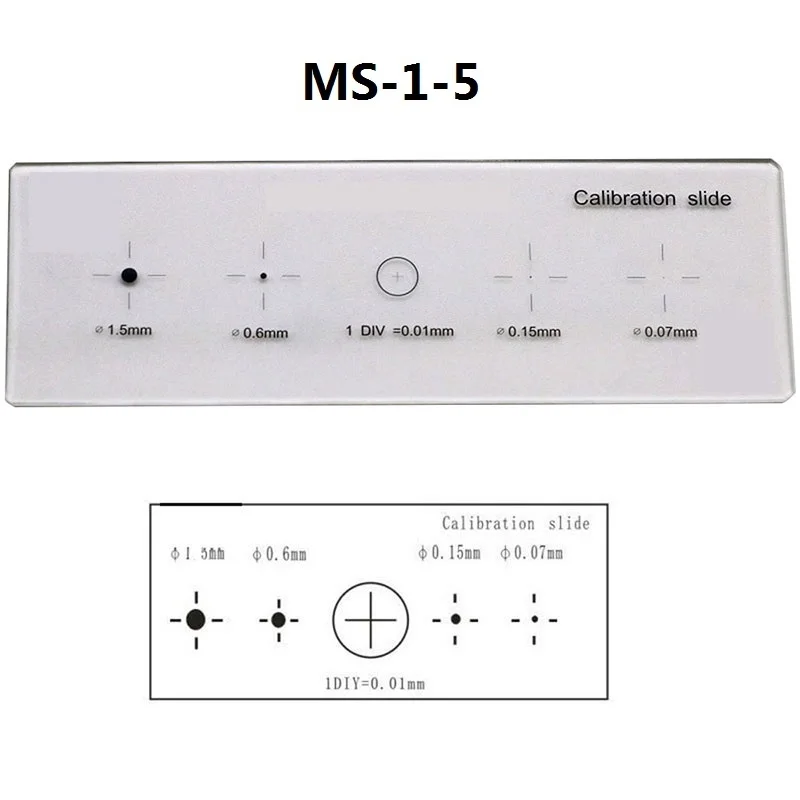

Model MS-1-5:

Plain cross scale 0.1 mm, 1 DIV = 0.01 mm
Calibration Dots (1.5 mm)
Calibration Dots (0.6 mm)
Calibration Dots (0.15 mm)
Calibration Dots (0.07 mm)

Model MS-1-1B:

1 DIV = 0.01 mm

Model MS-1-1J:

X = 10 mm
DIV = 0.1 mm

Model MS-1-EB:

1DIV.=0.01 mm, 0.1 mm, 1 mm
1DIV.=0.1 inch, 0.01 inch, 0.001 inch
X=25.4 mm (1 inch)

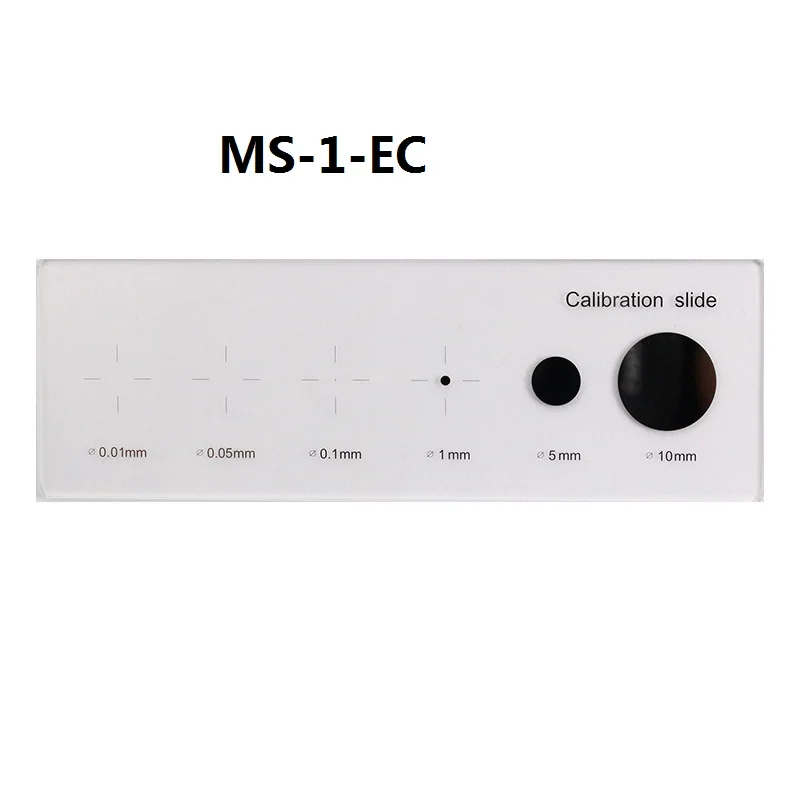

Model MS-1-EC:

6 different diameter dots included
Dot Diameter: 0.01 mm 0.05 mm 0.1 mm 1 mm 5 mm 10 mm

Model MS-1-ED:

Ruler Total Length: 50 mm
500 scales included
1 DIV. = 0.1 mm ( 0.1 mm each scale)

Model MS-1-EE:

Diameter of the Round Dot: 0.5 mm
Size of the Square Dots: 0.4x0.4 mm, 0.6x0.4 mm

Attentions:

We have different kinds of microscope calibration slides and microscope micrometers, please contact us. Thanks.
Customization is acceptable

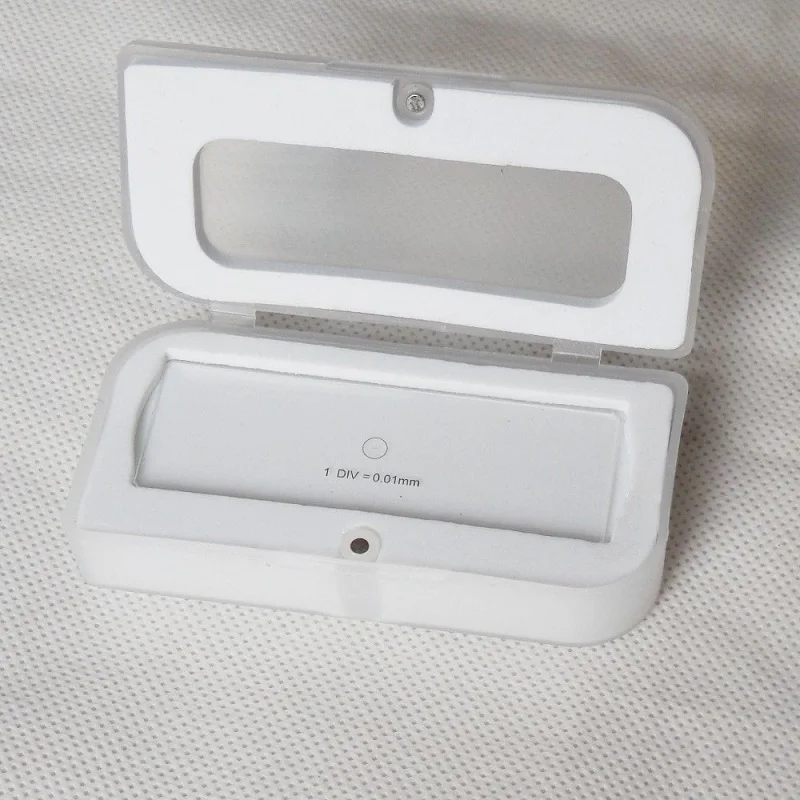

Package Included

1x microscope stage micrometer calibration
