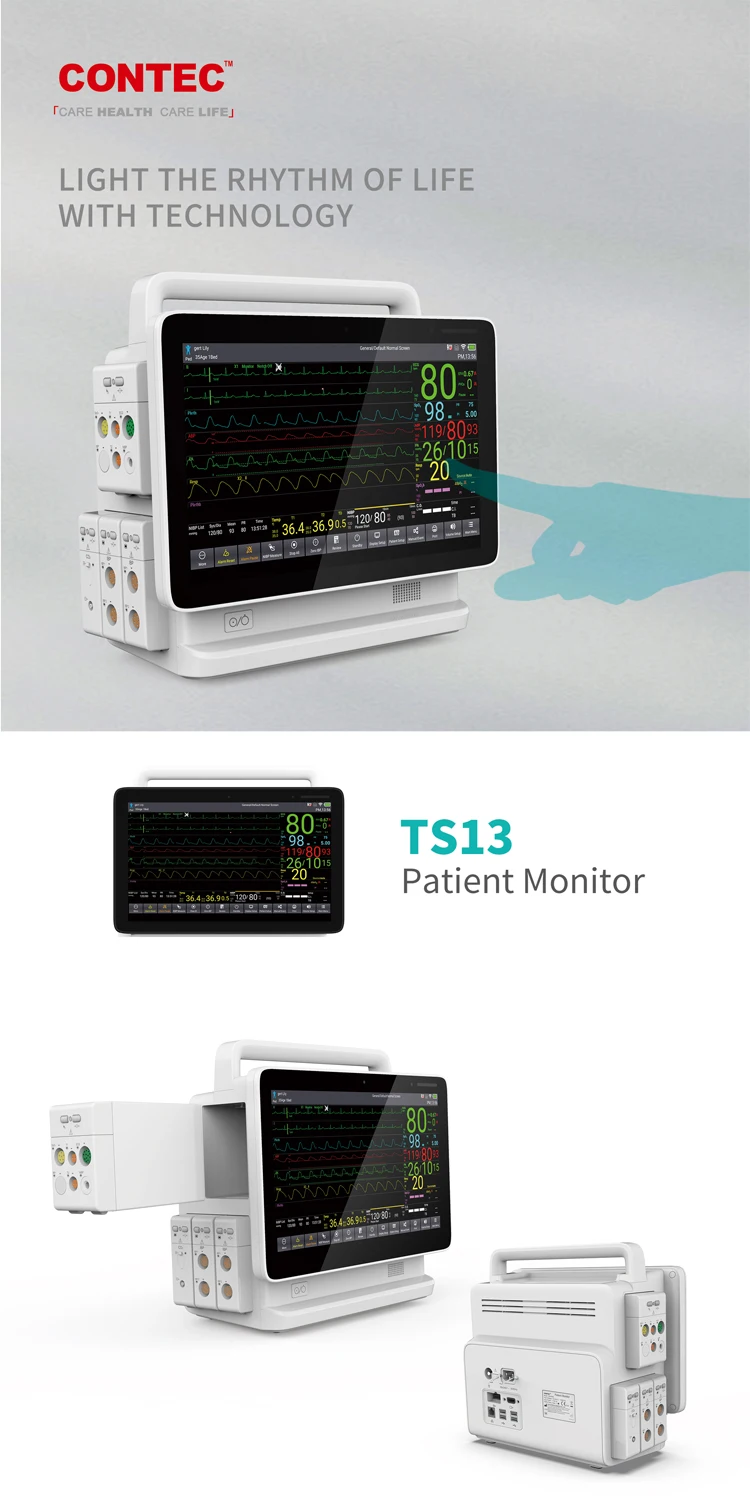

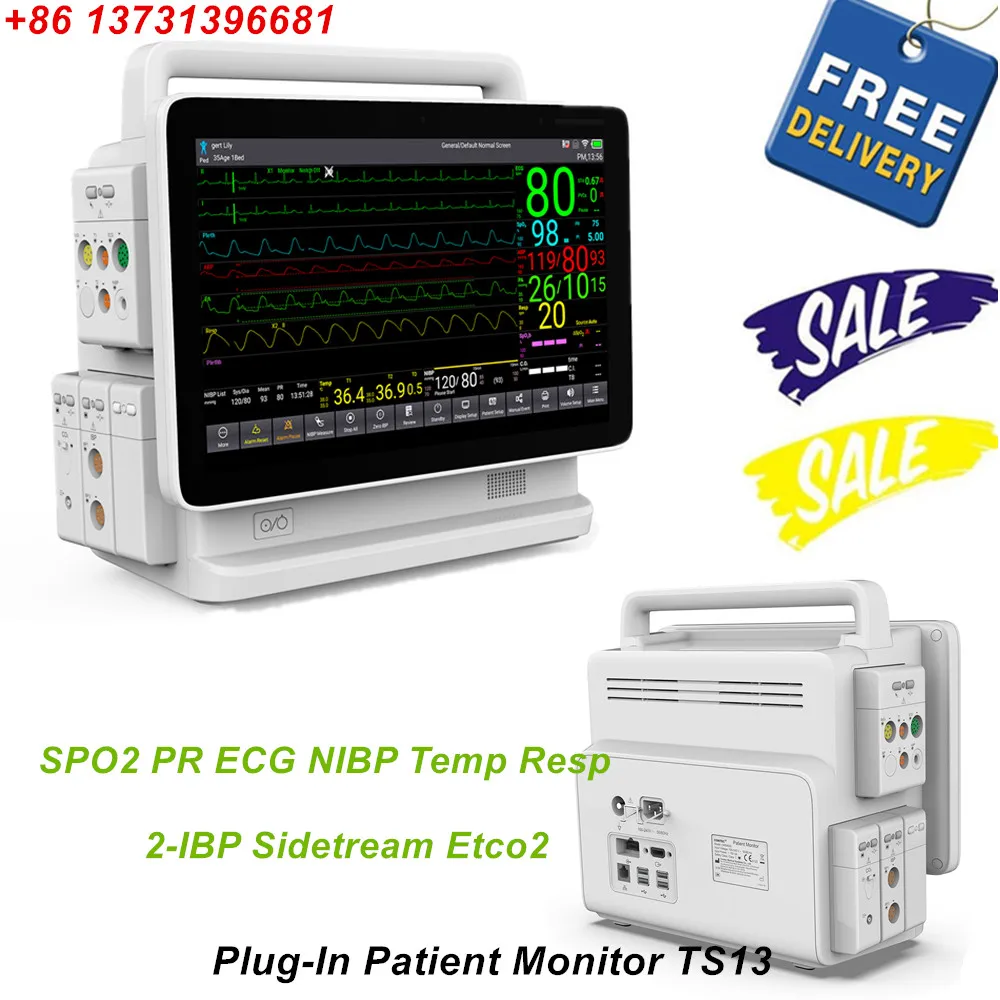

CONTEC Modular Patient Monitor 13‘’Big Display Touch Screen Plug-In Monitor ECG NIBP SPO2 Resp Temp 2-IBP&Sidetream Etco2

CONTEC Modular Patient Monitor 13‘’Big Display Touch Screen Plug-In Monitor

              ECG NIBP SPO2 Resp Temp 2-IBP&Sidetream Etco2

Introduction

The monitor is applicable for clinical monitoring in operating room, postoperative observation room, ICU/CCU ward, emergency room, etc. of adult, pediatric and neonate. The patient's vital parameters (ECG (including ST-segment measurement and arrhythmia analysis), RESP, SpO2, PR, NIBP, TEMP, IBP and CO2, etc.) can be monitored. Monitored information can be displayed, reviewed, printed and stored..

Function

1)13.3" high-definition touch screen design, easy and convenient to operate, elegant and concise in appearance.

2)Independent physiological and technical alarm function, convenient for medical staff to quickly know patient’s condition.

3)Luminous “ON / OFF” button design, convenient to operate at night.

4)Modular design: the modules can be configured and combined flexibly and conveniently, expanded and upgraded at any time, meets the monitoring requirements of different departments on different parameters.

5)Support dynamic hot-plugging parameter module: no need to restart the device, plug-and-play, change the monitoring parameters at any time as clinical requirements.

6)Adopt high-performance processor, stable, reliable and fast to process information.

7)Patient information can be rapidly entered, patient type (adult / neonate / pediatric) can be quickly switched, meets the requirements of different departments.

8)Abundant analysis functions: 23 arrhythmia, full-lead ST-segment and pacing analysis; multiple calculation functions (such as calculation of drug concentration, titration table, hemodynamics, ventilation, oxygenation, renal function, etc.).

9)With the functions of waveform freezing, holographic waveform storage and review.

10)Automatic data storage in case of power failure; optional built-in memory card, achieves large-capacity data storage.

11)With HDMI expansion interface, the display screen can be connected according to clinical requirements.

12)Built-in large-capacity detachable lithium battery, ensures uninterrupted monitoring.

13)Fanless design, ensures no noise and low power consumption during working.

14)3-channel built-in recorder used to print real-time waveform is optional.

15)Connect to Central Monitoring System developed by our company by WiFi / Wired, convenient to transmit patient’s real-time data.

16)Standby mode, be applied to ICU, avoids affecting patient’s rest, one-button switching, reduces the workload of medical staff.

Performance

(1)ECG

Lead type:

3-lead: I, II, III

5-lead: I, II, III, aVR, aVL, aVF, V

12-lead: I, II, III, aVR, aVL, aVF, V1,V2,V3,V4,V5,V6

Gain: 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV

Scan speed: 12.5 mm/s, 25 mm/s, 50 mm/s

HR

Measurement and alarm range:

Adult: 15 ~ 300 bpm

Pediatric/neonate: 15 ~ 350 bpm

Resolution: 1 bpm

Accuracy: ± 1 % or ± 1 bpm, whichever is greater

ST-segment detection

Measurement and alarm range: - 2.0 mV ~ + 2.0 mV

Accuracy: - 0.8 mV ~ + 0.8 mV: ± 0.04 mV or ± 10 %, whichever is greater

Other range: unspecified

Arrhythmia analysis: 23 kinds

Pacemaker: yes

(2)RESP

Measurement mode: R-F (RA-LL) impedance

Respiration rate:

Measurement range:

Adult: 0 rpm ~ 120 rpm

Pediatric/neonate: 0 rpm ~ 150 rpm

Resolution: 1 rpm

Accuracy: 7 ~ 150 rpm, ± 2 rpm or ± 2 %, whichever is greater;

 0 ~ 6 rpm, unspecified

Apnea alarm: 10 ~ 120 s, not alarm

Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50mm/s

(3)NIBP

Measurement mode: Oscillometry

Working mode: Manual/AUTO/Continuous

Measurement interval in AUTO mode: 1 min, 2 min, 2.5 min, 3 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 h, 1.5 h, 2 h, 3 h, 4 h, 8 h

Measurement period in Continuous mode: 5 minutes

Measurement and alarm range: 10 ~ 270 mmHg

Resolution: 1 mmHg

Cuff pressure accuracy: ± 3 mmHg

Measurement accuracy:

Maximal mean deviation: ± 5 mmHg

Maximal standard deviation: 8 mmHg

Over-pressure protection:

Adult mode: 297 ± 3 mmHg

Pediatric mode: 240 ± 3 mmHg

Neonatal mode: 147 ± 3 mmHg

(4)CONTEC SpO2

Measurement range: 0 % ~ 100 %

Resolution: 1 %

Accuracy: 70 % ~ 100 %, ± 2 %;

 0 % ~ 69 %, unspecified

PR

Measurement and alarm range: 25 ~ 250 bpm

Accuracy: ± 2 bpm or ± 2 %, whichever is greater

(5)Nellcor SpO2

Measurement range: 1 % ~ 100 %

Measurement accuracy: 70 % ~ 100 %: ± 2 % (adult / pediatric)

 70 % ~ 100 %: ± 3 % (neonate)

0 % ~ 69 %: unspecified

Nellcor PR

Measurement range: 20 ~ 300 bpm;

Measurement accuracy: 20 ~ 250 bpm, ±3 bpm;

 251 ~ 300 bpm: unspecified;

Upper limit of alarm: upper limit - 2 ~ 300 bpm;

Lower limit of alarm: 20 bpm ~ lower limit + 2 bpm

(6)Masimo SpO2

Measurement range: 1 % ~ 100 %

Measurement accuracy:

70 % ~ 100 %: ± 2 % (adult / pediatric, under conditions of no motion), ± 3 % (under conditions of motion)

70 % ~ 100 %: ± 3 % (neonate, under conditions of no motion)

1 % ~ 69 %: unspecified

Masimo PR

Measurement range: 25 ~ 240 bpm

Measurement accuracy: ± 3 bpm (under conditions of no motion), ± 5 bpm (under conditions of motion)

Upper limit of alarm: upper limit - 2 ~ 240 bpm

Lower limit of alarm: 25bpm ~ lower limit + 2 bpm

(7)TEMP

Channel: dual-channel

Measurement range: 0 ~ 50 ℃

Resolution: 0.1 ℃

Accuracy: ± 0.1 ℃

(8)CO2

Measurement mode: mainstream or sidestream

CO2 measurement range: 0 ~ 150 mmHg

CO2 resolution: 0.1 mmHg: 0 ~ 69 mmHg

 0.25 mmHg: 70 ~ 150 mmHg

Accuracy:

0 ~ 40 mmHg: ± 2 mmHg

41 ~ 70 mmHg: ± 5 %

71 ~ 100 mmHg: ± 8 %

101 ~ 150 mmHg: ± 10 %

AwRR measurement range:

Sidestream: 2 ~ 120 rpm

Mainstream: 2 ~ 150 rpm

AwRR accuracy: ± 1 rpm

Apnea alarm: yes

(9)IBP

Channel: 4-channel

Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measurement and alarm range: -50 ~ 300 mmHg

Resolution: 1 mmHg

Accuracy: ± 2 % or 1 mmHg, whichever is greater

(10)Power supply: 100 ~ 240 V ~  50/60 Hz

(11)Safety class: class I, defibrillation-proof type CF applied part

(12)Waterproof degree: IPX2

Accessories

1)TS13 multi-parameter module

2)ECG cable: 5-lead, American standard, TPU

3)SpO2 probe (integrated) Digital fingertip SpO2 probe for adult (CMS-N-SPO2 6P, 3M, yellow)

2)TEMP probe :R25=2.252K TEMP probe, skin surface type, CMS-N-TEMP 2P, PVC, L=3M

5)NIBP cuff:BP extension tube, L=3M

6)Adult cuff (25 ~ 35 cm)

7)EtCO2

8)IBP
