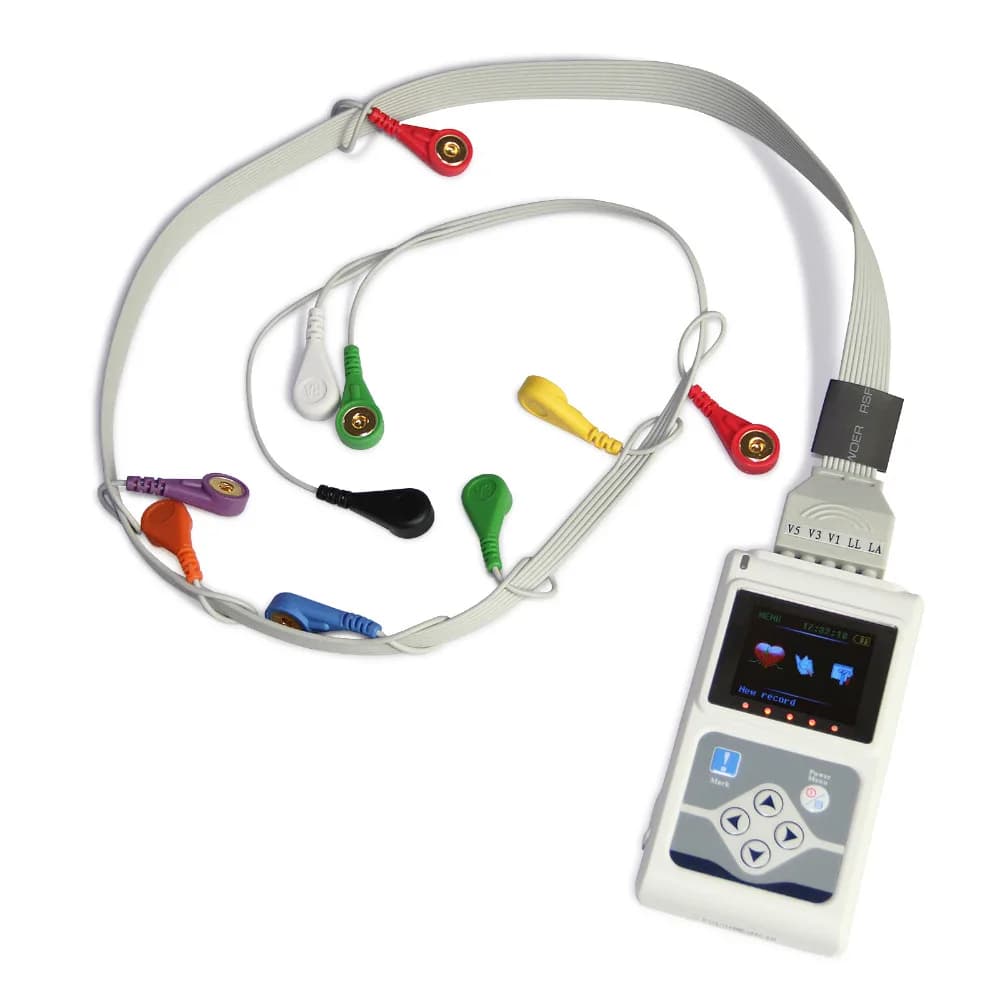

CONTEC Newest TLC5000 12 channel ECG/EKG Holter System Recorder Monitor Software

CONTEC TLC5000 Dynamic ECG System,12 channel 24h holter/analyzer,USB,pc software

Brief Introduction

Dynamic ECG Systems adopt 12-lead system of international standard, which can  continuously record ECG waveform for 24-hour and analyze ECG waveform by the PC  software. It is applicable for use in medical institution and community.

Function

1)The recorder can real-time store ECG data for 24-hour.

2)Arrhythmia  analysis basing on MCSSTM and TMCATM can greatly reduce doctor’s work.

3)Sync  analysis for 12-lead, which ensures that QRS waveform can be found accurately,  and no distortion.

4)With more than 10 templates(such as atrial premature  beat, ventricular premature beat, long interval, atrial fibrillation, etc.) and  many user-defined modules, which can almost distinguish any kind of pathologic  waveforms.

5)Flexible analysis channel selection function, which ensures that  any channels can be selected as the main analysis channel.

6)Flexible atrial  fibrillation analysis, which ensures that physicians can use the whole or  segmented AUTO/manual analysis, more accurate in atrial fibrillation  analysis.

7)All pacemakers(such as AAI, VVI, DDD etc.) can be analyzed by the  powerful pacemaker analysis function.

8)With many pacing analysis templates,  such as “Dual chamber pacing”, “Atrial pacing”, “Ventricular pacing”,  “Ventricular Pseudofusion” and “Ventricular asynchronous pacing”,  etc.

9)Single or full-lead ECG in any time bucket can be reviewed by the fast  review analysis function.

10)With analysis functions for 5-minute, 1-hour and  24-hour heart rate variability.

11)One-key print, convenient and fast to  print the reports.

12)Perfect case management function.

13)Abnormal ST can  be analyzed according to the whole and event by the advanced ST segment analysis  and total load of myocardial ischemia, which can help the doctors  comprehensively judge myocardial ischemia.

14)The risk of sleep breath pause  can be predicted by the unique "Sleep breath pause syndrome"analysis  function.

15)The death risk in patients with myocardial infarction can be  predicted by the "HRT" analysis function.

16)“T-Wave alternation” is an  important index to predict the malignant arrhythmia and sudden cardiac  death.

17)With QTD(QT dispersion), VCG(vector cardiogram), VLP(ventricular  late potential) and TVCG(time vector cardiogram) analysis modules, more valuable  in analysis report.

Performance

Lead: standard 12-lead

Record time: 24-hour

Power supply: two “AA”  batteries

Interface: USB2.0

Calibration voltage: 1mV±5%

Noise level:  ≤30μV

CMRR: ≥60dB

Low-frequency characteristics: time  constant≥3.2s

Scan speed: 25mm/s±5%

Polarizing voltage: ±300mV,  sensitivity: ≤±10%

Minimum measure signal: 50 µV p-p

Accessories

Lead cable (1 set)

ECG electrode (1 bag)

USB  cable(1)

Bag(1)

User manual(1)

Physical  characteristic

Dimension: 111mm(L) × 60mm(W) × 25mm(H)

Weight: about 105g(without  batteries)
