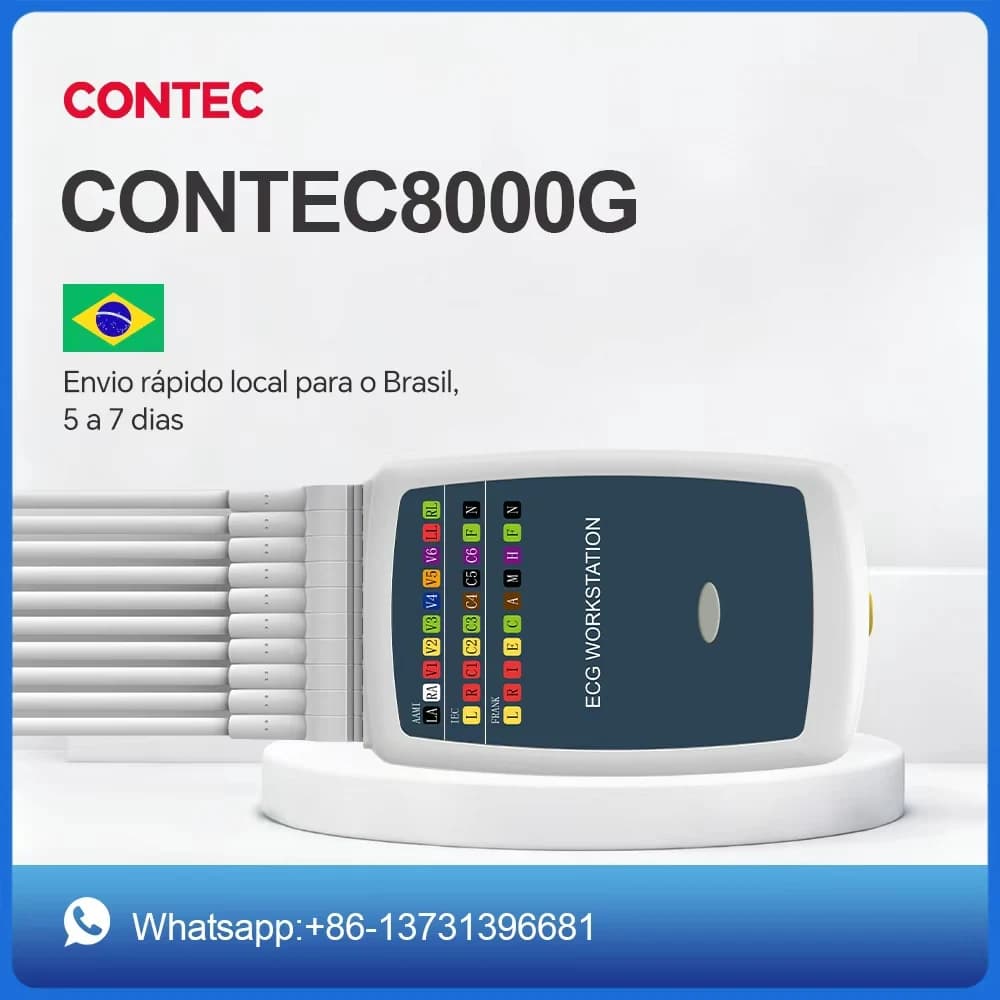

Contec 8000G Multi-function PC ECG/EKG Workstation System 12 Lead Resting Blood Pressure Monitor

Aviso:   Para compradores brasileiros, se você está interessado neste produto e gostaria de comprá-lo pelo preço original, entre em contato comigo no WhatsApp +86 13731396681, eu vou ajudá-lo a resolver o problema de pagamento.

Multi-function PC ECG/EKG Workstation System 12 Lead Resting ECG

CONTEC 8000G

Free software(download by the user)

Introduction

The device acquires functions that including synchronous sampling of conventional 12-lead ECG data and 3-lead vector ECG data, various forms of analysis and diagnosis, report output and other functions. As an integrated ECG analysis system, the devic can reflect the movement of user's heart timely and accurately. The device is applicable for ECG examination in medical and health institutions at all levels, providing accurate and reliable basis for diagnosis.

Main Features

1. Compact and portable design for Recorder, support Wilson and Frank lead system, with lead-off indicator light.

2. Adopt real-time sampling, display and store mode, it has many functions, such as QRS wave analyzing in

real-time, heart rate calculating and real-time printing, and provides multiple filter methods to avoid from

baseline drift and interference.

3. Adopt advanced ECG analysis arithmetic, more perfect for the computer to seek points, and obtain reliable

auto-recognizing sort of arrhythmia, which makes the analyzing report and conclusion more valuable.

4. ECG waveform is displayed using anti-aliasing technology clearly and intelligently, lead position can be

adjusted, which solves the problem of overlapping waveform caused by baseline drift or high amplitude

waveform.

5. High sampling frequency (1000Hz) ensures no distortion of ECG waveform. High resolution in display and

printout guarantees the details of ECG waveform.

6. Provide dozens of sync and continuous display and print mode, including 6x2, 3x4, 3x4+2, etc. Auxiliary tool,

such as superposed waveform analysis, electronic scale and editable terminology database, etc., brings much

more convenient for diagnosis and clinical application.

7. Multiple analysis function, including: conventional 12-lead ECG, Frequency Cardiogram (FCG), High

Frequency ECG, QT internal dispersion analysis, Heart Rate Variability (HRV) analysis, myocardium ischemia

(STLE) analysis, Heart rate turbulence (HRT) analysis, Pacing ECG analysis, Vector Cardiogram (VCG), Time

Vector Cardiogram (TVCG) and SAECG etc.

8. The "shortcut print" function can preview or print the whole analysis reports, and save them in PC with

multimedia format (BMP, PNG, PDF or JPG format) according to factual need.

9. Support calling external procedures to obtain patient information of unknown origin, export HL7 aECG

standard format ECG data, print electronic report and send notice to external procedure, convenience for systems docking with hospital HIS, PACS and others.
