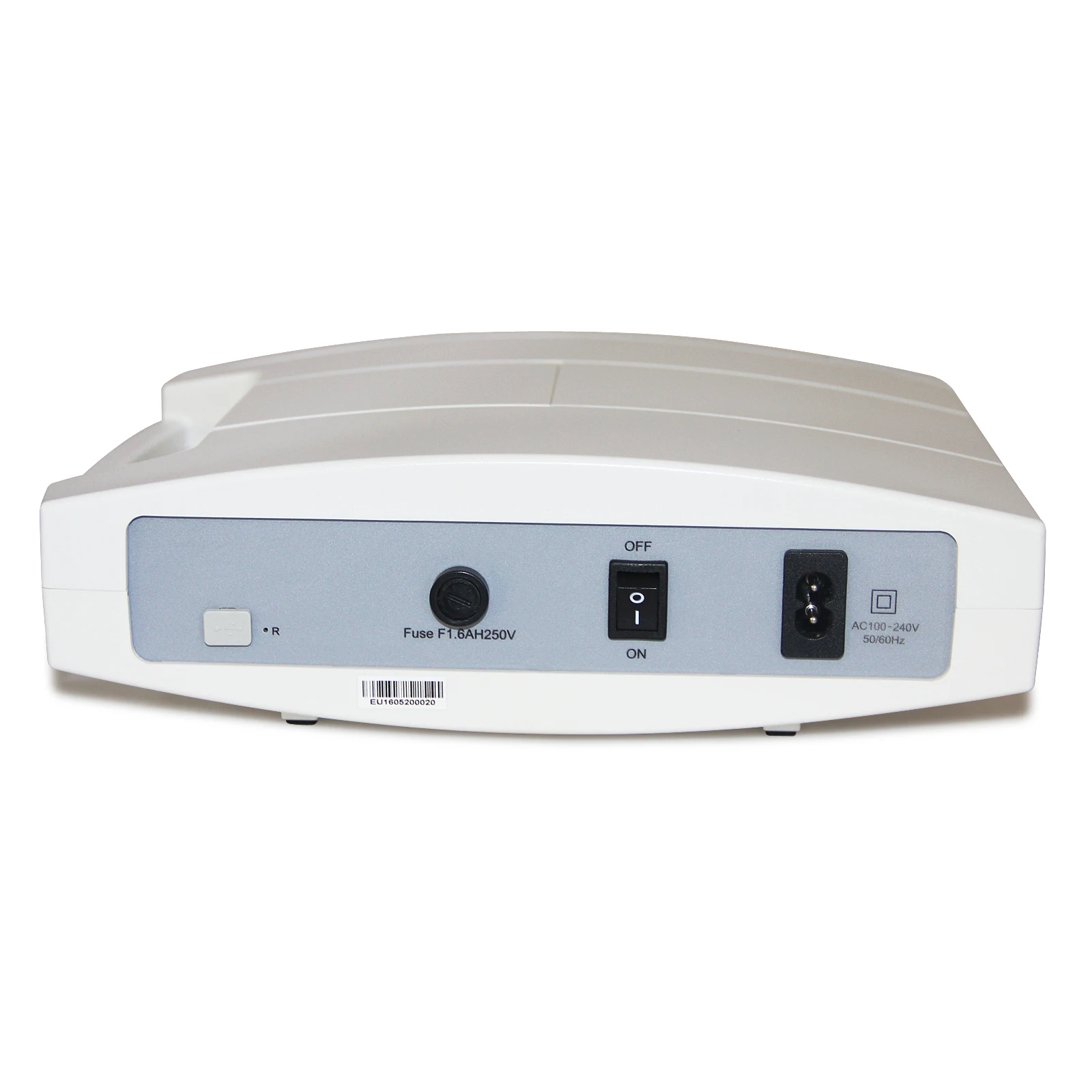

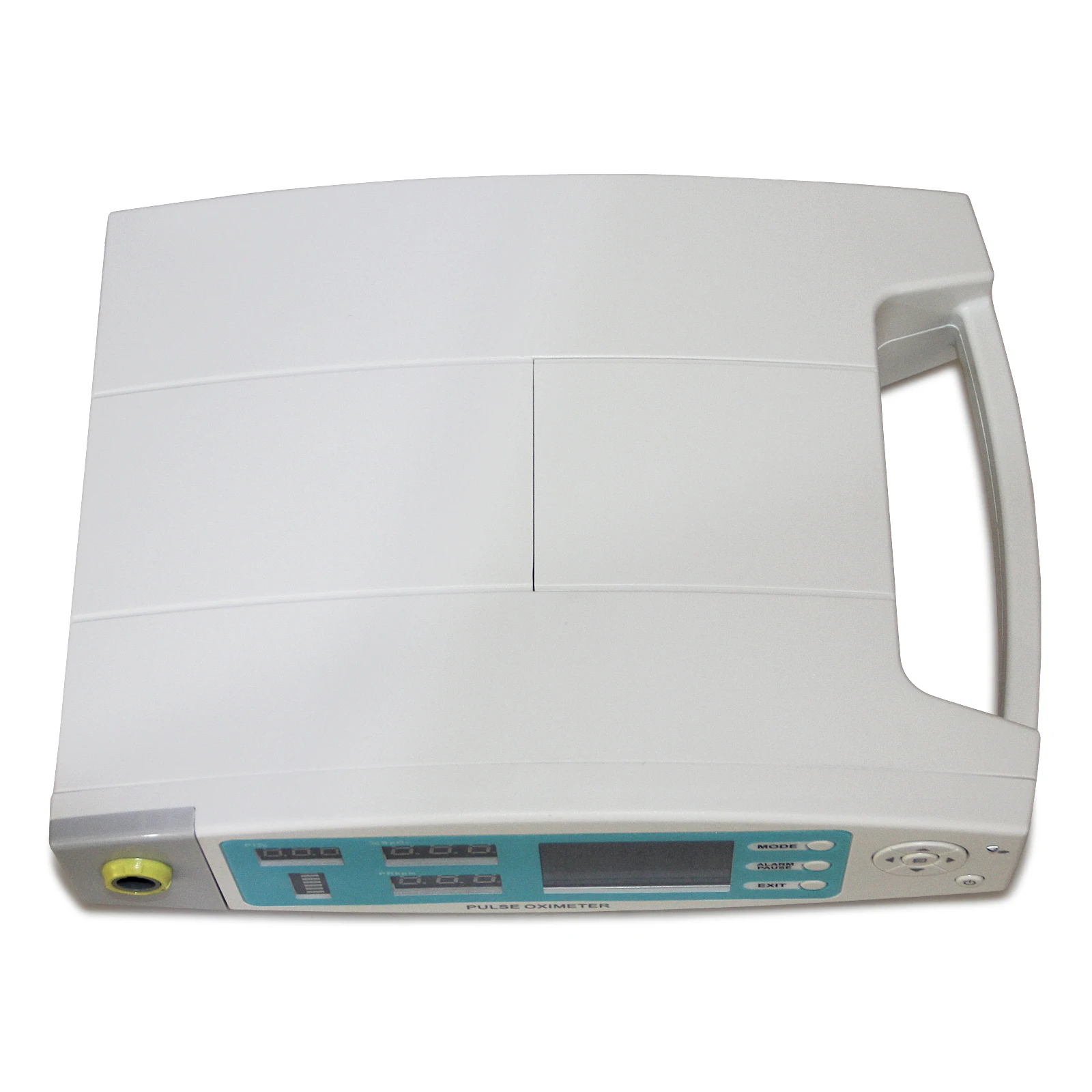

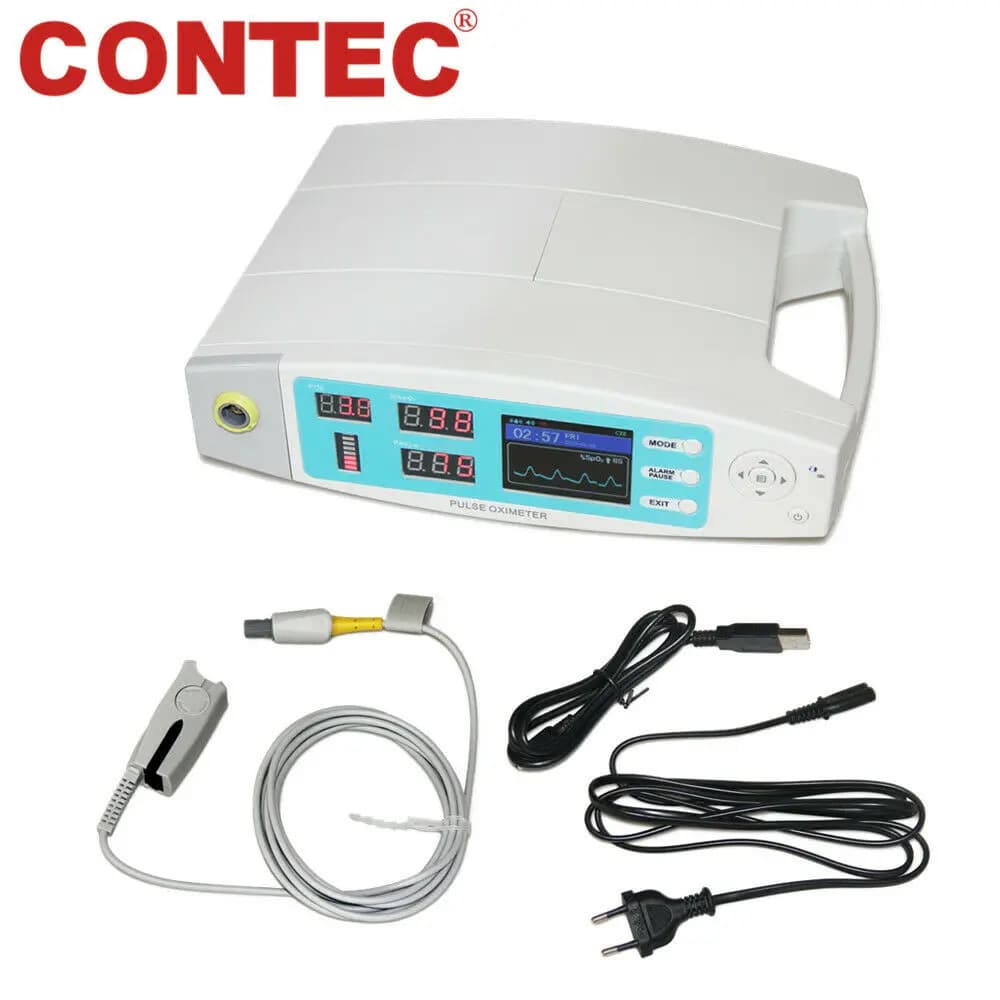

CONTEC CMS70A Desktop Finger Pulse Oximeter Blood Oxygen Monitor Tonometer SpO2 Pulse Rate PI Alarm+ USB

CONTEC Desktop Finger Pulse Oximeter Blood Oxygen Monitor SpO2 Pulse Rate PI Alarm+ USB

Model Number： CMS70A

Introduction

Principle of the CMS70A Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.

Major Features

Operation of the product is simple ,low power consumption

SpO2 value display

Pulse rate value display, bar graph display

PI display

Pulse waveform display

Menu operation

Screen brightness can be changed

The display mode can be changed

Pulse rate sound indication, it can be turned on or turned off

With measured data overruns limits and low-voltage alarm function,the upper/down alarm range can be adjustable

Battery capacity indication

Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage, and with alarm function

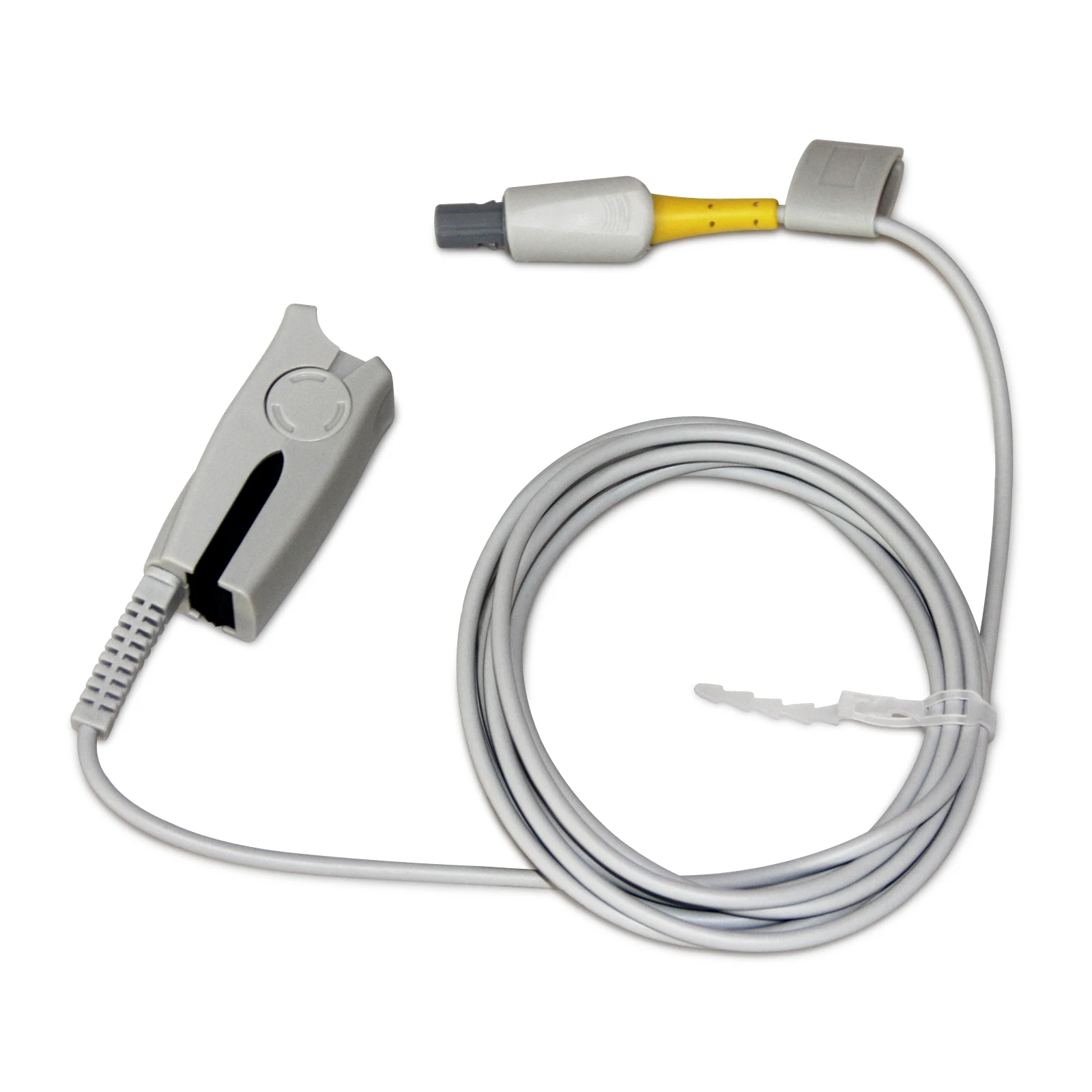

Connected with an external oximeter probe

Data storage function,and the storage data can be uploaded to computer

Real-time data can be transmitted to computers

Main performance

Display Mode: TFT Screen and LED display

Screen Resolution: 320*240

SpO2 Measuring Range: 0%～100%(the resolution is 1%)

Accuracy: 70%～100%: ±2%, Below 70% unspecified.

PR Measuring Range: 30bpm～250bpm(the resolution is 1bpm)

Accuracy: ±2bpm or ±2% (select larger)

Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).

Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.

Power Consumption: About 350mA
