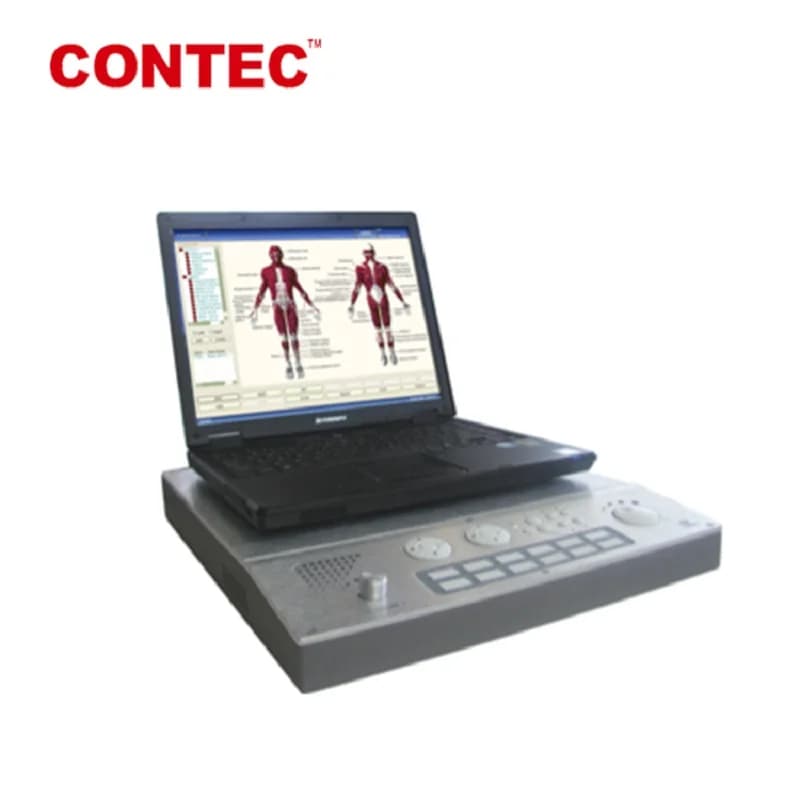

CONTEC CMS6600B EMG Machine/EP System Nerve Muscle Bioelectricity Evoked Potential BAEP

CMS6600B EMG/EP System Nerve Muscle Bioelectricity Evoked Potential

(Computer is not included)

Description

Introduction:

The equipment records bioelectricity activity of nerve muscle for determining its function state, which combines with nerve conduction speed, to give patient an auxiliary diagnosis.

Checking contents: EMG(electromygram), MCS(motor nerve conductor velocity), SCS(sensory nerve conductor velocity), F wave, Hreflex, RNS(repetitive nerve stimulation), Blink Reflex, VEP(visual evoked potential), BAEP(brainstem auditory evoked potential), SEP(somatosensory evoked potential), etc.

Features:

■ Professional EMG/EP operation platform and perfect test items, complete each test in the shortest time.

■ Neuro and muscle navigation system, convenient in selecting test part.

■ Powerful normal values system, contrast with normal data automatically.

■ Flexible software design, configure system parameters according to requirements.

■ High-speed data collection, electromagnetic interference suppression, Photoelectric isolation and low noise.

■ Integrative hardware system, compact in configuration and easy in moving.

Performance:

■ Main system part

A/D conversion resolution 16 Bit

Sampling ratio 200kHz

Analysis time 5-5000ms

Stimulating frequency 0.1-50Hz

■ Amplifier part

Four-channel

Sensitivity 0.05μV-20mV/Grid

Earth noise EMG <= 4μV(Vpp)

EP <=0.1μV(Vpp) (1000 times in average)

Common-mode rejection ratio >= 100dB

50Hz Ban wave setting:

Upper limit for Filter-frequency 20kHz

Lower limit for Filter-frequency 1Hz

Gain amplifies 25 times-400000 times

■ Stimulator part

Constant current 0.2-100mA

Pulse width 50-1000μS

Short circuit and overloading protection

■ Auditory Stimulator

Stimulation wave 40Hz Short, Sound Stim

Stimulation polarity nondense wave, dense wave and alternant wave.

Sound strength 40-120db (5db per level)

Stimulation mode left, right, left & right

Frequency of 40Hz carrier wave 500-8000Hz

■ Visual stimulator

Mode tessellation, horizontal bar and vertical bar.

Stimulation view all-view, half-view and quarter-view

Resolution 3x4, 6x8, 12x16, 24x32, 48x64

Flash stimulator all quench,left light,right light,l&r light

Physical characteristic:

Dimension 420mm*350mm*46mm(L×W×H)

Net weight 6KG

Accessories:

■ Disk

■ Power Cord

■ Power Adapter

■ USB Cable

■ Audio Cable

■ Earth Cable

■ Current Stimulator

■ One-off Bipolar Needle Electrode D039035408, 0.35*40mm, D039060706, 0.60*70mm

■ Reuseable Bipolar Needle Electrode R039035408, 0.35*40mm, R039060706, 0.60*70mm

■ Concentric Needle Connecting Wire

■ 1mm Connecting Lead Wire

■ Disc Electrode

■ Ring Electrode

■ Surface Electrode

■ Ground Electrode（Include lead cable）

■ One-off Unipolar Needle Electrode

■ From 1 to 2 Conversion Cable

■ Surface Electrode Conversion Cable

■ Fuse 0.1A/250V, 5*20mm

■ Fuse F1.6AL250V, 5*20mm

■ Flash Stimulator

■ Audio Stimulator
