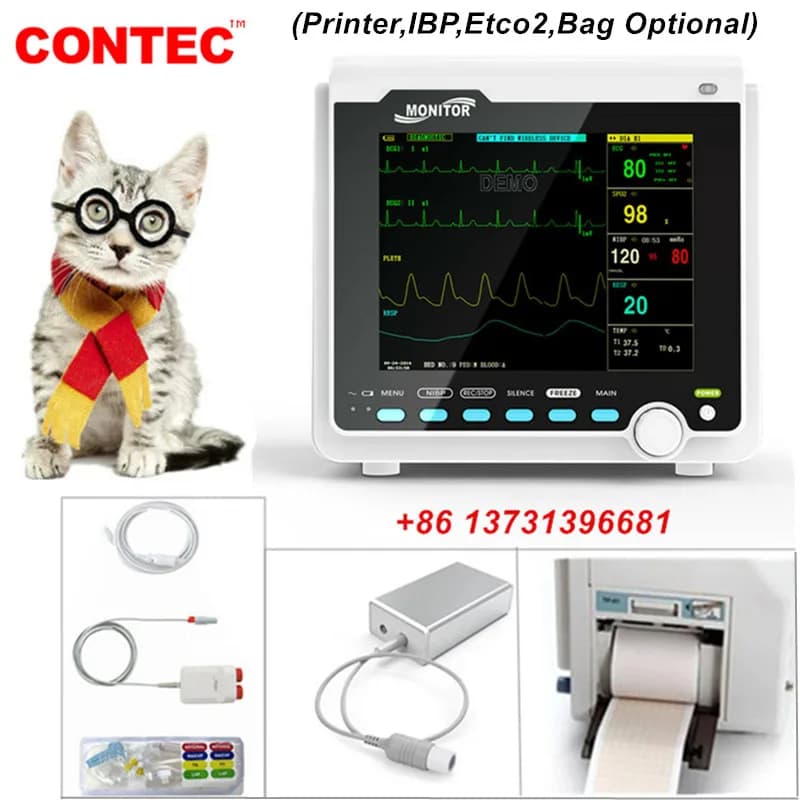

CONTEC Manufacture Veterinary VET Vital Signs Patient Monitor Multi-Parameter Use (Printer, IBP, Etco2,Carrying Bag Optional）

  CONTEC Manufacture  Veterinary VET Vital Signs Patient Monitor Multi-                            Parameter Use (Printer, IBP, Etco2,Carrying Bag Optional）

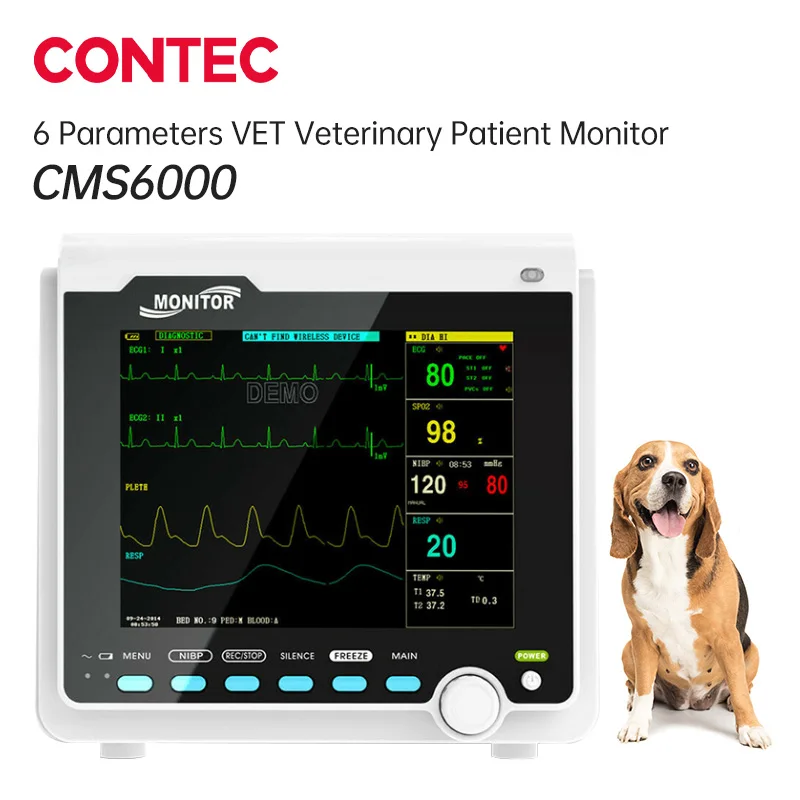

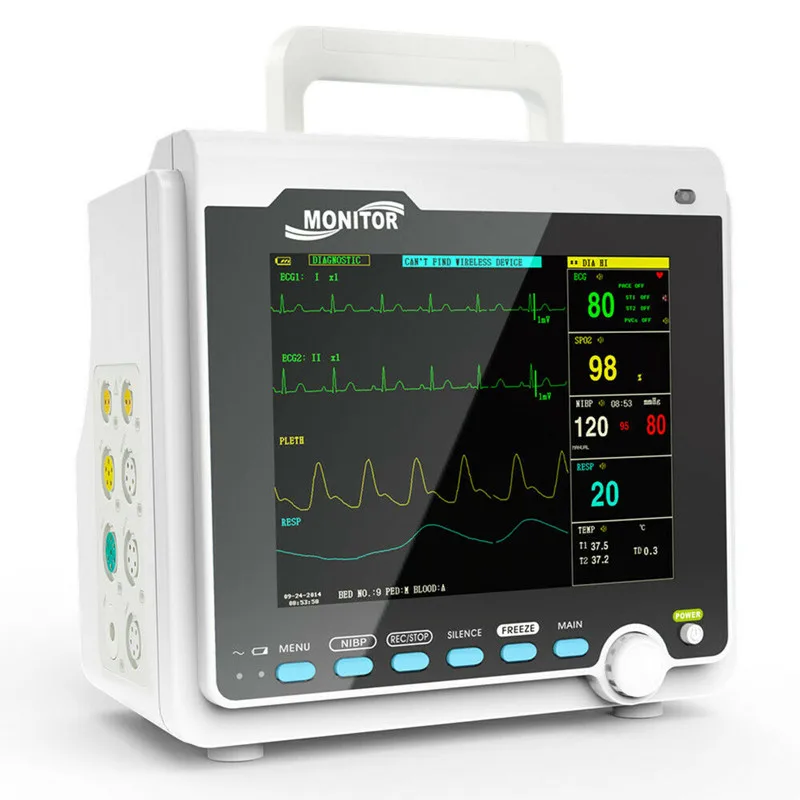

    1.  CMS6000 VET 6 Parameters Patient Monitor

Introduction

The CMS6000VET Veterinary Monitor has abundant monitoring functions and can be used for monitoring of cat, dog and other animals. User may select different parameter configurations according to different requirements. It adopts 100-240V～,50/60Hz for power supply, 8'' TFT color LCD for displaying real-time data and waveform, and up to 8-channel waveform and all monitoring parameters can be displayed simultaneously. A 48mm thermal printer has equipped with the device. In addition, it can be connected to the central monitoring system via wired/wireless network so as to form a network monitoring system.

This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual- channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment.

Functions

Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP

1)ECG Heart rate(HR)

           ECG waveform

           Arrhythmia and ST-segment analysis

2)RESP Respiration rate(RR)

            Respiration waveform

3)SpO2  Oxygen saturation(SpO2)

              Plethysmogram(PLETH) waveform

              Pulse rate(PR)

              Bar graph

4)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)

5)TEMP T1, T2, TD

It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.

Features

1)8'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech).

2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.

3)With standard interface, OxyCRG, trend chard, big character interface and view bed, convenient to observe.

4)Waveform, parameter color and location can be set optionally.

5)Operation mode: keys and buttons.

6)Display up to 8-channel waveform on one screen.

7)Display 7-lead ECG waveform on one screen, and with ECG step function.

8)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.

9)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.

10)Review for 71 alarm events of all parameters and 60mpact and portable equipment. Its replaceable internal battery brings lot of convenient for patient moving.

11)Drug concentration calculation and titration table functions.

12)Print trend table data with one-key.

13)Connect to Central Monitoring System by 3G, WiFi or wired mode.

14)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.

15)Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).

Performance

▲ECG

Lead mode:3-lead or 5-lead

Lead selection:I, II, III, aVR, aVL, aVF, V

Waveform:5-lead, 2-channel

                 3-lead, 1-channel

Gain:2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV

Scan speed:12.5mm/s, 25 mm/s, 50 mm/s

HR:

Measurement and alarm range:15~350bpm

Accuracy:±1% or ±1bpm, whichever is greater

Alarm accuracy:± 2 bpm

Resolution:1 bpm

ST-segment monitoring:

Measurement and alarm range:    -2.0mV~+2.0mV

Accuracy:-0.8mV~+0.8mV  ±0.04mV or ±10%, whichever is greater

              Other range: unspecified

Arrhythmia analysis: ASYSTOLE, VFIB/VTAC, COUPLET,BIGEMINY, TRIGEMINY, R ON T, VT>2,

PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC

Pacemaker:yes

▲RESPIRATION

Method:R-F(RA-LL) Impedance

Respiration rate:

Measurement and alarm range:0~150rpm

Resolution:1 rpm

Measurement accuracy:±2 rpm

Alarm accuracy:±3 rpm

Apnea alarm:10~40s

Scan speed:6.25 mm/s, 12.5 mm/s, 25 mm/s

▲NIBP

Method:Oscillometry

Mode:Manual/AUTO/STAT

Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes

Measurement period in STAT mode:5 minutes

Measurement and alarm range:10 ~ 270 mmHg

Resolution:1 mmHg

Cuff pressure accuracy:±3 mmHg

Measurement accuracy:

Maximal mean error:±5 mmHg

Maximal standard deviation:8mmHg

Over-pressure protection:

Other mode:297±3 mmHg

Dog mode:240±3 mmHg

Cat mode: 147±3 mmHg

▲SpO2

Measurement and alarm range:0 ~ 100%

Resolution:1%

Measurement accuracy:70%~100%: ±2%;

0%~69%: unspecified

▲PR

Measurement and alarm range:30 ~ 250 bpm

Measurement accuracy:±2 bpm or ±2%, whichever is greater

▲TEMP

Channel:dual-channel

Measurement and alarm range:0 ~ 50℃

Resolution:0.1 ℃

Accuracy:±0.1 ℃

▲Power supply:100-240V～,50/60Hz

▲Safety classification:Class I, type CF defibrillation-proof applied part

Accessories

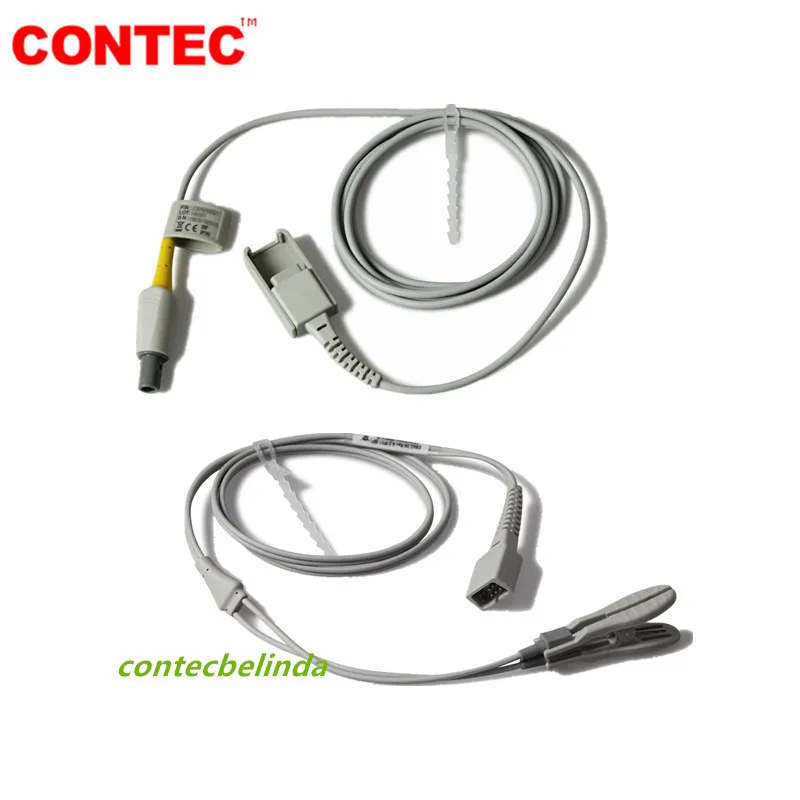

1)Digital BD7 veterinary tongue-clip SpO2 sensor (1M)

2)General digital SpO2 sensor extension cable (2M)

3)Neonatal capsule single tube repeatable cuff (6-11cm)

4)NIBP extension tube

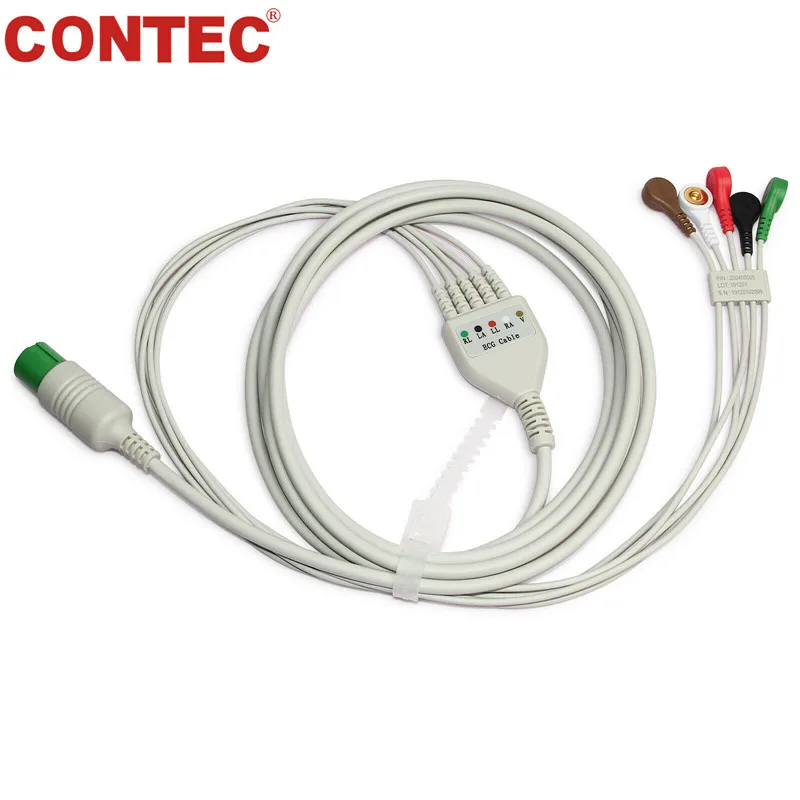

5)5-lead ECG lead cable (American-Standard)

6)ECG veterinary clip (*5)

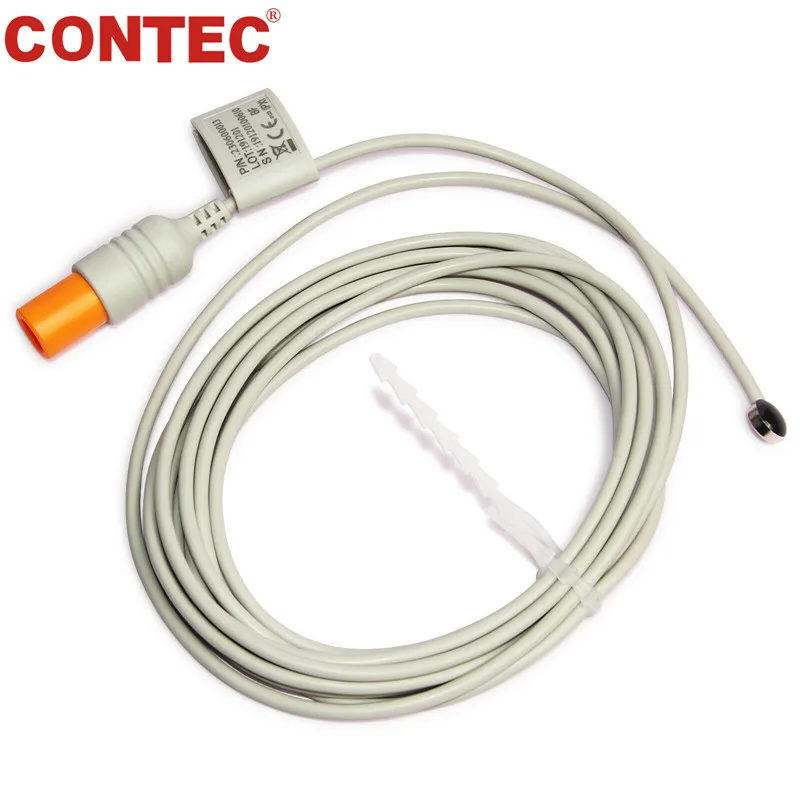

7)Transvaginal TEMP probe

8)Power adapter

9)Power cord

10)User Manual

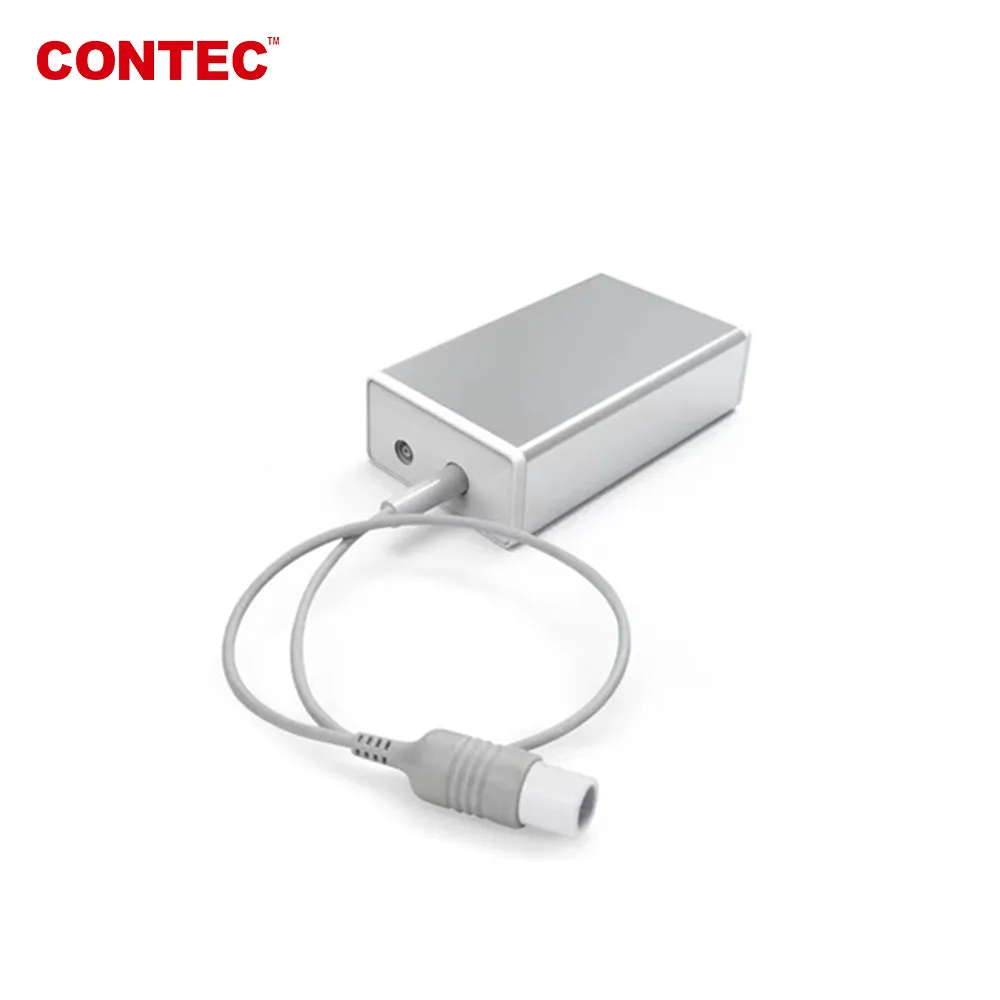

11)Capnograph Etco2 (Option)

12)Thermal printer (Option)

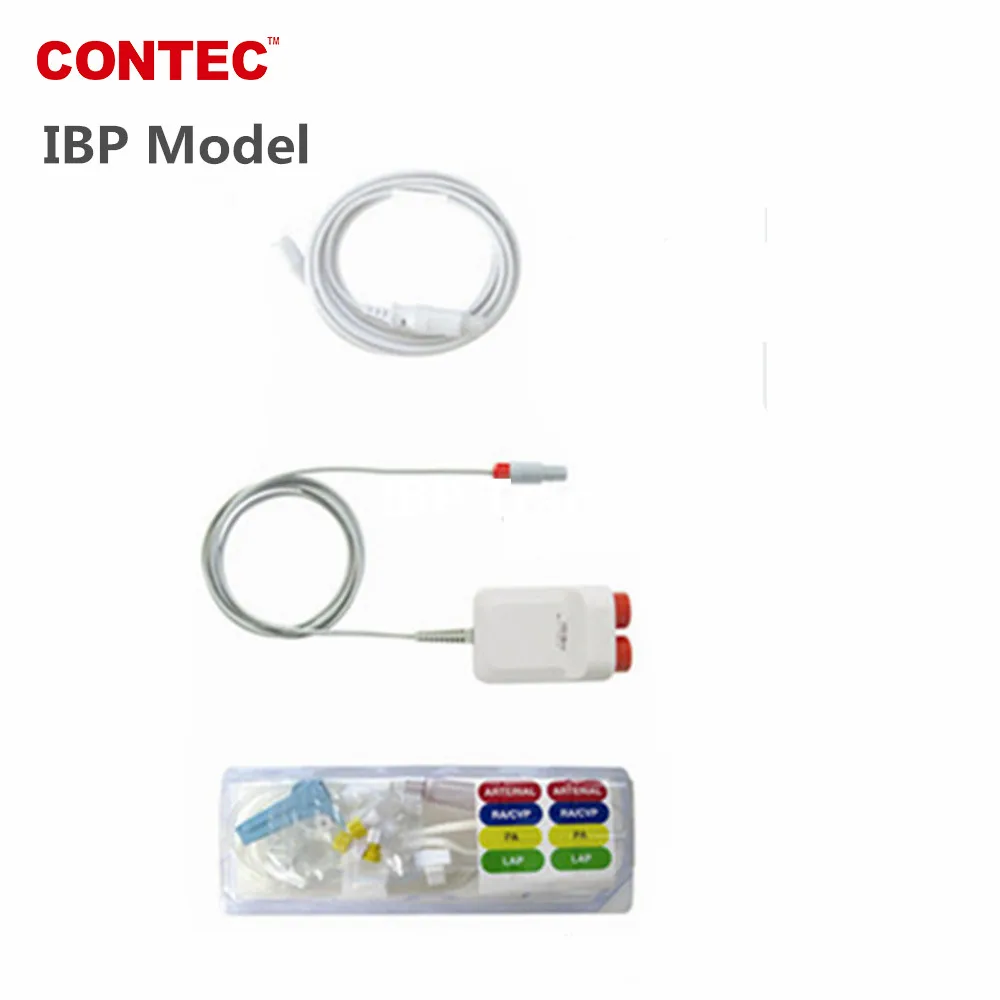

13)One IBP Cable +One IBP Module+ One IBP Transducer  (Option)

14)Carrying Case (Option)

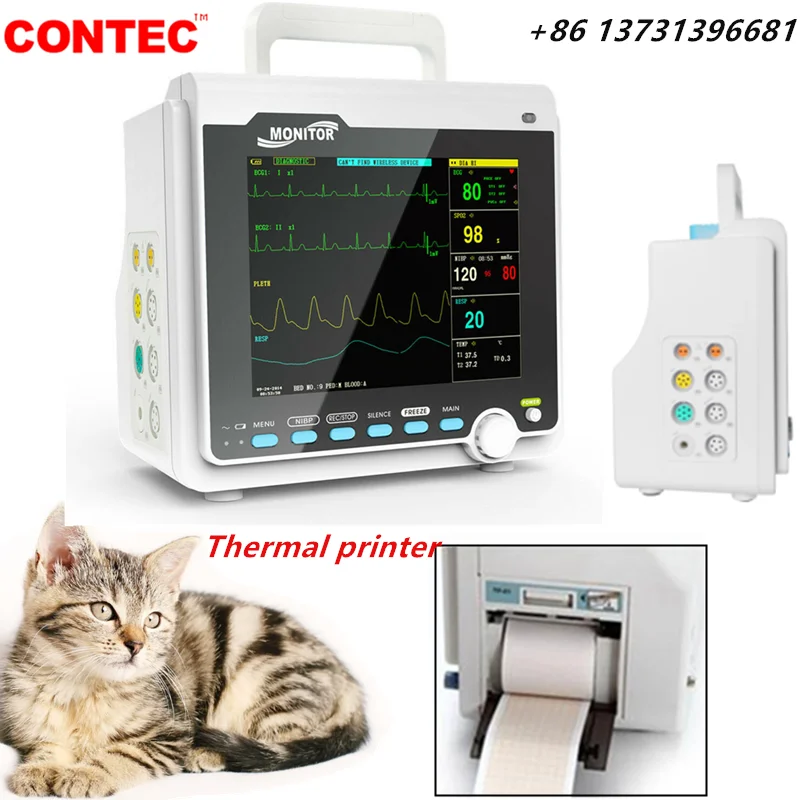

2. CMS6000 Vet with Printer

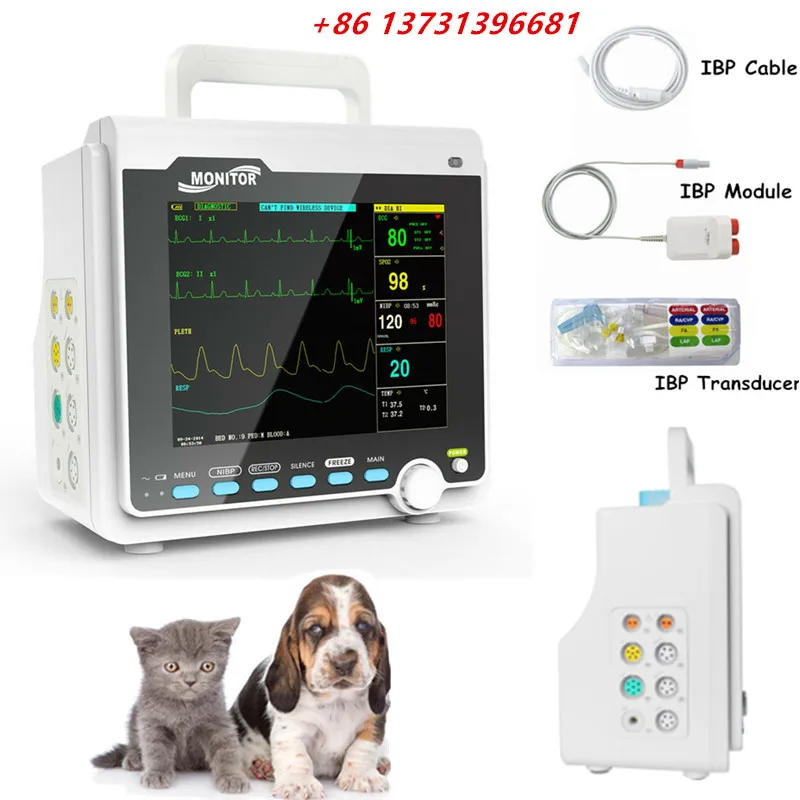

3. CMS6000 VET With IBP

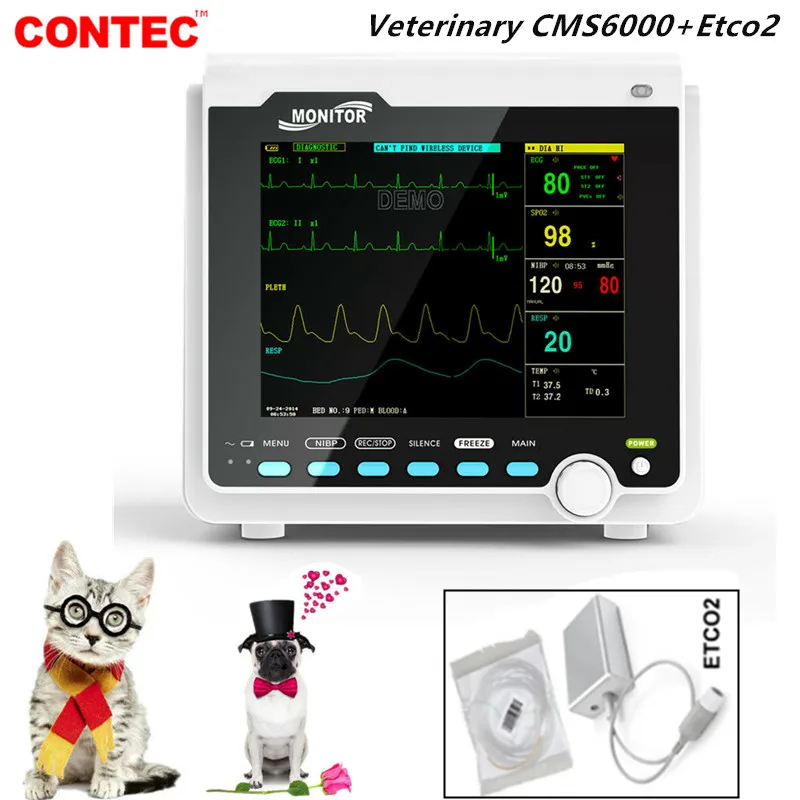

4.  CMS6000 VET With Etco2

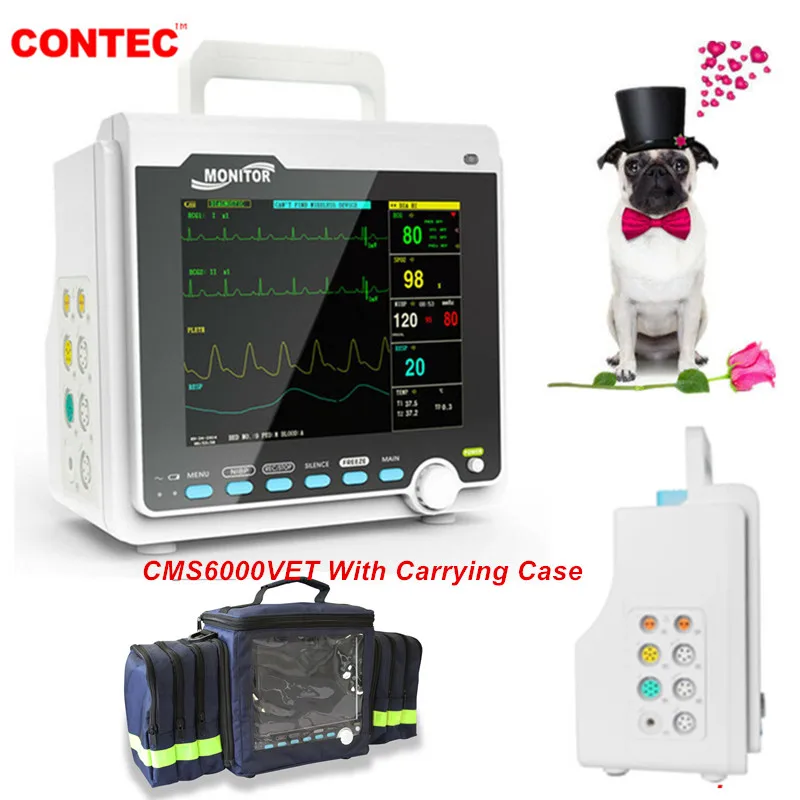

5. CMS6000 VET With Carrying Bag

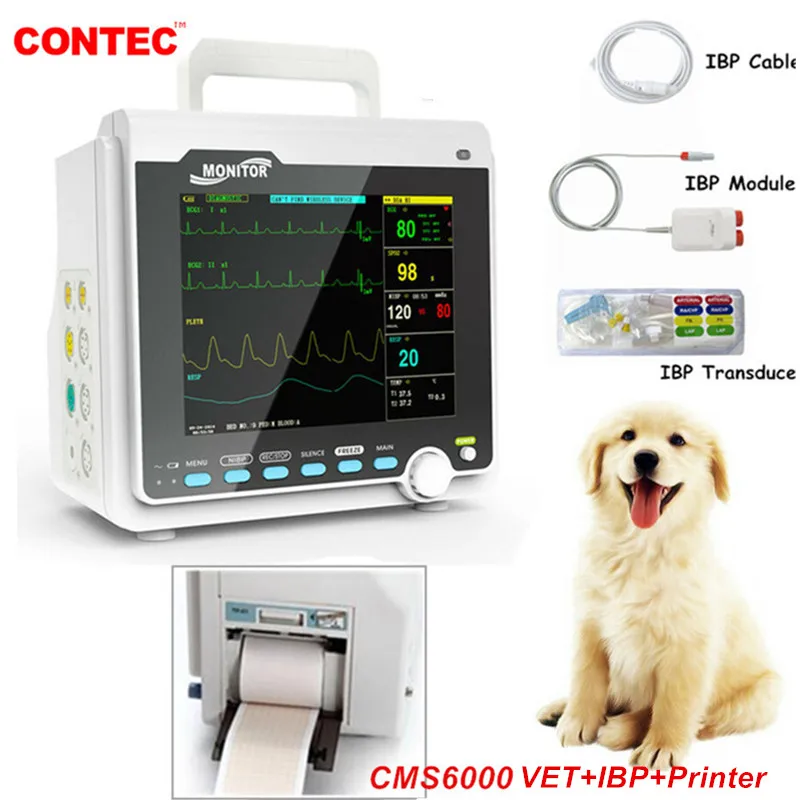

6. CMS6000 VET With Printer and IBP

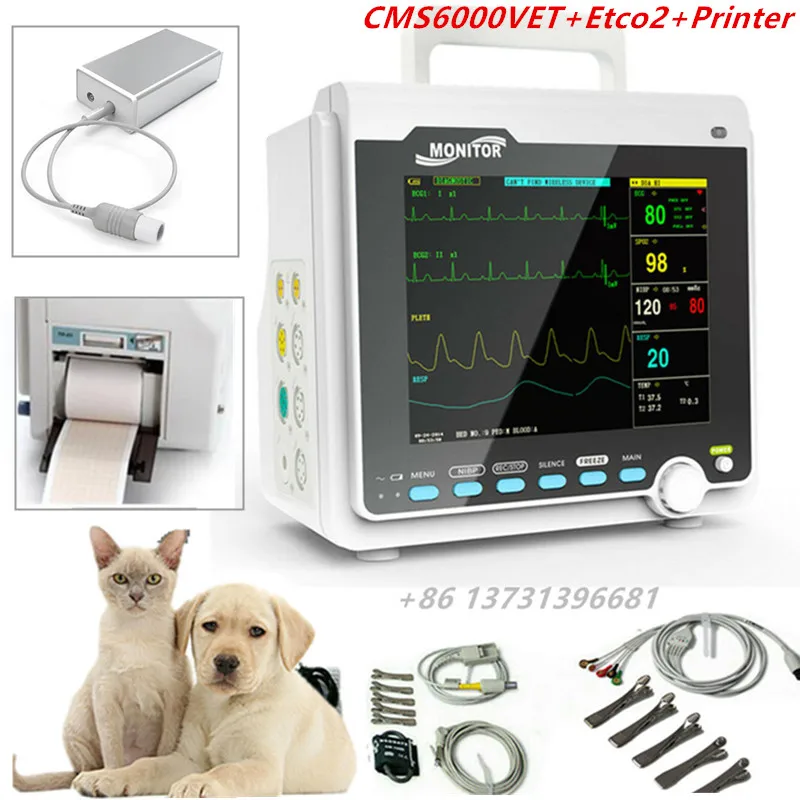

7.CMS6000 VEET With Printer and Etco2

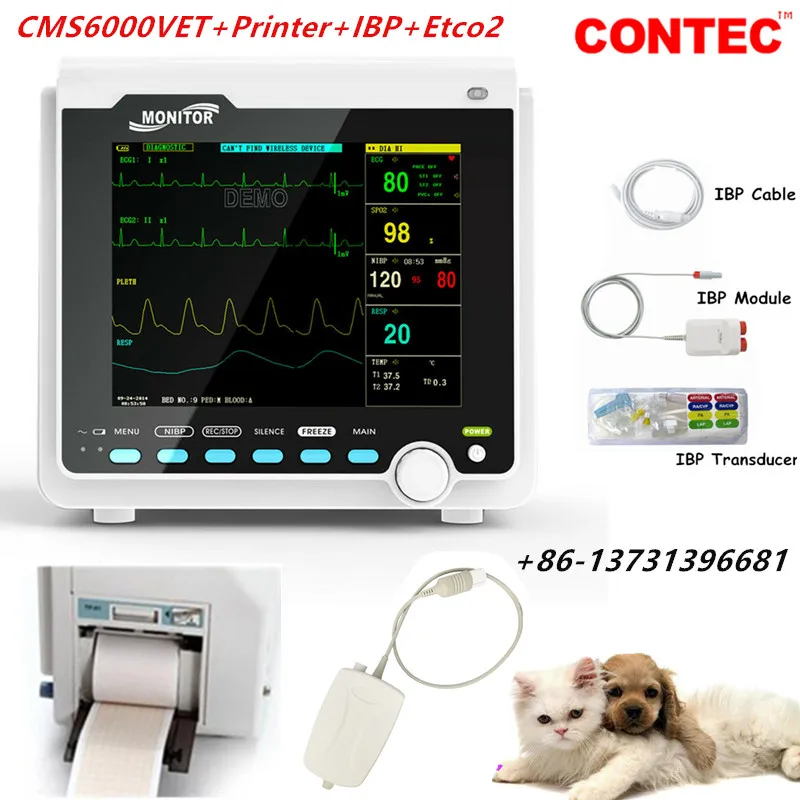

8.  CMS6000 VET with  Printer IBP and Etco2
