Resoxy E7 Portable 7 Inch Touch Screen Patient Monitor 6-Parameter ICU Vital Signs Tracking Monitor for Hospital & Clinic

The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and
neonate. Users may select different parameter configuration according to different requirements. The
monitor, power supplied by 100-240V~,50/60Hz, adopts 7'' color TFT LCD displaying real-time date
and waveform. It can synchronously display waveform and full monitoring parameters
equipped
The monitor can be connected to the
central monitoring system via wire or wireless network to form a network monitoring system.

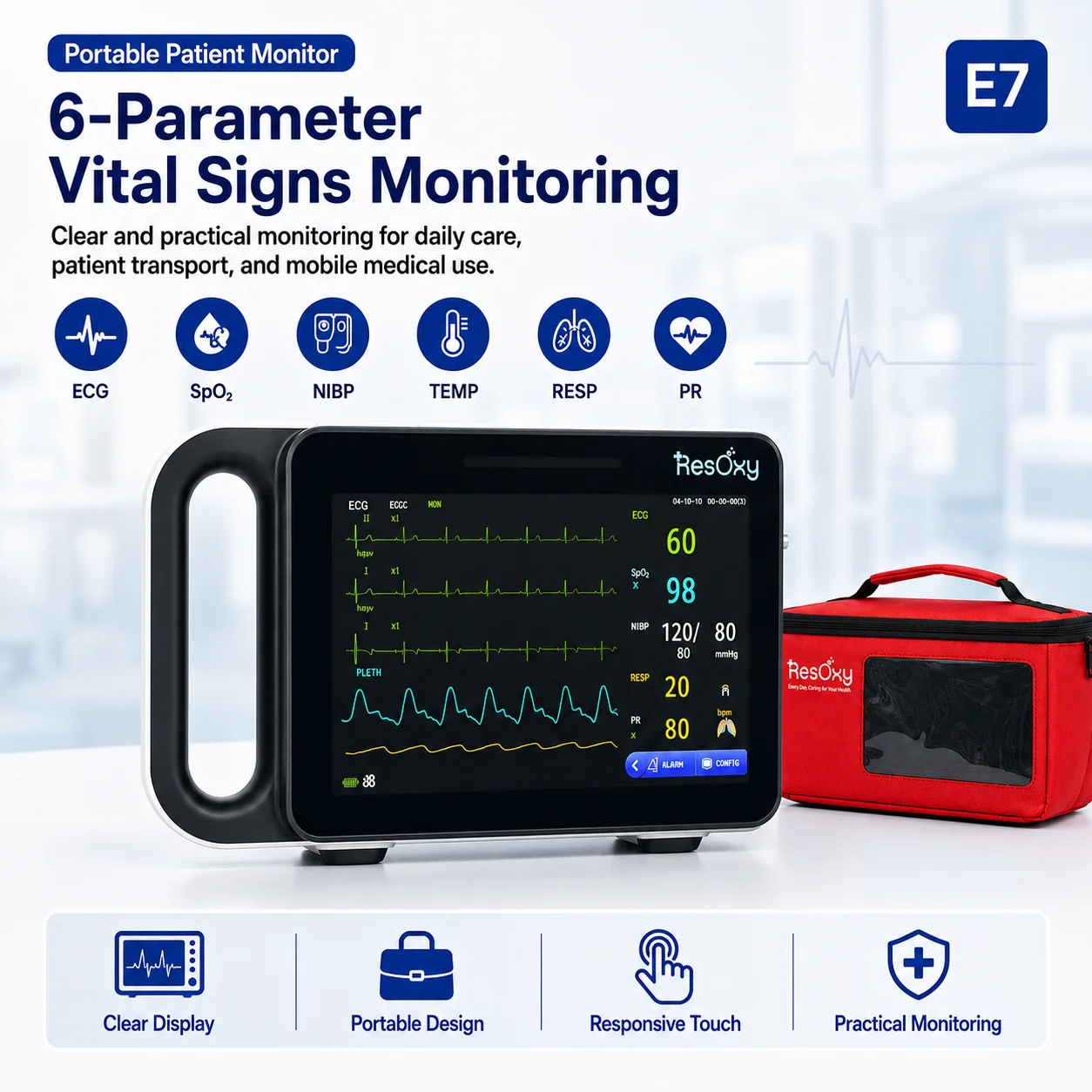

This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and TEMP, etc. It integrates
parameter measurement module, display and recorder in one device to form a compact and portable
equipment. Its replaceable internal battery brings lot of convenient for patient moving.


Performance
▲ ECG
Gain: X0.25, X0.5, X1, X2, AutoTimebaseline selection: 12.5mm/s, 25mm/s, 50mm/s
Sensitivity>200uV (peak-to-peak)
bandwidth:
Diagnostic mode: 0.05~130Hz
Monitoring mode: 0.5~40Hz
Operation mode: 1~20Hz
Common Mode Rejection Ratio:
Diagnostic mode: >90dB
Custody mode:>100dB
Operation mode: >100dB
Electrode polarization voltage: +300mV
Input impedance: <20%
DC bias voltage: -300mV~ 300mV
Multi-channel crosstalk: <5%
ST segment detection measurement:
Measurement range: -2.0mV~+2.0mV
Measurement accuracy: the measurement error
between-0.02 mV and + 0.8 mV is + 0.02 mV or + 10%.
Other scope is not defined


ECG
Mode: Standard three-guide or five-guide cables
Lead mode: I, Il, IIl
Five lead RA, LA, LL, RL, V,-Lead mode: 1, I1, III, aVR, aVL, aVF, V-Gain: AUTO,x0.25,x0.5, x1.0,x2.0-Gain change per min was less than 0.66%/ minThe total change in gain within 1h was less than I 10%
HR Accuracy: +1%or+1 bpm, whichever is greater
Time reference error: less than I 10%
Overload protection: 1V,10s
▲RESP
Method: R-F(RA-LL) Impedance
Respiration rate:
Measurement and alarm range: 0~150 rpm
Resolution: 1 rpm
Measurement accuracy: ±2 rpm
Alarm accuracy: ±3 rpm
Apnea alarm: 10~40s
Scan speed: 12.5 mm/s, 25 mm/s
▲NIBP
Adult systolic blood pressure:40~270mmHg
Diastolic blood pressure:10~210mmHg
Average pressure:20~230mmHg
Children systolic blood pressure:40~200mmHg
Diastolic blood pressure:10~150mmHg
Average pressure:20~165mmHg
Neonatal systolic blood pressure: 40~135mmHg
Diastolic blood pressure:10~95mmHg
Average pressure:20~110mmHg
Static pressure range:0~300mmHg
Static pressure accuracy:3mmHg
Blood pressure accuracy:
maximum average error 5mmHg;
maximum standard deviation 8mmHg
Overvoltage Protection:
Adult mode:300 mmHg+10mmHg
Child mode:240mmHg+10mmHg
Neonatal mode:150mmHg+10mmHg
▲Sp02
Measuring range 0~100%
Resolution 1%
The accuracy is within the range of 70% to 100%,and the measurement error should be +4%;In the range of 0% to 69%, the measurement
error is undefined
▲PR
Measuring range 25~250bpm
Resolution 1bpm
Accuracy +3bpm
Refresh time 1s
▲TEMP
Measurement and alarm range: 0 ~ 50℃
Resolution: 0.1℃
Accuracy: ±0.1℃
▲Power supply: 100-240V~, 50/60Hz
▲Safety classification: Class I, type CF defibrillation-proof applied part

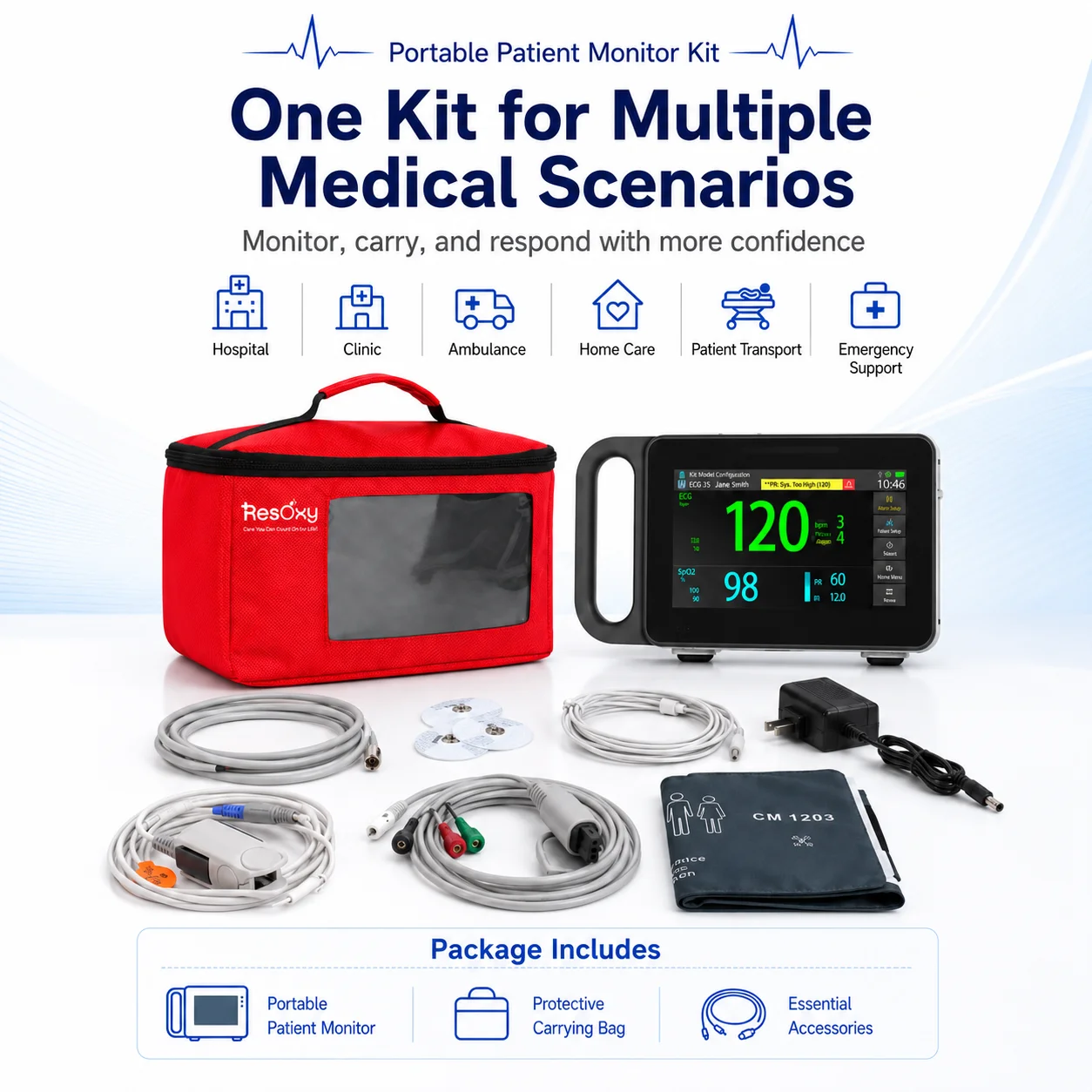

Accessories
1)SpO2 probe extension cable
2)Adult fingertip SpO2 probe
3)Adult NIBP cuff
4)NIBP extension tube
5)ECG lead cable
6)ECG electrode
7)Temperature probe
8)Power cord
9)User Manual

Dimension and Weight
Product Size：246.5*146.4*50.7mm
Product weight：950g
