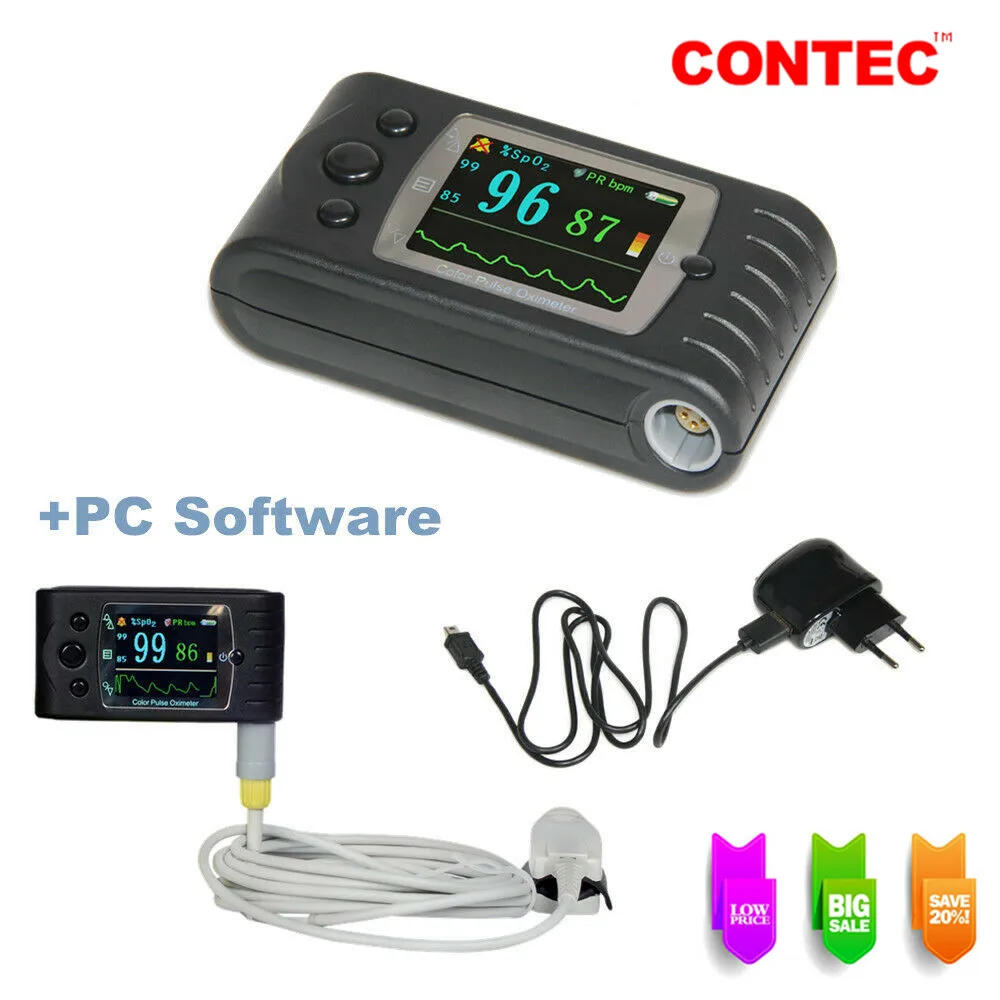

CONTEC Finger Pulse Oximeter 24h Sleep Blood Oxygen Heart Rate Monitor SpO2 PR Alarm With Adult Probe, PC Software CMS60C

CONTEC Finger Pulse Oximeter 24h Sleep Blood Oxygen Heart Rate Monitor SpO2

          PR Alarm With Adult Probe, PC Software CMS60C

Instructions

Principle of the CMS60C Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology

is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the Pulse Oximeter can

be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for

being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used

before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.

Major Features

■Small in volume、light in weight and convenient in carrying

■Operation of the product is simple ,low power consumption

■Operation menu for the function setting

■SpO2 value display

■Pulse rate value display, bar graph display

■Pulse waveform display

■WIth backlight

■A pulse rate sound indication

■With measured data overruns limits and low-voltage alarm function，the upper/down alarm range can be adjustable

■Battery capacity indication

■Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage ,and with alarm function

■With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers）

■Real-time data can be transmitted to computers

■Connected with an external oximeter probe

■Wireless communication function(only for CMS60CW version)

Main performance

Display Mode：1.8" TFT color LCD display

Screen Resolution：160*128

SpO2 Measuring Range：0%～100%, (the resolution is 1%).

Accuracy：70%～100%：±2% ,Below 70% unspecified.

PR Measuring Range：30bpm～250bpm, (the resolution is 1bpm)

Accuracy：±2bpm or ±2% (select larger)

Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%,

pulse rate error is ±2 bpm or ±2% (select larger).

Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.

Power Consumption：less than 100mA

Voltage:DC 3.6V~4.2V

Power Supply:Voltage 3.7 rechargeable lithium battery × 1

Battery working hour:26 hours

Battery working life:Charge and discharge no less than 500 times.

Safety Type:Interior Battery，BF Type

Accessories

Sell in standard

■A lithium battery

■A user manual

■A USB line

■A power adapter

■A disk (PC software)

■An oximeter probe

Sell in addition

■Other oximeter probe(Refer to probe application instruction for details and notice renewal)

Physical Identity

Dimension:87(L) × 45(W) × 22(H) mm

Weight:About 175 g (with the lithium battery*1)
