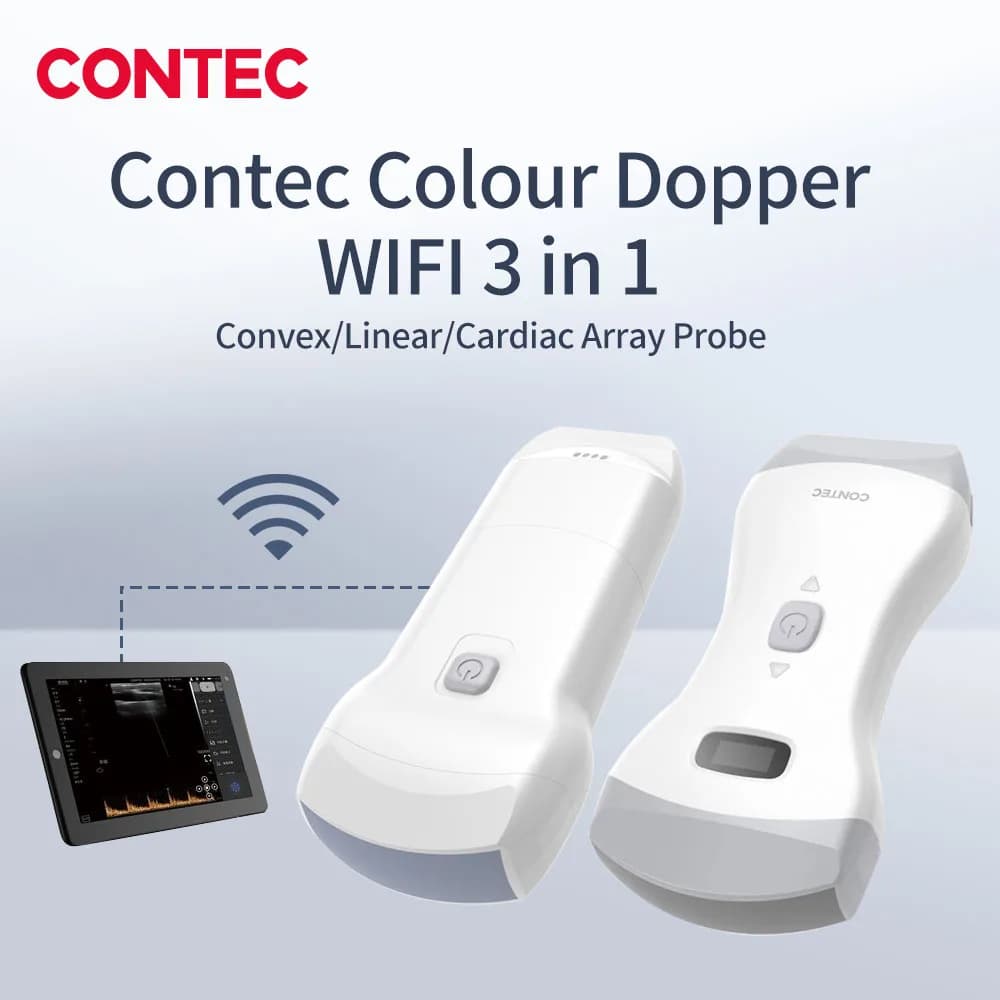

CONTEC handheld Color Doppler ultrasound diagnostic system WIFI CMS1600 (3 iN 1 probe) Convex and Linear Probe, iOS/ Android

This product is sold worldwide. If you use it in the United States, please contact me before buying.

                             CONTEC handheld  Color Doppler ultrasound diagnostic system WIFI CMS1600

                                    (3 iN 1 probe) Convex and Linear Probe, iOS/ Android

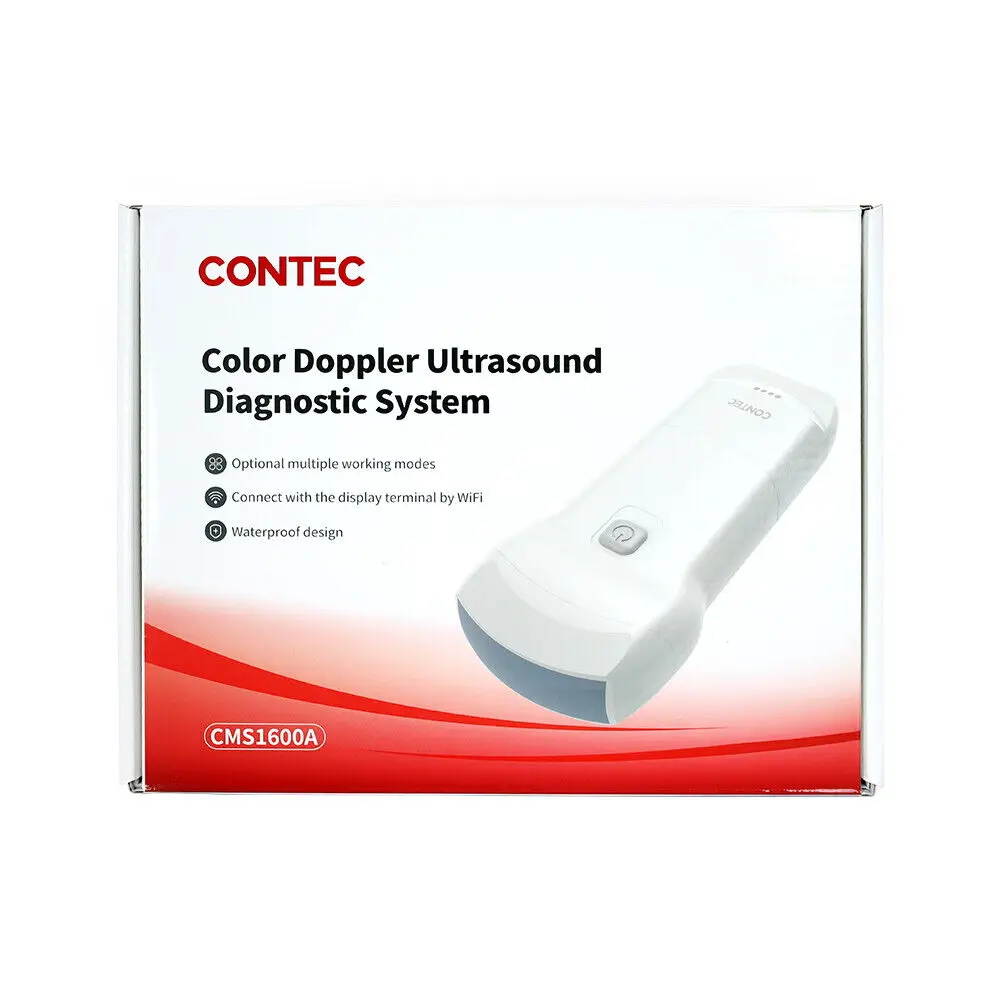

CMS1600A （CMS1600A Colour Doppler 80E 3 in 1）

Introduction

CMS1600A is a handheld dual-probe color Doppler ultrasound diagnostic system composed of a host and a particular control software. It adopts ultrasonic Doppler technology and ultrasonic echo theory to collect blood flow movement, tissue movement information and human organ tissue imaging. Small in volume, easy to operate, which is applicable for use in hospitals, clinics, Center for Disease Control and Prevention, Clinical Laboratory Center, Health Care Center, first-aid stations, nursing stations, and other medical and health institutions, ambulances, etc. It is used for clinical ultrasound examination of human body, including abdomen, obstetrics and gynecology, urology, superficial organs, peripheral vascular, nerve, heart, etc.

Function

1)Charging mode: wireless, wired (Type-C).

2)The effective transmission distance of WiFi connection (between the main unit and the particular control software) is not less than 10 m (in an open area).

3)Support full-screen display.

4)Image flip function.

5)8-segment TGC adjustment.

6)Many parameters are adjustable.

7)With patient management system.

8)Cine-loop function

9)Storage function of DICOM file

10)Working mode: B, B/M, C, PW

11)With the measurement functions and software package that can meet the requirements of clinical diagnosis.

Performance

Maximum scanning depth: 305 mm

Cine-loop storage: 1000 frame

Measurement items: length, circumference, area, depth, heart rate, duration, distance, speed, S/D ratio, obstetric measurement package.

Safety

Type of protection against electric shock: internally powered equipment

Degree of protection against electric shock: type BF applied part

Accessories

Particular APP

One User Manual

One wireless charging base

One quick charger

One data line

Physical characteristic

Dimension: 124 mm (L) × 54 mm (W) × 24 mm (H)

Weight: less than 1 kg

CMS1600B Colour Dopple 128E 3 in 1

Introduction

CMS1600B is a handheld dual-probe color Doppler ultrasound diagnostic system composed of a host and a particular control software. It adopts ultrasonic Doppler technology and ultrasonic echo theory to collect blood flow movement, tissue movement information and human organ tissue imaging. Small in volume, easy to operate, which is applicable for use in hospitals, clinics, Center for Disease Control and Prevention, Clinical Laboratory Center, Health Care Center, first-aid stations, nursing stations, and other medical and health institutions, ambulances, etc. It is used for clinical ultrasound examination of human body, including abdomen, obstetrics and gynecology, urology, superficial organs, peripheral vascular, nerve, heart, etc.

Function

1)Charging mode: wireless.

2)The effective transmission distance of WiFi connection (between the main unit and the particular control software) is not less than 10 m (in an open area).

3)Support full-screen display.

4)Image flip function.

5)8-segment TGC adjustment.

6)Many parameters are adjustable.

7)With patient management system.

8)Cine-loop function

9)Storage function of DICOM file

10)Working mode: B, B/M, C, PW

11)With the measurement functions and software package that can meet the requirements of clinical diagnosis.

Performance

Maximum scanning depth: 305 mm

Cine-loop storage: 1000 frame

Measurement items: length, circumference, area, depth, heart rate, duration, distance, speed, S/D ratio, obstetric measurement package.

Safety

Type of protection against electric shock: internally powered equipment

Degree of protection against electric shock: type BF applied part

Accessories

Particular APP

One User Manual

One wireless charging base

One quick charger

Physical characteristic

Dimension: 161 mm (L) × 73 mm (W) × 30 mm (H)

Weight: less than 1 kg

Optional bag
