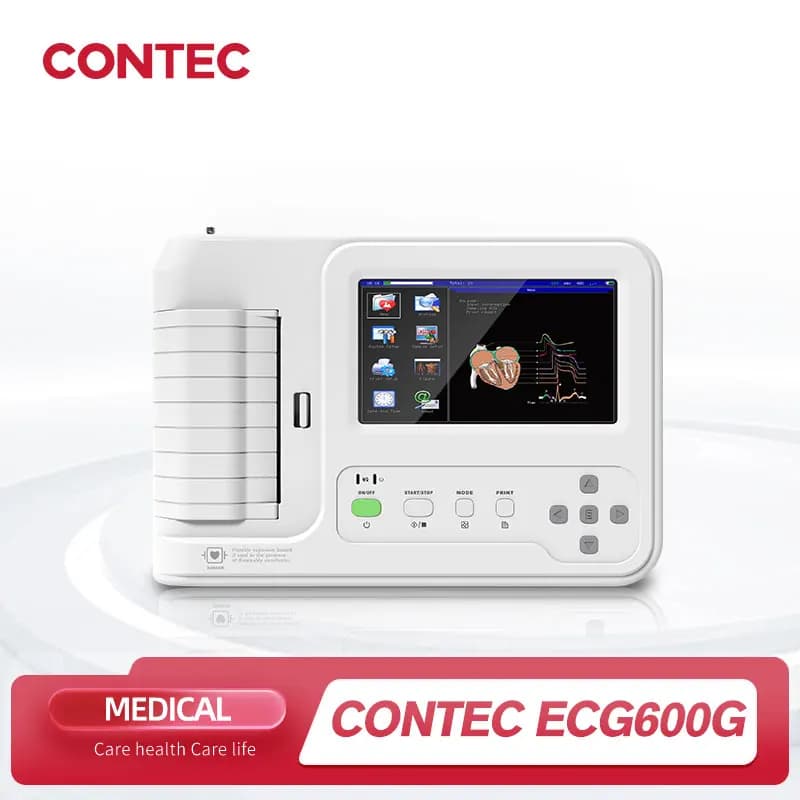

CONTEC 300G Touch Screen Digital Electrokardiograph 6 Channels 12 Leads EKG Monitor with Thermal Printer

  CONTEC ECG600G Machine  6 Channel Touch Screen 12 Lead+PrinteR+SW

ECG600G Digital Electrocardiograph 6 channel 12 lead Touch Screen EKG ECG Machine with Software PrinterCONTEC Brand ECG600G Touch Screen Digital Electrokardiograph 6 Channels 12 Lead USB EKG Monitor Thermal Printer Free Software

CONTEC Brand ECG600G Touch Screen Digital Electrokardiograph 6 Channels 12 Lead USB EKG Monitor Thermal Printer Free Software

Package included:

Aviso:   Para compradores brasileiros, se você está interessado neste produto e gostaria de comprá-lo pelo preço original, entre em contato comigo no WhatsApp +86 13731396681, eu vou ajudá-lo a resolver o problema de pagamento.

CONTEC Brand ECG600G Touch Screen Digital Electrokardiograph 6 Channels 12 Leads

                                       EKG Monitor Thermal Printer

Introduction

ECG600G is an Electrocardiograph which can collect 12-lead ECG signal simultaneously and print

waveform by the thermal printing system. It features in, recording and displaying ECG waveform in

AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting

for “Lead off” and “Lack of paper”, multi-language interface, case database management.

Function

1)Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording

frequency: up to 150Hz.

2)Real-time and continuously record clear and accurate ECG waveform and annotation character

(including lead mark, sensitivity, paper speed and filter state, etc.).

3)Full-digital filter design, anti-baseline drift, AC and EMG interference.

4)Adjust the baseline automatically, optimize the print setting and optional rhythm leads.

5)In AUTO mode, finish recording by pressing the button once, which improves work efficiency.

6)Adopt digital signal processing technology and get high-quality ECG waveform via power frequency

filter, baseline filter and EMG filter of ECG signal.

7)With the functions of auto-measurement, auto-analysis and auto-diagnosis for routine ECG parameters,

which reduces the doctor’s burden and improves work efficiency.

8)Sync collection for 12-lead ECG, multiply printing formats, including 2×6+1(rhythm lead), 2×6, 3×4,

3×4+1(rhythm lead), 4×3, 4×3+1(rhythm lead), 6×2, 6×2+1(rhythm lead), rhythm 2, rhythm 3, rhythm 4,

rhythm 5, rhythm 6, rhythm 7, channel record, etc.

9)Display of real-time 3/6/12-lead ECG, "Lead off" and "Lack of paper" on one screen, and with ECG DEMO mode. Auto-check and auto-analysis for ECG parameters, ECG waveform can be recorded manually or automatically. And patient information can be stored by case database.

10)Time print can be set to every 1/2/3/5/10/20/30/60 minutes.

11)Print setting, including “Print and save”(print waveform and save case), “Print no save”(only print waveform but not save case), “Save no print”(only save case but not print waveform).

12)AC/DC, built-in rechargeable lithium battery and auto-protection circuit, and automatic power off when there is no operation in appointed time.

13)Store more than 1000 cases, convenient for case review and statistic.

14)Multi-language(Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakh, Russian, Ukrainian, Vietnamese, Serbian, Slovenian and Slovak) interface and report.

Performance

Input mode: floating and defibrillation protection

Input impedance: ≥2.5 MΩ

Patient leakage current: <10 µA

Frequency response:

Rated input amplitude    Input frequency and waveform    Relative output response

1.0    0.67Hz~40Hz, Sine wave    ±10%a

0.5    40Hz~100Hz, Sine wave    +10 %, -30 %a

0.25    100Hz~150Hz, Sine wave    +10 %, -30 %a

0.5    150 Hz ~ 500 Hz, Sine wave    +10 %, -100 %a

1.5    ≤1Hz,200ms, Triangle wave    +0 %, -10 %b

a relative to 10Hz   b relative to 200 ms

Time constant:≥ 3.2s

CMRR: >105dB

Filter: power frequency(AC50/60 Hz), EMG(25 Hz/35 Hz (-3 dB)), baseline drift filter

Recording way: thermal printing system

Specification of recording paper: 110 mm(W)×20 m(L) high-speed thermal paper

Time base selection(paper speed): 12.5 mm/s, 25 mm/s, 50 mm/s, error: ±5%

Gain control(sensitivity): 5, 10, 20 mm/mV, accuracy is ±2%; Standard sensitivity: 10 mm/mV±0.2 mm/mV

Recording mode: auto mode, rhythm mode and manual mode

Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)

Safety classification: Class I, type CF defibrillation-proof applied part

Polarization resistance voltage: ±610mV

Noise level: ≤12 µVp-p

ECG signal input sampling frequency: 32 kHz

Waveform data processing sampling frequency: 1 kHz

Sampling accuracy: 24-bit

The minimum detection signal: 10 Hz, 20 µV(peak-peak value) deflected sinusoidal signal can be detected

Pacing detection channel: standard II

Accuracy of input signal: ±5%

Amplitude quantization: ≤5µV/LSB

Interchannel time deviation: <100 µs

Power supply:

AC: 100V~240V(50/60Hz)

DC: 7.4V/3500mAh rechargeable lithium battery

Degree of protection against ingress of liquid: IPX0

Working mode: continuous working

Accessories

Standard configuration:

A lead cable

A limb electrode

A chest electrode

A thermal recording paper

A power cord

An earth wire

A user manual

Software not included, no upload function

Physical characteristic

Working environment

Temperature: 5℃~40℃

Relative humidity: 25%~95%(non-condensing)

Atmospheric pressure: 700 hPa~1060 hPa

Transport and storage environment

Temperature: -20 ℃～+55 ℃

Relative humidity: ≤95%

Atmospheric pressure: 500 hPa~1060 hPa

Dimension: 315mm(L)×215mm(W)×92mm(H)

Weight: 1.7Kg
