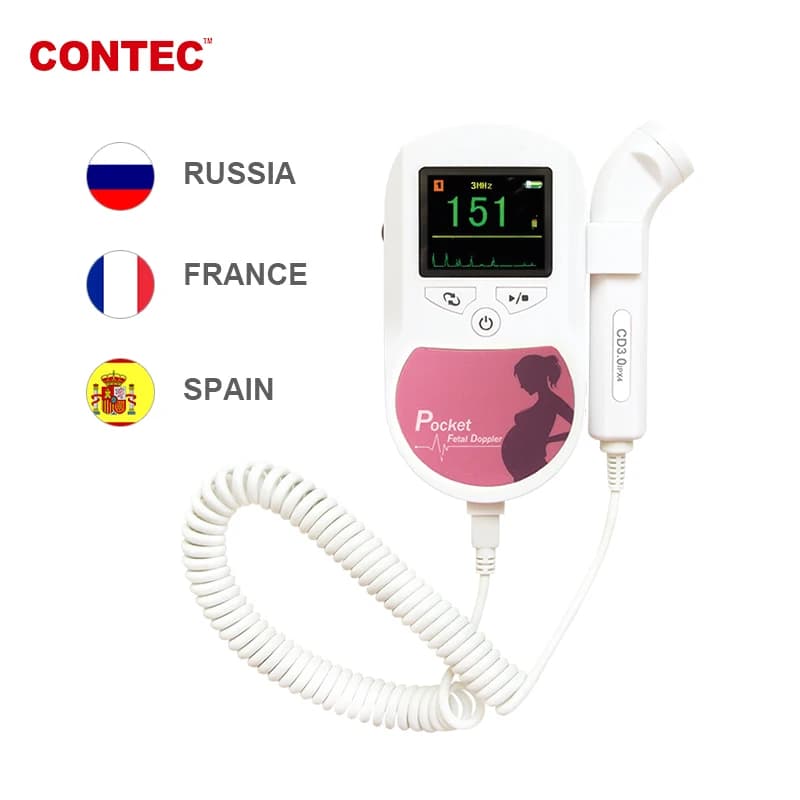

Contec Handheld Color Prenatal Fetal Doppler 3MHz Probe Baby Heart Beat Monitor

Contec Handheld Color Prenatal Fetal Doppler 3MHz Probe Baby Heart Beat Monitor

Federal law restricts the device to sale by or on the order of a licensed practitioner or therapist.

 Please use under the doctor's instruction

Introduction

Pocket Fetal Doppler is a hand-held fetal heart rate detecting device adopted Doppler theory. It can be used in hospital and clinic for daily self-check by pregnant woman. The device adopts color LCD screen of high resolution, which can display the fetal heartbeat waveform and calculate the FHR value to help doctors for diagnosis in time.

Features

1) Delicate and compact design, portable and easy to use

2) Crooked probe structure, which is easy to operate and increases the feeling of comfort, embodies the humanized design.

3) Three working mode: Real-time FHR Display Mode, Averaged FHR Display Mode and Manual Mode

4) FHR values, bar graph and heartbeat waveform color display

5) Alarming in red when the FHR value is out of the normal range.

6) Probe falls off detection, battery status indication

7) Automatic shutdown: The device will automatically turn off if there is no signal within 1 minute.

8) Audio interface: Can be connected to other recording devices by recording cable, record fetal heart sound in real-time

9) Two 1.5V batteries (AA LR6) can last more than 8 hours for normal use

Performance

1) safety classification: internally powered equipment, type CF applied part

2) Display: 1.77"262K TFT

3) Range of fetal heart rate: 50 BPM ～ 240 BPM (BPM: beats per minute)

4) Resolution: 1 BPM

5) Accuracy: ± 2 BPM

6) Power consumption: ＜1 W

7) Rated operational voltage: DC3 V

8) Battery: two 1.5V batteries (type: AA LR6)

Probe

1) Nominal Frequency: 2.0 MHz

2) Working Frequency: 2.0 MHz ± 10%

3) Comprehensive Sensitivity: ≥90 dB

4) Ultrasonic Output Power: P ＜ 20 mW

5) Negative Peak Sound Pressure: P_ ＜ 1 MPa

6) Output Beam Intensity: Iob ＜ 20 mW/cm2

7) Spatial-peak Temporal-average Derived Intensity: Ispta ＜ 100 mW/cm2

8) Working Mode: Continuous wave doppler

9) Effective Radiating Area of Transducer: < 157 mm2

Accessories

User manual 1

3MHz crooked probe 1

Physical characteristic

Dimension: 135 mm(L)×92 mm(W)×29 mm(H)

Weight: about 245 g (with battery)
