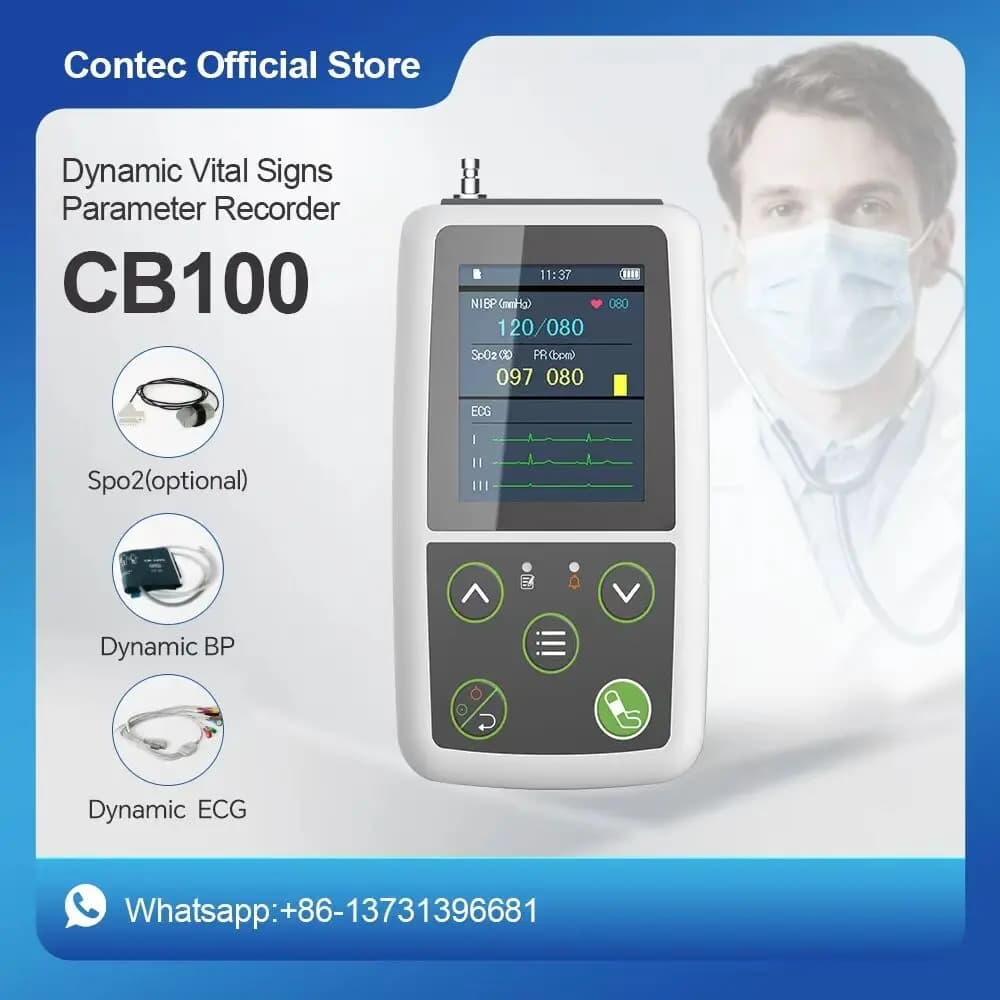

CONTEC CB100 Dynamic Storage Mode Ambulatory Multi-Parameter Recorder Monitor ECG NIBP, SPO2(optional)

Aviso:   Para compradores brasileiros, se você está interessado neste produto e gostaria de comprá-lo pelo preço original, entre em contato comigo no WhatsApp +86 13731396681, eu vou ajudá-lo a resolver o problema de pagamento.

CONTEC CB100 Dynamic Storage Mode Ambulatory Multi-Parameter Recorder Monitor ECG NIBP, SPO2(optional)

Function

Feature

1)USB high-speed transmission.

2)Sync collection of 12-lead ECG, BP and SpO2 (optional) data for 24 h at least.

3)Comprehensive analysis of ECG and BP.

ECG

1)Display and print ECG waveform at any time during collection.

2)Multi - lead overlay analysis, any lead can be selected for analyzing, more accurate to search QRS wave.

3)Histogram analysis function, interval, interval ratio, voltage, QRS width, QRS area and HR histogram can be selected for analyzing.

4)Scatter plot (including density and mixed scatter plot) analysis function.

5)Atrial fibrillation analysis function adopts the mode of combining time scatter plot and Lorenz scatter plot, intuitive to display the location of atrial fibrillation event, convenient to positioning for diagnosis.

6)With the functions of arrhythmia, bradycardia and ST-T analysis.

NIBP

1)With the functions of 24 h automatic cycling BP measurement and setting measurement interval.

2)BP data review and report print functions.

3)Measurement of systolic pressure, diastolic pressure and mean pressure.

SpO2

1)Measurement of SpO2 and PR.

2)SpO2 trend chart review and print functions.

Performance

●ECG

Lead: standard 12-lead

Record time: ≥ 24 h

Dynamic input range: 10 mV

Input impedance: ≥ 10 M

CMRR: ≥ 60 dB

Gain accuracy: ≤ 10 %

Gain stability: ≤ 3 %

System noise: ≤ 50 μV

Multichannel crosstalk: ≤ 0.2 mV

Frequency response: 0.05 Hz ~ 40 Hz (+3 dB ~ -3 dB)

Minimum detection signal: minimum amplitude: 50 μV

●NIBP

Measurement method: Oscillometry

Measurement range: pressure: 0 ~ 297 mmHg

Resolution: pressure: 1 mmHg (0.133 kPa)

Accuracy: static pressure: ± 3 mmHg (± 0.4 kPa)

Error:

Mean deviation: ≤ ± 5mmHg (± 0.67 kPa)

Standard deviation: ≤ 8 mmHg (1.067 kPa)

●SpO2 (optional)

SpO2 measurement range: 0 % ~ 100 %

PR measurement range: 30 bpm ~ 250 bpm

●Others

Display mode: 2.4" color LCD

Battery: two AA alkaline batteries

Rated voltage: DC 3 V

Safety class:

Internally powered equipment

ECG: type BF applied part

NIBP: defibrillation - proof type BF applied part

SpO2: type BF applied part

Accessories

●NIBP cuff for adult

●NIBP extension tube

●USB cable

●ECG cable

●ECG electrode

●PC software

●Backpack

●User Manual

●SpO2 probe (optional)

●Adult BP cuff for other size (optional)

Physical characteristic

Dimension: 128 (L) × 69 (W) × 36 (H) mm (main unit)

Weight: about 320 g (without battery)

Operating environment:

Temperature: 5 ˚C ~ 40 ˚C

Relative humidity: 15 % ~ 85 %, non-condensing

Atmospheric pressure: 700 hPa ~ 1060 hPa

Storage environment

Temperature: - 20 ˚C ~ + 55 ˚C

Relative humidity: ≤ 95 %

Atmospheric pressure: 500 hPa ~ 1060 hPa
