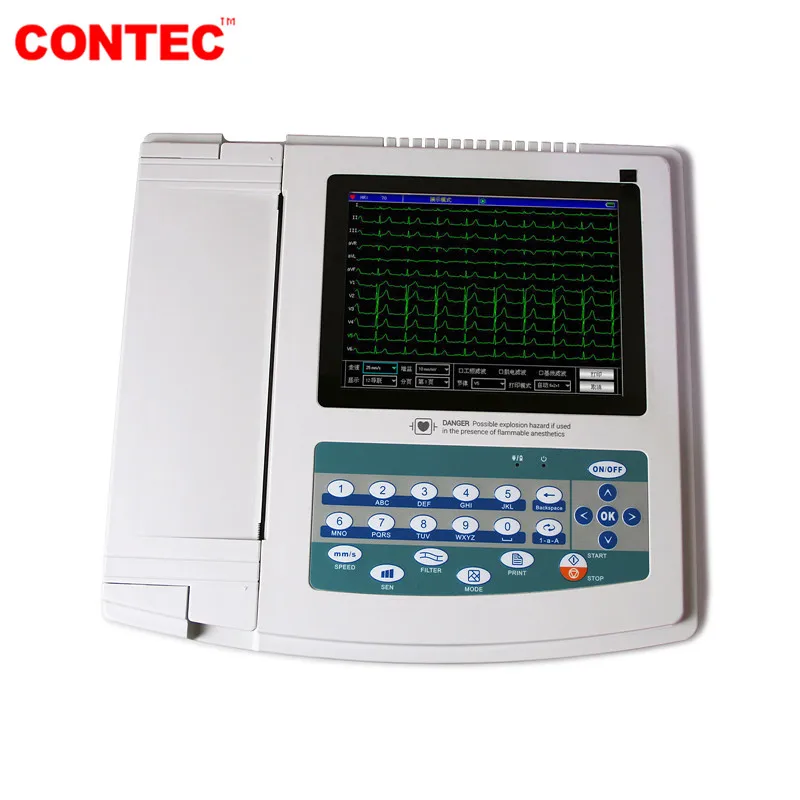

CONTEC Touch Screen Digital 12 Channel 12 Leads ECG EKG Electrocardiograph PC Software ECG1200G

Aviso:

Para compradores brasileiros, se você está interessado neste produto e gostaria de comprá-lo pelo preço original, entre em contato comigo no WhatsApp +86 13731396681, eu vou ajudá-lo a resolver o problema de pagamento.

CONTEC Touch Screen Digital 12 Channel 12 Leads ECG Electrocardiograph

                             PC Software ECG1200G

Introduction

ECG1200G is an  electrocardiograph which can collect 12-lead ECG signal simultaneously and print  ECG waveform with thermal printing system. It features in, recording and  displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG  waveform parameters automatically, prompting for “Lead off” and “Lack of paper”,  multi-language interface, AC/DC, selecting rhythm lead, printing the trend chart  and histogram of P-R interval, case database management.

Function

1)Sync collection for 12-lead  ECG, adopt digital signal processing technology and get high-quality ECG  waveform via power frequency filter, baseline filter and EMG filter of ECG  signal.

2)Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed  and filter state, etc. on one screen, convenient for contrastively  diagnosing.

3)Multiply printing modes and formats, including auto 12x1, auto  6x2+1, auto 6x2+1_H, auto 6x2, auto 6x2_H, auto 3x4+1, auto 3x4+2, rhythm 12,  rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R  interval can be printed, waveform length printed can be adjusted, and with time  print function, which meets different requirements.

4)Paper speed: 5mm/s,  6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.

5)With the functions of  auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement  results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS  Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5),  S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.

6)Built-in memory  stores up to 1000 cases, convenient for case review and  statistic.

7)Multi-language(Turkish, French, Chinese, English, German,  Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian)  interface and report.

8)In optimal DC state, up to 10-hour standby time,  continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it is  3s case), which meets the requirements of visiting a patient at home and body  examination.

Performance

Input mode: floating and  defibrillation protection

Frequency response: 0.05Hz ~  150Hz(-3dB~+0.4dB)

CMRR: >60dB, >100dB(add filter)

Time constant:≥  3.2s

Patient leak current: <10µA

Calibration voltage:  1mV

Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity:  10mm/mV±2%

Noise level: ≤15µVp-p

Input circuit current: ≤50nA

Input  impedance: ≥50MΩ

Sampling accuracy: 12-bit

Safety classification: class I,  type CF and defibrillation-proof applied part

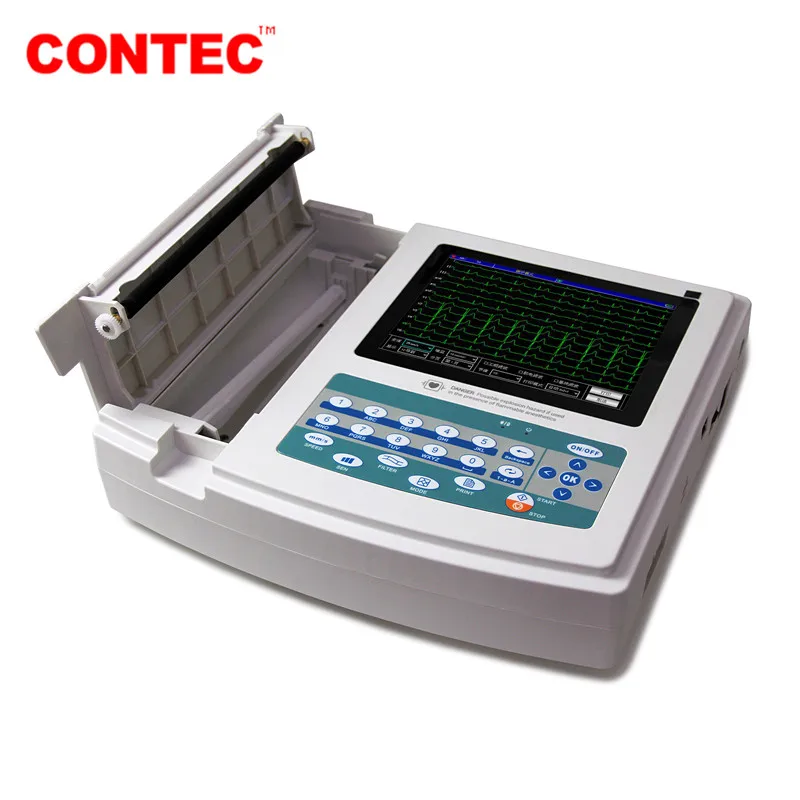

Recording mode: thermal  printing system

Paper size: 210mm(W)×20m(L)

Sampling frequency:  1000Hz

EMG interference filter: 25Hz/35Hz (-3dB)

Power frequency filter:  AC 50Hz/60Hz(-20dB)

Paper speed:

Auto: 25, 50mm/s, ±5%

Rhythm: 25,  50mm/s, ±5%

Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5%

Auto record: set  record according to auto record format and mode, automatically switching leads,  measuring and analyzing.

Rhythm record: set record according to rhythm record

format and mode, automatically measuring and analyzing.

Manual record: set  record according to record format, manually switching leads.

Measurement  parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T  interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)

Power  supply:

AC: 100V~240V(50/60Hz)

DC: 14.8V/3500mAh rechargeable lithium  battery

Fuse specification: two AC time lag fuse(φ5×20mm),  T1.6AL250V

Waterproof degree: IPX0

Working mode: continuous  working

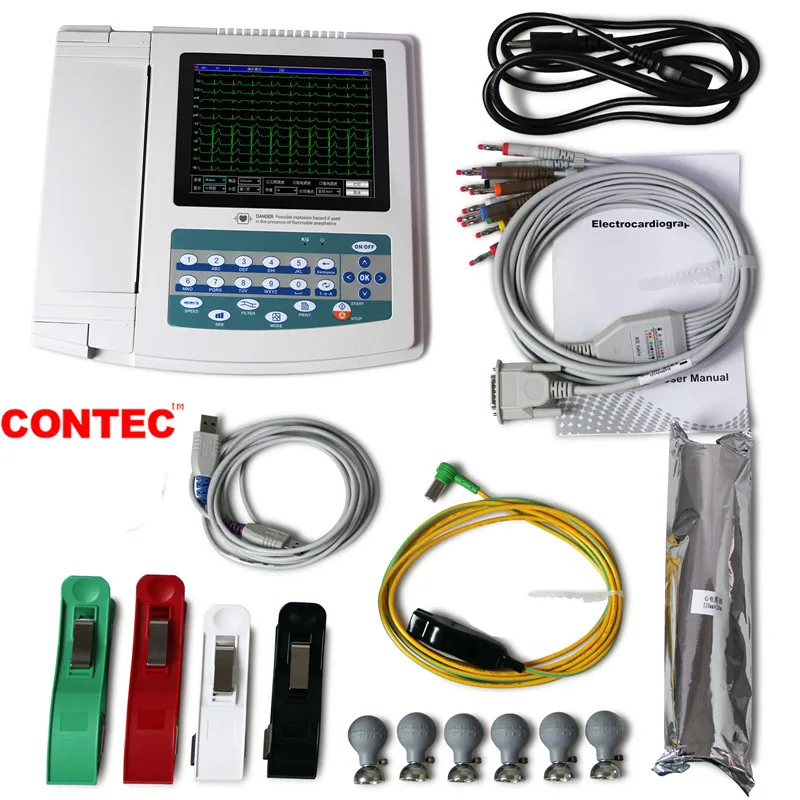

Accessories

Standard:

A lead cable

A  limb electrode

A chest electrode

A thermal recording paper

A power  cord

An earth wire

A user manual

Optional:

ECG-Sync  software+USB cable

ECG electrode

Bag

Conductive paste

USB cable

3G card

Wi-Fi card

Remote Operation Guide

Physical characteristic

Working  environment

Temperature: 5℃~40℃

Relative humidity:  25%~95%(non-condensing)

Atmospheric pressure: 700hPa~1060hPa

Transport and  storage environment

Temperature: -40℃~+55℃

Relative humidity:  ≤95%

Atmospheric pressure: 500hPa~1060hPa

Dimension: 340mm(L) × 320mm(W) ×  85mm(H)

Weigh: 3.2Kg
