CONTEC ICU Portable 6 Parameters 8"Vital Signs Patient Monitor CMS6800 ECG NIBP RESP SPO2 PR TEMP, Free Infrared Thermometer

   CONTEC ICU Portable 6 Parameters 8"Vital Signs Patient Monitor CMS6800 ECG NIBP RESP SPO2 PR TEMP,

                                             Free Infrared Thermometer

Introduction

This equipment can monitor such parameters as ECG, RESP, NIBP, SpO2, PR and Dual- channel TEMP.

It integrates parameter measurement module, display and recorder in one device to form a compact and portable

equipment. At the same time, its built-in replaceable battery provides convenience for patient moving. This equipment

adopts full-isolation (floating), ECG defibrillation-proof protection, ECG anti-high frequency interference and NIBP

dual-protection for over-pressure, to ensure monitoring quality and reduce operation risk, which is applicable for

monitoring adult, pediatric and neonate.

Main Features

■Elegant appearance, clear marks, standard interface, oxygen graph, trend graph, big characters, other BED

observation, which are convenient for users.

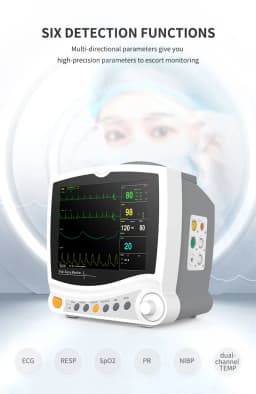

■Standard parameters: ECG, RESP, NIBP, SpO2 and dual-channel TEMP. Printer is optional.

■Optional functions: moving bracket, hanging bracket.

■Operation interface with 15 languages. Finish all operations by keys and knobs. (Optional languages: Simplified

Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian,

Russian, Kazakh, Polish, Czech.)

■8'' color LCD with high-resolution displays patient parameter and waveform collected, and alarm, bed NO., clock,

equipment state and other information provided by the monitor synchronously.

■Monitoring contents, scan speed, volume and output contents can be set optionally.

■Calculation of drug concentration.

■Network function: connect to central monitor system, view bed and software updating.

■Connection mode: wired, WIFI and 3G.

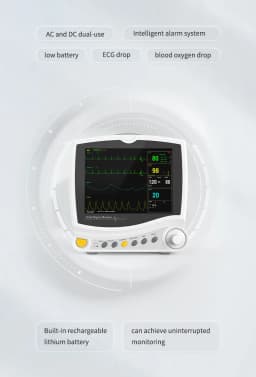

■Built-in rechargeable battery for uninterrupted monitoring.

■Print ECG, SpO2, RESP, BP and TEMP data with one-key.

■Anti-high frequency surgical unit, defibrillation-proof (requirement for special leads).

Performance

■ 8" TFT, led backlight , 800x480 pixels.

■ Visual and Audio alarms, adjustable.

■ Patient managment, name and age and id.

■ Network with Central Station Software

■ Audio volume ajustable form 1 ~ 8 level.

■ Multi-language options: Germany, France, Italian, Turkey, etc

■ Built-in removable and rechargeable lithium battery

■ Memory: Built-in memory or miniSD Memory card. Store more than1000 pieces  of archive

■ Powerful data storage and managment, Trend graph, Trend table, etc

■ Arrythmia analysis and S-T segment analysis.

■ Accuracy: ± 2%(70%~100%)

                 0% ~ 69% unspecified

ECG

■ Lead mode:3-lead or 5-lead

■ HR range:15 ~ 300 bpm

■ Accuracy: ± 2bpm or ± 2%, which is greater

NIBP

■ Method: Oscillometry

■ Mode:    Manual/Auto/Contiuous

■ Measurement Range:25 ~ 260mmHg

SPO2

■ Measurement Range: 0 ~ 100%

■ Measurement Range:25 ~ 250 bpm

■ Accuracy:± 3 bpm

Respiration

■Method:  R-F(RA-LL) Impedance

■Measurement and alarm range for RESP rate

Adult:  0~120rpm

Pediatric and neonatal : 0~150rpm

■Accuracy:  ±2 rpm

■Apnea alarm : 10~40s

■Scan speed:  6.25mm/s, 12.5mm/s, 25 mm/s

TEMP

■Temperature curve:  YSI-400

■Channel:  dual-channel

■Measurement Range:  0 ~ 50℃

■Accuracy:  0.1℃

■Display resolution:  0.1℃

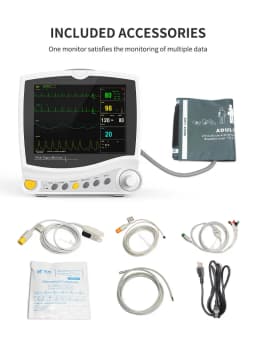

Accessories

■User Manual

■SpO2 probe extension line (5-pin)

■Adult fingertip SpO2 probe

■NIBP extension tube

■NIBP metal plugs

■Adult NIBP cuff

■ECG lead wire

■ECG electrode

■Temperature probe

■Power cord
