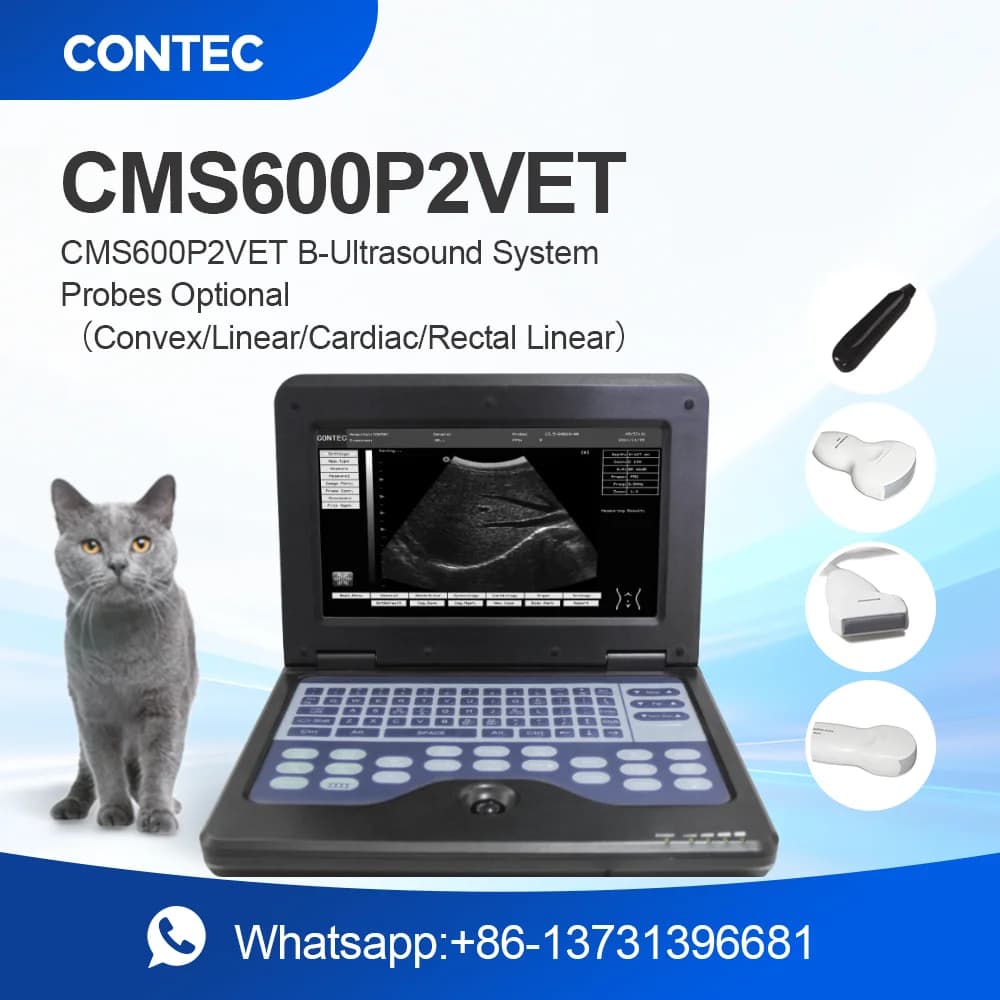

Contec Veterinary Ultrasound Scanner Laptop for Horse Equine Cow Sheep Dog Cat - Multiple Probe Types

CONTEC Veterinary Laptop Machine Ultrasound Scanner Horse/Equine/Cow/Sheep/Dog/ Cat (Convex& Rectal Linearr&Micro-Convex&Linear)

1.Introduction

CMS600P2VET is a  notebook veterinary B-ultrasound diagnostic system. Its embedded operation  system greatly improves the product performance, achieving stronger data process  ability and fast process speed. Pop-up menu and keyboard design bring more  convenient to users. The device is applicable to the measurement and calculation  of the obstetric for swine, bovine, sheep, equine, cat, dog and other  animals.

2.Features

1)Simple and easy image  management function, reports can be printed and output.

2)Near field, far  field and total gain can be adjusted separately.

3)External storage  function.

4)Software is updated through U-disk.

5)Can be connected with  video printer, ink-jet printer, laser printer.

6)Realizing image real-time,  freeze, memory, calling up and large capacity cine loop; possessing functions  such as multi-level scanning depth, dynamic range, focus number, focus distance,  focus position adjusting, etc.

3.Performance

Display mode: B, 2B, 4B, BM,  M.

Display depth: 240 mm

Focus mode: focus number and focus position can  be adjusted.

Measurement and calculation: Distance, circumference, area,  volume, angle, ratio and gestational age for swine, equine, bovine, sheep, dog  and cat.

Character display: date, time, animal name, animal type, hospital,  serial number, frame rate, depth, total gain, dynamic range, frame correlation,  probe frequency, magnification times and functional menu.

Image processing:  controllable frame correlation, gamma correction, histogram, up and down flip,  left and right flip, positive and negative image conversion.

Safety

Type  of protection against electric shock: class Ⅱ equipment

Degree of protection  against electric shock: type BF applied part

Operational voltage: DC15V,  4A

Power consumption: ≤45 VA

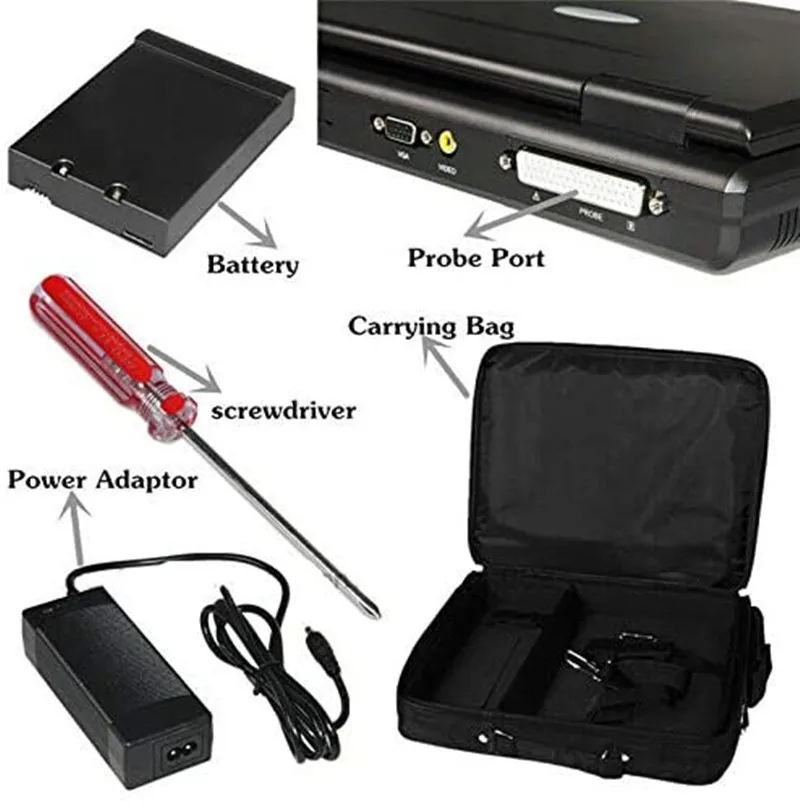

4.Accessories

3.5MHz Convex probe  1

User manual 1

Power adapter 1

Power cord 1

Lithium battery  1

Screwdriver 1

Carrying bag 1

Standard Configuration

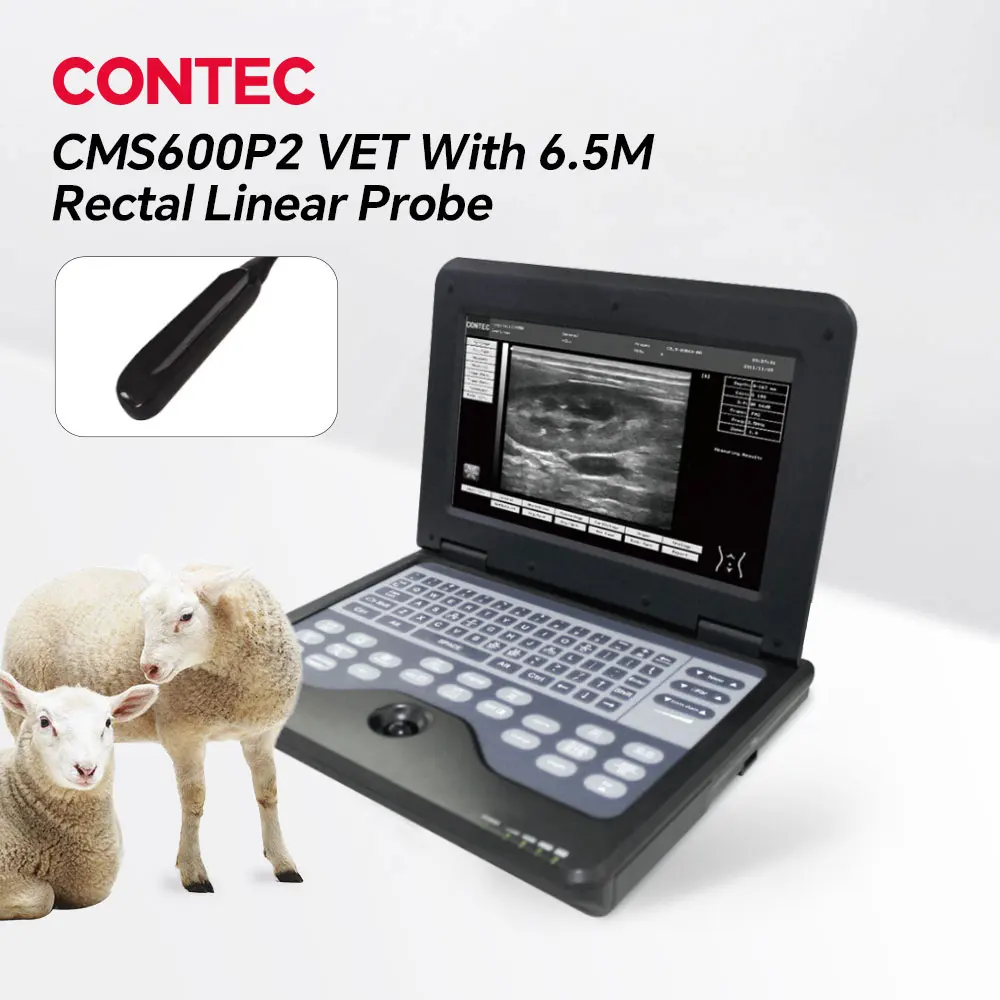

CMS600P2 VET With 6.5 Rectal Linear Probe

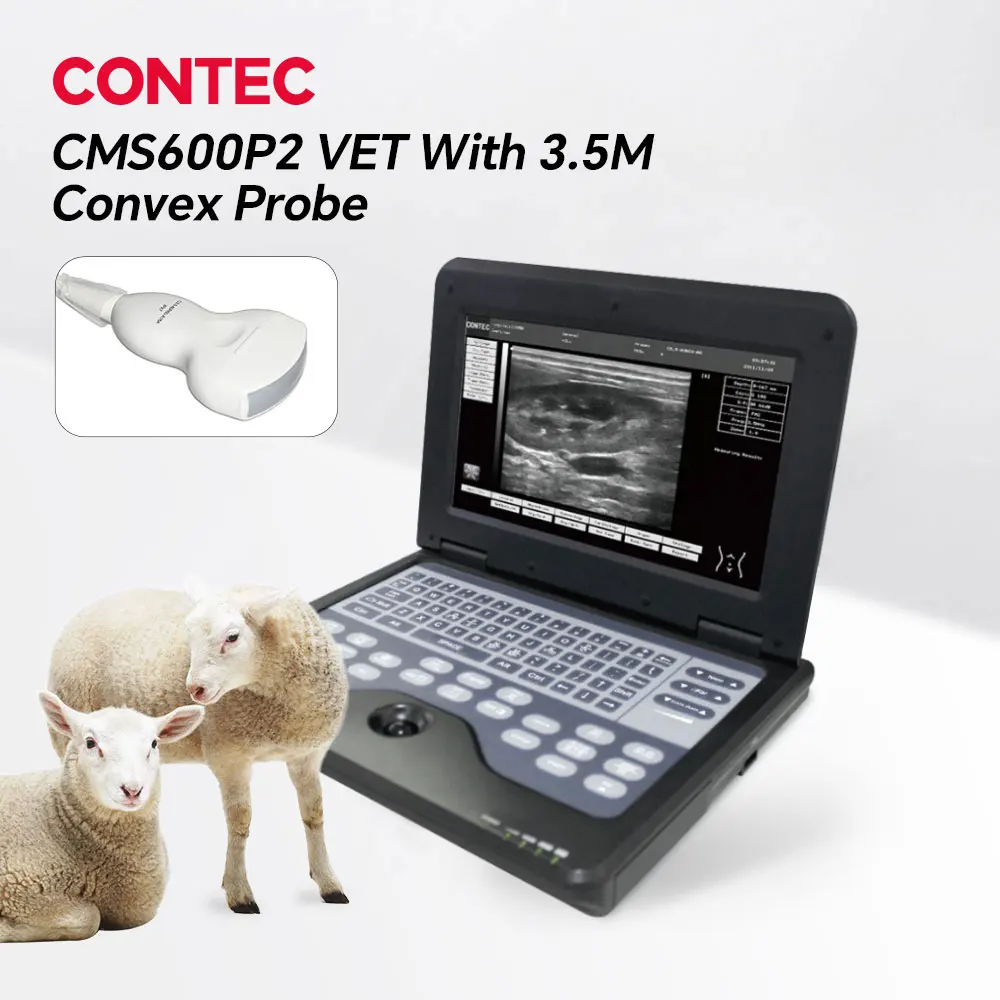

CMS600P2VET with 3.5 MHz convex probe, 2.0 MHz~5.0 MHz

CMS600P2 VET with 7.5Mhz Linear probe

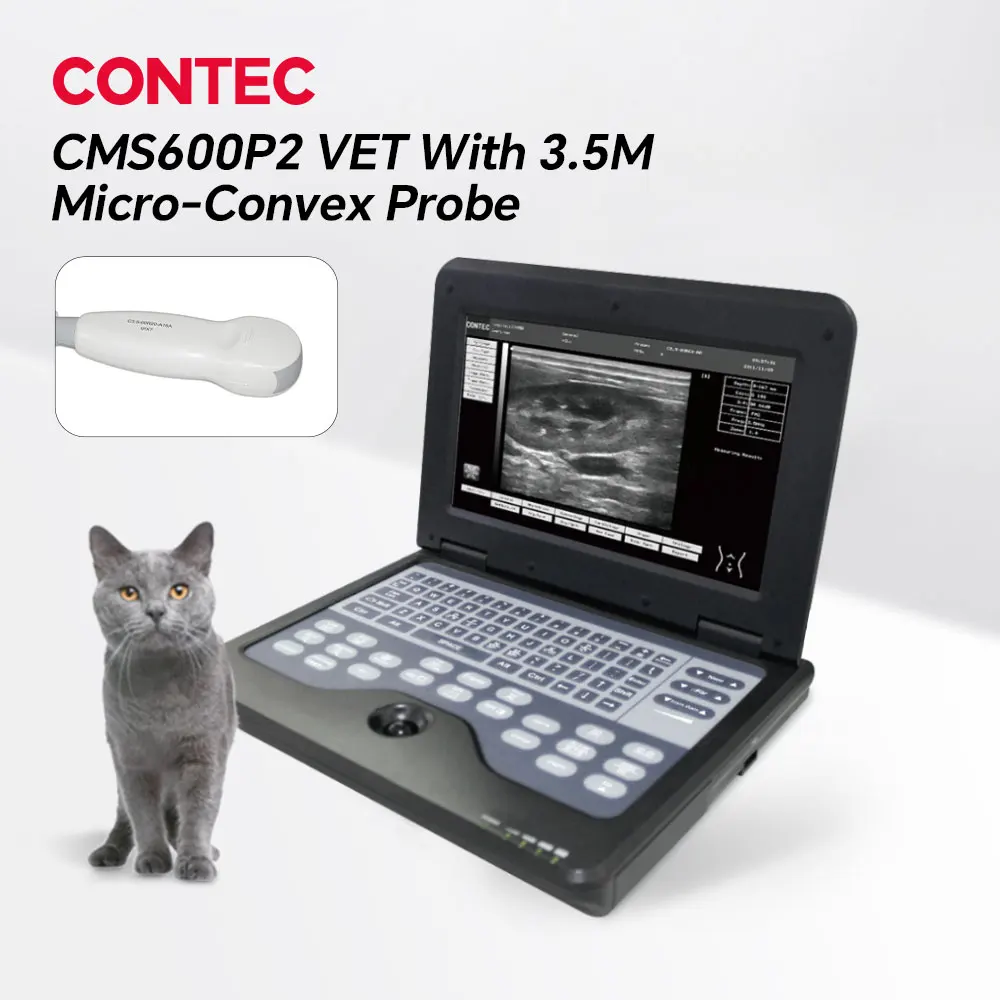

CMS600P2 VET With 3.5Mhz Micro-Convex Probe
