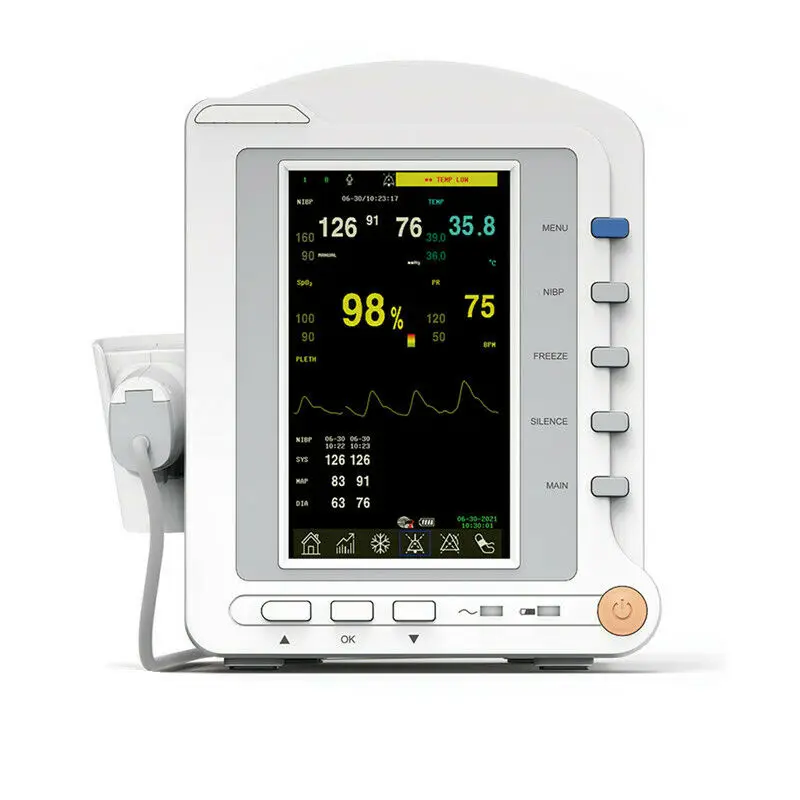

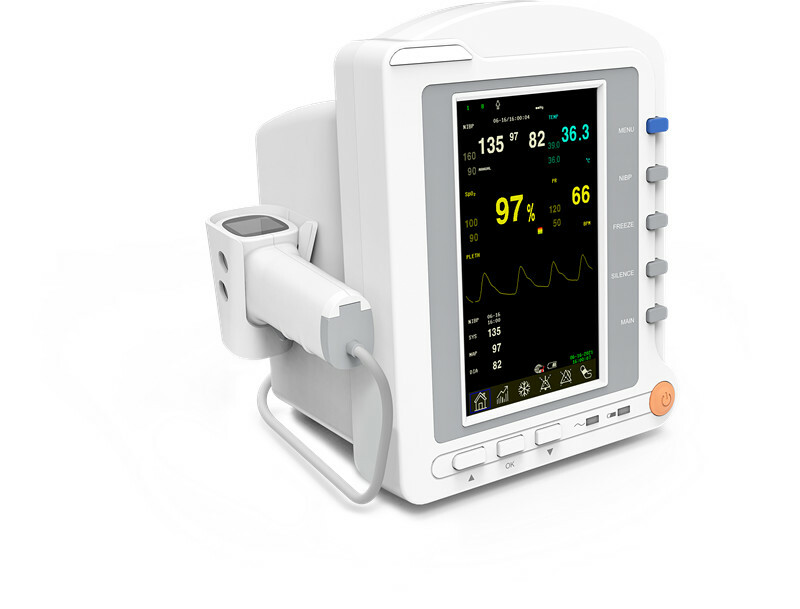

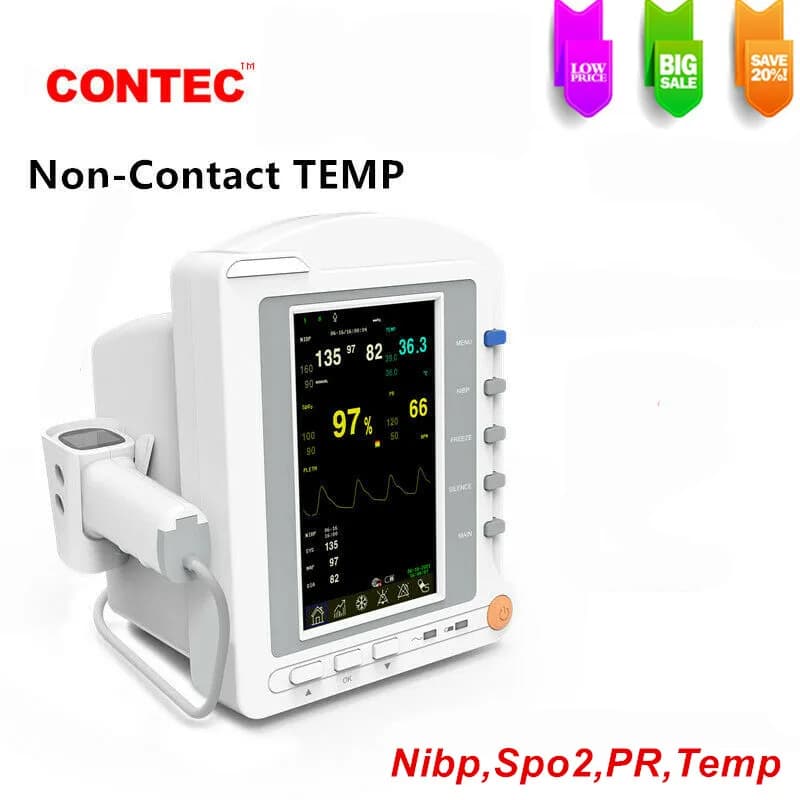

CONTEC CMS5200 Touch Screen Patient Monitor NIBP SPO2 TEMP PR Vital Signs Monitor Thermometer

CONTEC CMS5200 Touch Screen Patient Monitor NIBP SPO2 TEMP PR Vital Signs Monitor Thermometer

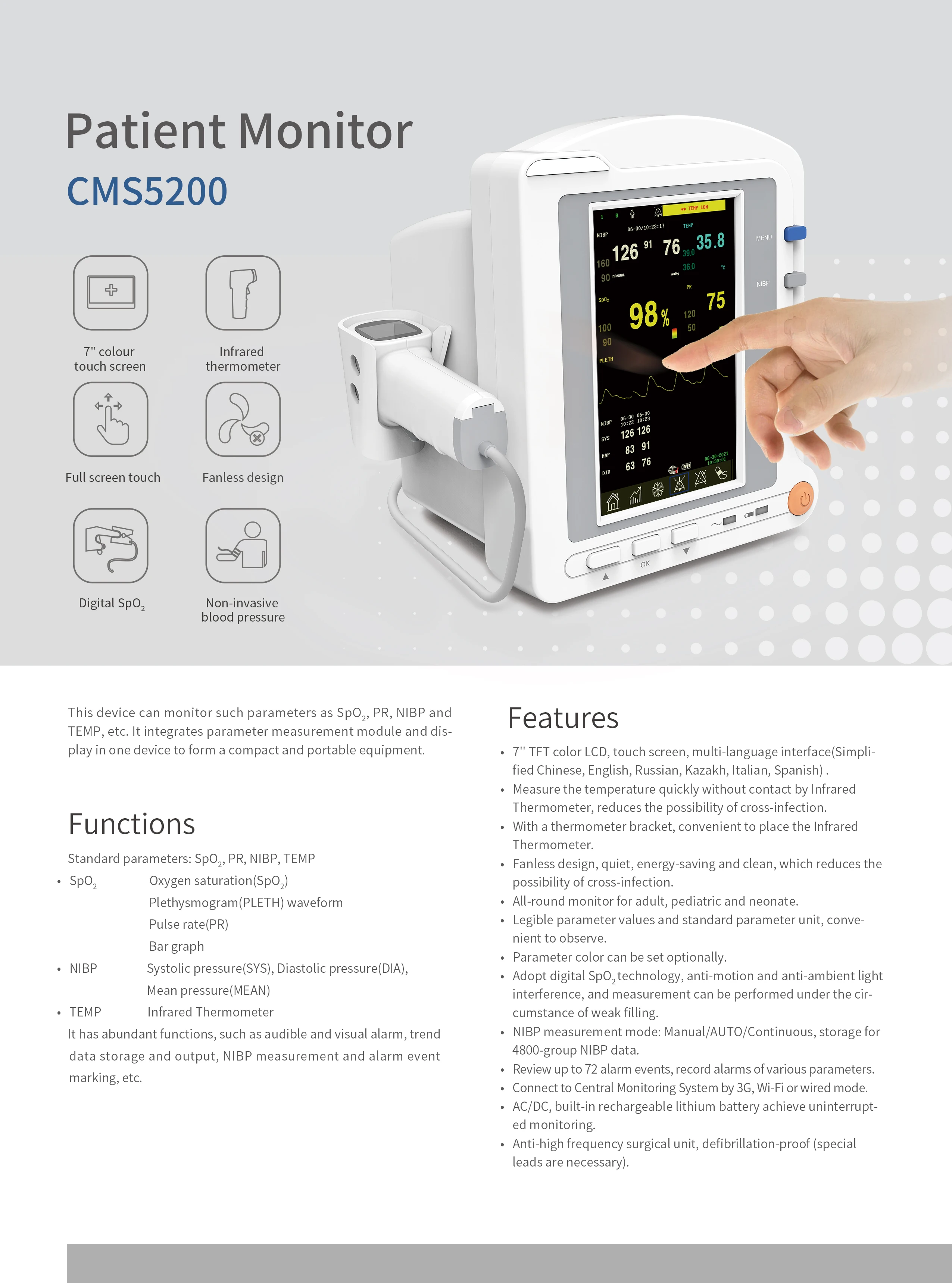

Introduction

This device can monitor such parameters as SpO2, PR, NIBP and TEMP, etc. It integrates parameter measurement module and display in one device to form a compact and portable equipment.

Functions

Standard parameters: SpO2, PR, NIBP, TEMP

1)SpO2 Oxygen saturation(SpO2)

Plethysmogram(PLETH) waveform

Pulse rate(PR)

Bar graph

2)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)

3)TEMP Infrared Thermometer

It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement and alarm event marking, etc.

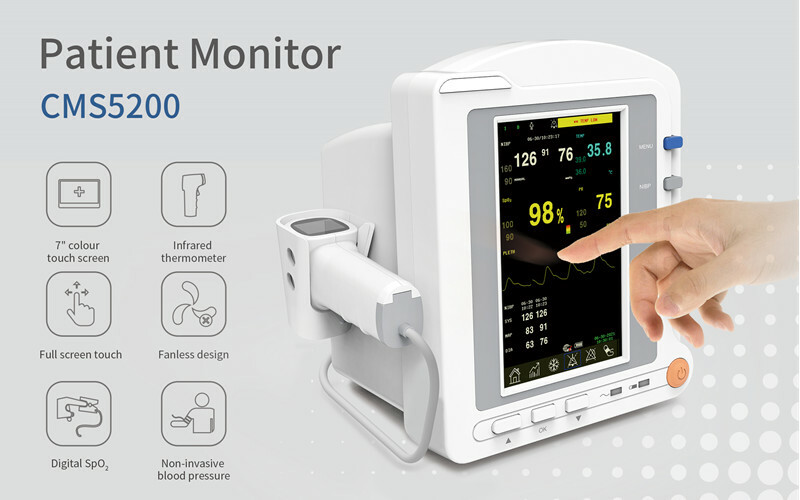

Features

1)7'' TFT color LCD, touch screen, multi-language interface(Simplified Chinese, English, Russian, Kazakh, Italian, Spanish) .

2)Measure the temperature quickly without contact by Infrared Thermometer, reduces the possibility of cross-infection.

3)With a thermometer bracket, convenient to place the Infrared Thermometer.

4)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.

5)All-round monitor for adult, pediatric and neonate.

6)Legible parameter values and standard parameter unit, convenient to observe.

7)Parameter color can be set optionally.

8)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.

9)NIBP measurement mode: Manual/AUTO/Continuous, storage for 4800-group NIBP data.

10)Review up to 72 alarm events, record alarms of various parameters.

11)Connect to Central Monitoring System by 3G, Wi-Fi or wired mode.

12)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.

13)Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).

Performance

NIBP

Method: Oscillometry

Mode: Manual/AUTO/Continuous

Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/180/240/480/960 minutes

Measurement period in Continuous mode: 5 minutes

Measurement and alarm range: 10 ~ 270 mmHg

Resolution: 1 mmHg

Cuff pressure accuracy: ±3 mmHg

Measurement accuracy:

Maximal mean deviation: ±5 mmHg

Maximal standard deviation: 8 mmHg

Over-pressure protection:

Adult mode: 297±3 mmHg

Pediatric mode: 240±3 mmHg

Neonatal mode: 147±3 mmHg

SpO2

Measurement and alarm range: 0 ~ 100%

Resolution: 1%

Measurement accuracy: 70%~100%: ±2%;

0%~69%: unspecified

PR

Measurement and alarm range: 25 ~ 250 bpm

Measurement accuracy: ±2 bpm or ±2%, whichever is greater

TEMP

Measurement range: 32℃~42.9℃

Resolution: 0.1 ℃

Accuracy: ±0.2 ℃

Power supply

AC: 100 - 240 (V), 50/60 (Hz)

Maximal input power: 150VA

Safety classification: Class I, type BF defibrillation-proof applied part

Accessories

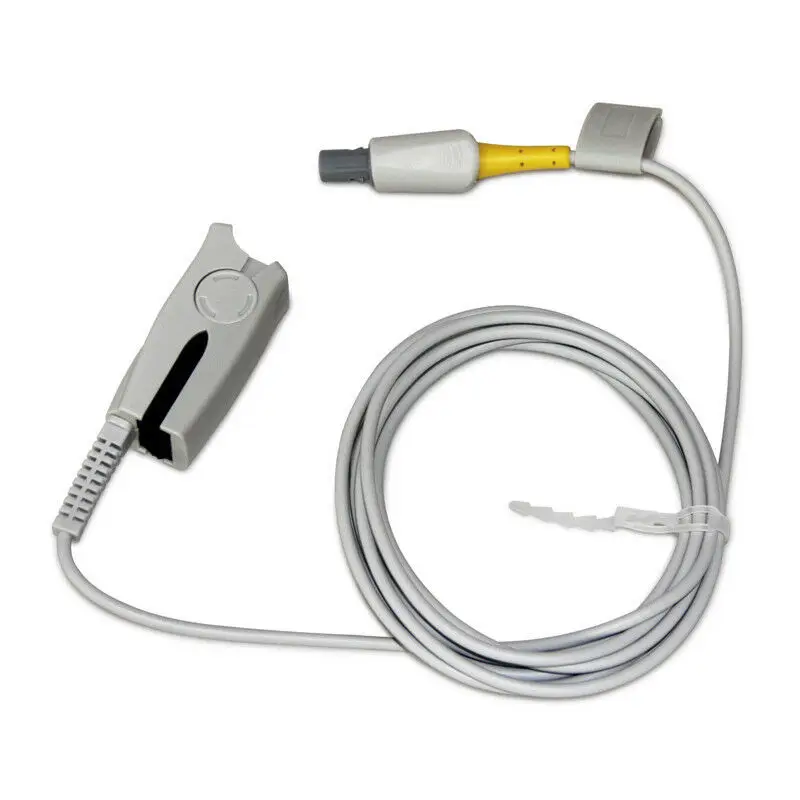

Adult fingertip SpO2 probe (5-pin)

Adult NIBP cuff

NIBP extension tube

Infrared Thermometer

Power cord

User Manual

Physical characteristic

Dimension: 192 mm(L) × 229 mm(W) × 243 mm(H)

Weight: ＜2.2 kg（Standard configuration,excluding accessories）
