CONTEC CMS1000 Touch Screen Patient Monitor Human/Veterinary Portable 6 Parameter

CONTEC CMS1000 Touch Screen Patient Monitor Human/Veterinary Portable 6 Parameter

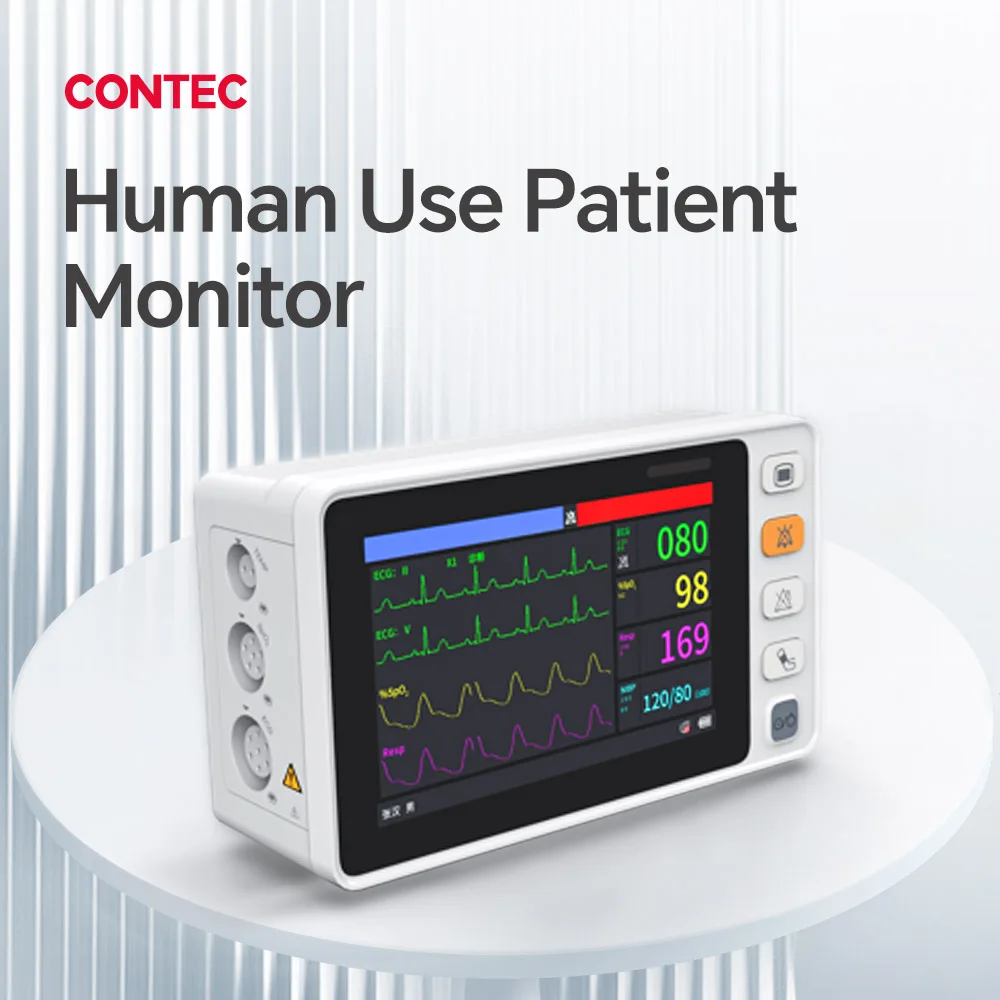

Human Use patient Monitor  CMS1000

Accessories

1)Adult fingertip SpO2 probe

1)Adult NIBP cuff

2)NIBP extension tube

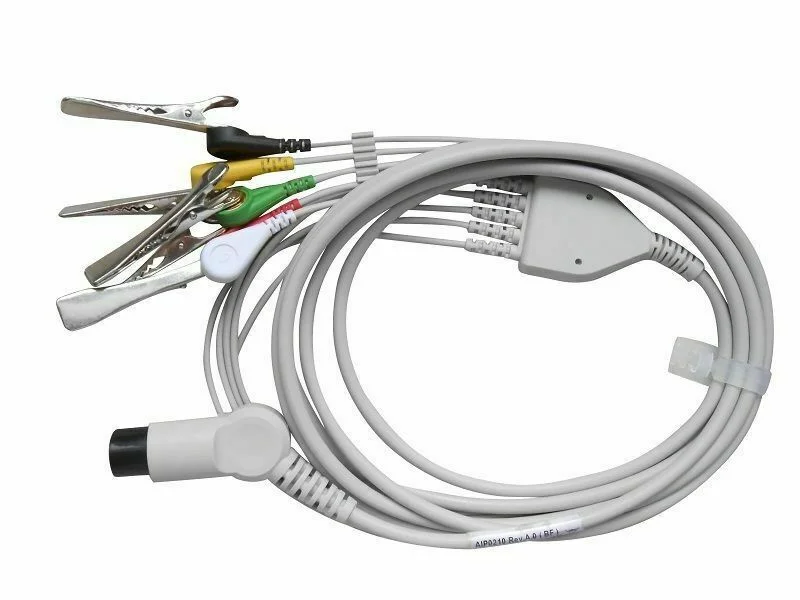

2)ECG lead cable

3)ECG electrode

4)TEMP probe

3)Power cord

4)User Manual

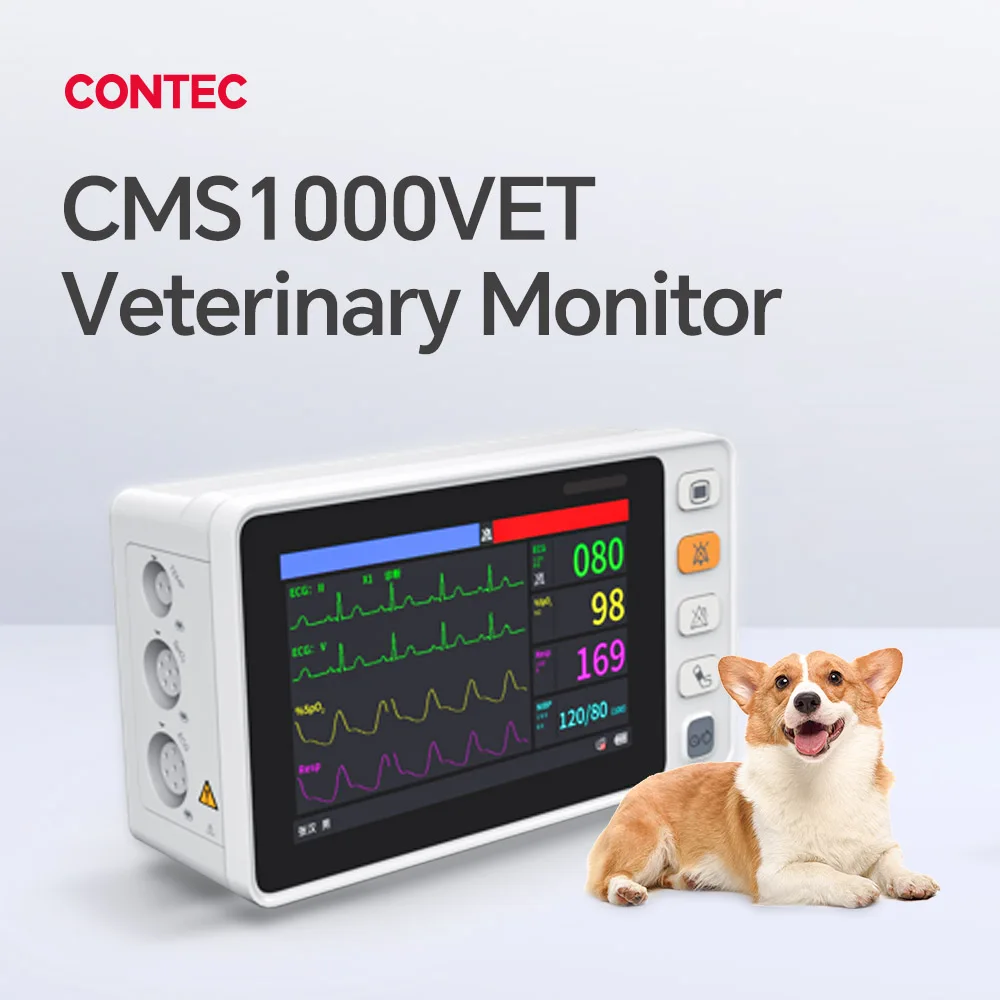

Veterinary Patient Monitor CMS1000VET

Accessories

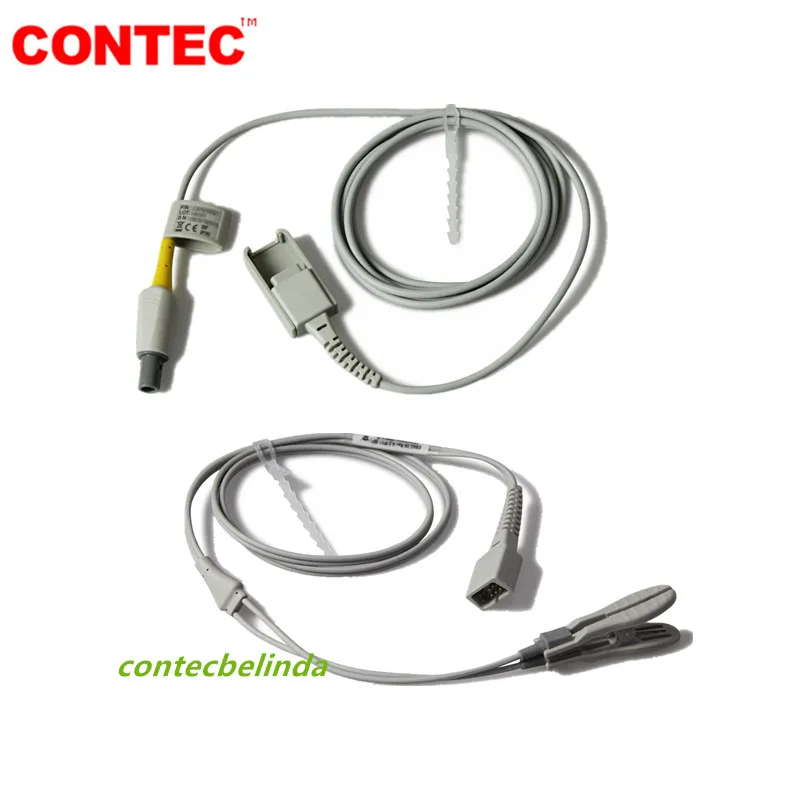

1)SpO2 probe extension cable

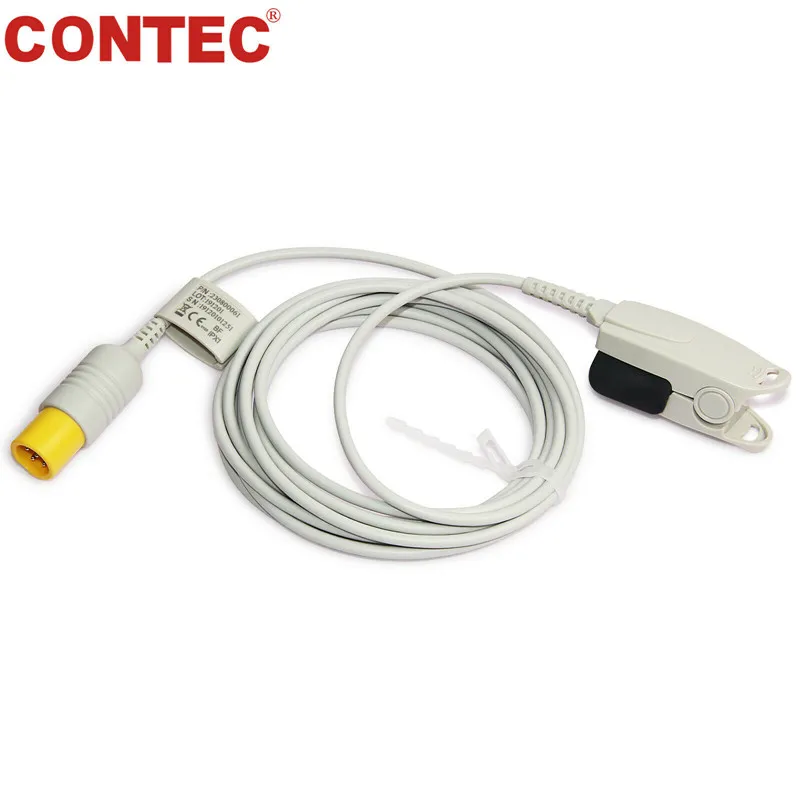

2)Vet fingertip SpO2 probe

3) Vet NIBP cuff

4)NIBP extension tube

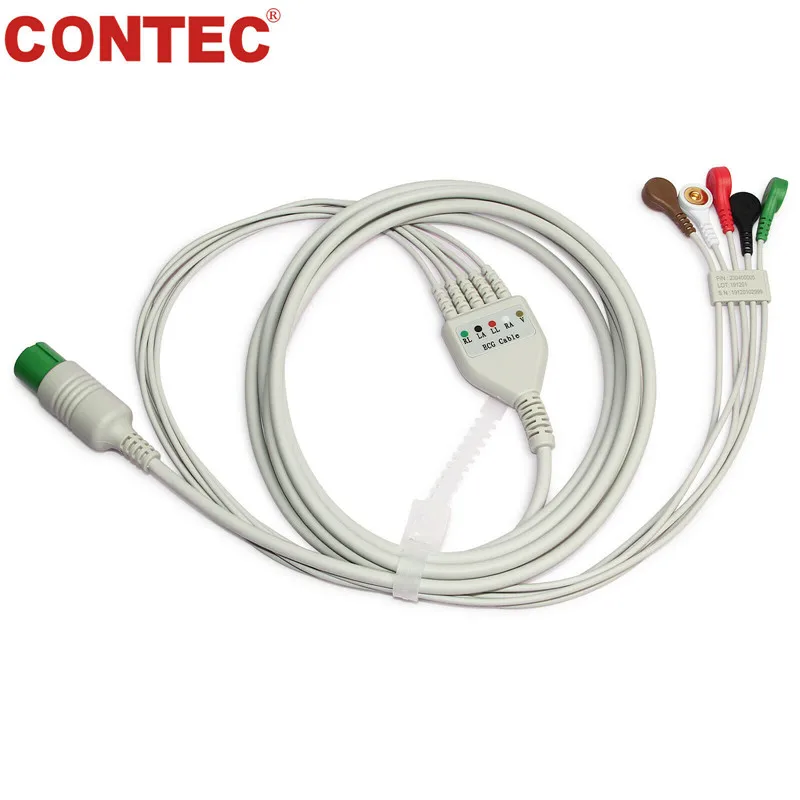

5)ECG lead cable

6)ECG electrode

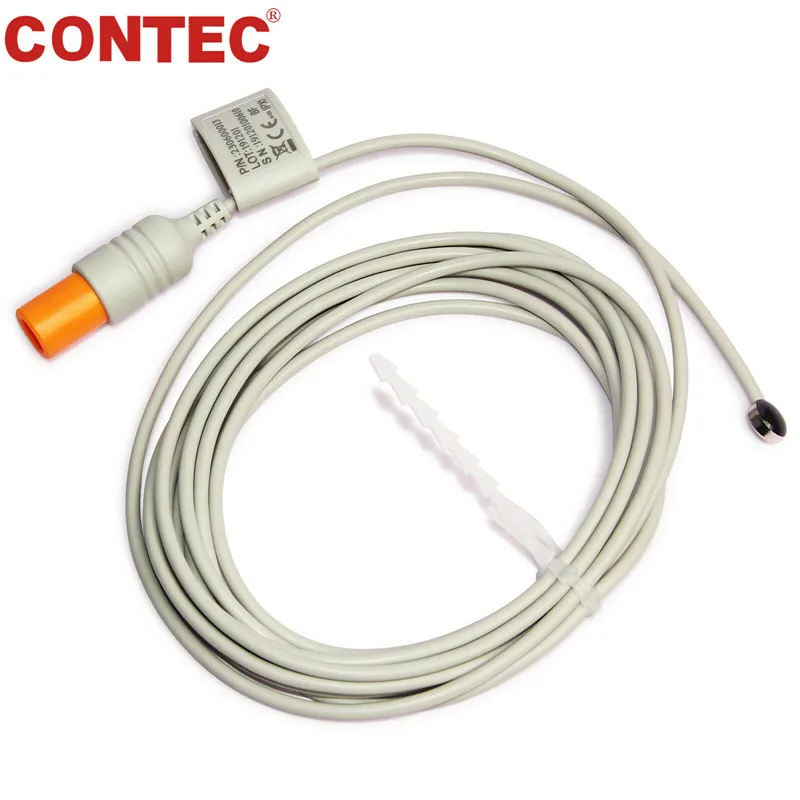

7)Temperature probe

8)Power cord

9)User Manual

Introduction

The monitor has abundant functions, which can be used for monitoring of adult, pediatric and neonate. It is powered by 100 V-240 V ～ 50 Hz/60 Hz. Users may select different parameter configurations according to requirements. It displays real-time data and waveform by 5'' color TFT LCD. It can be connected to Central Monitoring System via wireless network to form a network monitoring system.

It can monitor such parameters as ECG, RESP, SpO2, PR, NIBP, TEMP and CO2 (optional). It integrates parameter measurement module and display into one device to form a compact and portable monitor.

Function

Parameters: ECG, RESP, SpO2, PR, NIBP, TEMP, CO2 (optional)

1)ECGHeart rate (HR)

ECG waveform

2)RESPRespiration rate (RR)

Respiration waveform

3)SpO2Oxygen saturation (SpO2)

Plethysmogram (PLETH) waveform

Pulse rate (PR)

Bar graph

4)NIBPSystolic pressure (SYS), Diastolic pressure (DIA), Mean pressure (MEAN)

5)TEMP

6)CO2 (optional) EtCO2, INSCO2, AWRR

It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation.

Features

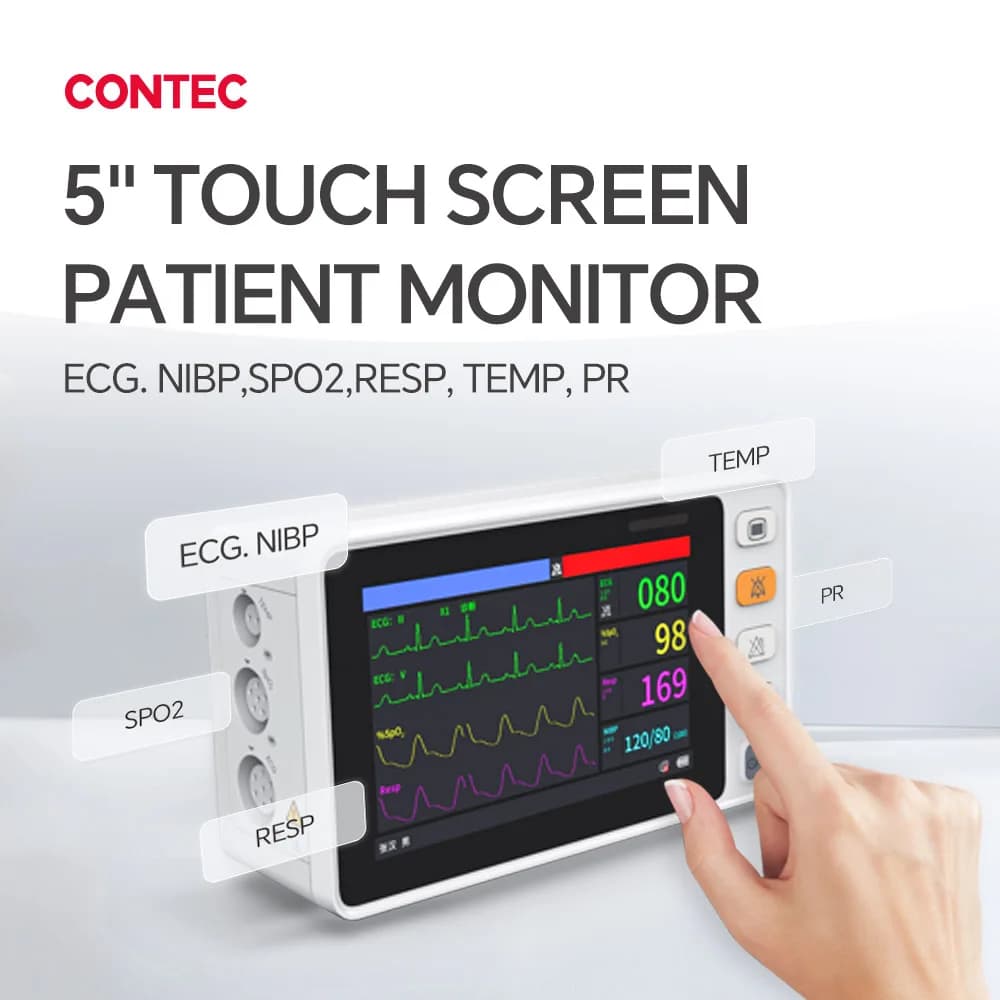

1)5'' color TFT LCD, multi-language interface (simplified Chinese, English, Russian, Kazakh, Slovak, Czech, Spanish, etc.).

2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.

3)With standard interface, OxyCRG, big character interface and full-lead interface, convenient to observe.

4)Waveform, parameter color and location can be set optionally.

5)All operations can be completed by the buttons and touch screen.

6)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of low perfusion.

7)NIBP measurement mode: Manual / AUTO / STAT, storage for 2400-group NIBP data.

8)Connect to Central Monitoring System by WiFi.

9)Built-in large-capacity battery, meets the requirements of long-term operation. AC/DC, achieves uninterrupted monitoring.

10)Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).

Performance

▲ECG

Lead mode: 3-lead: I, II, III

5-lead: I, II, III, aVR, aVL, aVF, V

Waveform: 3-lead, 1 channel

 5-lead, 2-channel

Gain: 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV

Scan speed: 12.5 mm/s, 25 mm/s, 50 mm/s

HR

Measurement and alarm range:

Adult: 15 ~ 300 bpm

Pediatric/neonate: 15 ~ 350 bpm

Accuracy: ± 1 % or ± 1 bpm, whichever is greater

Resolution: 1 bpm

▲RESP

Method: R-F (RA-LL) impedance

Respiration rate:

Measurement and alarm range: 0 ~ 150 rpm

Resolution: 1 rpm

Accuracy:

7 rpm ~ 150 rpm, ± 2 rpm or ± 2 %, whichever is greater;

0 rpm ~ 6 rpm, unspecified

Apnea alarm: 10 ~ 40 s

Scan speed: 12.5 mm/s, 25 mm/s

▲NIBP

Measurement mode: Oscillometry

Working mode: Manual / AUTO / STAT

Measurement interval in AUTO mode: 1 / 2 /3 / 4 / 5/ 10 / 15 / 30 / 60 / 90 / 120 / 180 / 240 / 480 minutes

Measurement period in STAT mode: 5 minutes

Measurement and alarm range: 0 ~ 300 mmHg

Resolution: 1 mmHg

Cuff pressure accuracy: ± 3 mmHg

Measurement accuracy:

Maximal mean deviation: ± 5 mmHg

Maximal standard deviation: 8 mmHg

Over-pressure protection:

Adult: 297±3 mmHg

Pediatric: 260±3 mmHg

Neonate: 147±3 mmHg

▲SpO2

Measurement and alarm range: 0 ~ 100%

Resolution: 1 %

Accuracy: 70 % ~ 100 %: ± 2 %;

 0 % ~ 69 %: unspecified

▲PR

Measurement and alarm range: 25 ~ 250 bpm

Accuracy: ± 2 bpm or ± 2 %, whichever is greater

▲TEMP

Measurement and alarm range: 0 ~ 50 ℃

Resolution: 0.1 ℃

Accuracy: ± 0.1 ℃

▲CO2(optional)

Measurement mode: mainstream or sidestream

Measurement range: 0 ~ 150 mmHg

Resolution:

0.1 mmHg: 0 ~ 69 mmHg

0.25 mmHg: 70 ~ 150 mmHg

Accuracy:

0 ~ 40 mmHg: ±2 mmHg

41 ~ 70 mmHg: ±5 %

71 ~ 100 mmHg: ±8 %

101 ~ 150 mmHg: ±10 %

AwRR measurement range:

Sidestream: 2 ~ 120 rpm

Mainstream: 2 ~ 150 rpm

Accuracy: ±1 rpm

Apnea alarm: yes

▲Power supply: 100 V-240 V ～ 50 Hz/60 Hz

▲Safety class: Class II
