CONTEC10C/CL Water Proof Free Battery Doppler Fetal Pregnant Women Heartbeat Baby Portable Ultrasound Stethoscope No Radiation

CONTEC10C/CL Water Proof Fetal Doppler

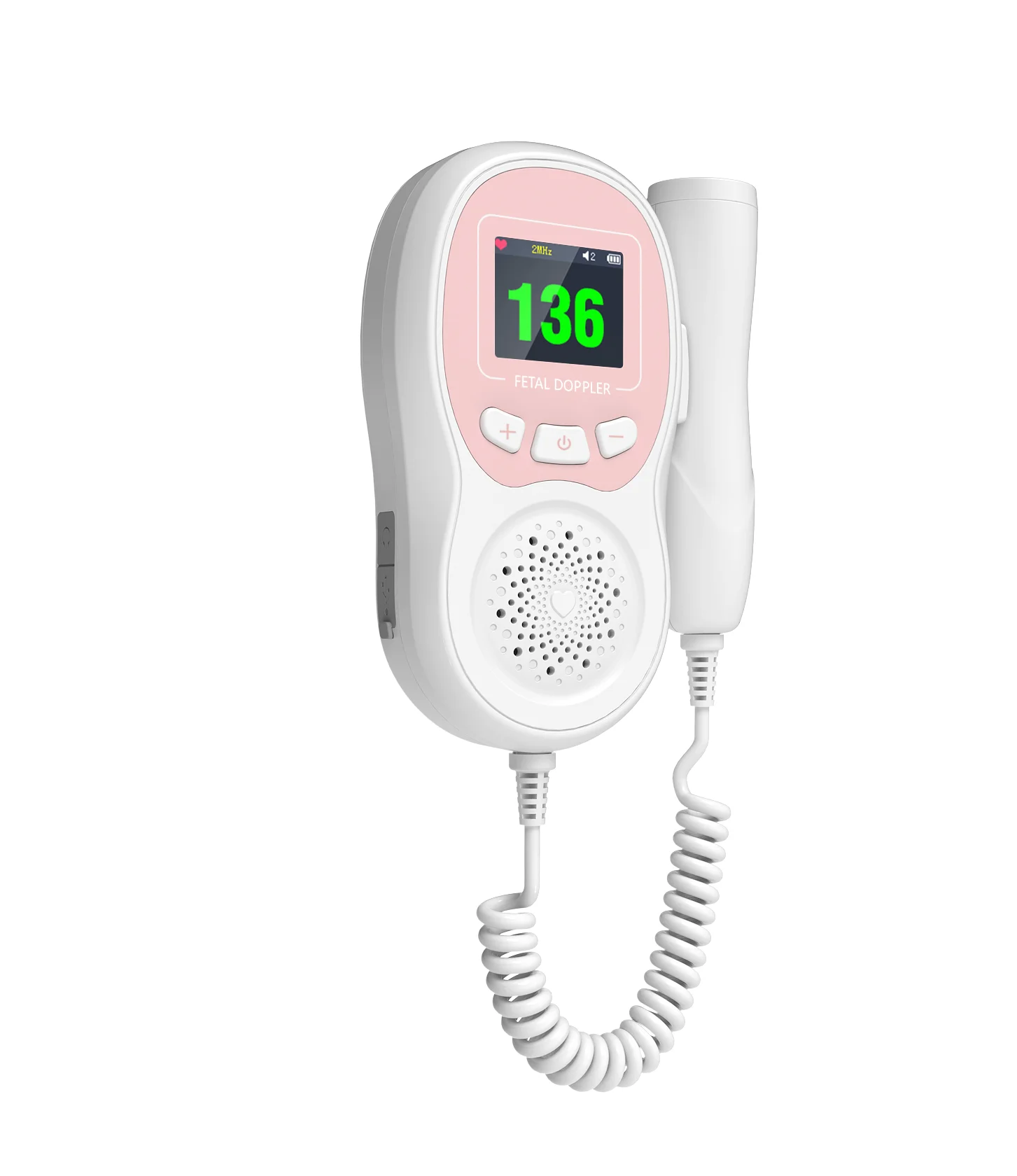

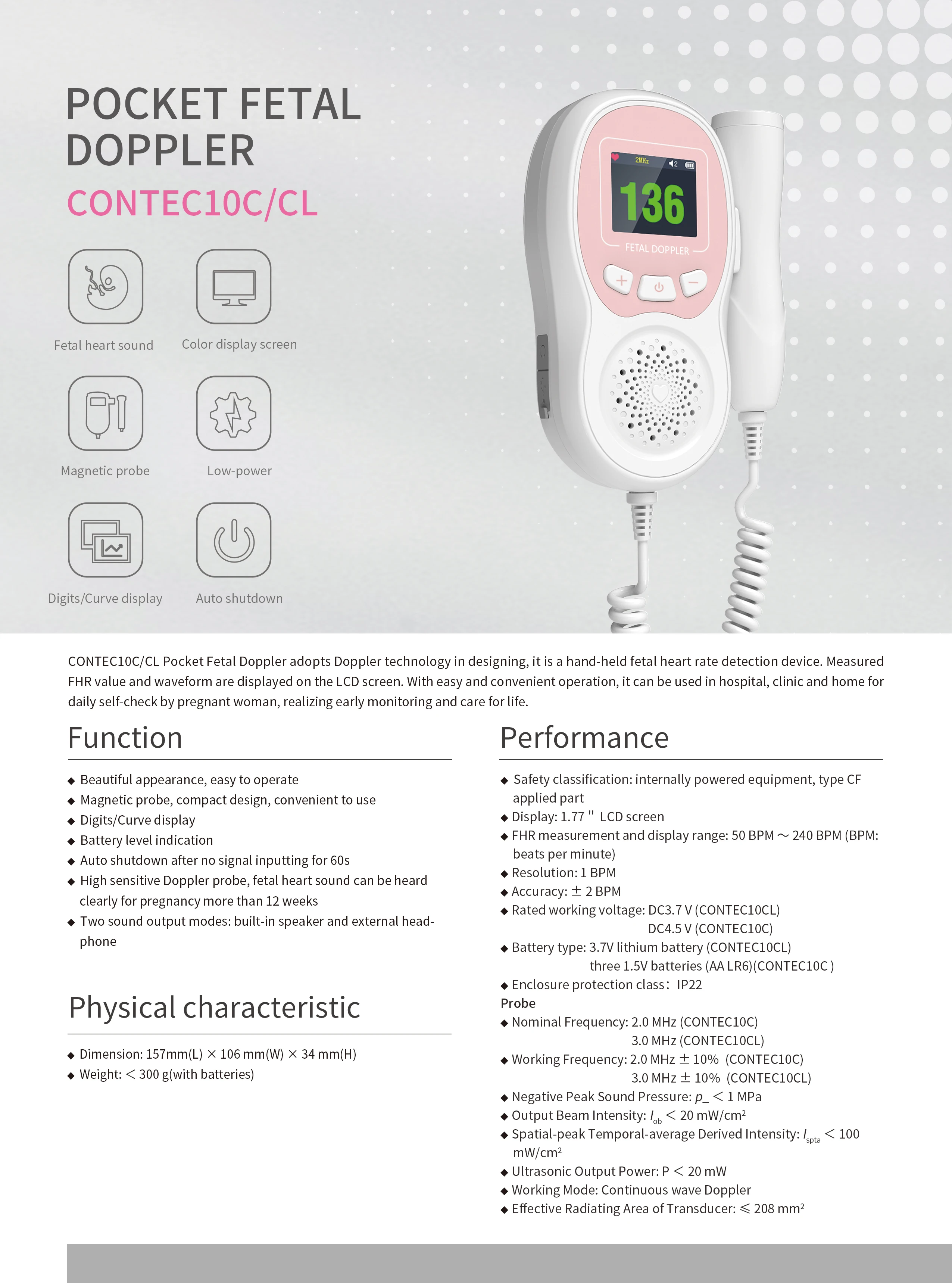

Product Name:Pocket Fetal Doppler

Model: CONTEC10C / CONTEC10CL

Pocket Fetal Doppler is a hand-held FHR detection device, it is easy to operate, and can be used in hospital,clinic and home for daily self-check by pregnant woman.

It contains components of ultrasonic signal transmitter and receiver, analog signals processing unit, FHR calculating unit, LCD display control unit, etc.

Dimension: 157mm(L) × 106 mm(W) × 34 mm(H)

Weight: < 300 g

Environment:

Working:

Temperature: +5℃～+40℃

Humidity: ≤80％

Atmospheric Pressure: 70 kPa~l06kPa

Transport and Storage:

Temperature: -10℃~+55℃

Humidity: ≤93％

Atmospheric Pressure: 50 kPa~l06kPa

Display:1.77"262K display

FHR Performance

FHR Measuring and display Range: 50 BPM ~ 240 BPM (BPM: beats per minute)

Resolution: 1BPM

Accuracy: ±2BPM

Auto shutdown: After 1 minute no signal, power off automatically.

Battery Type:CONTEC10C:Three1.5V batteries (AA LR6)e and Structure

CONTEC10CL:Built-in rechargeable lithium battery, 3.7V 1600mAh

Standby time: No less than 8 hours.

Ultrasound coupling agent requirement:acousticimpedance:(1.5×106~1.7×106)Pa·s/m; acoustic attenuation≤0.05dB/(cm·MHz)

Ultrasound Probe:

Nominal Frequency: 2.0 MHz/3.0 MHz

Working Frequency: (2.0 ±10％)MHz/(3.0±10％) MHz

Ultrasonic Output Power: P<20mW

Working Mode: Continuous wave Doppler

Effective Radiating Area of Transducer: ≤208 mm2

Peak-negativeacoustic pressure:P_<1MPa

Output Beam Intensity:Iob<20mW/cm2

Spatial-peak Temporal-average Derived Intensity:Ispta<100 mW/cm2

Note:In all working application modes, mechanical index: MI<1, thermal index: TI<1.

CONTEC10C is powered by three AA batteries. (not incluidng)

CONTEC10CL is lithium battery powered.

 Standard configuration

1. Pocket Fetal Doppler--- 1

2. User manual--- 1

3. USB cable 1 (Only for CONTEC10CL)
