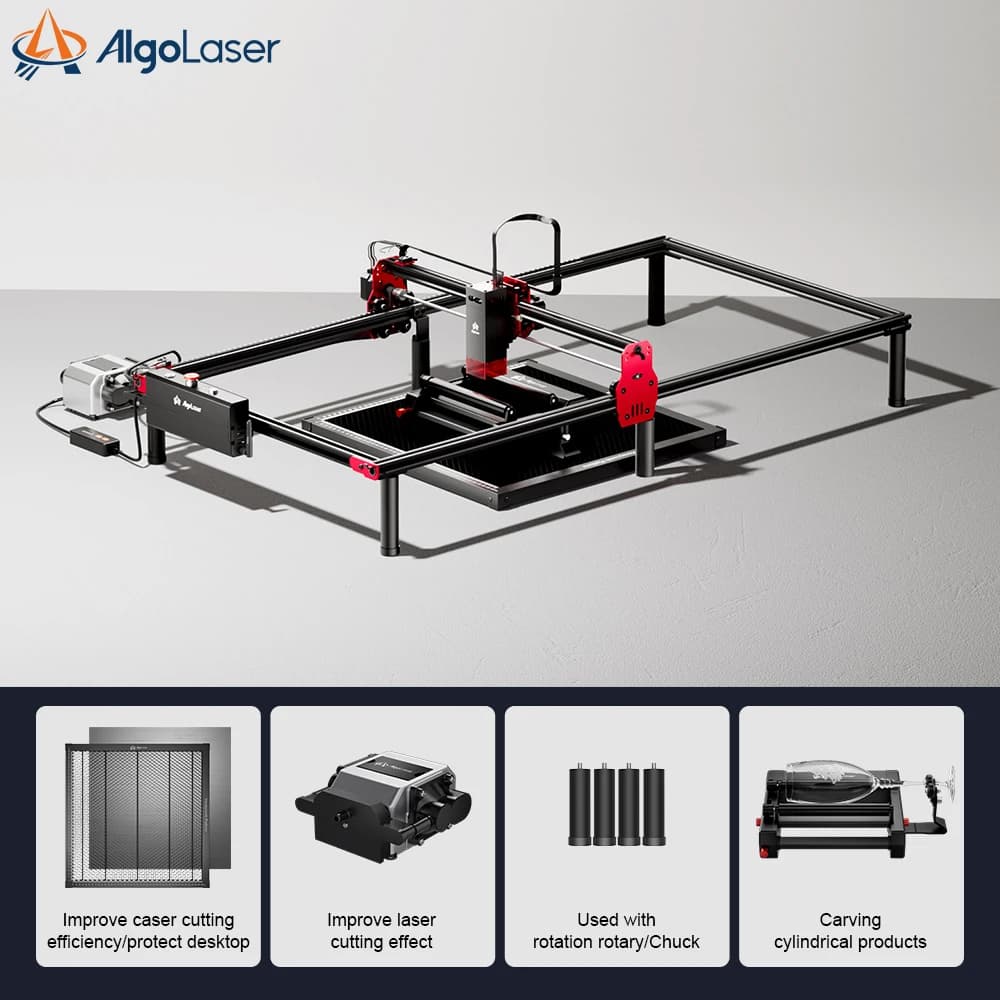

10W Laser Engraver Cutter Easy to Operate Making Christmas Gifts Personalized Gifts Business Cards DIY CNC Machine for Wood

10W Laser Engraver Cutter Easy to Operate Making Christmas Gifts Personalized Gifts Business Cards DIY CNC Machine for Wood

Features:

Motherboard:ALGOLASER_DIY_KIT_V1.2

Engraving area: 400*400mm

With Expand kits Engraving area :400*850mm(need to order separately)

Control Software:LaserGRBL (free), LightBurn (Paid Software), Wifi APP

Safety Precautions:

Machine Offset Detection and Protection

Machine Tilt Detection and Protection

USB Connection Detection and Protection

Beam detection and protection

Current and Voltage Detection and Protection

Emergency Stop Switch

Key Lock

Frame Materials:Aluminum Profile

Motors:NEMA 42 Stepper Motors

Mechanical Precision:Y:12.5um，X:12.5um

Pixel Accuracy:Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy)

Engraving Area:X400mm*Y400mm

Electric Power:72W

Luminous Power:10W

Wave Length:445±5nm

Control Mode:PWM

Power Rate:S0-S1,000

Engraving Speed:0-12,000MM/Min

Baud Rate:115200 - 921600 (Default: 115200)

Computer OS:Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn)

Control Softwares:LaserGRBL (free), LightBurn (not free), Wifi App

Input Format:BMP, JPG, PNG, NC, DXF, SVG, etc.

Available Materials of Engraving:Wood, Paperboard, Black Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc.

Available Materials of Cutting:Paper Board, KT Board, Felt Cloth, Leather, Thin Plywood, Thin Black Acrylic, etc.

Input Voltage:110V-240V (Compatible)

Power Adapter Output:24V / 3A

Operating Temp.:-20℃-50℃

【Excellent Engraving and Cutting】AlgoLaser engraver equipped with powerful 10W output, which cuts up to 20mm wood and 10mm black acrylic. 0.01 mm ultra-fine engraving accuracy makes engraving more delicate, and the focusing range of the is narrowed down to 0.08*0.08 mm. The engraving speed is up to 333 mm/s for faster and cleaner cuts.

【Support APP and Offline Engraving】 Newly upgraded stable 32-bit motherboard supports mobile phone APP operation, start engraving more conveniently. By setting a offline cache, you can continue engraving even if your mobile phone is turned off. Copy the files you want to engrave to the included TF card, insert it into the machine and start engraving, stable and convenient, not limited by computer anymore.

【Stable & Sturdy & Durable】The three motor structure of AlgoLaser DIY KIT engraving machine and steel axle wheels ensure stable movement, reduce errors for more accuracy. The all-metal construction makes it durable and long-lasting, the 400*400 mm engraving area meet the engraving needs of larger projects.

【More friendly design details】Multiple safety protection design by module protective cover, protective glasses and built-in gyroscope device, it is safer to use. Built-in airflow regulation of the module effectively reduces dust. Three-direction limit switch prevents the engraver from colliding with the edge and protects the machine. Top metal knob and module focusing block allow you to focusing faster.

【Wide Compatibility】 This multifunctional cutter and engraver machine can be used for millions of DIY projects on hundreds of materials such as wood, dark acrylic, glass, stainless steel, ceramics, fabrics, stone, plastics and leather. Compatible with GRBL and Lightburn (paid) computer engraving software, mobile engraving software. Support USB, TF card, WiFi and APP connection. For any questions please contact us, we will provide professional technical support and help.（Note: If you don't find the TF card in the packaging bag, it may be in the card slot of the machine.）
