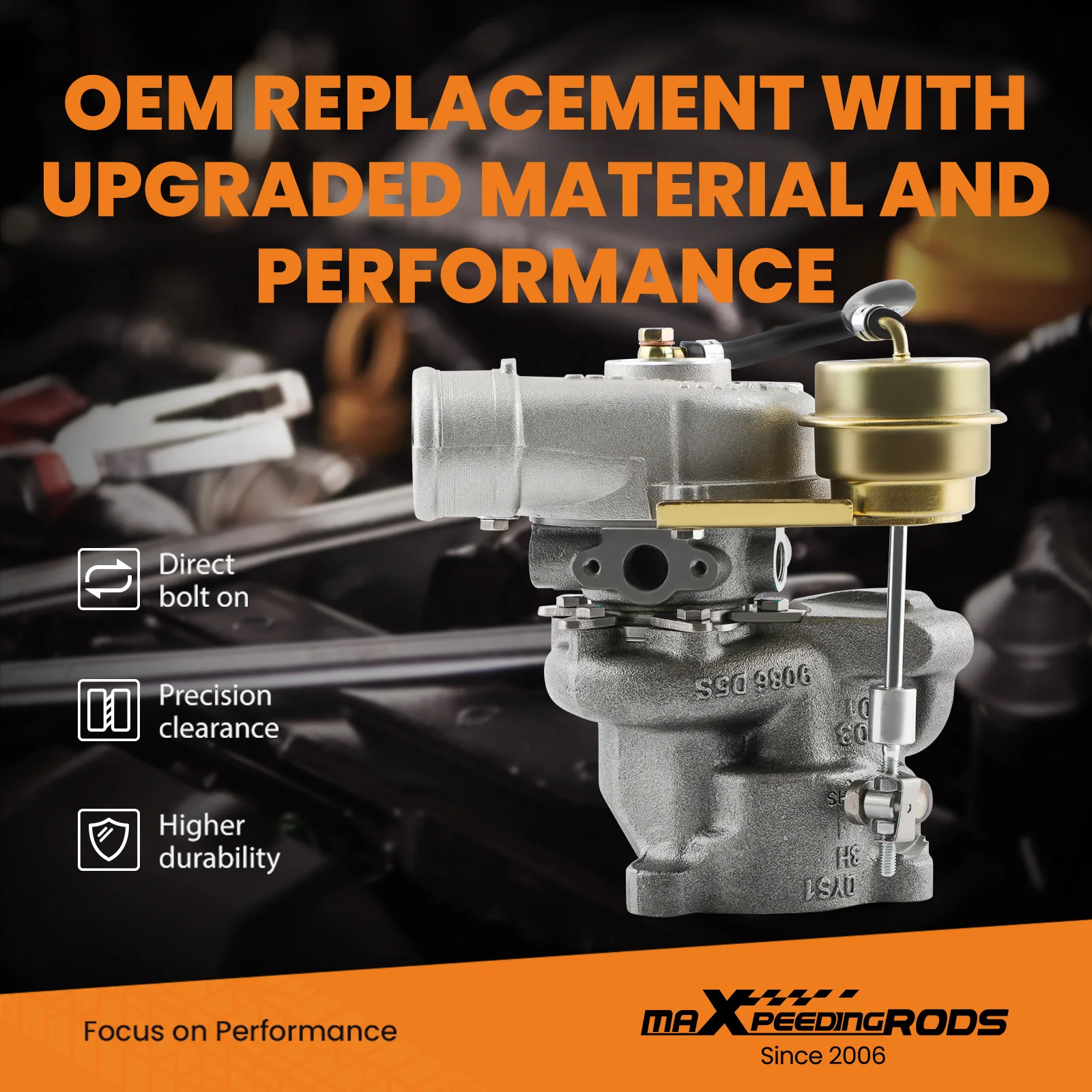

Maxpeedingrod K04-015 Billet Turbocharger for Audi A6 1.8T AEB/ANB/APU/AWT 1997-99 058145703L, 058145703LX, 058145703LV

Application:

for Audi A4 A6 Quattro VW PASSAT 1.8T AEB/ANB/APU/AWT Upgrade

for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ 1995 - 1999

for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 1999 -

for Audi A4 Upgrade 1.8T 1995 -

for Audi A6 1.8T AEB/ANB/APU/AWT 1997 - 1999

for Audi A6 Quattro  1.8T AEB/ANB/APU/AWT 1999 -

for VW Passat 1.8T  AEB/ANB/APU/AWT 1999 -

for VW Passat 1.8T  upgrade  1999 -

Interchange Part Number:

53039880005, 53039700005,

53039880013, 53039700013,

53039880029, 53039700029,

53039880025, 53039700025,

53039880073, 53039700073,

53049880015, 5304-988-0015, 5304 988 0015,

53049700015, 5304-970-0015,5304 970 0015,

058145703L, 058145703LX, 058145703LV,

058145703J, 058145703JX, 058145703JV,

058145703K, 058145703KX, 058145703KV

058145703N,058145703NX , 058145703NV,

058145703Q，058145703QX,058145703QV

058145703B, 058145703C, 058145703D

058145703E, 058145703H,

Specification:

Compressor :

Wheel Diameter: 50/37.5 mm

Trim: 56

Compressor Inlet: 44.5 mm

Compressor Outlet:  50 mm

Blades: 4 x 4  blades type

Turbine :

Wheel Diameter: 46/42 mm

Trim: 83.7

Blades: 12 blades

Inlet Flange: 3 Bolt Flange

Outlet Flange: 3 Bolt Flange

Turbo Model: K03 upgraded, K04

Engine: AEB/ANB/APU/AWT/AVJ/BEX

Fuel: Gasoline

Cooling Type: Water & Oil Cooling

Horsepower Rating: up to 220 HP

Bearing Type:  Floating Bearing

Thrust bearings: 270 Degrees

Turbo Type: Individual

Universal Fitment: No

Finish: Polished

Condition: Brand New

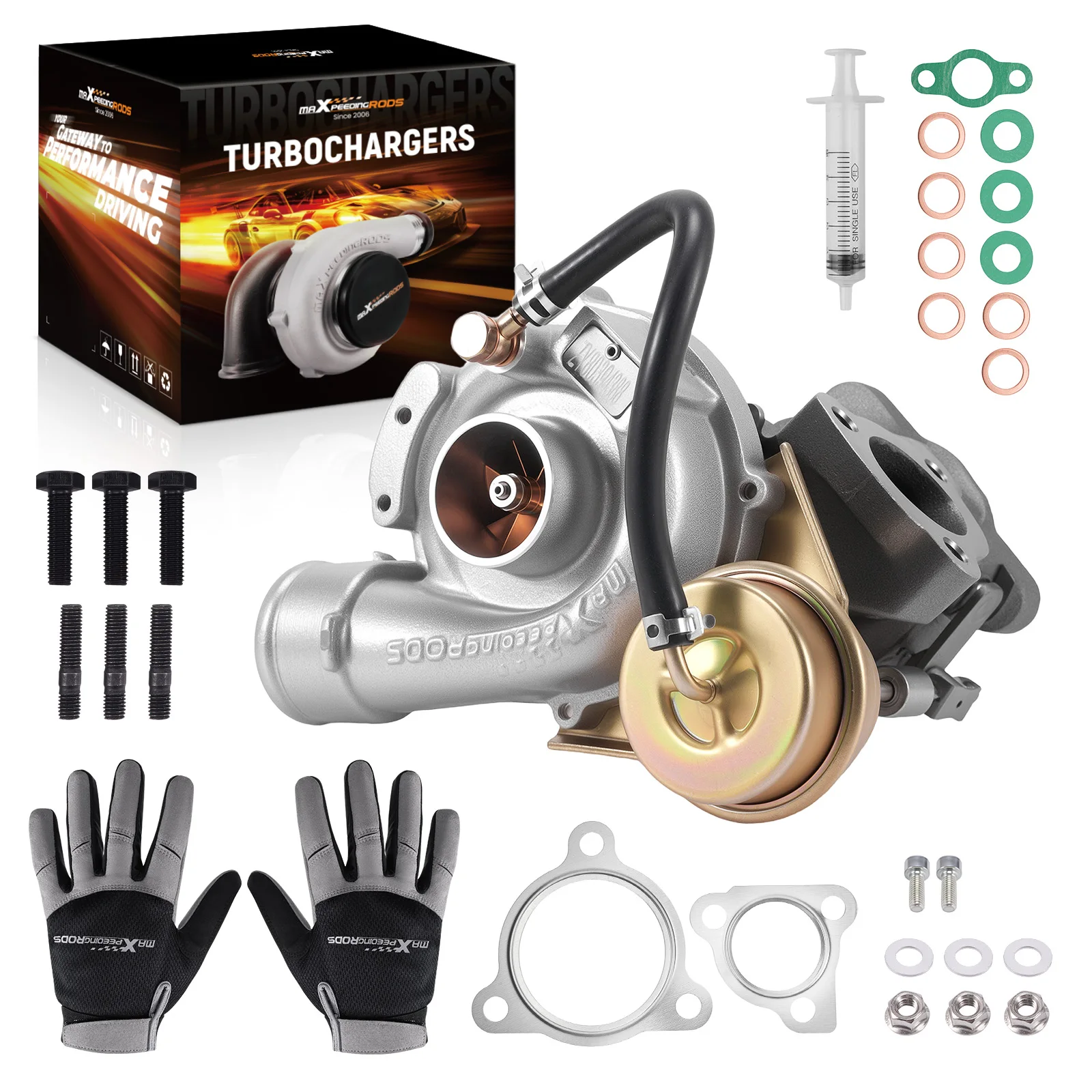

Accessories: You will get exactly as shown in the picture above

Package Weight: 5300g

Package Size:31*28*24cm

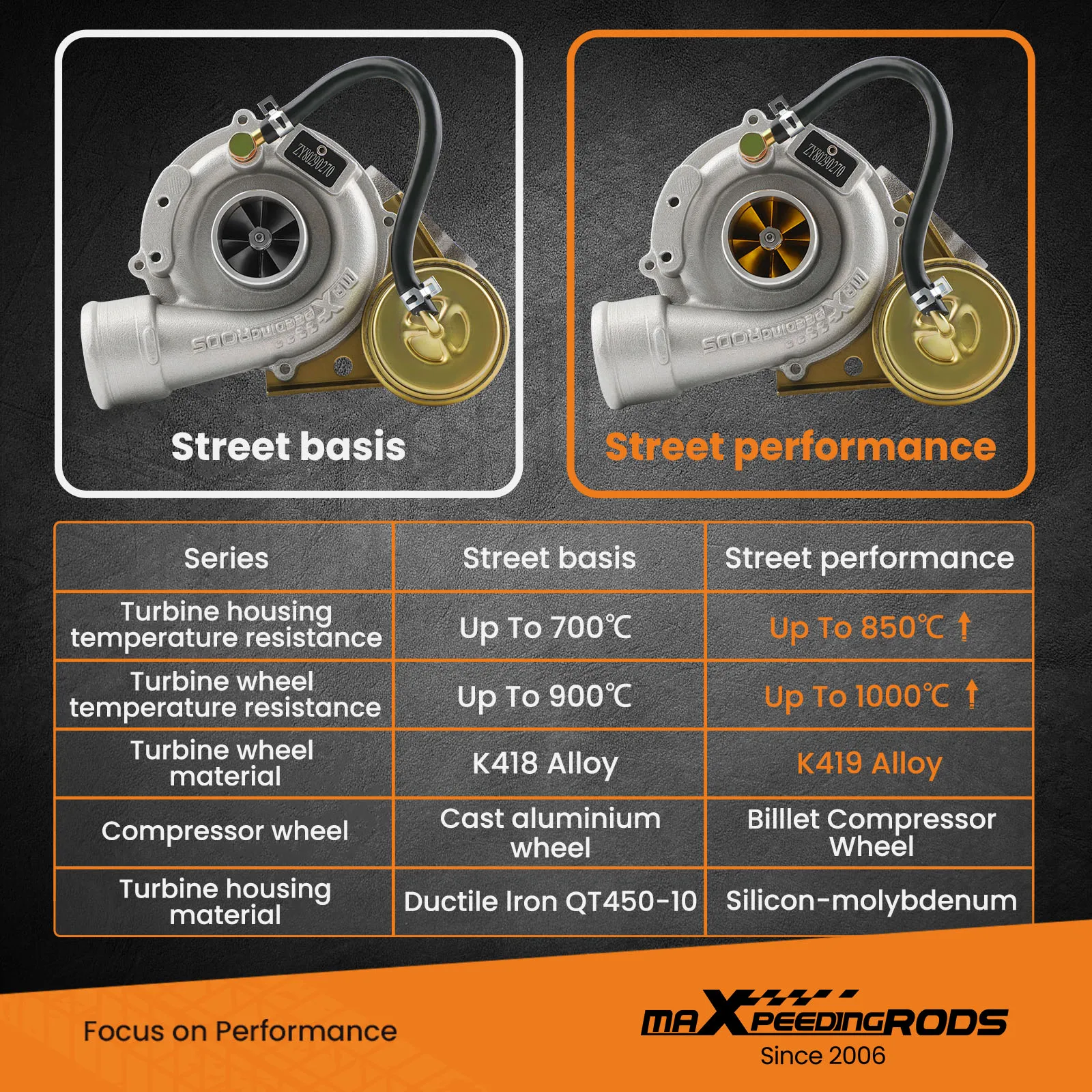

Feature

1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

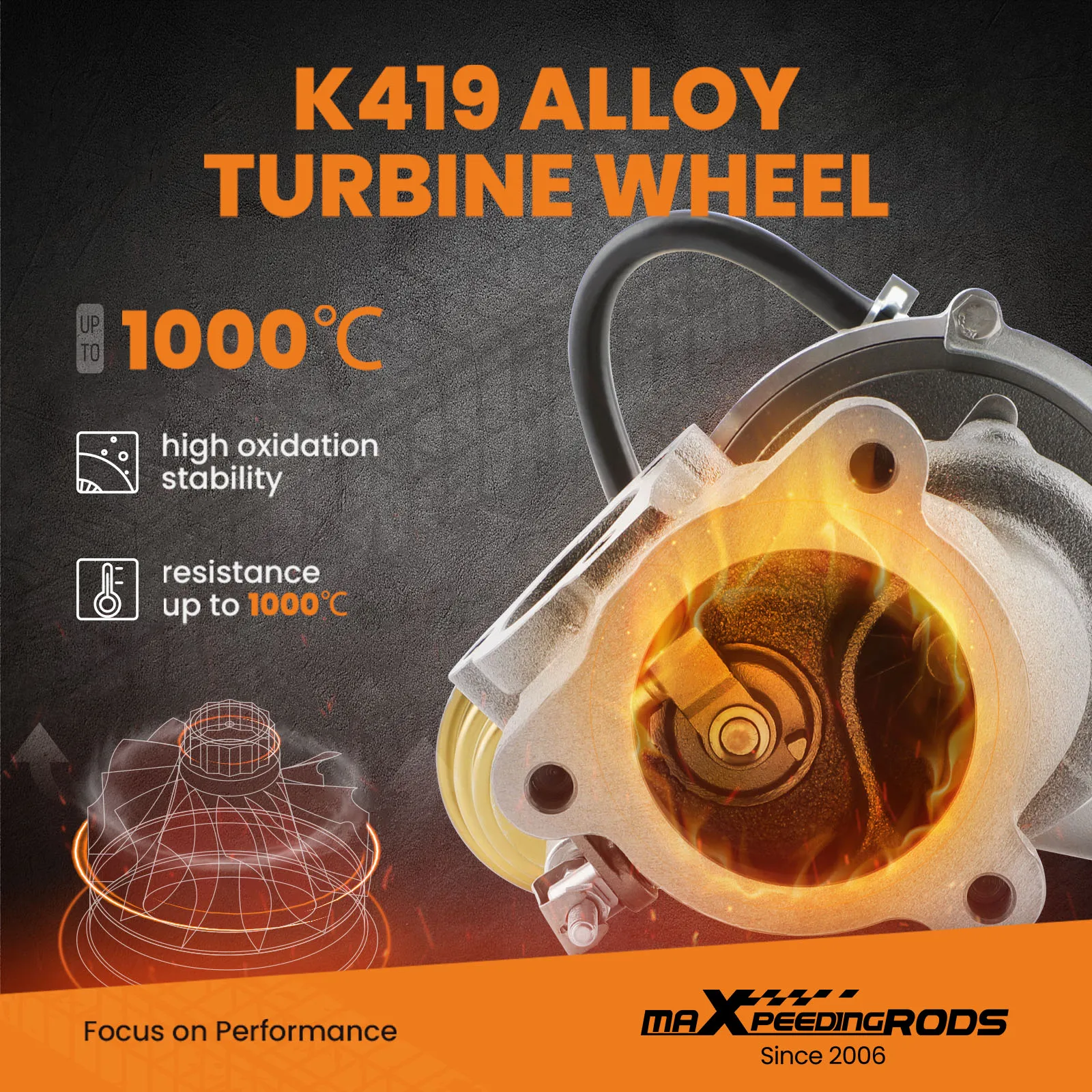

2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

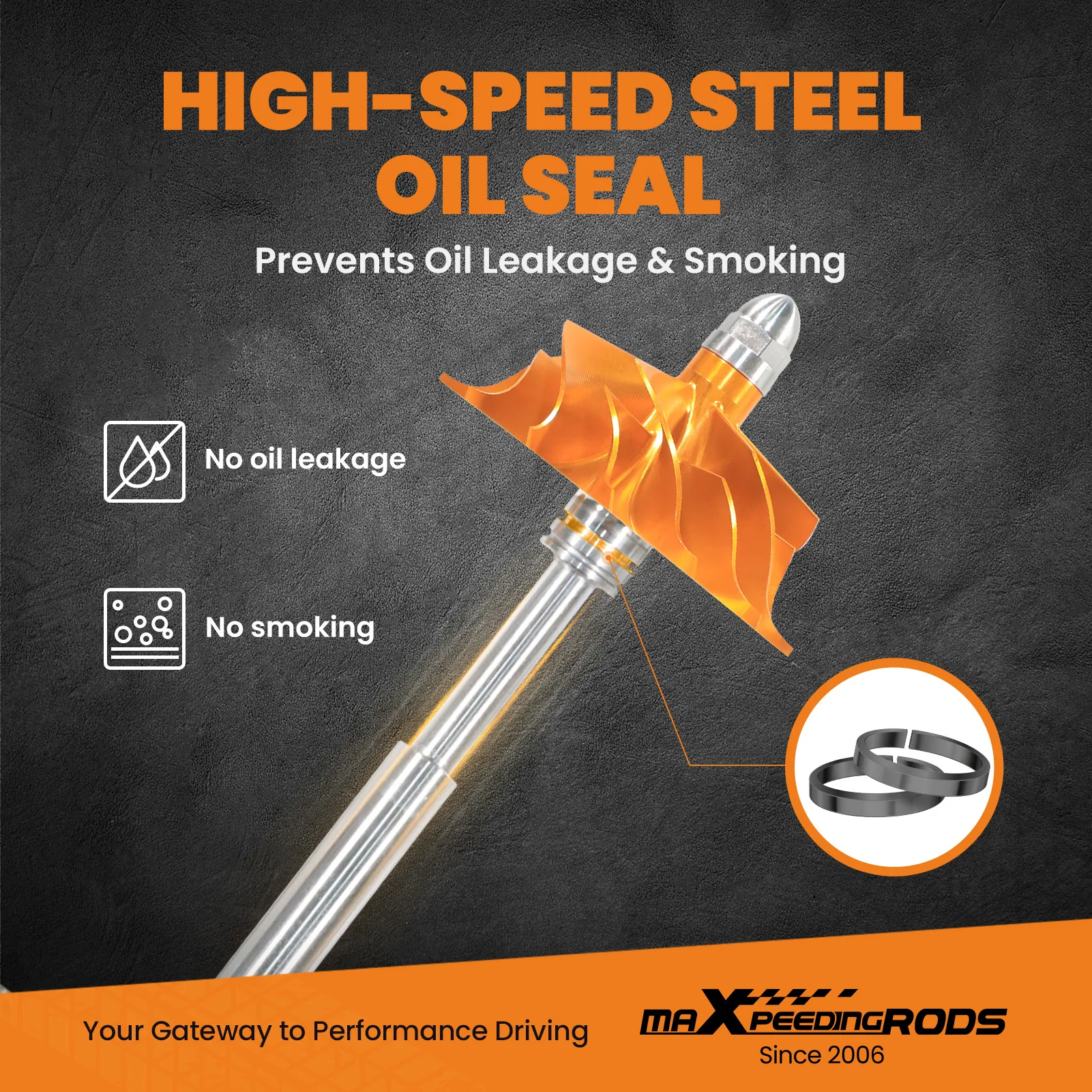

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

NOTE:

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
