【EU Stock】CNC 2.2kw Water Cooling Spindle ER20 2200W 220V Water-Cooled Milling Spindle + 2.2KW HY VFD Inverter + Collets + Water

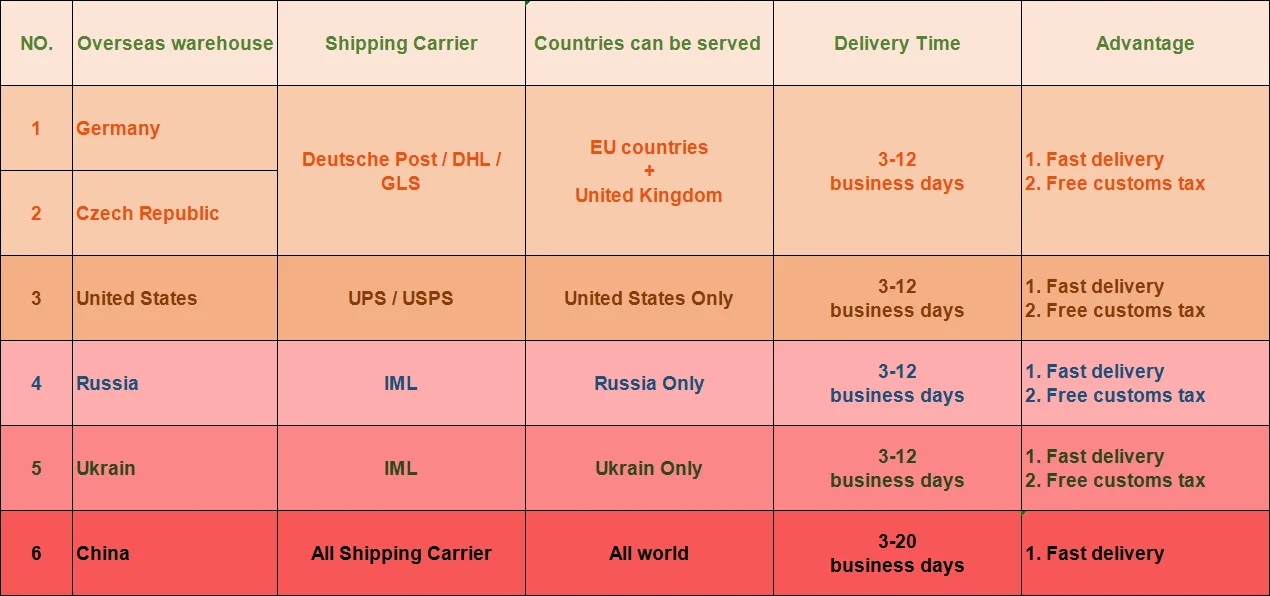

Good News:

We

have warehouse in Germany, Czech Republic, United Kingdom, United

States and so on, we can ship to EU countries via DHL/UPS, which is very

fast delivery.

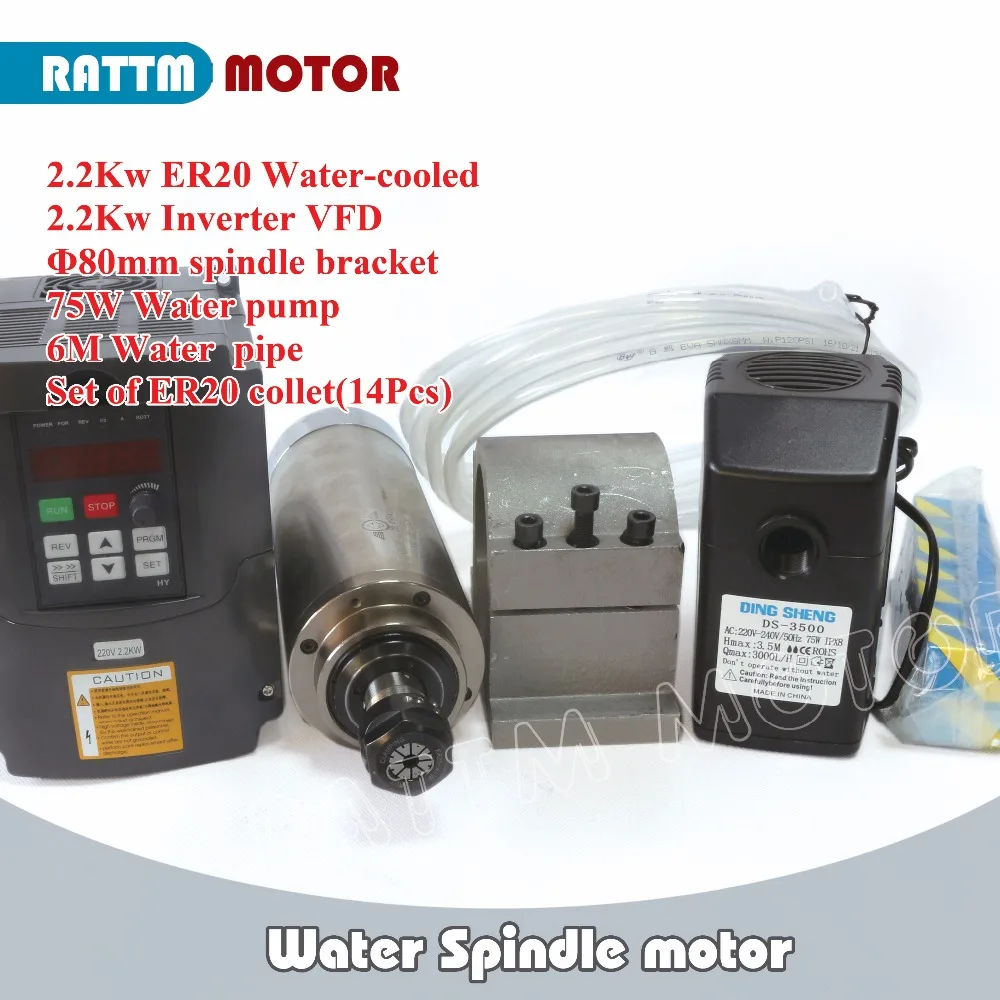

Package include:

1 x 2.2KW ER20 water-cooled spindle motor

1 x 2.2KWInverter2HP

1 x 80mm spindle bracket

1 x 75mm Water pump

1 x 5M water pipes

1 Set of ER20 collet(14pcs)

The manual for the inverter will send via email.

 Note:we have both 110V and 220V in stock, pls choose the right voltage when you order.

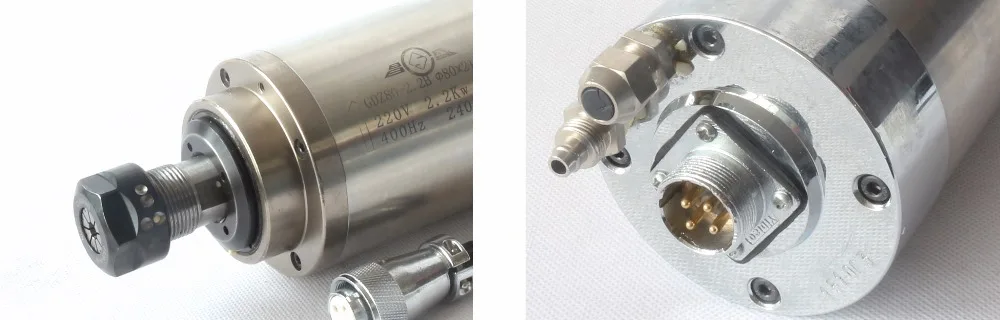

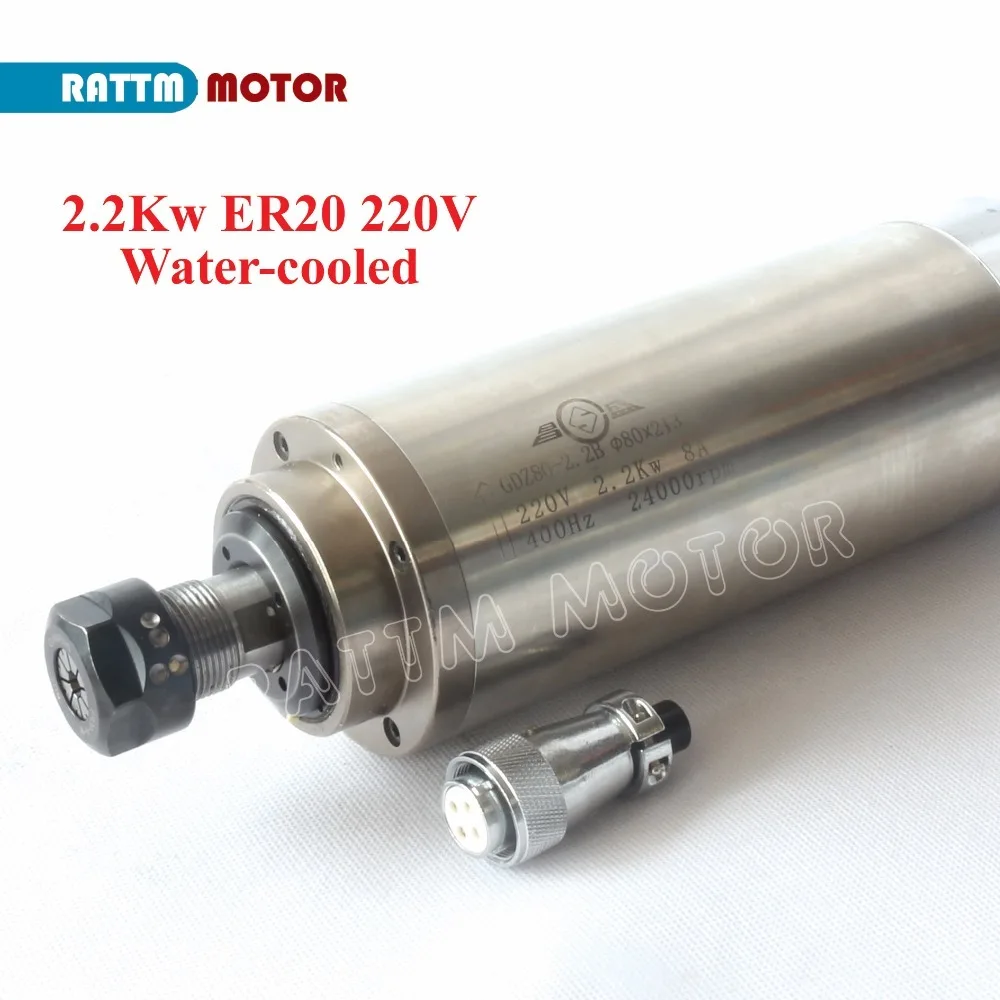

1. 2.2KW ER20 water-cooled spindle motor

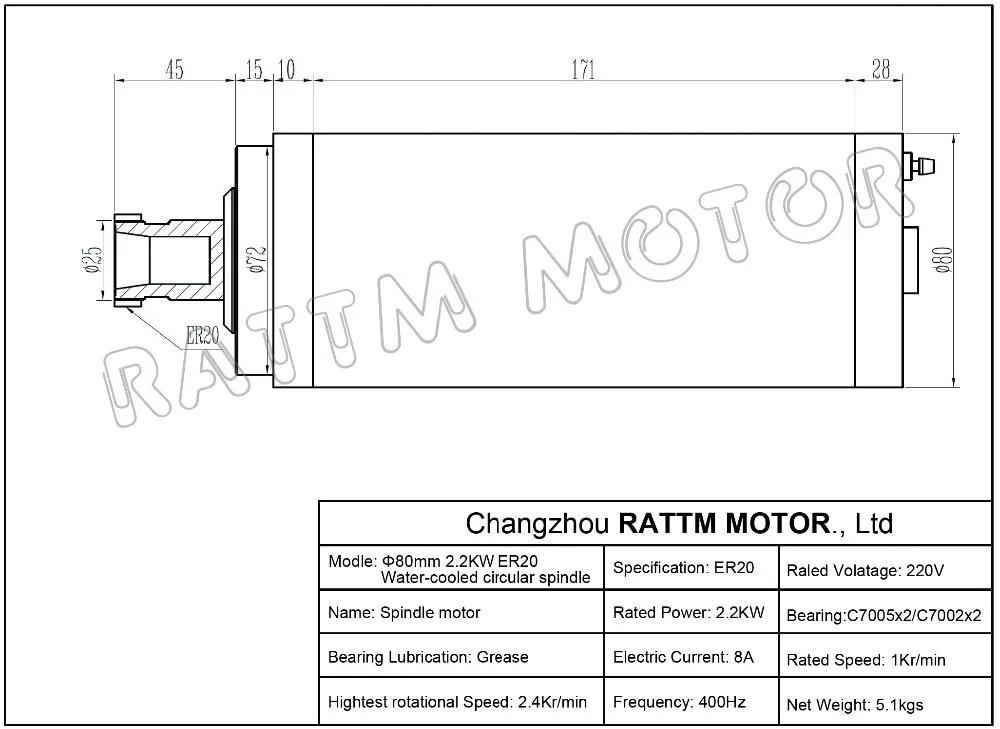

Specification:

Material:Stainless Steel

Size:Φ 80x213mm(Middle body diameter:80mmxLength:213mm)

Power:2.2Kw

Voltage:220VAC

Current:8A

Frequency:0-400Hz

Speed:10-24000rpm

Cooling:Water-cooling

Precision tapered bore:0.01mm

Runout off:Less than 0.02mm

Bearing Lubrication:Grease

Collet size:ER20

Bearings:3 bearings(C7005x2 + C7002x1),P4 class

Net Weight:5.1kg

Power supply interface:Professional

aviation Interface, Interface 1234 marked 123 respectively connected to

the inverter output end of the (U, V, W), 4 ground wire this interface

must be safe ground.

Main application:Wood, Aluminum, Stone, metal, glass, PVC industry

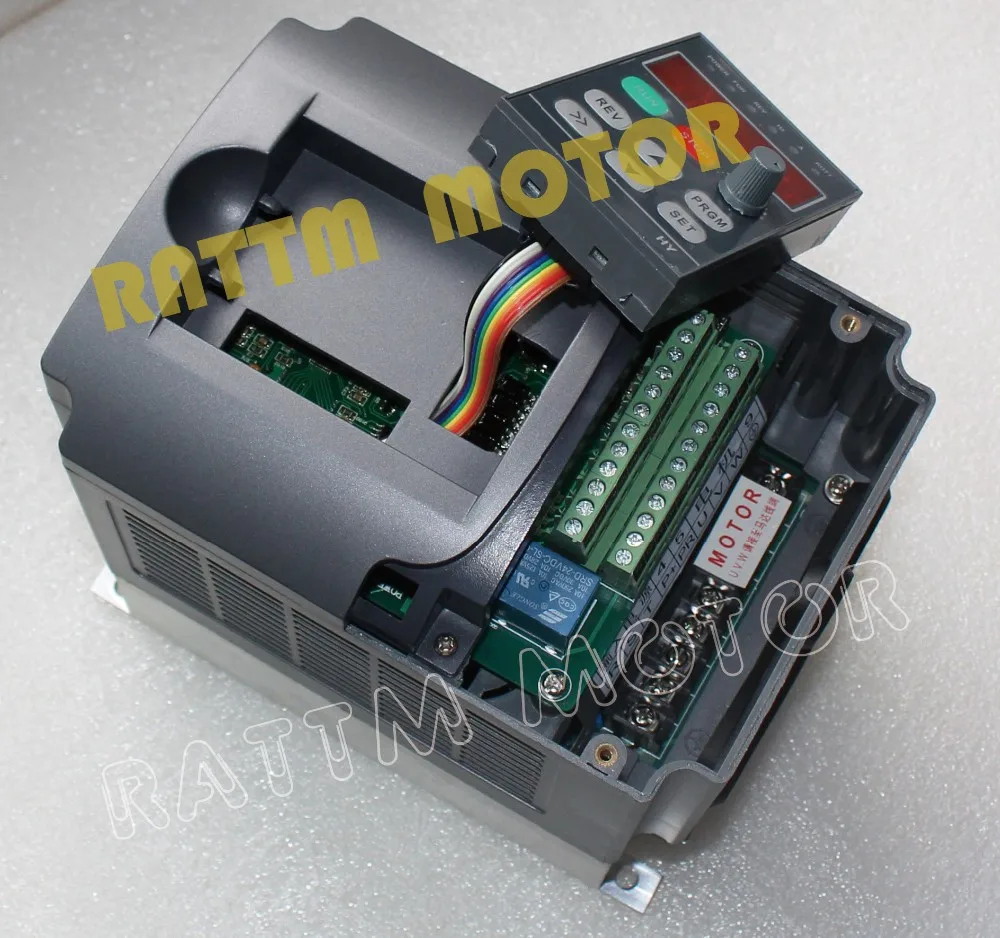

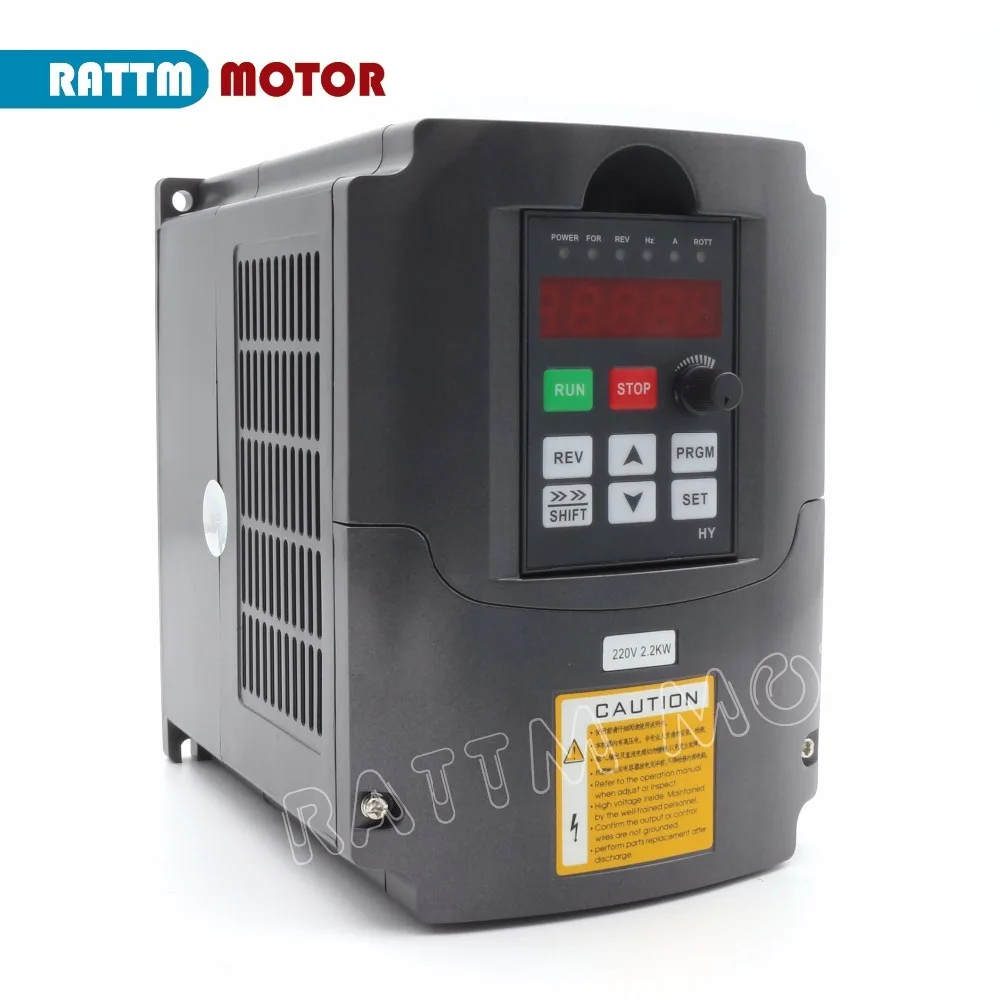

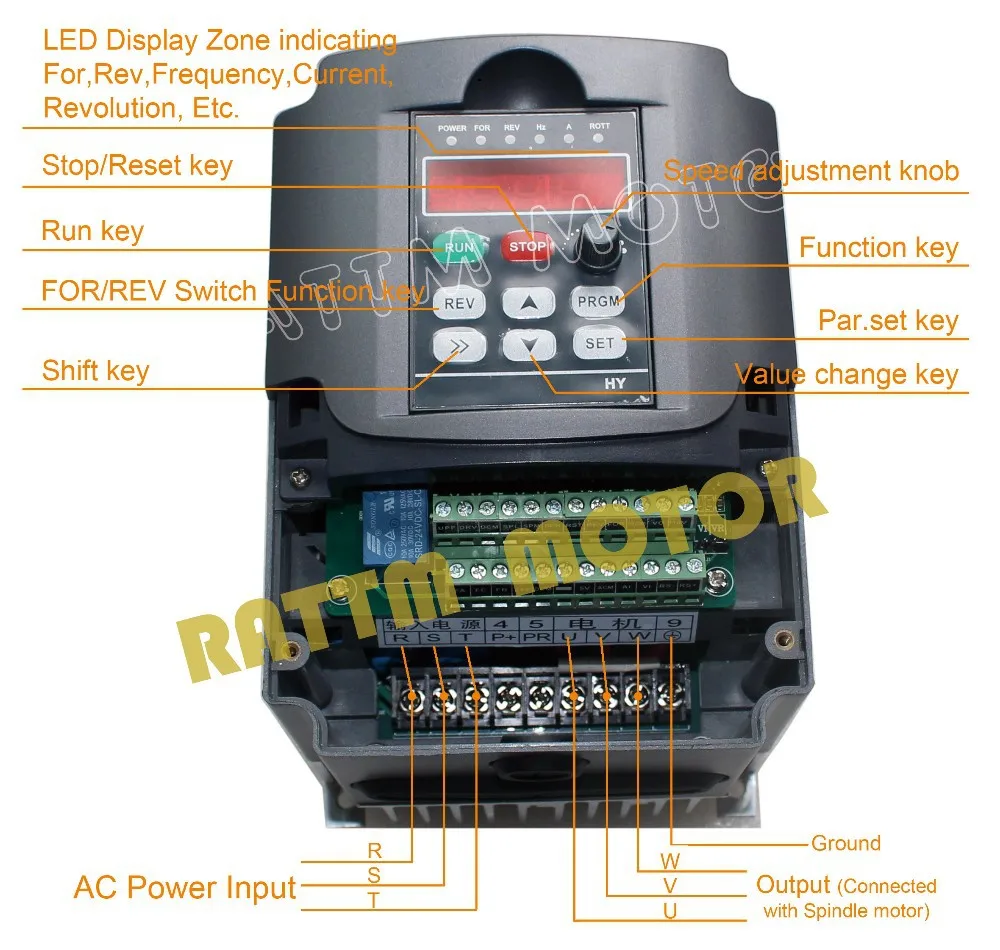

2 2.2kw Inverter VFD 220V

ProductFeature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various

control technique by both synchronization and non-synchronization,

dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

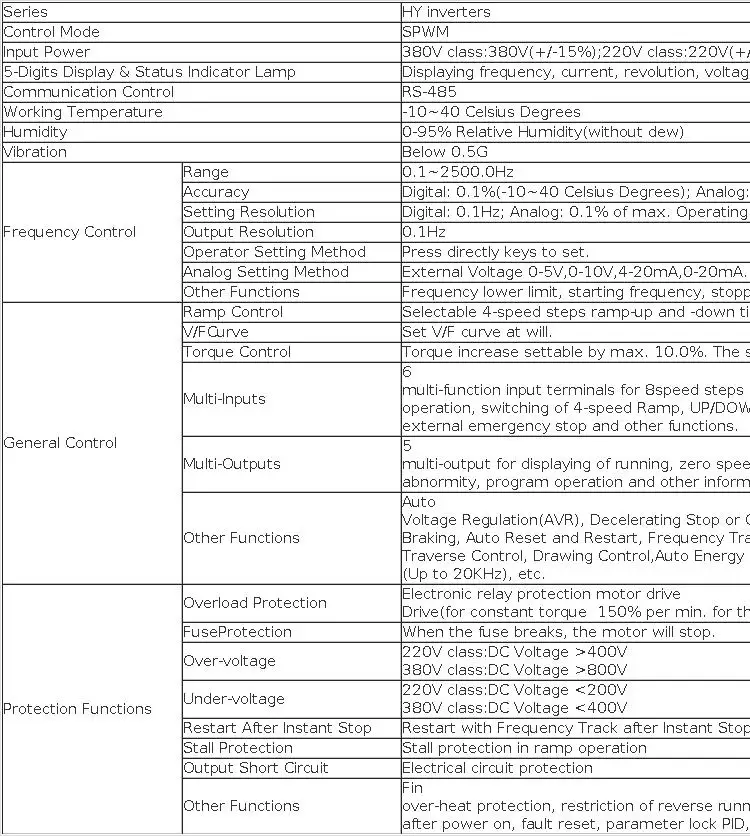

Tech parameters:

1) Input Voltage: 220V(+/-15%)

2) Output Voltage: 220V(+/-15%)

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7) Warranty: 1 year from the date you purchased

Specification

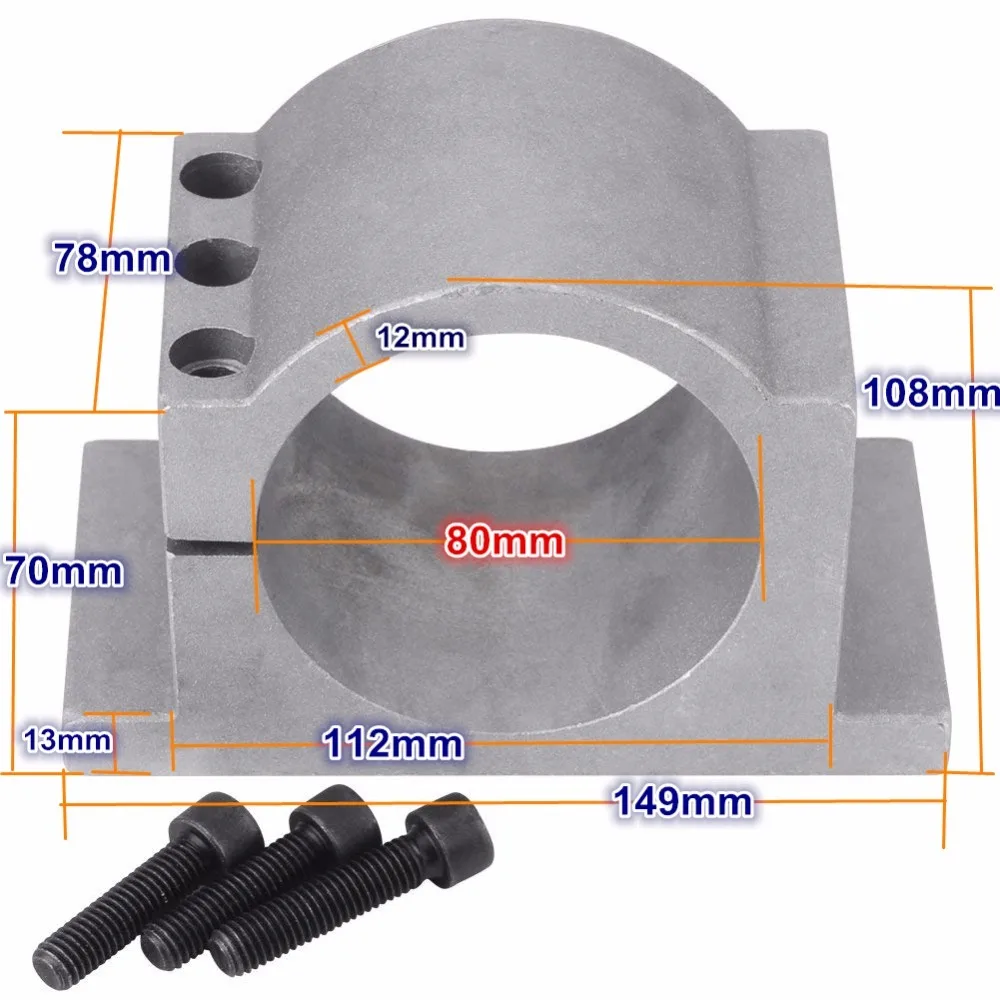

3.80mm cast aluminium bracket

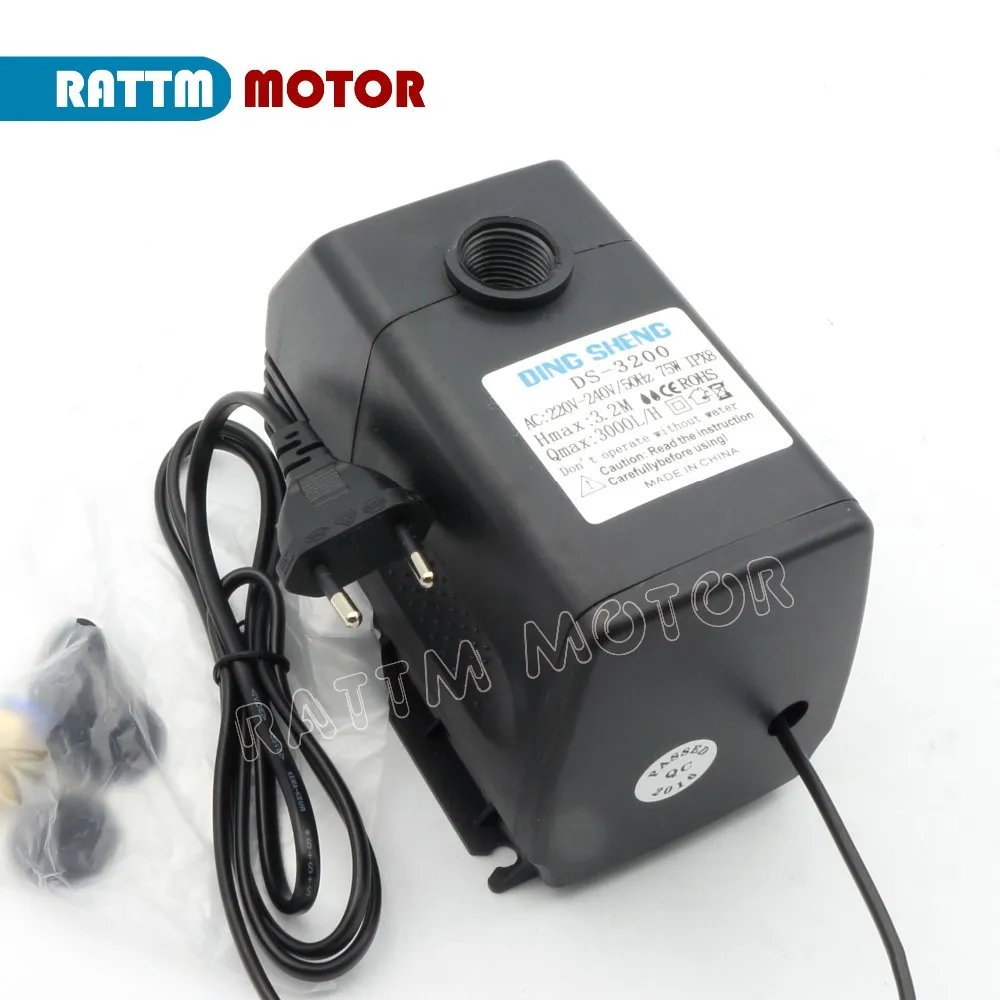

4. 75W CNC spindle motor water pump 3.2m 220VAC

Specification:

Pump length:3.2m

Voltage:220-240VAC

Power:75W

Flow:3000L/H

Size:150x80x140mm

Water nozzlediameter:6mm

Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

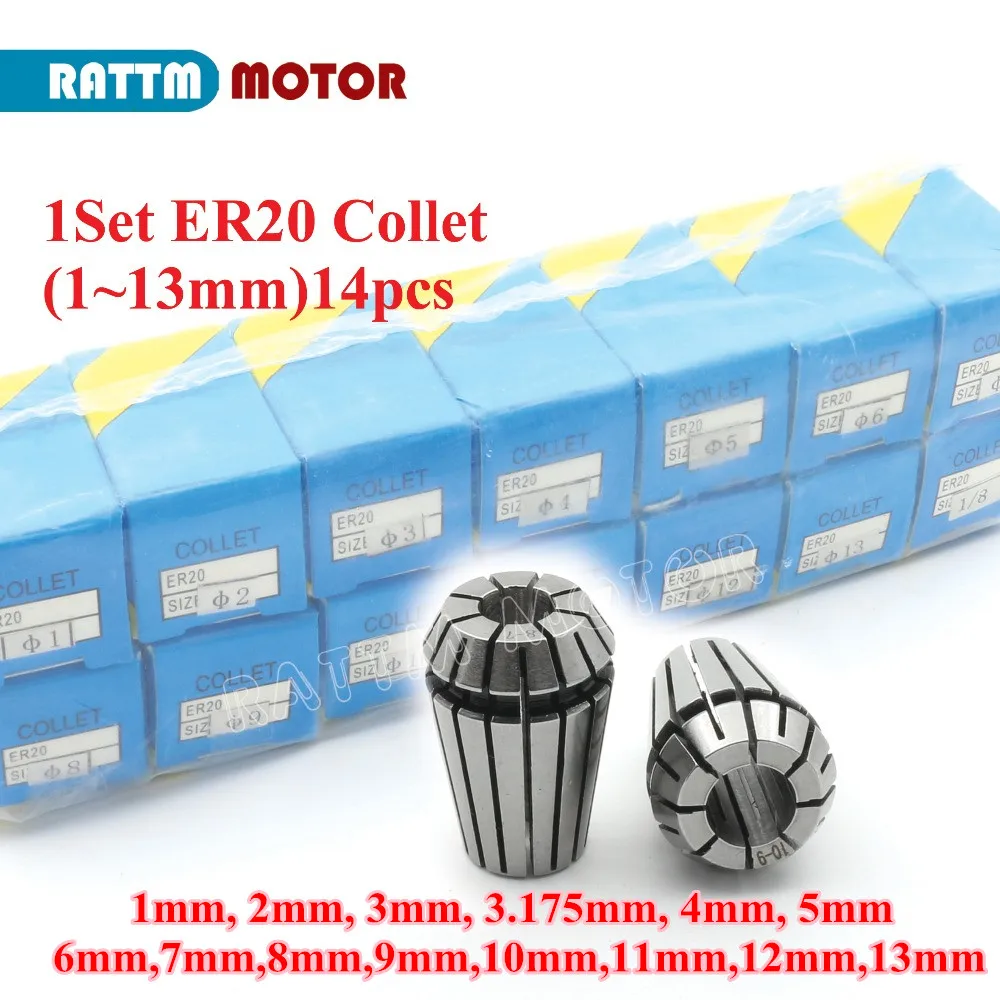

5.1 Set (1-13mm)14Pcs ER20 Collets
