YF325 Rugged Industrial WIFI VPN Router Dual Sim 4G LTE Router with Sim Card Slot for M2M/IOT

YF325 Series Industrial 3G 4G LTE WIFI VPN Router

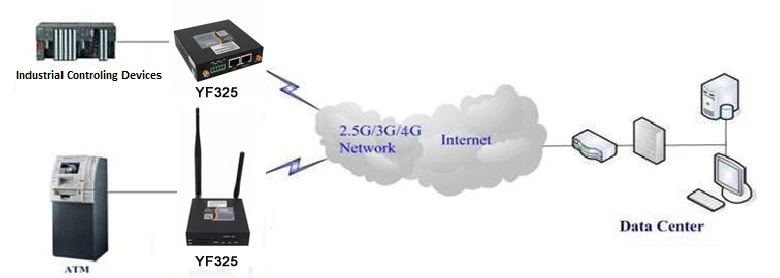

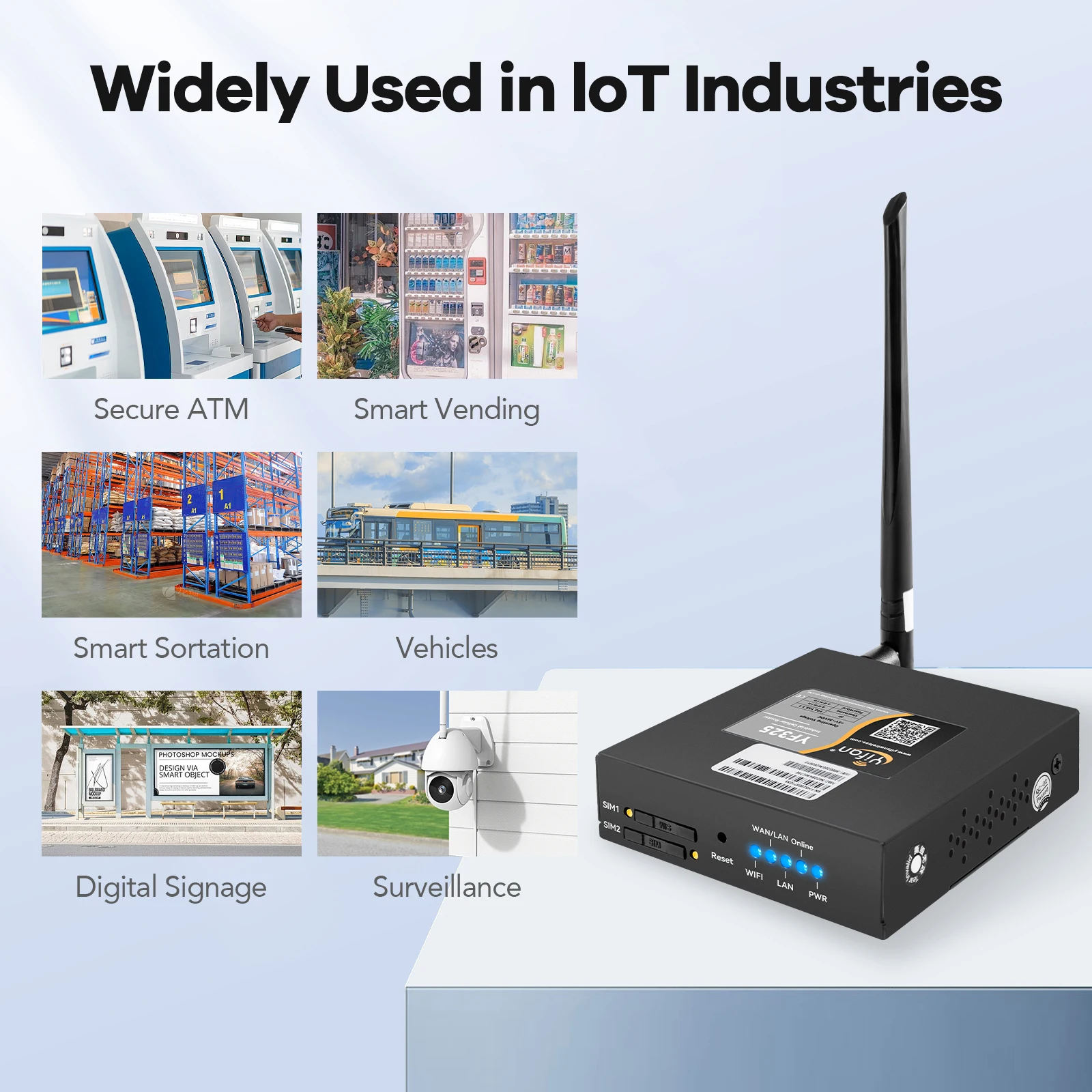

YF325 is a cost-effective industrial cellular router with embedded intelligent features that are designed for M2M/IoT applications. It is using public cellular network LTE/ WCDMA/EVDO/GPRS to provide long distance, wireless and large data transmission function for users. The product has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart manufacturing, smart home, and finance.

Support Bands :

Standard version:

Good to use in Asia,some of Africa countries

LTE FDD:B1/B3/B5/B8(2100/1800/850/900MHz)

LTE TDD:B38/B39/B40/B41(2600/1900/2300/2500MHz)

HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz

EV-DO: BC0 (800MHz)

CDMA 1x: BC0(800MHz)

EDGE/GPRS/GSM 1900/1800/900/850MHz

EU version:

Good to use in Asia, Europe, Africa,Australia,New Zealand, Brazil etc.

LTE FDD:B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700MHz)

LTE TDD:B38/B40/B41(2600/2300/2500MHz)

HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz

EDGE/GPRS/GSM 1900/1800/900/850MHz

America version:

Good to use in North America, South America etc.

LTE FDD:B1/2/B3/B4/B5/B7/B8/B28(2100/1900/1800/1700/850/2600/900/700MHz)

TDD: B40

HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz

EDGE/GPRS/GSM 1900/1800/900/850MHz

US Full Band version:

Good to use in North America etc.

LTE FDD:B2/B4/B5/B12/B13/B17/B66/B71

HSPA+/HSUPA/HSDPA/WCDMA/UMTS: Band 2,4,5

EDGE/GPRS/GSM 1900/1800/900/850MHz

Bandwidth :

FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps

TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps

DC-HSPA+: Downstream rate 42Mbps, uplink rate 5.76 Mbps

HSPA+: Downstream rate 21Mbps, uplink rate 5.76 Mbps

UMTS: 384Kbps

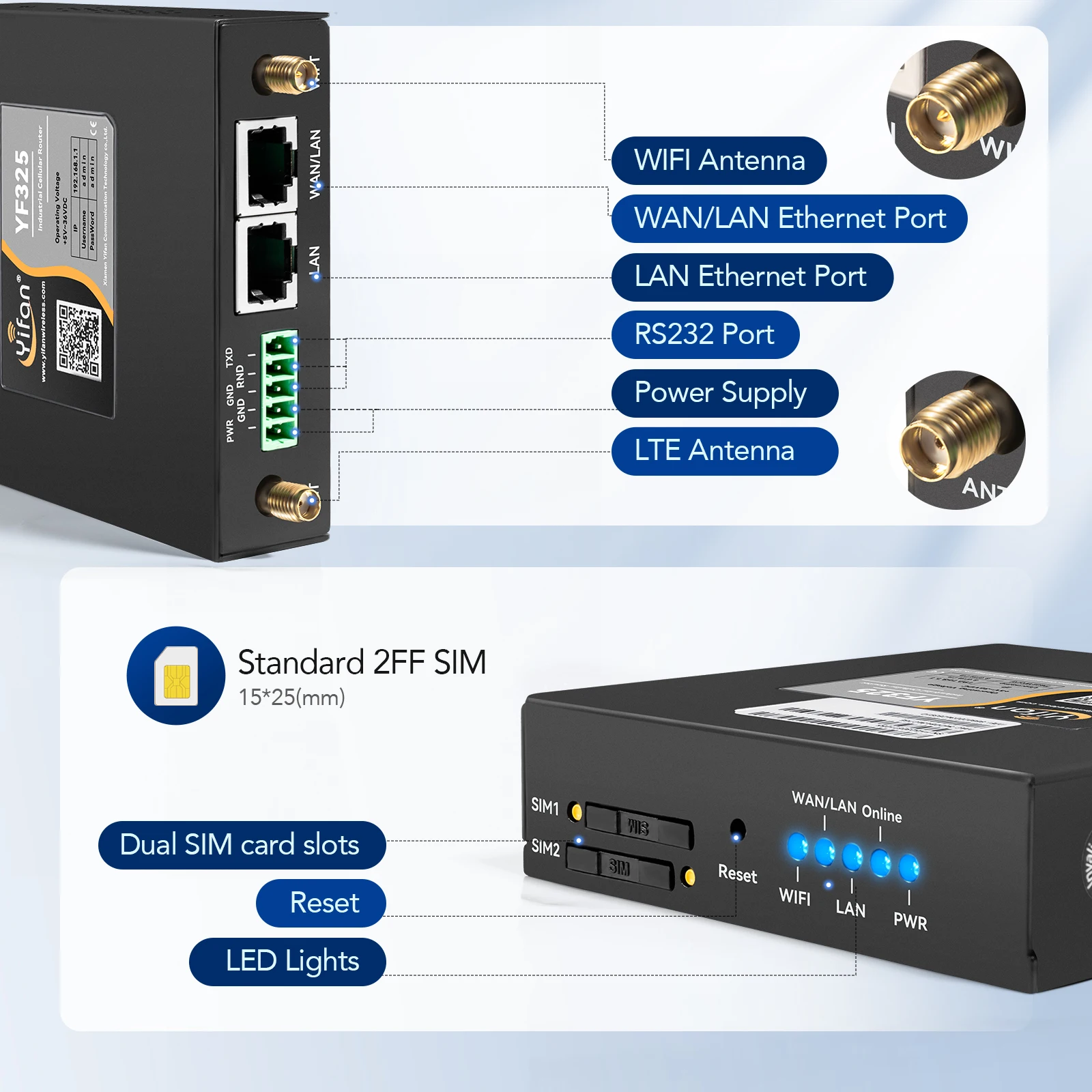

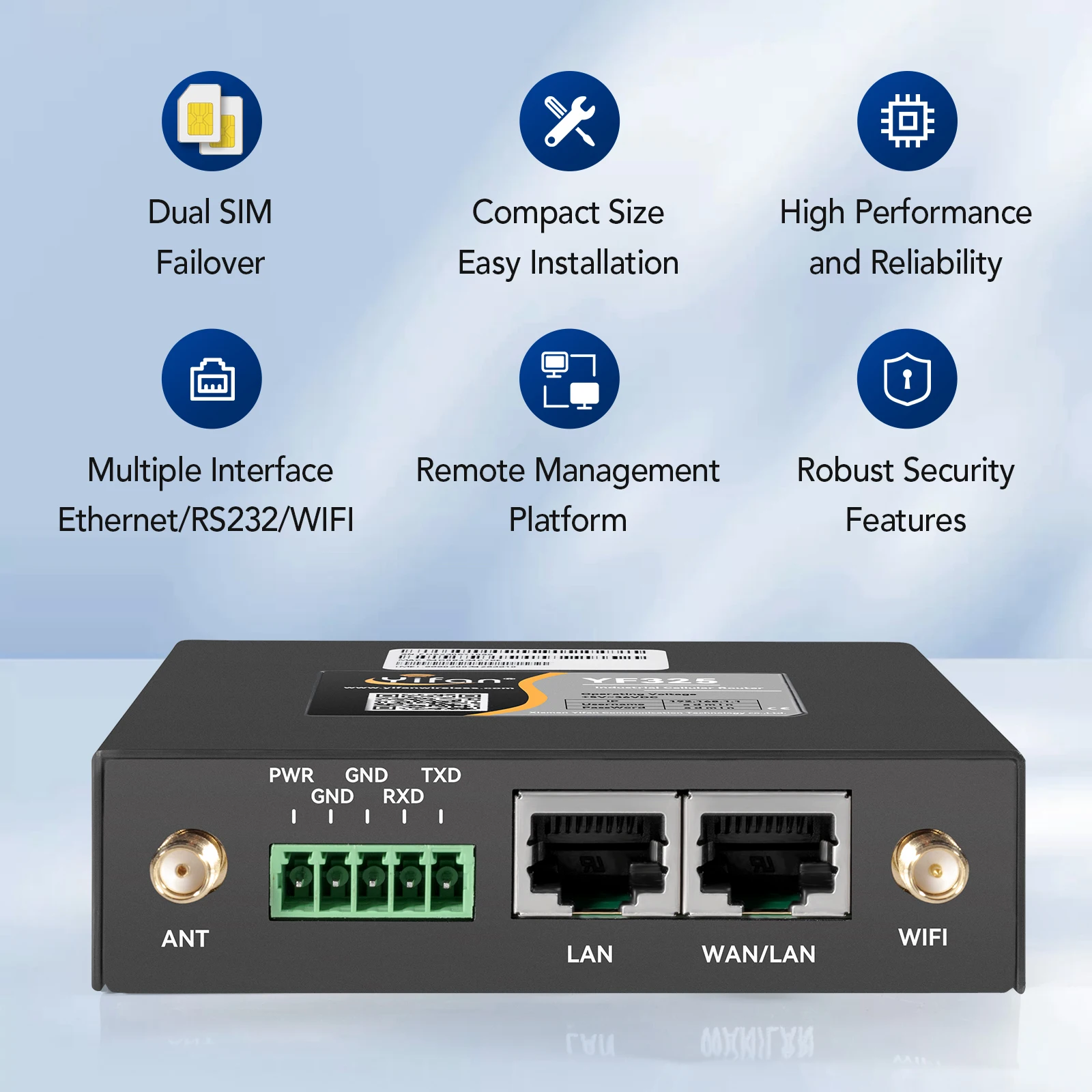

Interface:

Wan/Lan: 1* 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection

Lan:         1 *10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection

Serial:      1* RS232 port

Functions:

1. Support multiple WAN access methods,including static IP, DHCP，PPPOE，3G/UMTS/4G/LTE，DHCP-4G.

2. Support double link backup between LTE&WCDMA and WAN(PPPOE, ADSL)(optional)

3. SupportVPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)

4. SupportVPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)

5. Support local and remote firmware upgrade, import and export configure file.

6. WIFI support 802.11b/g/n. support AP, client, Repeater, Repeater Bridge mode.

7.  WIFI support WEP,WPA,WPA2 encryption,

8. Support MAC address filter.

9.  Support multiple online trigger ways,including SMS, ring and data. Support link disconnection when timeout

10. Support APN/VPDN

11. Support DHCP server and client, firewall, NAT, DMZ host , URL block, QOS, traffic, statistics, real time link speed statistics etc.

12. Full protocol support, such as TCP/IP, UDP, ICMP, SMTP (optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc.

13. Schedule Reboot, Schedule Online and Offline, etc.

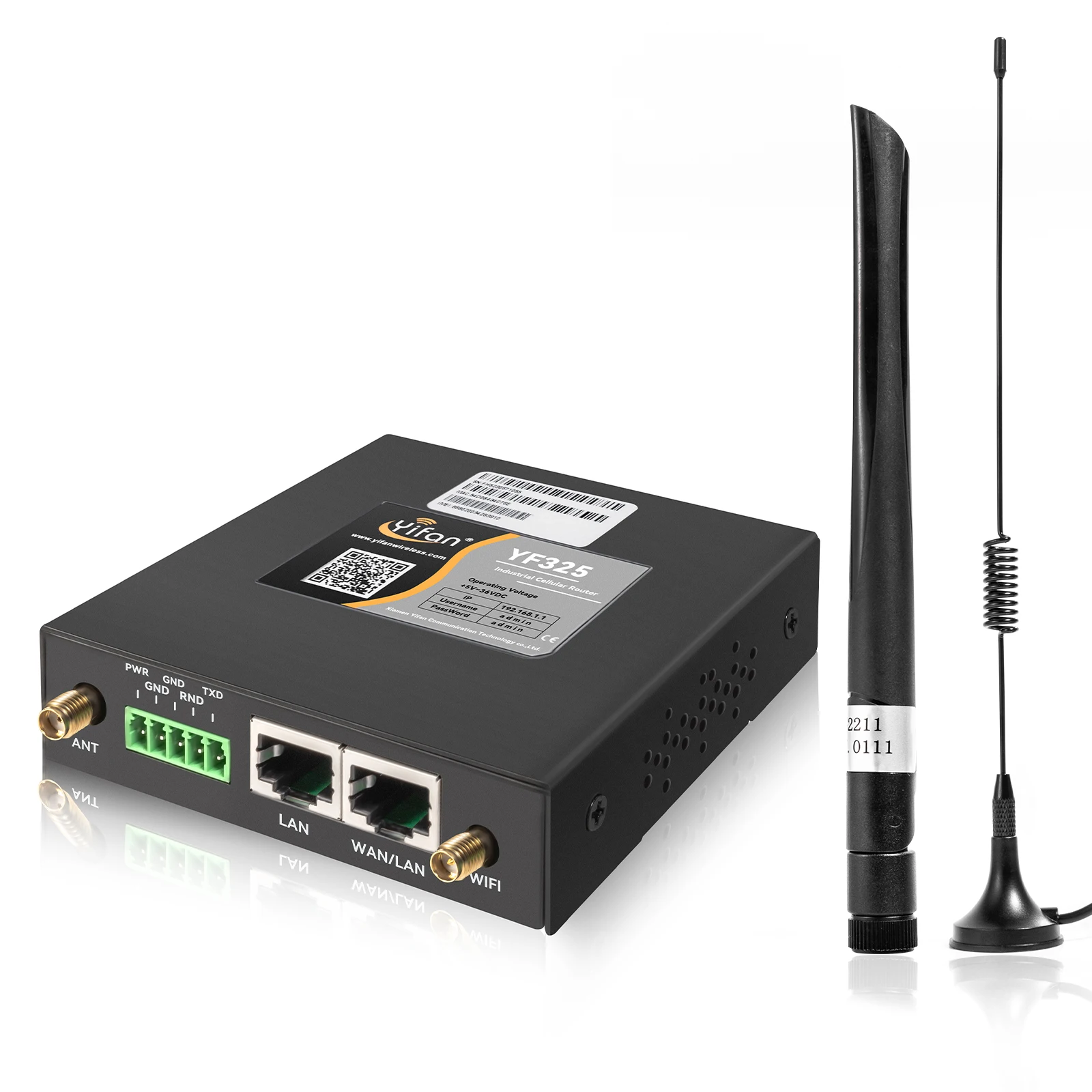

Product Show
