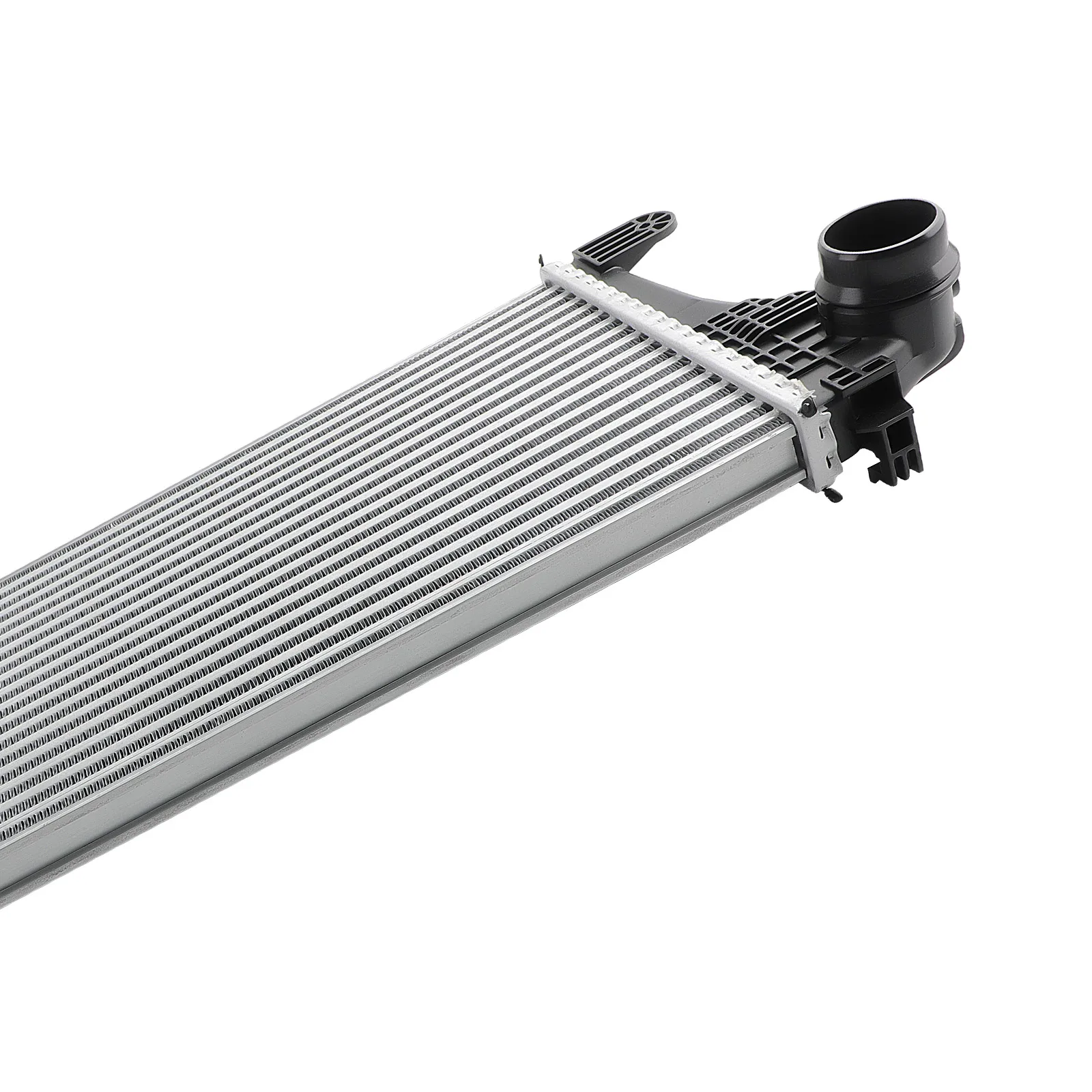

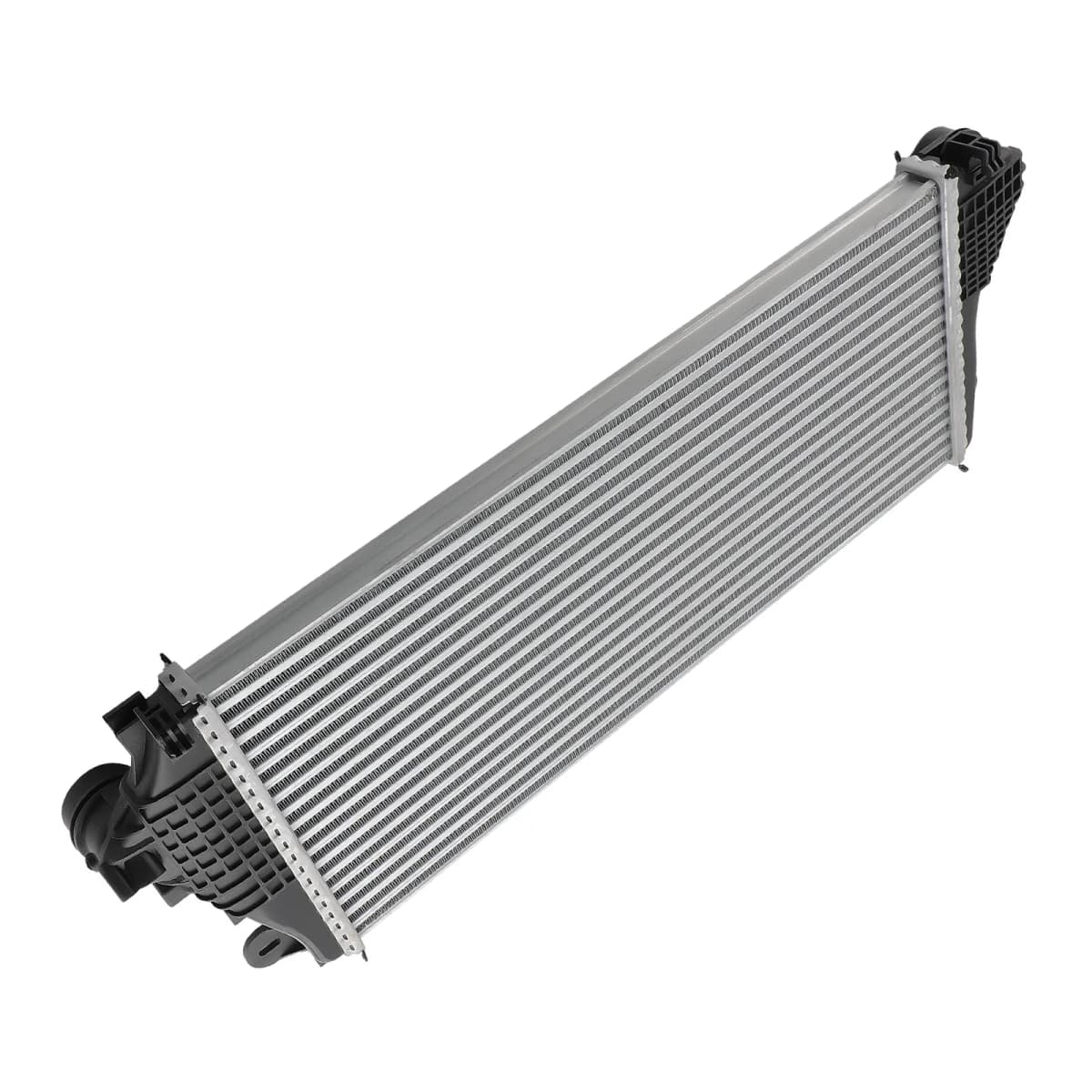

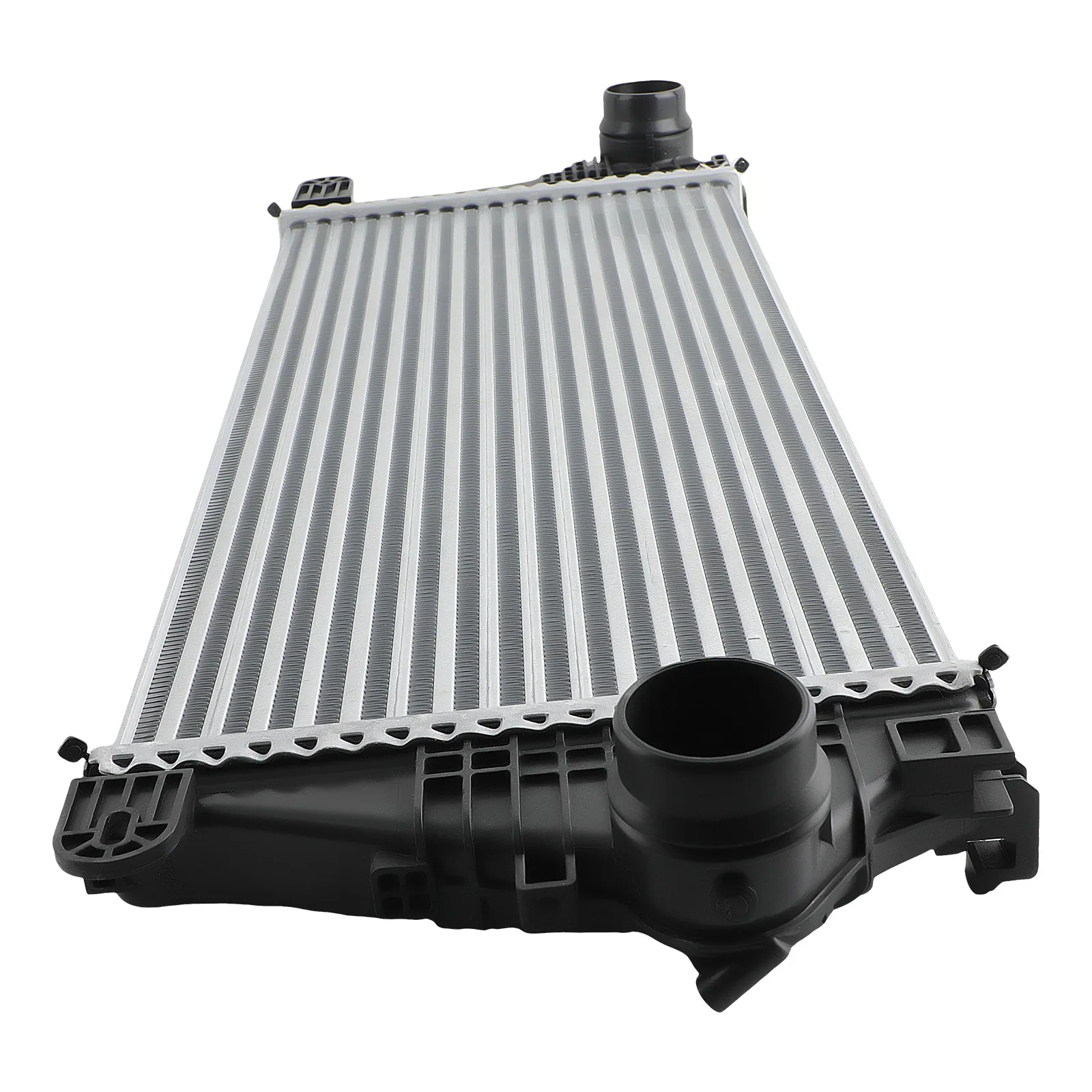

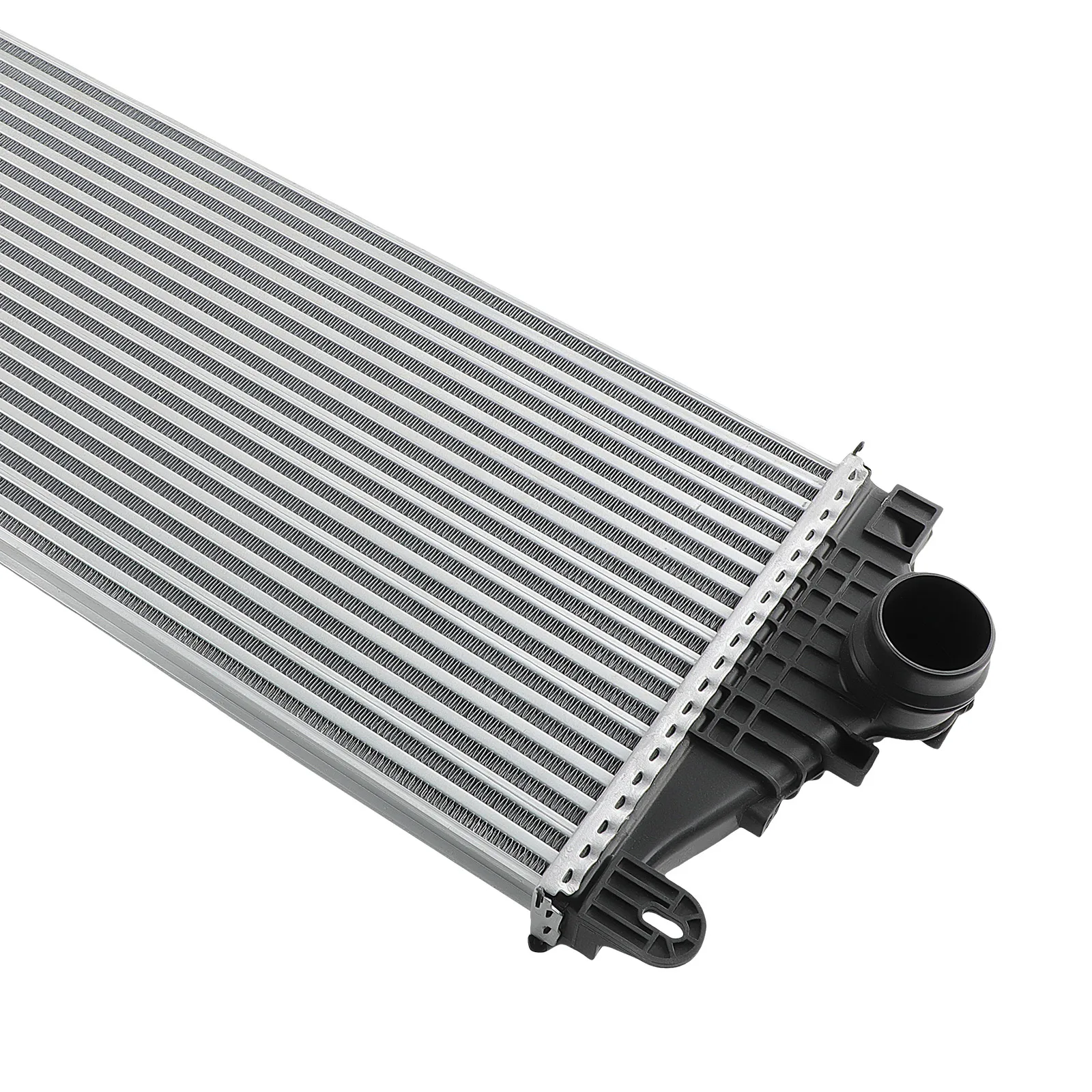

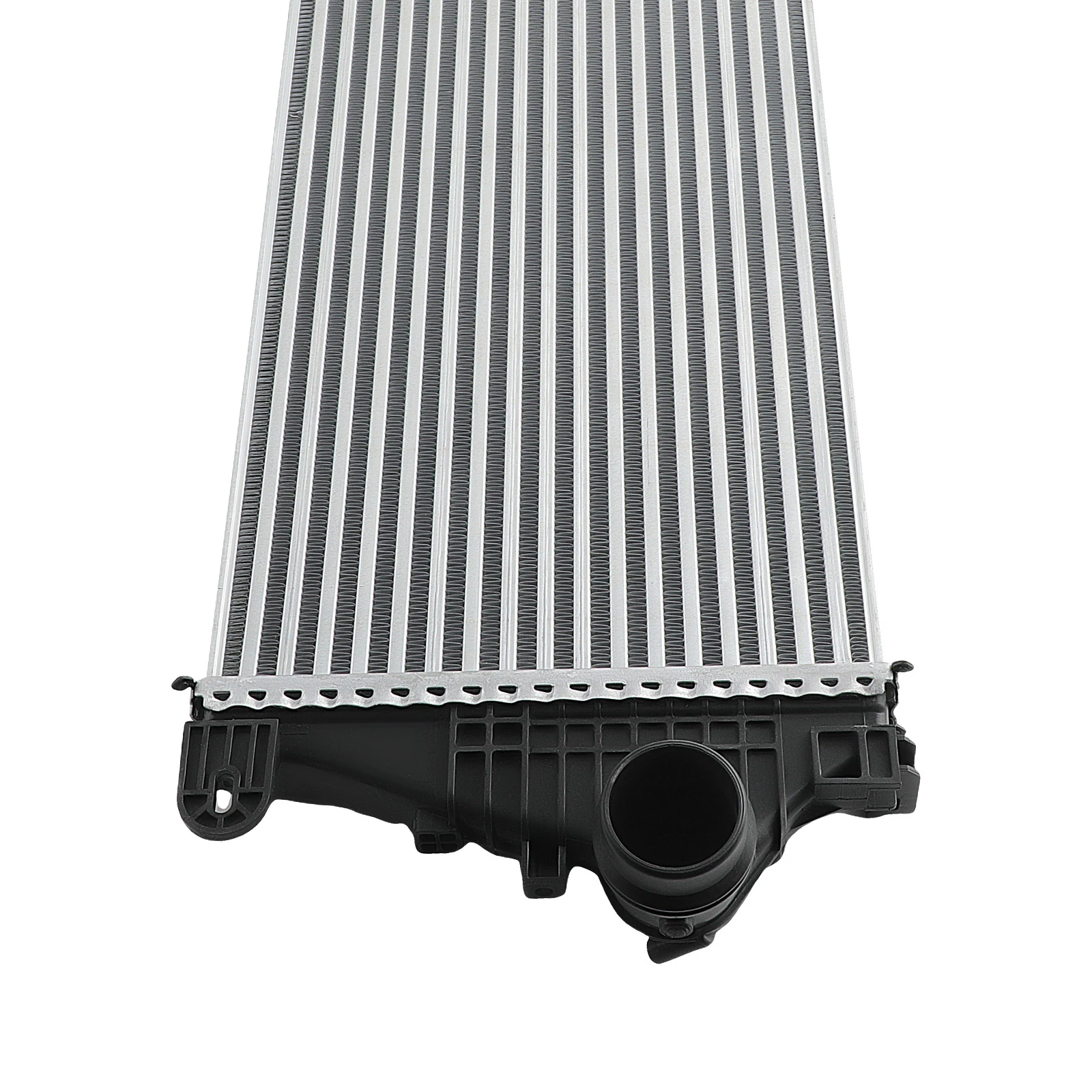

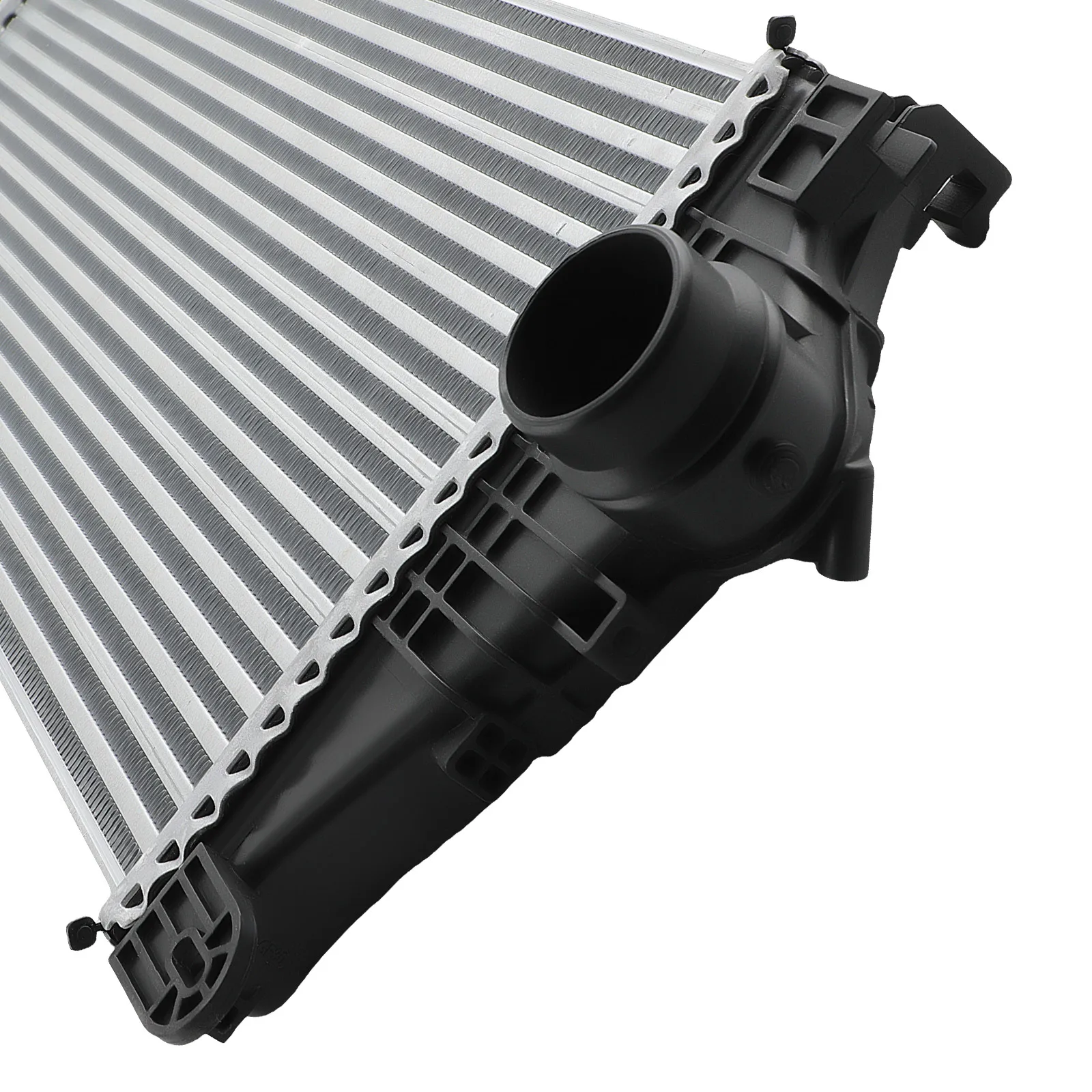

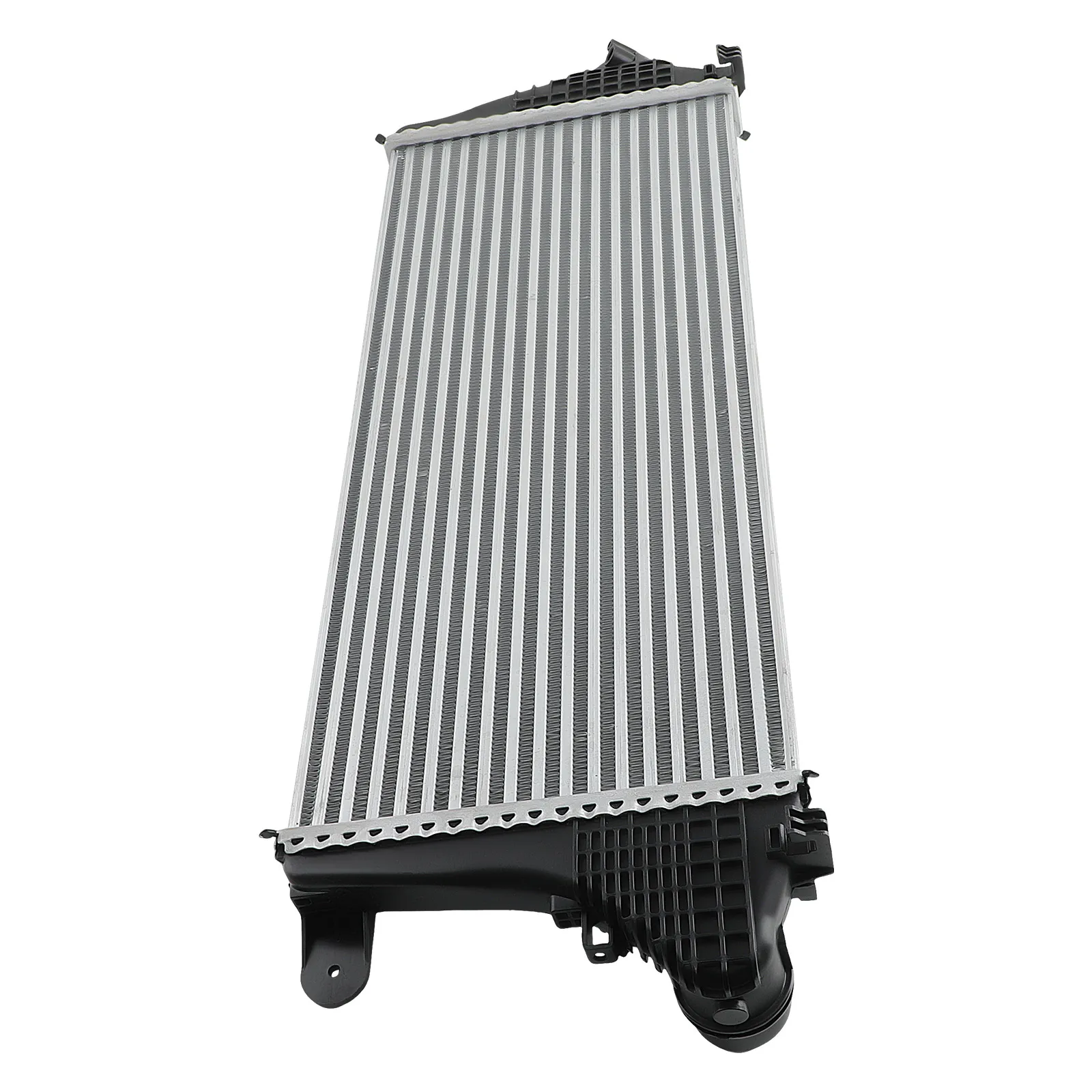

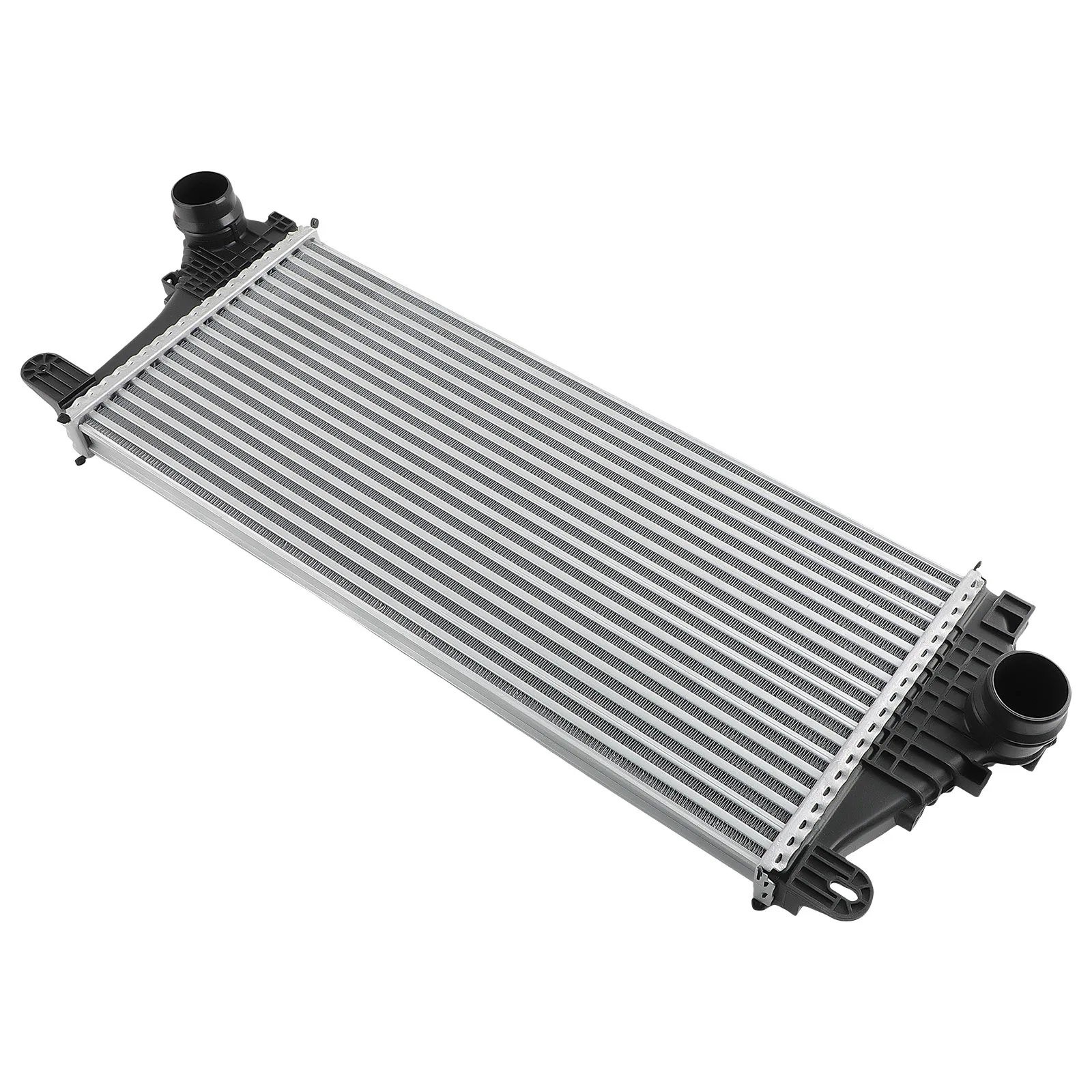

Intercooler Turbo Cooler for Chevrolet Malibu 1.5L L4 Turbocharged 2016-2021 23336337

Intercooler Turbo Cooler for Chevy Malibu 1.5L L4 Turbocharged 2016-21 23336319

Application:

For Chevy Malibu 1.5L L4 Turbocharged 2016-2021

Part Number:

18077, 23336319, 23336337, 317-01114, 4401-1219, 84493634, CAC010161

Specification:

Type: Intercooler

Material: Aluminum, Plastic

Cooling Type: Air-cooled

Engine Type: Turbocharged

Flow Configuration: Crossflow

Core Size: 26.22" x 11.2" x 1.26"

Core Length (IN): 26.22

Core Height (IN): 11.2

Core Thickness (IN): 1.26

Inlet Diameter (IN): 2.2

Outlet Diameter (IN): 2.2

Placement on Vehicle: Front

Condition: 100% Brand New

Warranty: 2 Years for any manufacture defects

Features:

1. Helps to reduce the intake air temperature of the engine.

2. Rugged aluminum core ensures durability while providing excellent heat transfer performance.

3. Compact tube and fin structure ensures better air flow and larger surfaces for increased heat exchange and improved heat dissipation efficiency.

4. Plastic tank is equipped with reinforced inner crossbars, reinforced inlets and outlets, and specially designed side panels to resist the stresses caused by high temperatures and mechanical tension.

5. Perfect fit and easy installation.

Installation Notes:

1. Align the installation holes with the fixed positions and use standard bolts for fastening.

2. When connecting the inlet and outlet ports with the engine hoses, they should be tight and there should be no air leakage.

3. Fix the pipelines and pipelines, and complete the installation.
